2303 Series Steel, MOD 0.8 Pinion Gear (8mm REX™ Bore, 20 Tooth)

2303 Series Steel, MOD 0.8 Pinion Gear (8mm REX™ Bore, 20 Tooth)

goBILDA parts we stock are ready to ship, otherwise with a 10-day lead time

SKU: GB-2303-4008-0020

Regular price $17.00 AUD
Regular price Sale price $17.00 AUD
Sale Sold out
View full details

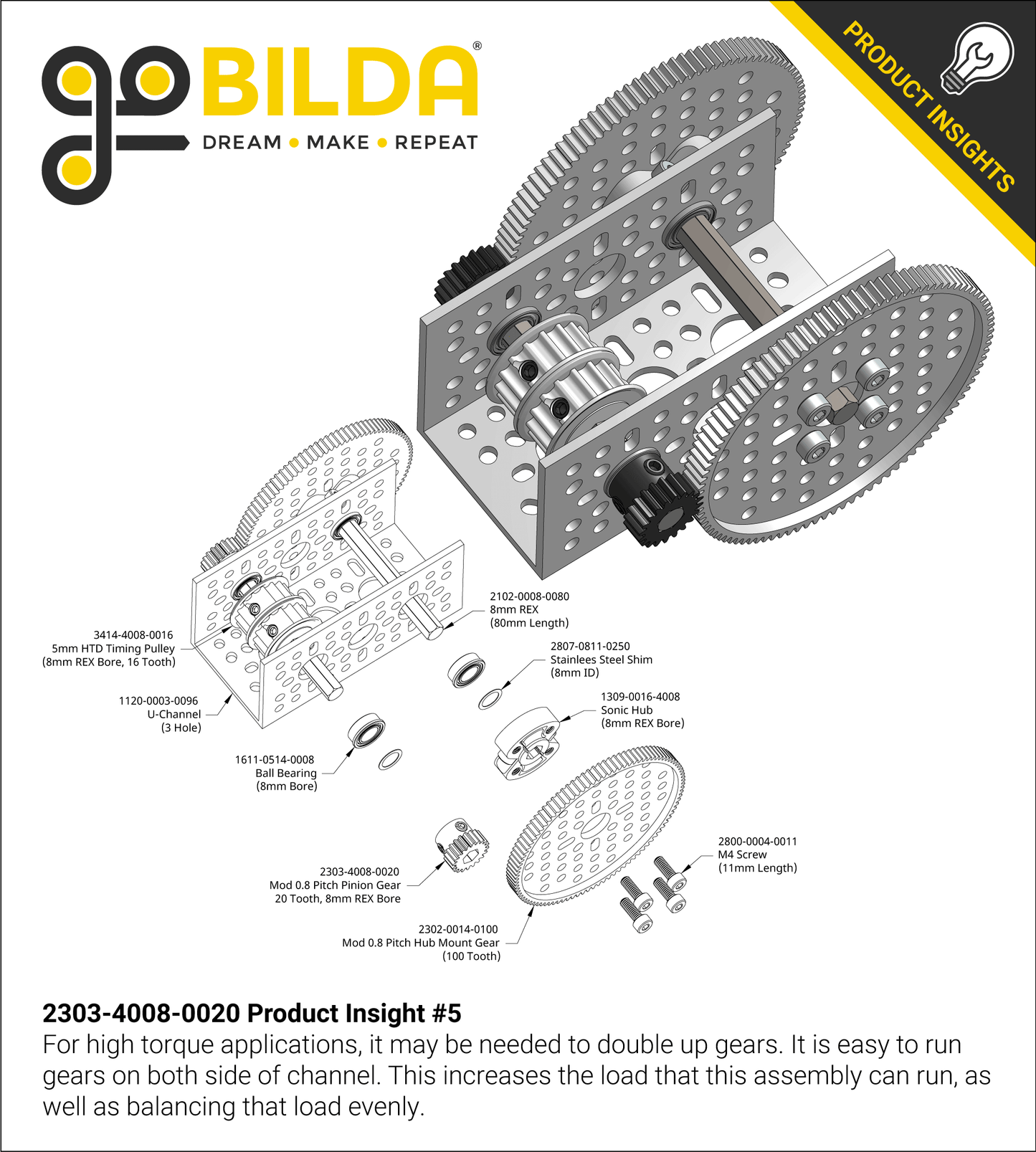

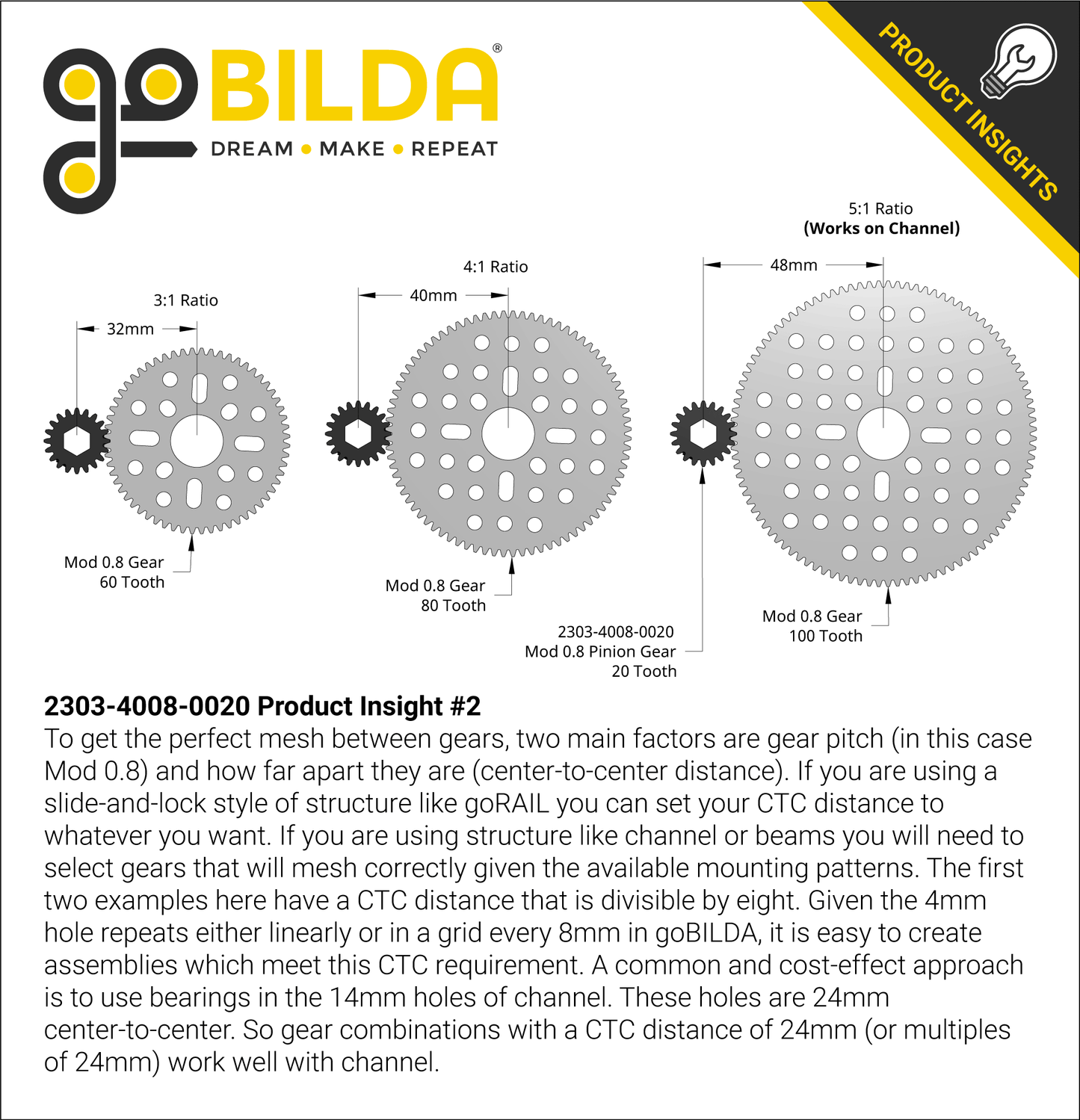

This 20 tooth 8mm REX™ bore pinion gear is ready to rip!  The bore perfectly matches our 8mm REX™ shafting to create a positive drive.  While little work is left for the set screws, we put two of them in for good measure.  This particular gear is most commonly mated to a 100 tooth hub gear in order to create a 5:1 ratio however if your build provides the freedom to adjust the spacing between your gears, it’s able to mesh to any MOD 0.8 gear that suits your fancy.

Specs

Weight 14g
Material Steel
Finish Black Zinc-Plated
Tooth Count 20
Gear Pitch MOD 0.8
Pressure Angle 20 Degree
