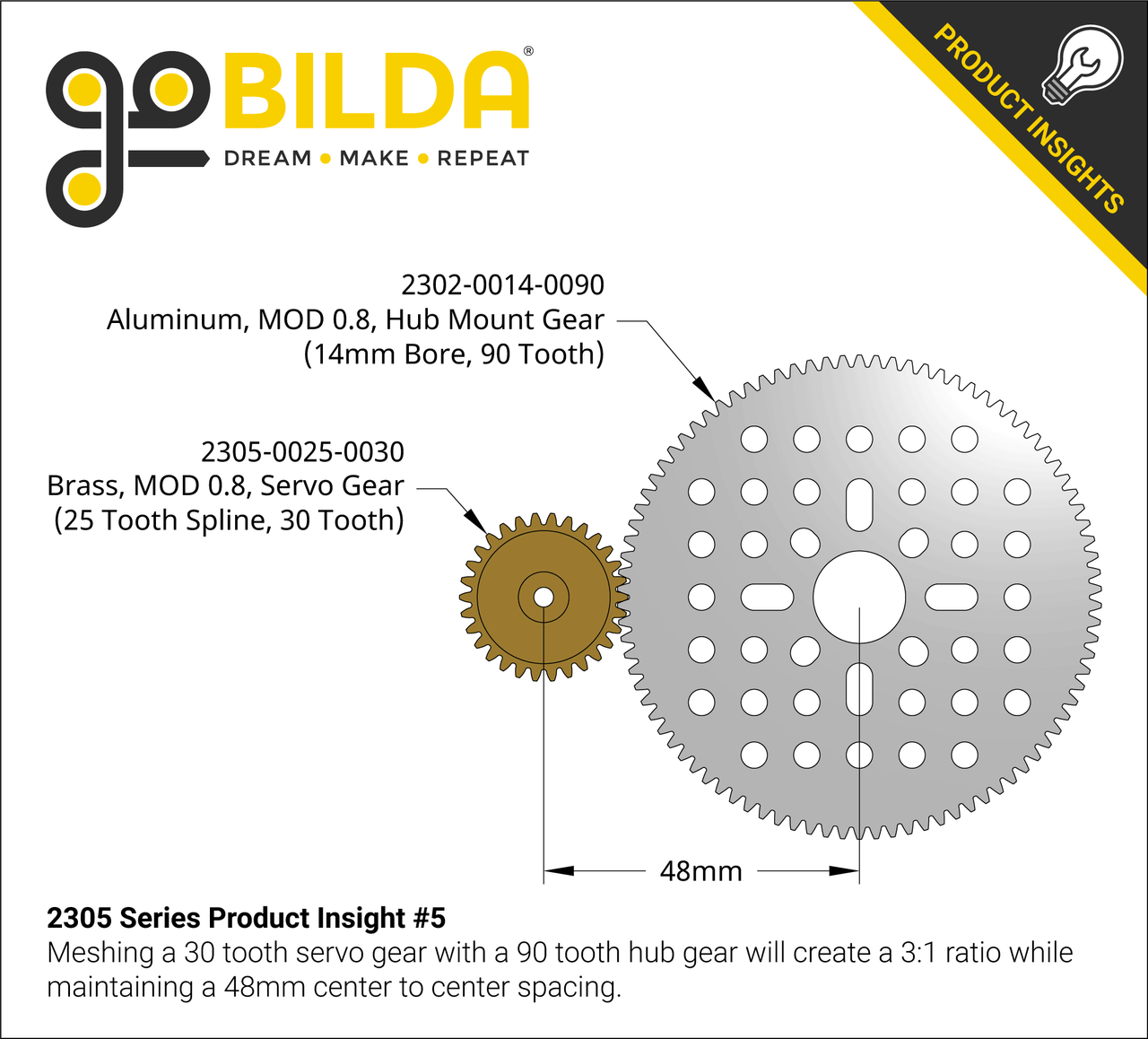

This 30 tooth servo gear is most commonly used to drive the 90 tooth hub gear, spaced 48mm away, in order to create a 3:1 ratio. This gear reduction will increase the torque at the hub gear to 3x what the servo produces. This gear may also be used to drive a 30 tooth pinion gear spaced 24mm away for a 1:1 ratio.

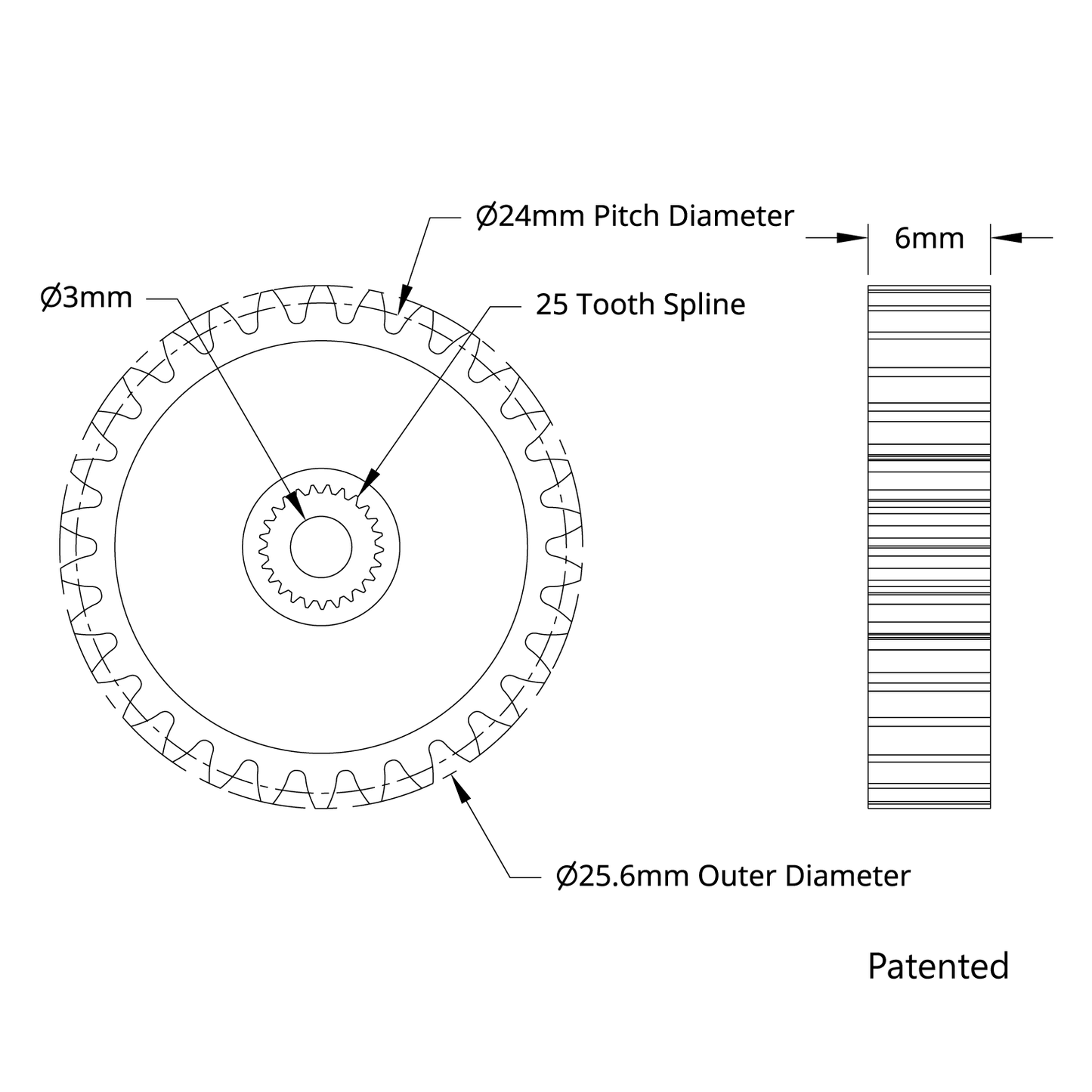

Specs
| Weight | 11g |
|---|---|
| Material | Brass |
| Tooth Count | 30 |
| Gear Pitch | MOD 0.8 |
| Pressure Angle | 20 Degree |
| IP | Patented |
