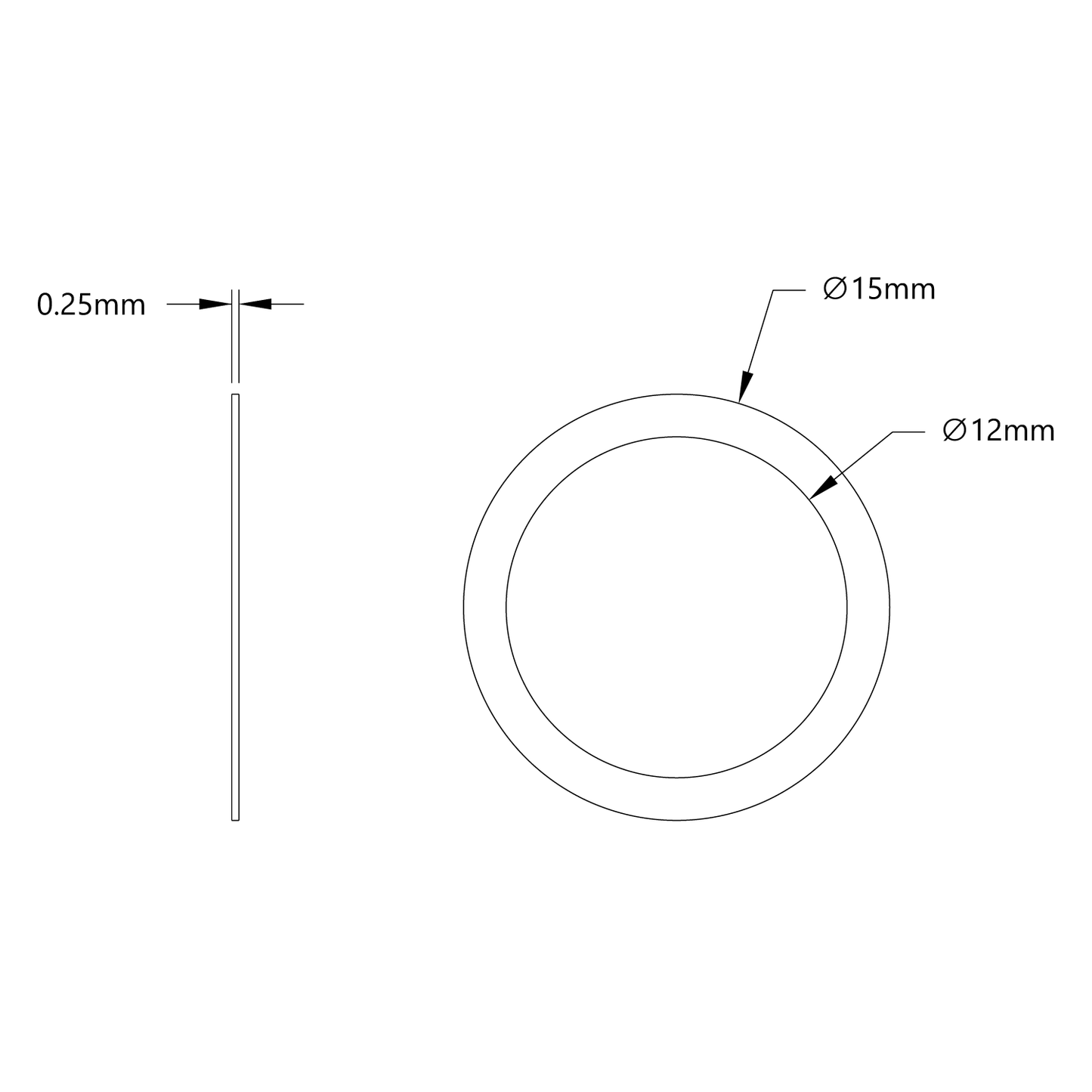

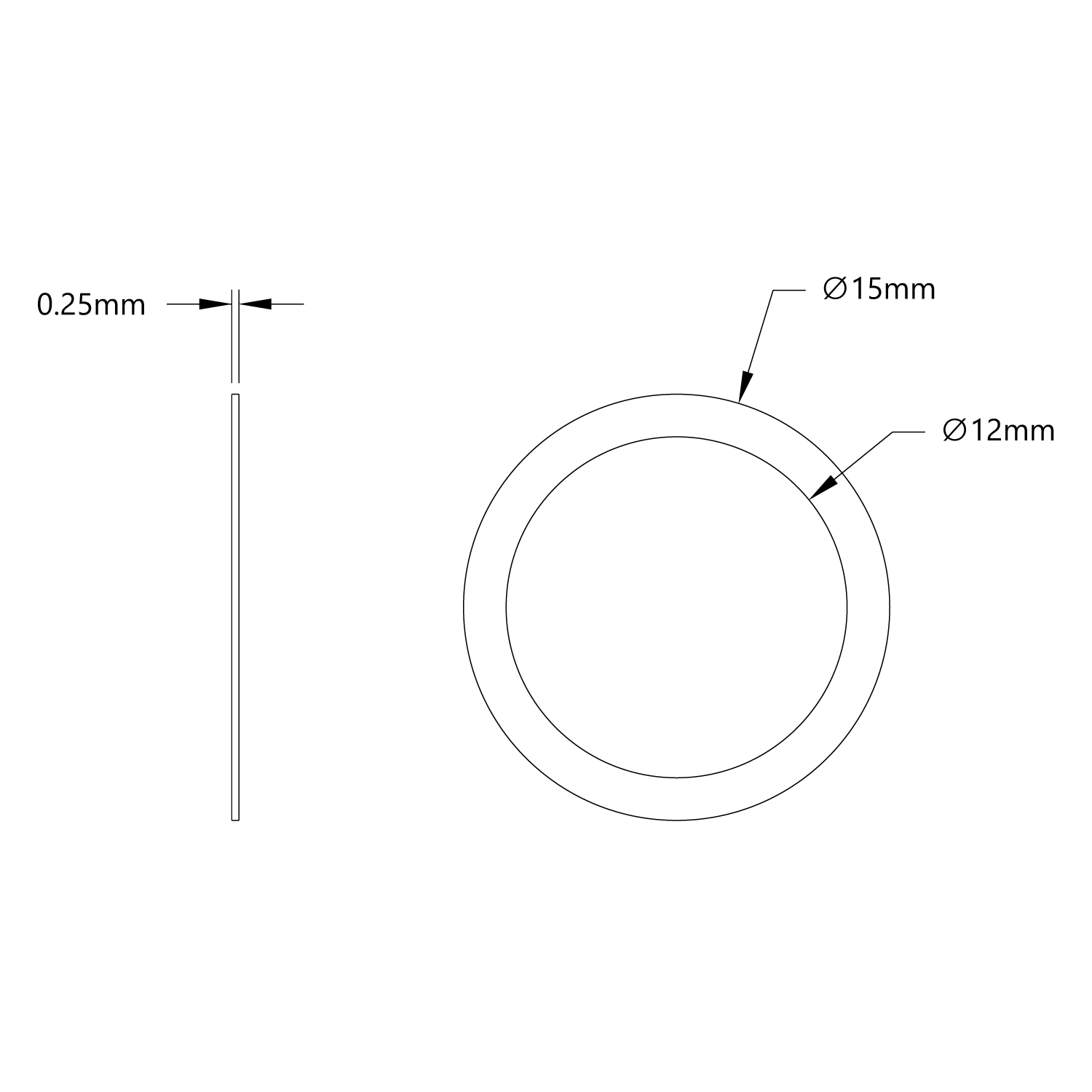

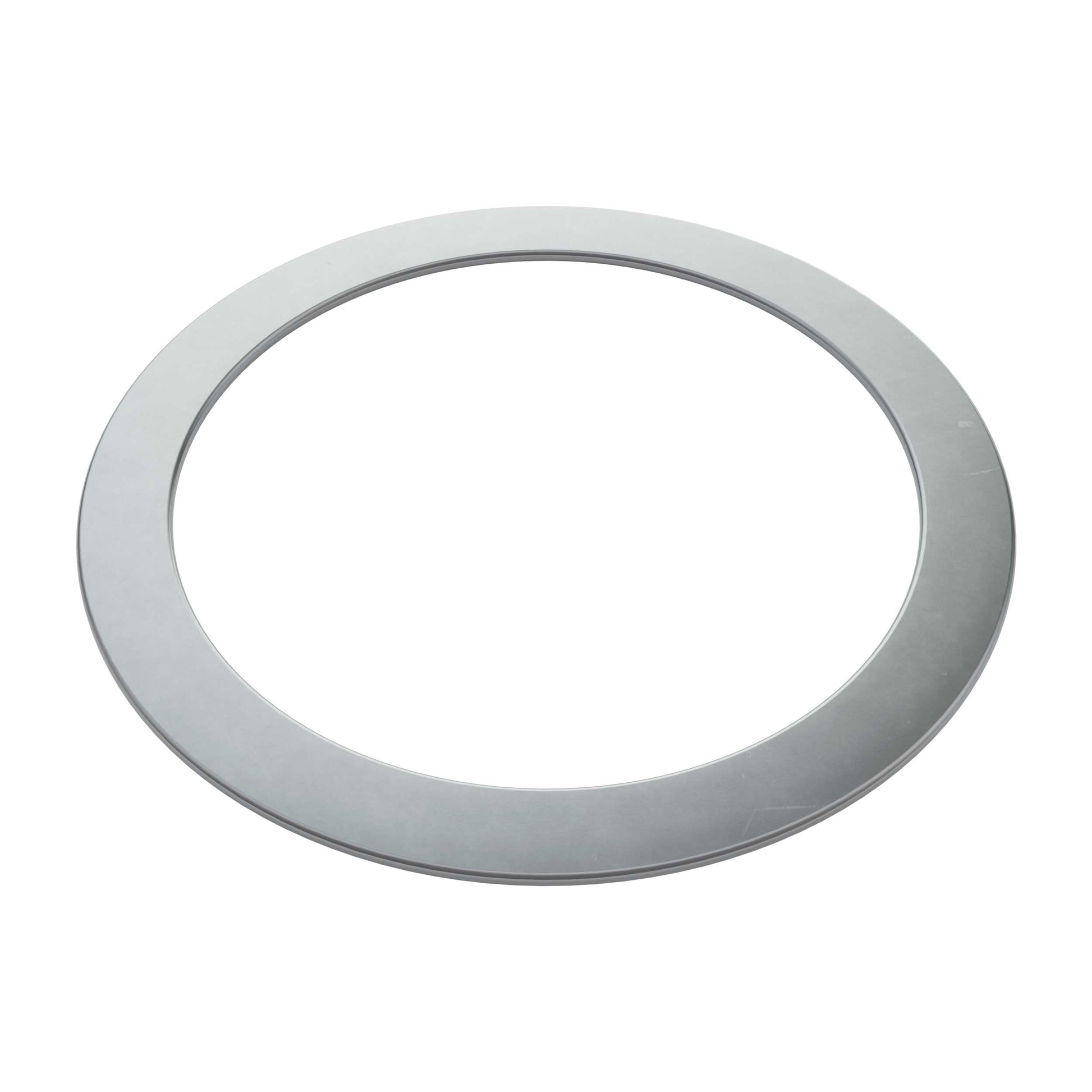

2807 Series Stainless Steel Shim (12mm ID x 15mm OD, 0.25mm Thickness) - 12 Pack

2807 Series Stainless Steel Shim (12mm ID x 15mm OD, 0.25mm Thickness) - 12 Pack

goBILDA parts we stock are ready to ship, otherwise with a 10-day lead time

SKU: GB-2807-1215-0250

Regular price $5.00 AUD
Regular price Sale price $5.00 AUD
Sale Sold out
View full details

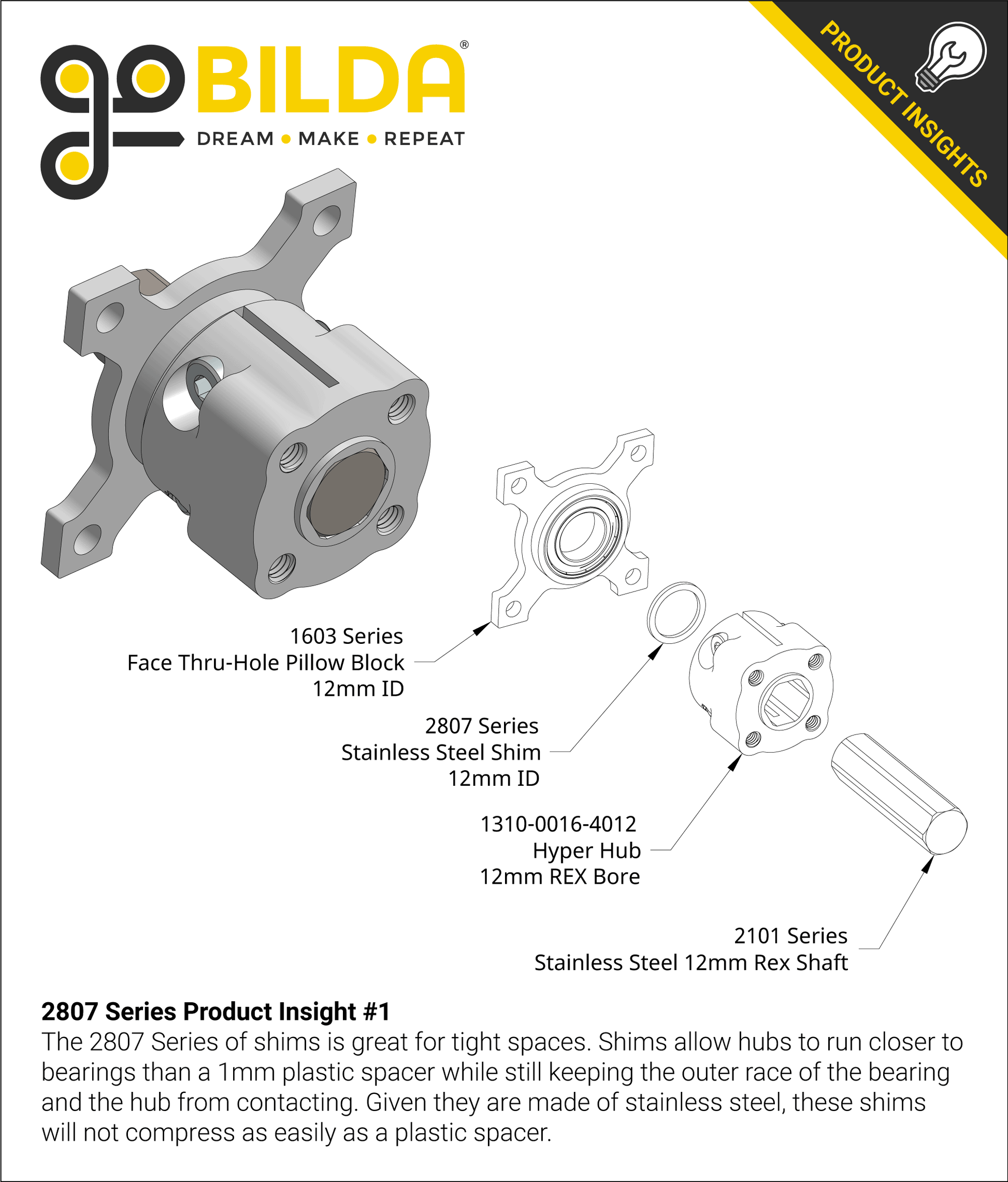

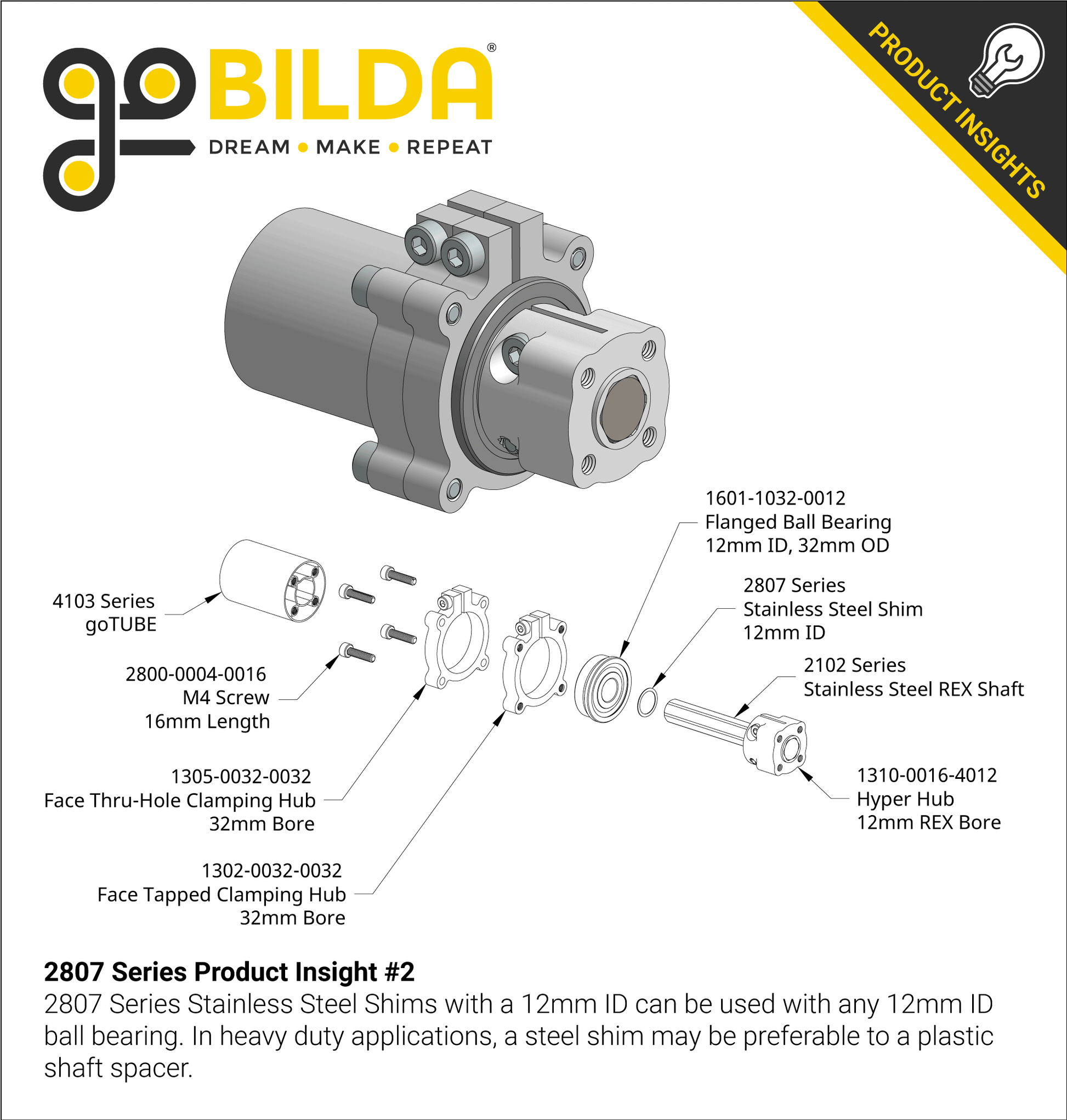

These 0.25mm thick stainless shims are intended to provide a small amount of necessary space between a 12mm bearing, and the next component in your assembly.  Since the inner race and outer race of most bearings share the same thickness, there’s potential for an item that extends over the outer race to scrape as it rotates.  By adding a shim, that part can rest against the shim and rotate freely without contacting the outer race.

Specs

Weight 0.13g Each
Material Stainless Steel
