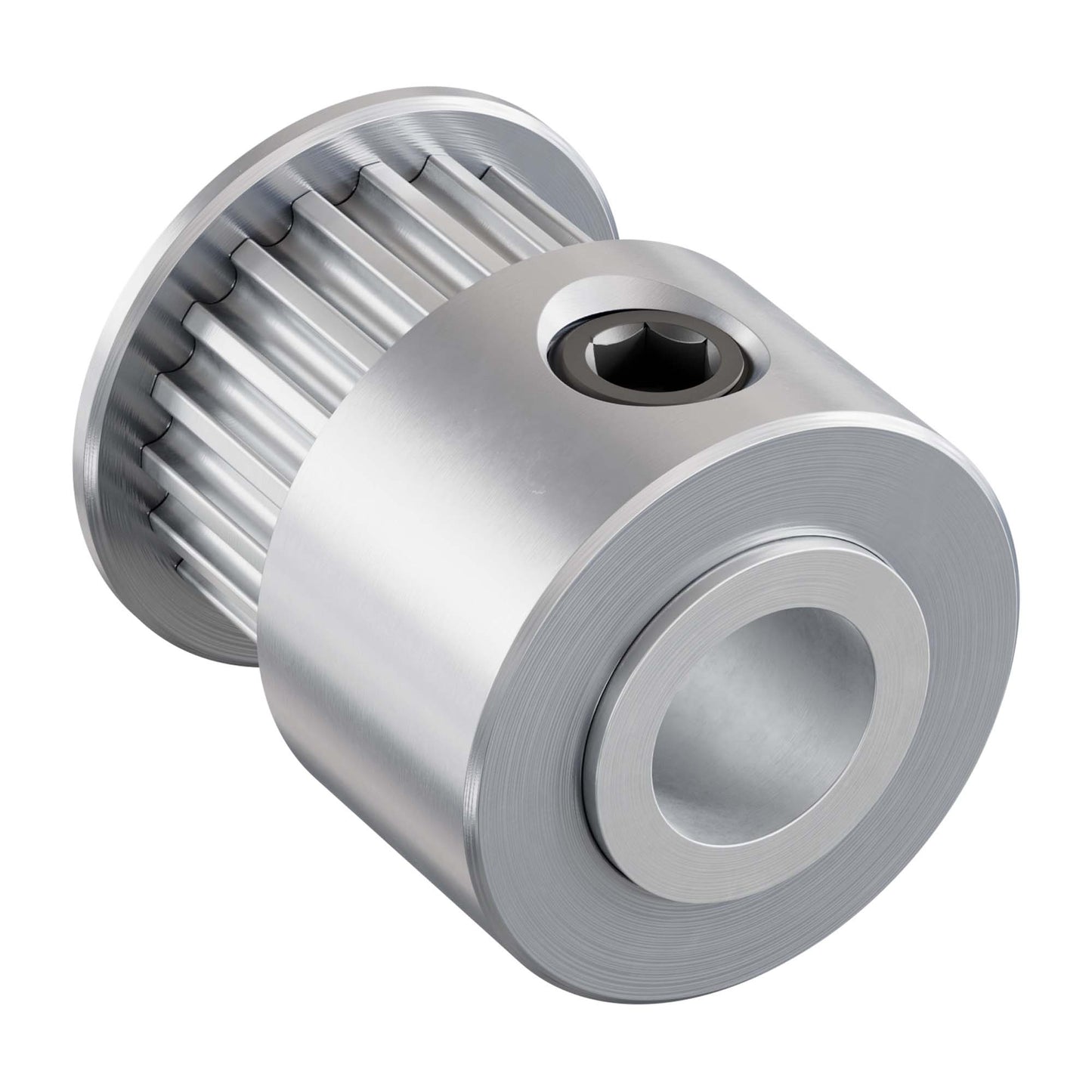

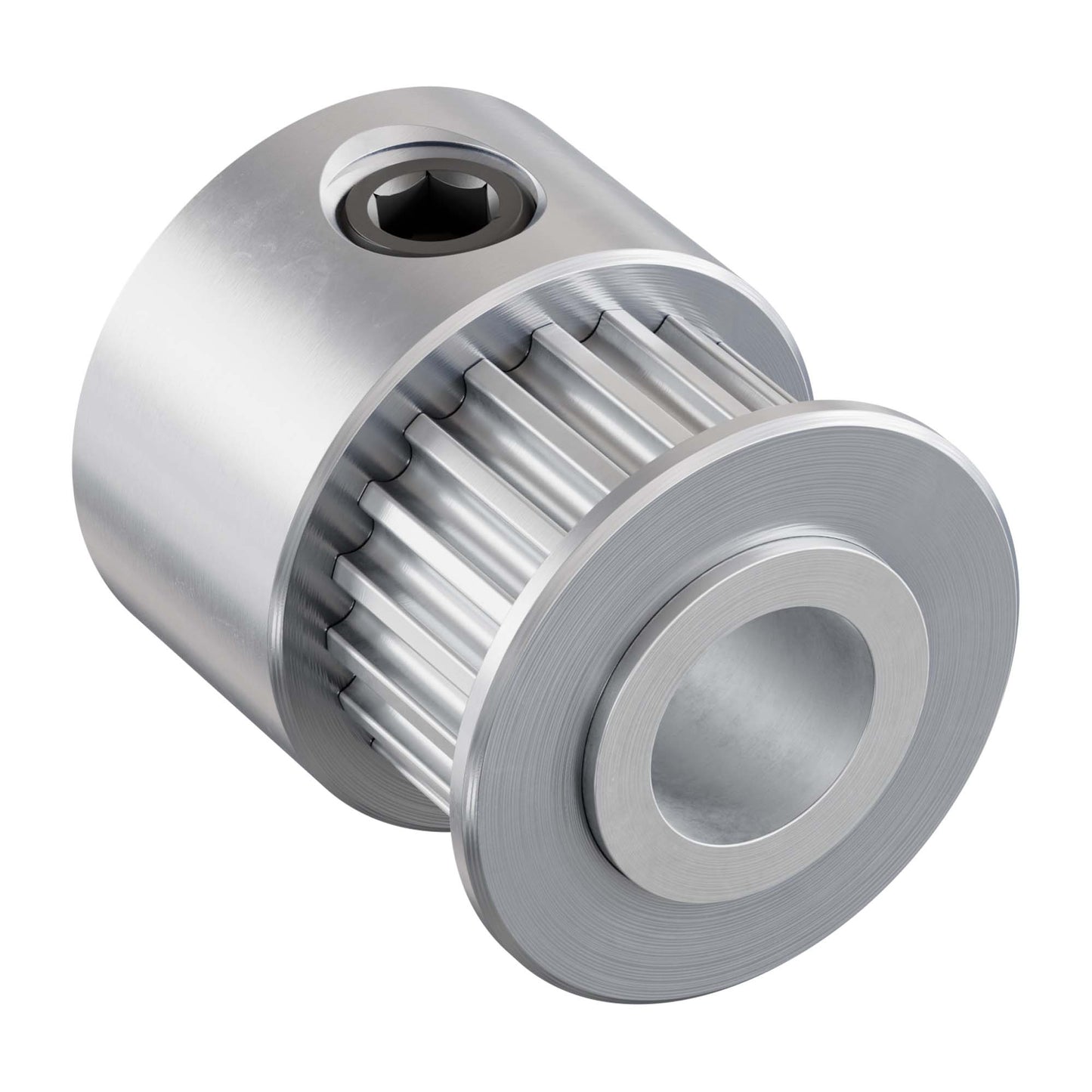

2mm Pitch GT2 Pinion Timing Pulley (6mm Bore, 20 Tooth)

2mm Pitch GT2 Pinion Timing Pulley (6mm Bore, 20 Tooth)

Available with a 10-day lead time to Australia & New Zealand

SKU: GB-3422-0006-0020

Regular price $12.00 AUD
Regular price Sale price $12.00 AUD
Sale Sold out
View full details

Punch up the precision with a GT2 Pinion Timing Pulley! Fine-toothed to drive 6mm wide GT2 belt in high-precision applications like printers, sliders, and XY tables, this dual-material pulley rocks steel where you need it—in its flange, and the barrel housing the threads of its set-screw hole—while still feeling slim on the scales due to the remainder of the pulley being aluminum.

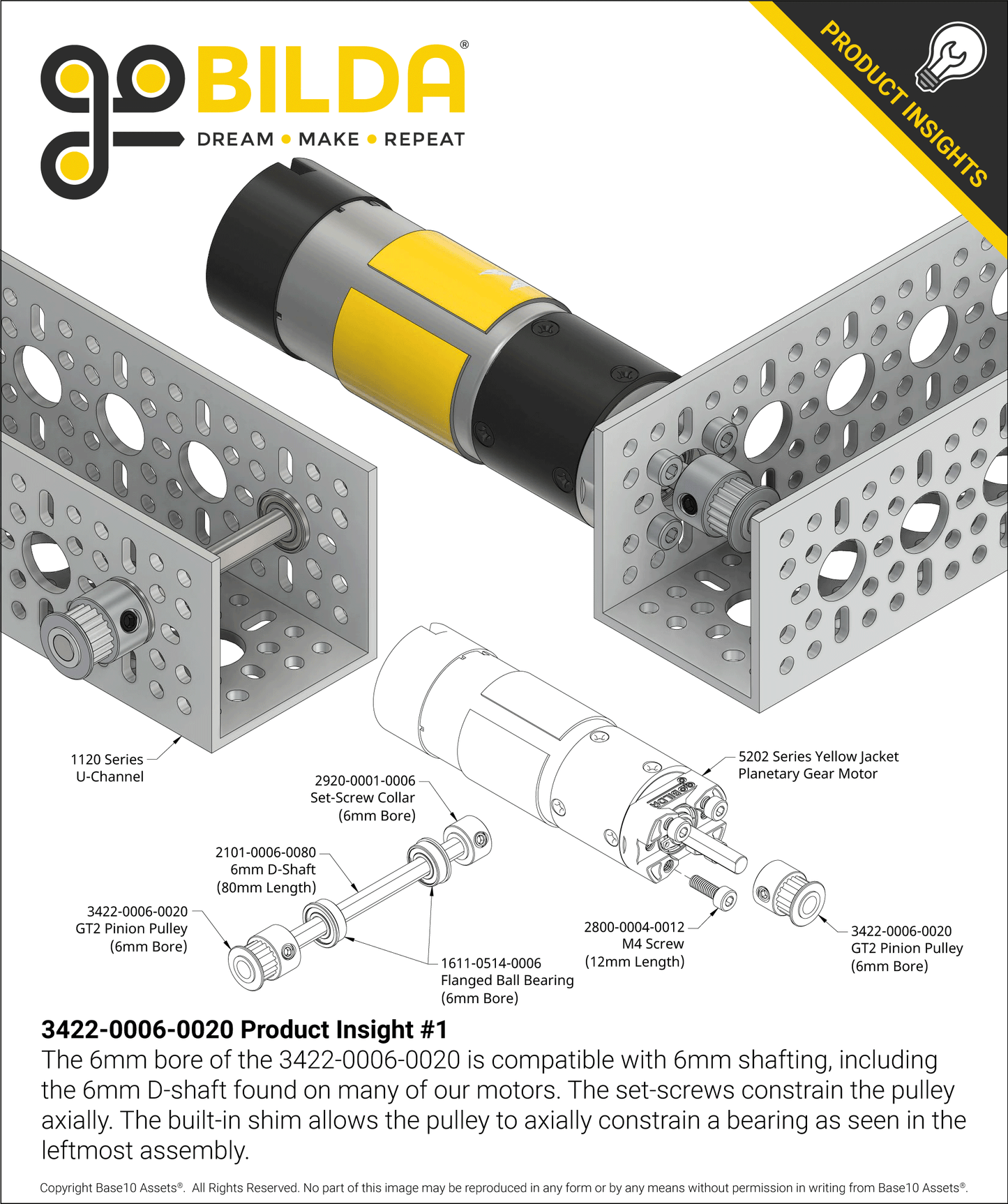

This 6mm bore pulley can attach to 6mm diameter or 6mm D-profile shafting. It rocks two build-in shims: one on each end! This means you’ll always be able to run it against a bearing without fear of contacting the bearings’ outer race.

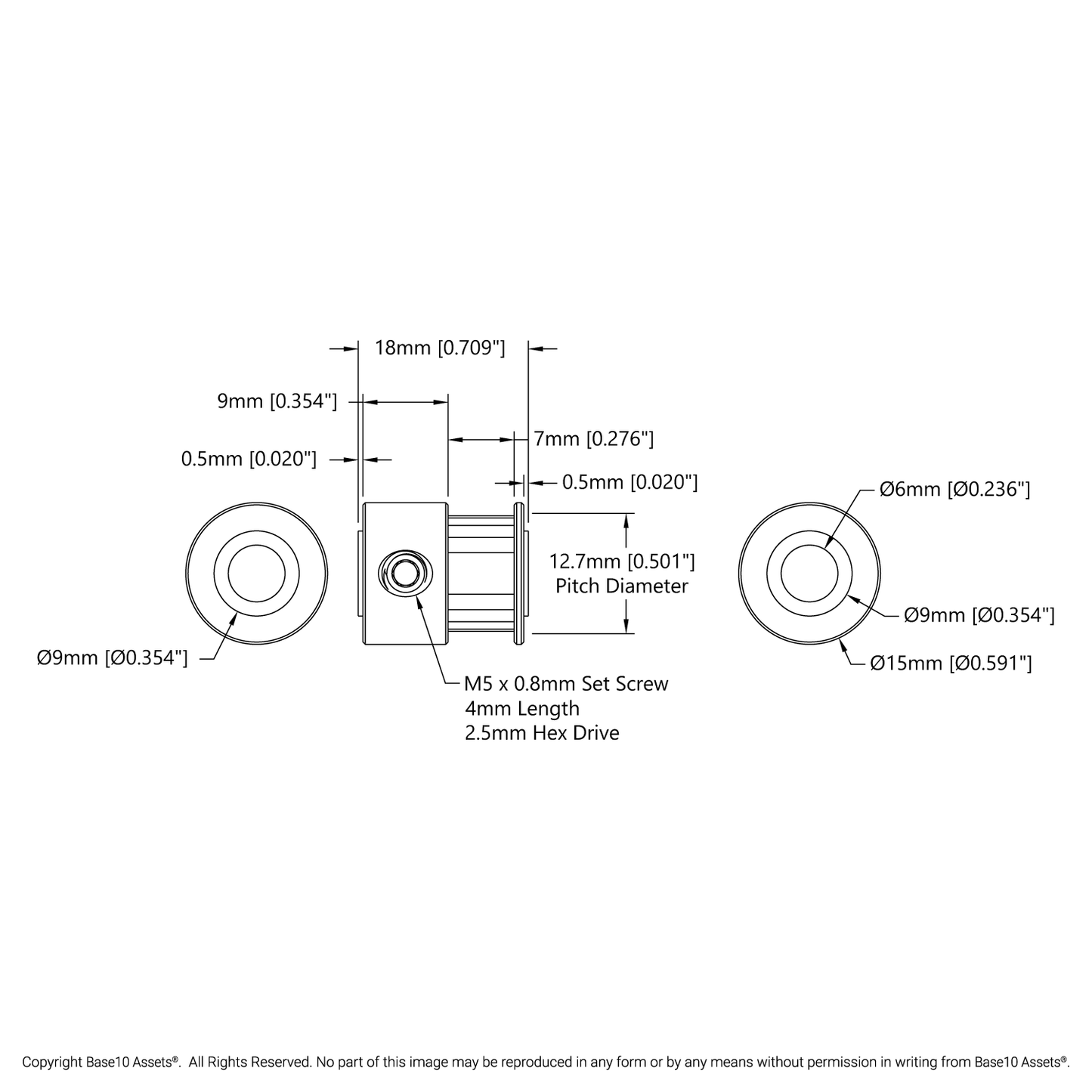

Specs

# of teeth 20
Material Aluminum and Steel
Weight 11g
Bore 6mm
Pitch 2mm (GT2)
