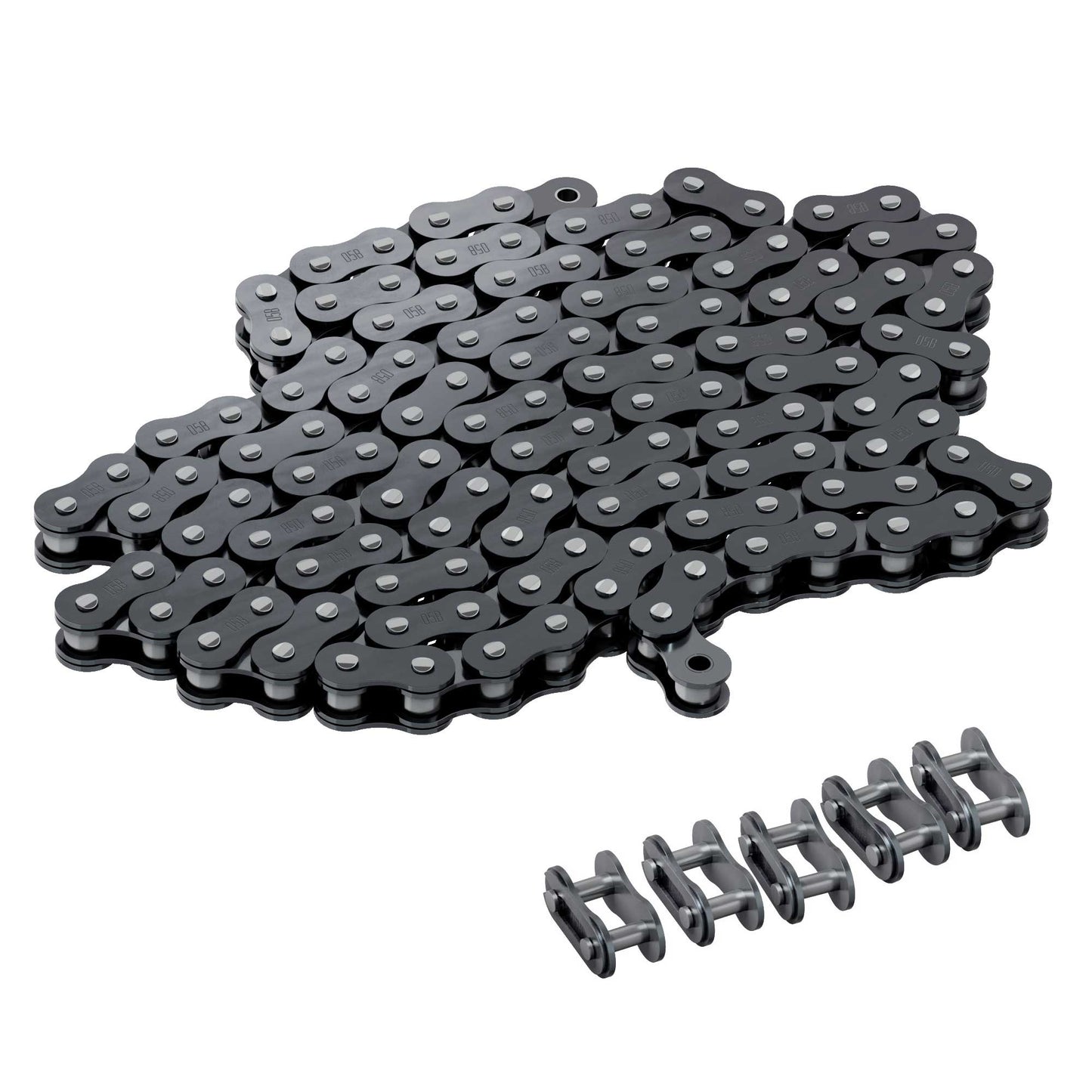

Our 8mm pitch steel chain has an impressive 120kg working load. That's more than triple what #25 (0.250") chain is able to handle! The 8mm pitch coincides with the 8mm grid of structural components in goBILDA®, which makes determining the proper chain length more simple. Because there are 5 connecting links for each meter of chain, you can create several drives with the pieces provided.
Specs
| Material | Steel |
|---|---|
| Weight | 192g (Chain), 1.7g (Each Connecting Link) |

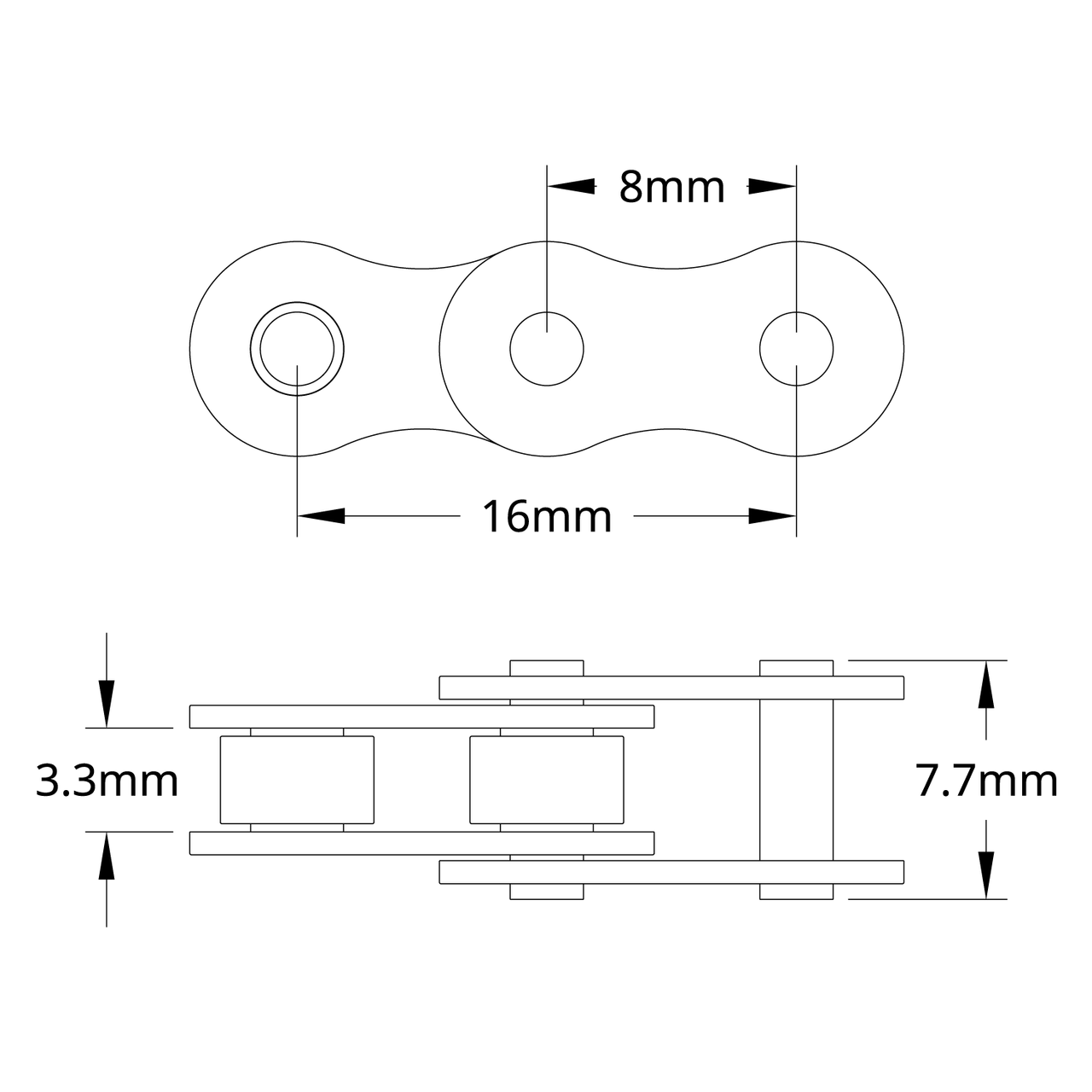

| Pitch | 8mm (05B) |
