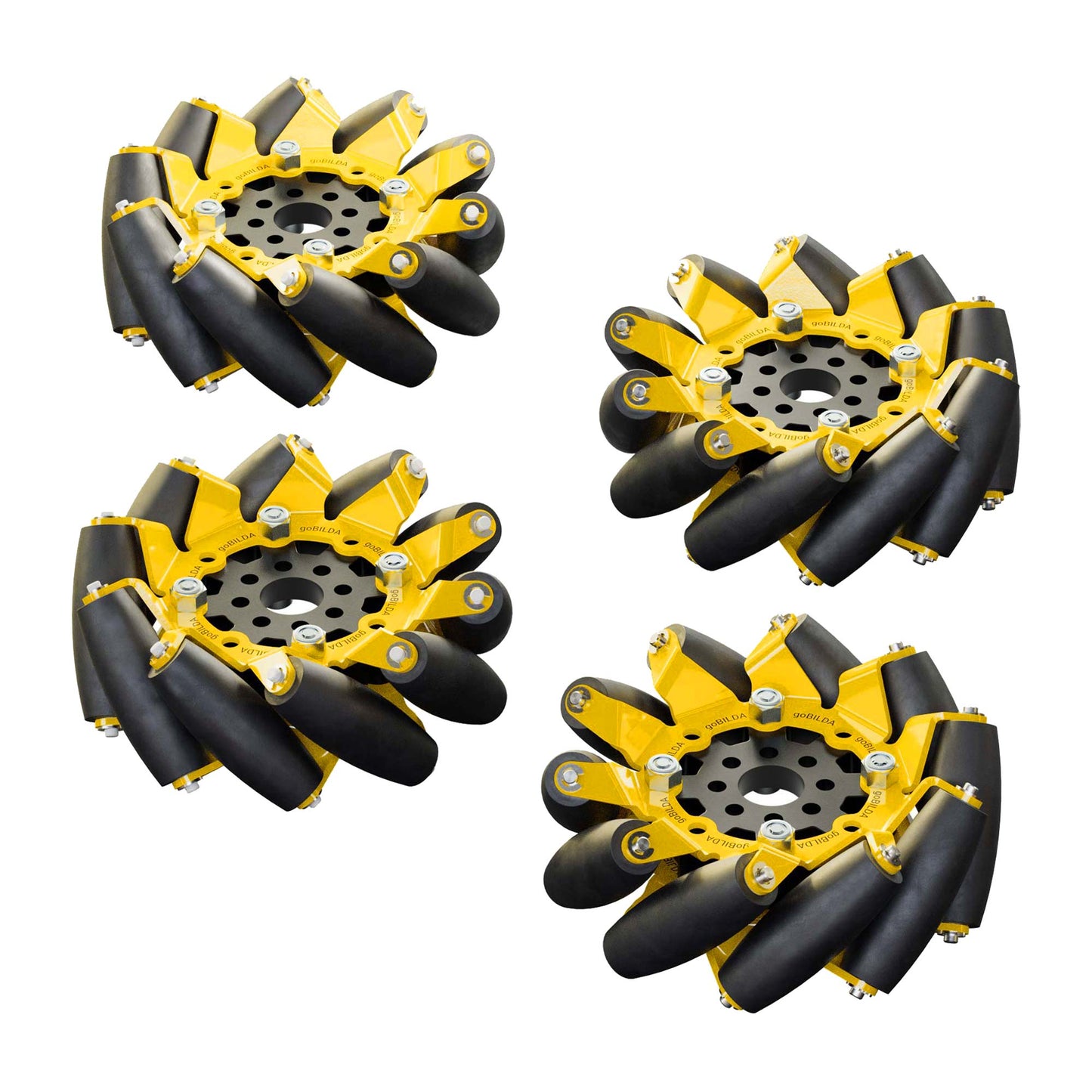

96mm Mecanum Wheel Set (70A Durometer Bearing Supported Rollers)

96mm Mecanum Wheel Set (70A Durometer Bearing Supported Rollers)

goBILDA parts we stock are ready to ship, otherwise with a 10-day lead time

SKU: GB-3213-3606-0002

Regular price $248.00 AUD
Regular price Sale price $248.00 AUD
Sale Sold out
View full details

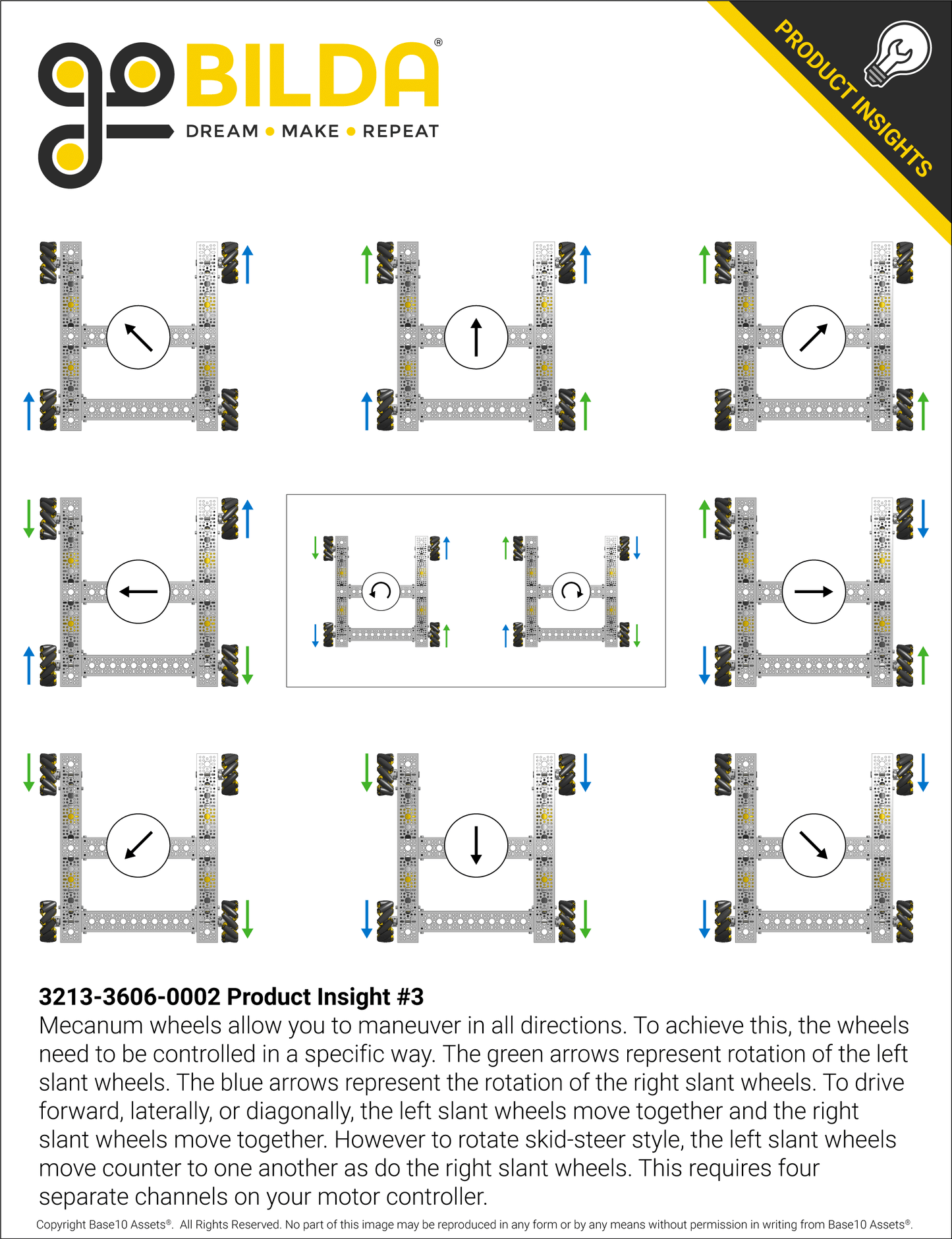

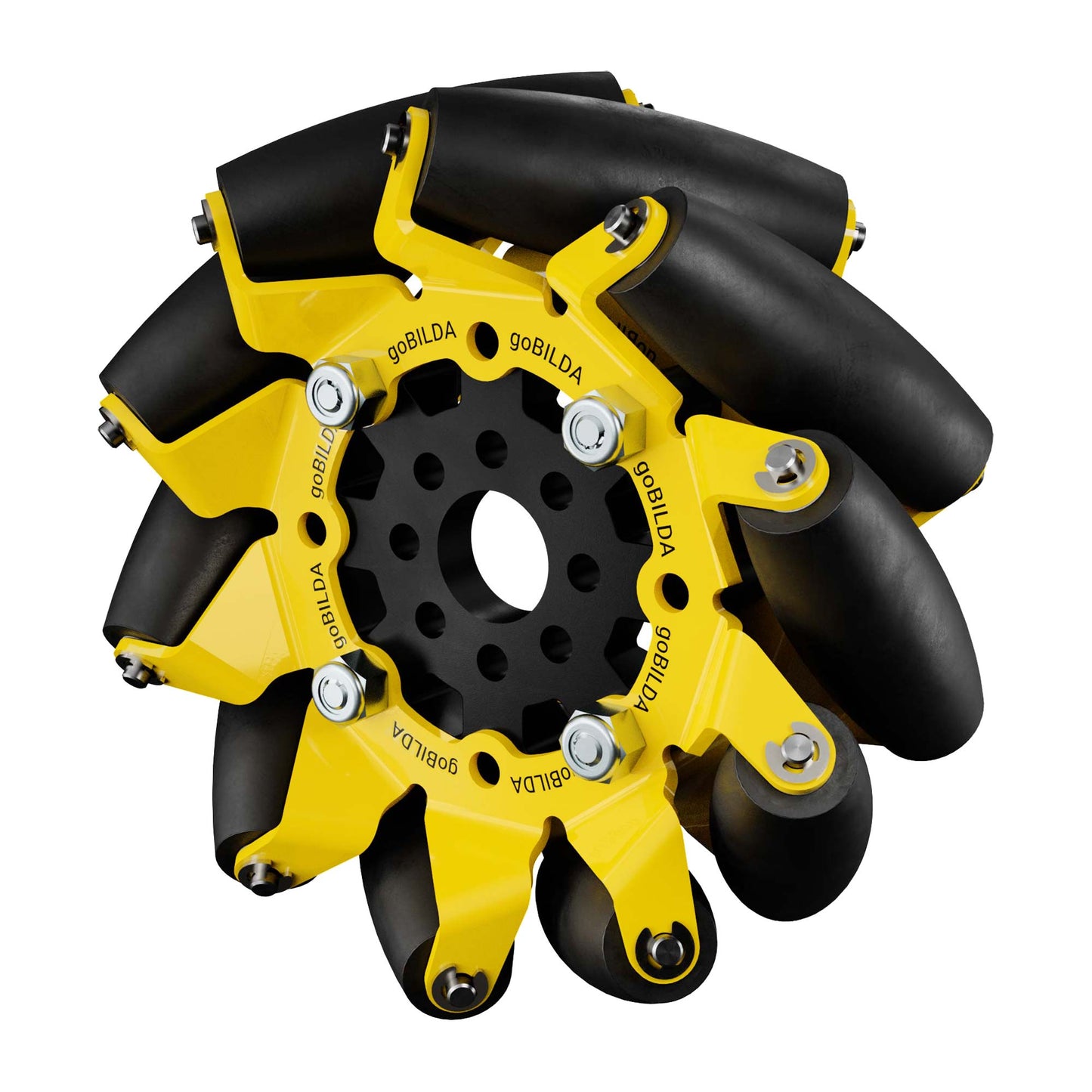

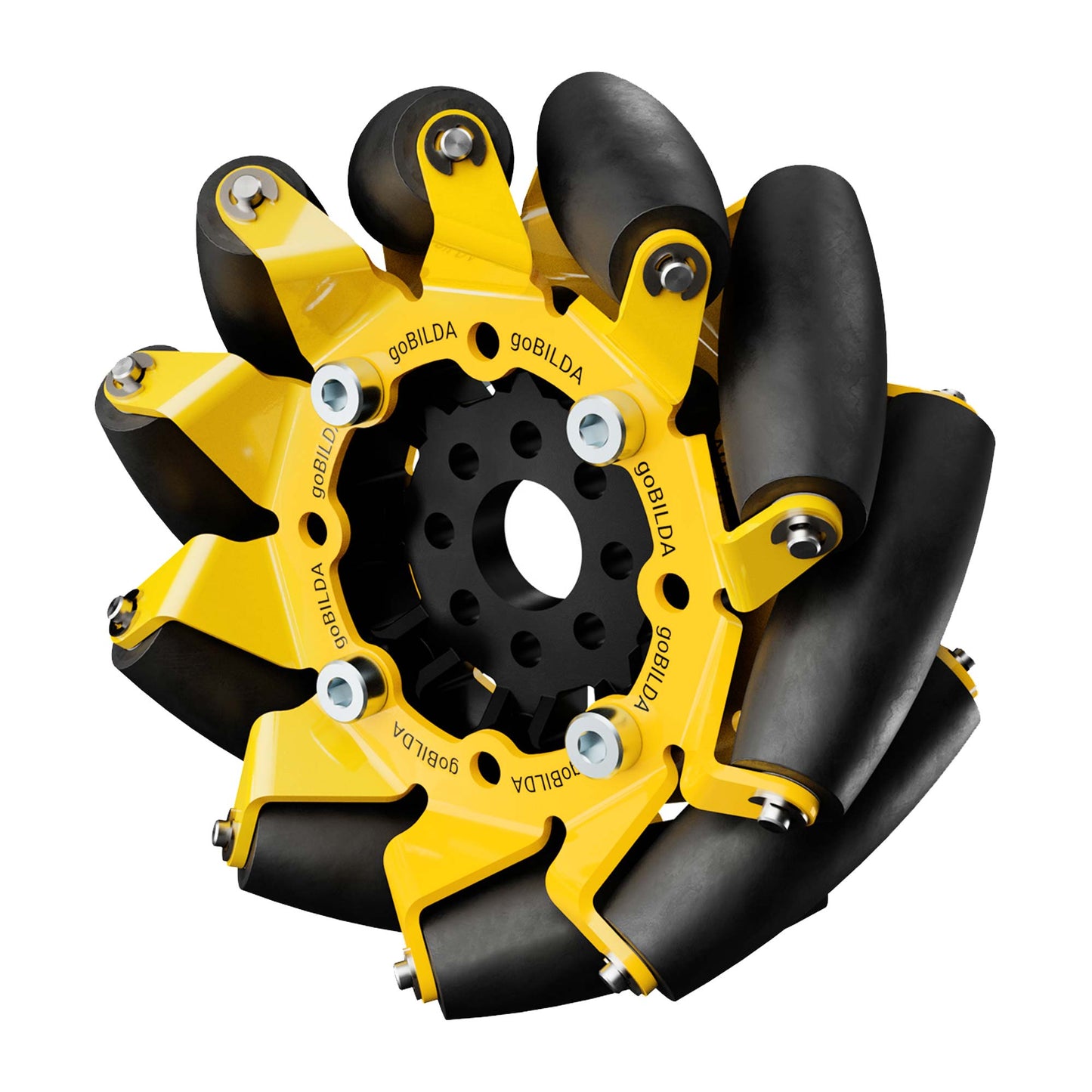

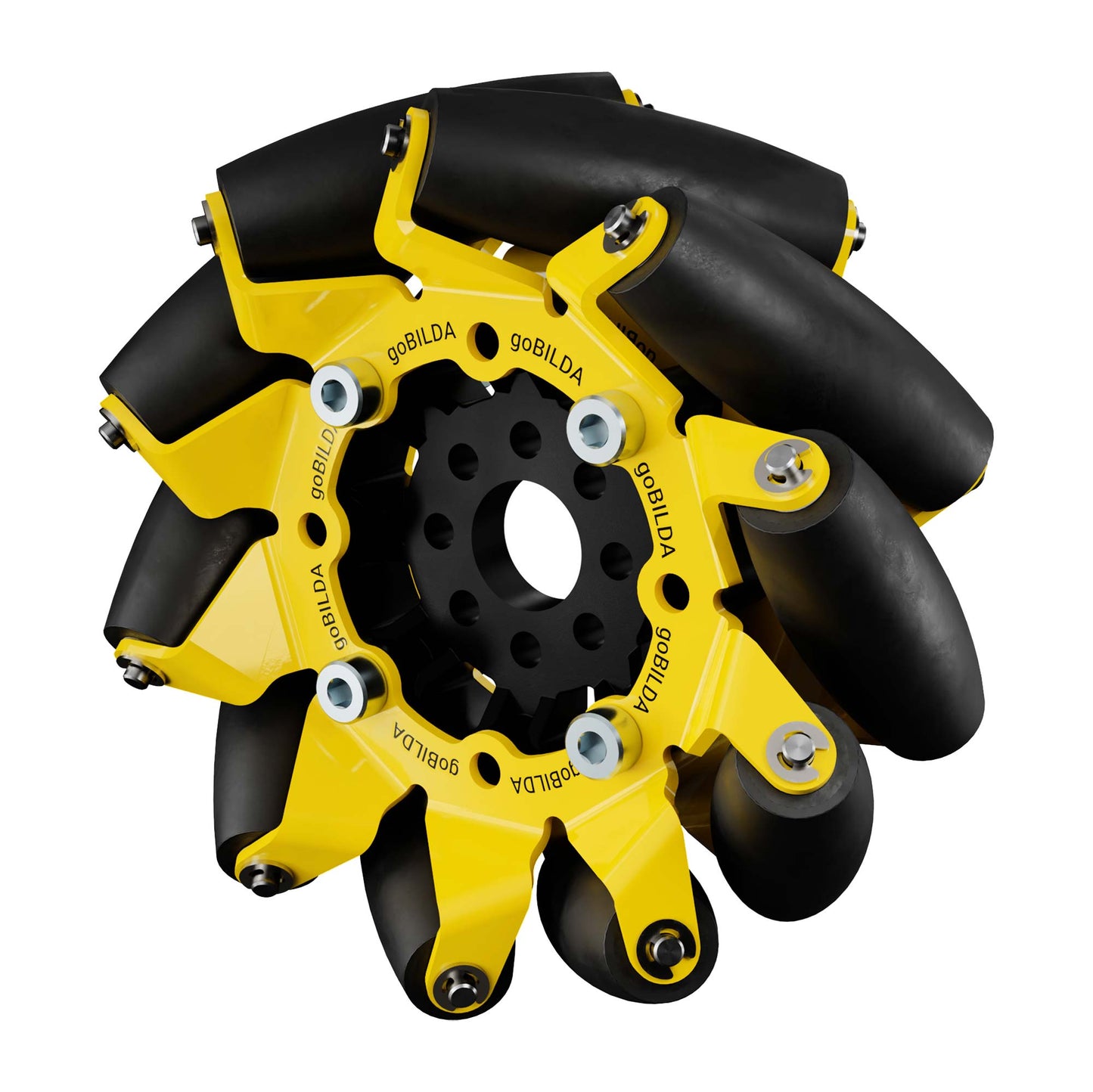

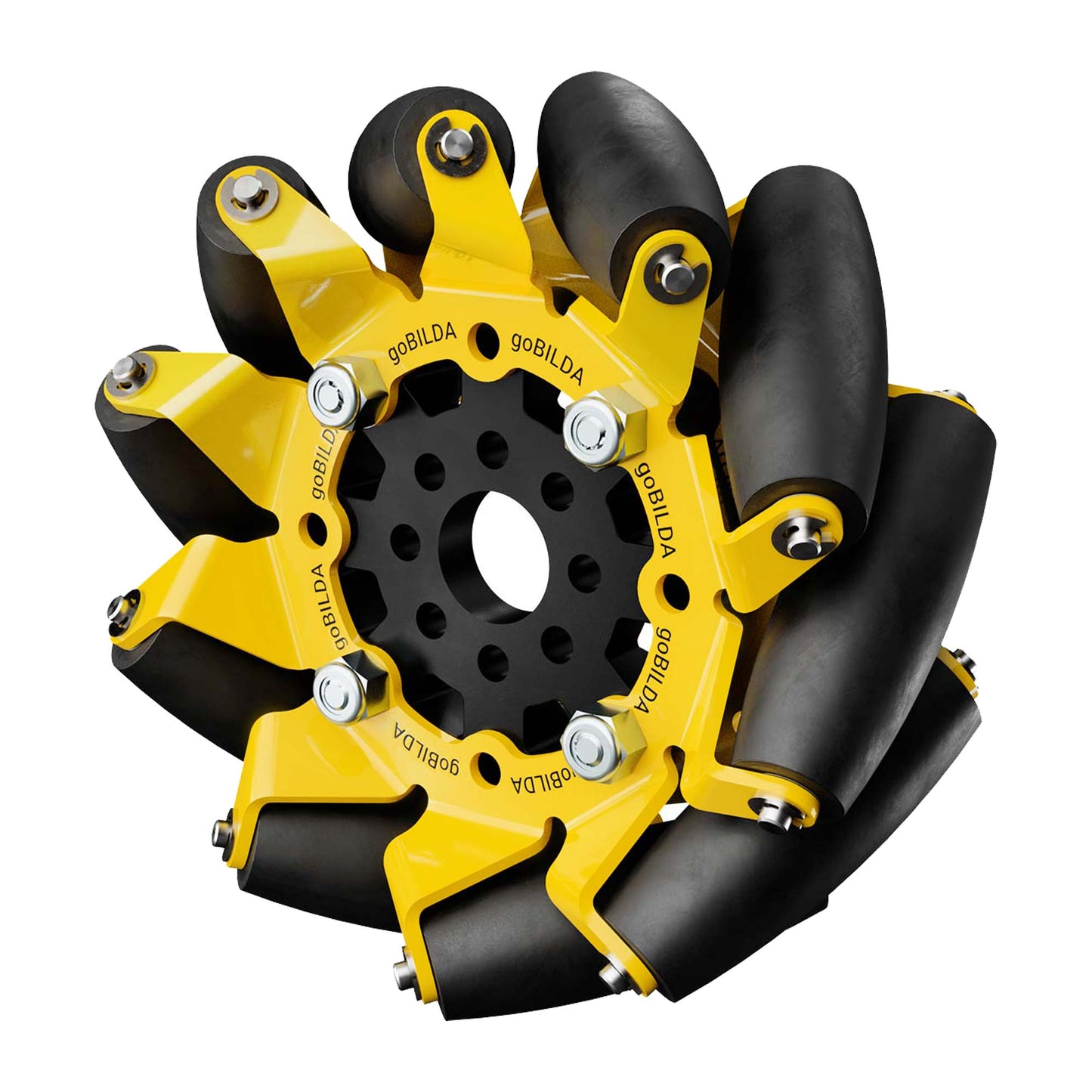

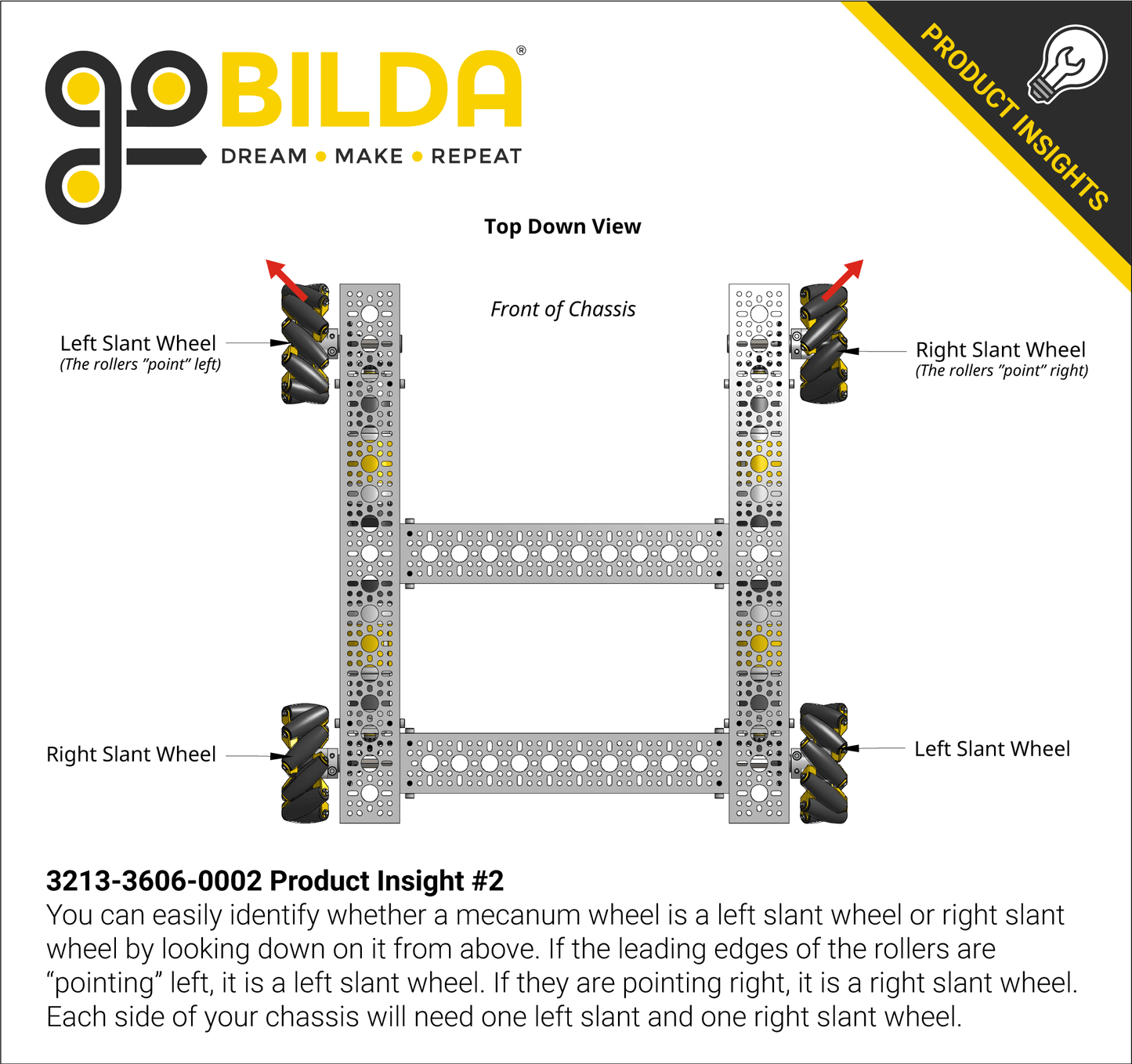

These 96mm diameter goBILDA® mecanum wheels are an excellent option for building a nimble chassis for smooth surfaces. Mecanum wheels provide maneuverability like no other wheel design. When used in a set of four, they allow omnidirectional movement. They give your robot the ability to move right, left, forward, backward, or at an oblique angle, while retaining the ability to rotate around the center of the chassis like a skid-steer chassis with conventional wheels.
These particular mecanums provide unparalleled performance for a number of reasons:

  • The narrow overall width makes them easier to integrate into space-limited builds
  • The steel side plates offer excellent strength
  • The overall weight has been kept to a minimum, which yields better acceleration
  • The 70A durometer rubber provides great traction
  • Bearing-supported rollers maximize efficiency

Specs

Weight 207g Each
