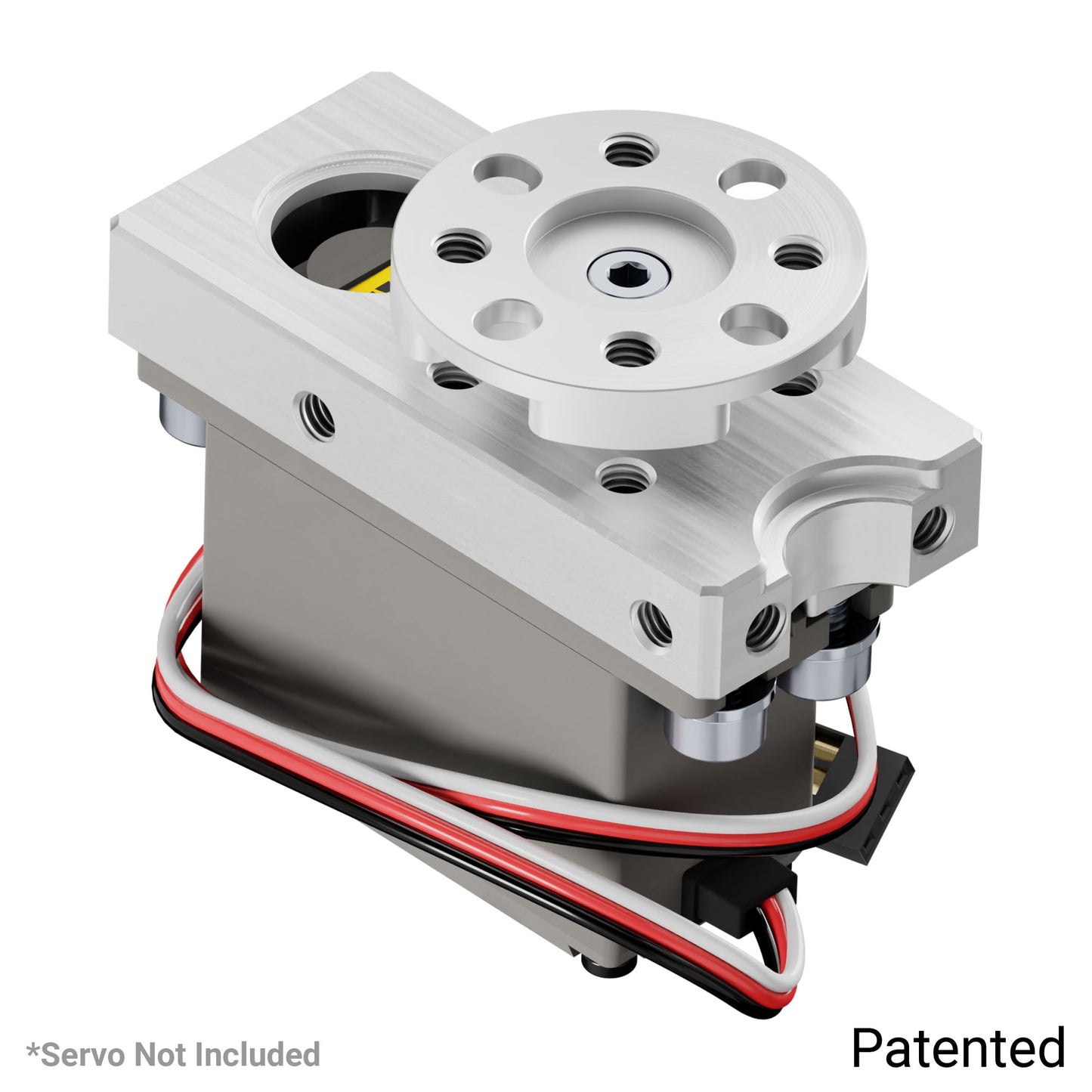

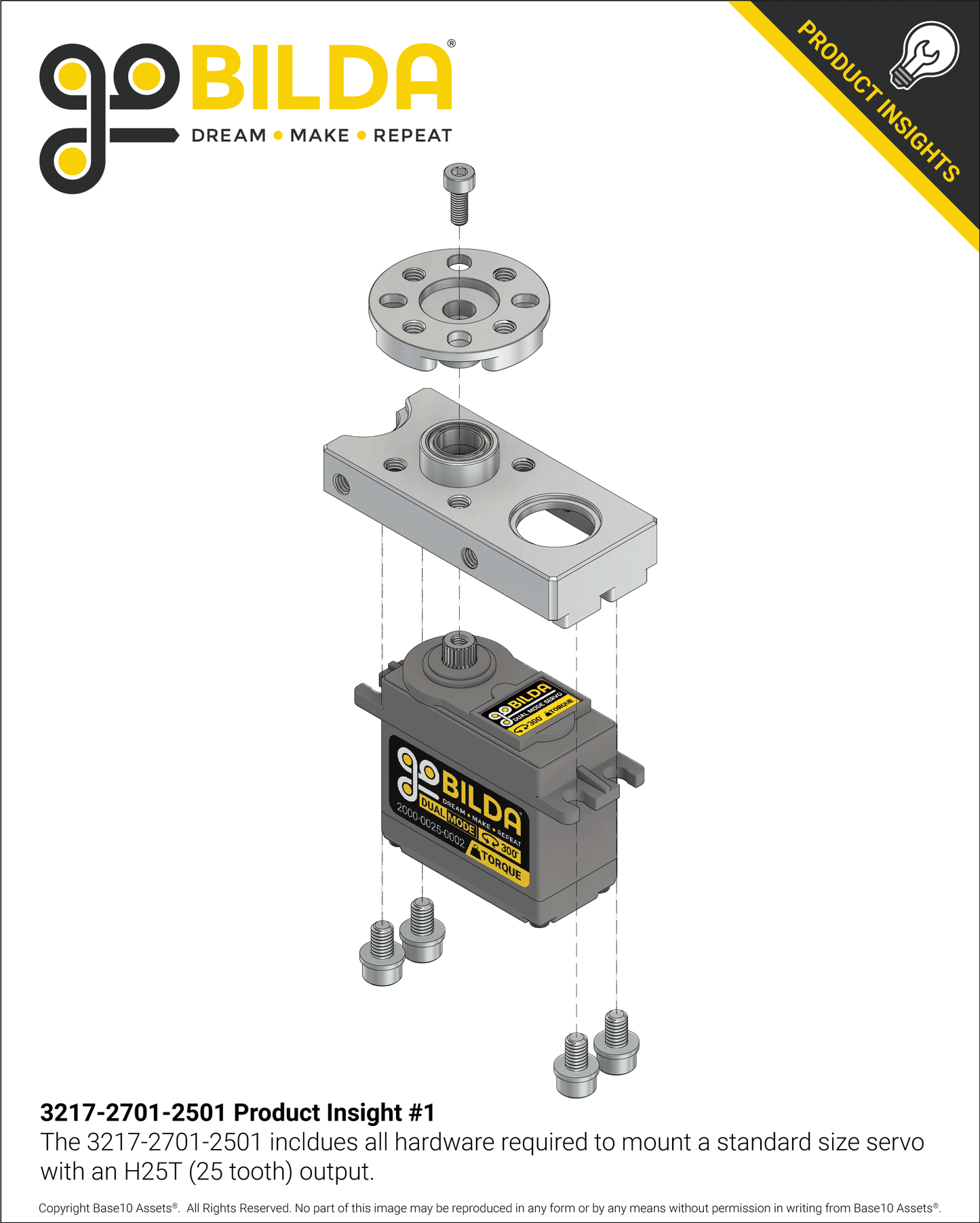

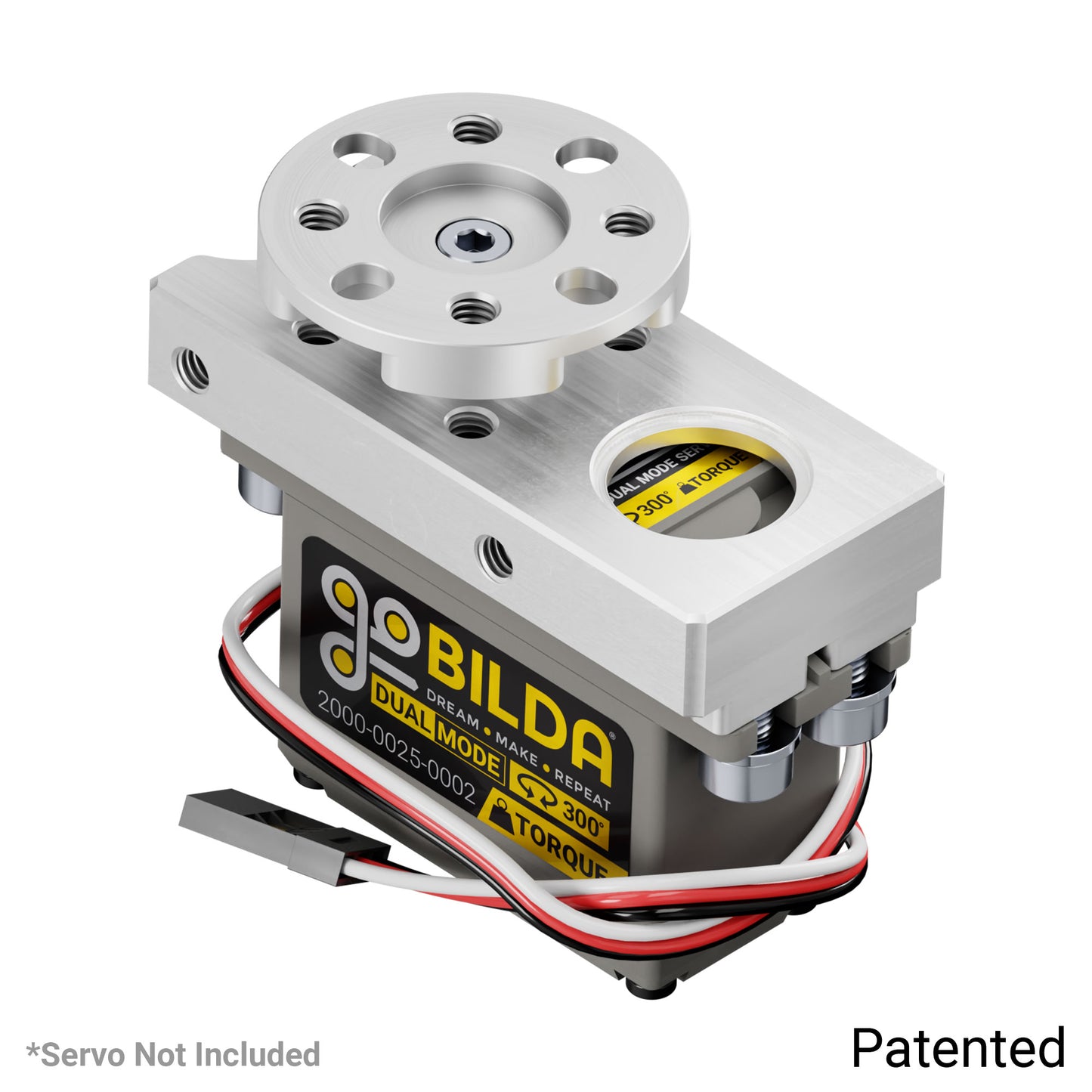

This 25 tooth ServoBlock® isolates radial loads from your servo with a robust frame that’s highly compact, super mountable, and rocking an integrated bearing to support its Hub-Shaft.

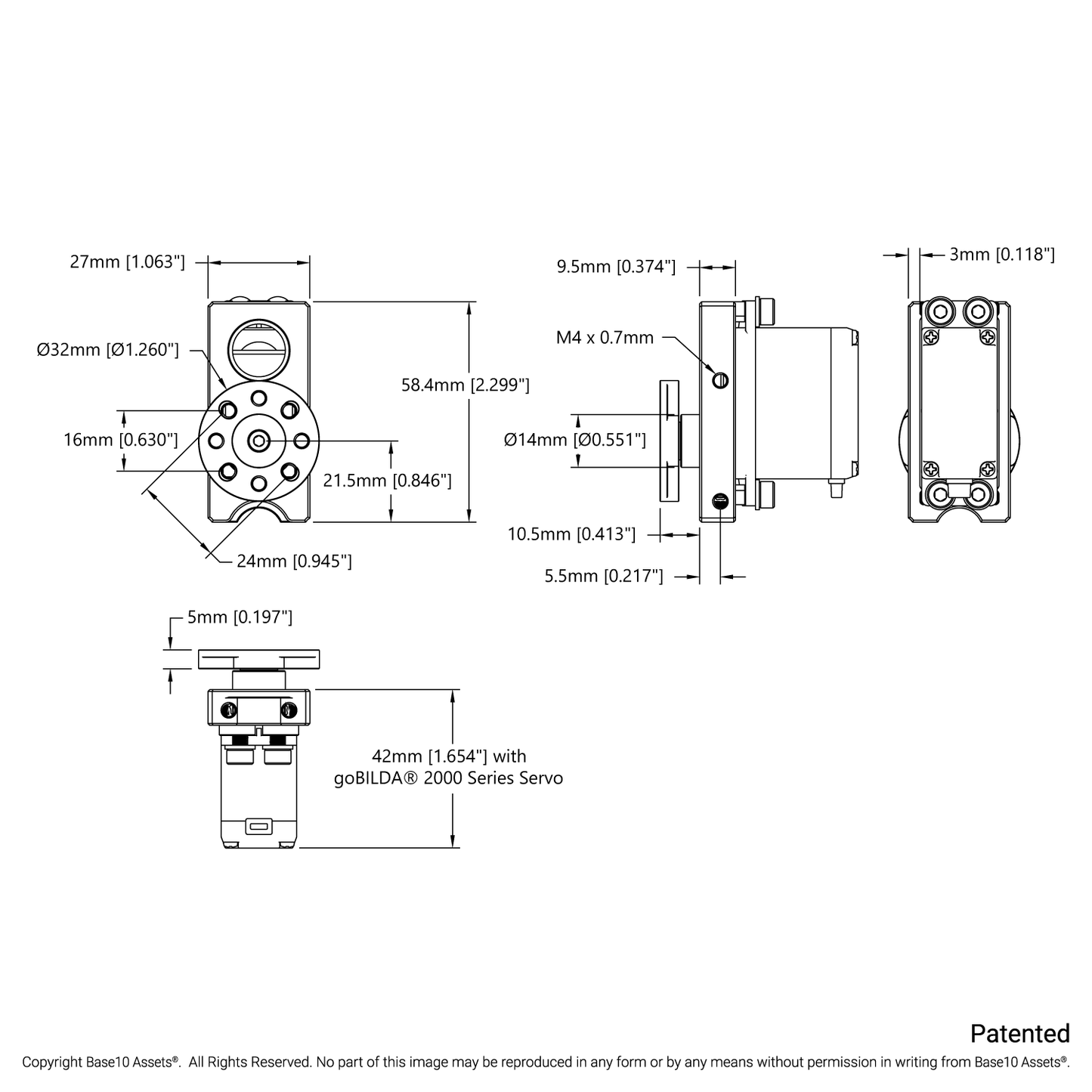

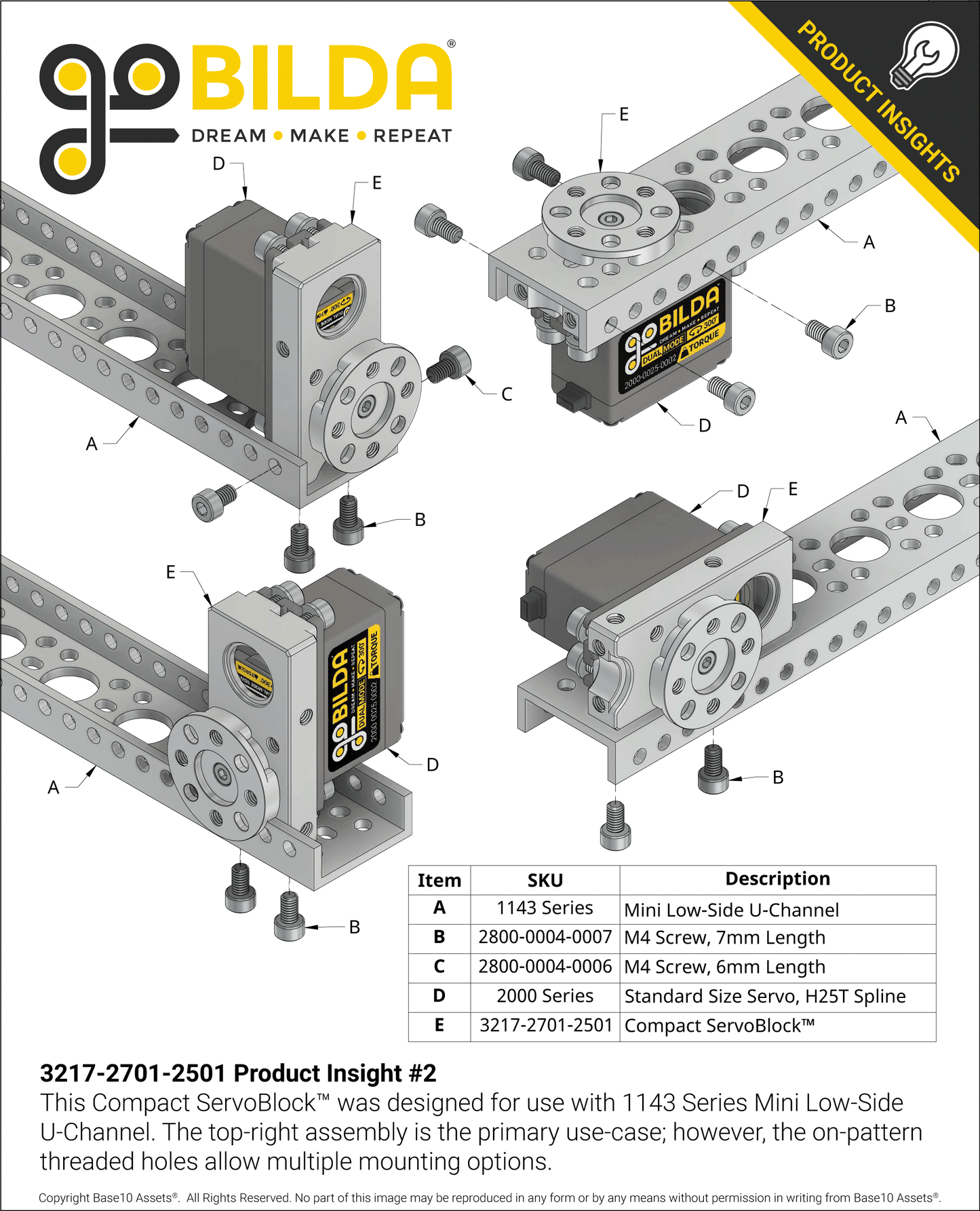

Compared to the 43mm Width Compact ServoBlock (SKU: 3217-0001-2501), this ServoBlock™ is even more abbreviated in its design, boasting a 27mm width that helps it fit just right in 1143 Series Mini Low-Side U-Channel.

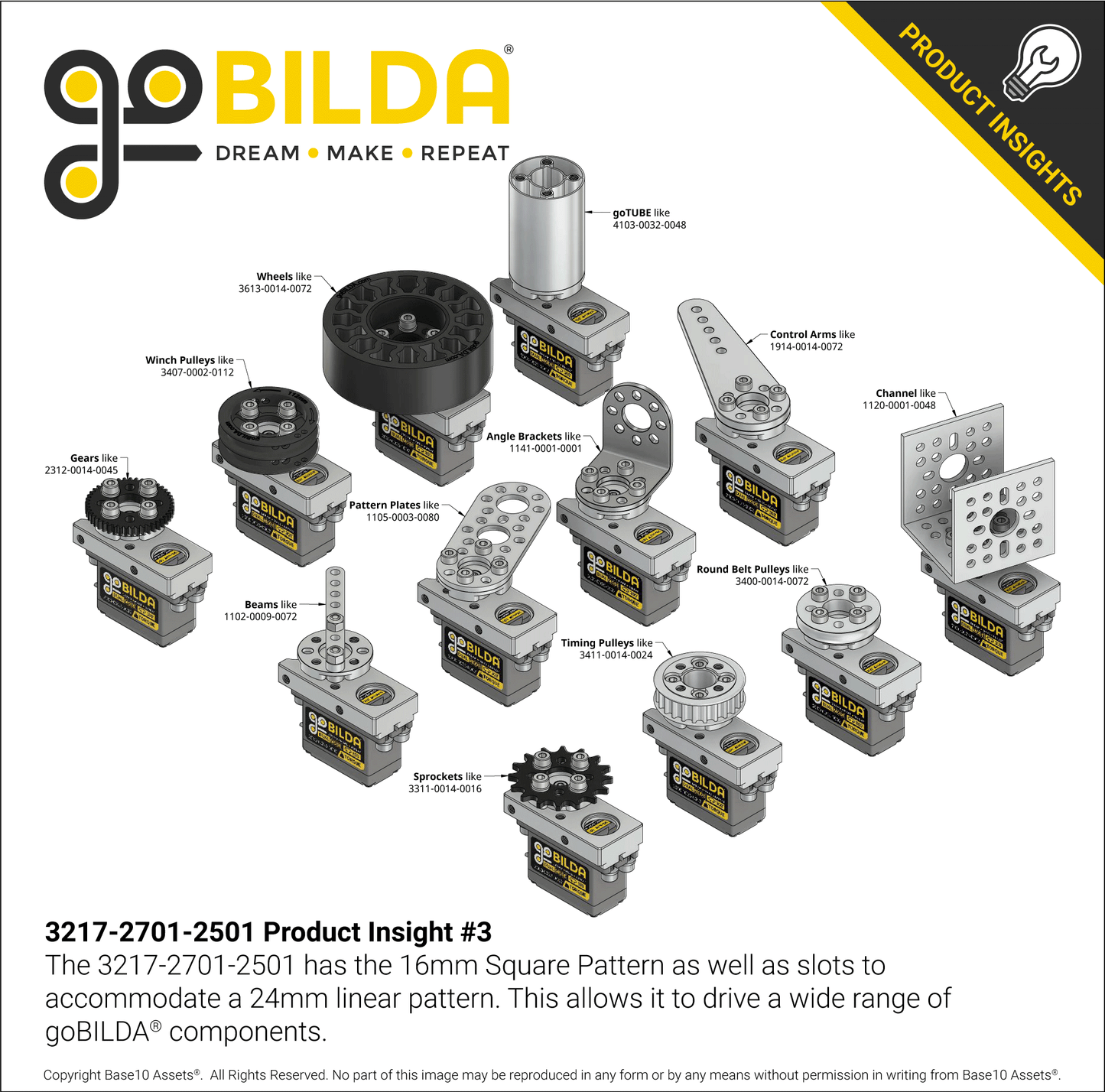

The threaded holes on the face and sides provide for secure attachment via M4 screws. The hub-shaft, meanwhile, maintains the goBILDA® 16mm square pattern of surrounding structure with thru-holes and threaded holes to provide for easy attachment of almost any goBILDA® component.

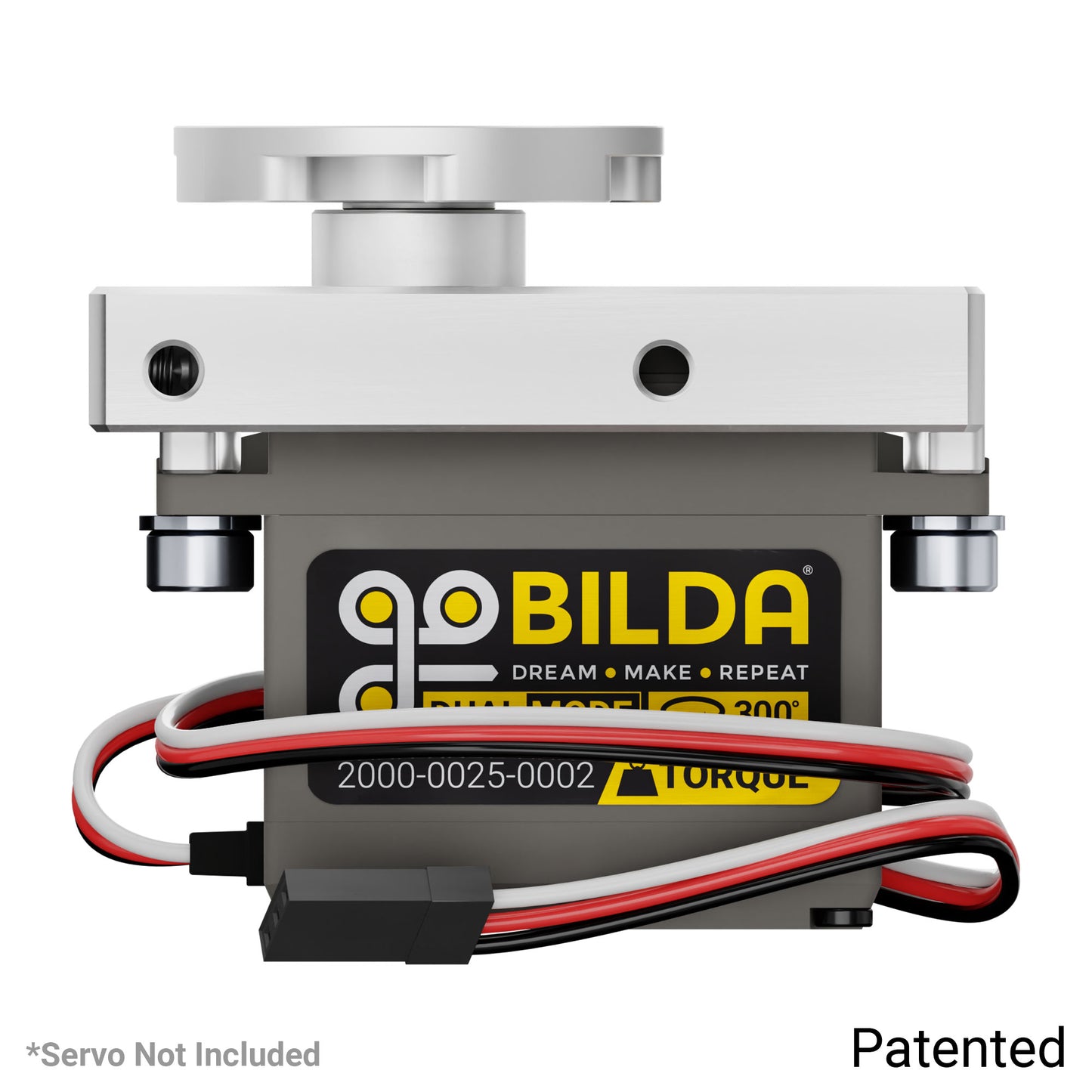

Importantly, the 14mm diameter protrusion of the integrated pillow block fits through the 14mm diameter holes of Mini Low-Side U-Channel. As a result, when you’re using this ServoBlock® with a goBILDA® 2000 Series Servo, its Hub-Shaft rises 8mm from the face of channel!
Specs
| Weight | 35g (with Included Hardware) |
|---|---|
| IP | Patented |

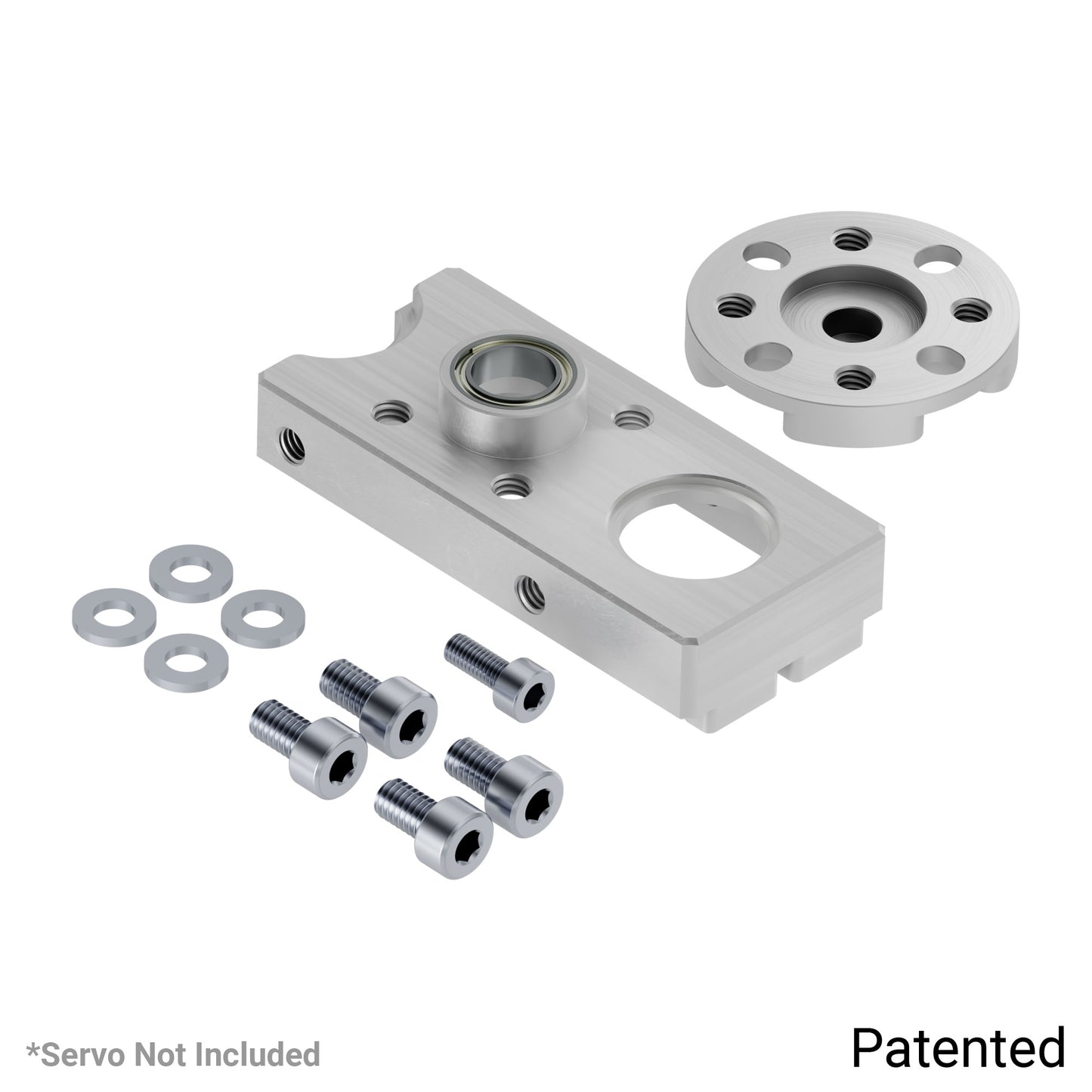

| Included Hardware - M3 Screw | 8mm Length M3 Screw (1 screw) |
| Included Hardware - M4 Screws | 8mm Length M4 Screws (4 screws) |
| Included Hardware - Washers | 4mm ID x 8mm OD Washers (4 washers) |
