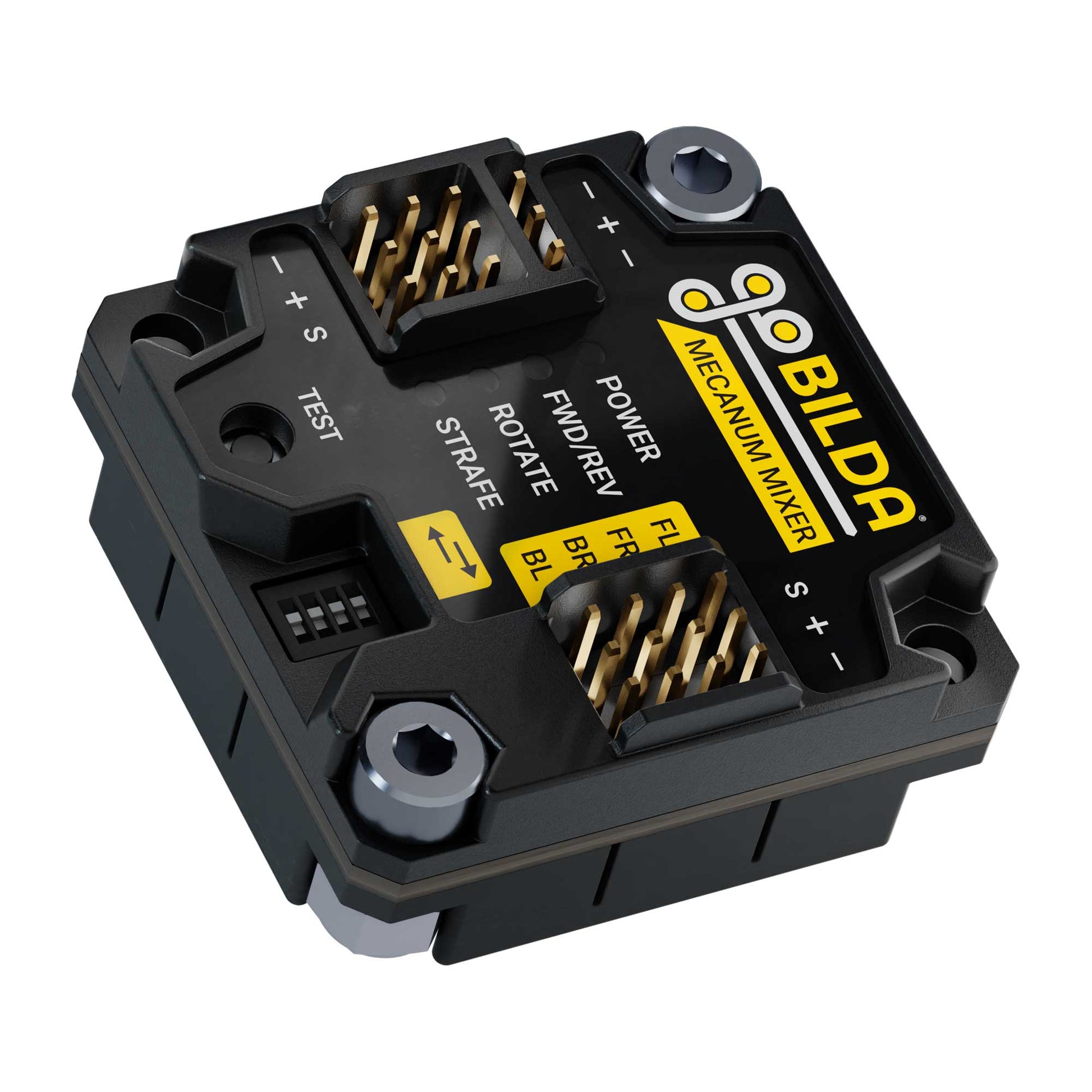

The Mecanum Mixer is a crazy-simple, no-coding solution for the control of a mecanum chassis (like the Strafer®!). Just plug it into your receiver and motor controllers, then let its signal mixing handle the rest. Your chassis will be skid-steering and strafing—both horizontally and diagonally—in no time at all!
Mounting

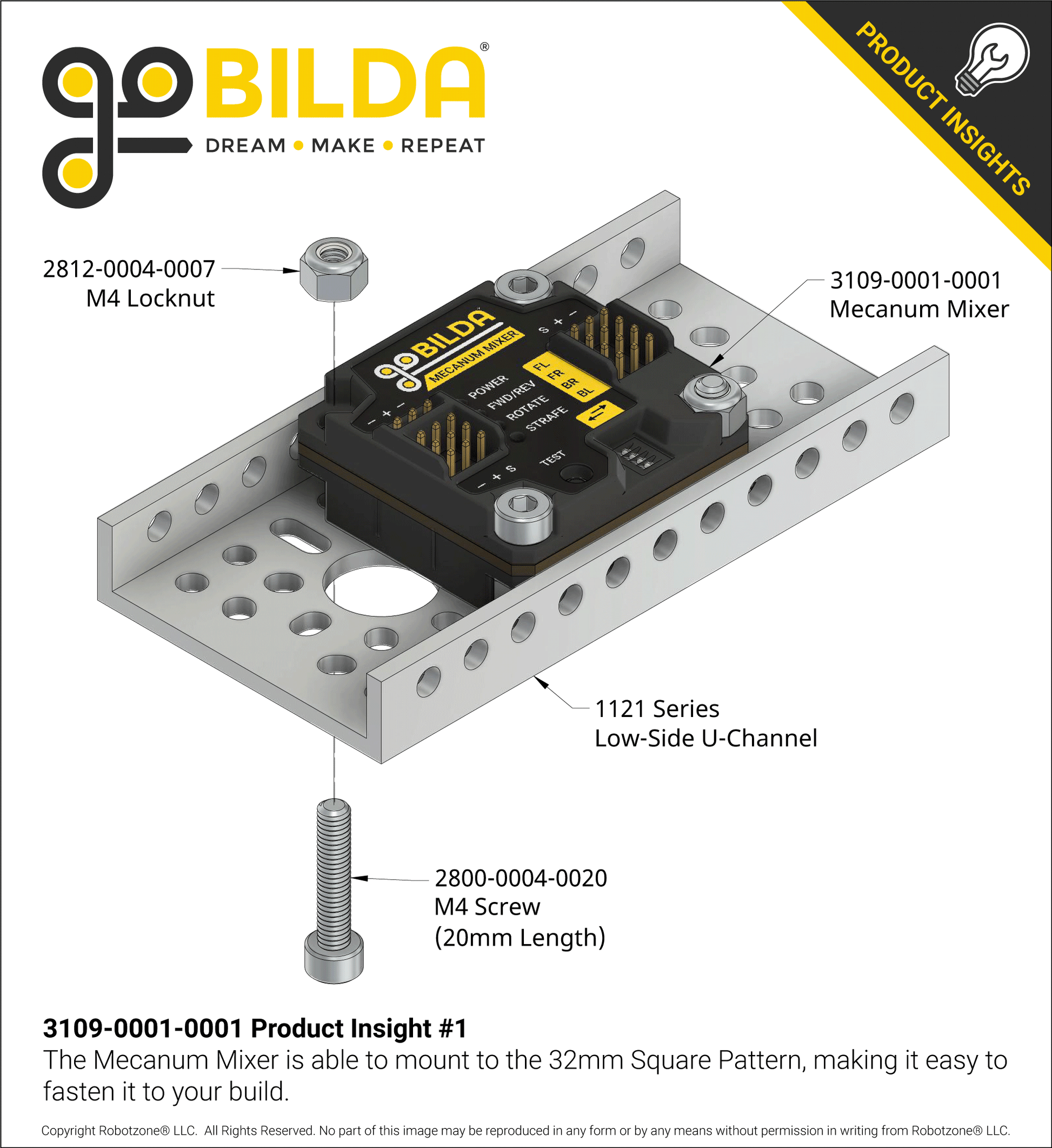

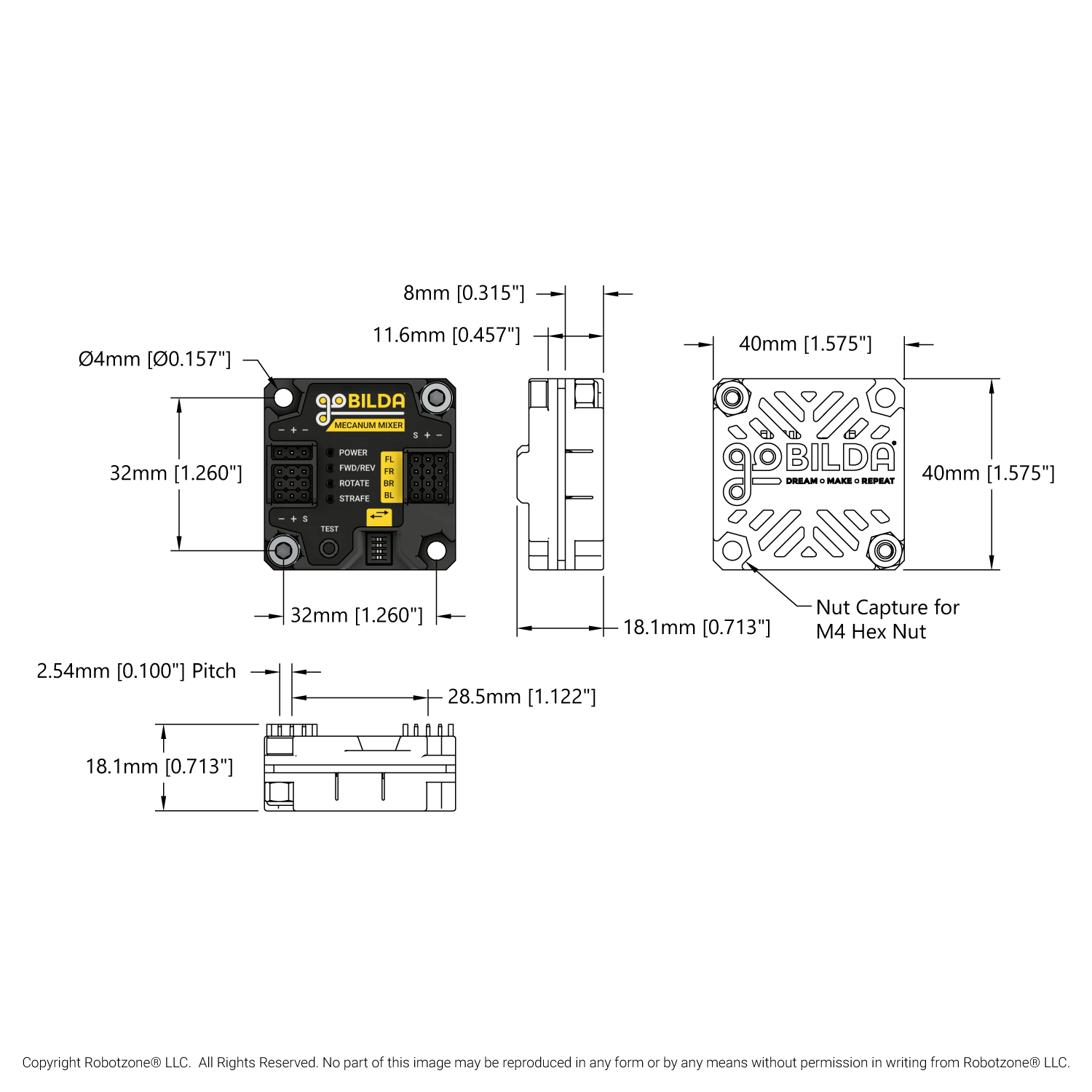

Thru-holes on the goBILDA® 32mm square pattern make the Mecanum Mixer compact and mountable alongside other goBILDA® electronics.
Wiring

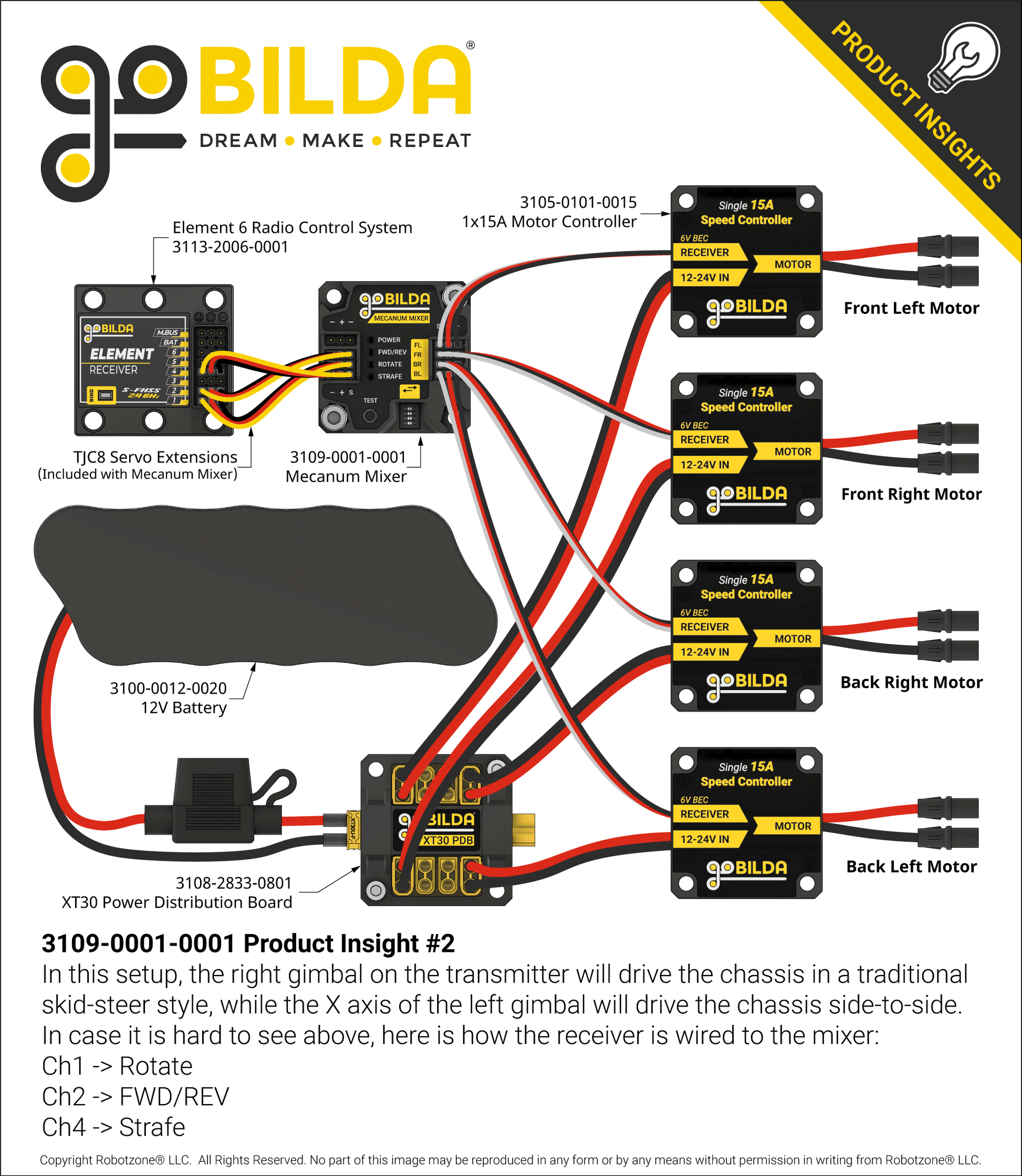

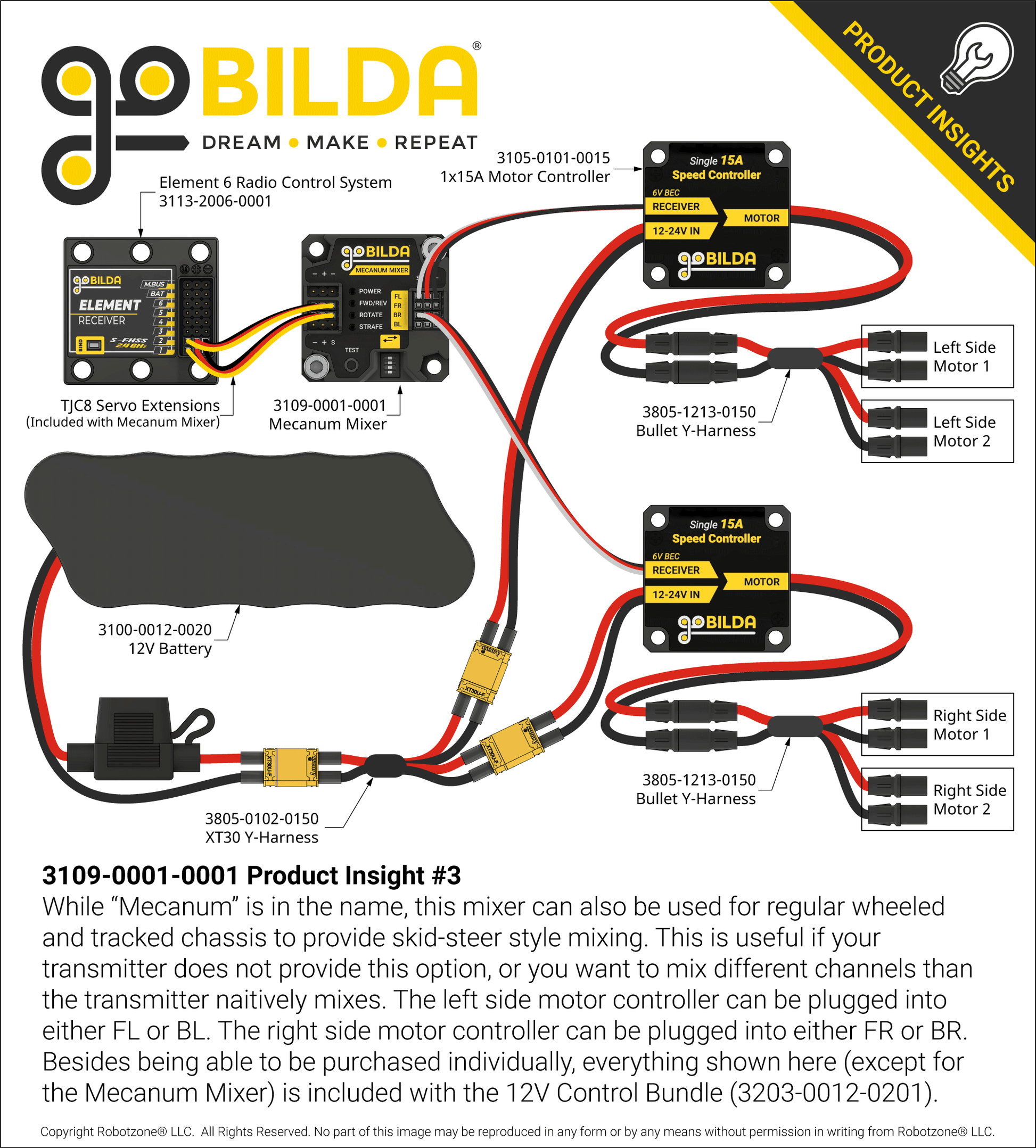

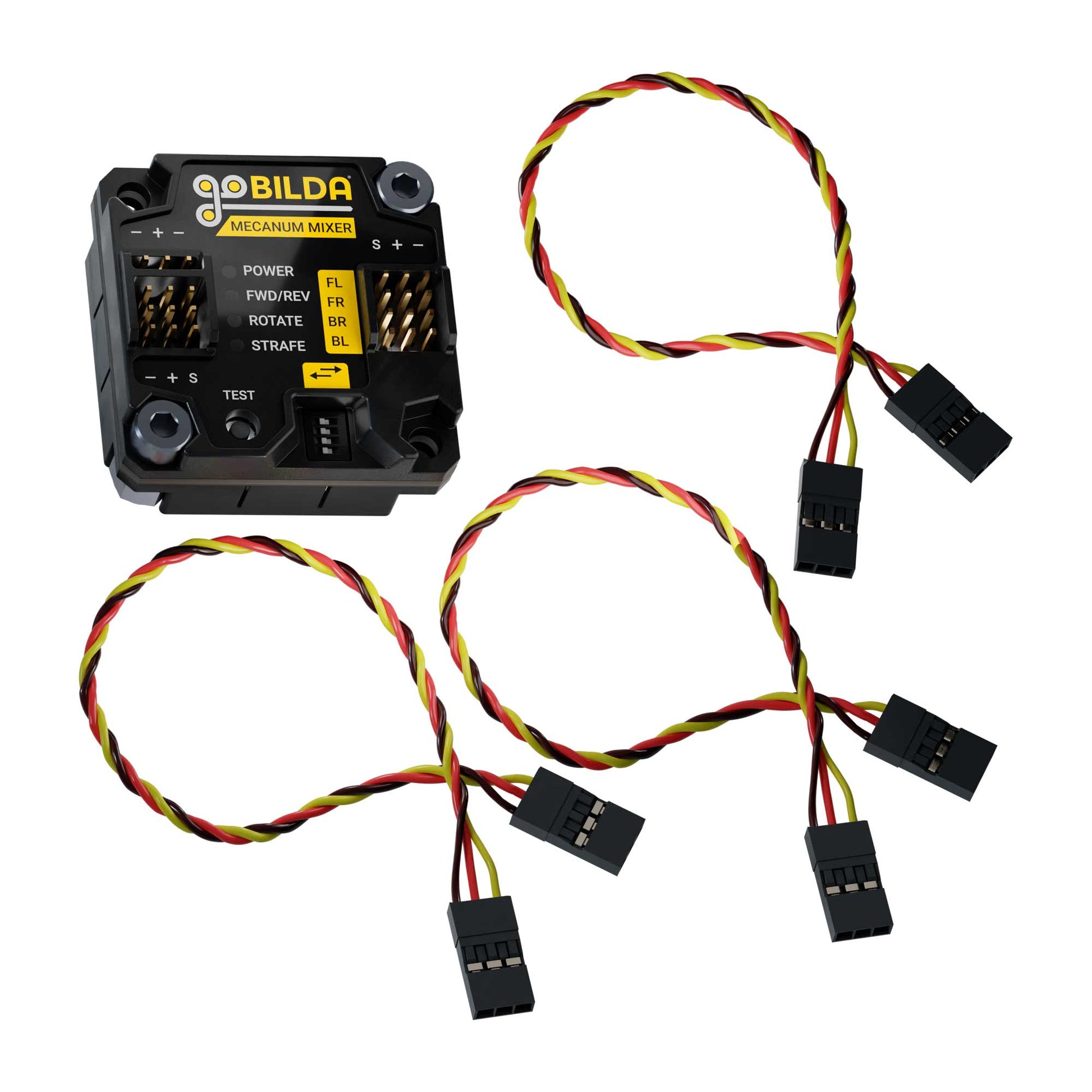

Three TJC8 Servo Male-to-Male Servo Extensions are included to help you mate your mixer to your receiver. Refer to Product Insight #2 in the image gallery above for a full wiring diagram.
starting fresh?
You don't need a garage of parts or any prior experience to build a fully operational mecanum-wheeled chassis! Just get your hands on these products:
- 1 Mecanum Mixer (3109-0001-0001)
- 1 Strafer® Chassis Kit (3209-0001-0005)
- 1 Radio Control System (3113-2006-0001)
- 1 Battery (3100-0012-0020)
- 1 Battery Charger (3101-0012-0001)
- 4 Motor Controllers (3105-0101-0015)
- 1 Power Distribution Board (3108-2833-0801)
Product Insight #2 in the image gallery above shows you how to wire them together for remote-controlled strafing action!
Specs
| Weight | 20g |
|---|---|
| Input Voltage | 5-15V |
| Current Draw | 20mA |
| Output Current | 5A / Channel |
