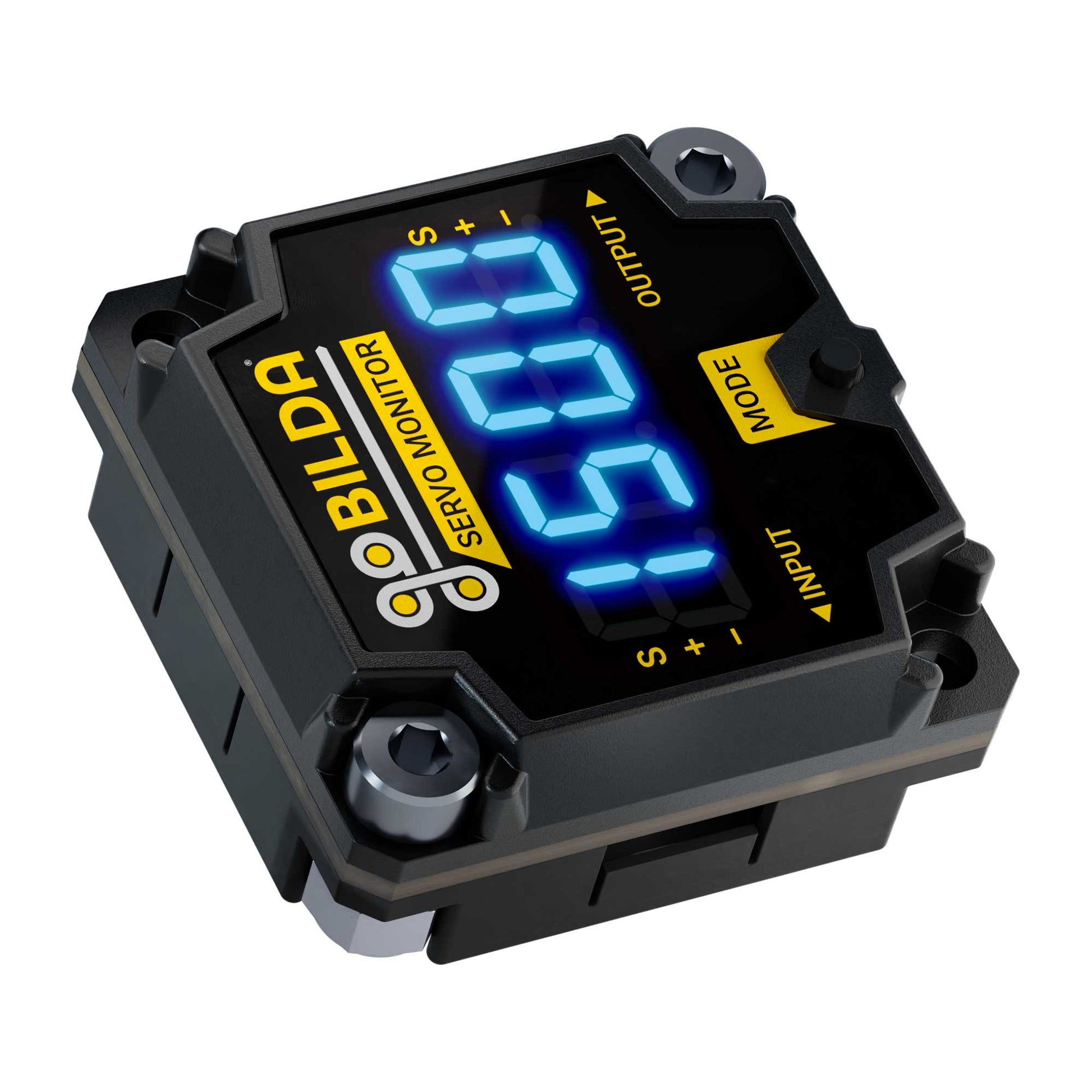

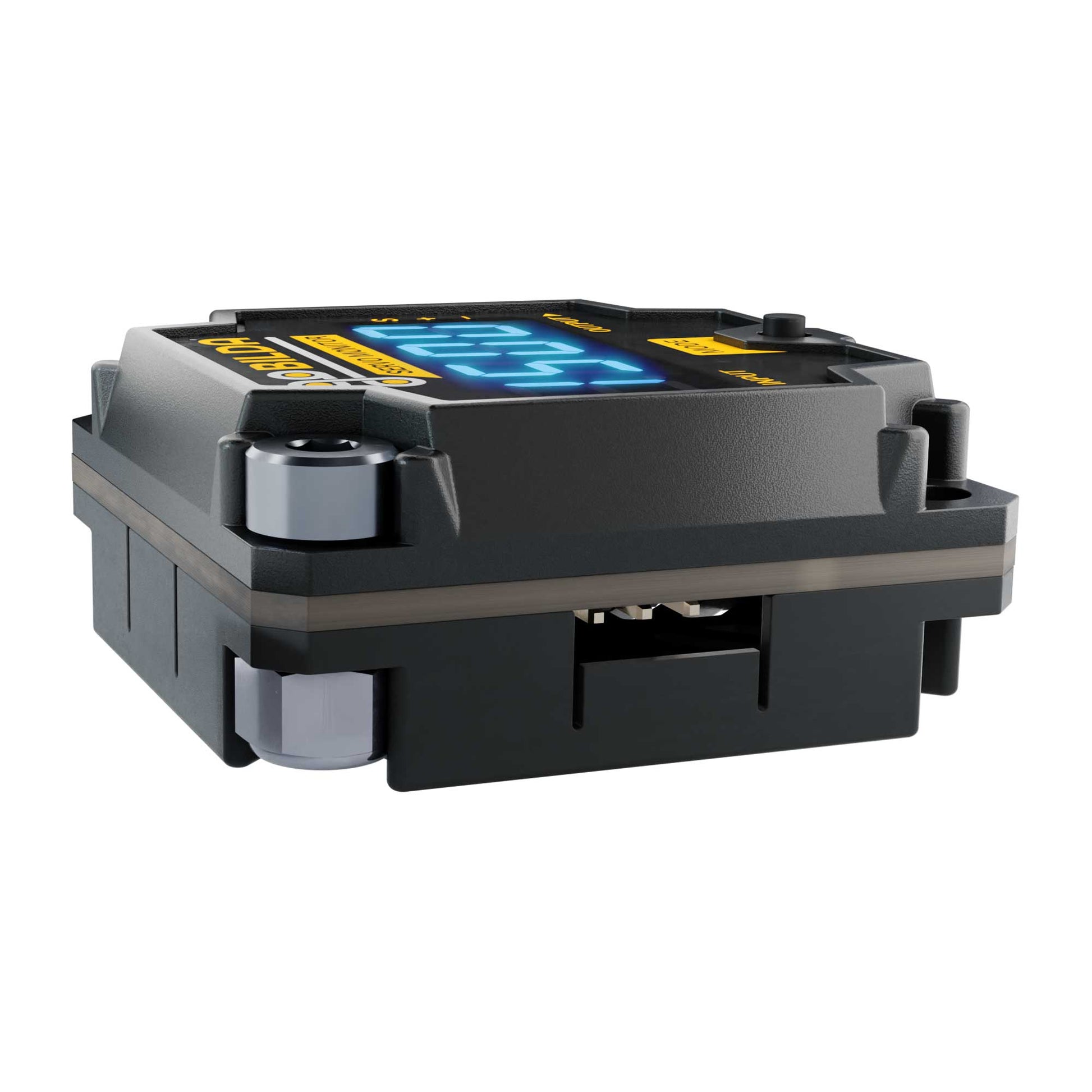

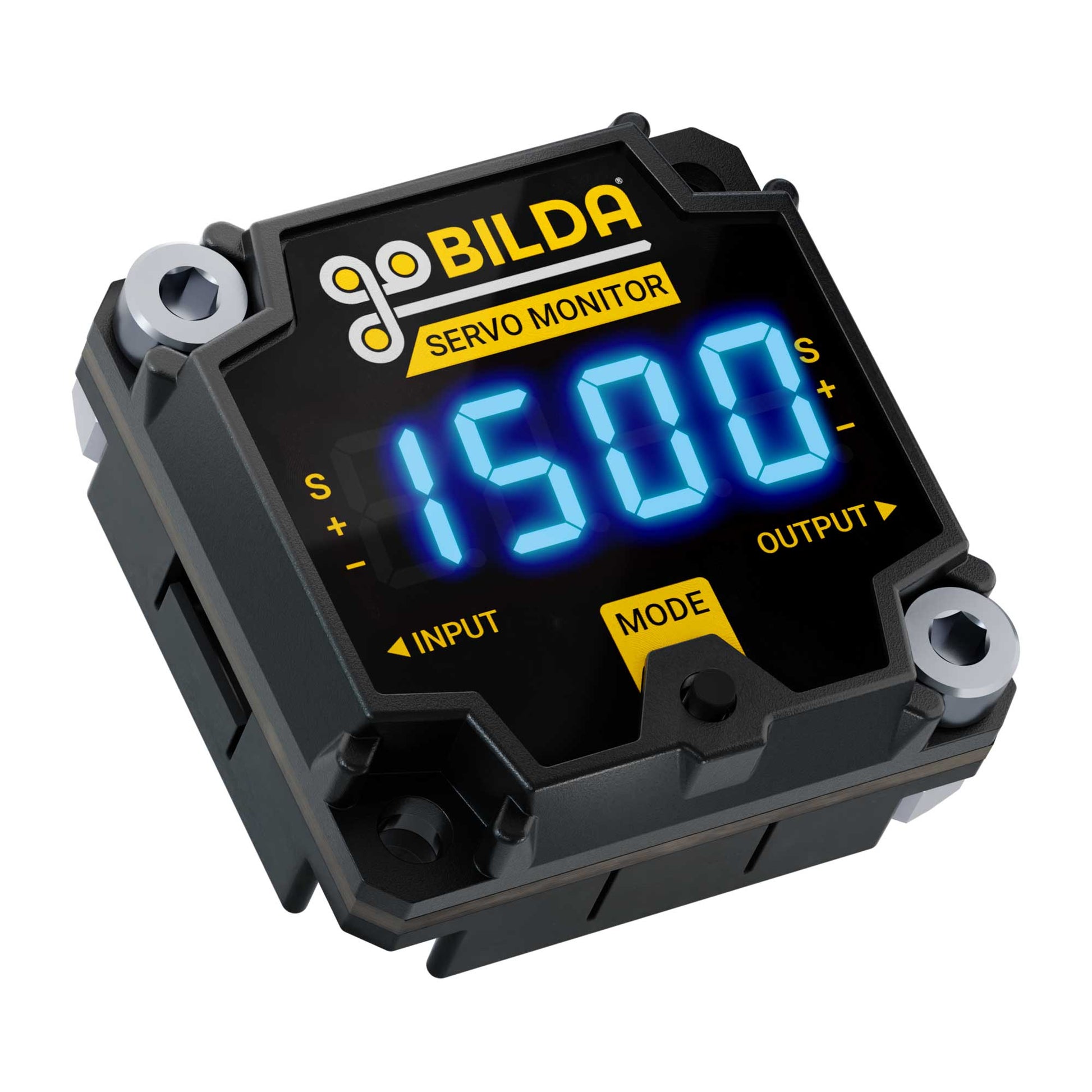

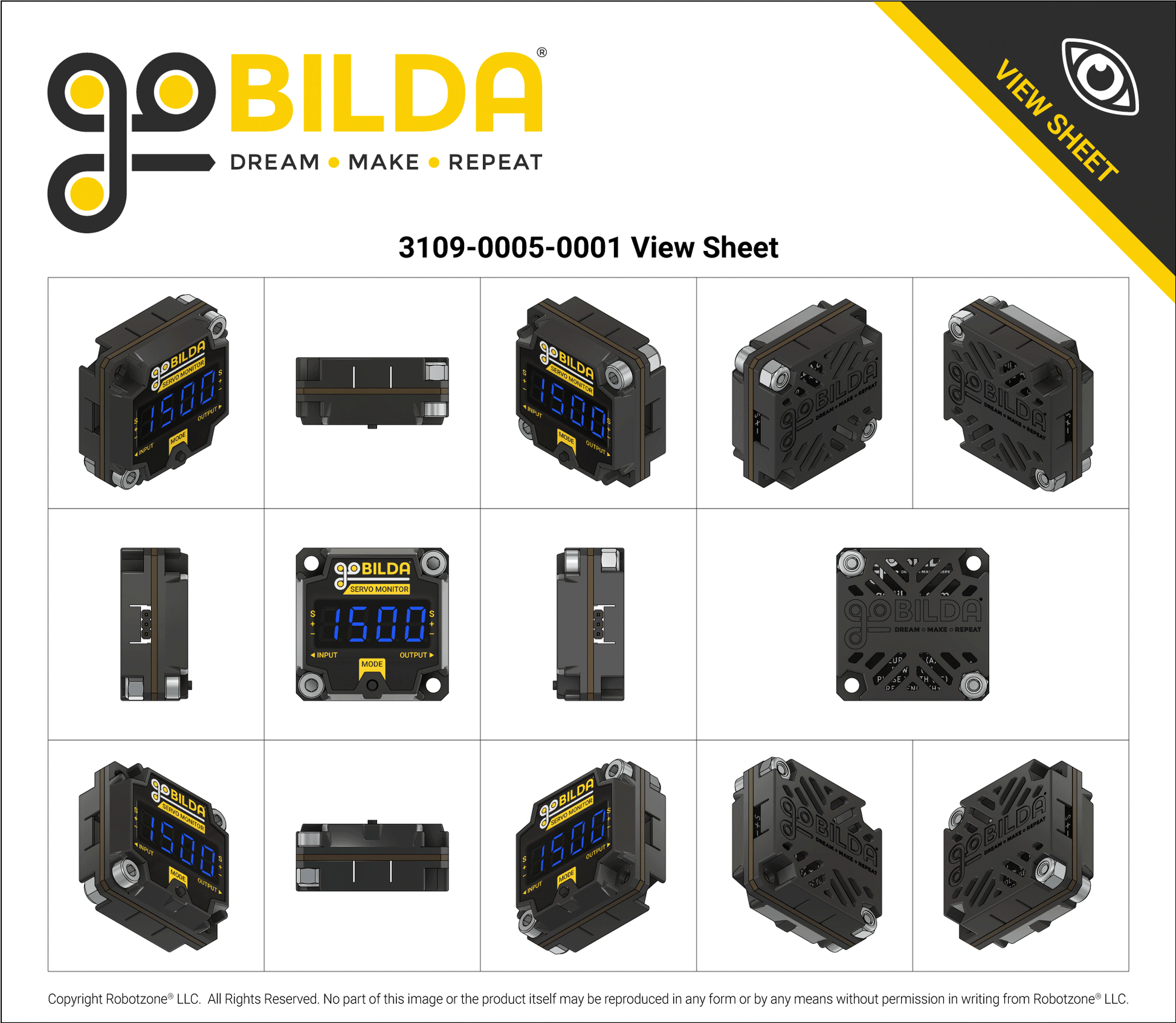

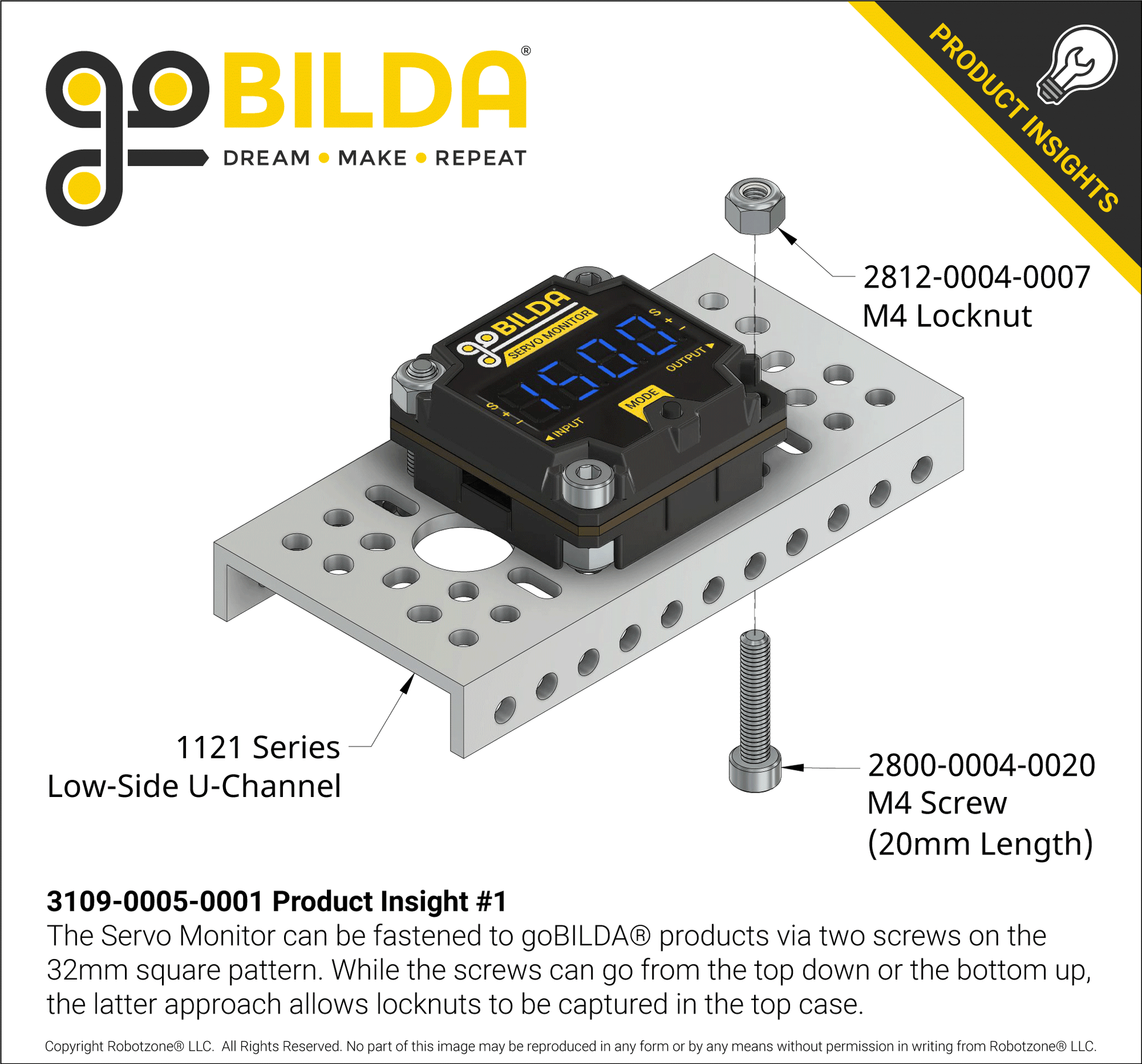

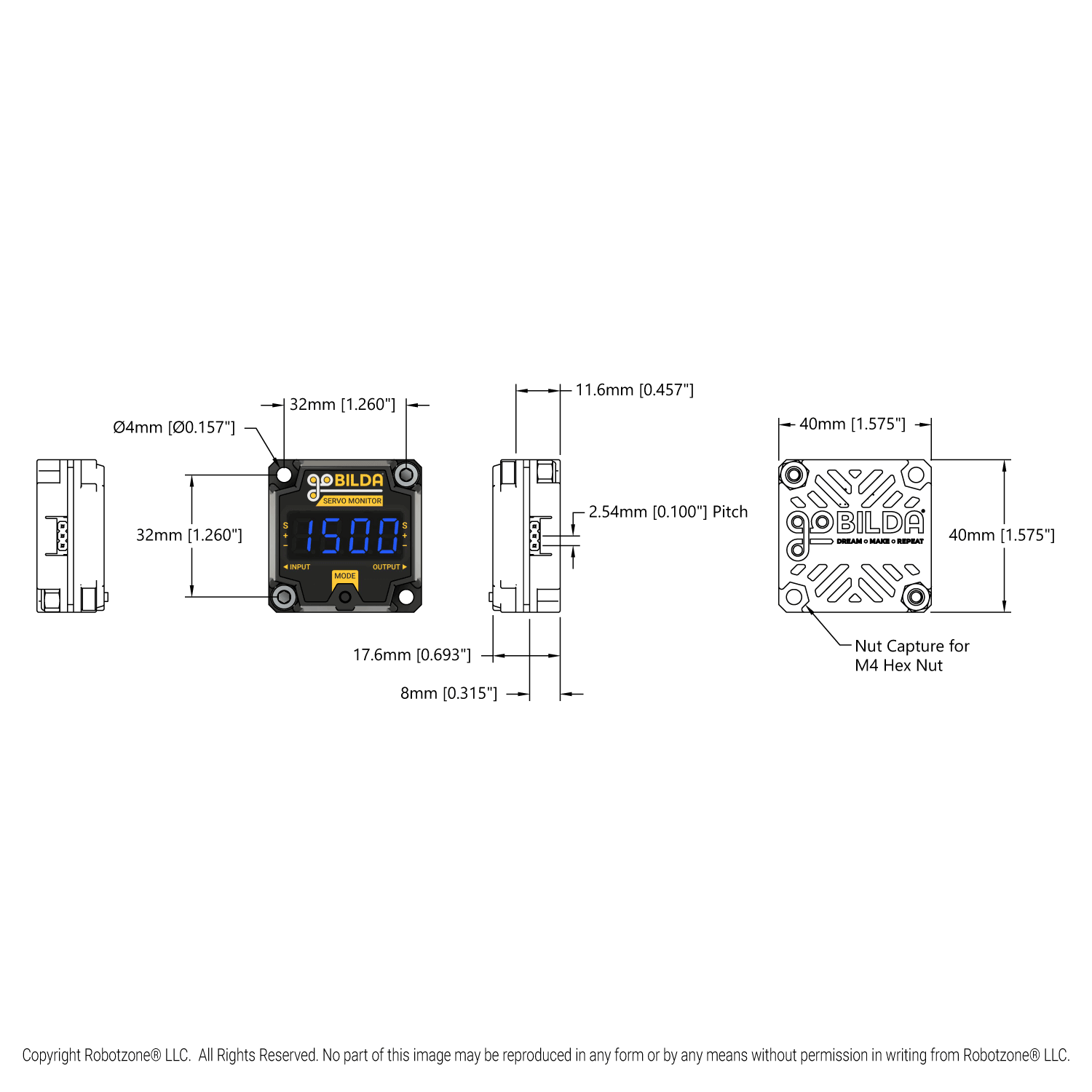

Servo Monitor

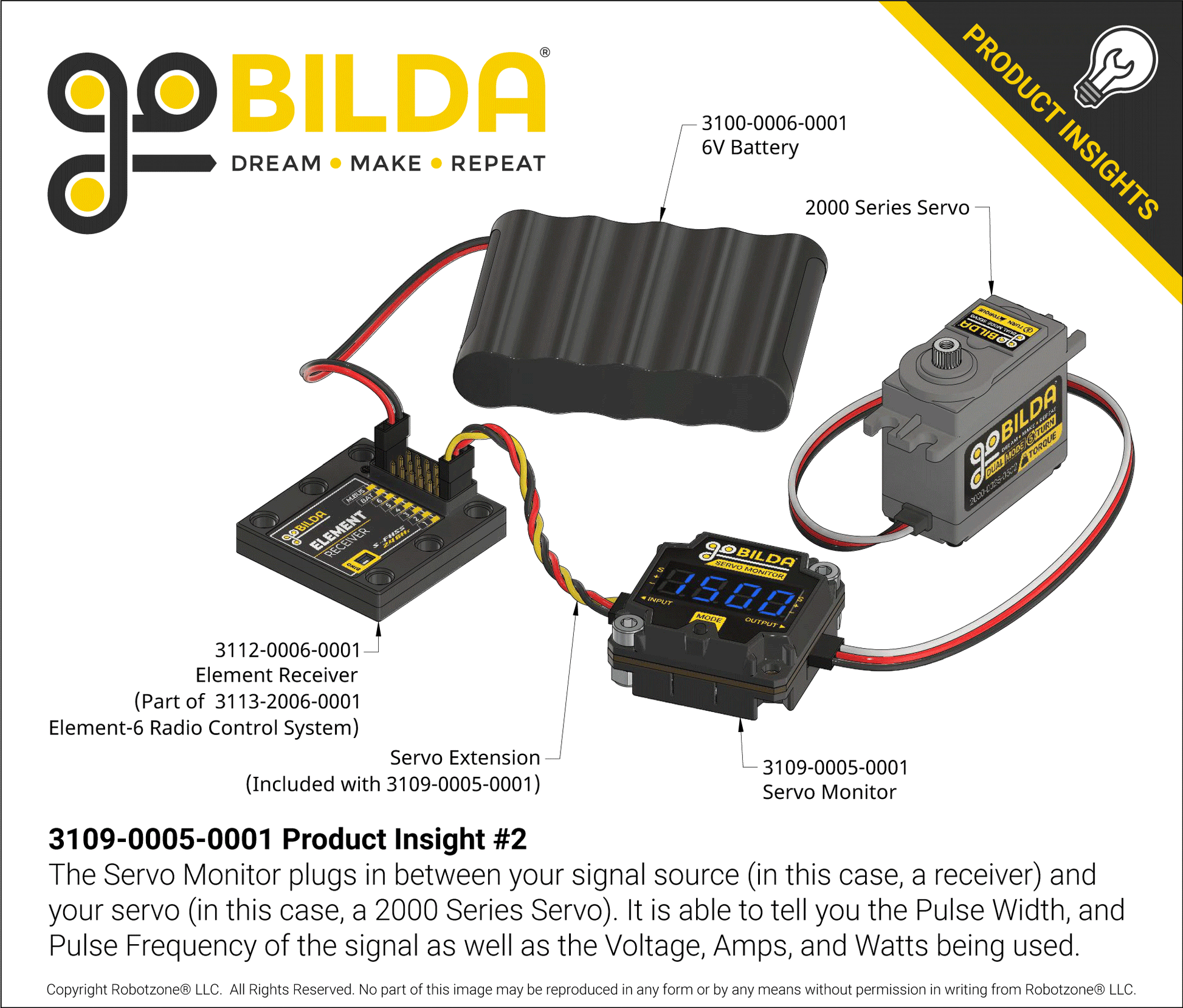

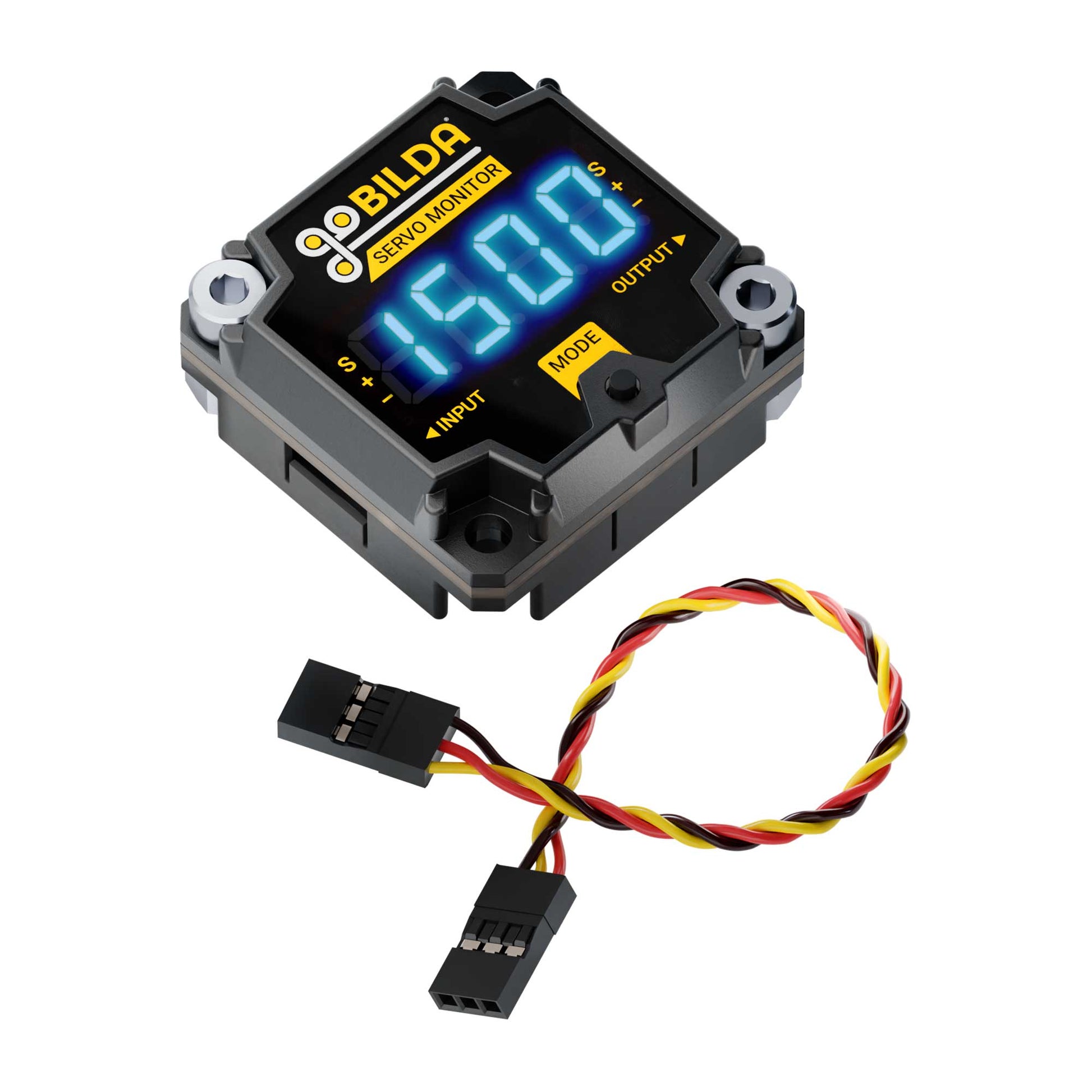

The Servo Monitor is a tool that allows you to easily check servo vitals. Just plug a servo controller into one side and a servo into the other. The screen will display the value for the selected mode in real time! Press the pushbutton to cycle through the five modes.

Modes:

• Voltage
  This mode displays the voltage being sent to the servo. The wire is used to supply power to the motor within the servo. Sending the correct voltage to a servo is important, and this mode keeps you in-the-know about any excessive voltage, as well as the battery's charge level.


• Current
  In this mode, the Servo Monitor displays the current in amps. This can give you an indication of how hard the servo is working to maintain a position. You can never have too much potential current in your battery. For example, a battery with a million mAh rating will not burn out your servo; it will just run the servo for an extensive period of time between charges. However, a battery which cannot supply enough current will not allow your servo to live up to its strength and speed potential.


• Power
  This mode displays the amount of power (in Watts) that the servo's motor is using. While the power in watts can also be derived by multiplying the voltage by the current, this mode is a more convenient way to find that value.


• Pulse Width
  In this mode, the Servo Monitor displays the width of the pulse of the signal being sent to the servo. This value is displayed in microseconds (μsec) and is the core of how servos are controlled. The pulse width tells the servo where to rotate to (or for continuous rotation servos, what speed and direction to achieve). It’s super helpful to know the pulse width—you can, for example, use it to determine what PWM range your transmitter is sending, or confirm that the code you wrote for your Arduino is working correctly.


• Pulse Frequency
  In this mode, the Servo Monitor displays the frequency of the Pulse Width Modulation (PWM) Signal. This value is displayed in hertz (how many pulses per second). This is a generally less-critical value than the pulse width, but it can be useful during troubleshooting.
