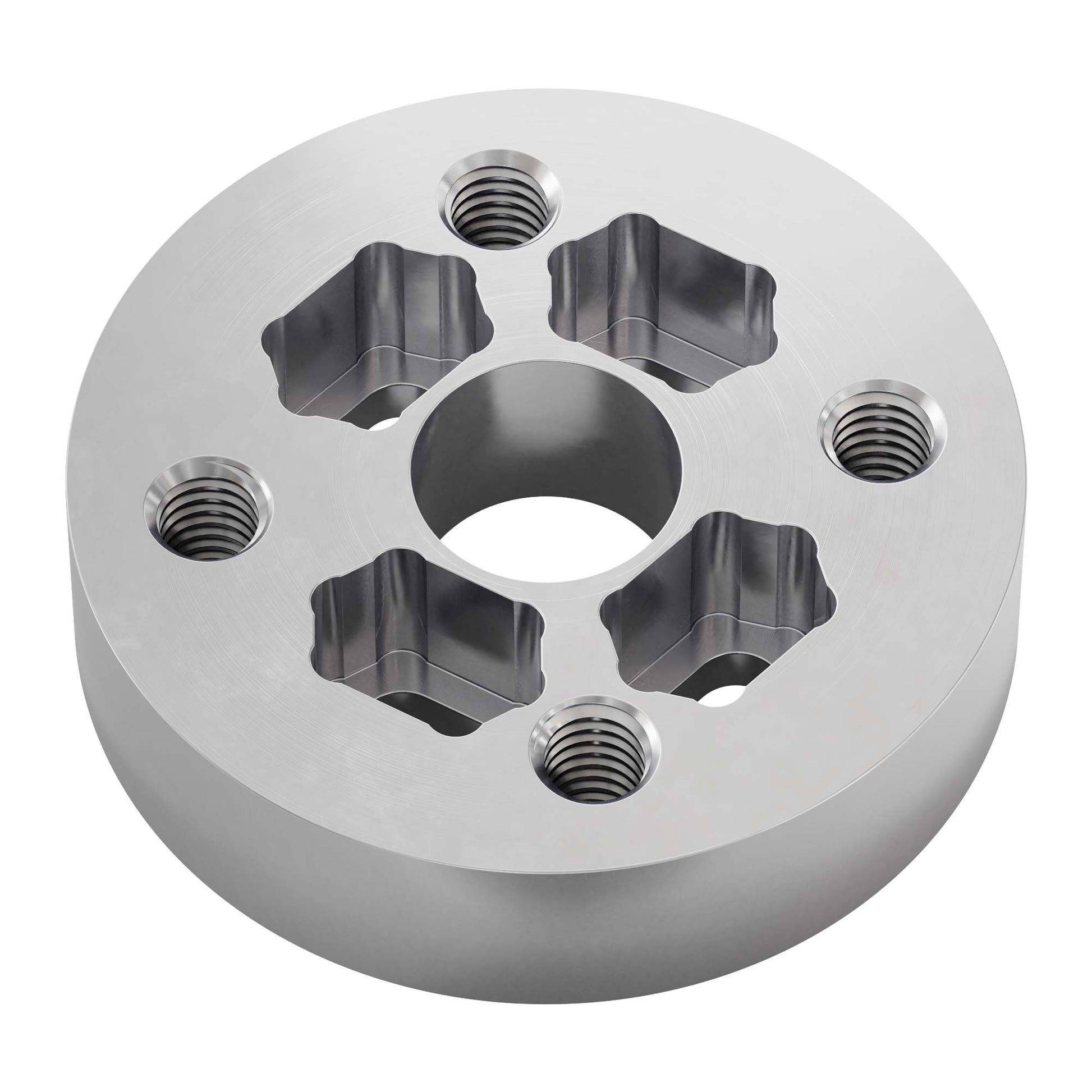

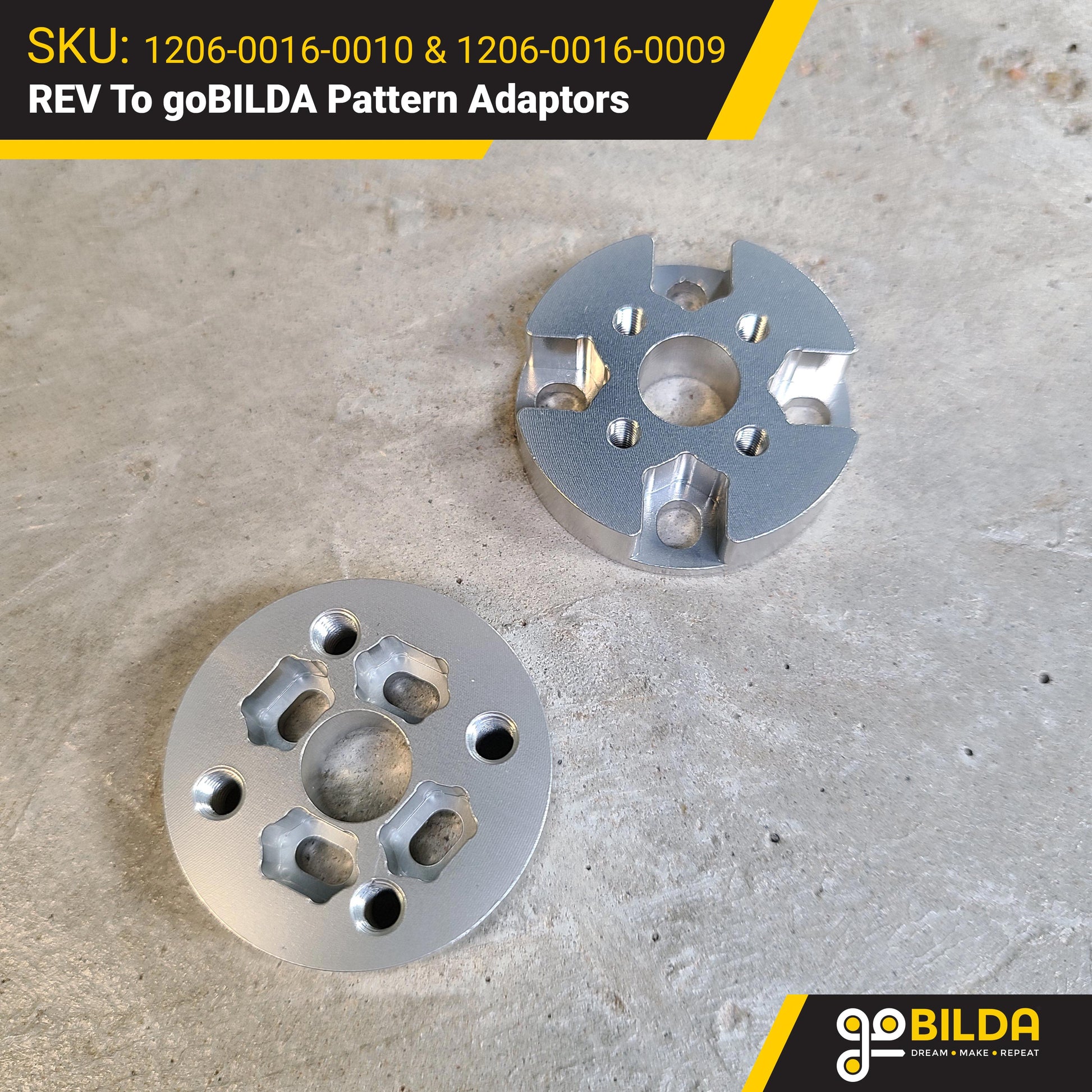

Thru-Hole REV to Threaded goBILDA Pattern Adaptor (16-10)

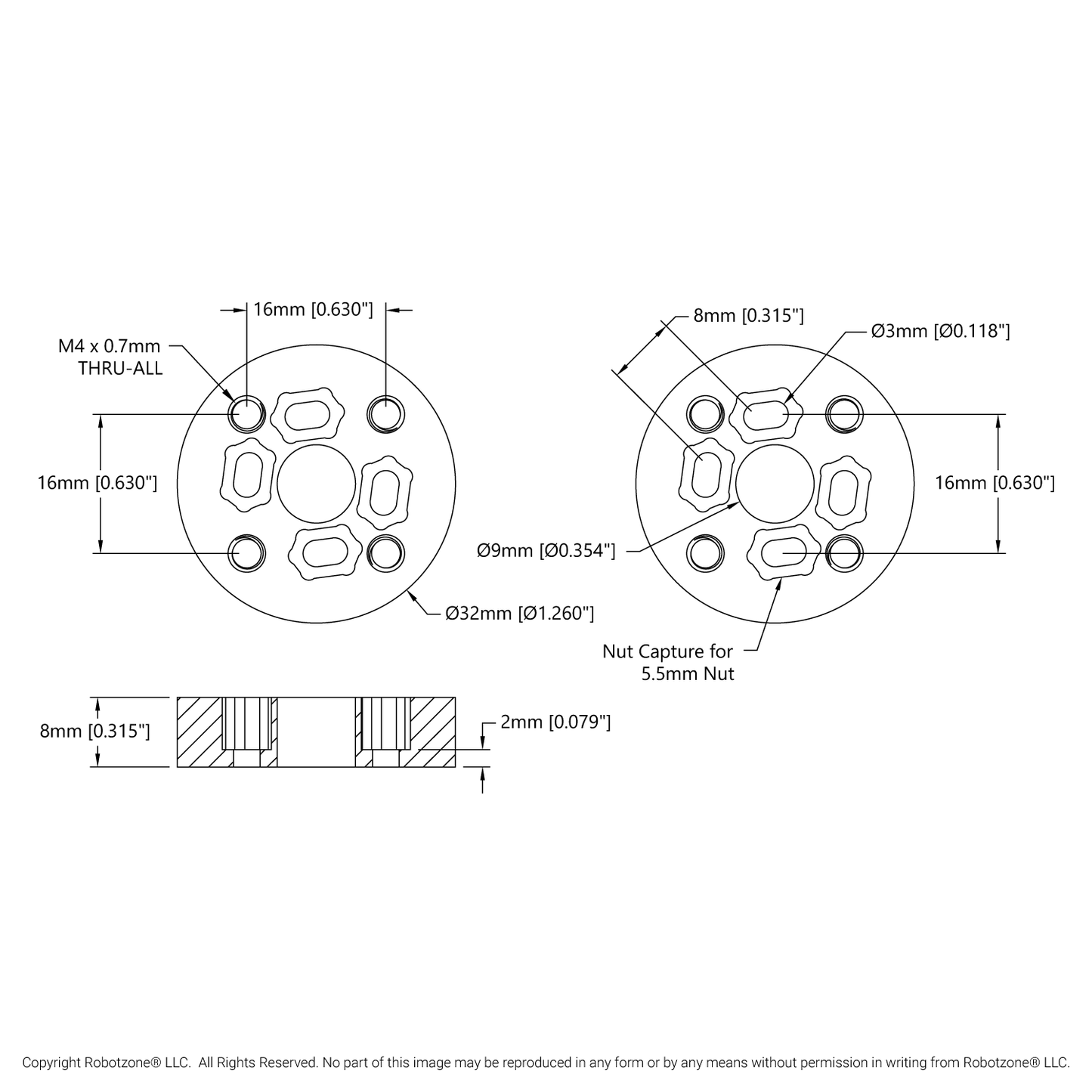

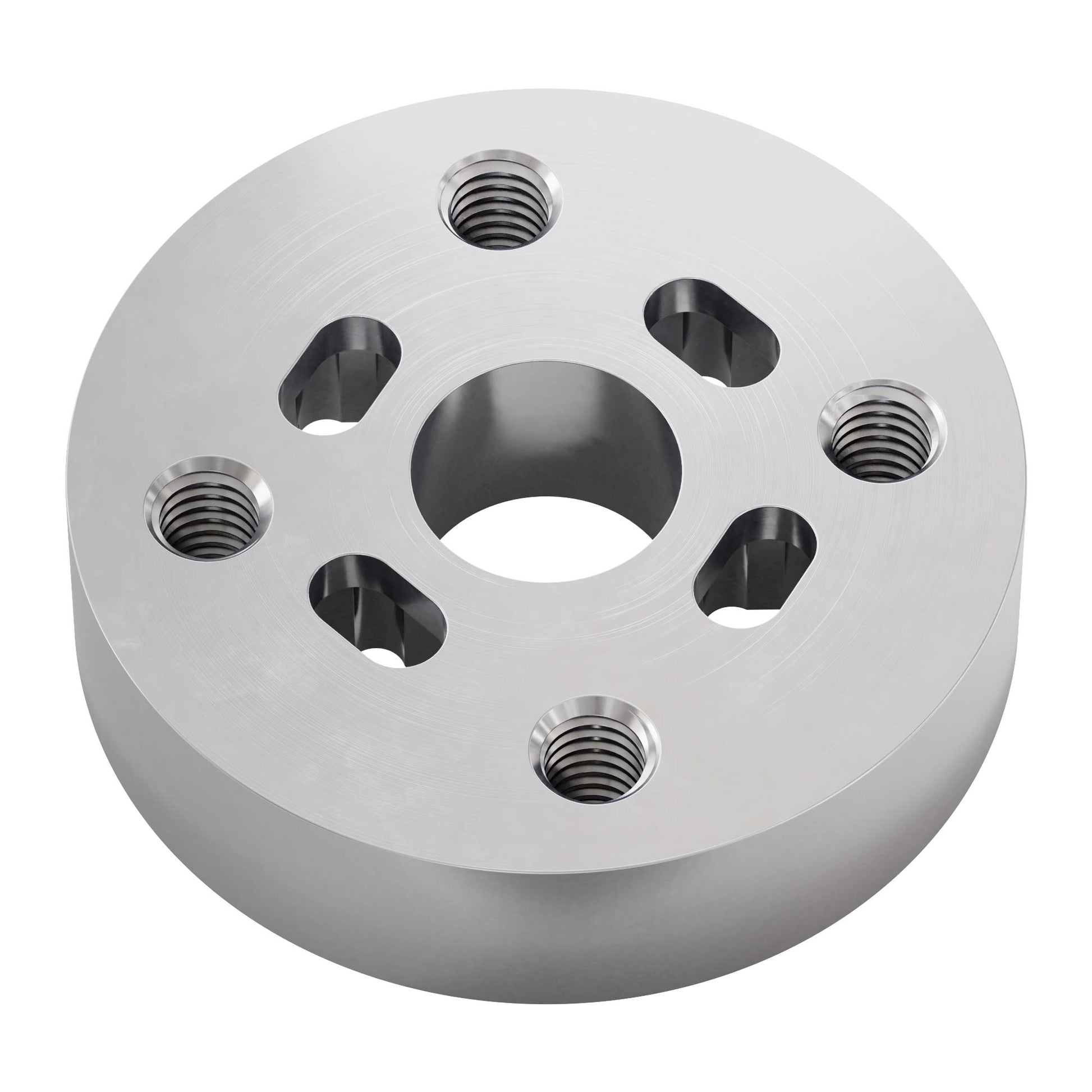

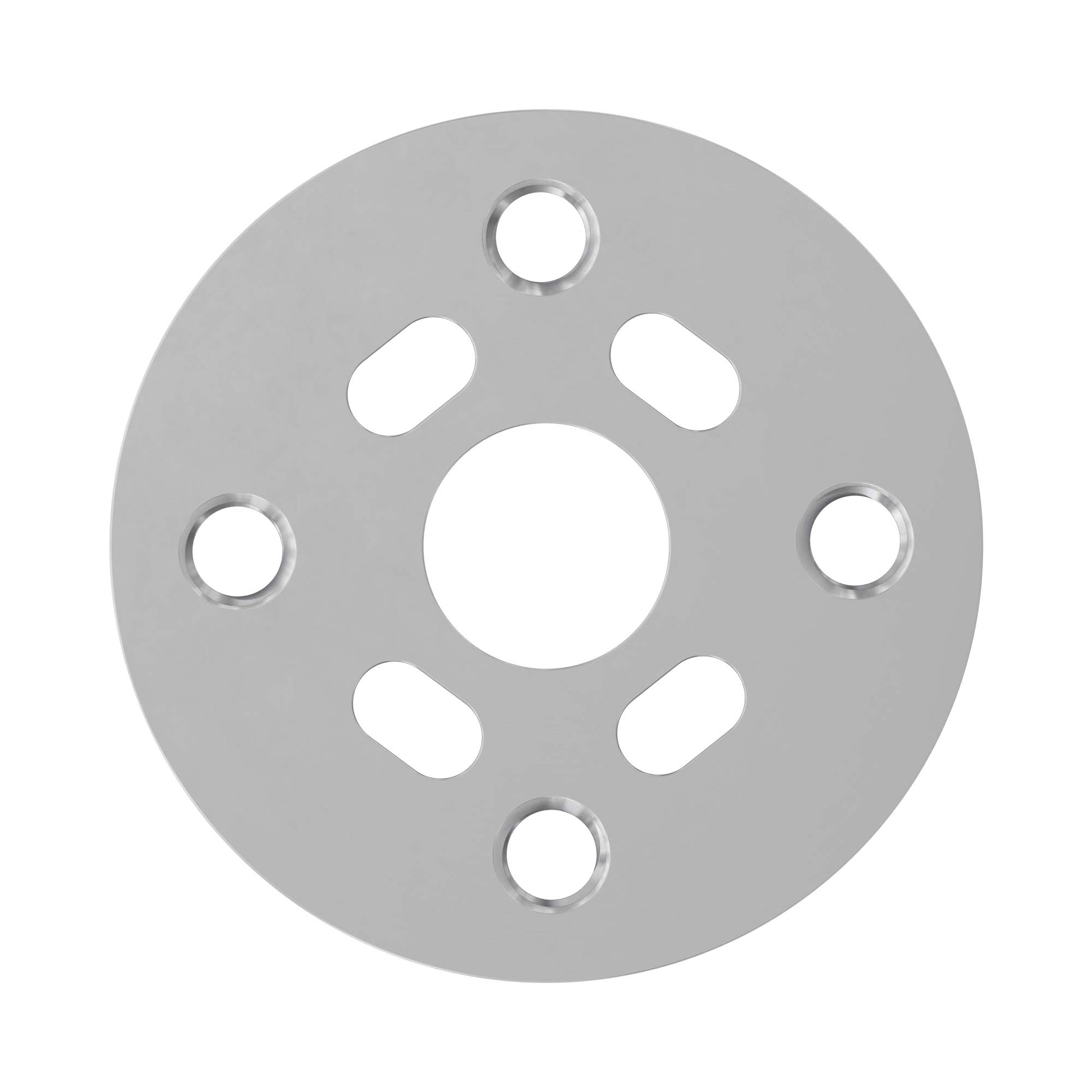

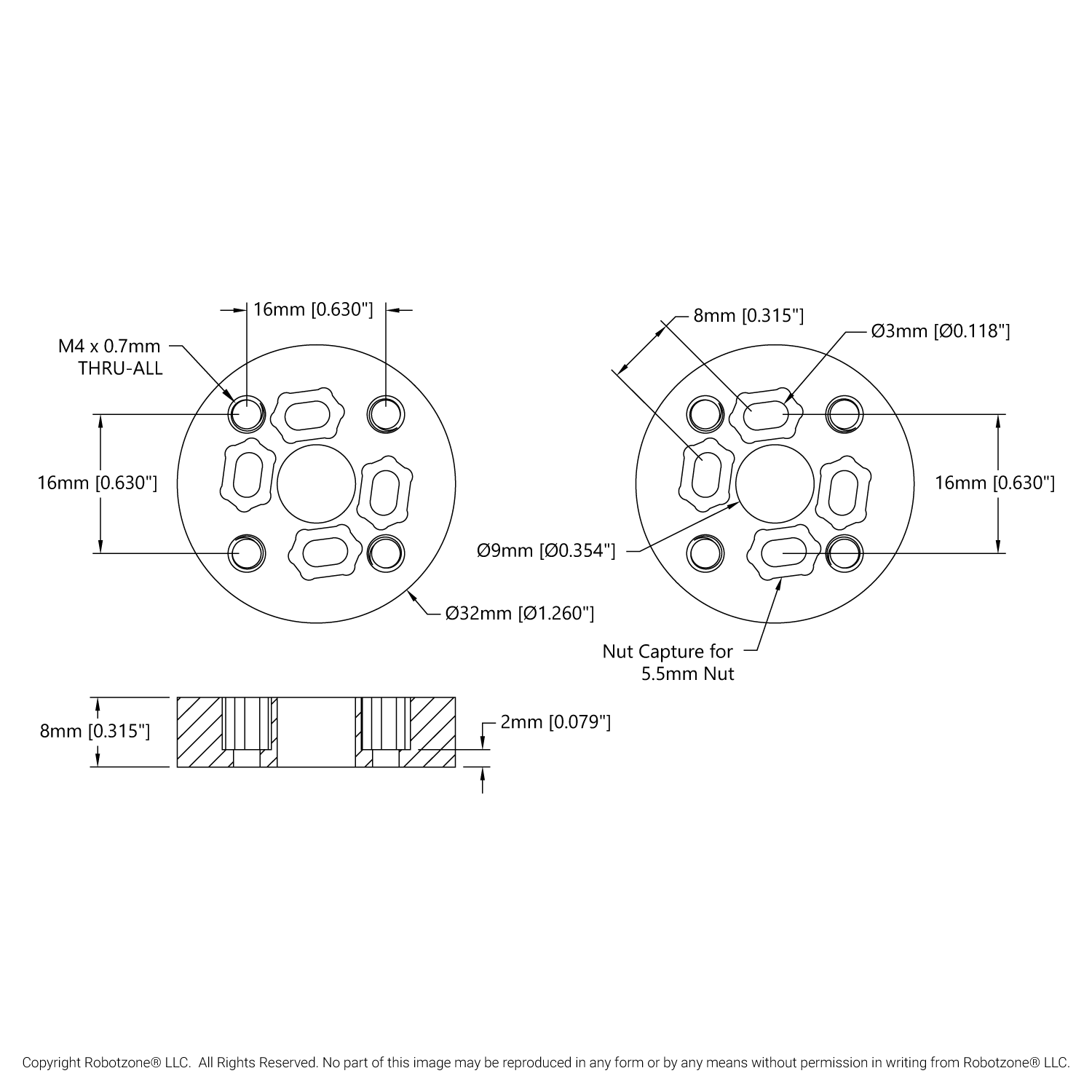

This adaptor has thru-holes on two different REV patterns:

1. With screws or nuts slid to one extreme within the counterbored slot, they will align with the 4 x 16mm pattern found on some REV parts.
2. Slide the screws or nuts to the other end of the slots and they’ll align with the 6 x 16mm pattern found on other REV parts.

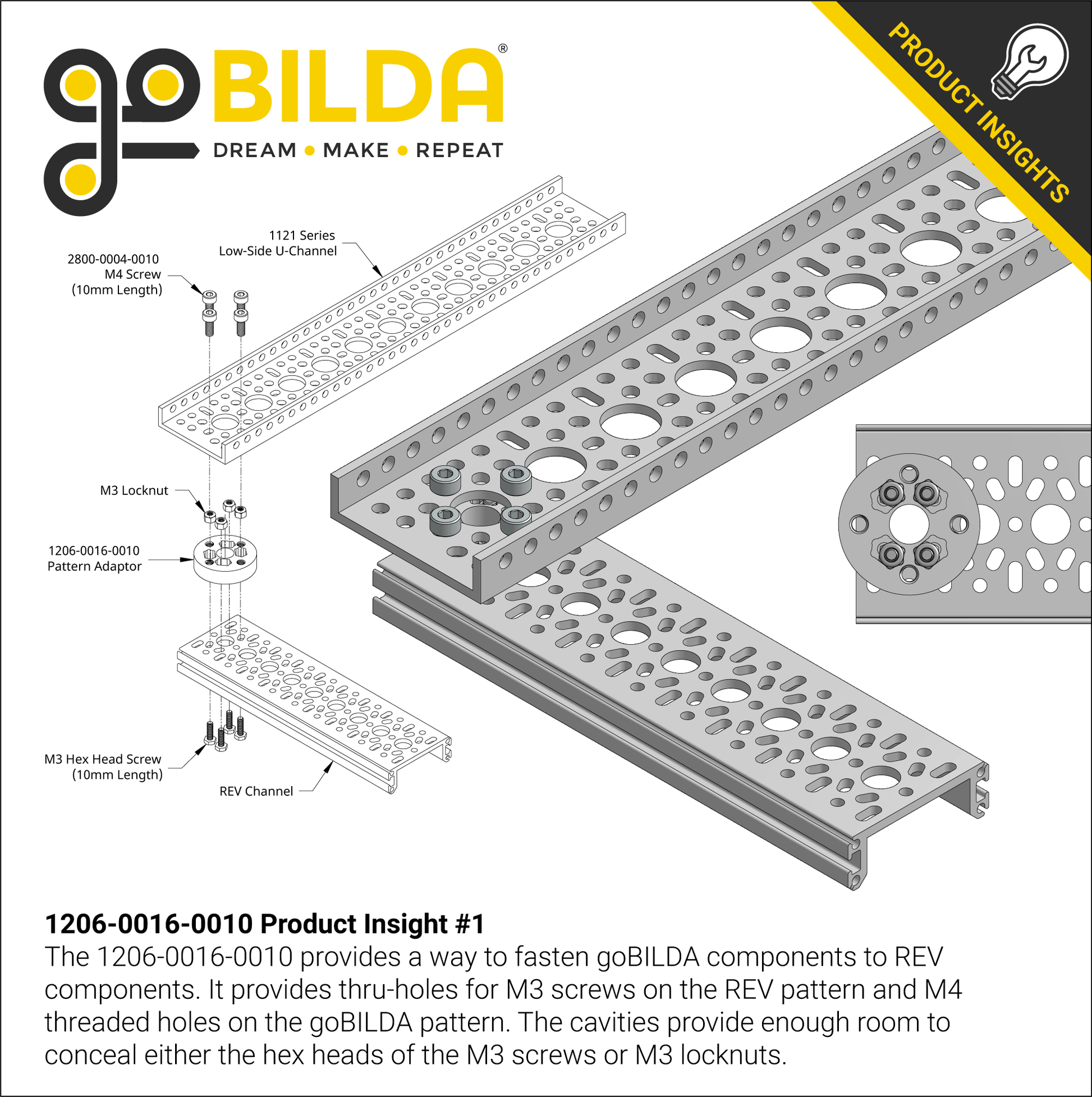

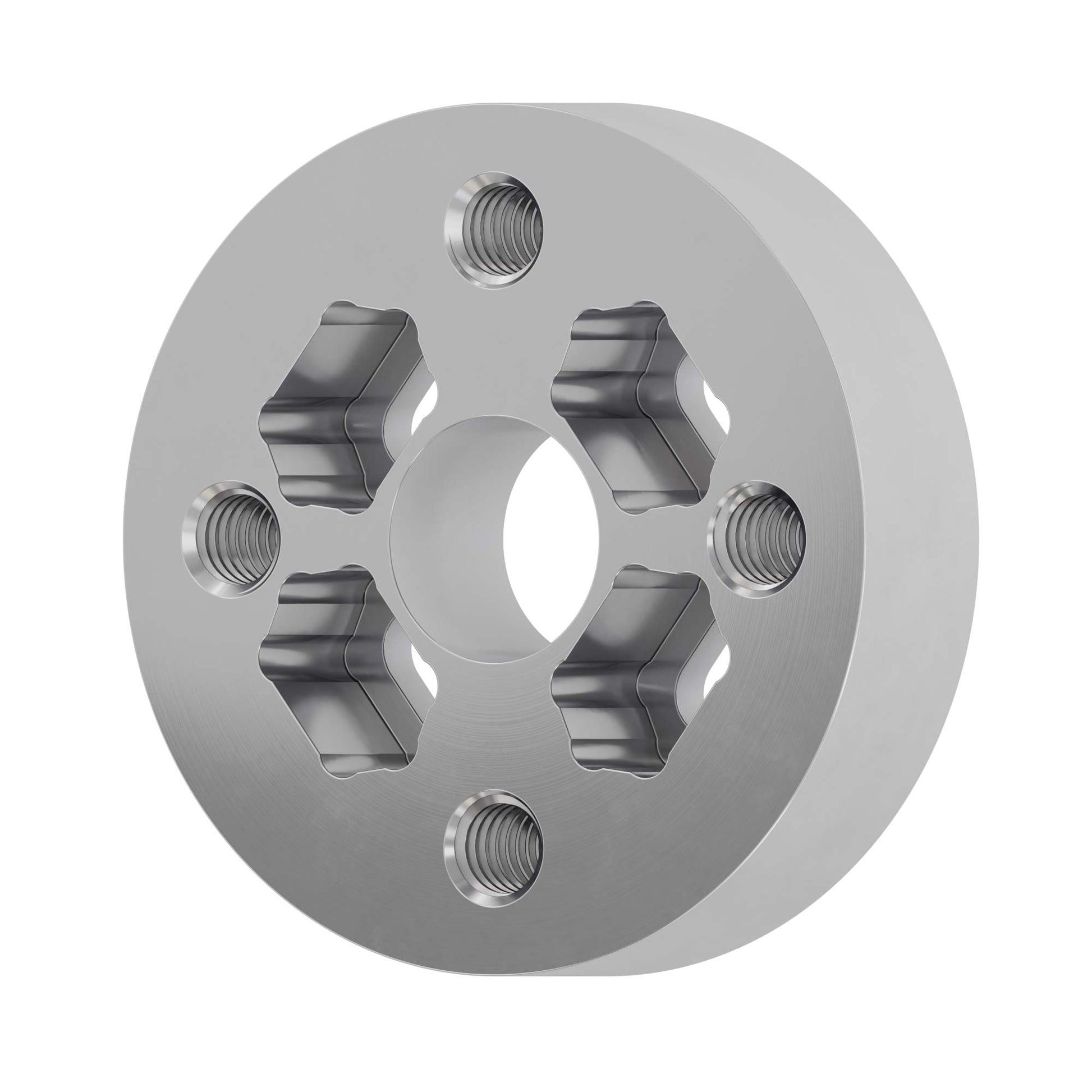

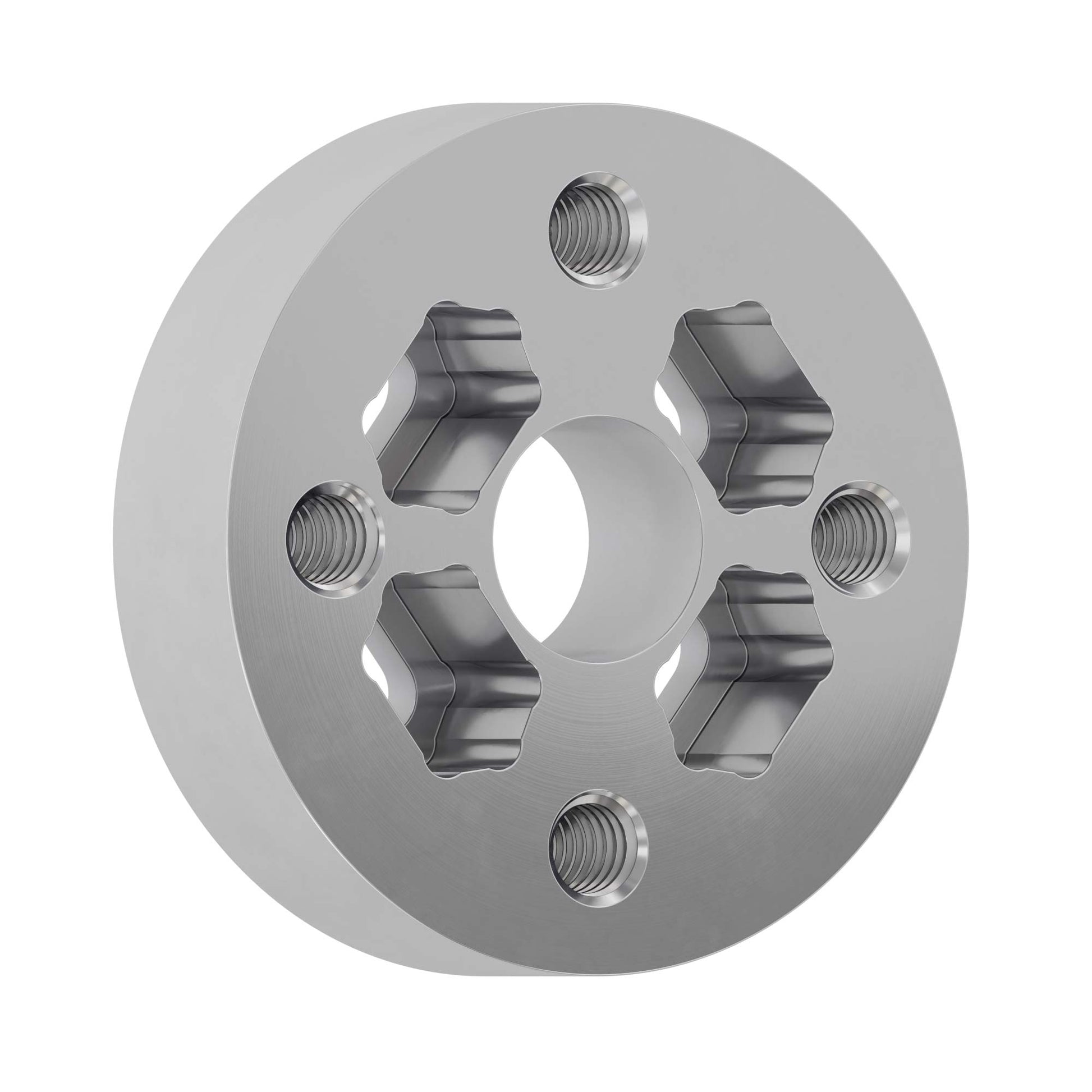

The remaining holes are tapped to M4 on the goBILDA 16mm grid pattern so that you can fasten to about any goBILDA component that suits your fancy.
