This 150mm Length XT90 to XT30 Y-Harness triples your XT90-to-XT30 possibilities by offering a way to split out the power from an XT90 input (such as the goBILDA® Smart Dock) across three different XT30 outputs to feed juice to your electronics and motion components.
It’s a fantastic solution for a wheeled chassis project that uses two motor controllers. With this Y-Harness in your wiring setup, you can use just one XT90 input to cover those two bad boys and power your chassis’ headlight with the third XT30 output!

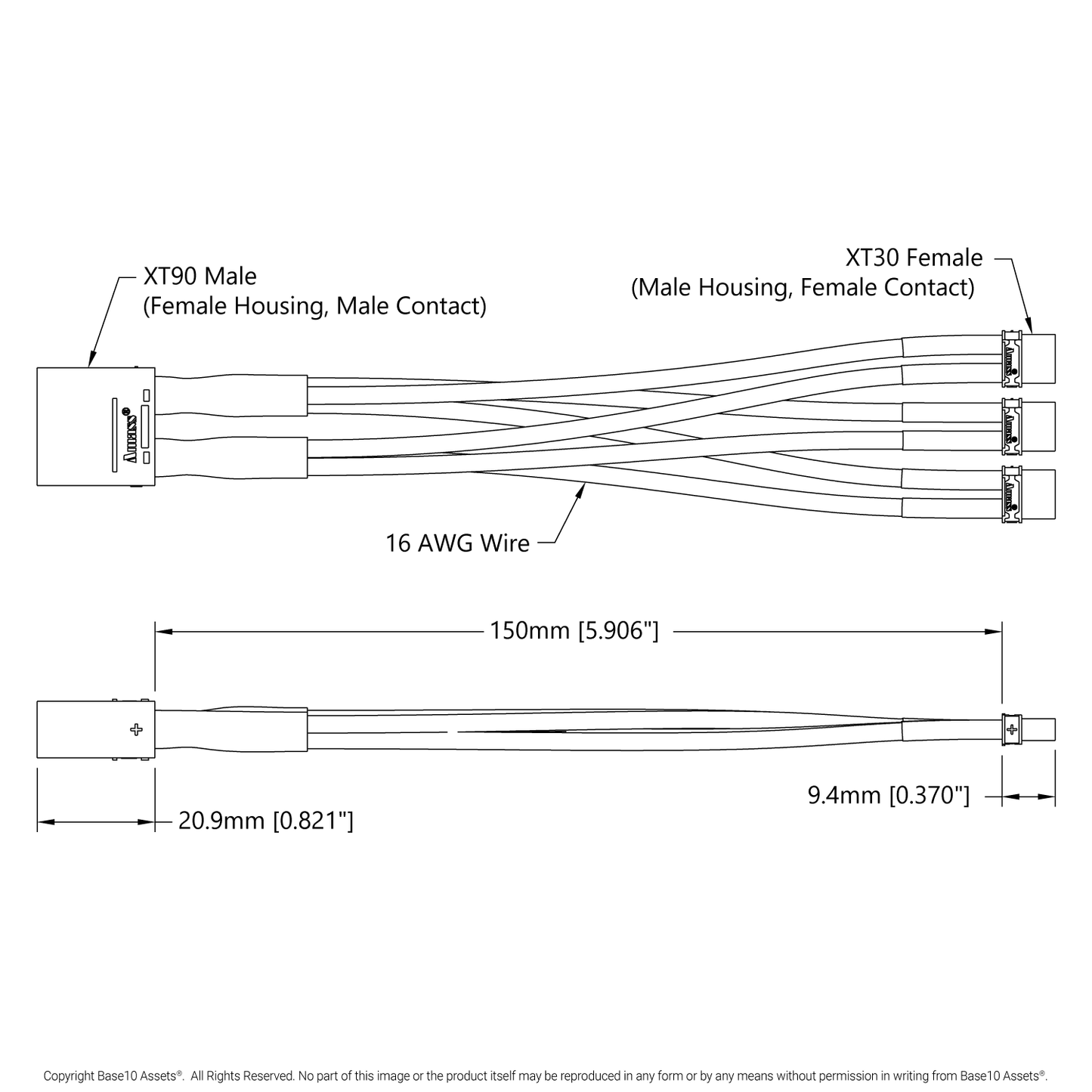

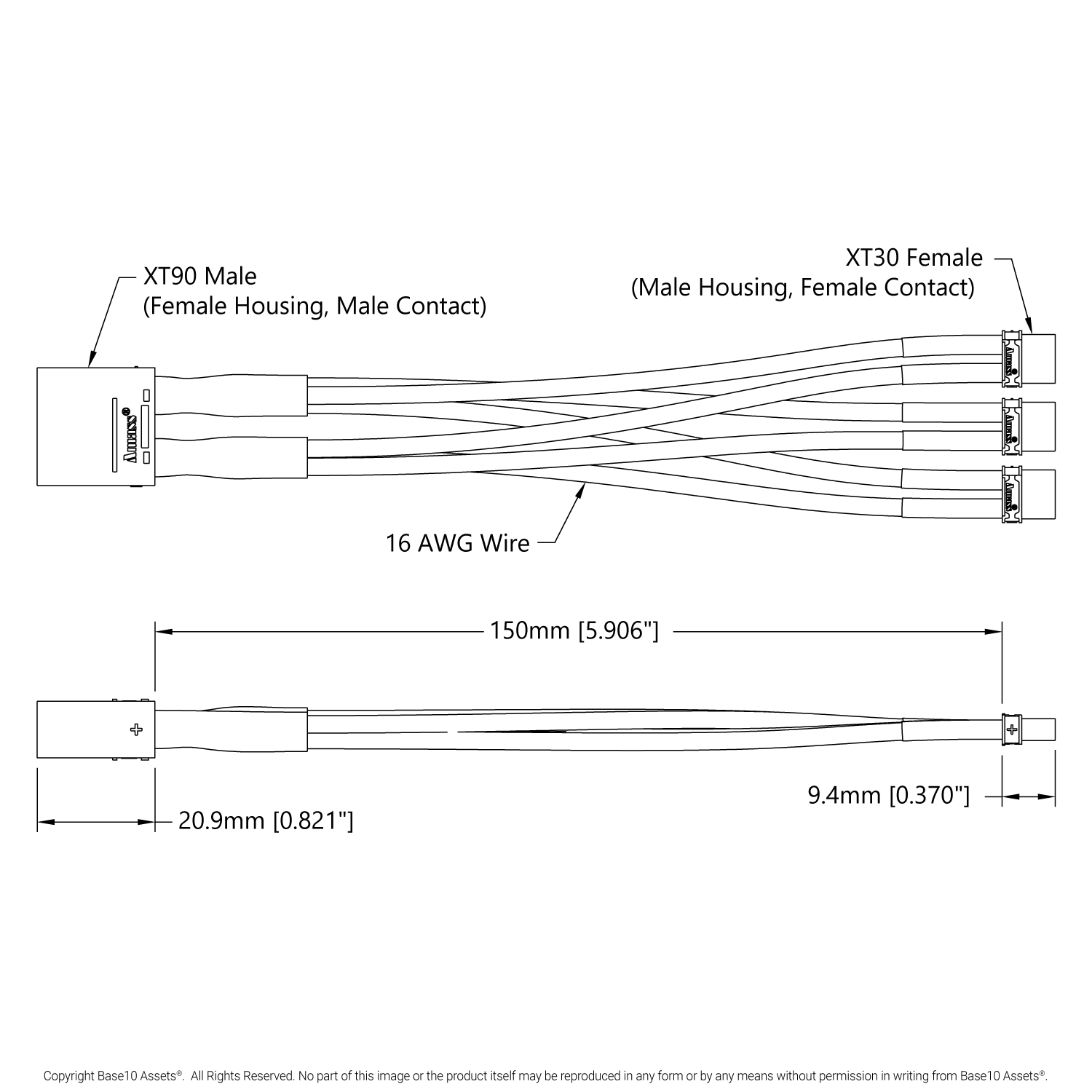

Specs
| Connector | XT90 FH-MC [Female Housing, Male Contact] to (3) XT30 MH-FC [Male Housing, Female Contact] |
|---|---|
| Wire Length | 150mm |
| Weight | 26g (0.92oz) |
| Wire Gauge | 16AWG |
| Wire Insulation Material | Silicone |
| Wire Material | Stranded Copper |
