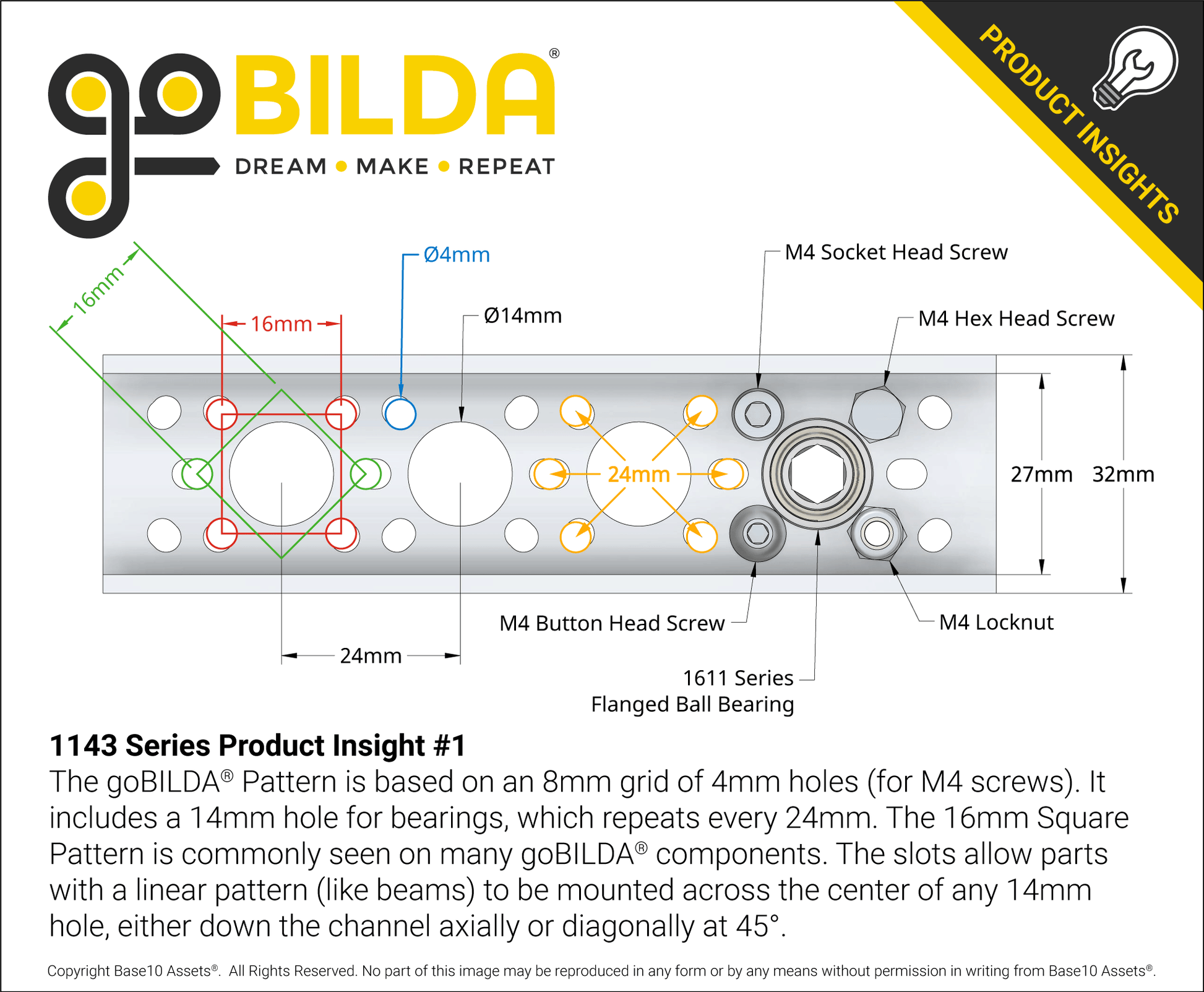

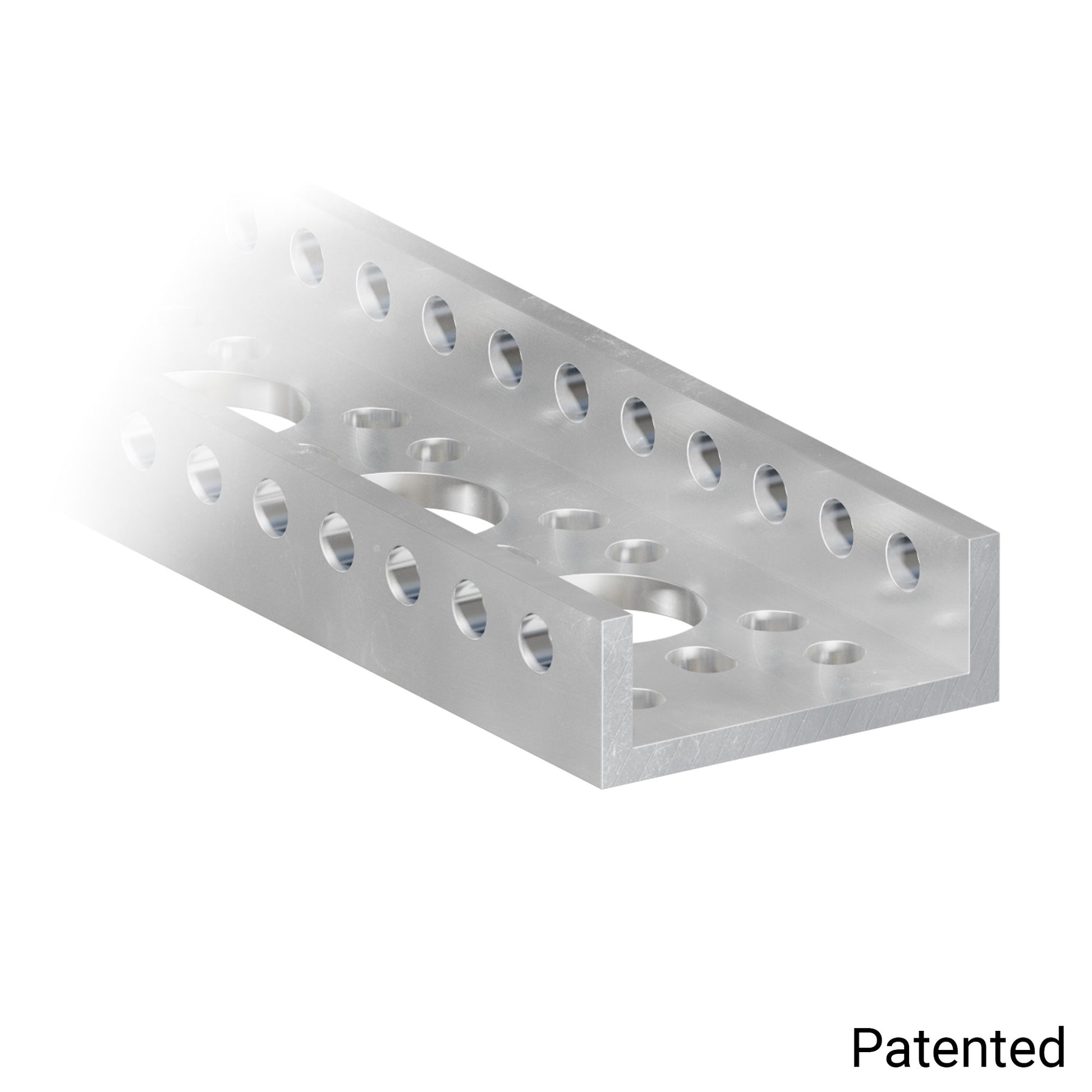

Small, but with big possibilities, 1143 Series Mini Low-Side U-Channel has a minimized profile and 16mm goBILDA® pattern holes to help you construct compact assemblies!

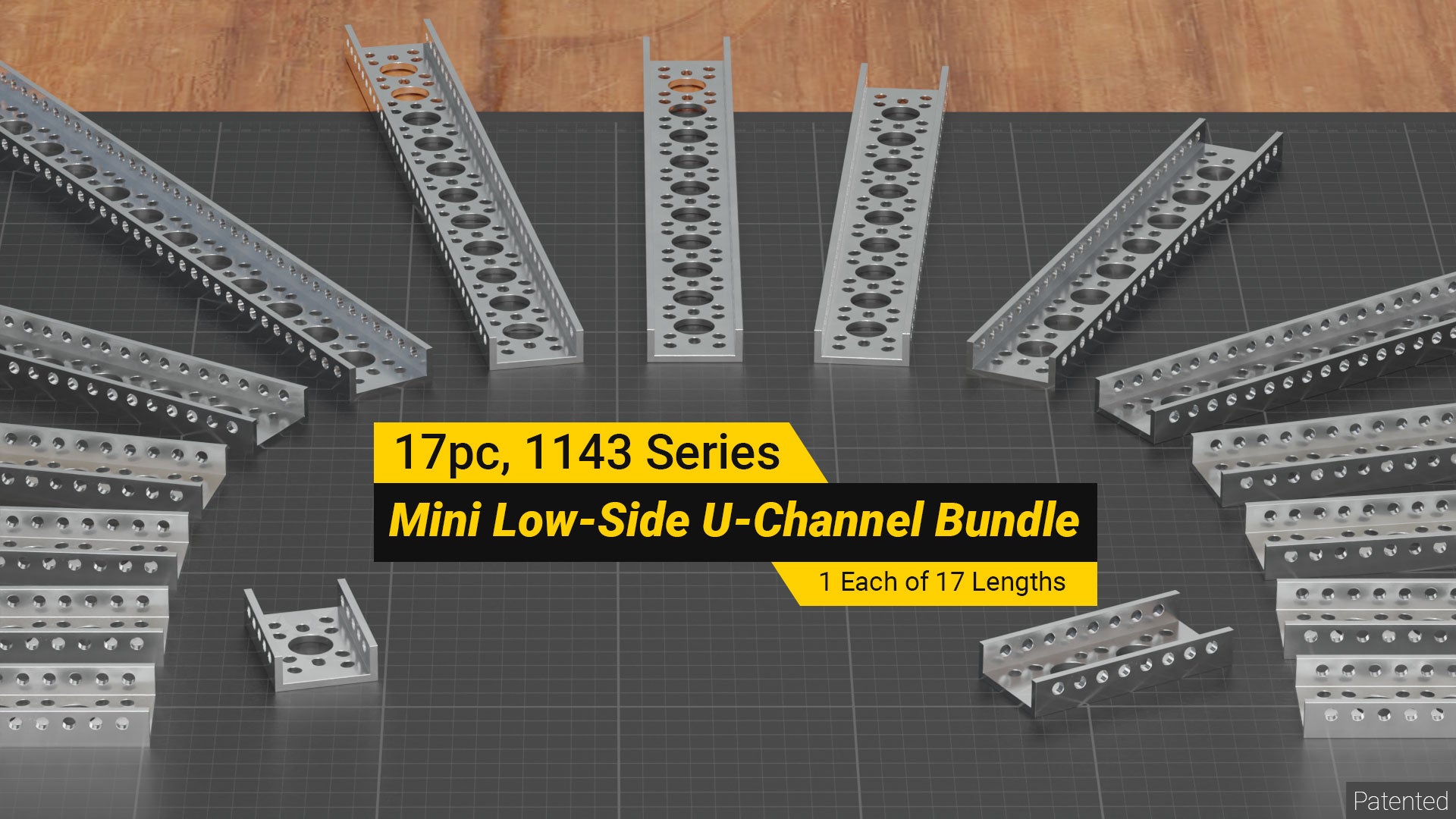

The 17 individual lengths of Mini Low-Side U-Channel included in this bundle provide all kinds of Mini Low-Side options to your projects.
Bundle Contents:

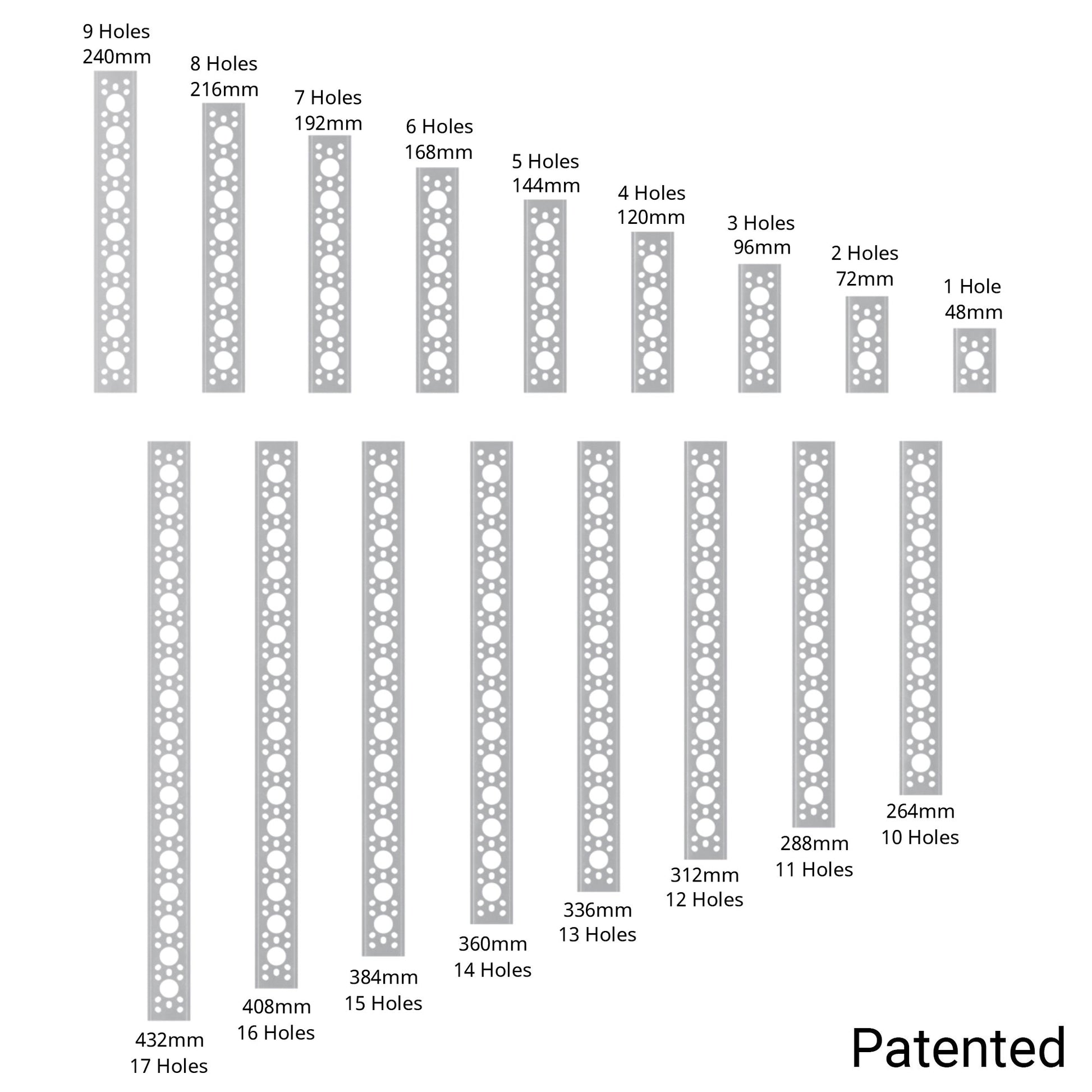

| SKU | Qty | Name |
|---|---|---|
| 1143-0001-0048 | 1 | Mini Low-Side U-Channel (1 Hole, 48mm Length) |
| 1143-0002-0072 | 1 | Mini Low-Side U-Channel (2 Hole, 72mm Length) |
| 1143-0003-0096 | 1 | Mini Low-Side U-Channel (3 Hole, 96mm Length) |
| 1143-0004-0120 | 1 | Mini Low-Side U-Channel (4 Hole, 120mm Length) |
| 1143-0005-0144 | 1 | Mini Low-Side U-Channel (5 Hole, 144mm Length) |
| 1143-0006-0168 | 1 | Mini Low-Side U-Channel (6 Hole, 168mm Length) |
| 1143-0007-0192 | 1 | Mini Low-Side U-Channel (7 Hole, 192mm Length) |
| 1143-0008-0216 | 1 | Mini Low-Side U-Channel (8 Hole, 216mm Length) |
| 1143-0009-0240 | 1 | Mini Low-Side U-Channel (9 Hole, 240mm Length) |
| 1143-0010-0264 | 1 | Mini Low-Side U-Channel (10 Hole, 264mm Length) |
| 1143-0011-0288 | 1 | Mini Low-Side U-Channel (11 Hole, 288mm Length) |
| 1143-0012-0312 | 1 | Mini Low-Side U-Channel (12 Hole, 312mm Length) |
| 1143-0013-0336 | 1 | Mini Low-Side U-Channel (13 Hole, 336mm Length) |
| 1143-0014-0360 | 1 | Mini Low-Side U-Channel (14 Hole, 360mm Length) |
| 1143-0015-0384 | 1 | Mini Low-Side U-Channel (15 Hole, 384mm Length) |
| 1143-0016-0408 | 1 | Mini Low-Side U-Channel (16 Hole, 408mm Length) |
| 1143-0017-0432 | 1 | Mini Low-Side U-Channel (17 Hole, 432mm Length) |
