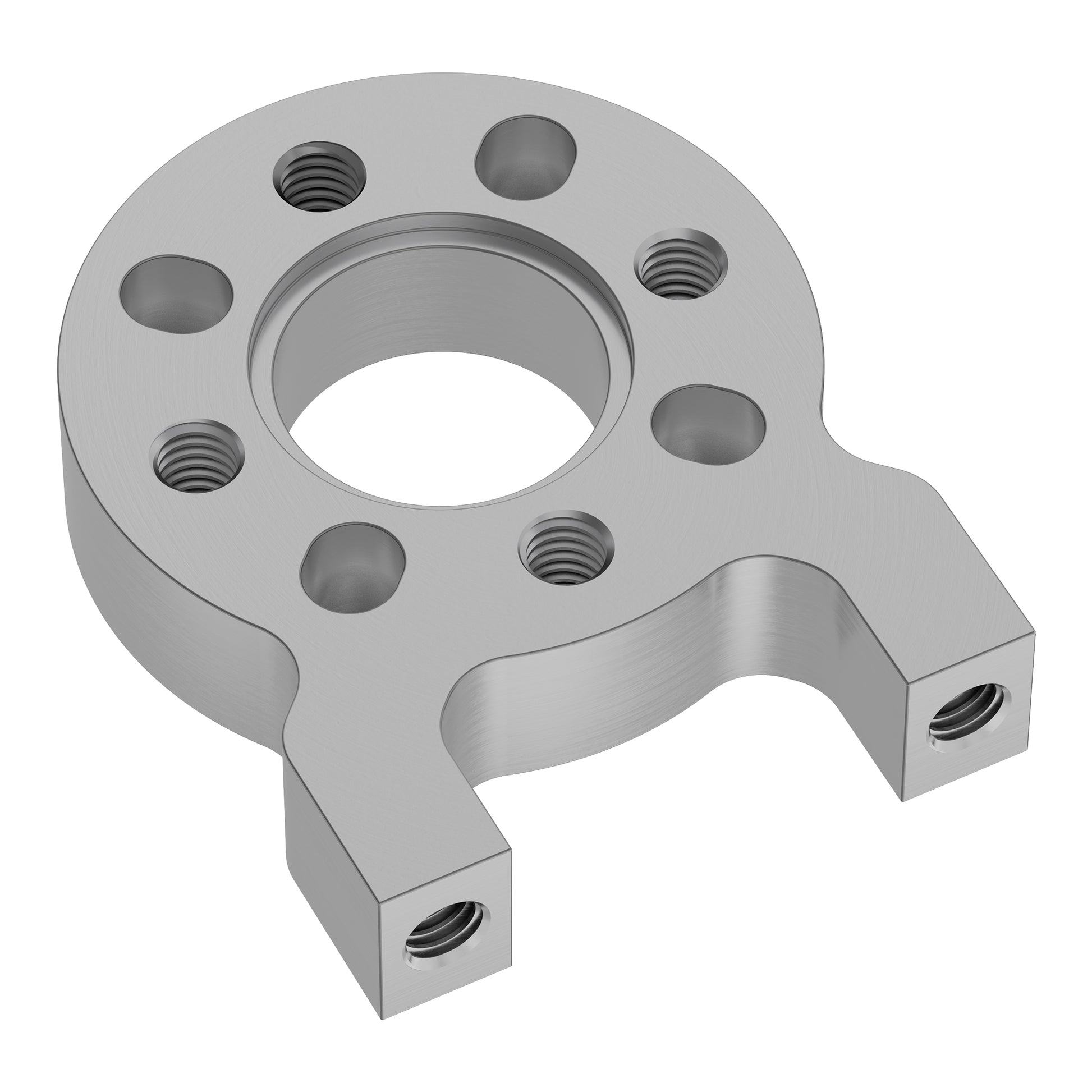

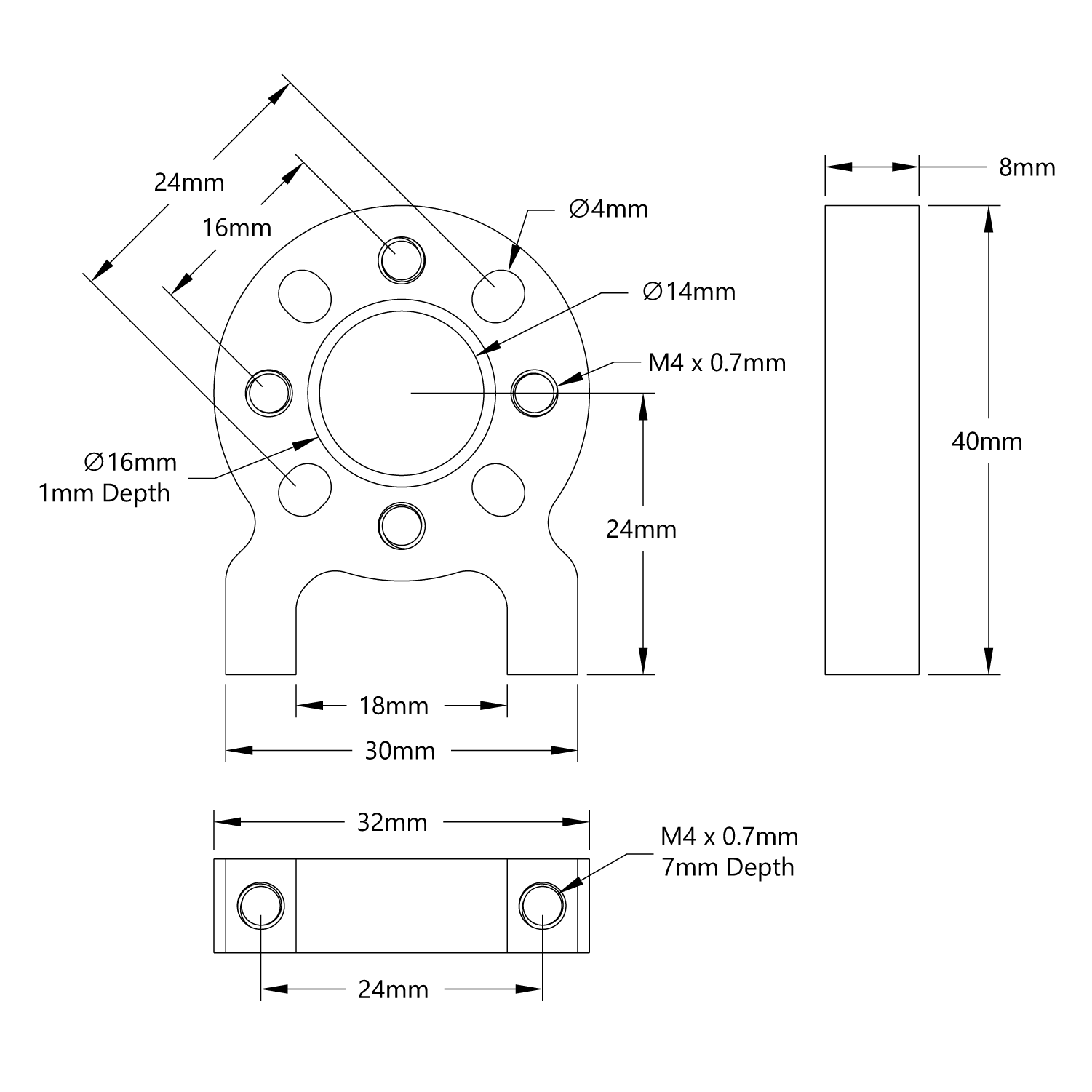

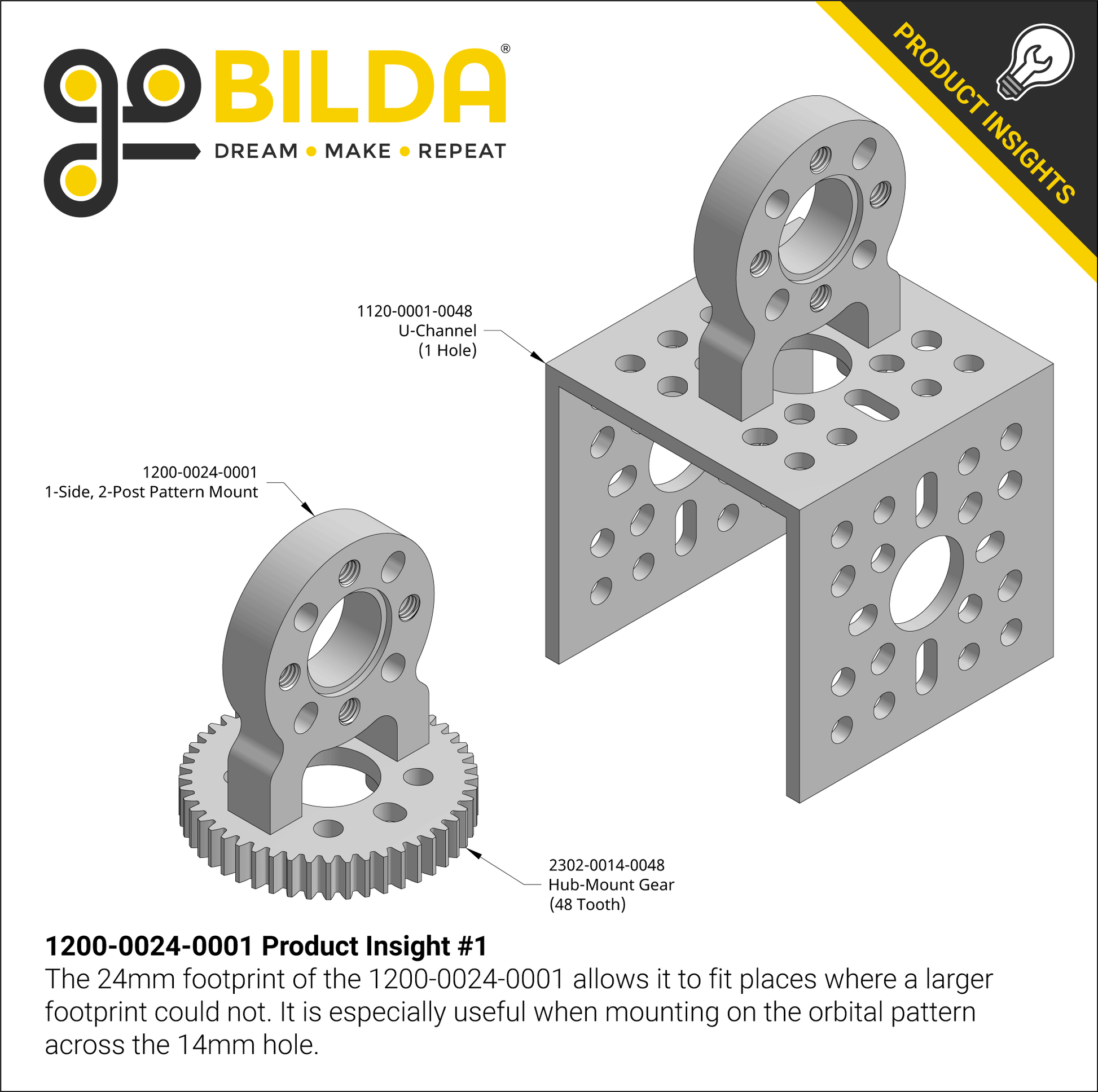

This pattern mount fastens to structure with the threaded posts and positions the pattern 24mm from the mounting surface. The 24mm bottom-to-center distance is crucial as it allows other structural components to properly align as well as provides the proper distance for gears to mesh and drive a rotating assembly. These mounts can be used as a simple connection point while building a chassis but are also an excellent choice for holding a bearing, hub, lead-screw nut, or tube off of the mating surface you’re building on.
Specs
| Weight | 15g |
|---|---|
| Material | Aluminum |
| Finish | Clear Anodized |
