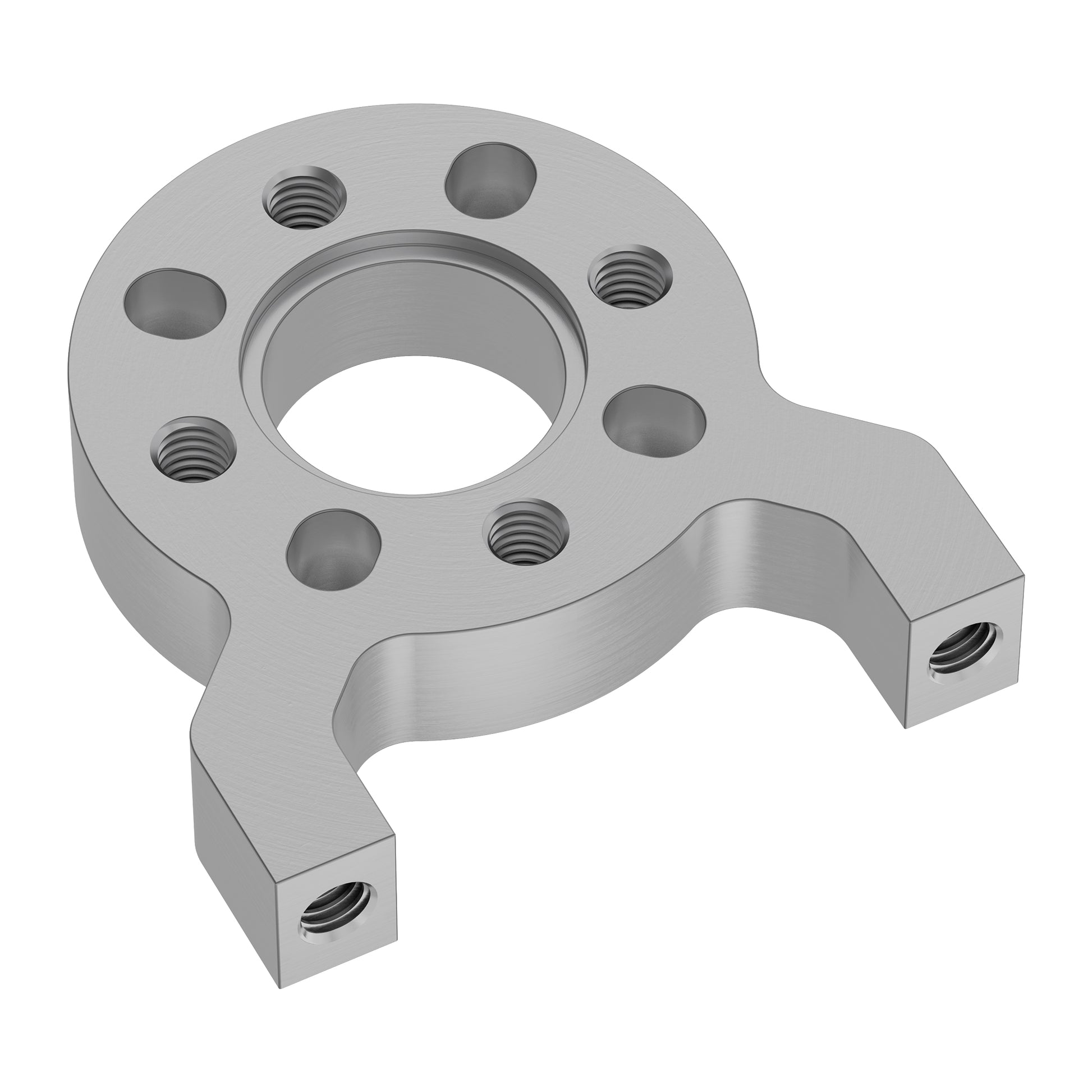

1200 Series 1-Side, 2-Post Pattern Mount (32-1)

1200 Series 1-Side, 2-Post Pattern Mount (32-1)

goBILDA parts we stock are ready to ship, otherwise with a 10-day lead time

SKU: GB-1200-0032-0001

Regular price $11.00 AUD
Regular price Sale price $11.00 AUD
Sale Sold out
View full details

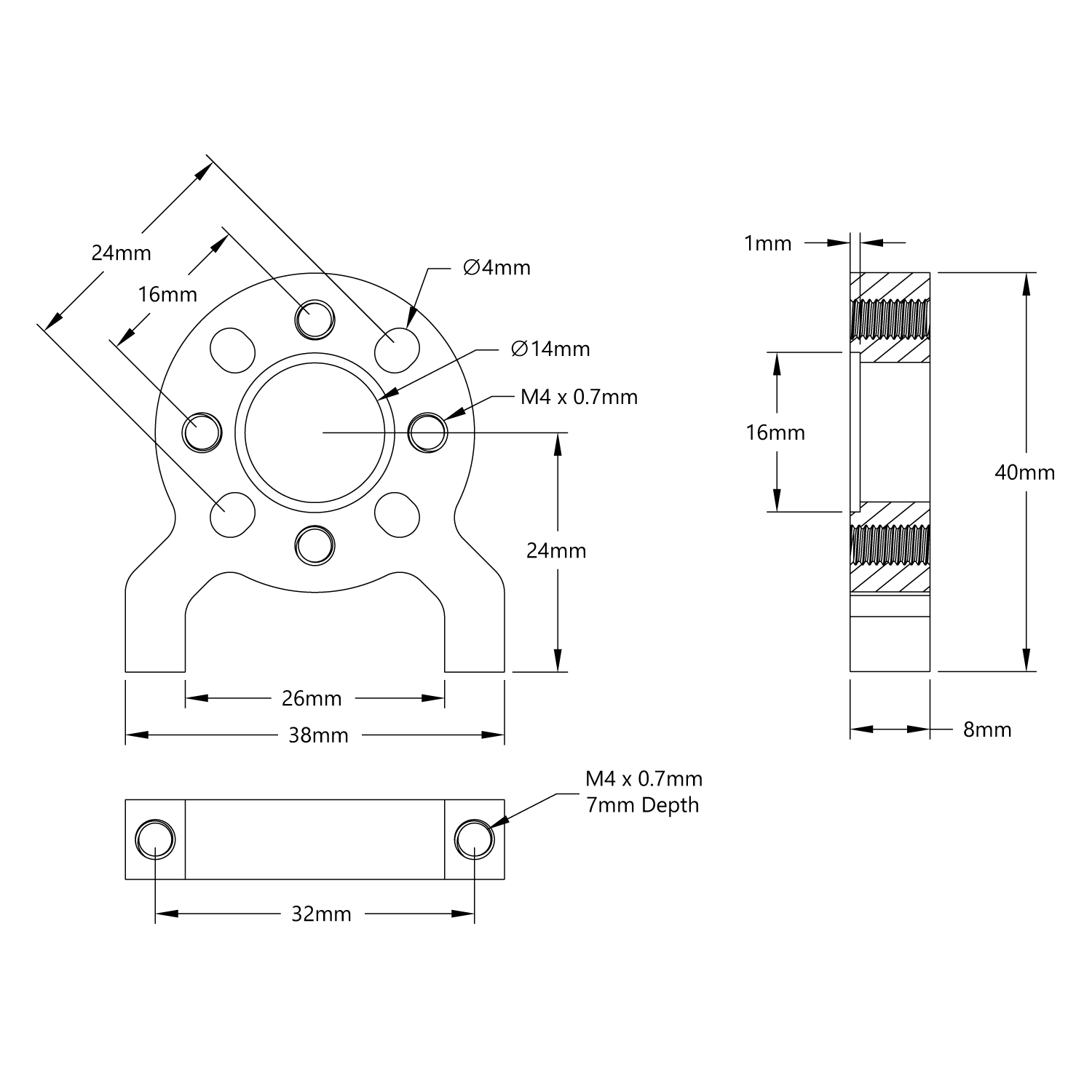

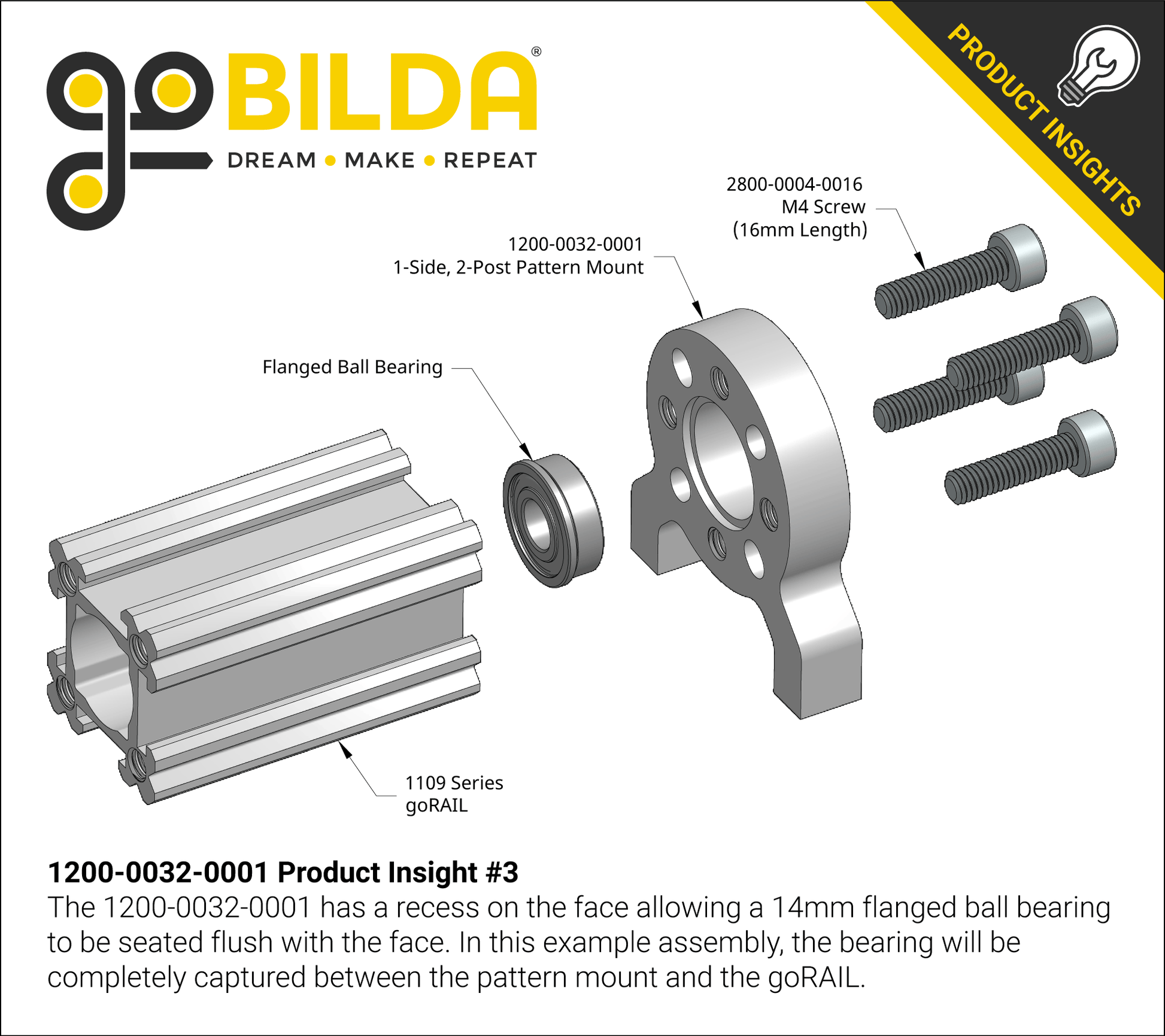

This pattern mount fastens to structure with the threaded posts, spaced 32mm apart, and positions the pattern 24mm from the mounting surface. The 24mm bottom-to-center distance is crucial as it allows other structural components to properly align as well as provides the proper distance for gears to mesh and drive a rotating assembly. The 1mm deep recess around the bore allows a 1611 Series Bearing to nest down into the bore, leaving the surface completely flush.

Specs

Weight 15g
Material Aluminum
Finish Clear Anodized
