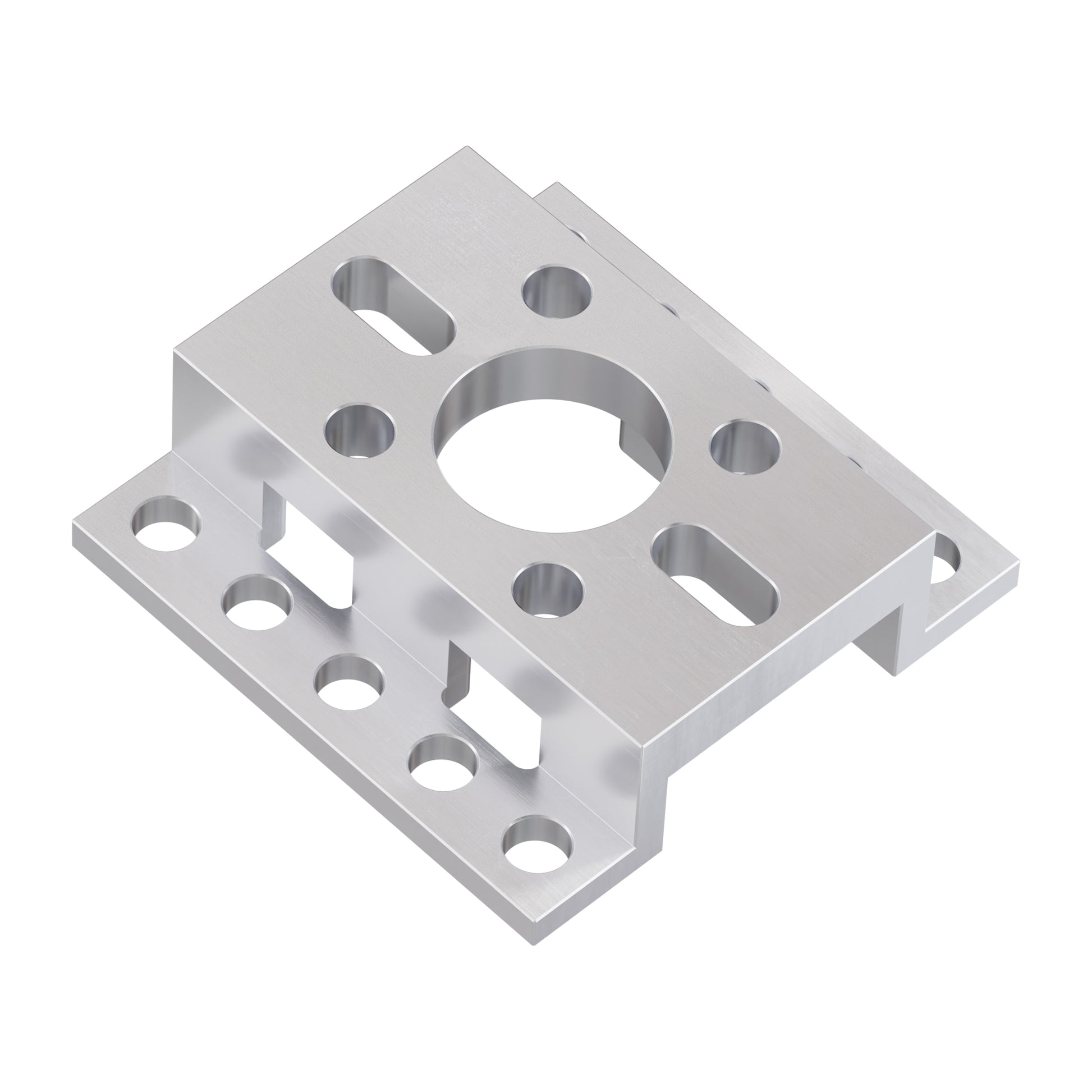

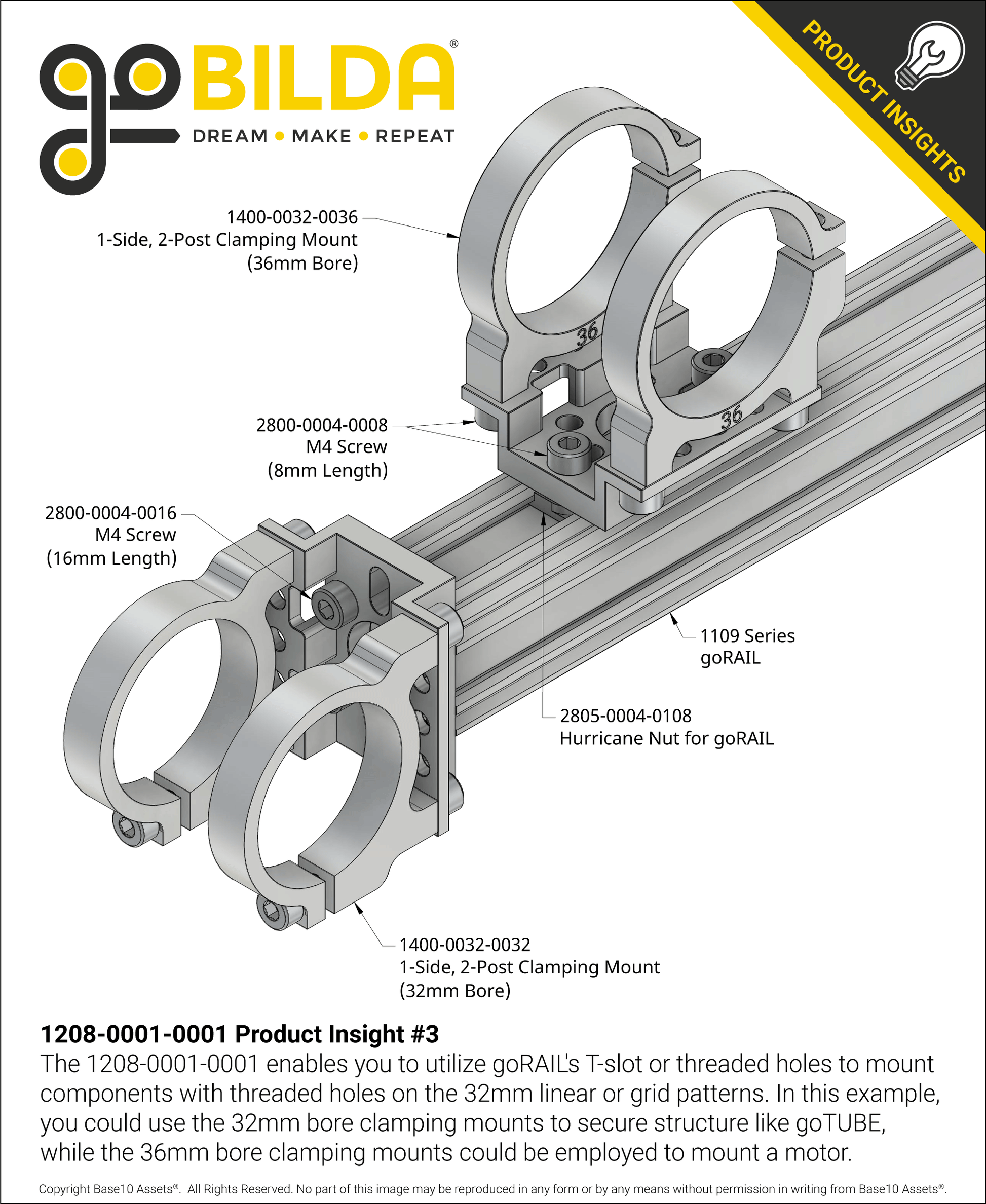

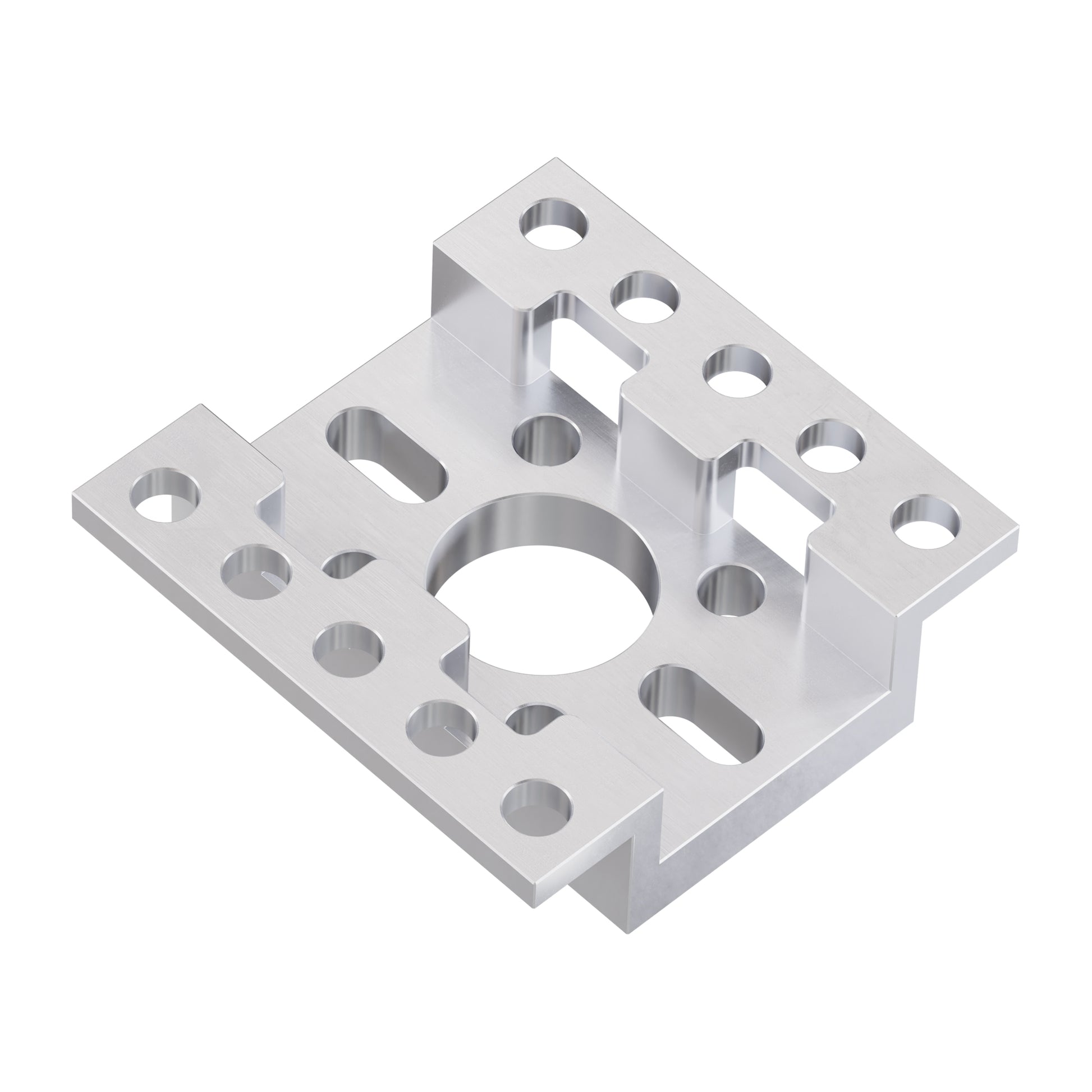

This mount is commonly used on the end of goRAIL to fasten a threaded part such as a pillow block or pattern mount. It can also be used on the side of goRAIL while keeping mating parts with a 24mm height on pattern so that gears and drive components properly align.
Specs
| Weight | 15g |
|---|---|
| Material | Aluminum |
| Finish | Clear Anodized |
