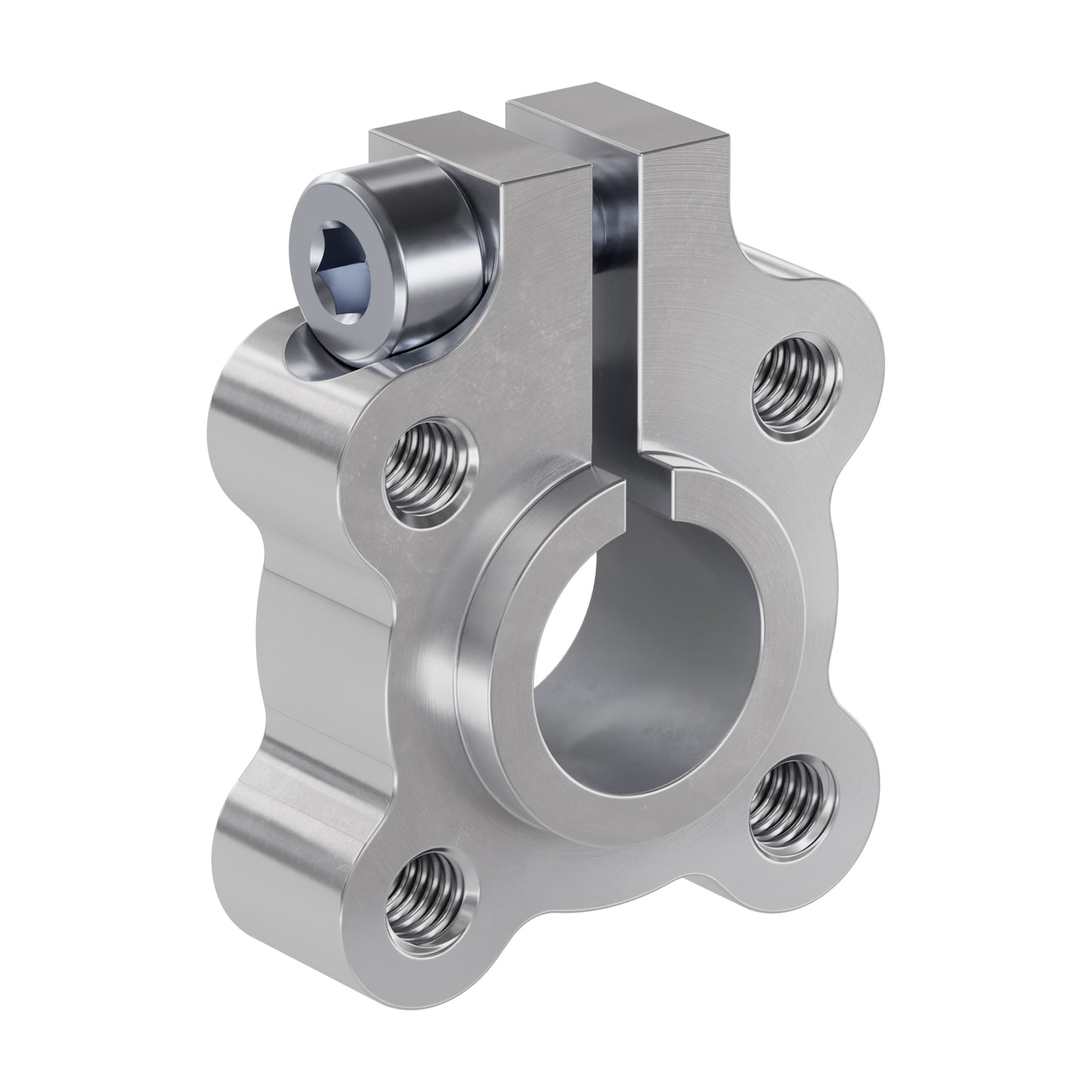

This 10mm Bore Clamping Hub provides a non-marring solution for fastening parts onto a 10mm diameter shaft.

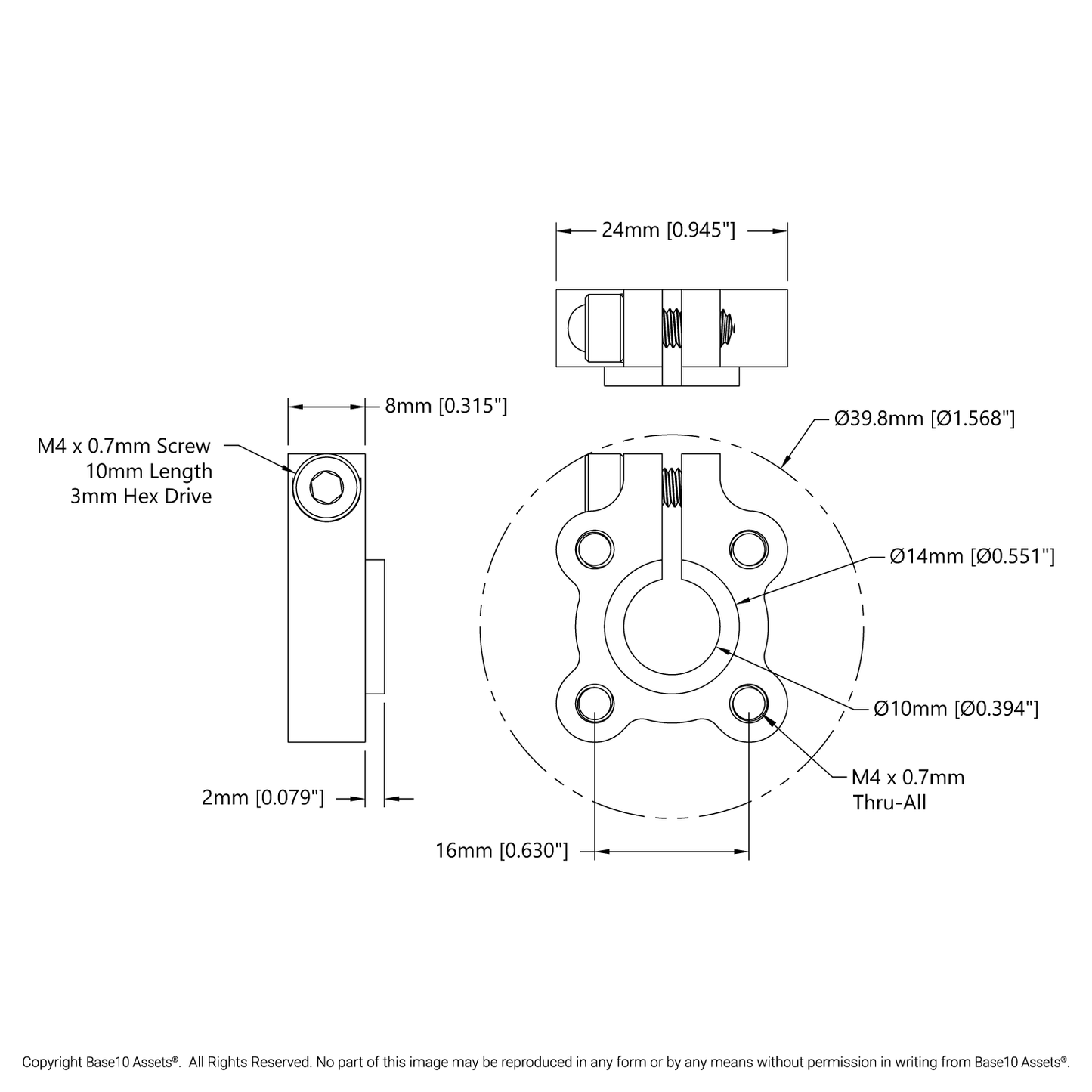

When the M4 pinch bolt is tightened, it locks to the shaft to secure the attachment of the hub and the components mounted to it. The 14mm OD protrusion offers a centering mechanism for mounted components that have a 14mm bore.
Specs
| Weight | 10g |
|---|---|
| Material | Aluminum |
| Finish | Clear Anodized |
