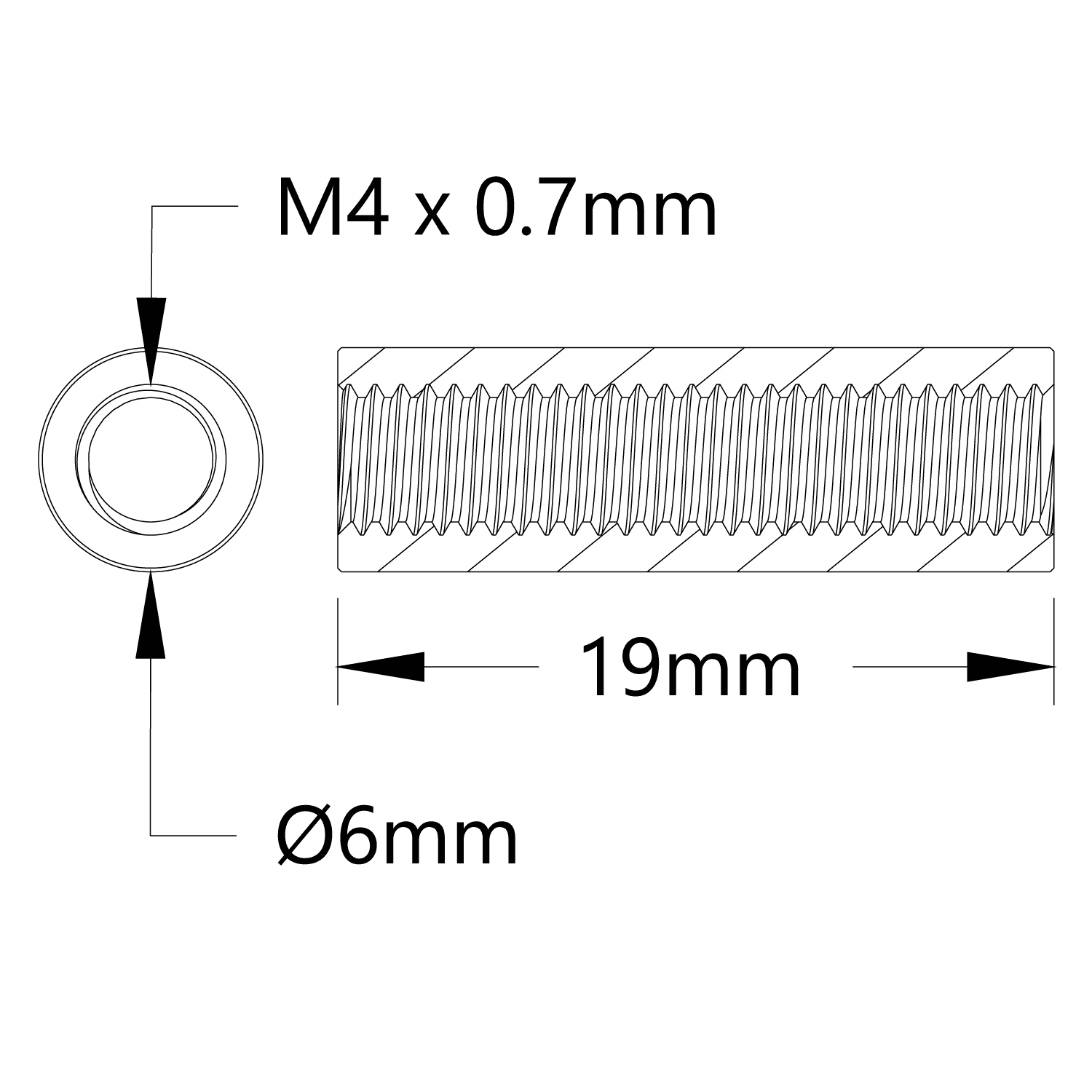

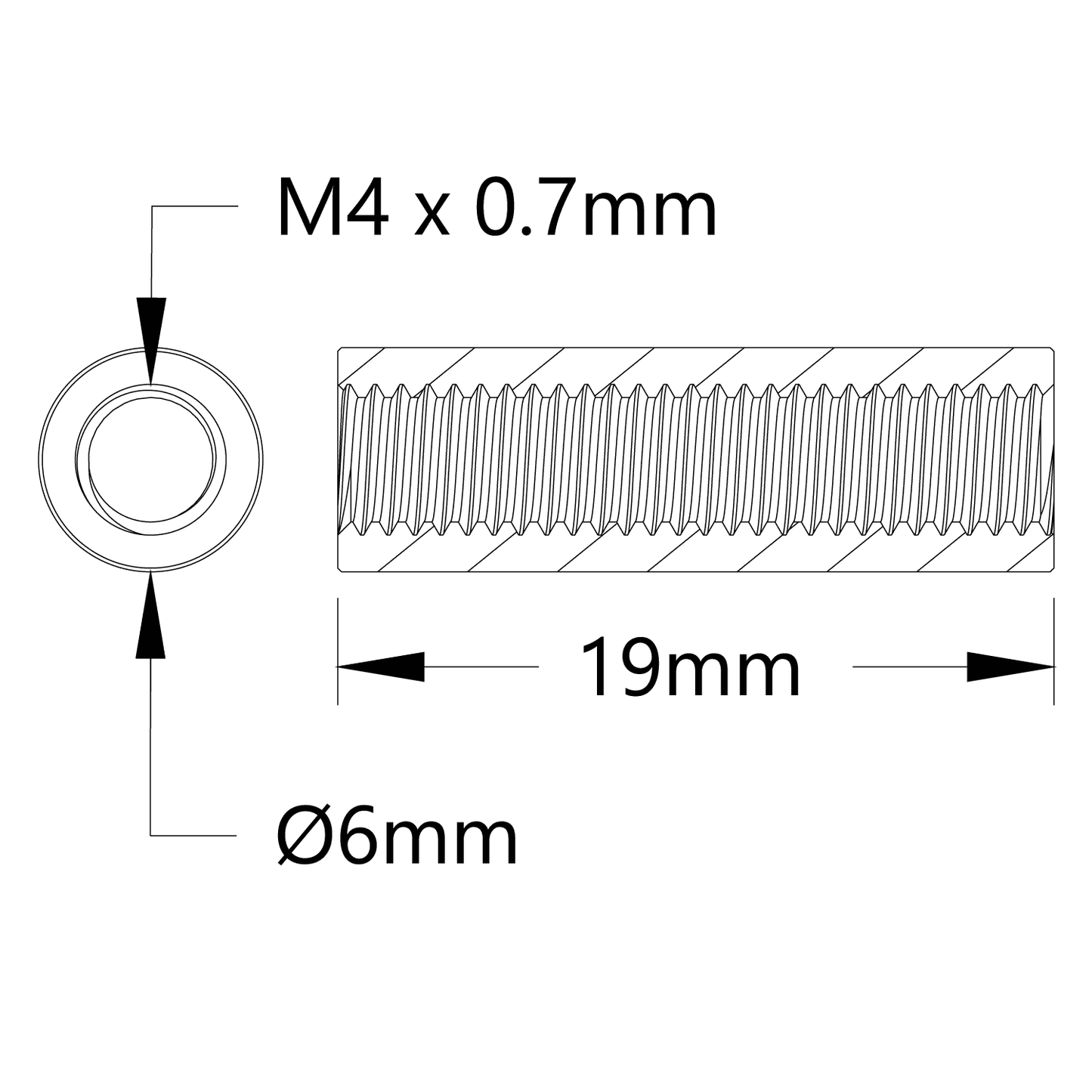

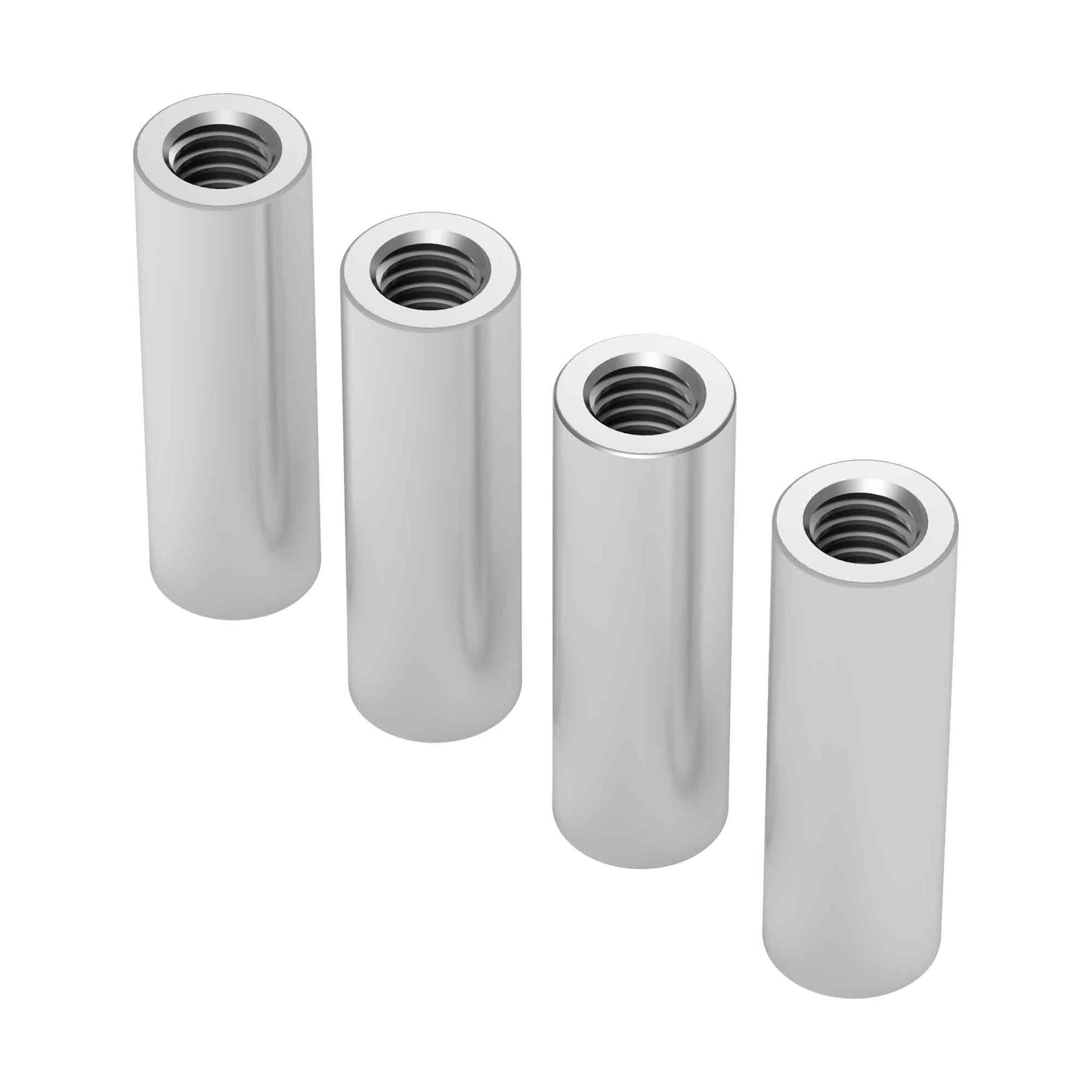

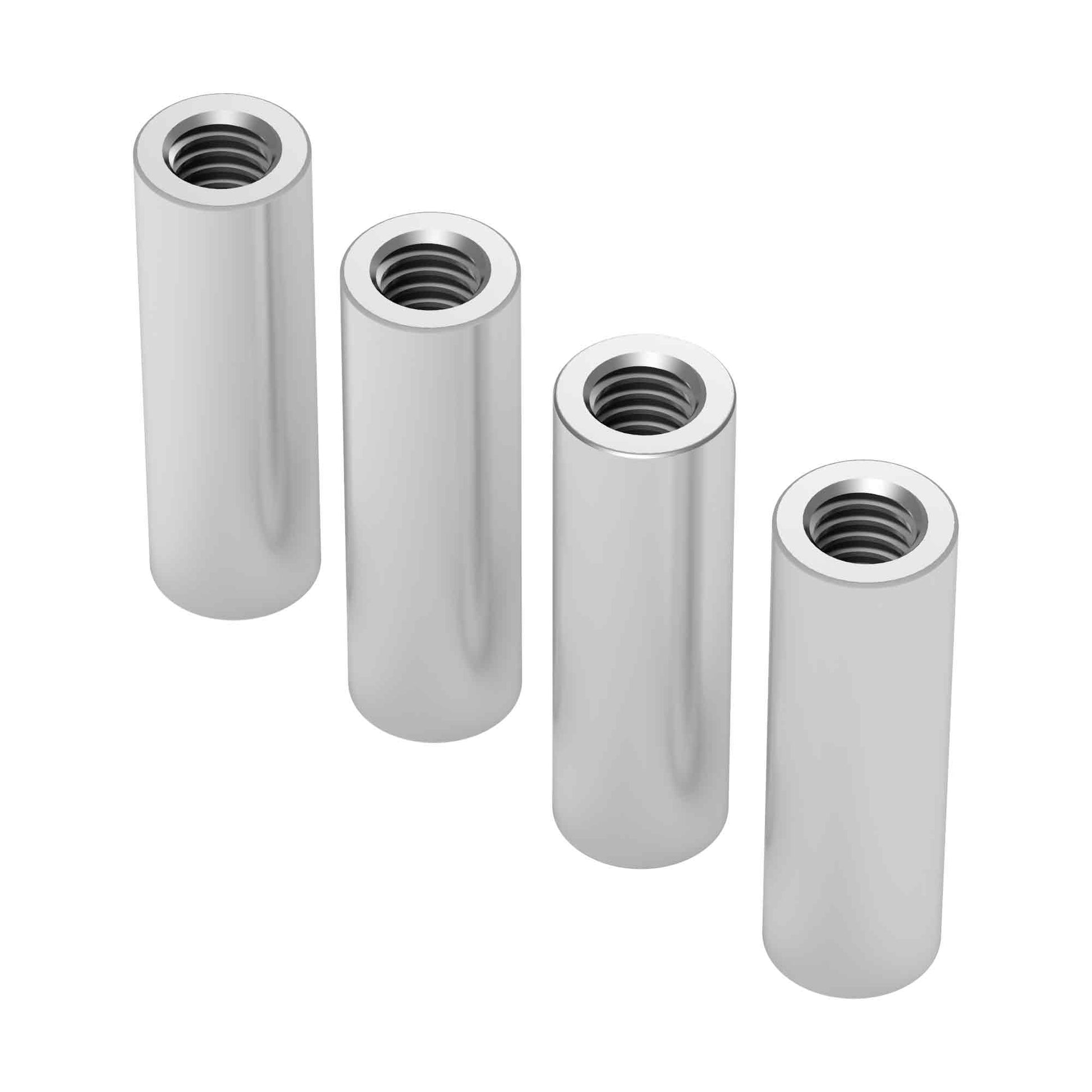

1501 Series M4 x 0.7mm Standoff (6mm OD, 19mm Length) - 4 Pack

1501 Series M4 x 0.7mm Standoff (6mm OD, 19mm Length) - 4 Pack

goBILDA parts we stock are ready to ship, otherwise with a 10-day lead time

SKU: GB-1501-0006-0190

Regular price $6.00 AUD
Regular price Sale price $6.00 AUD
Sale Sold out
View full details

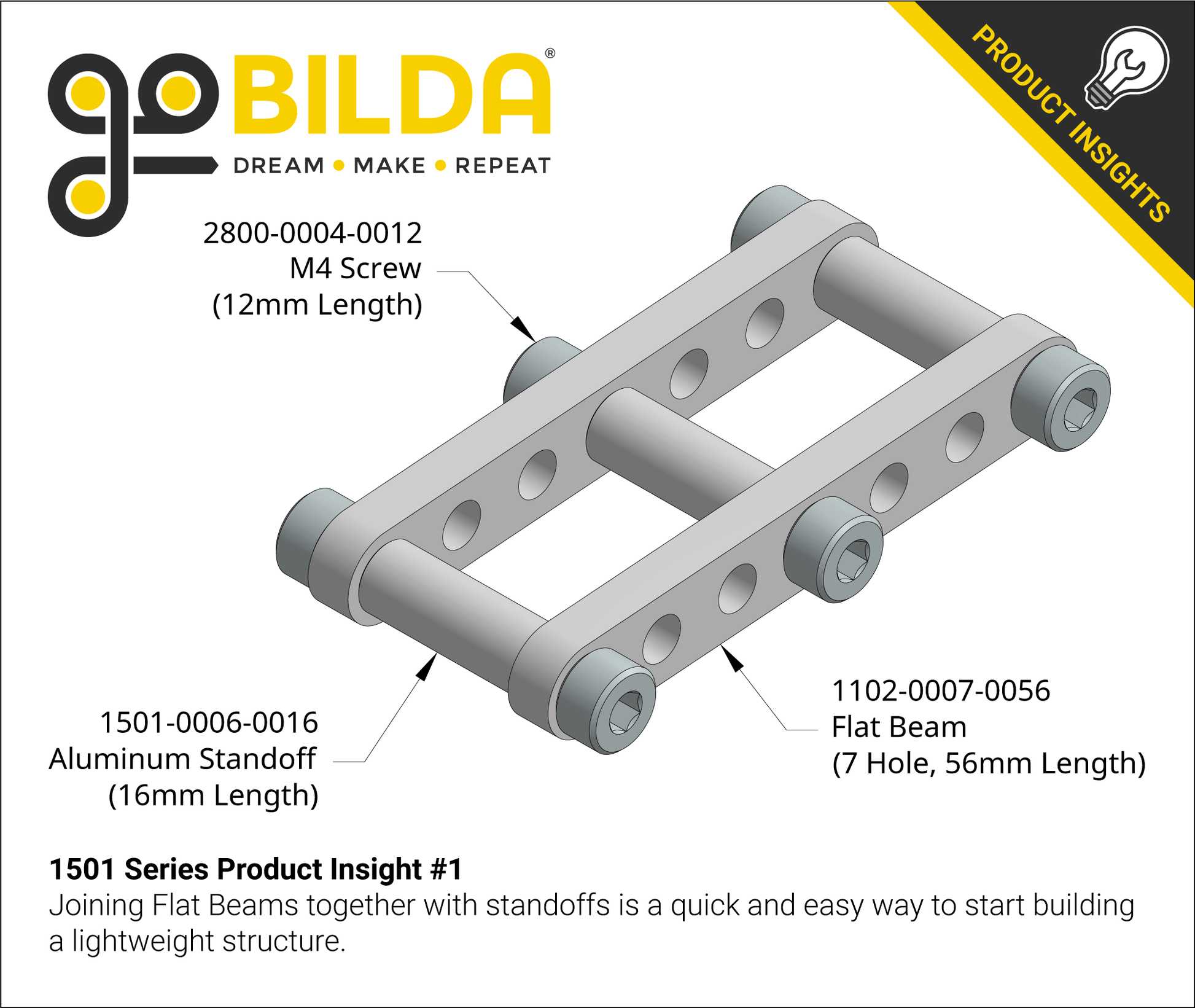

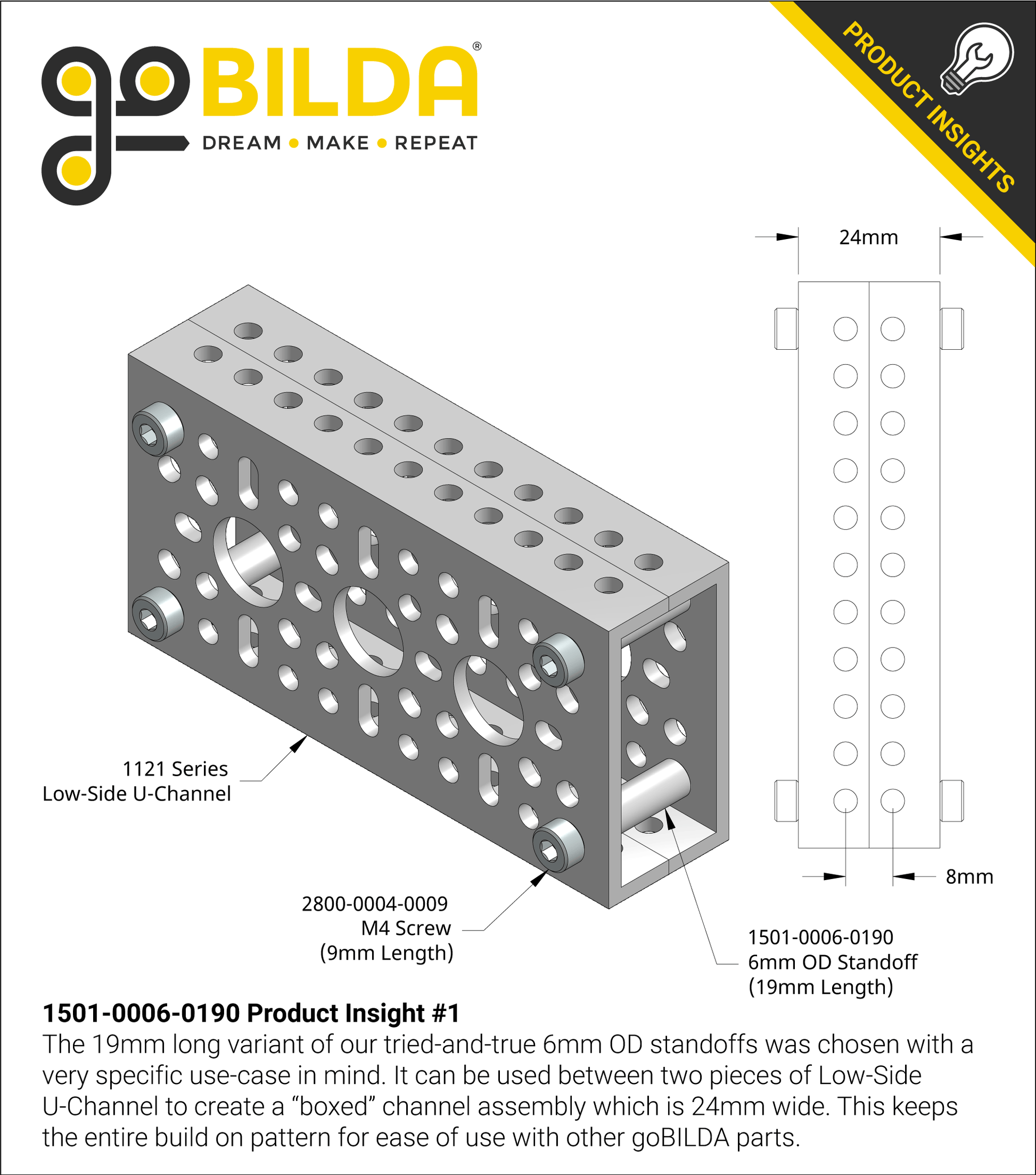

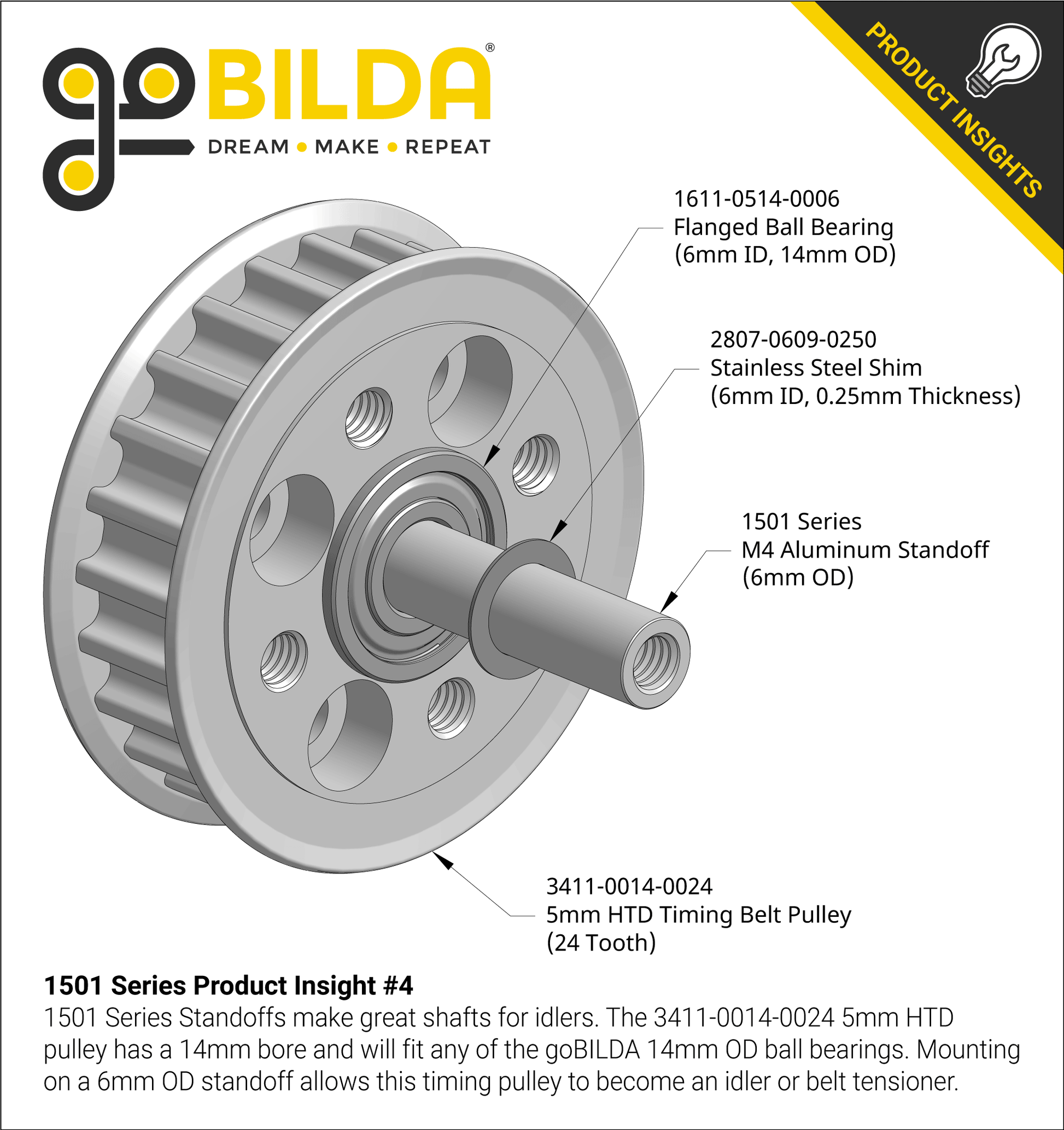

The 19mm length standoffs can be used conventionally to space parallel plates, run bearings on or use as a shaft but they shine when used with 1121 Series Low-Side U-Channel. Low-Side U-Channel can be ‘boxed’ by turning the open sides toward one-another and installing these spacers in-between. This creates a very solid structure that can house your drive components in a chassis while occupying a minimal amount of space. The 2.5mm wall of each channel, combined with the 19mm length standoffs yields a collective width of 24mm in order to keep your build lined up with the 8mm grid pattern.

Specs

Weight 0.90g Each
Material Aluminum
Finish Clear Anodized
