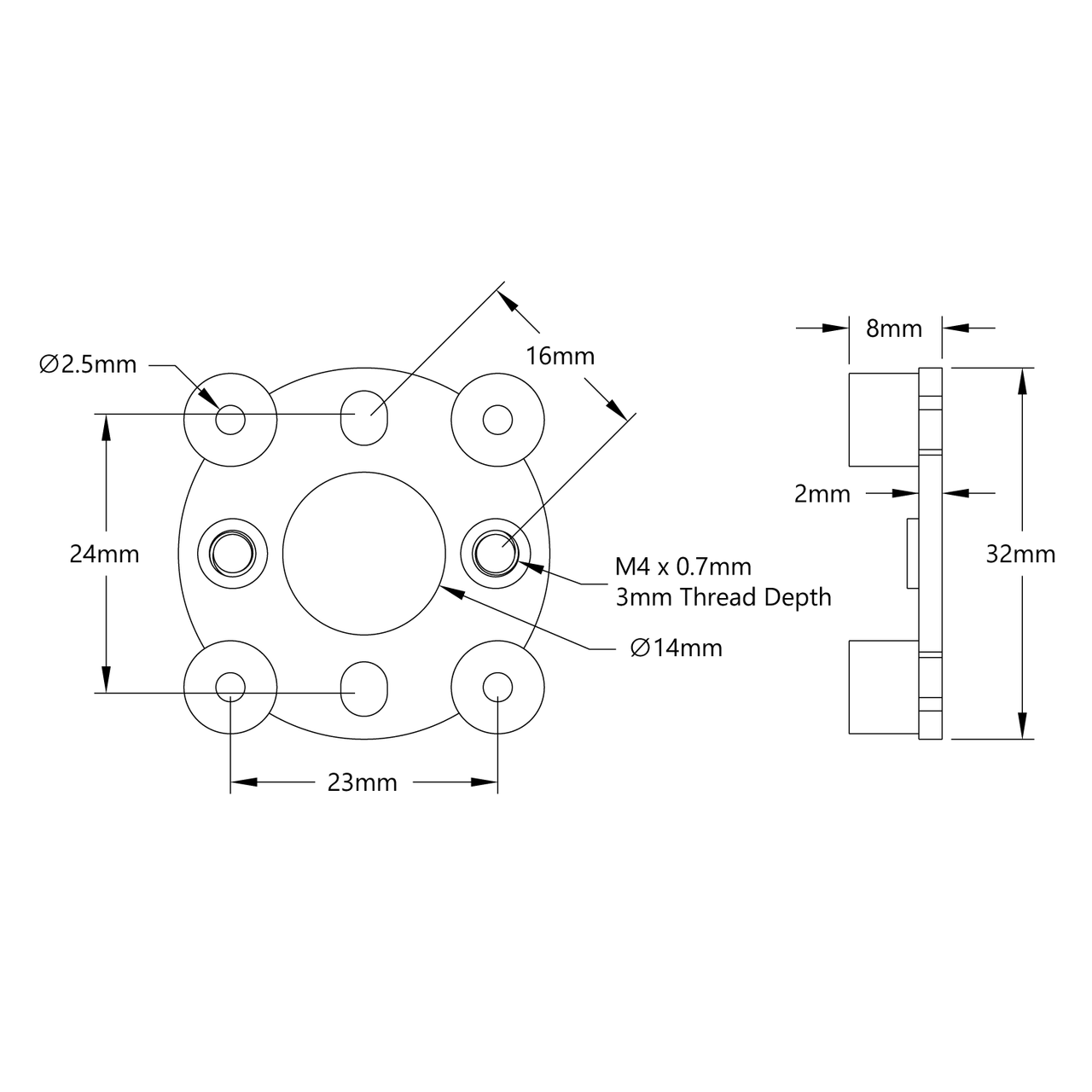

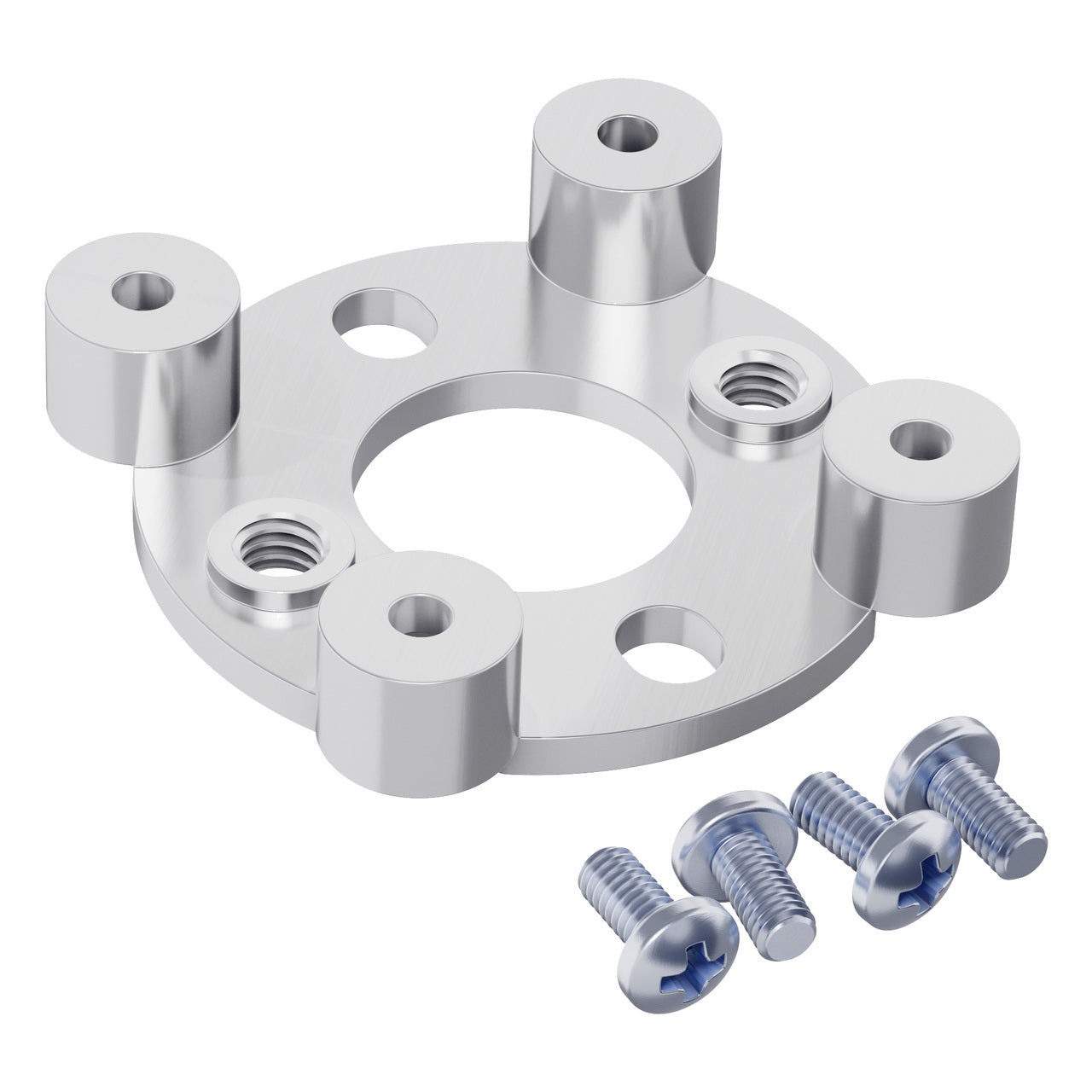

The NEMA 11 stepper motor mount is able to fasten to the face of a NEMA 11 motor using the supplied pan head screws. The screws are recessed into the counterbored holes in order to leave a smooth mounting surface. There are two thru-holes and two threaded holes on the 16mm pattern so that you have options for the best way to attach the mount to your structure.
Specs
| Weight | 6.6g |
|---|---|
| Material | Aluminum |
| Finish | Clear Anodized |
| Motor Compatibility | NEMA 11 Stepper Motor |
