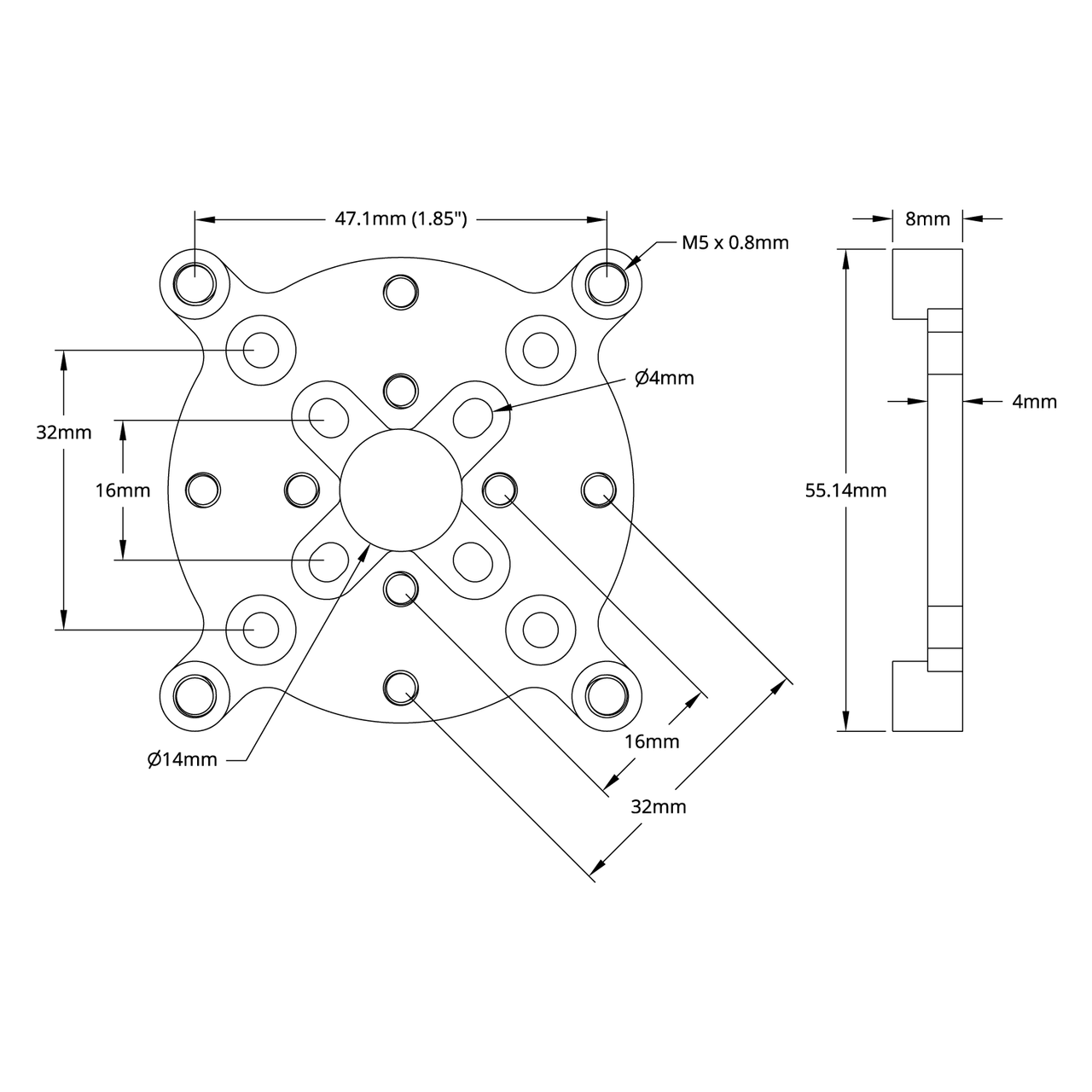

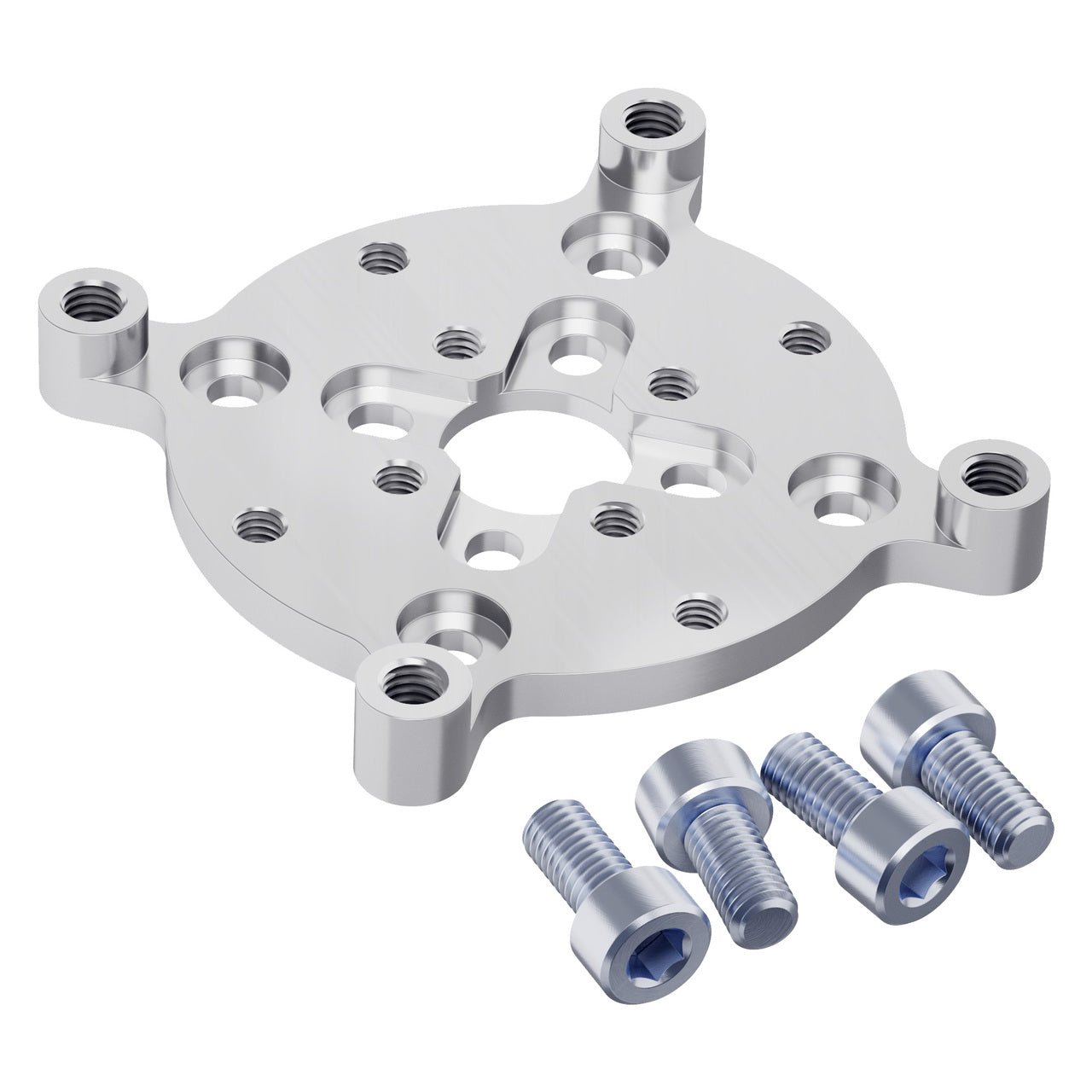

The NEMA 23 motor mount provides a clean and simple way to fasten a NEMA 23 stepper motor to your project. The mount has both threaded and thru-holes on the 16mm and 32mm patterns. The included M5 screws will pass through the tabs of the motor mount and thread into the motor mount for a solid and reliable connection.
Specs
| Weight | 35g |
|---|---|
| Material | Aluminum |
| Finish | Clear Anodized |
| Motor Compatibility | NEMA 23 Stepper Motor |
