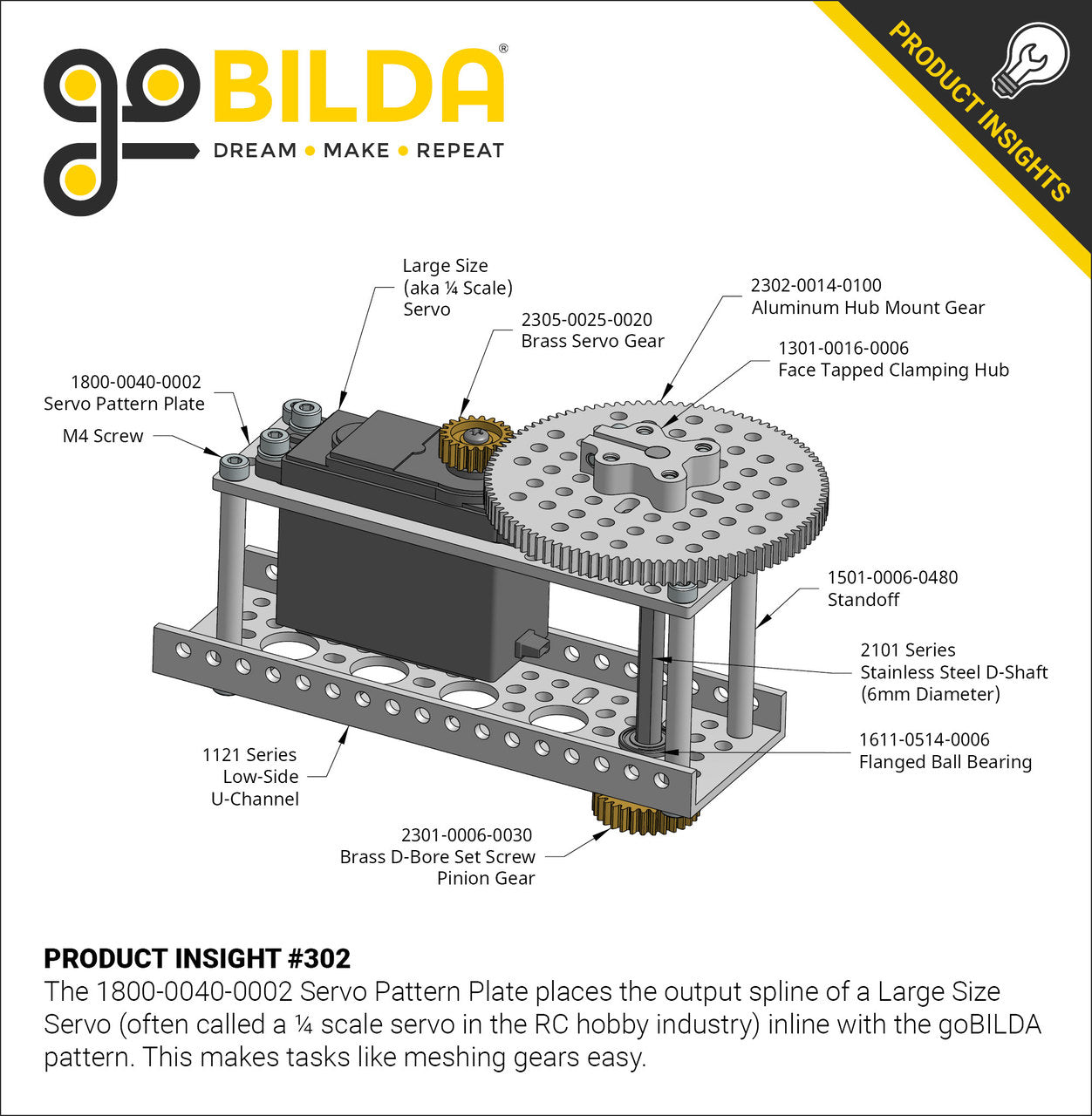

This plate is built to house a large size servo and space the output spline of the servo 48mm away from the center of the pattern at the end of the plate. This gives you the ability to install a gear on the servo and drive a spur gear that’s centered with the pattern.
Specs
| Weight | 29g |
|---|---|
| Material | Aluminum |
| Finish | Clear Anodized |
| Servo Compatibility | Large Size (1/4 Scale) |
