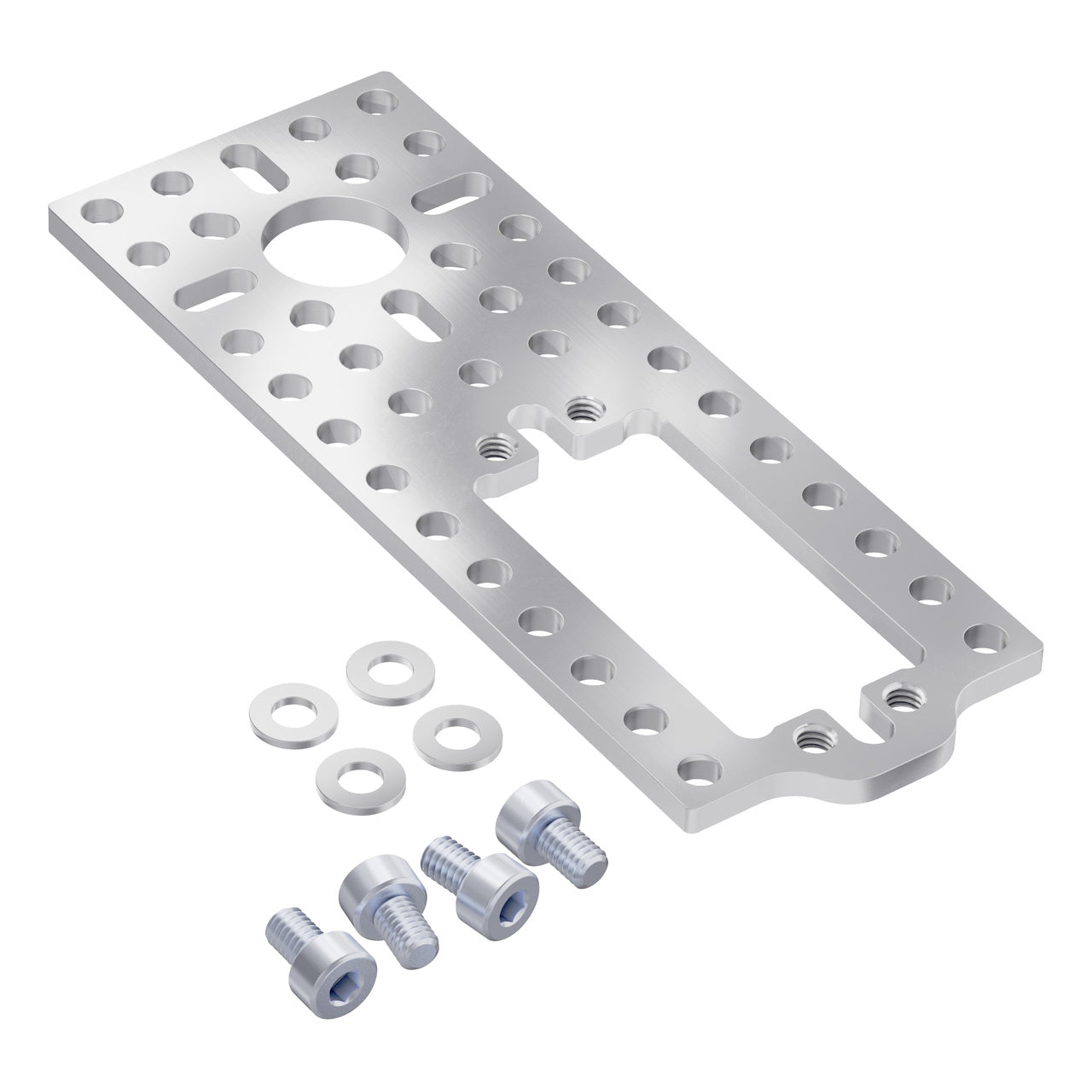

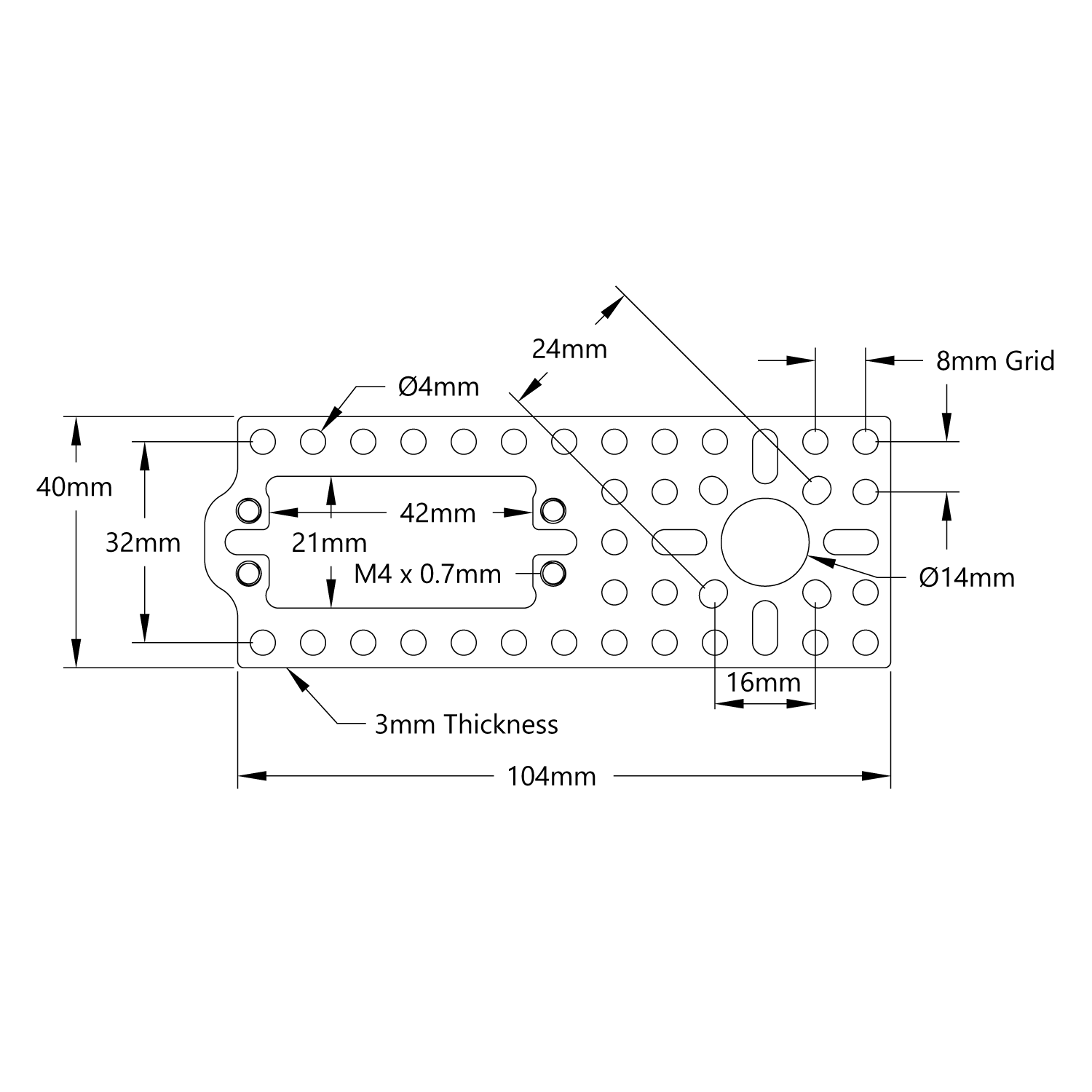

This plate is built to house a standard size servo and space the output spline of the servo 48mm away from the center of the pattern at the end of the plate. This gives you the ability to install a gear on the servo and drive a spur gear that’s centered on the pattern.
Specs
| Weight | 28g |
|---|---|
| Material | Aluminum |
| Finish | Clear Anodized |
| Servo Compatibility | Standard Size |
| Included Hardware - Screws | 8mm Length M4 Screws (4 screws) |
| Included Hardware - Washers | 4mm ID x 8mm OD Washers (4 washers) |
