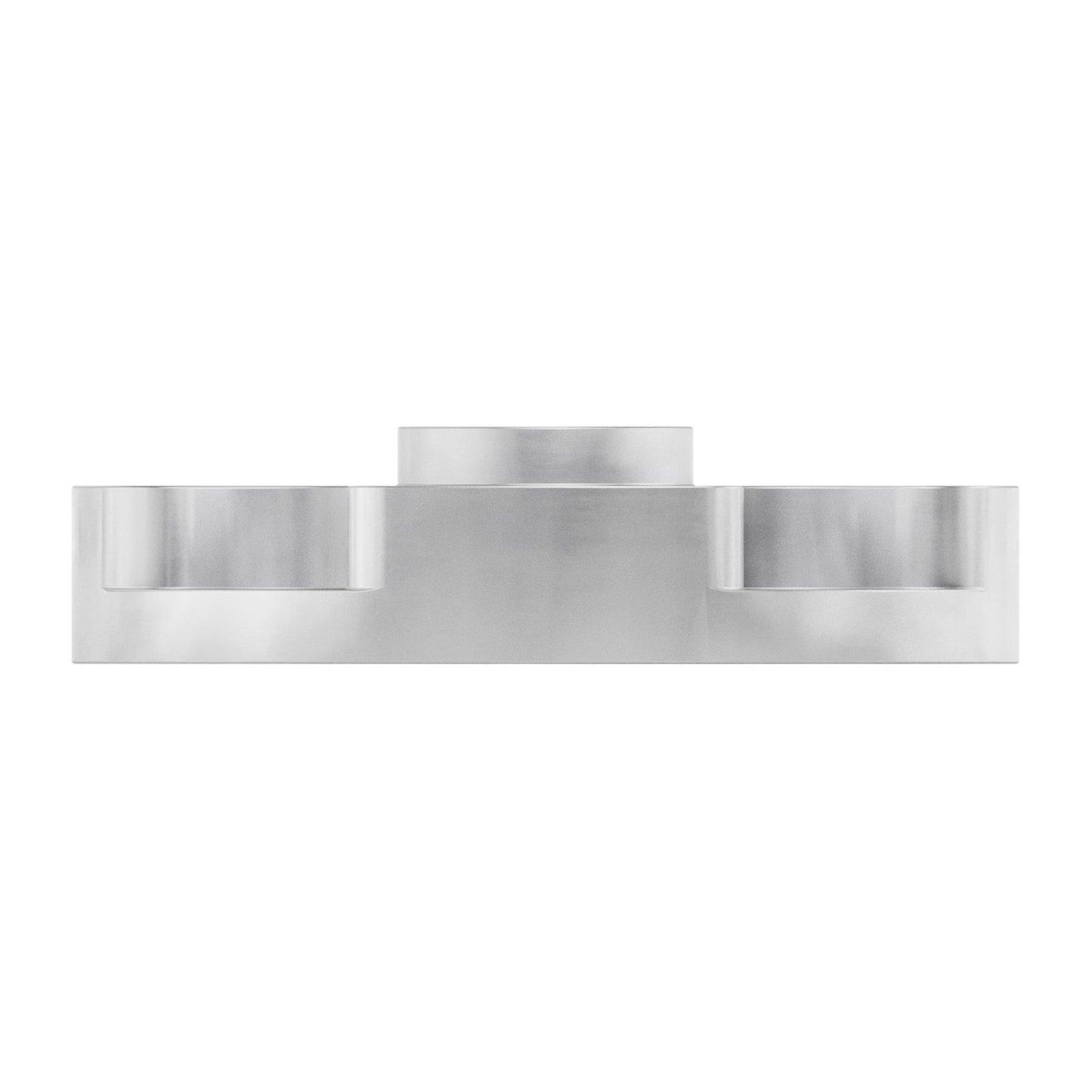

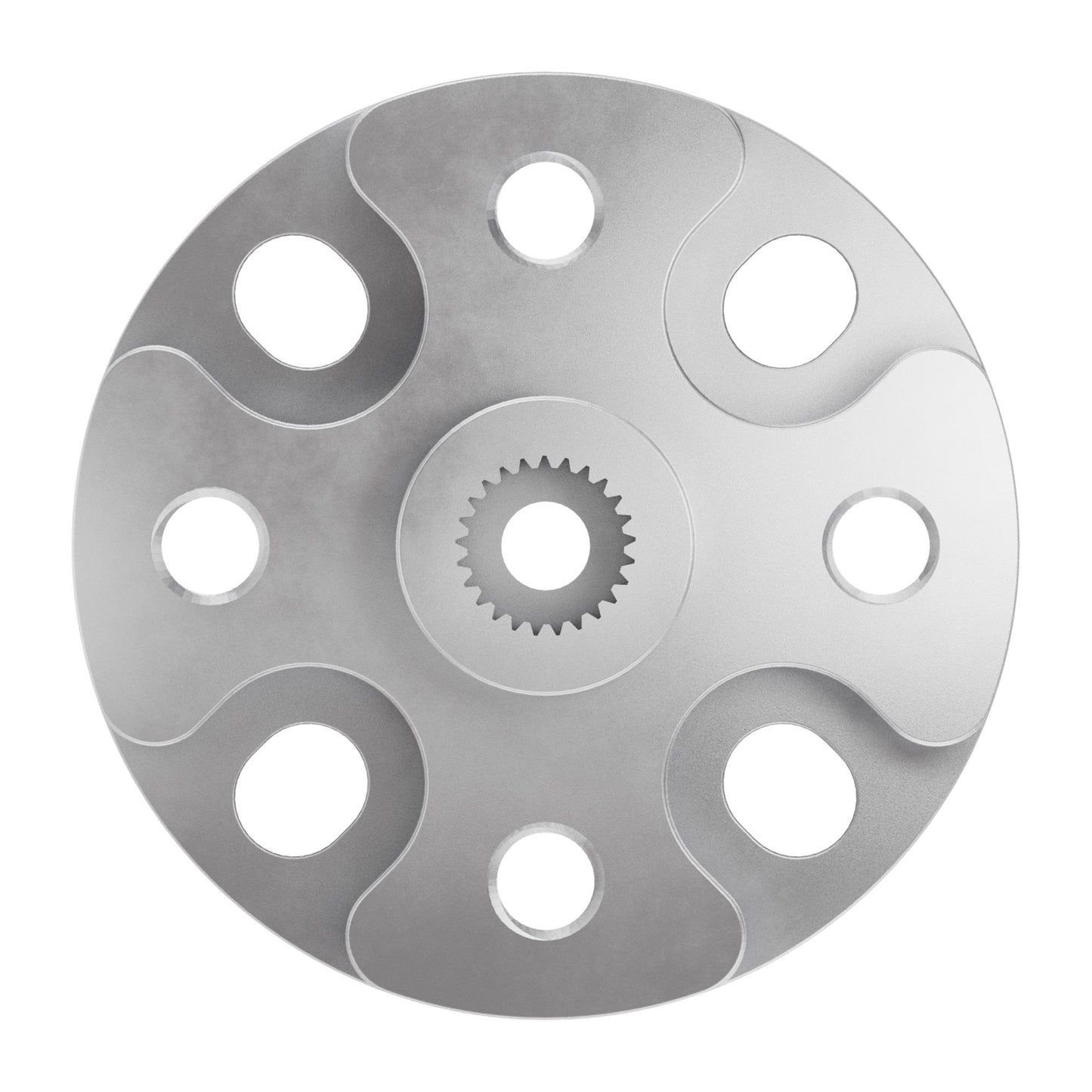

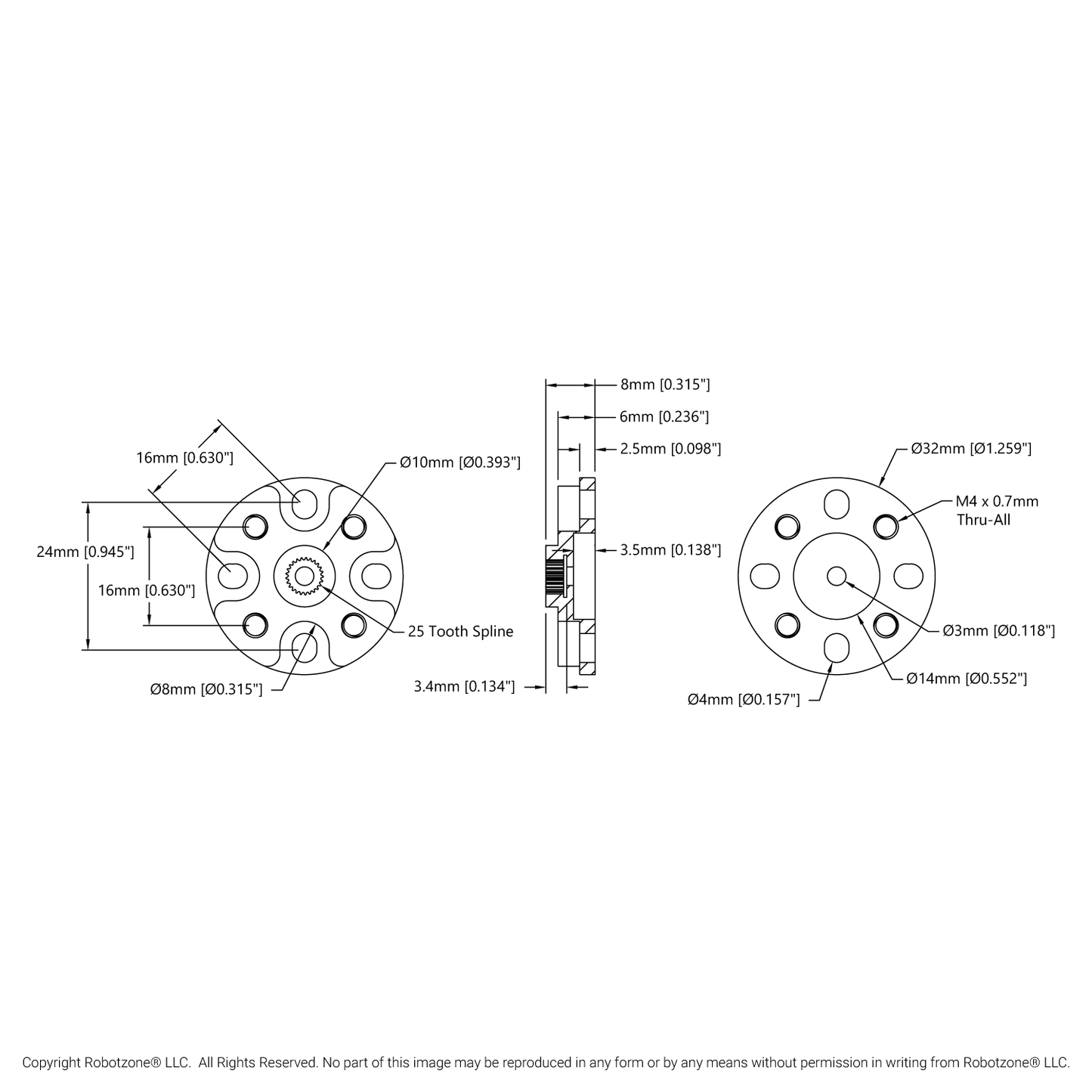

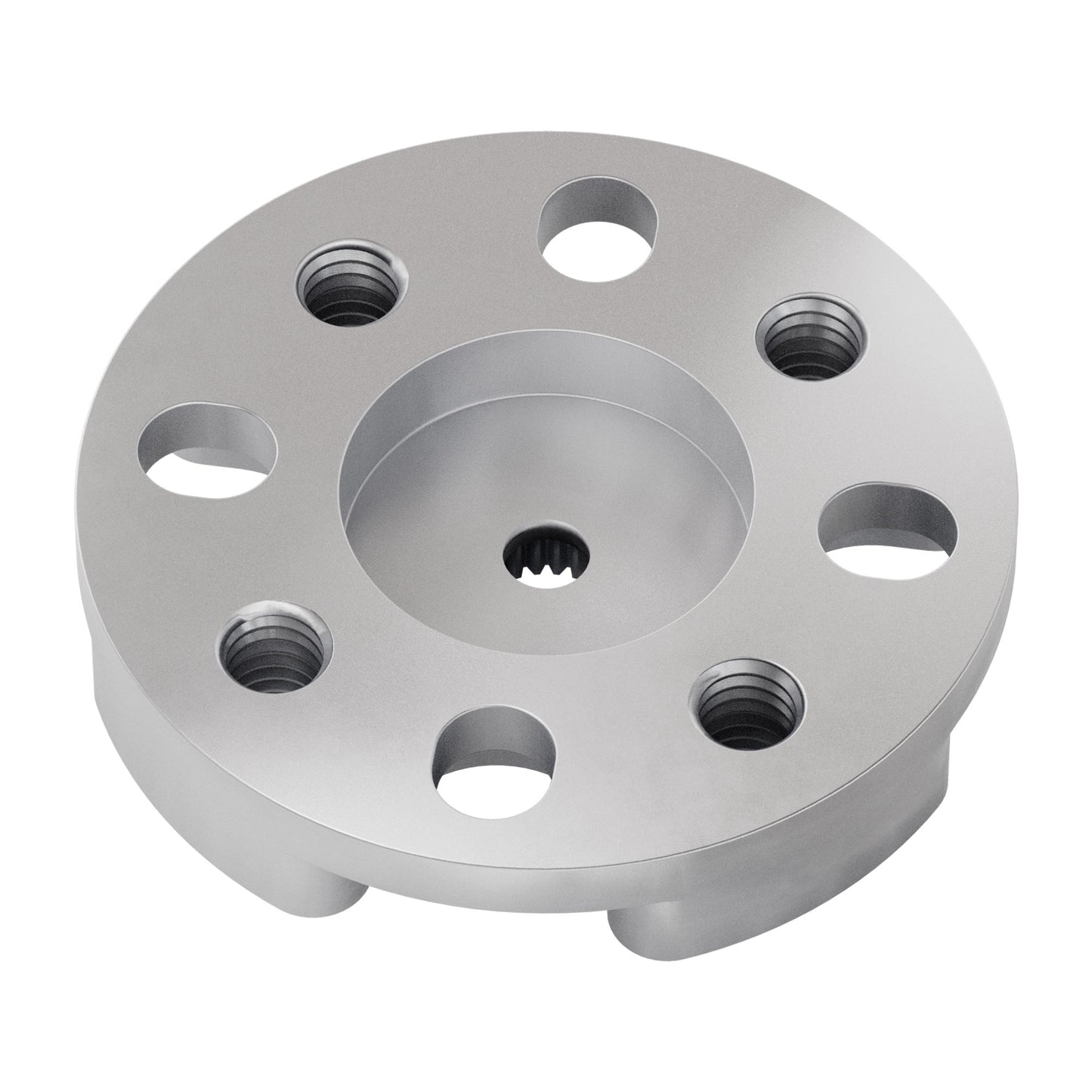

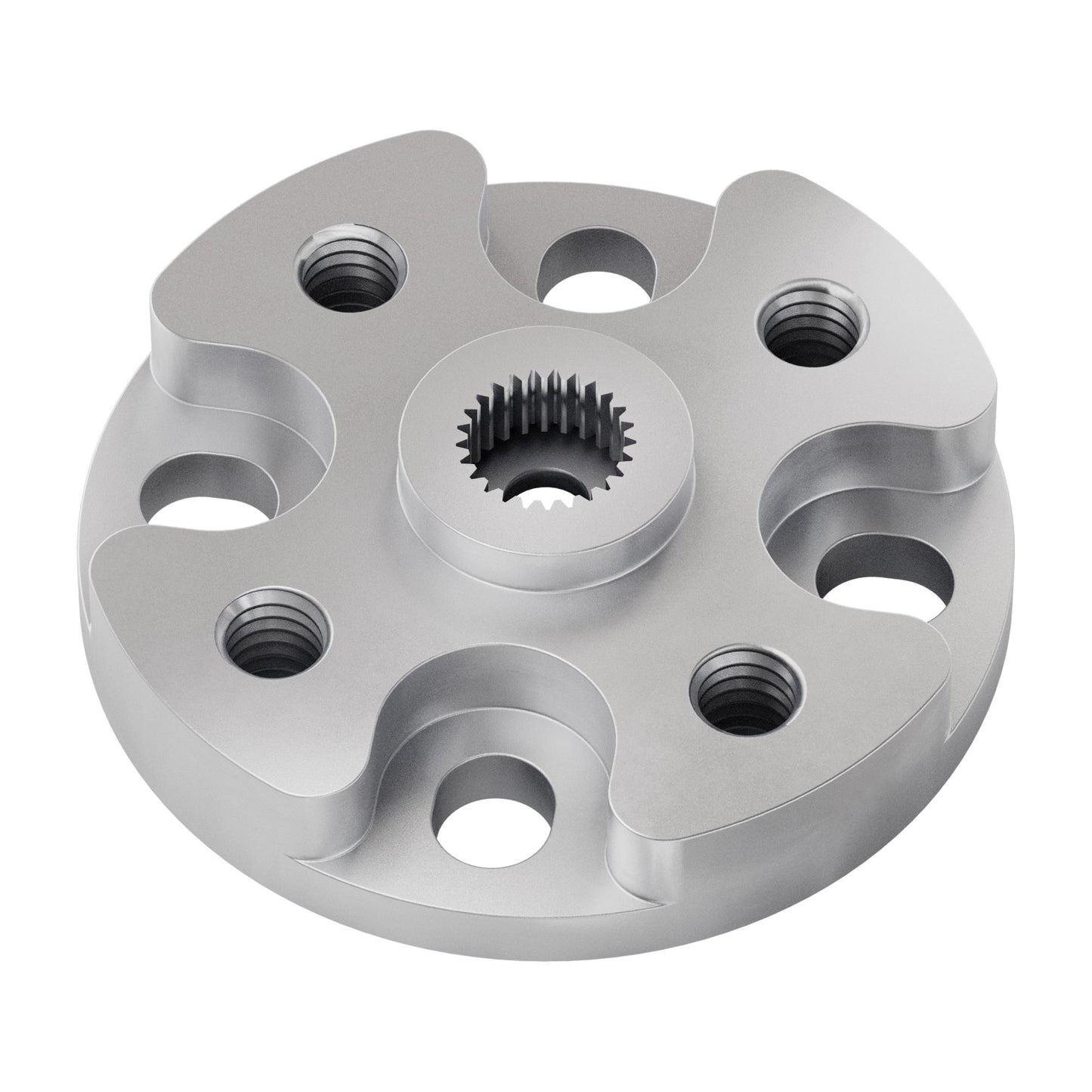

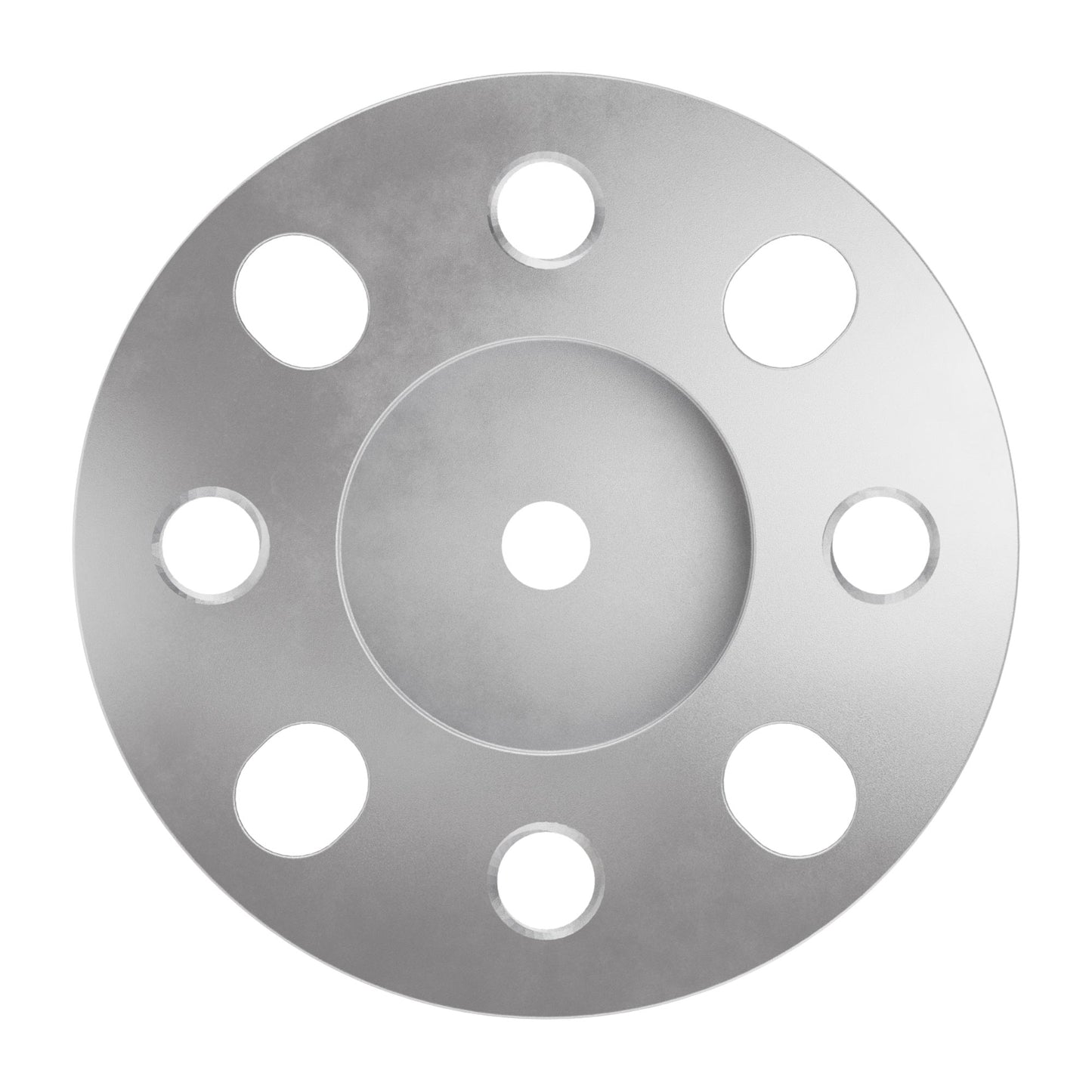

The 1908 Series Servo Hub is 32mm in diameter and 6mm thick so that you can support it with a bearing or clamp around it using a 32mm ID clamping mount. It contains both threaded and thru-holes on the 16mm pattern so that you can fasten almost any goBILDA® component to the top. The counterbored top will recess the servo screw down below the surface to keep from interfering with mating parts.
Specs
| Weight | 8.2g |
|---|---|
| Material | Aluminum |
| Finish | Clear Anodized |
