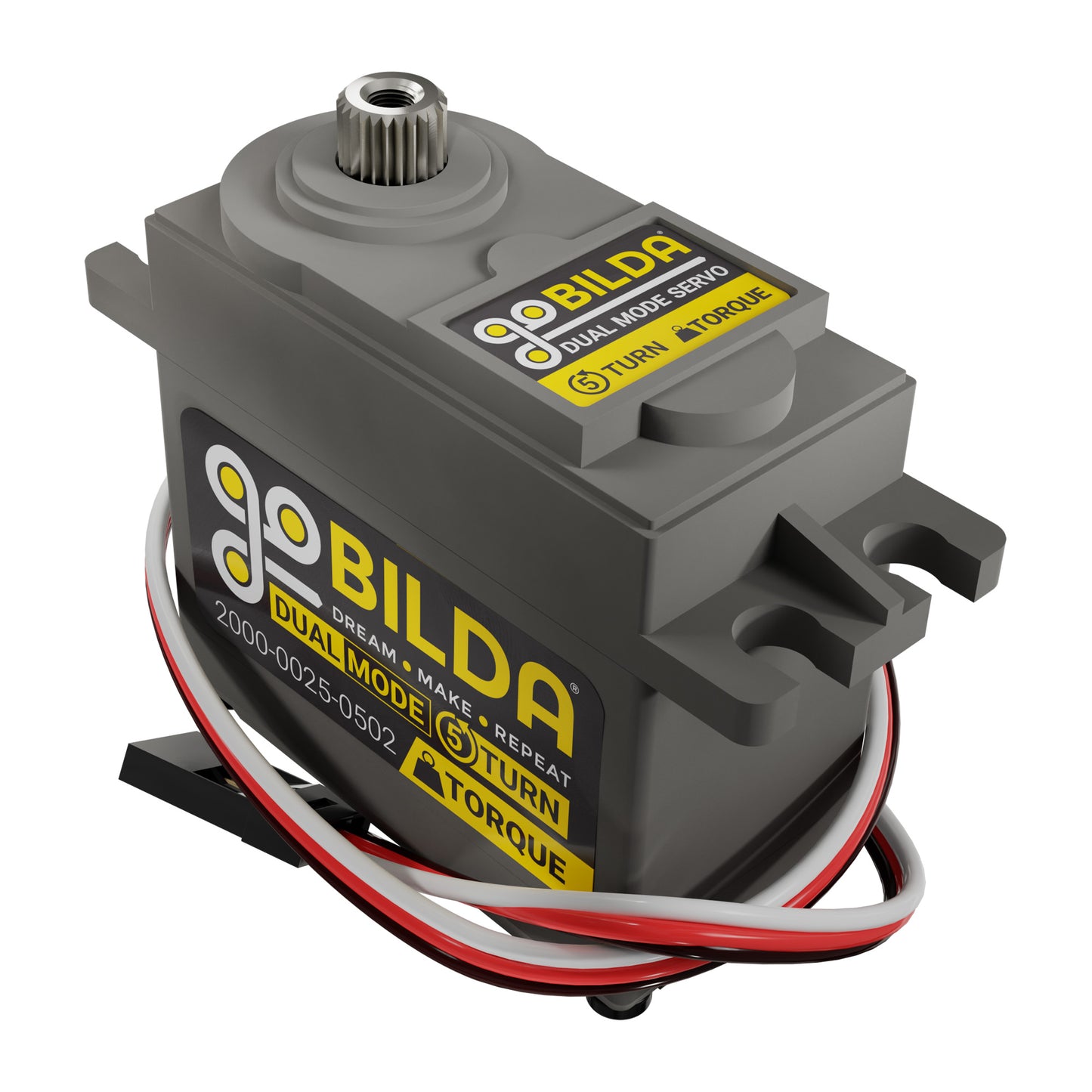

2000 Series 5-Turn, Dual Mode Servo (25-2, Torque)

2000 Series 5-Turn, Dual Mode Servo (25-2, Torque)

goBILDA parts we stock are ready to ship, otherwise with a 10-day lead time

SKU: GB-2000-0025-0502

Regular price $73.00 AUD
Regular price Sale price $73.00 AUD
Sale Sold out
View full details

Like the other 2000 Series goBILDA Servos, the 2000-0025-0502 boasts two different modes. In the default mode, the servo is able to rotate while having positioning feedback. In this mode, the PWM signal will determine the position of the servo.  Using the 3102 Series Dual Mode Servo Programmer (1-1) the servo can be toggled into continuous rotation mode. In this mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

Specs

Weight 64g
Gear Ratio 300:1
Output Shaft Style 25 Tooth Spline
Voltage Range 4.8V ~ 7.4V
No-Load Speed (4.8V) 0.25sec/60° (40RPM)
No-Load Speed (6.0V) 0.20sec/60° (50RPM)
No-Load Speed (7.4V) 0.17sec/60° (60RPM)
Stall Torque (4.8V) 17.2 kg.cm (240 oz-in)
Stall Torque (6.0V) 21.6 kg.cm (300 oz-in)
Stall Torque (7.4V) 25.2 kg.cm (350 oz-in)
Max PWM Range 500 - 2500 µsec
Max PWM Range (Continuous) 900 - 2100 µsec
Travel per µsec (out of box) 0.90°/µsec
Pulse Amplitude 3-5V
Direction Clockwise w/ Increasing PWM Signal
Deadband Width 4 μsec
Motor Type Brushed DC
Feedback Style 5KΩ Potentiometer
Output Shaft Support Dual Ball Bearing
Gear Material Steel
Wire Length 300mm
Wire Gauge 22 AWG
Connector Type 3-Pos TJC8 Servo Connector [MH-FC]
