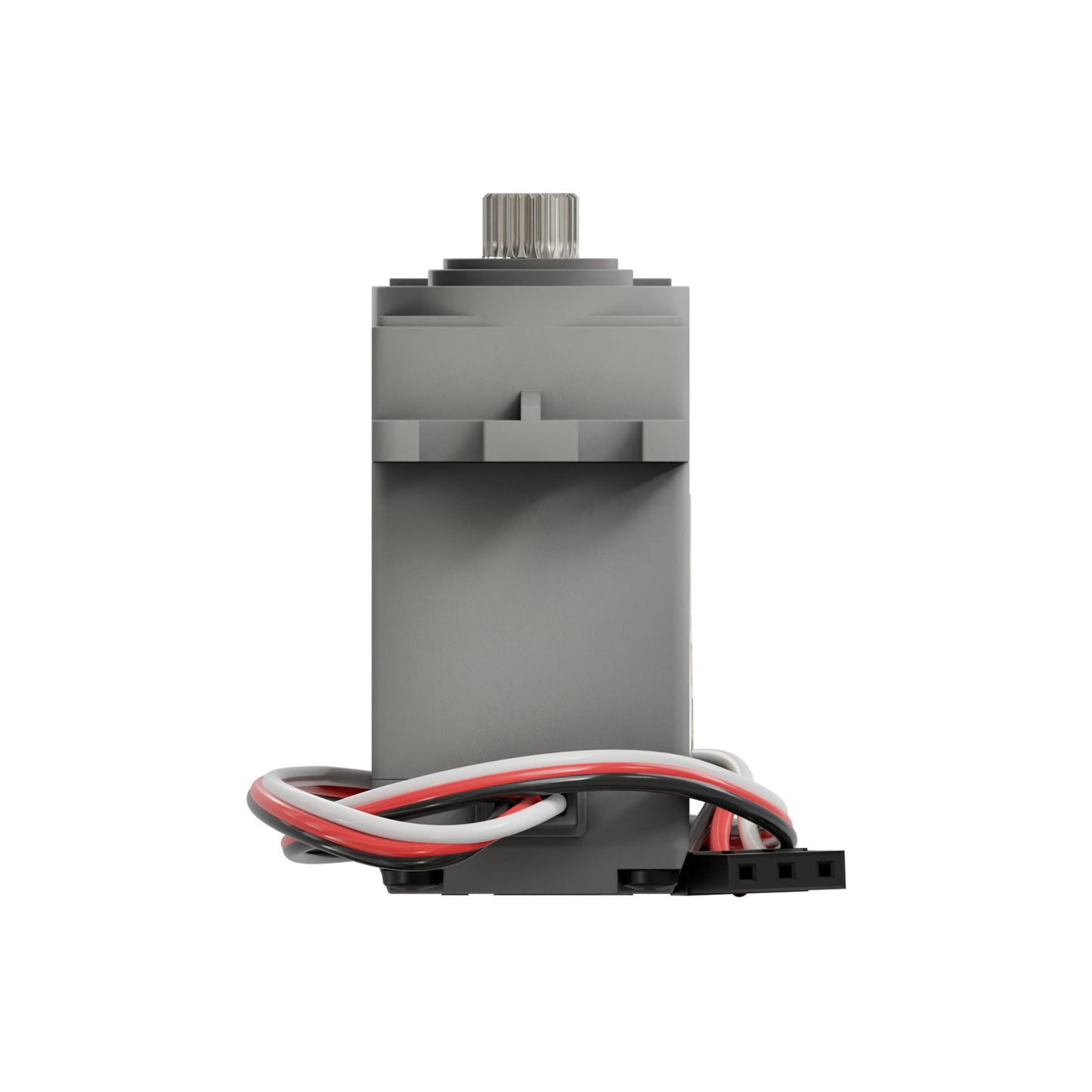

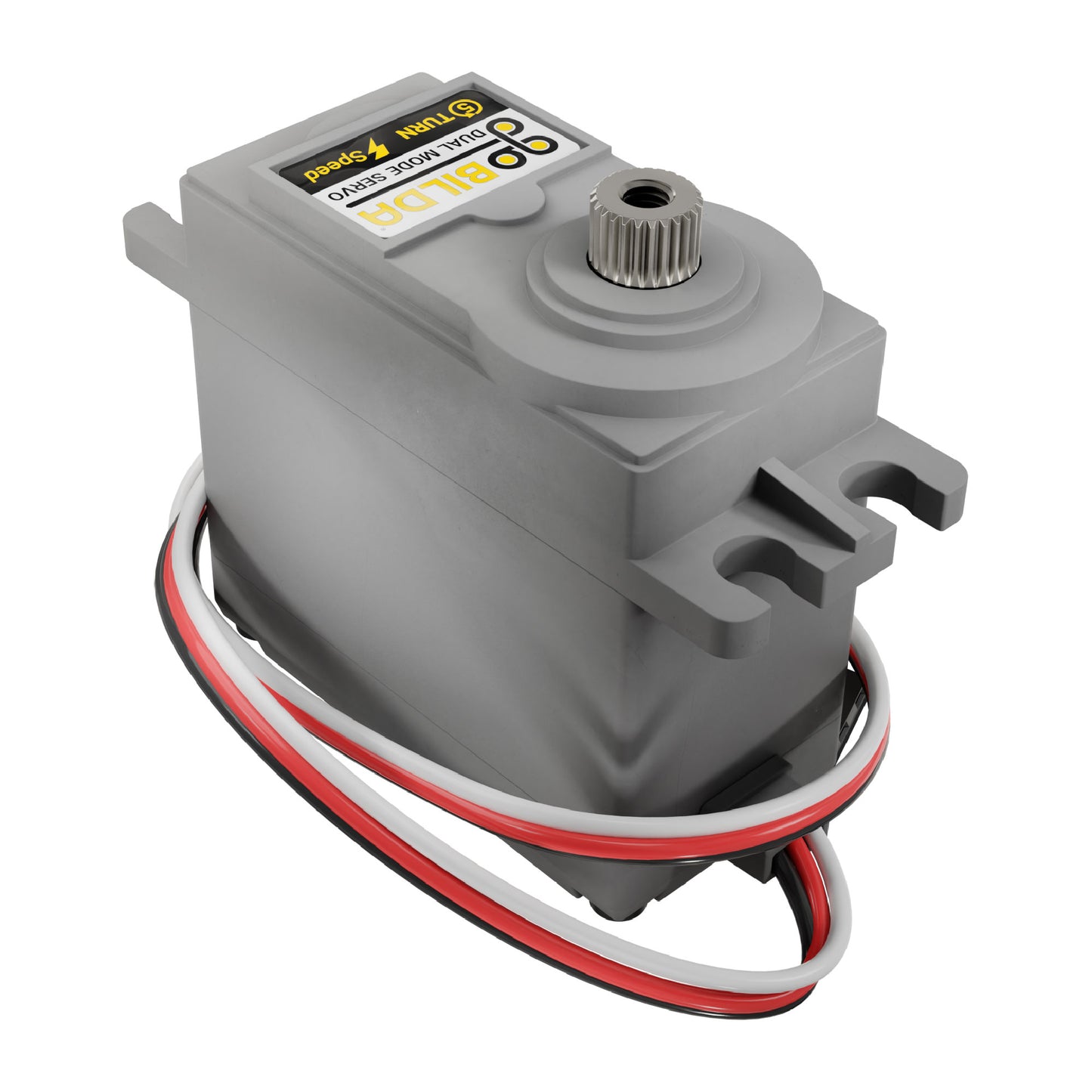

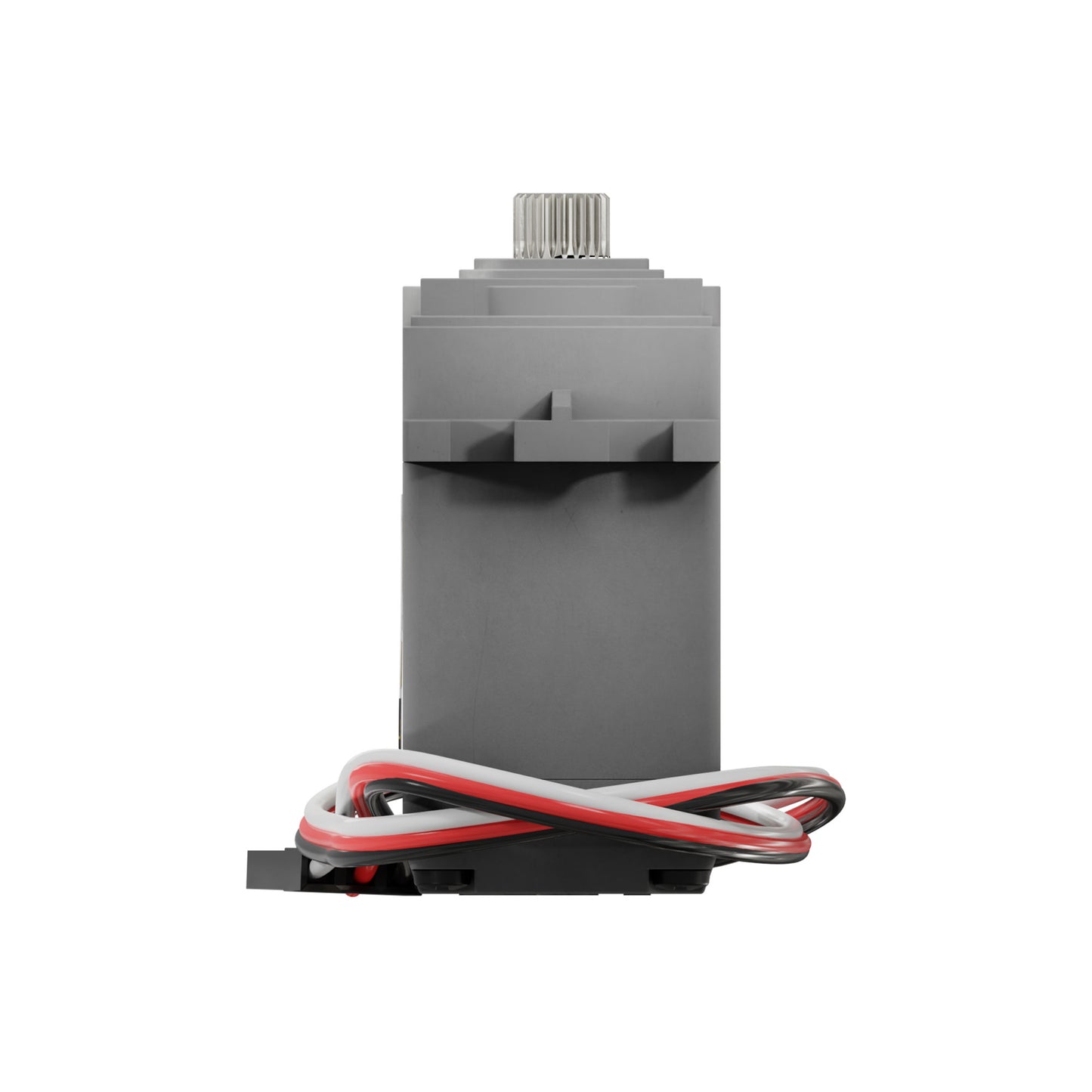

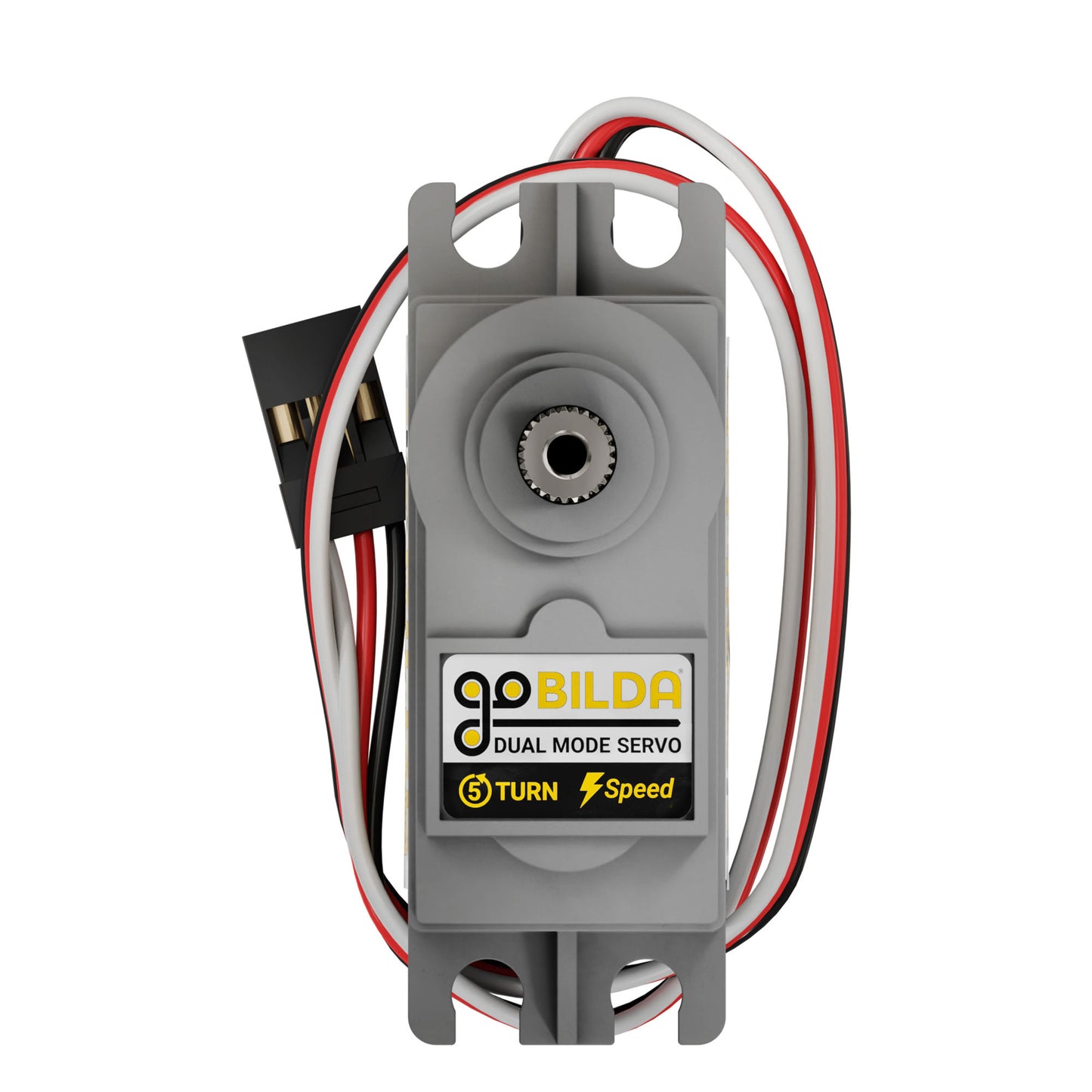

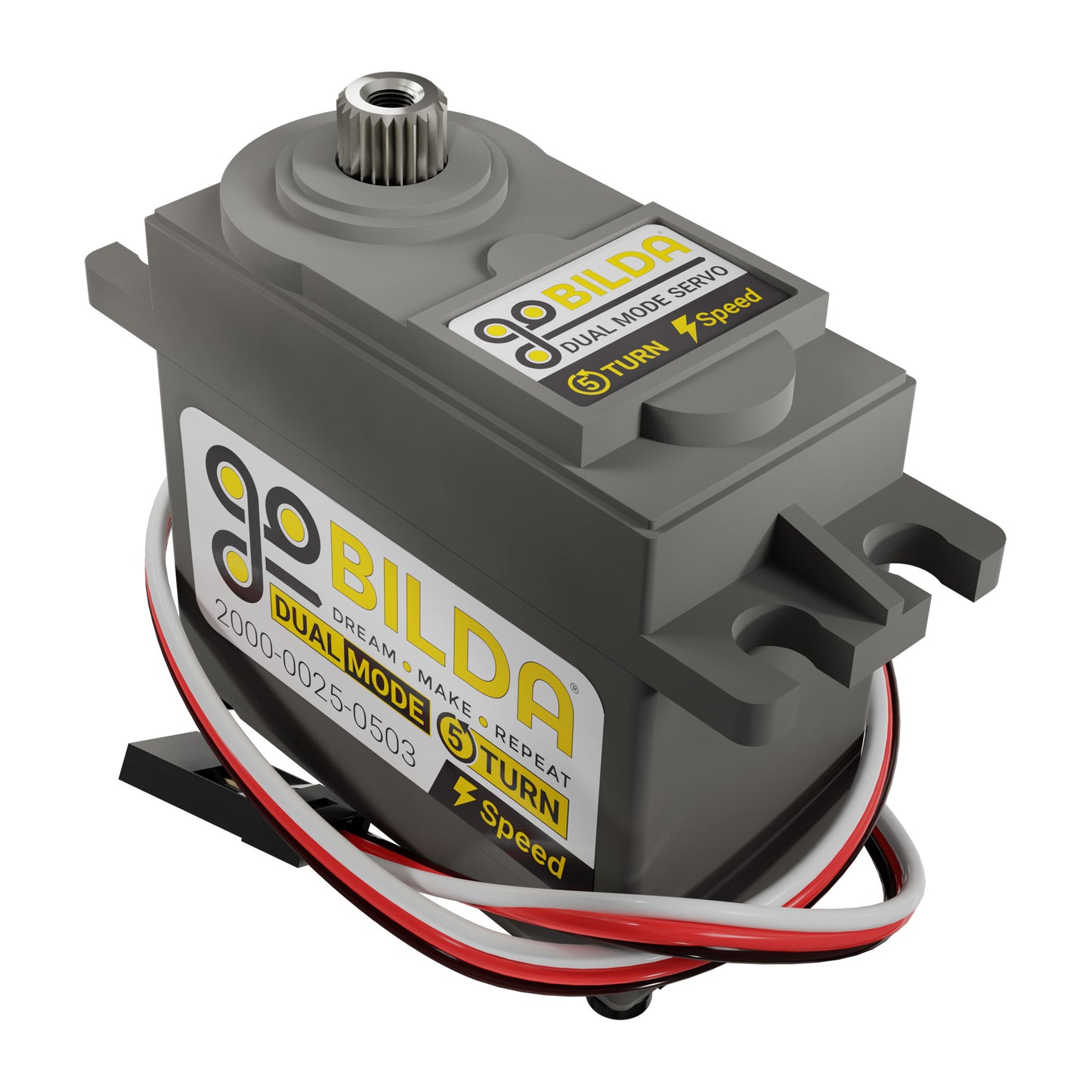

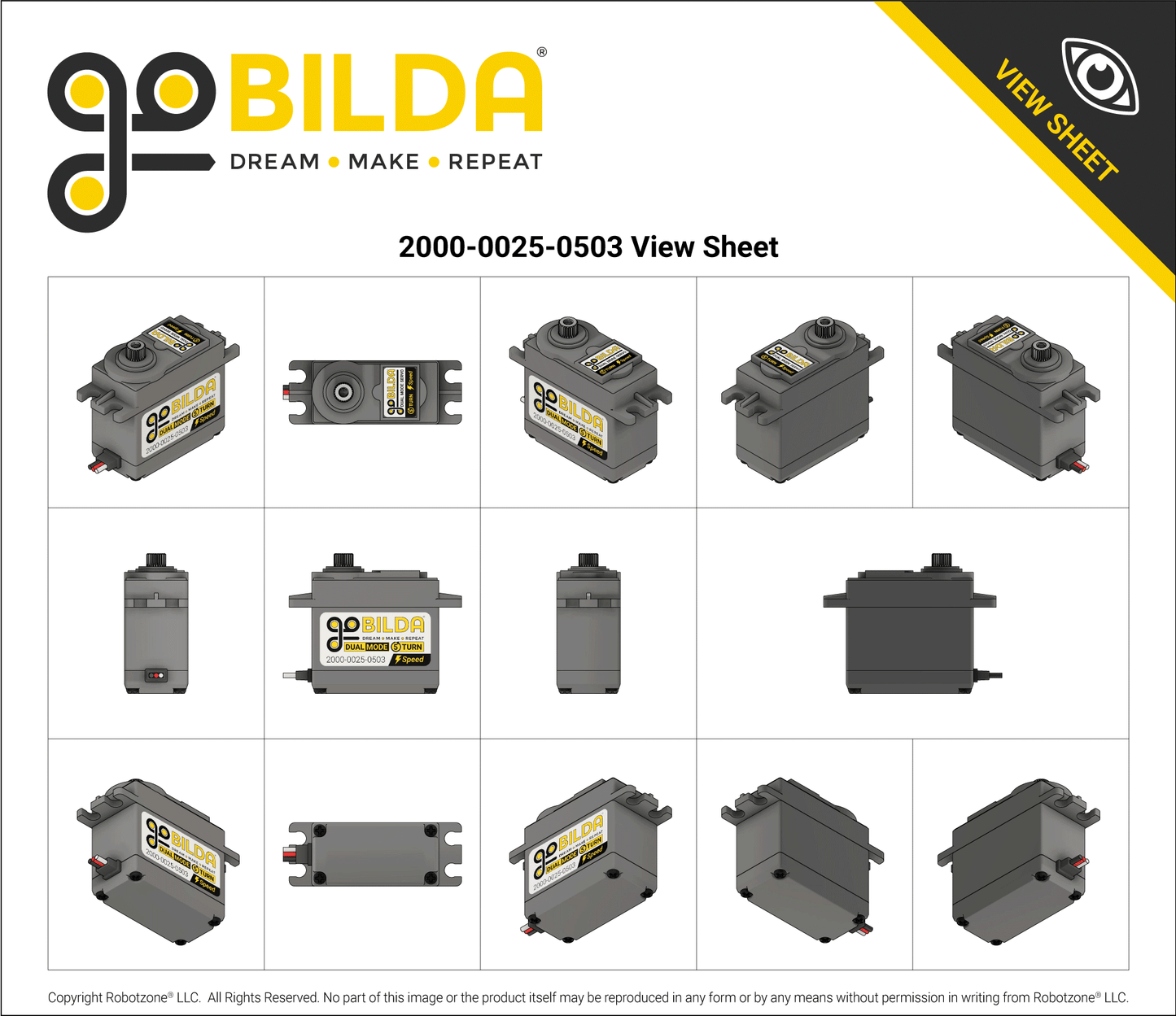

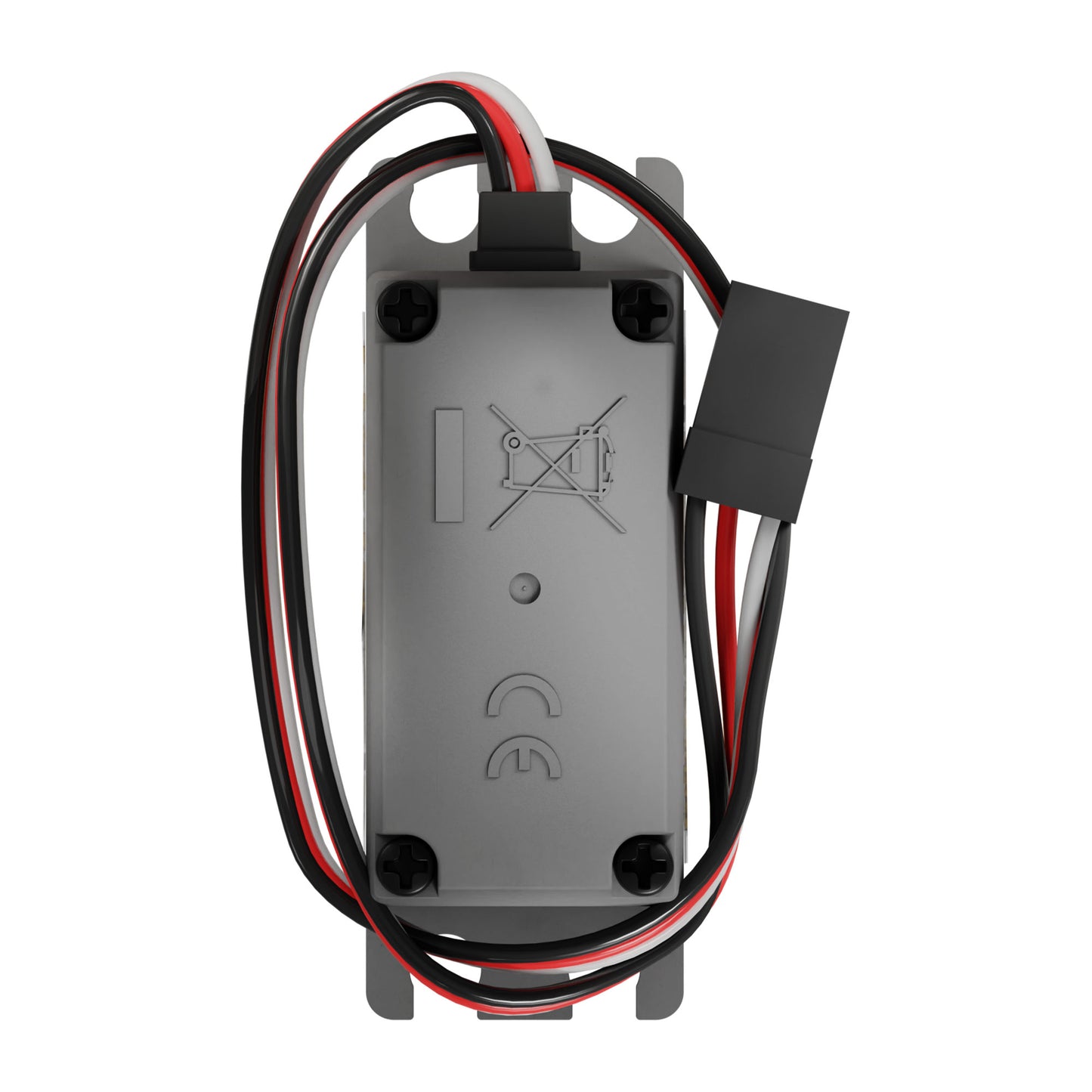

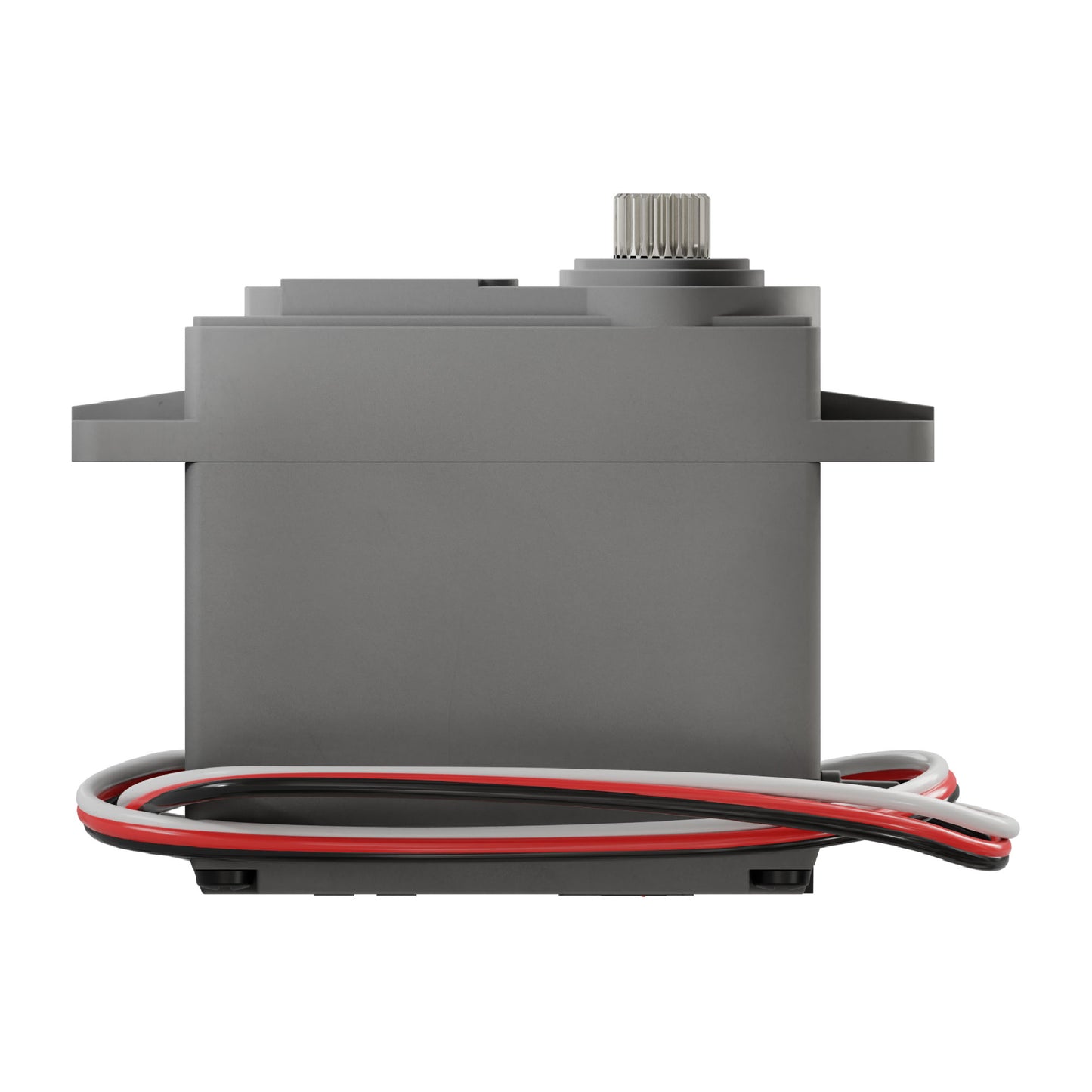

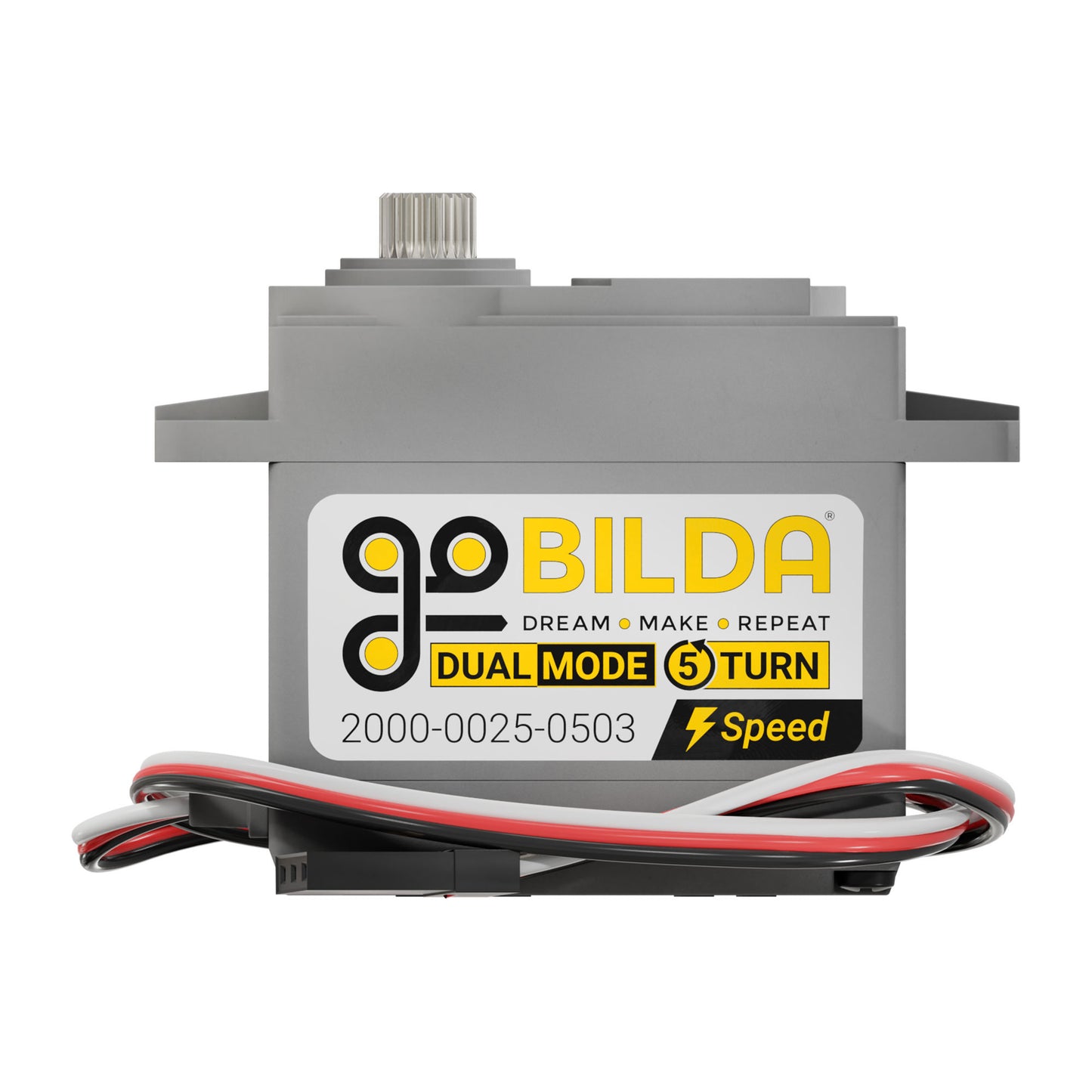

2000 Series 5-Turn, Dual Mode Servo (25-3, Speed)

2000 Series 5-Turn, Dual Mode Servo (25-3, Speed)

goBILDA parts we stock are ready to ship, otherwise with a 10-day lead time

SKU: GB-2000-0025-0503

Regular price $73.00 AUD
Regular price Sale price $73.00 AUD
Sale Sold out
View full details

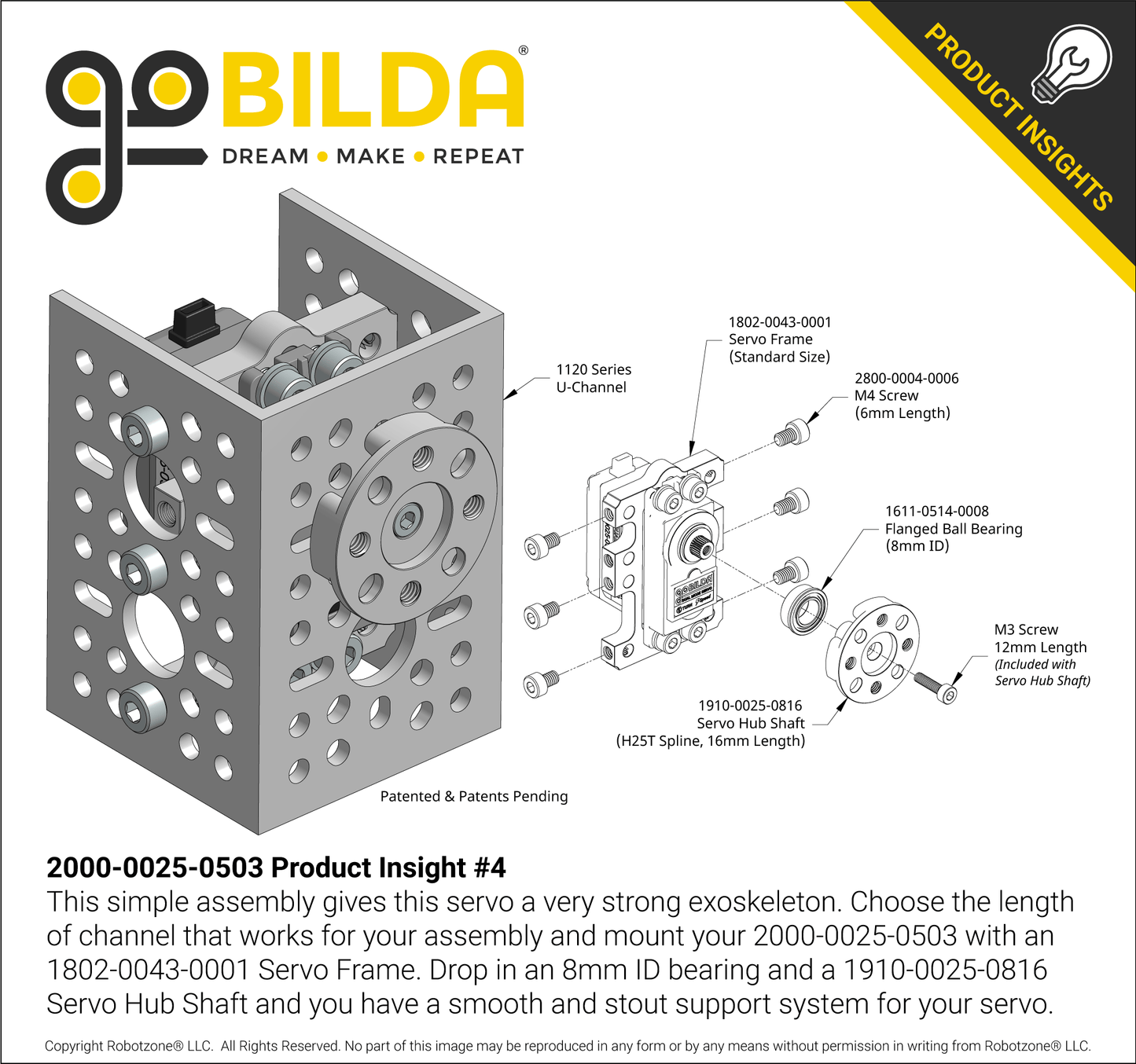

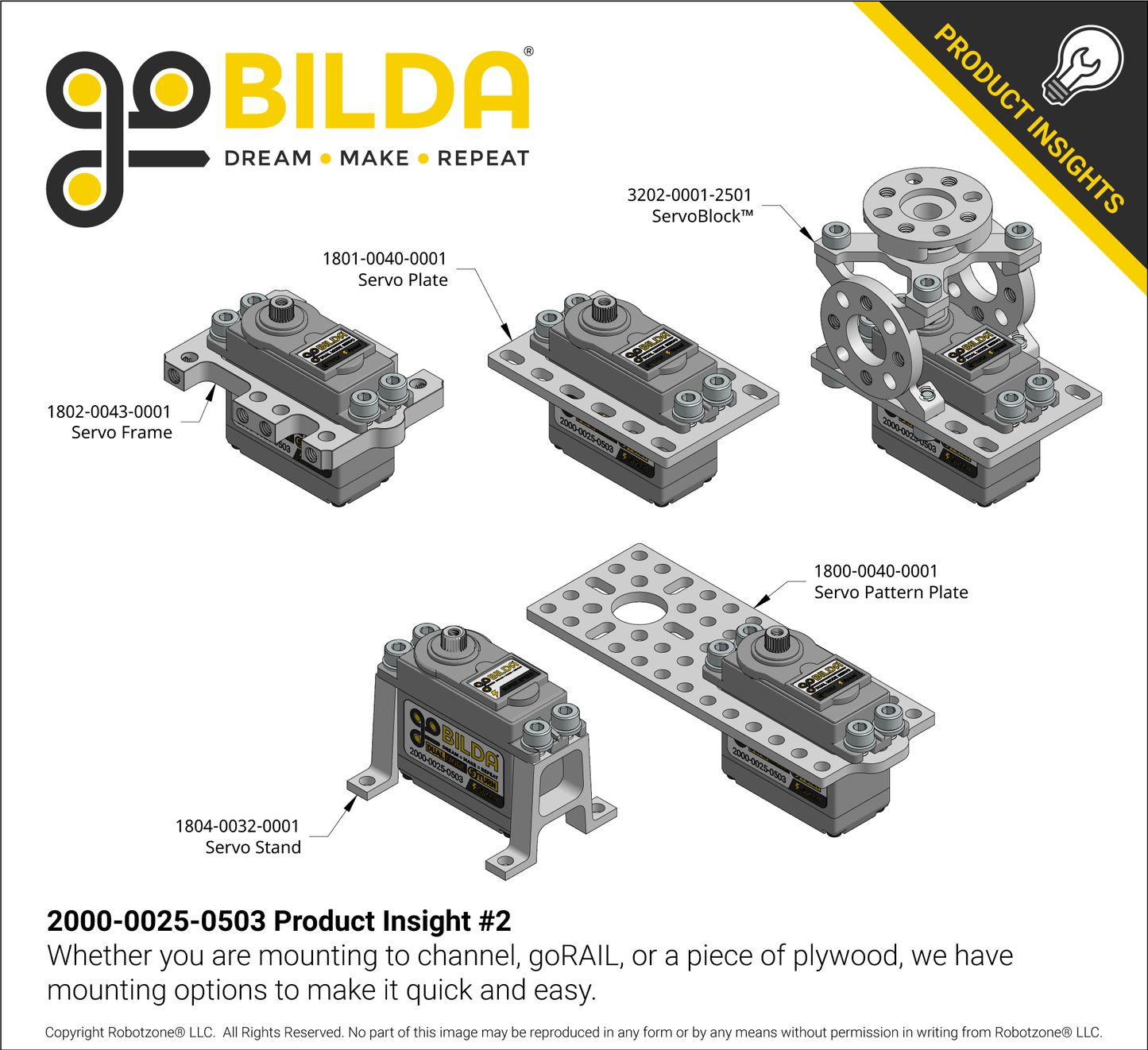

Meet the Dual Mode 5-Turn ‘SPEED’ Servo. Like the other 2000 Series goBILDA® servos, the 2000-0025-0503 boasts two different modes:

Default Mode

In Default Mode the servo is able to rotate while having positioning feedback. In this mode, the PWM signal will determine the position of the servo.

Continuous Rotation Mode

Using the 3102 Series Dual Mode Servo Programmer (1-1) the servo can be toggled into continuous rotation mode.  In this mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.

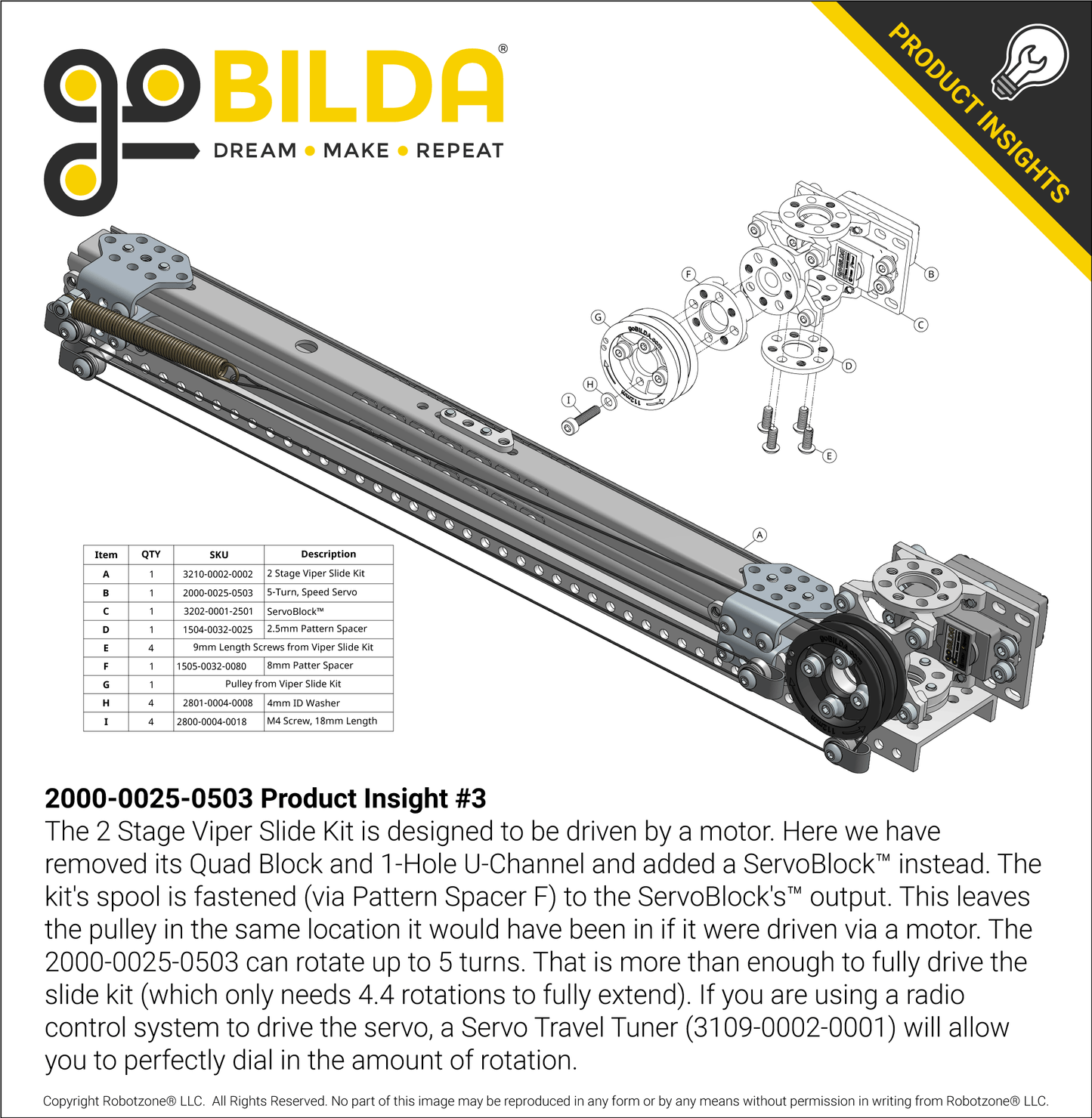

How Far Will This Servo Rotate When In Feedback Mode?

The answer to this question is partially dependent on what you are using to control the servo that drives the gearbox. As you can see below, a Servo Travel Tuner allows you to achieve maximum rotation, but it is just as useful to dial down the rotation to suit your needs.

With an Average Radio System:
2.25 Turns (810°)
Your average transmitter and receiver will output a relatively narrow PWM signal range.

Radio System + Travel Tuner:
5 Turns (1800°)
Adding a Servo Travel Tuner to your radio system setup will allow you to achieve wide PWM signal ranges.

Wide Signal Controllers:
5 Turns (1800°)
Controllers such as Arduinos, and Raspberry Pi servo hats can usually send a wide signal.

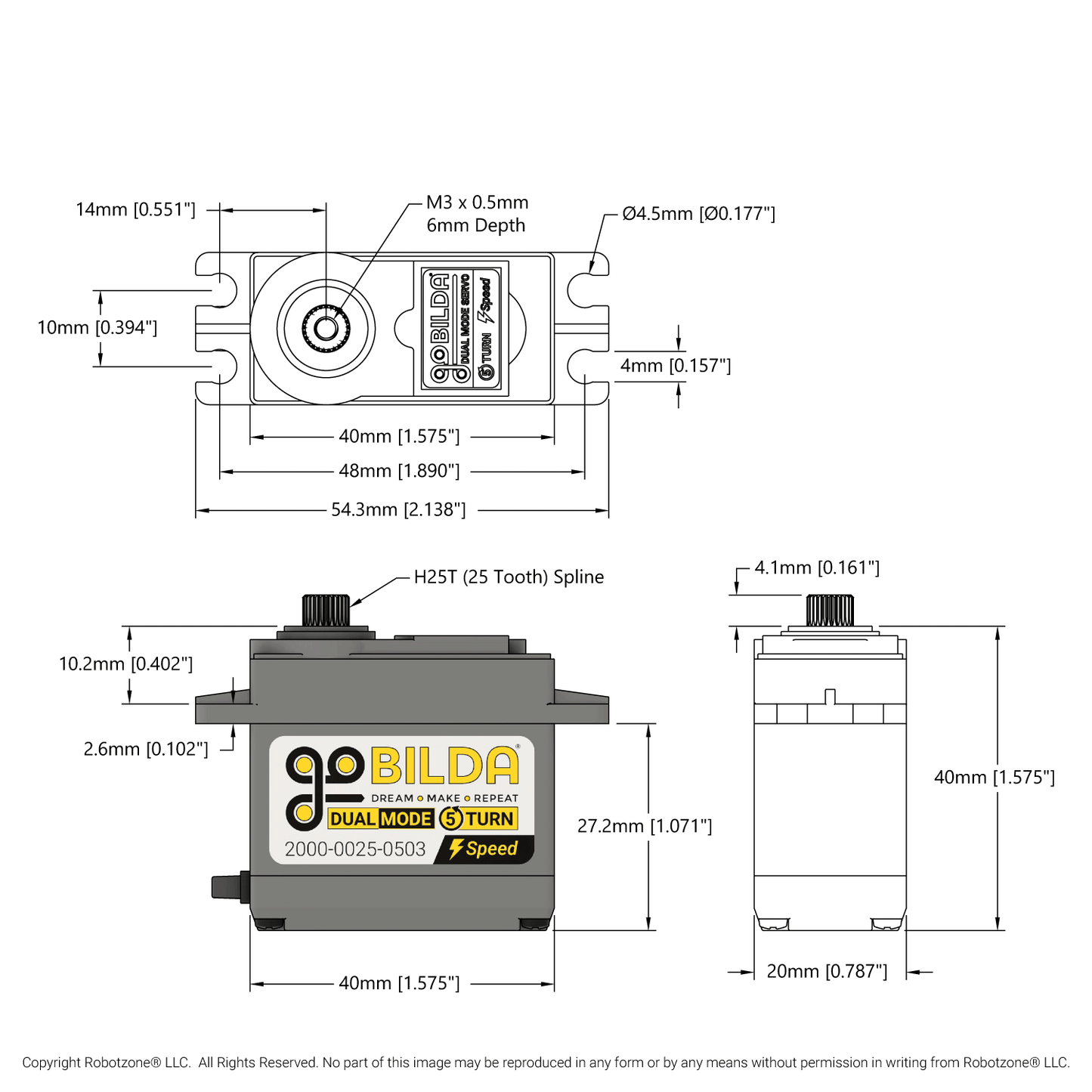

Specs

Weight 60g (2.12oz)
Gear Ratio 135:1

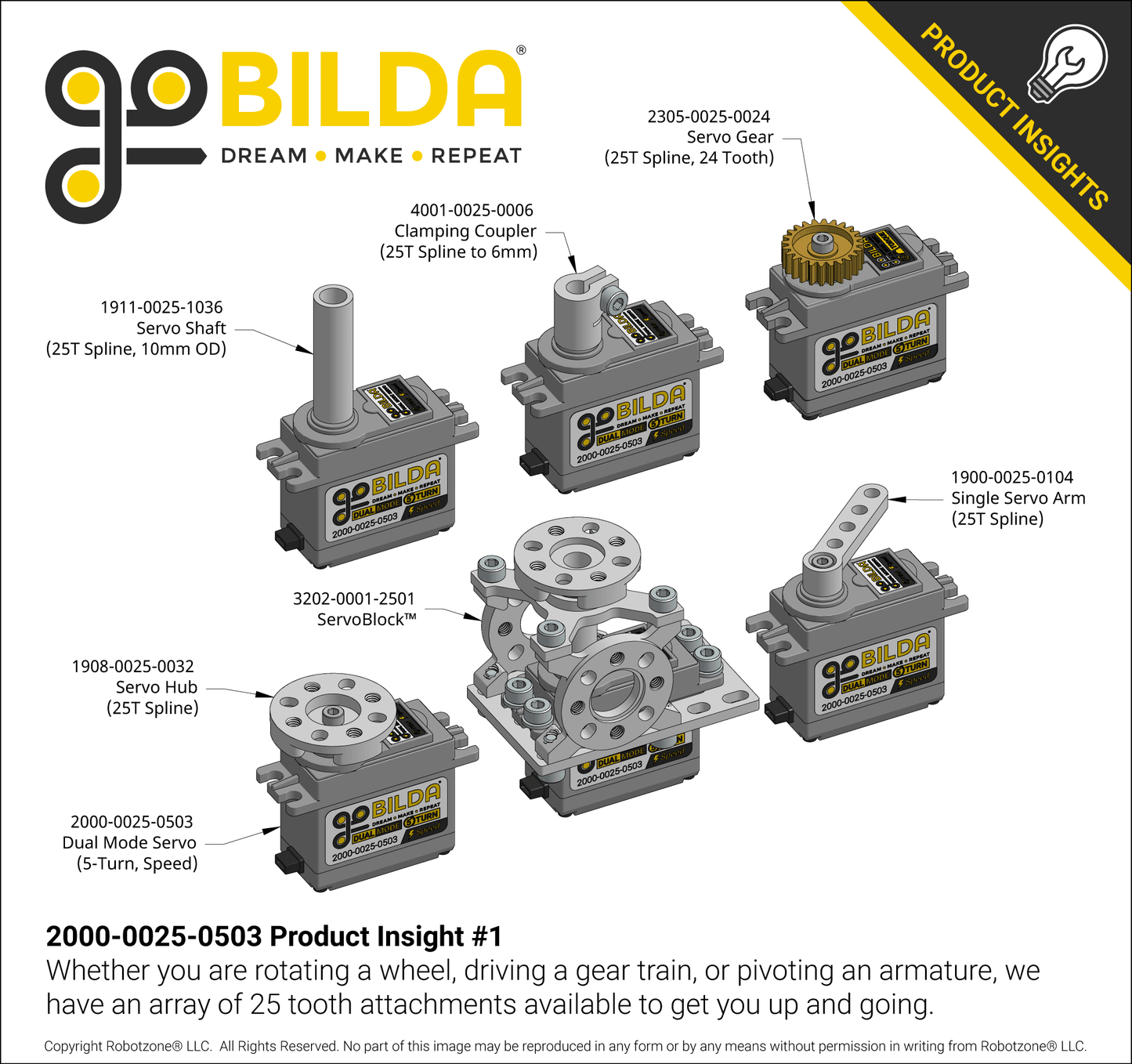

Output Shaft Style H25T (25 Tooth) Spline
Voltage Range 4.8V - 7.4V
No-Load Speed (4.8V) 0.11 sec/60° (90RPM)
No-Load Speed (6.0V) 0.09 sec/60° (115RPM)
No-Load Speed (7.4V) 0.07 sec/60° (145RPM)
Stall Torque (4.8V) 110 oz-in (7.9 kg.cm)
Stall Torque (6.0V) 130 oz-in (9.3 kg.cm)
Stall Torque (7.4V) 150 oz-in (10.8 kg.cm)
No-Load Current (4.8V) 190mA
No-Load Current (6.0V) 200mA
No-Load Current (7.4V) 230mA
Stall Current (4.8V) 2,000mA
Stall Current (6.0V) 2,500mA
Stall Current (7.4V) 3,000mA
Max PWM Range 500-2500μsec
Max PWM Range (Continuous) 900-2100µsec
Travel per μsec 0.90°/μsec
Max Rotation (Default Mode) 5 Turns (1800°)
Pulse Amplitude 3-5V
Deadband Width 4μsec
Motor Type Brushed DC
Feedback Style 5KΩ Potentiometer
Output Shaft Support Dual Ball Bearing
Gear Material Steel
Wire Length 11.81" (300mm)
Wire Gauge 22AWG
Connector Type 3-Pos TJC8 Servo Connector [MH-FC]
Servo Size Standard
Direction with Increasing PWM Signal Clockwise
