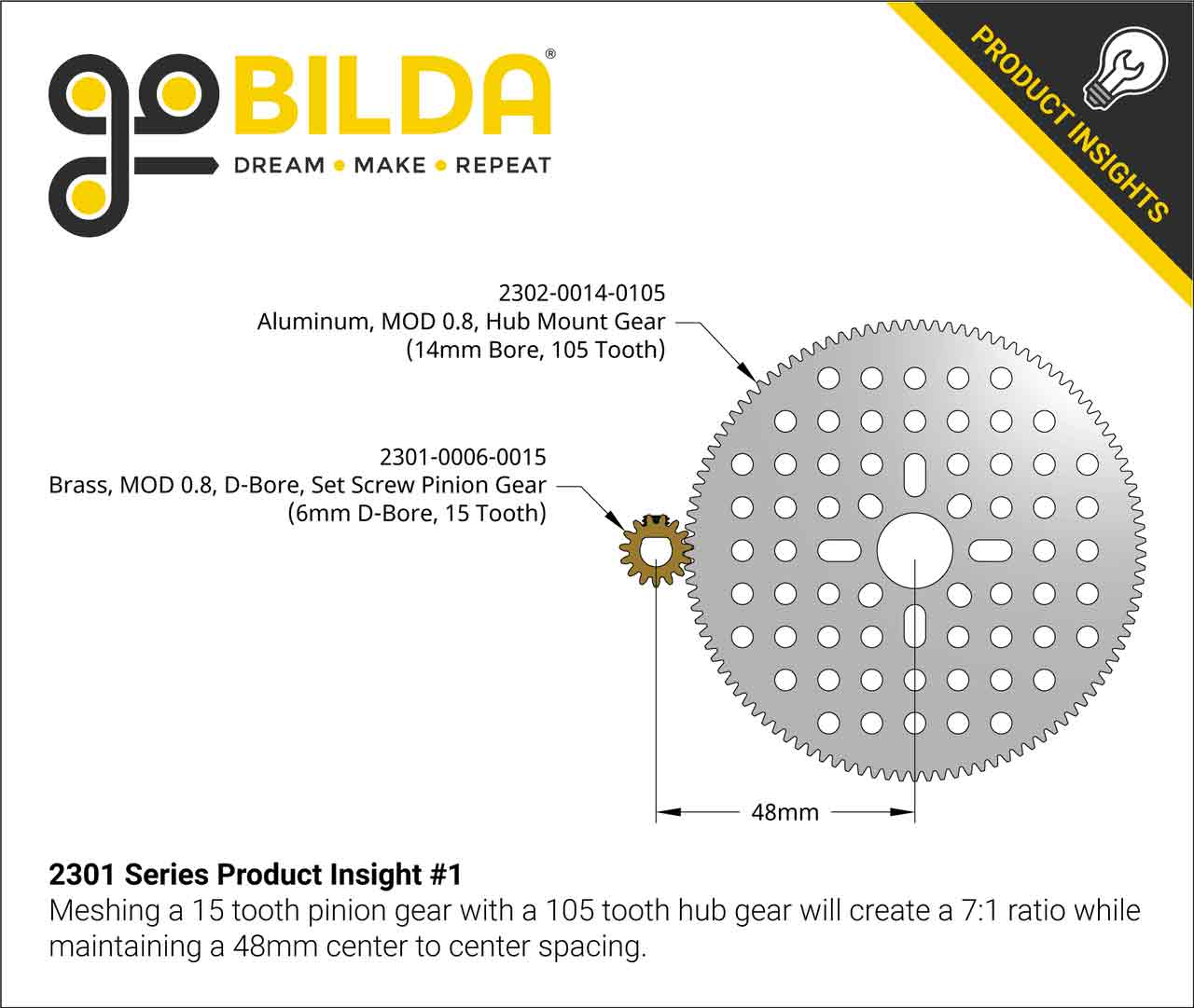

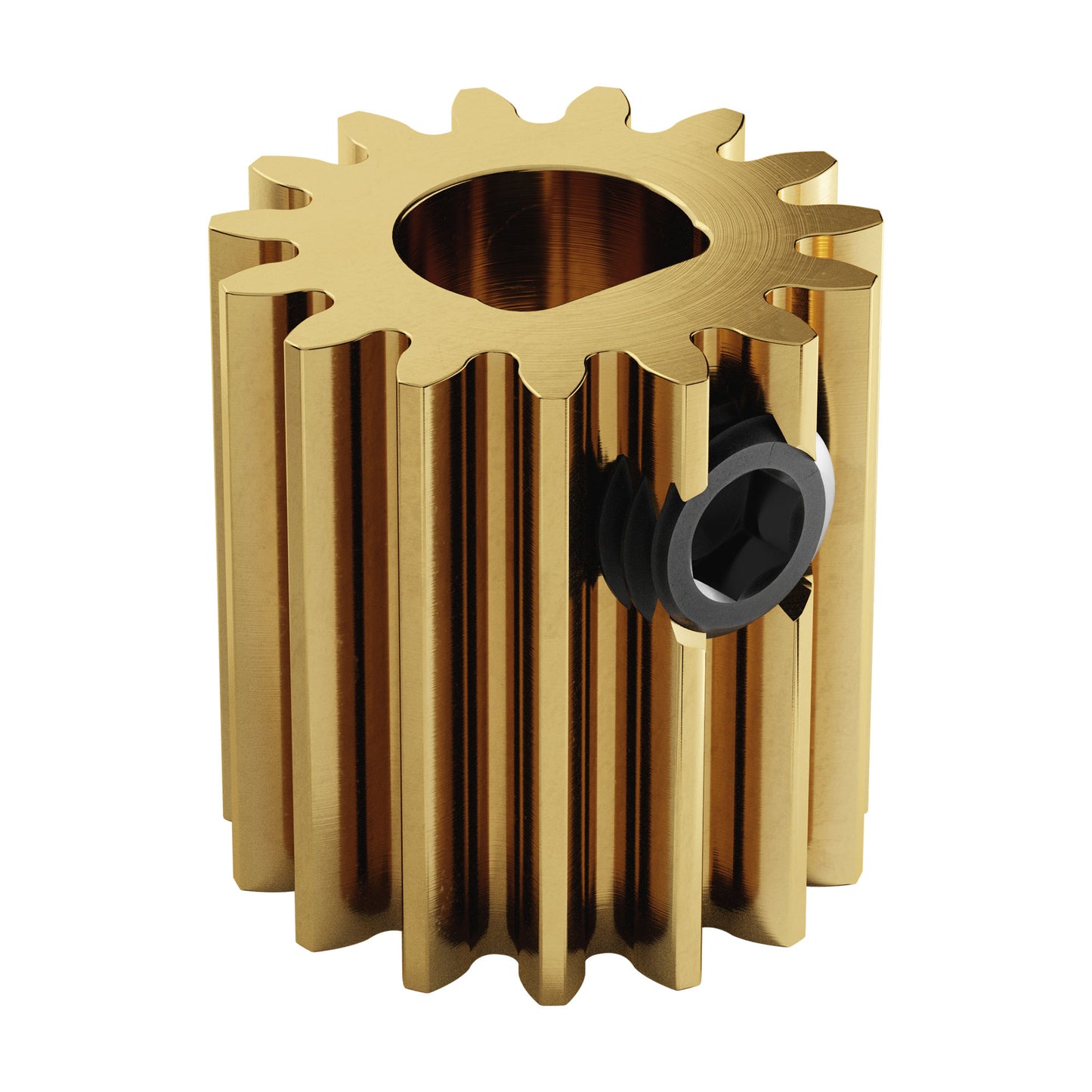

This MOD 0.8 pinion gear, while aesthetically unique compared to the larger pinion gears, will operate the same. Due to the small overall diameter, the set screw hole has been machined through the teeth to maximize the number of threads engaged with the set screw. While this gear is compatible with any MOD 0.8 gear, its most common partner is a 105 tooth hub gear. This combo will create a 7:1 ratio, underdrive or overdrive depending on whether you’re set out to increase the speed or maximize torque.
Specs
| Weight | 9.8g |
|---|---|
| Material | Brass |
| Tooth Count | 15 |
| Gear Pitch | MOD 0.8 |
| Pressure Angle | 20 Degree |
