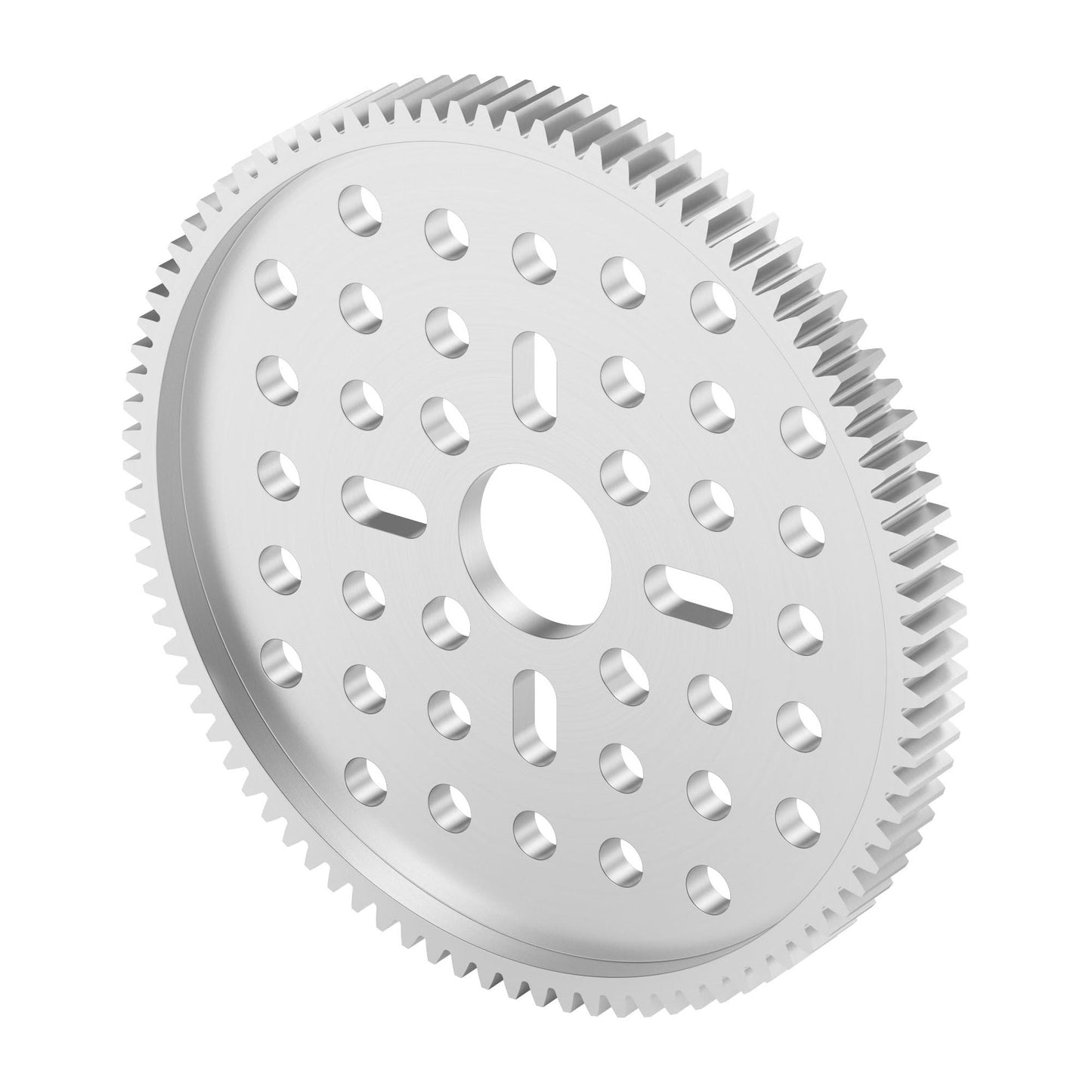

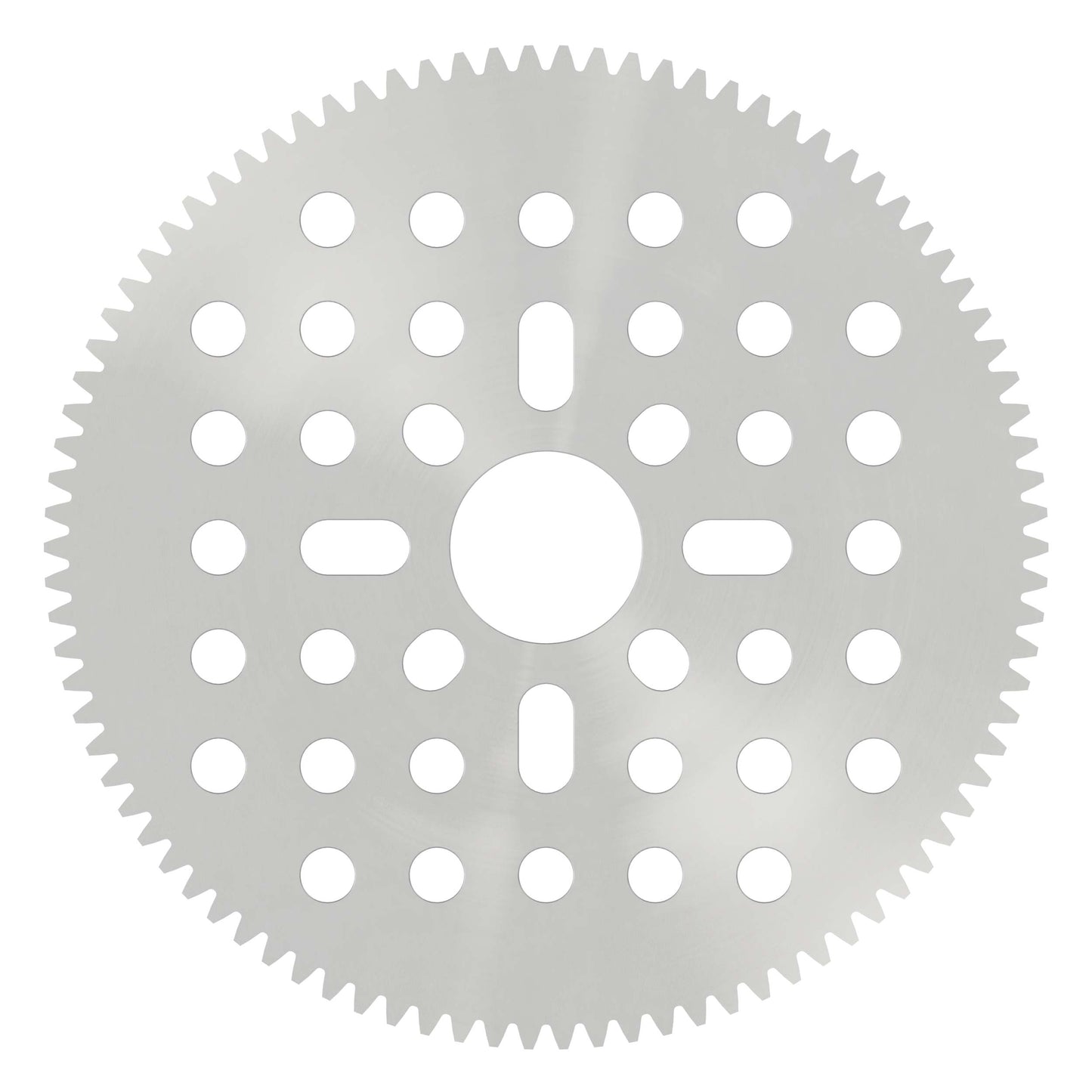

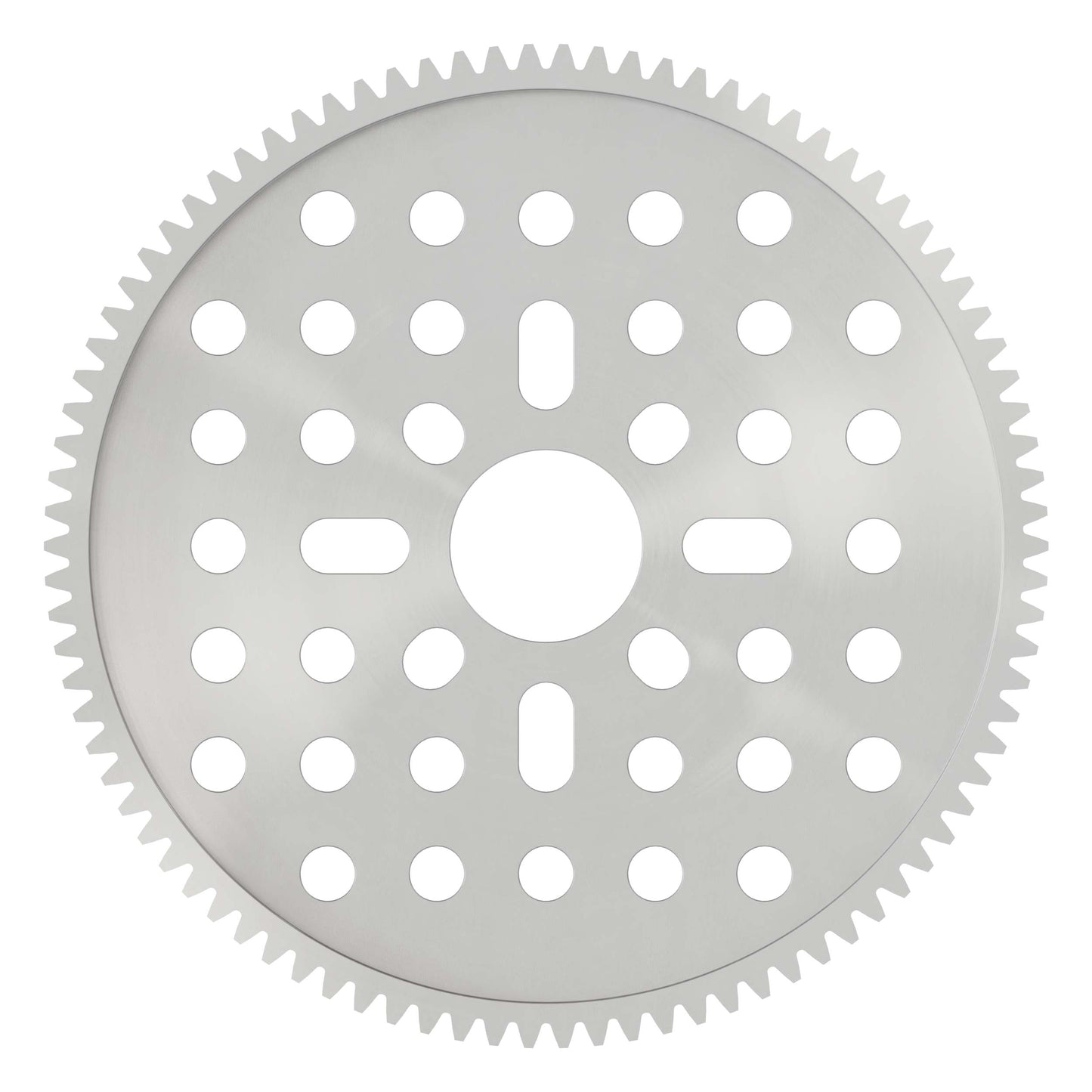

2302 Series Aluminum, MOD 0.8, Hub Mount Gear (14mm Bore, 90 Tooth)

2302 Series Aluminum, MOD 0.8, Hub Mount Gear (14mm Bore, 90 Tooth)

goBILDA parts we stock are ready to ship, otherwise with a 10-day lead time

SKU: GB-2302-0014-0090

Regular price $23.00 AUD
Regular price Sale price $23.00 AUD
Sale Sold out
View full details

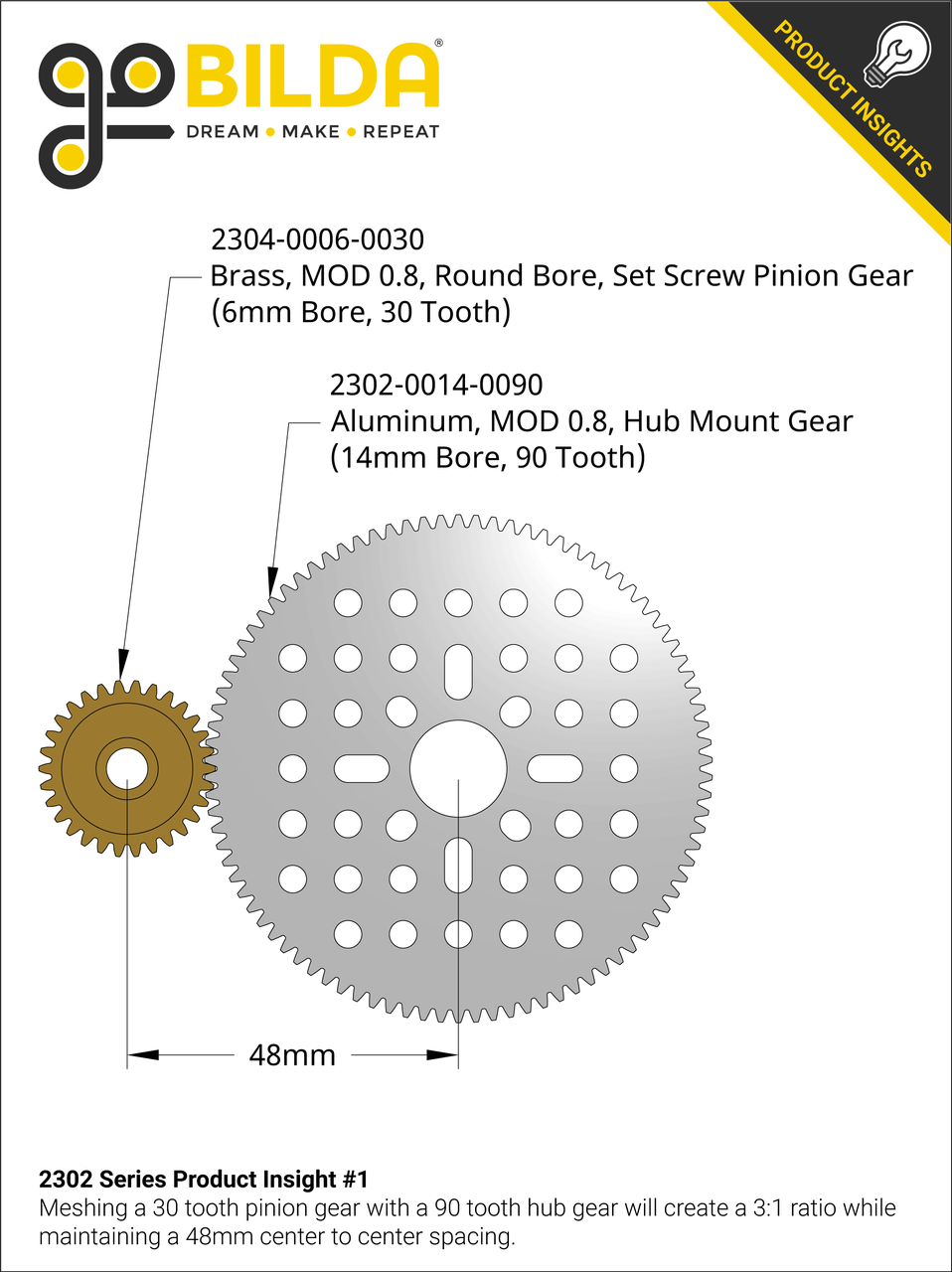

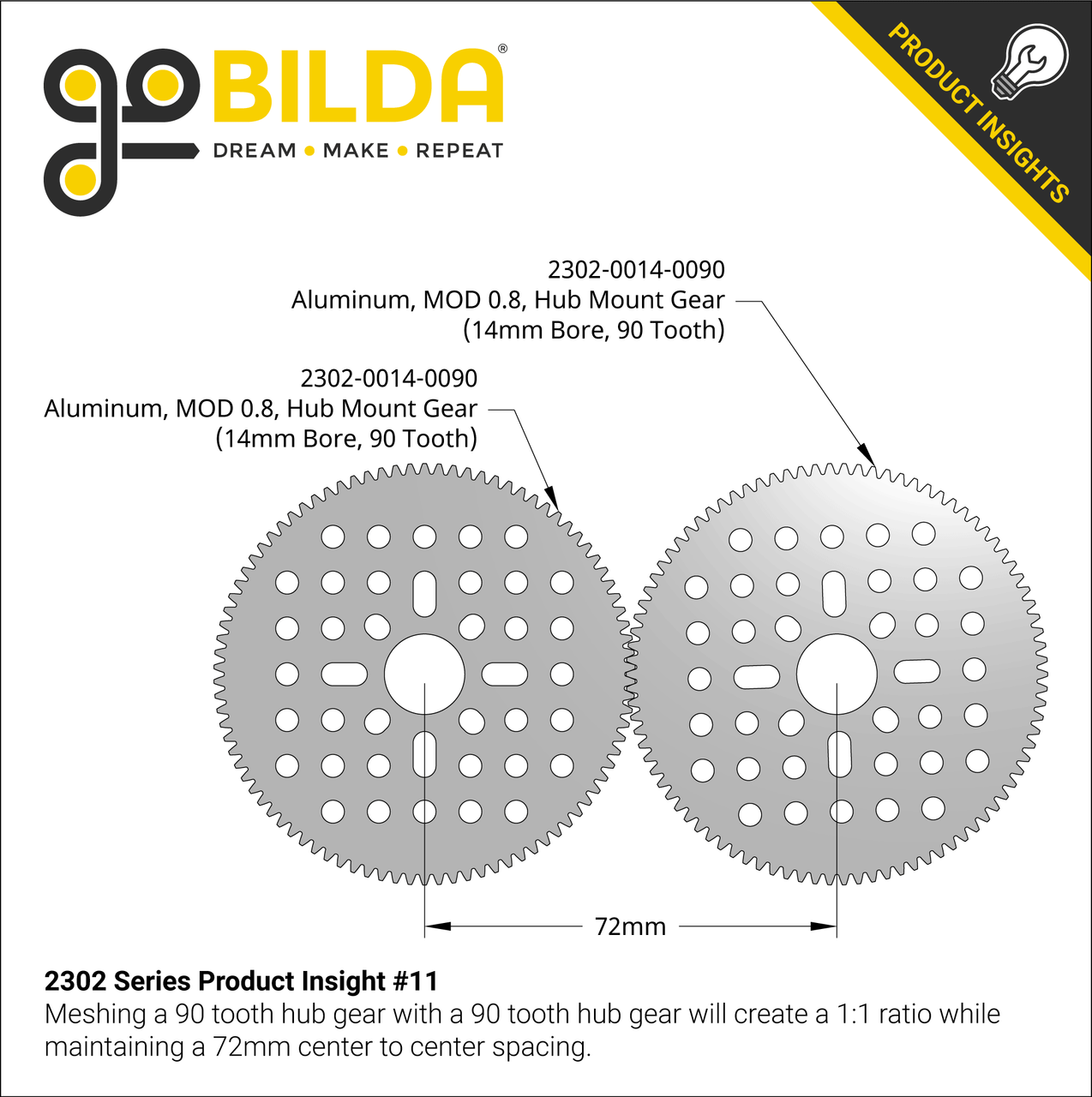

The 90 tooth, MOD 0.8 gear will mate with any MOD 0.8 gear, but when building on pattern, the most common partner for this gear is a 30 tooth pinion gear or servo gear.  Using the pinion gear you can create 3:1 underdrive or overdrive setup depending on your application.  When used with the 30 tooth servo gear, the combo creates a 3:1 underdrive, slowing the final speed while increasing the torque by 3x.

Specs

Weight 31g
Material Aluminum
Finish Clear Anodized
Tooth Count 90
Gear Pitch MOD 0.8
Pressure Angle 20 Degree
