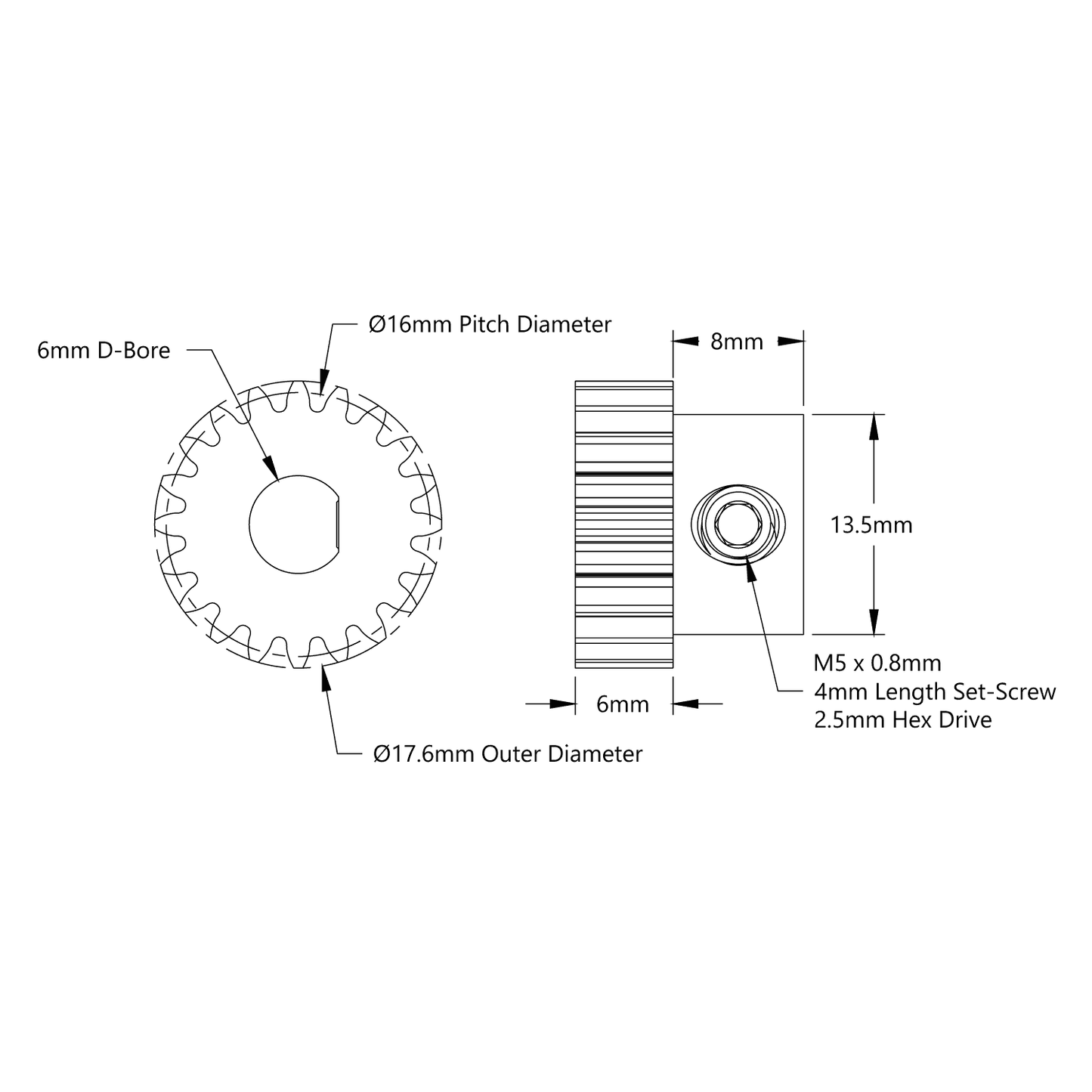

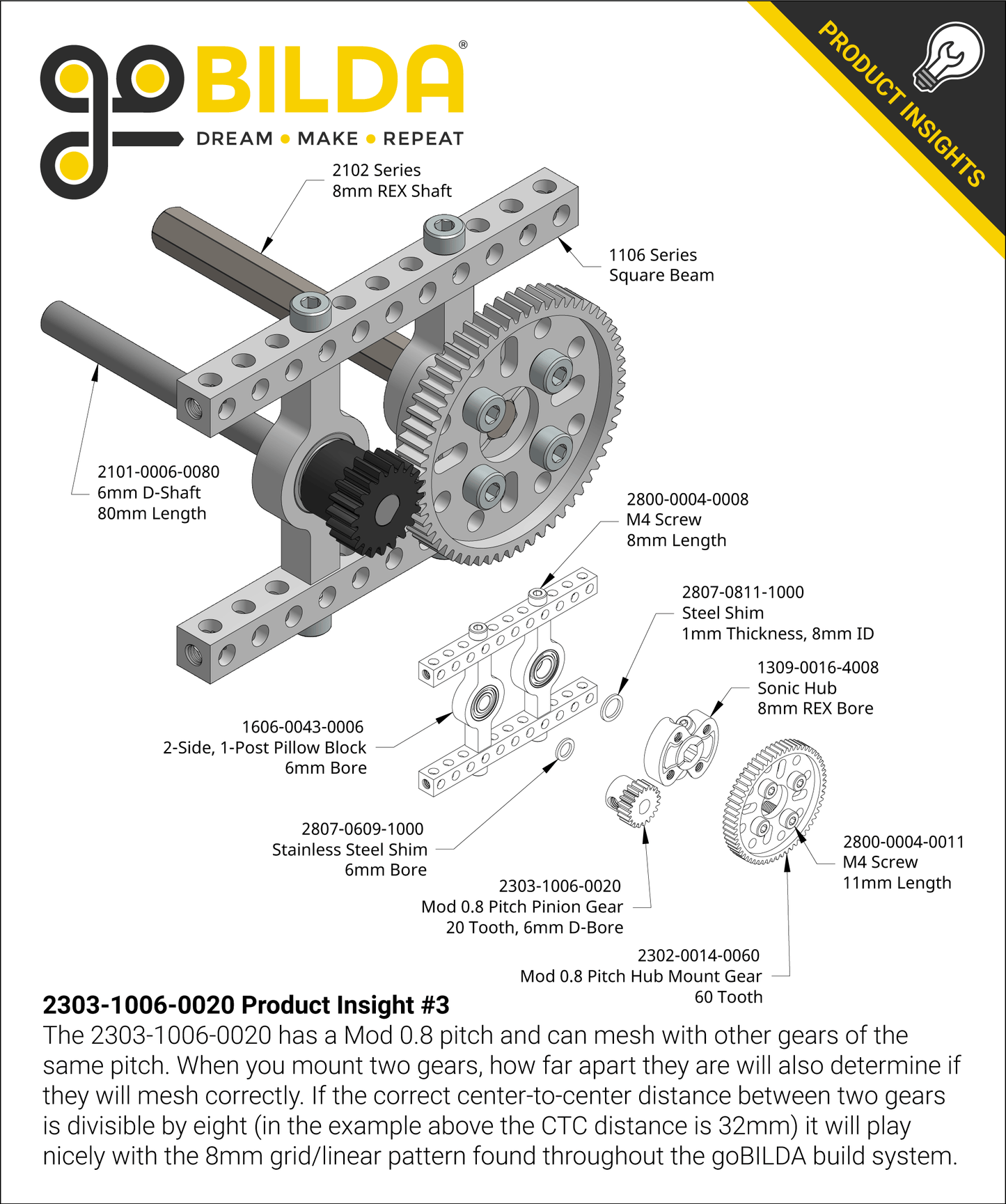

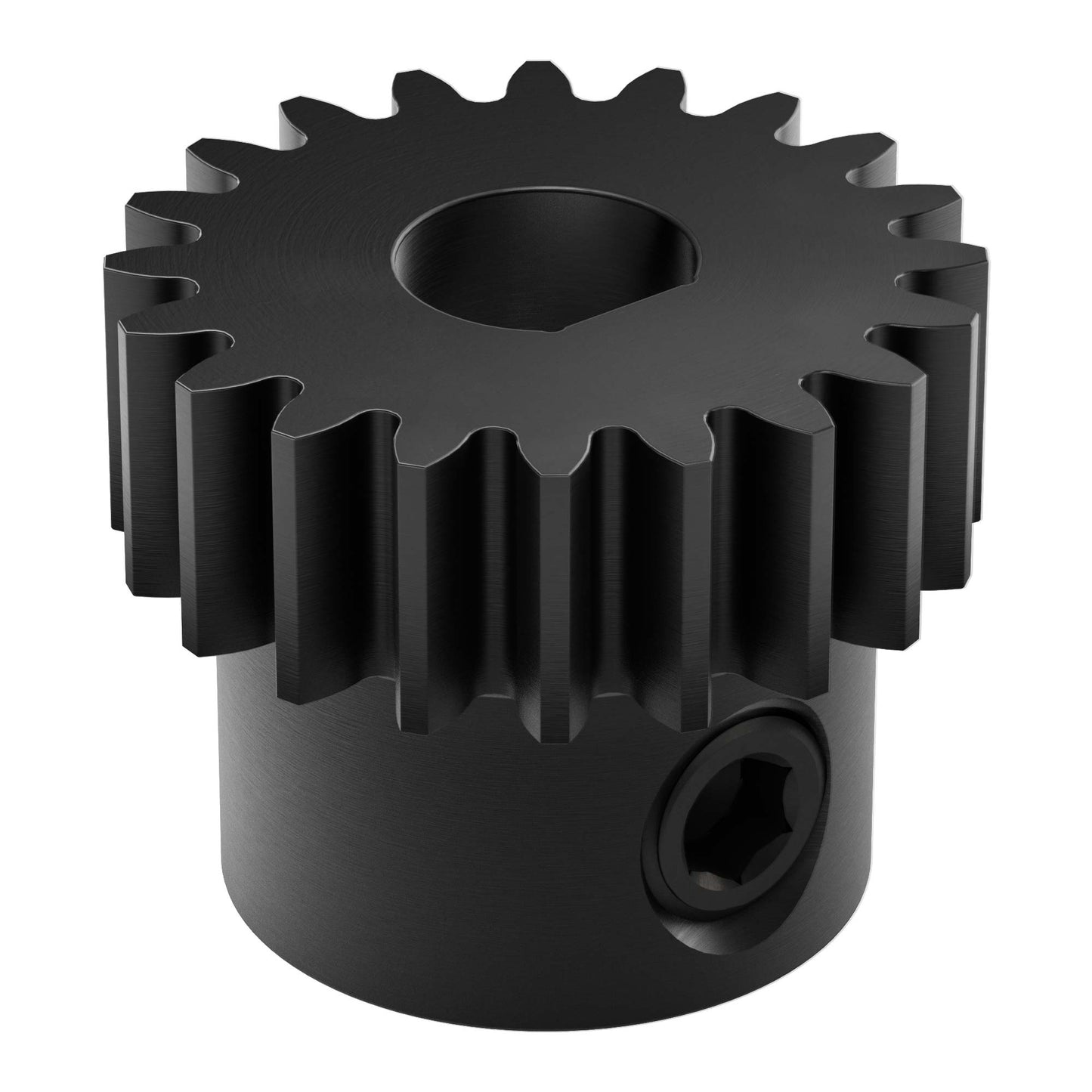

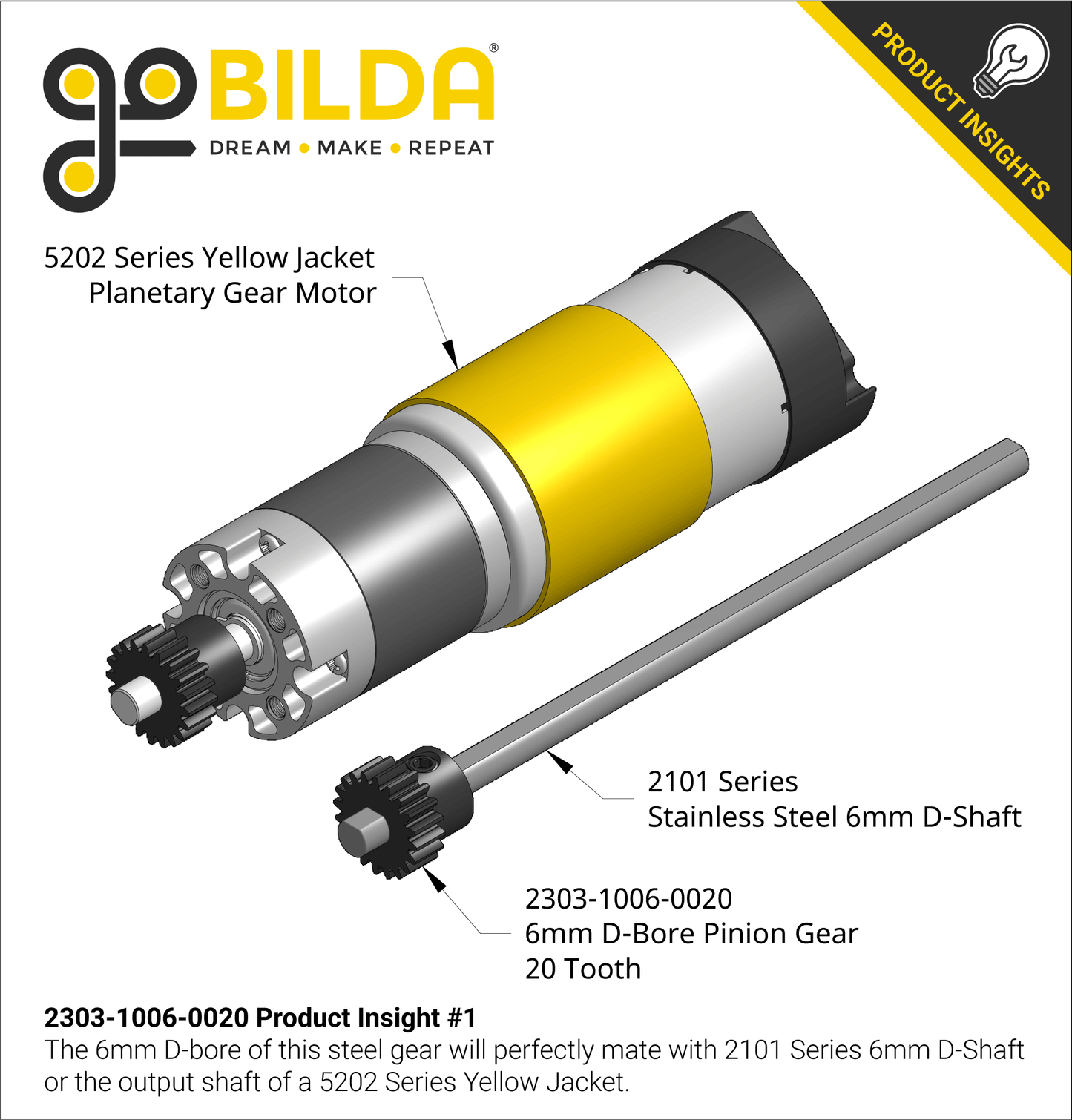

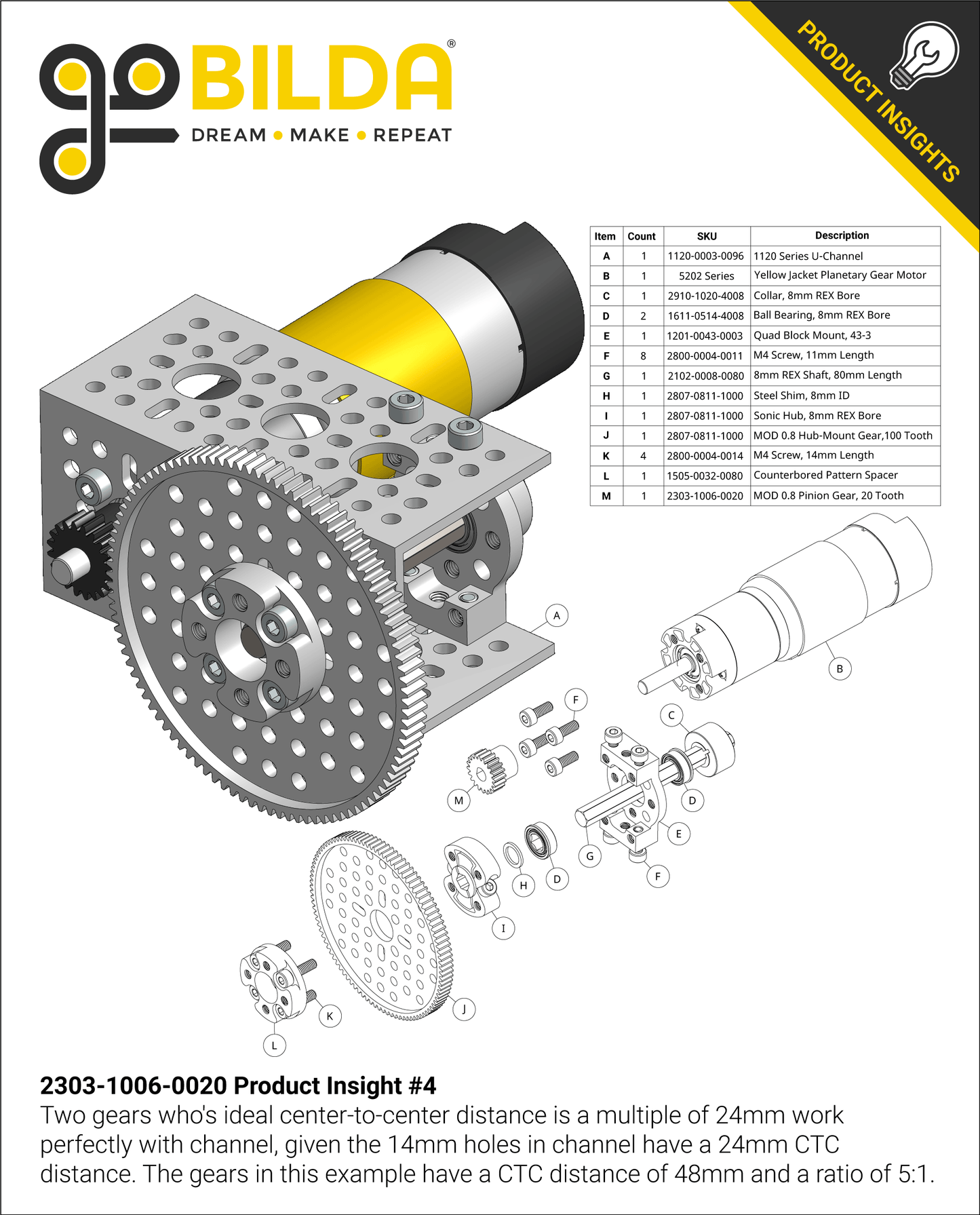

This 20 tooth 6mm D-bore pinion gear perfectly matches our 6mm D-shafting to create a positive drive. This particular gear is able to be meshed with a 100 tooth hub gear spaced 48mm away for a 5:1 ratio on channel. If your build provides the freedom to adjust the spacing between your gears, it’s able to mesh to any MOD 0.8 gear that suits your fancy.
Specs
| Weight | 15g |
|---|---|
| Material | Steel |
| Finish | Black Zinc-Plated |
| Tooth Count | 20 |
| Gear Pitch | MOD 0.8 |
| Pressure Angle | 20 Degree |
