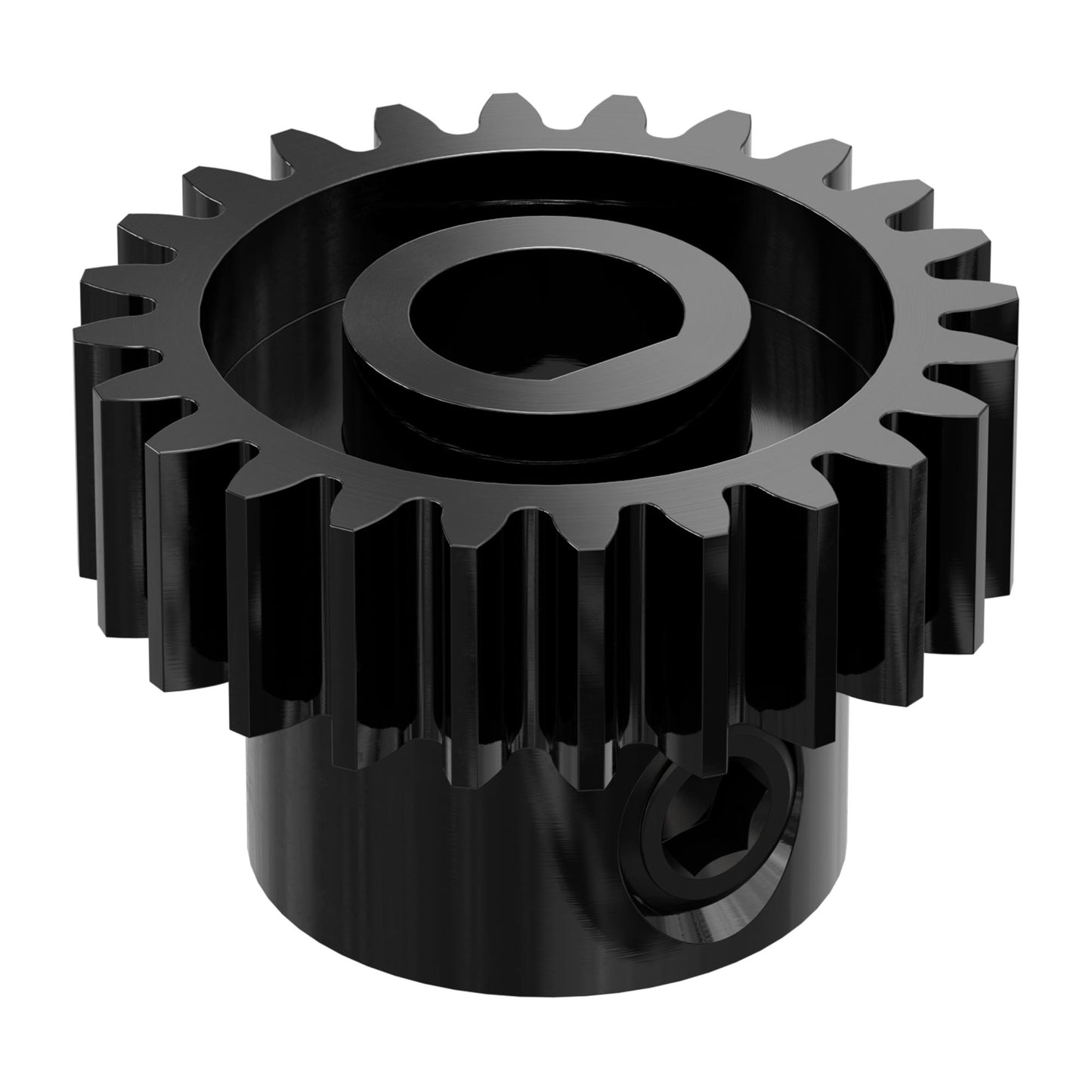

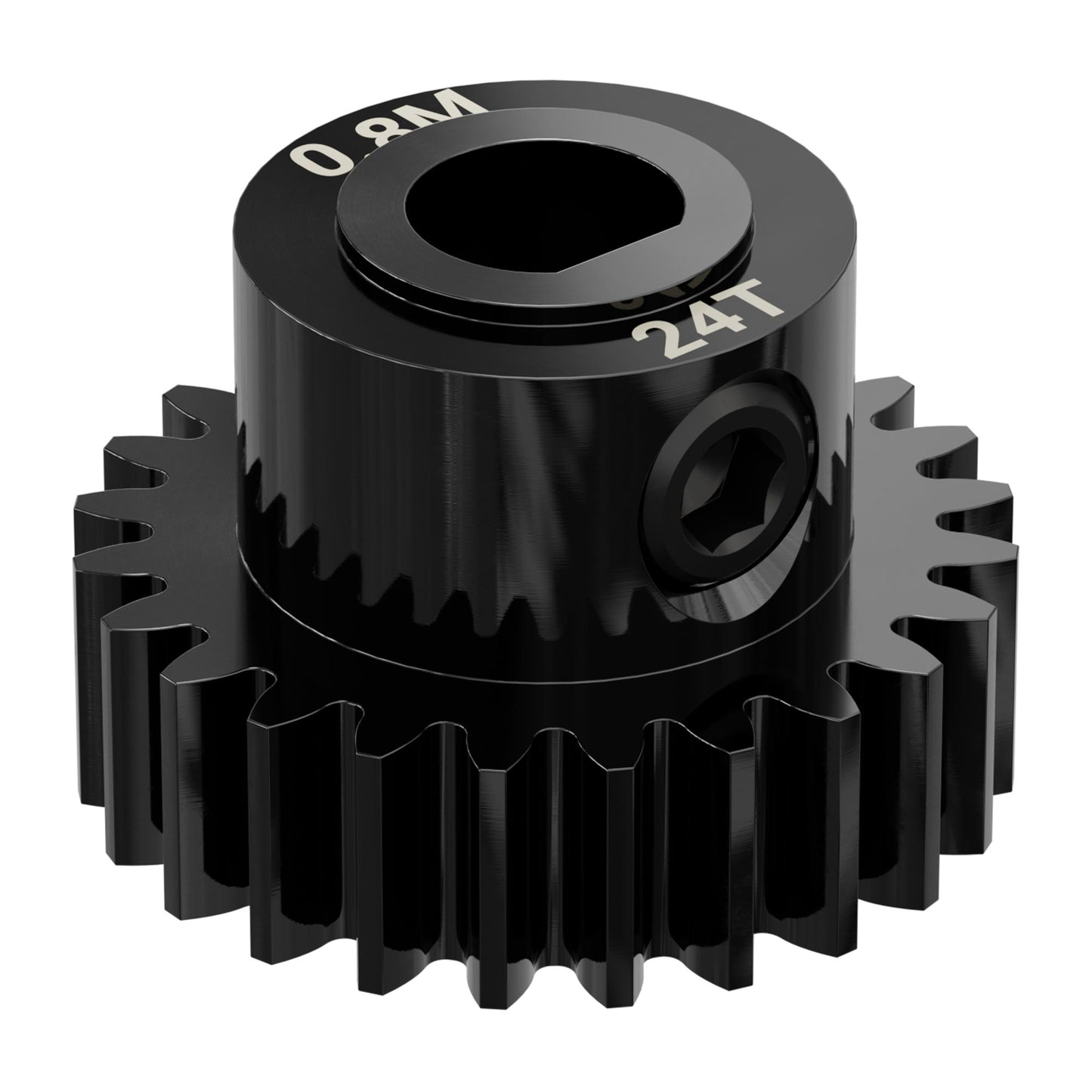

This 24 Tooth, MOD 0.8 Steel Pinion Gear rocks a 6mm D-bore for positive drive on 6mm D-profile shafting.

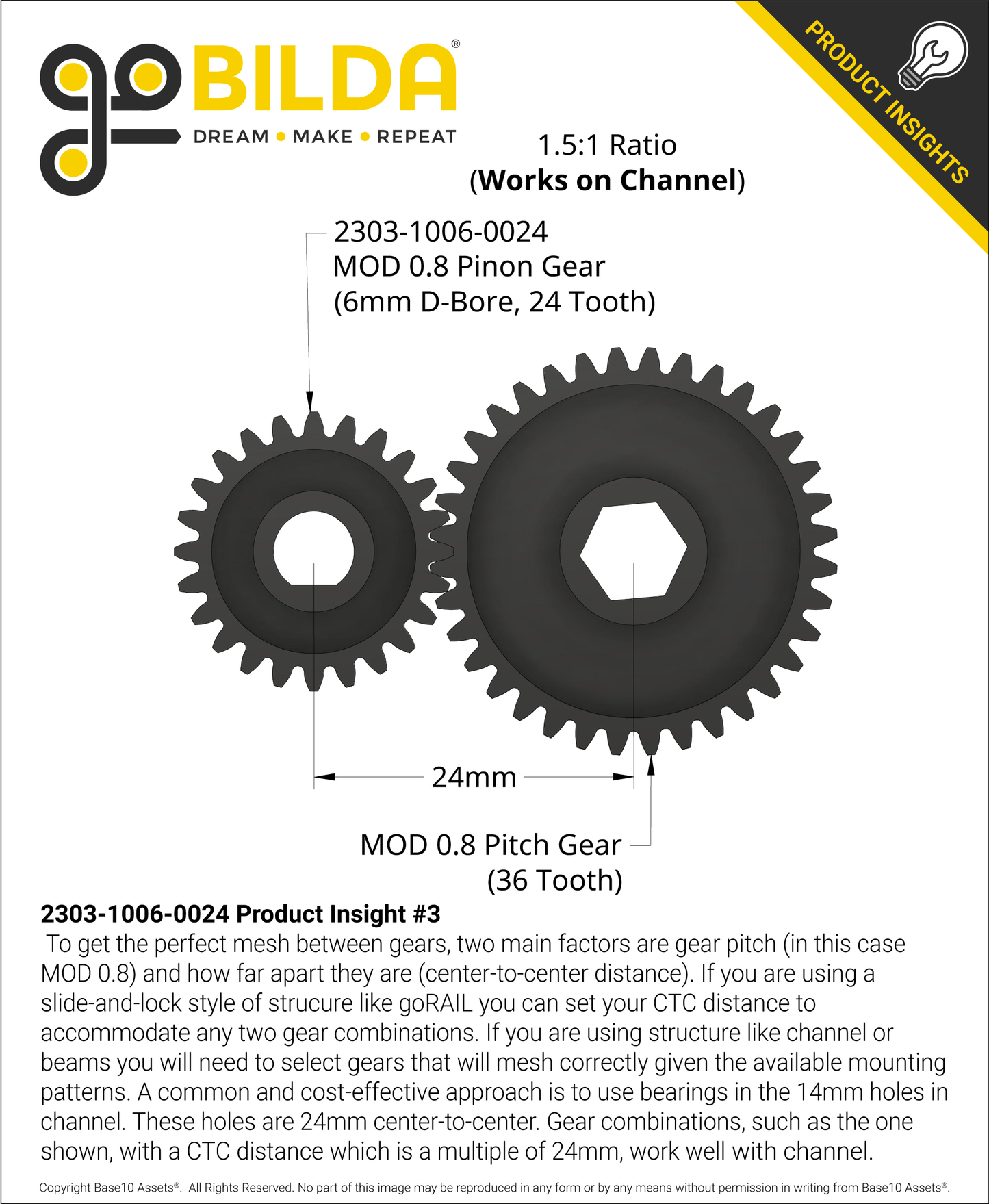

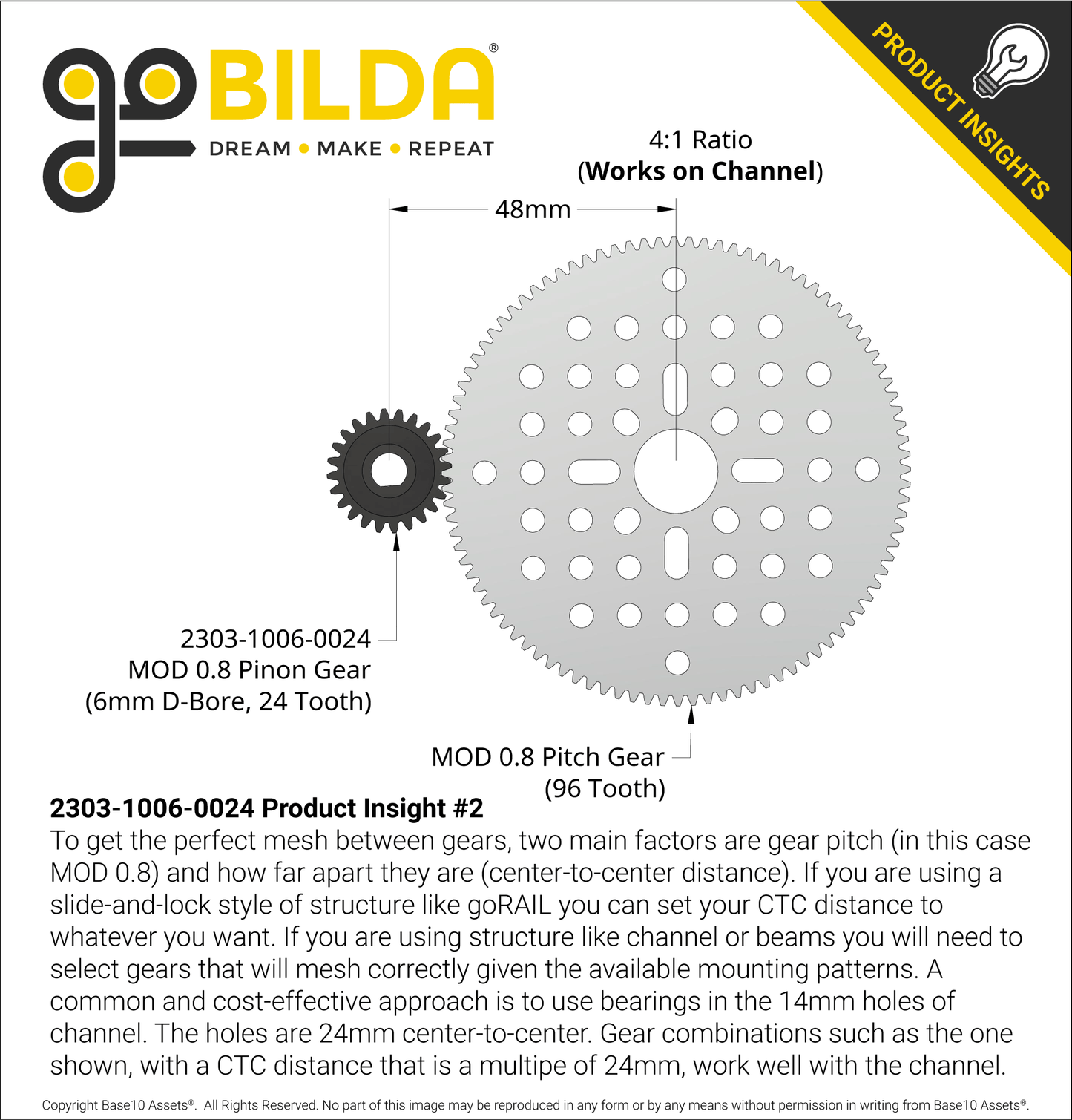

While a 96 tooth MOD 0.8 hub-mount gear is a perfect partner for this gear when you’re building on the goBILDA® pattern and want to create a 4:1 ratio, this gear can mesh with any fellow MOD 0.8 gear to produce an underdrive or overdrive ratio—depending on if you’d like to increase the speed, or maximize torque.

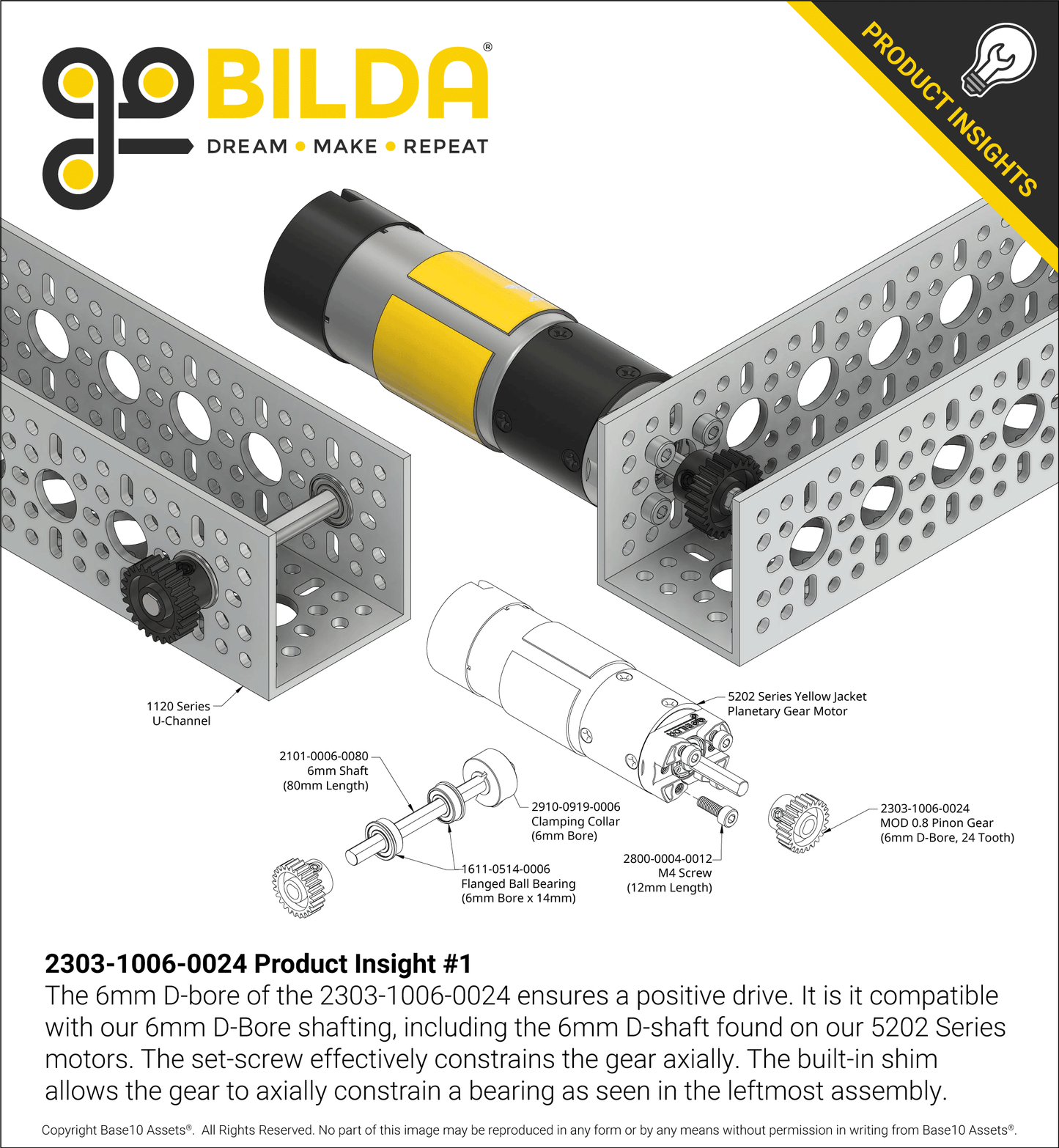

The built-in shim on the bottom of the gear allows you to run this gear up against a bearing without binding the bearing’s inner race.
Specs
| Weight | 17g |
|---|---|
| Material | Steel |
| Finish | Black Zinc-Plated |
| Tooth Count | 24 |
| Gear Pitch | MOD 0.8 |
| Pressure Angle | 20 Degree |
