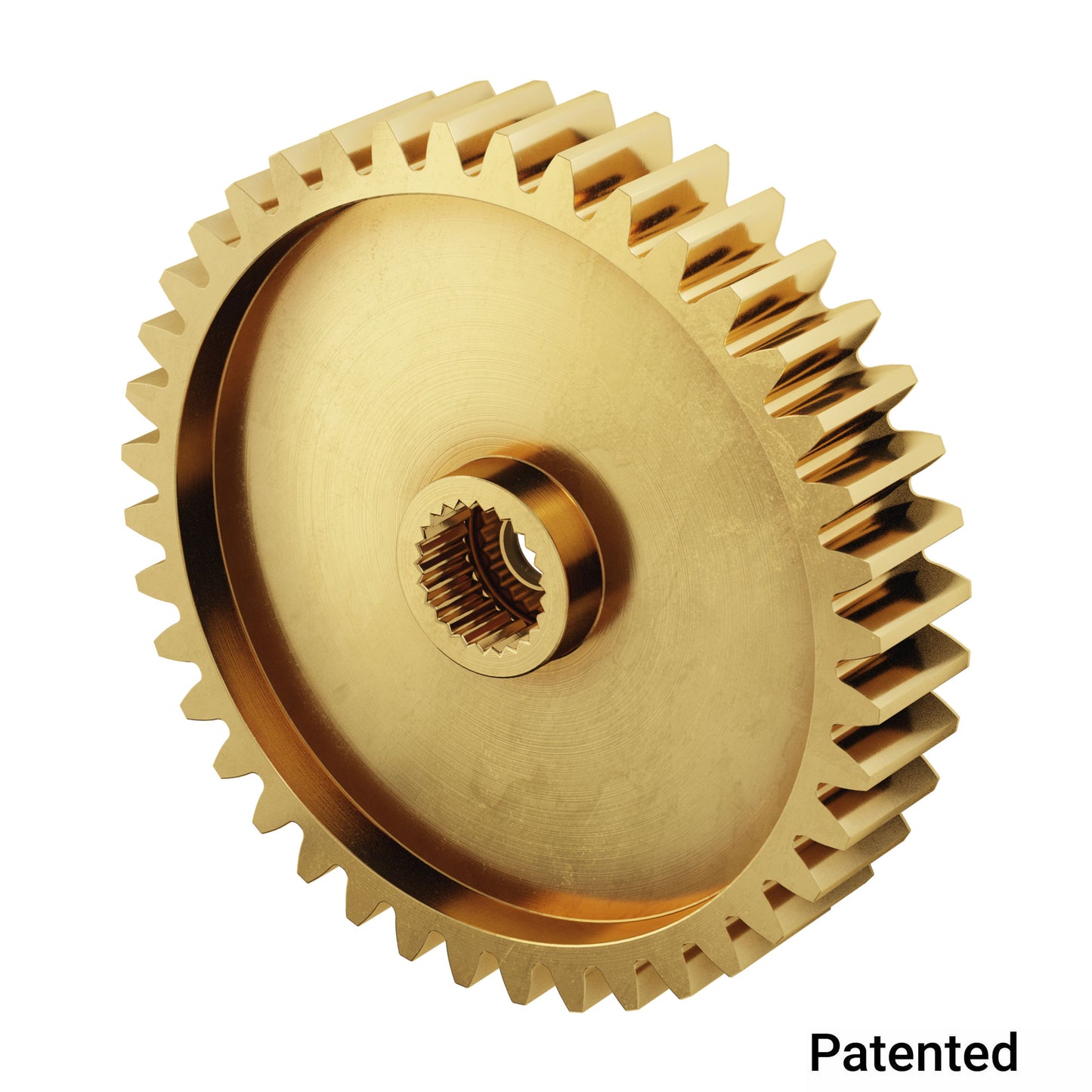

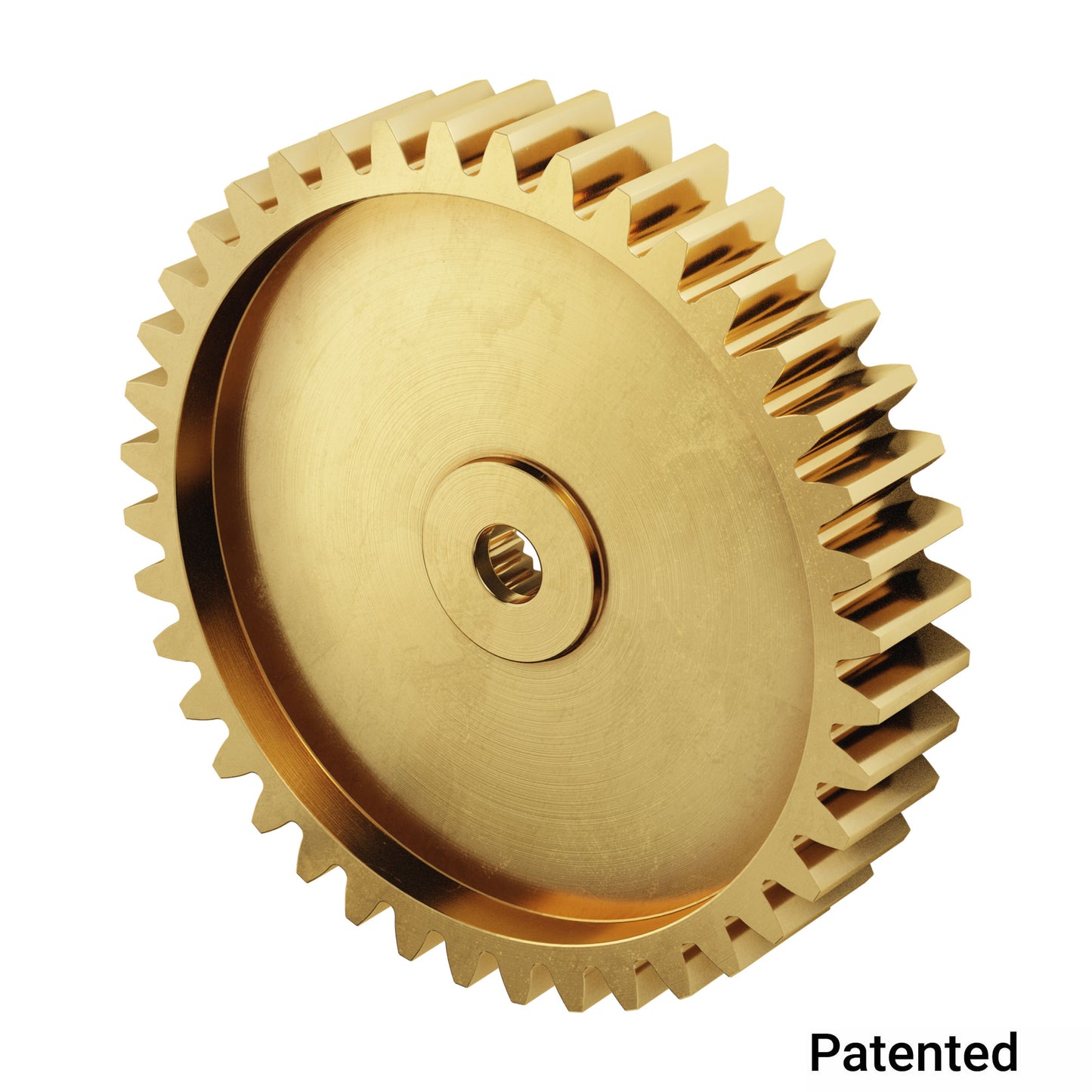

This 40 tooth servo gear is most commonly used to drive the 80 tooth hub gear, spaced 48mm away, in order to create a 2:1 ratio. This gear may also be used to drive a 20 tooth pinion gear spaced 24mm away for a 2:1 overdrive if you’re set out to increase the rotation of the servo.
Specs
| Weight | 18g |
|---|---|
| Material | Brass |
| Tooth Count | 40 |
| Gear Pitch | MOD 0.8 |
| Pressure Angle | 20 Degree |
| IP | Patented |
