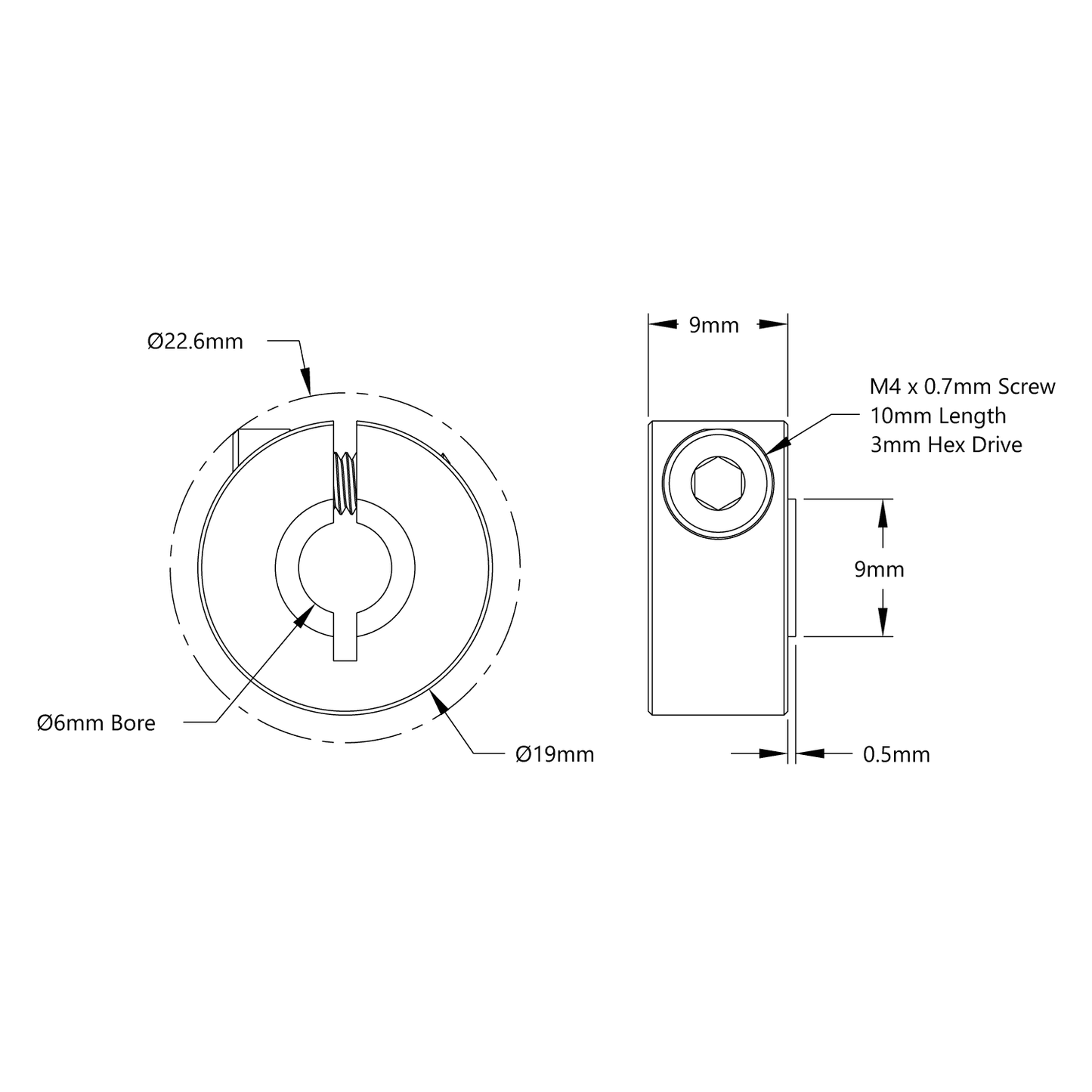

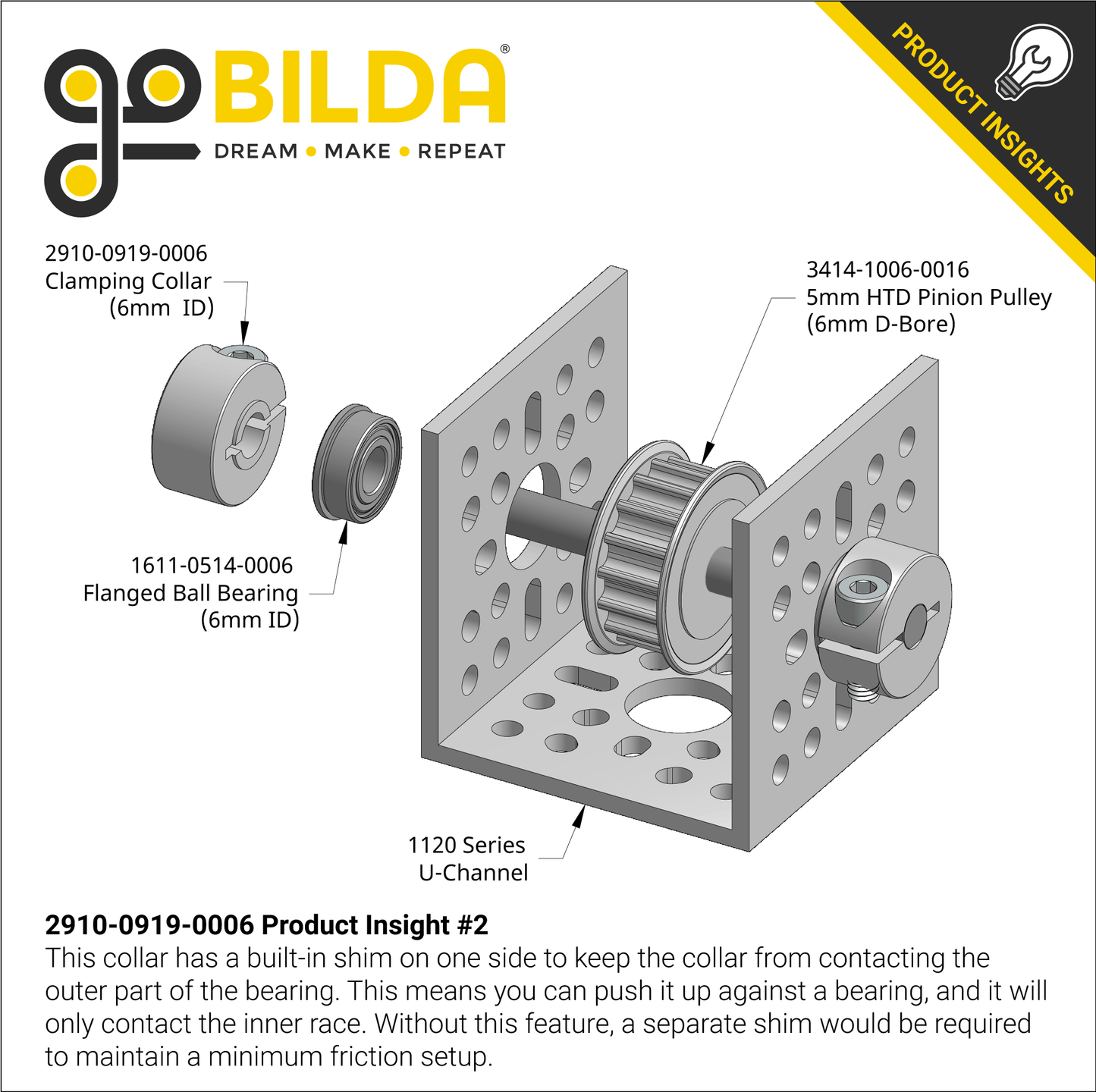

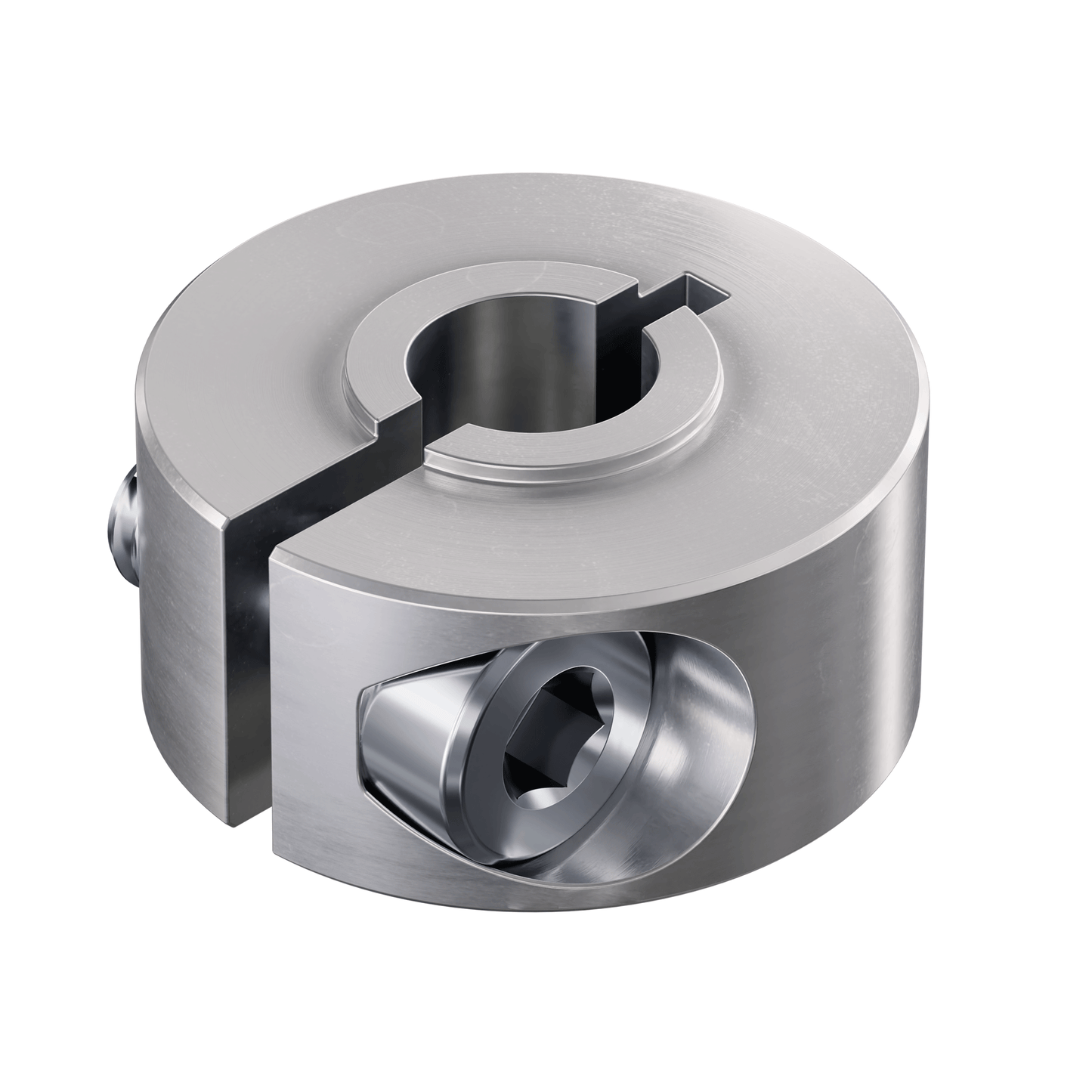

This 6mm Bore Aluminum Clamping Collar has an M4 socket head pinch bolt to provide excellent clamping force on a 6mm round or 6mm D profile shaft. The 0.5mm protrusion on one side allows this collar to run up next to a bearing without the need for a shim. The outer diameter has been minimized in order to provide clearance for other parts in close proximity.
Specs
| Weight | 7.0g |
|---|---|
| Material | Aluminum |
| Finish | Clear Anodized |
