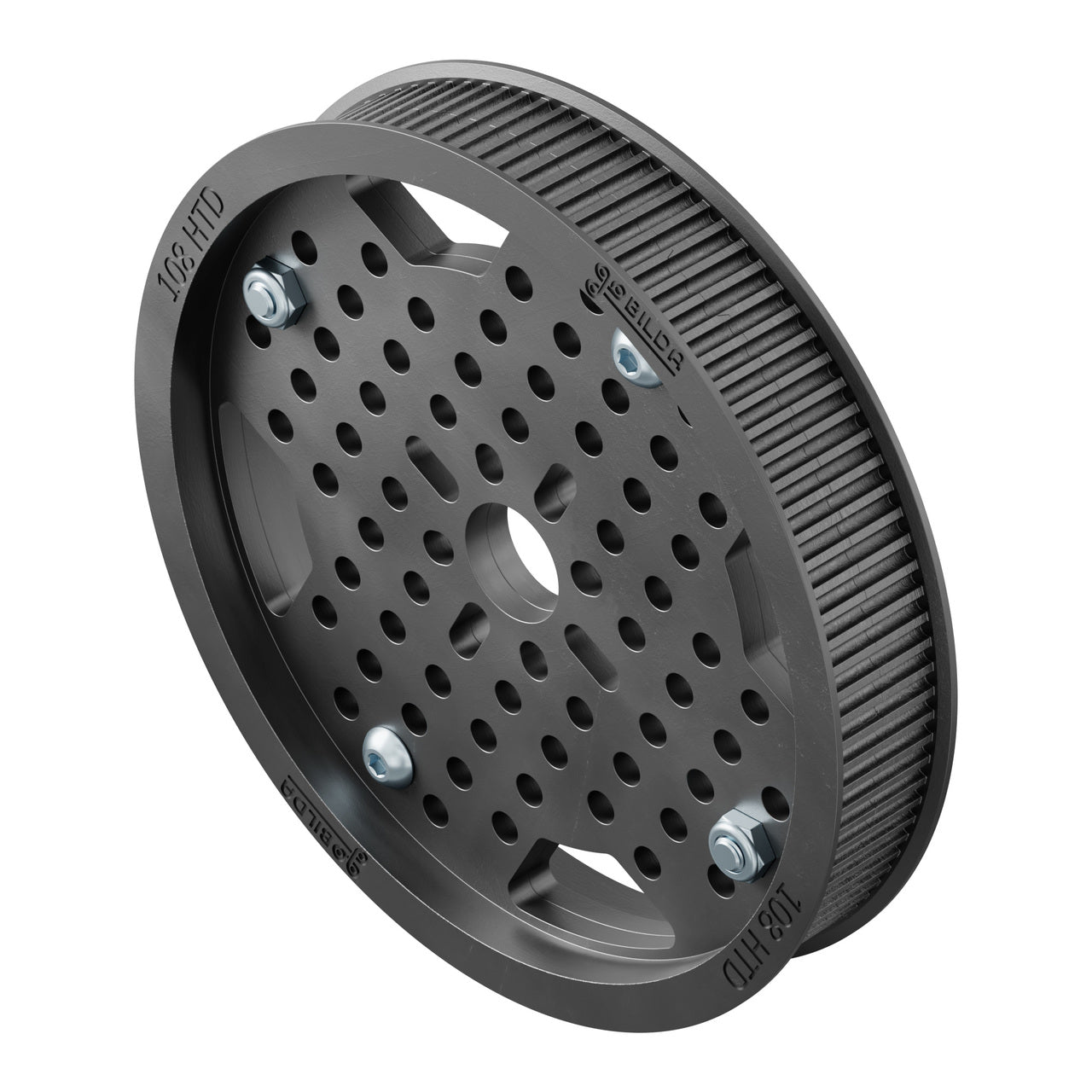

This 108 tooth timing pulley is a two piece pulley that nests together and fastens to the other half with M4 button head screws. The diameter allows for the full pattern to be molded into the face so that you can fasten to the standard 16mm pattern or the larger 32mm pattern. Comes preassembled with M4 screws and nuts as shown in image 1.
Specs
| Bore | 14mm |
|---|---|
| Weight | 65g |
| Material | Plastic |
| Color | Black |
| Tooth Count | 108 |
| Pitch | 3mm HTD |
