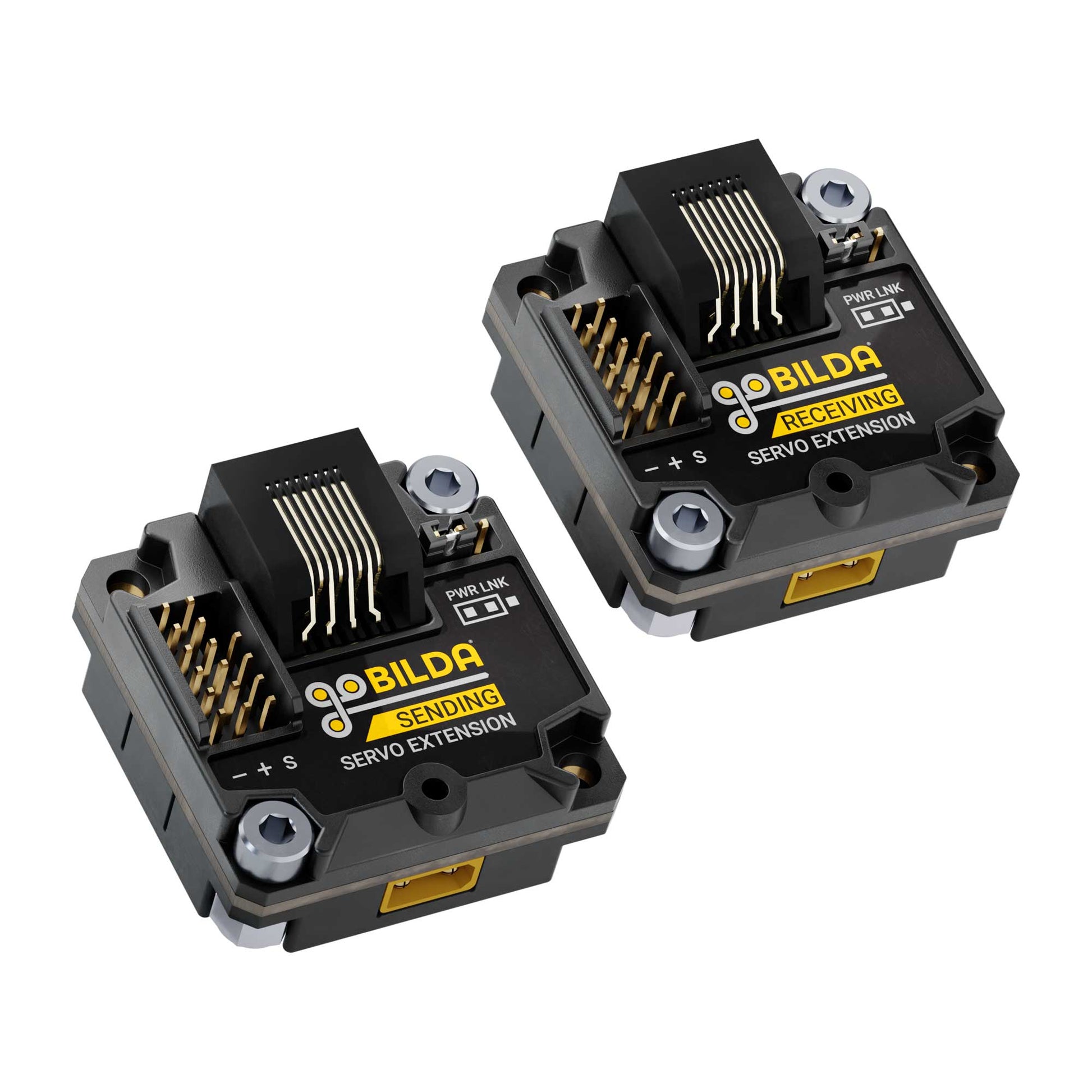

4 Channel Servo Extension via CAT6

4 Channel Servo Extension via CAT6

goBILDA parts we stock are ready to ship, otherwise with a 10-day lead time

SKU: GB-3802-2745-4527

Regular price $51.00 AUD
Regular price Sale price $51.00 AUD
Sale Sold out
View full details

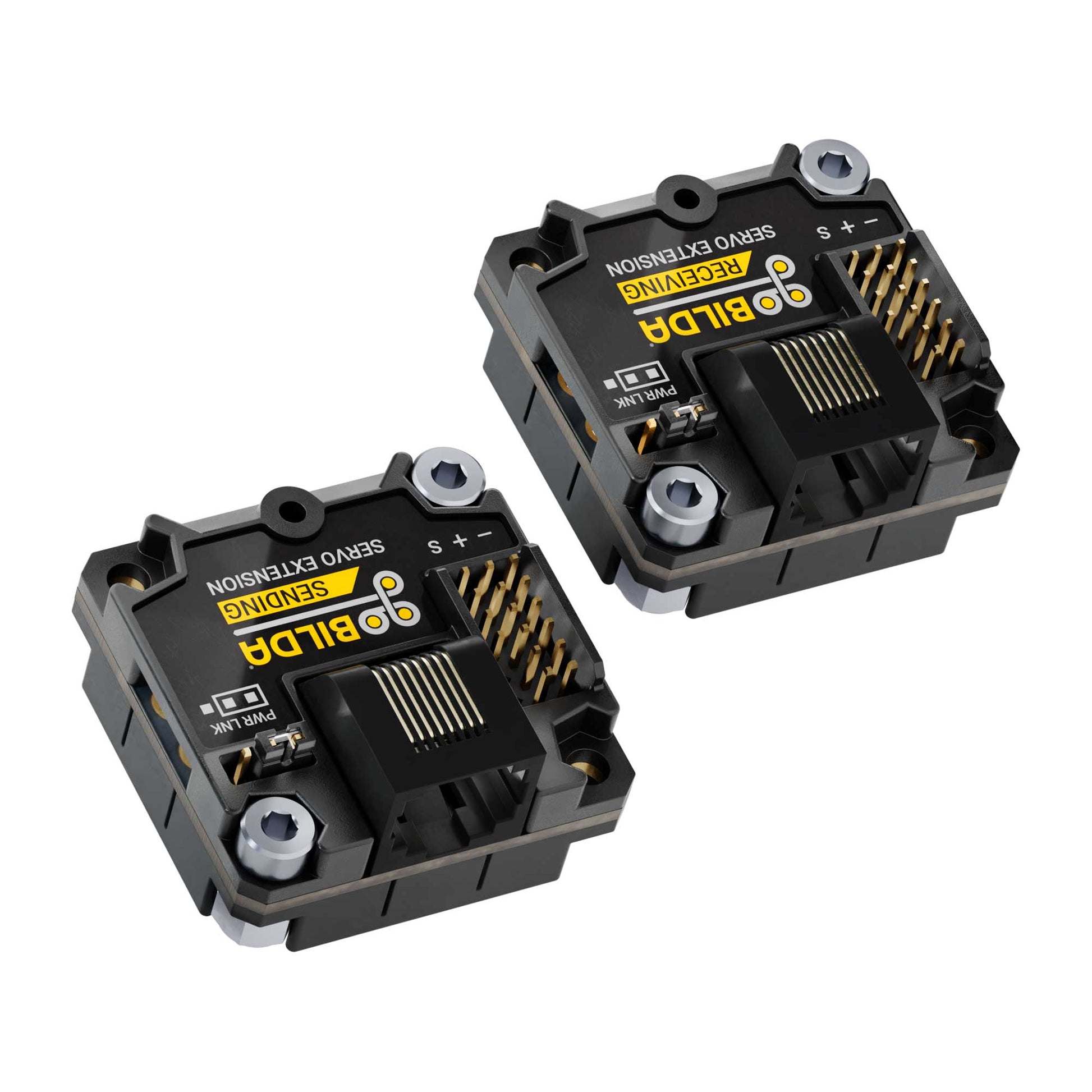

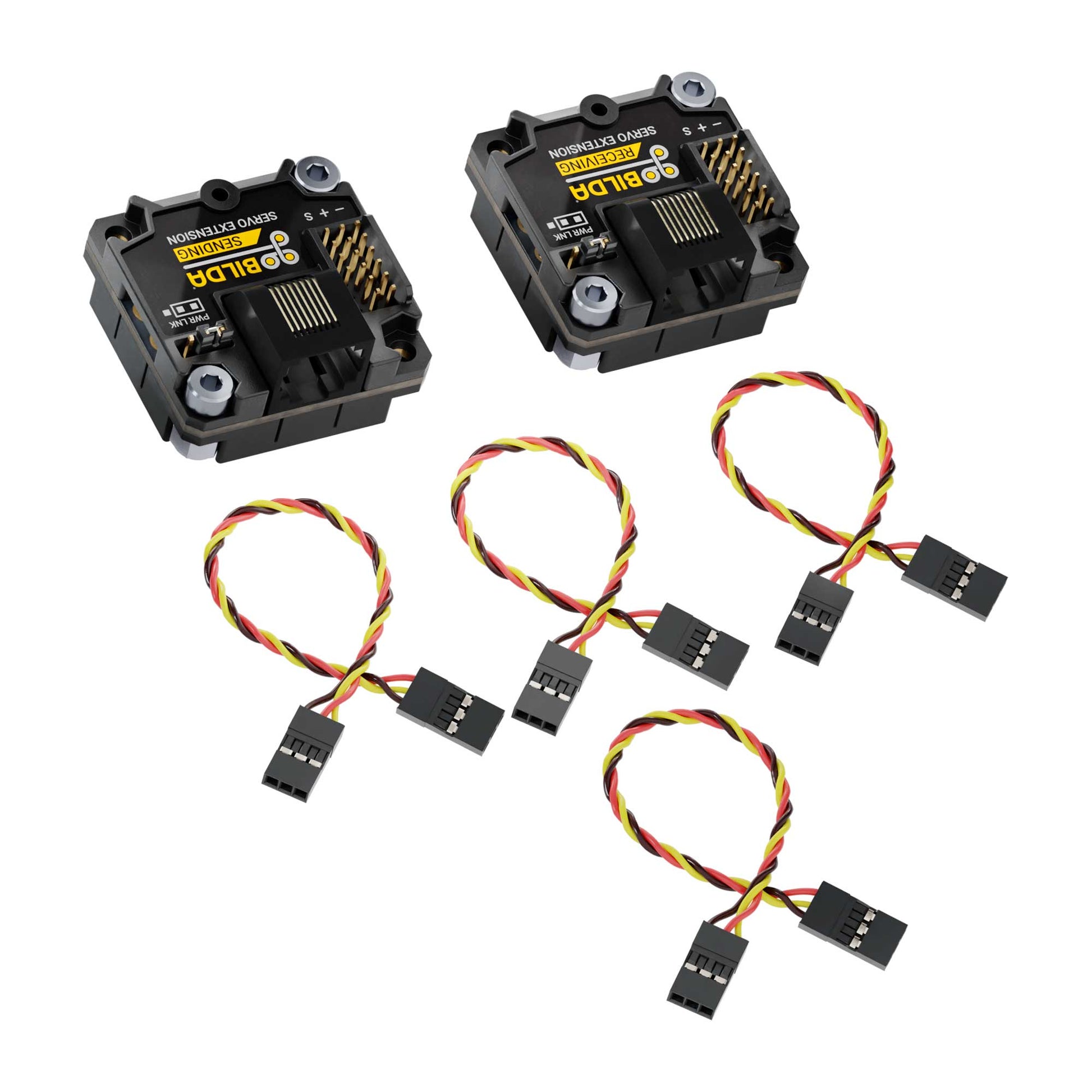

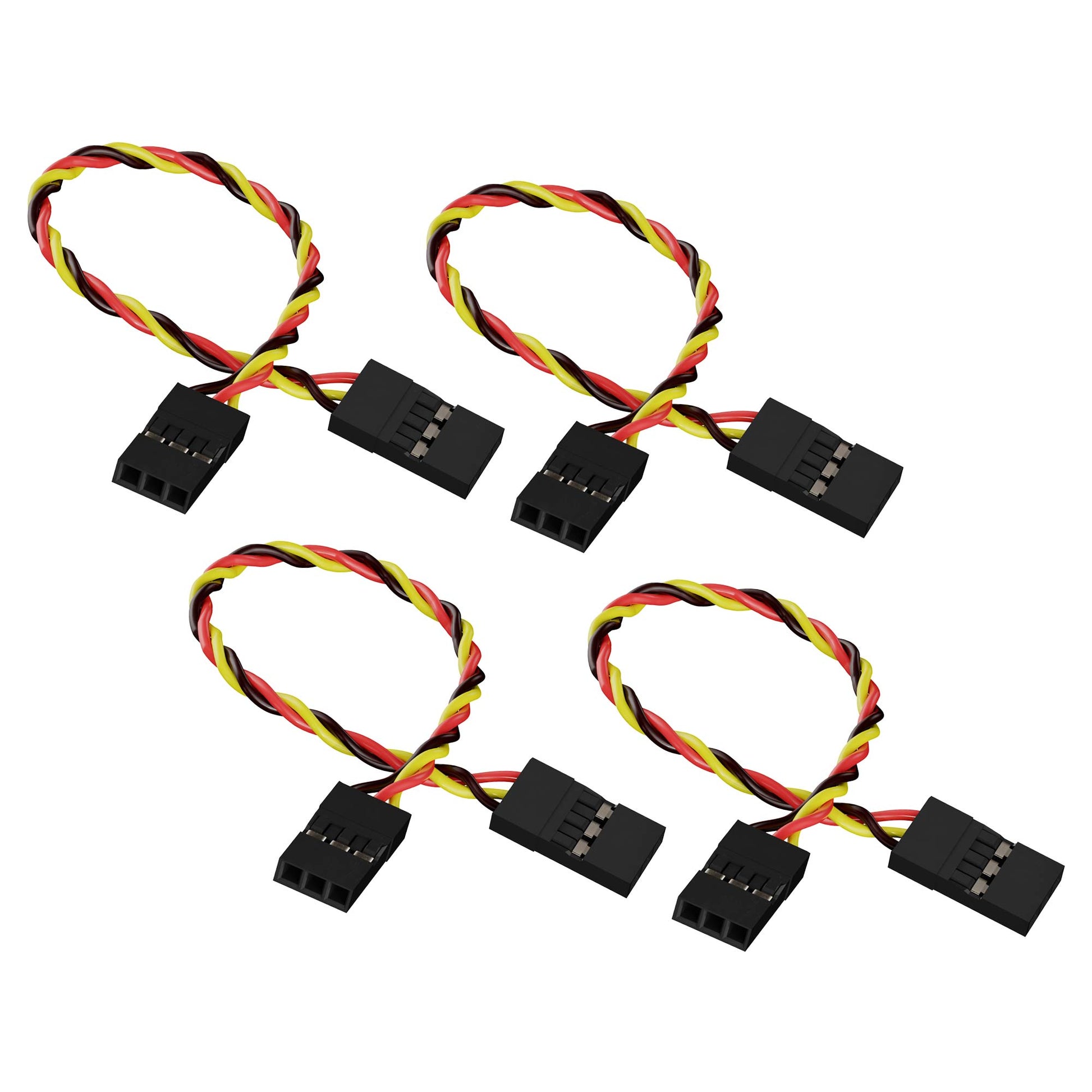

This 4 Channel CAT6 Servo Extension lets you control up to four servos over a CAT6 cable. It boosts servo signals to allow for long-distance installations with jitter-free servo-motion and the  rock-solid connectivity of a wired setup. It can control up to four servos at once, making it useful if you need to tidy up the wiring on your project. This product includes 1 Sending Board, 1 Receiving Board, and 4 servo extensions.

Compatibility

Ethernet Cables: While CAT6 is the recommended cable, the RJ45 connector this 4 Channel CAT6 Servo Extension uses is also compatible with CAT5, CAT5e, CAT6a, and CAT8 cables.

RC Receivers: This 4 Channel CAT6 Servo Extension is compatible with any receiver which uses a PWM signal. That's just about any receiver in the hobby or small-medium robotics industries.

Servos: This 4 Channel CAT6 Servo Extension is compatible with any servo which uses a PWM signal. That's just about any servo in the hobby or small-medium robotics industries.

Tech Tip

Both our Boosted Servo-Extension and 4 Channel Servo Extension via CAT6 offer a way to control your servos at longer distances while addressing any signal issues. Take your pick based on your projects’ needs!

  • The Signal-Boosting Servo Extension is great to have in your toolbox for any project. It performs excellently as a plug-and-play signal strength solution for a single channel.

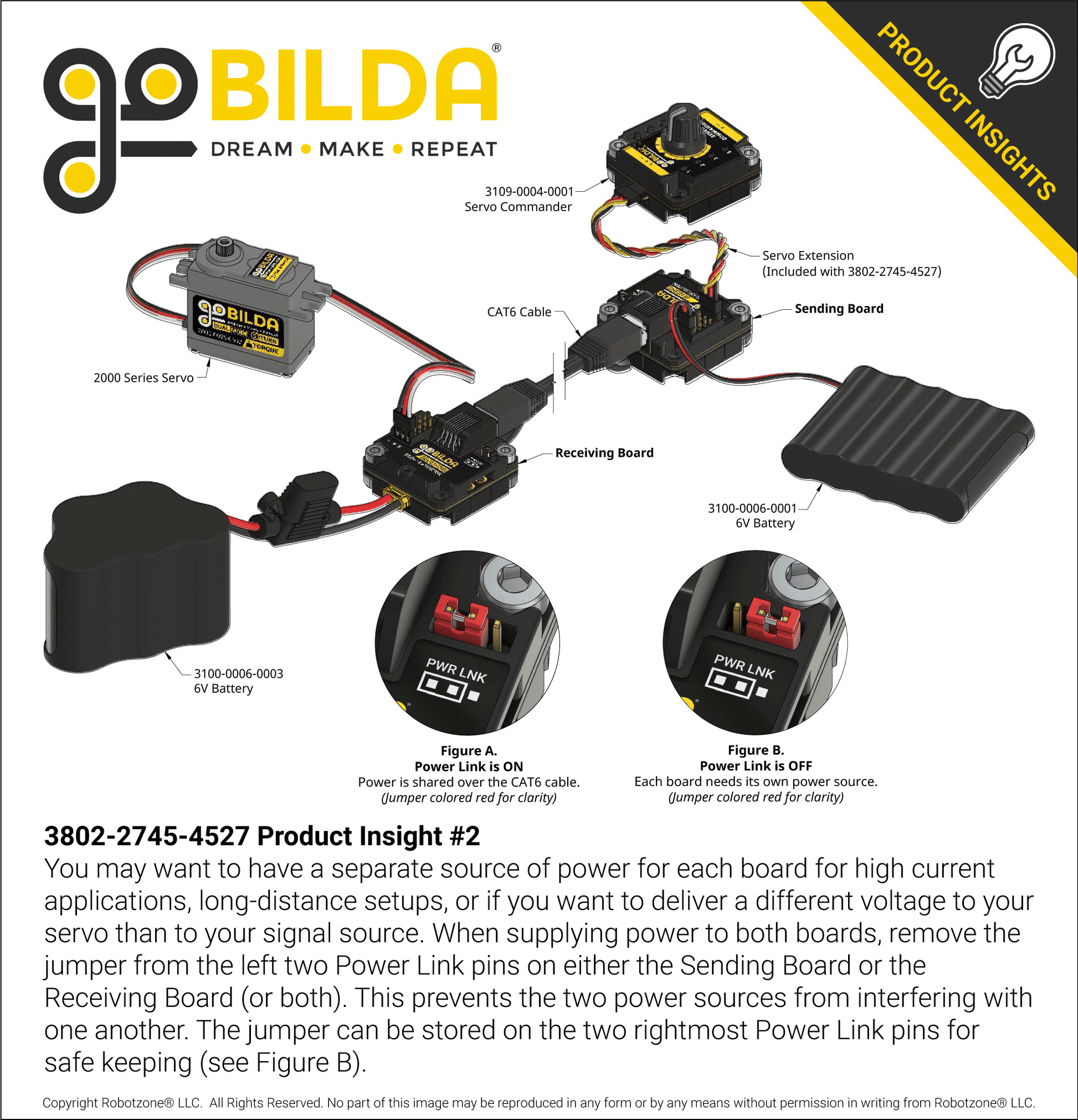

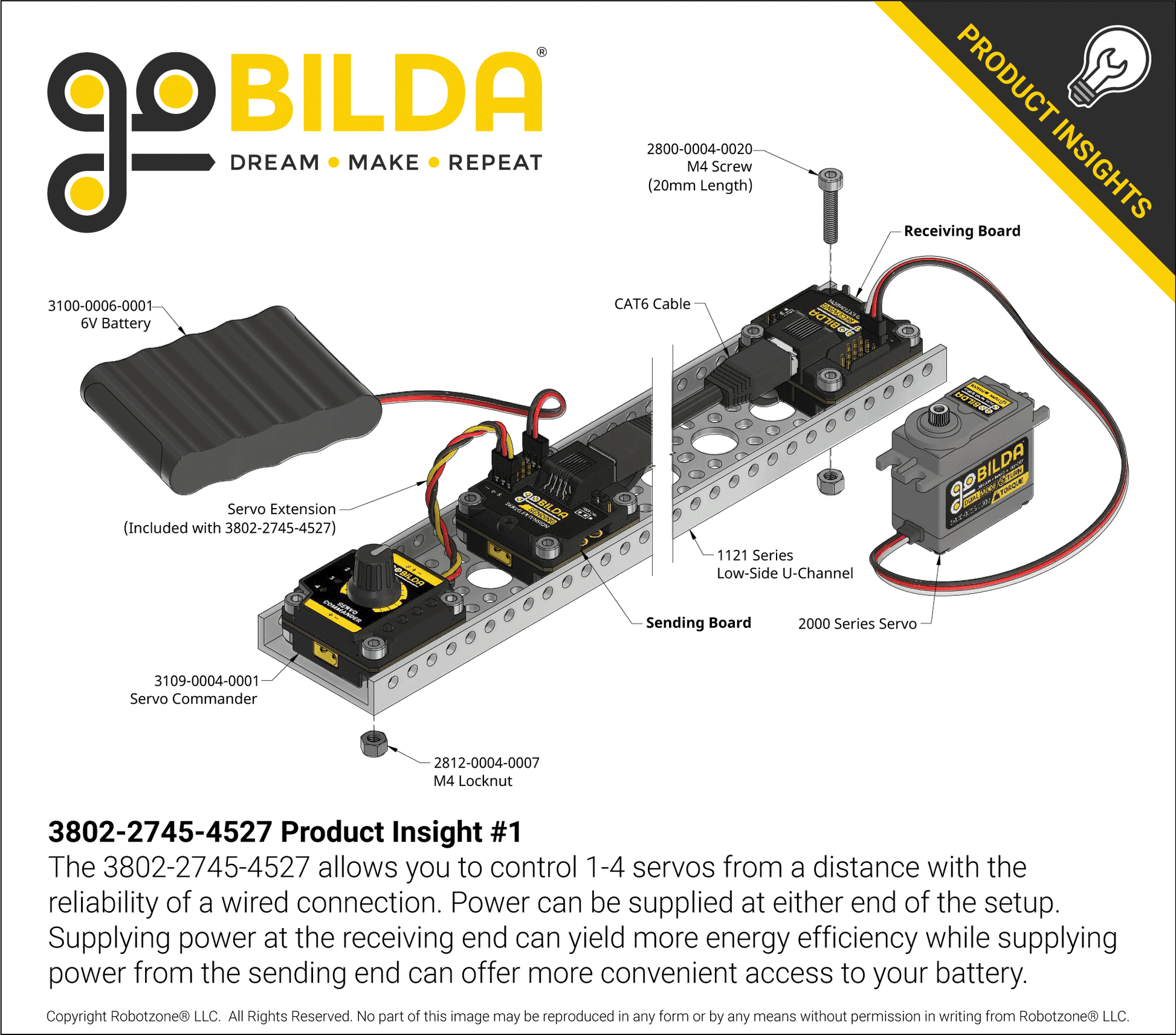

  • The 4 Channel Servo Extension via CAT6 is a long-distance and multiple-servo wire management solution that maintains signal strength. It allows you to use whatever CAT6 cable length (up to 100 ft) suits your use-case! It also provides the option to power the servos from the extension’s receiving board, nearest the servos.

Specs

Recommended Voltage Range 6V - 15V
Max Voltage Range 3.3V - 18V
Signal Channels 4
Max Current (When powered at Receiving Board) 16A Total (4A per Channel)
Max Current over CAT6 (When powered at Sending Board) 4A Total
Servo Compatibility Analog & Digital
Maximum Recommended Ethernet Cable Length 100ft (30M)

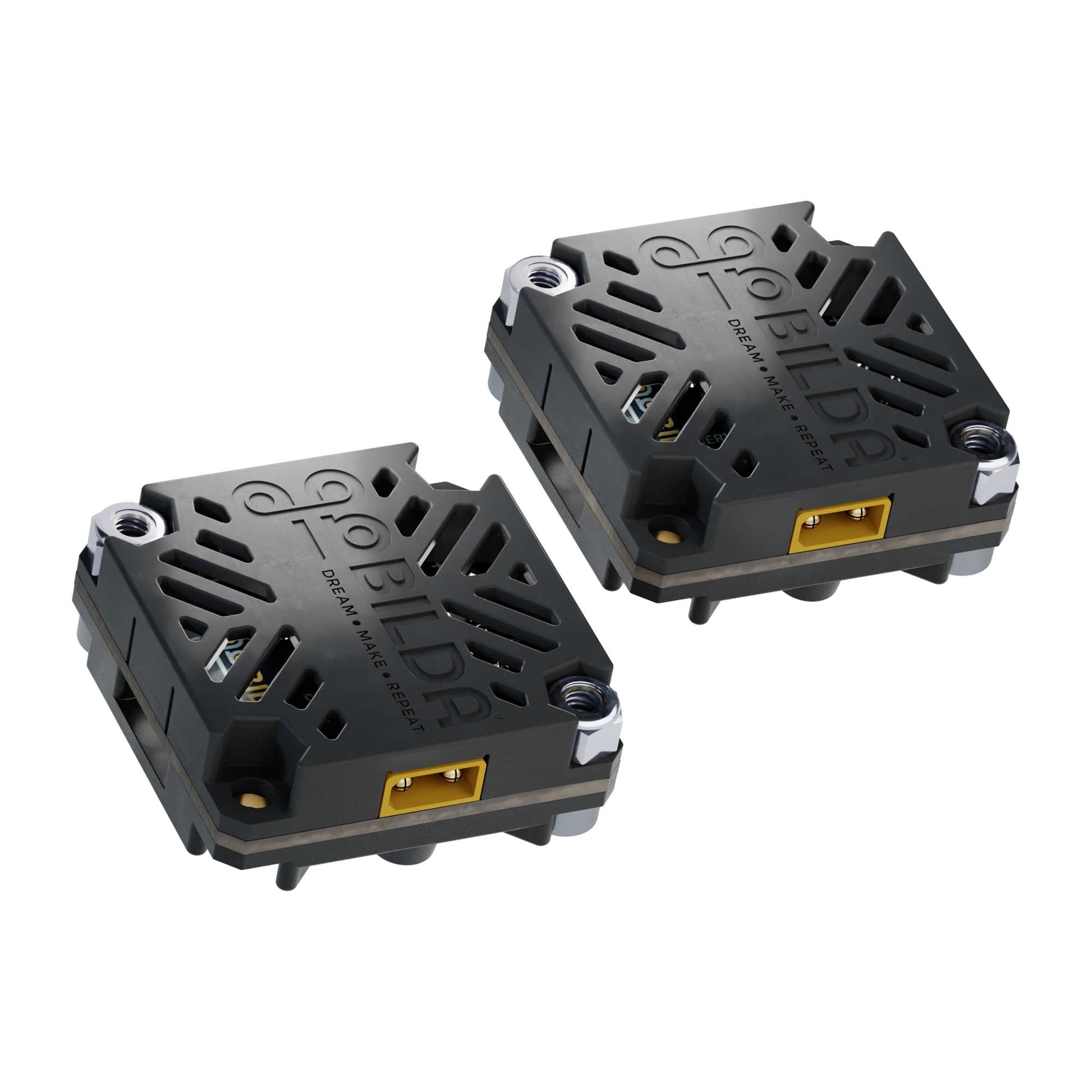

Power Compatibility TJC8, XT30, 3mm Solder Holes
