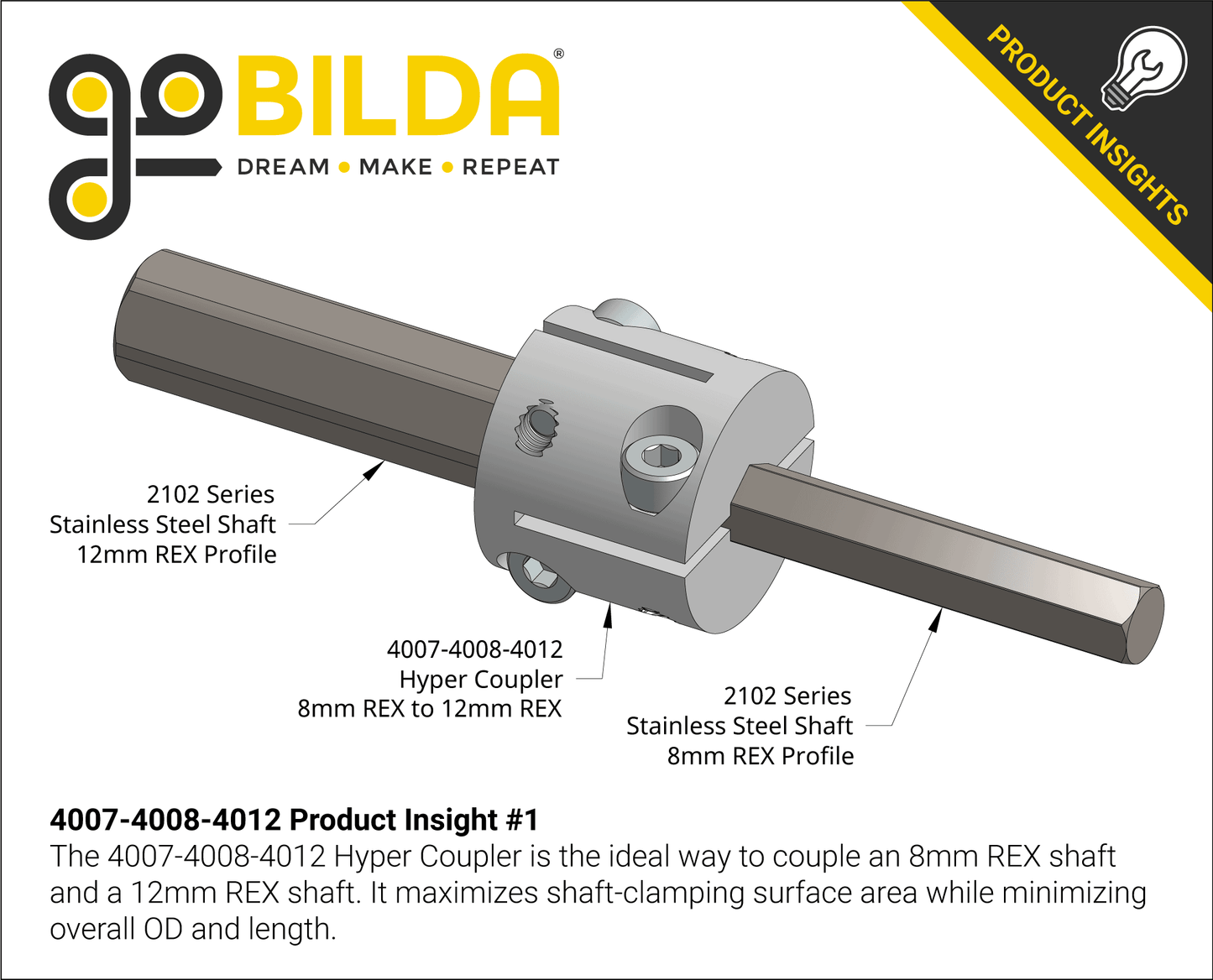

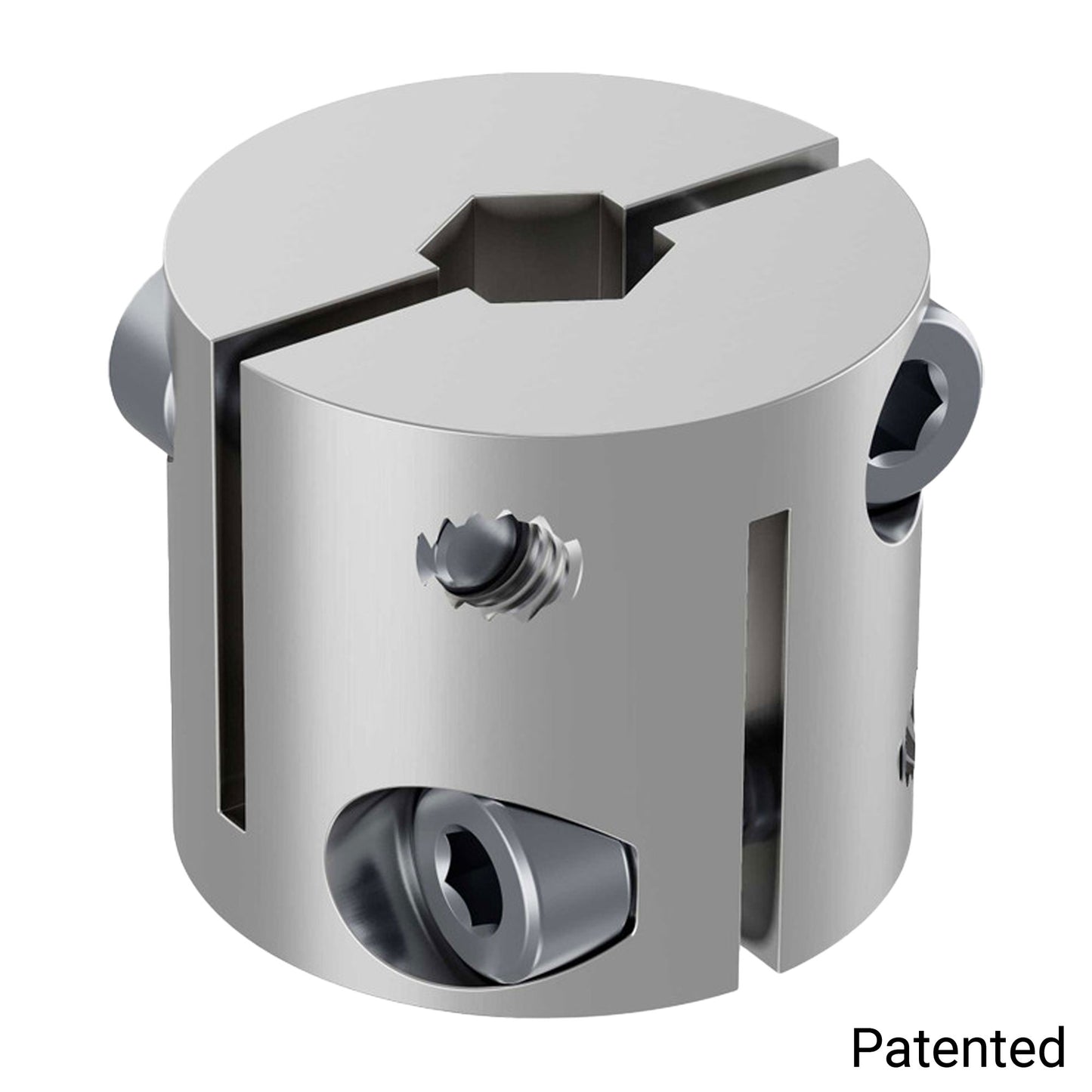

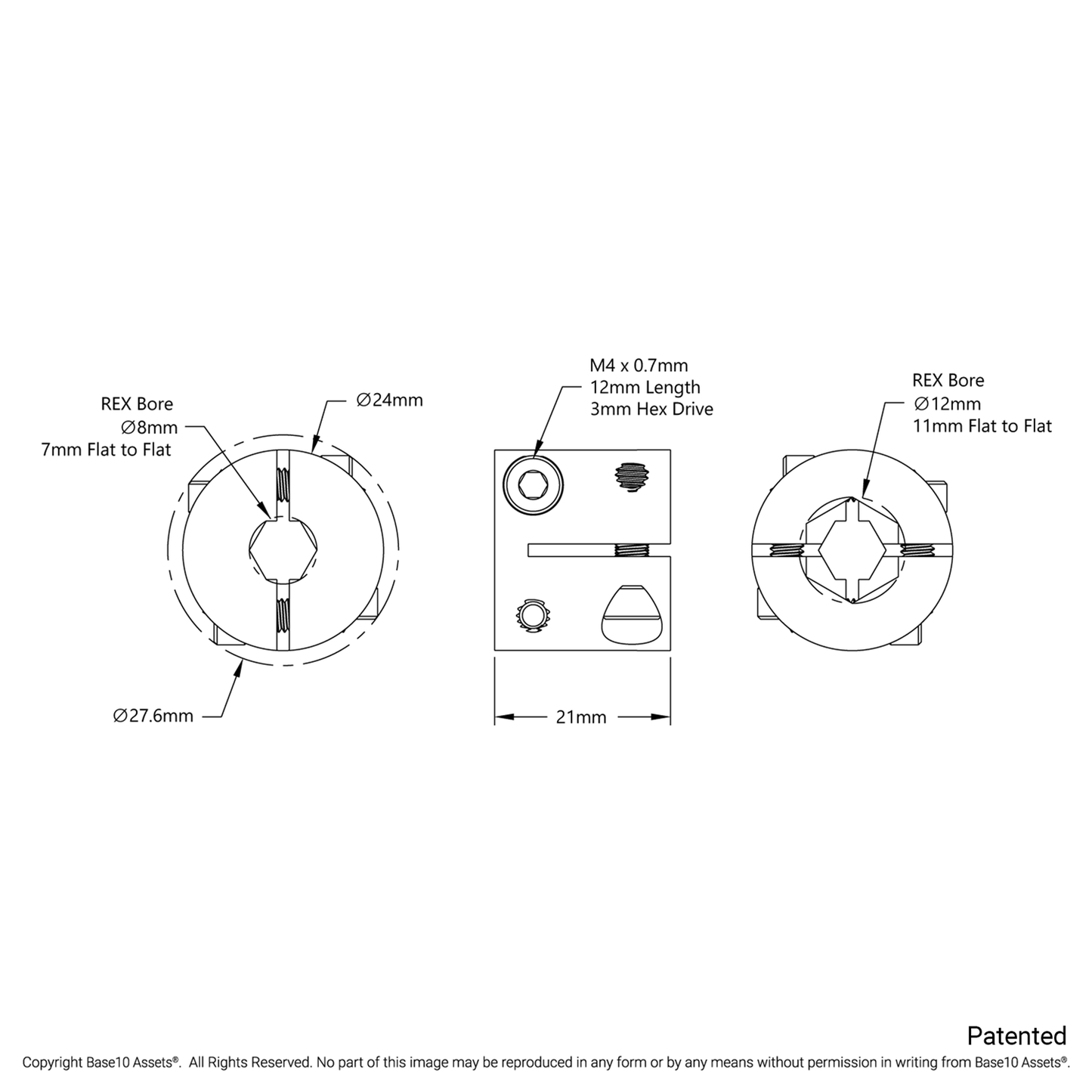

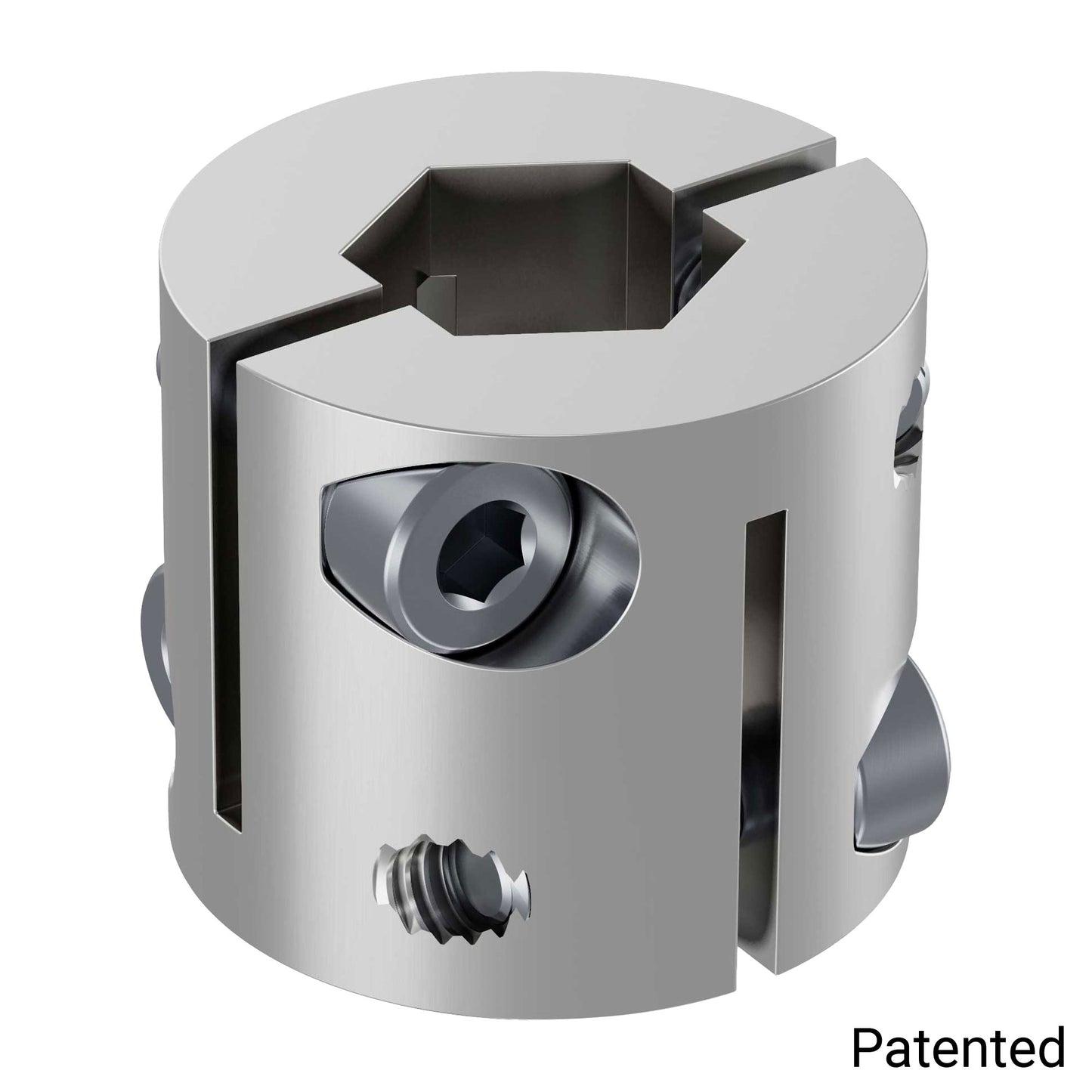

This 8mm REX™ to 12mm REX™ coupler is a compact, balanced way to fasten an 8mm REX™ shaft to a 12mm REX™ shaft. The 21mm overall length allows you to slide the coupler down inside of 1120 Series Channel even when one of the two shafts is inserted half-way through the inside cavity. The bores of the coupler are profile-matched to create a positive drive. That, in combination with four pinch bolts, provides an extremely solid connection that is able to hold loads in both the radial and axial directions with ease.
Specs
| Weight | 24g |
|---|---|
| Material | Aluminum |
| Finish | Clear Anodized |
| IP | Patented |
