5202 Series Yellow Jacket Planetary Gear Motor (13.7:1 Ratio, 24mm Length 6mm D-Shaft, 435 RPM, ⌀36mm Gearbox, 3.3 - 5V Encoder)

5202 Series Yellow Jacket Planetary Gear Motor (13.7:1 Ratio, 24mm Length 6mm D-Shaft, 435 RPM, ⌀36mm Gearbox, 3.3 - 5V Encoder)

goBILDA parts we stock are ready to ship, otherwise with a 10-day lead time

SKU: GB-5202-2402-0014

Regular price $76.00 AUD
Regular price Sale price $76.00 AUD
Sale Sold out
View full details

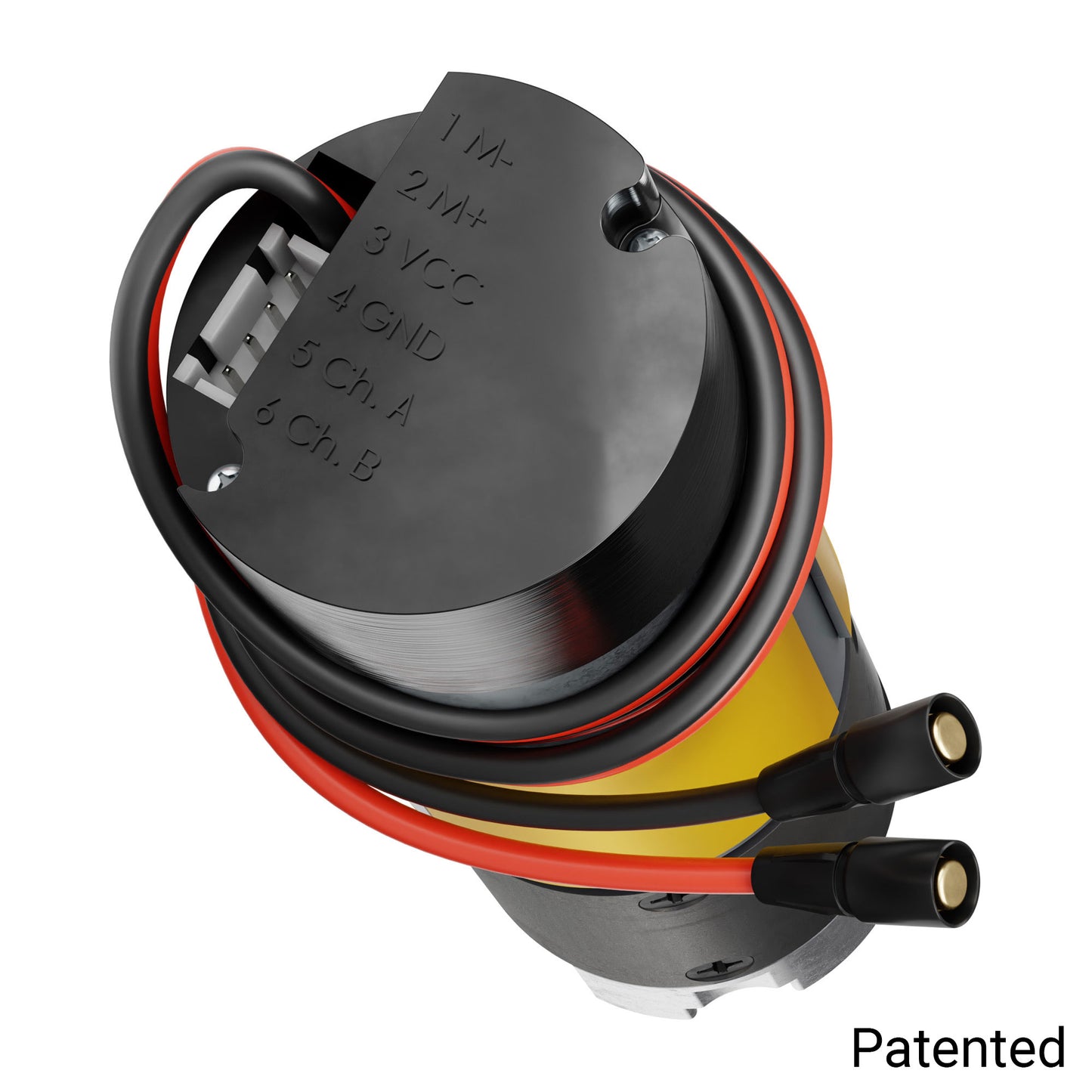

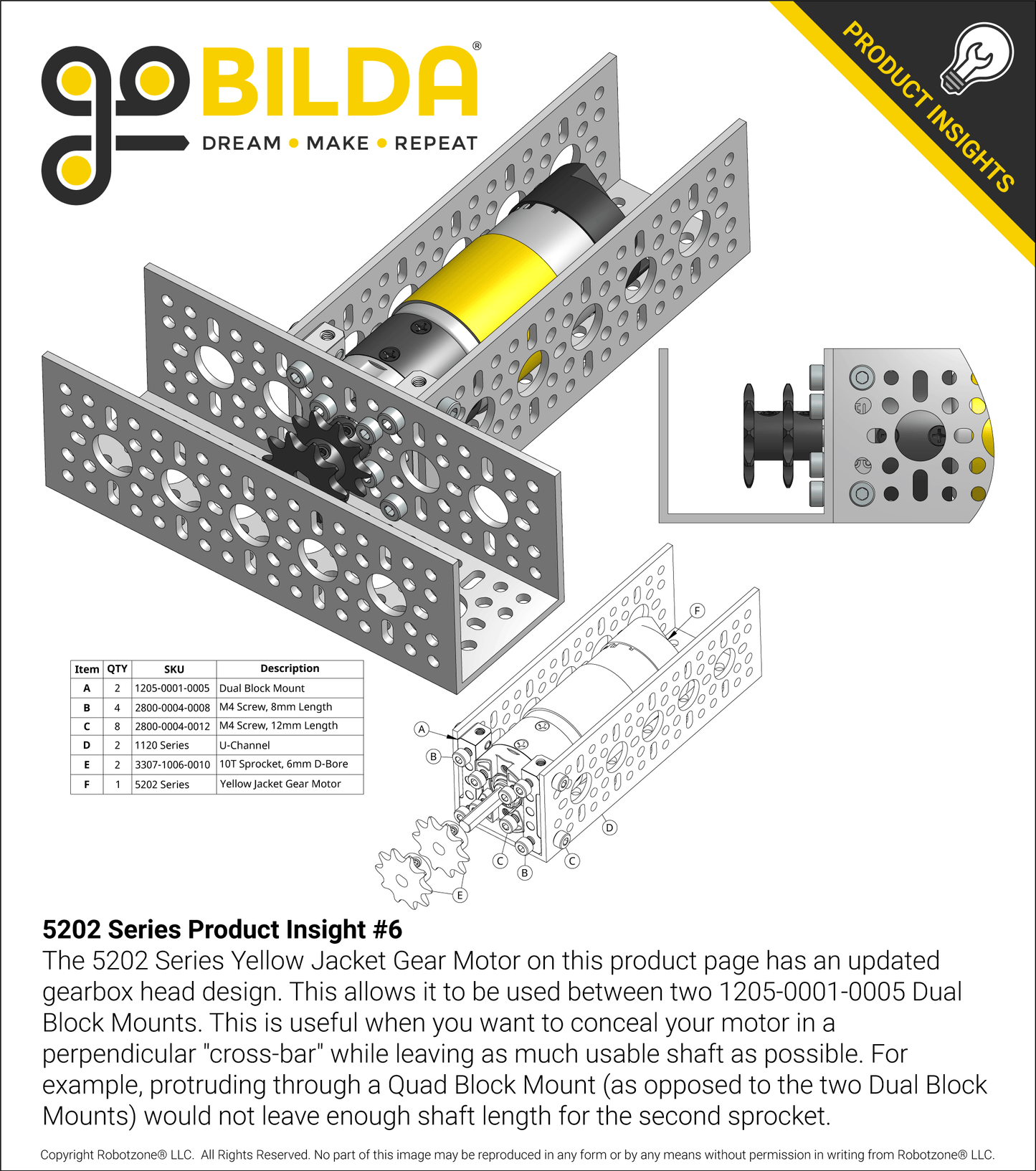

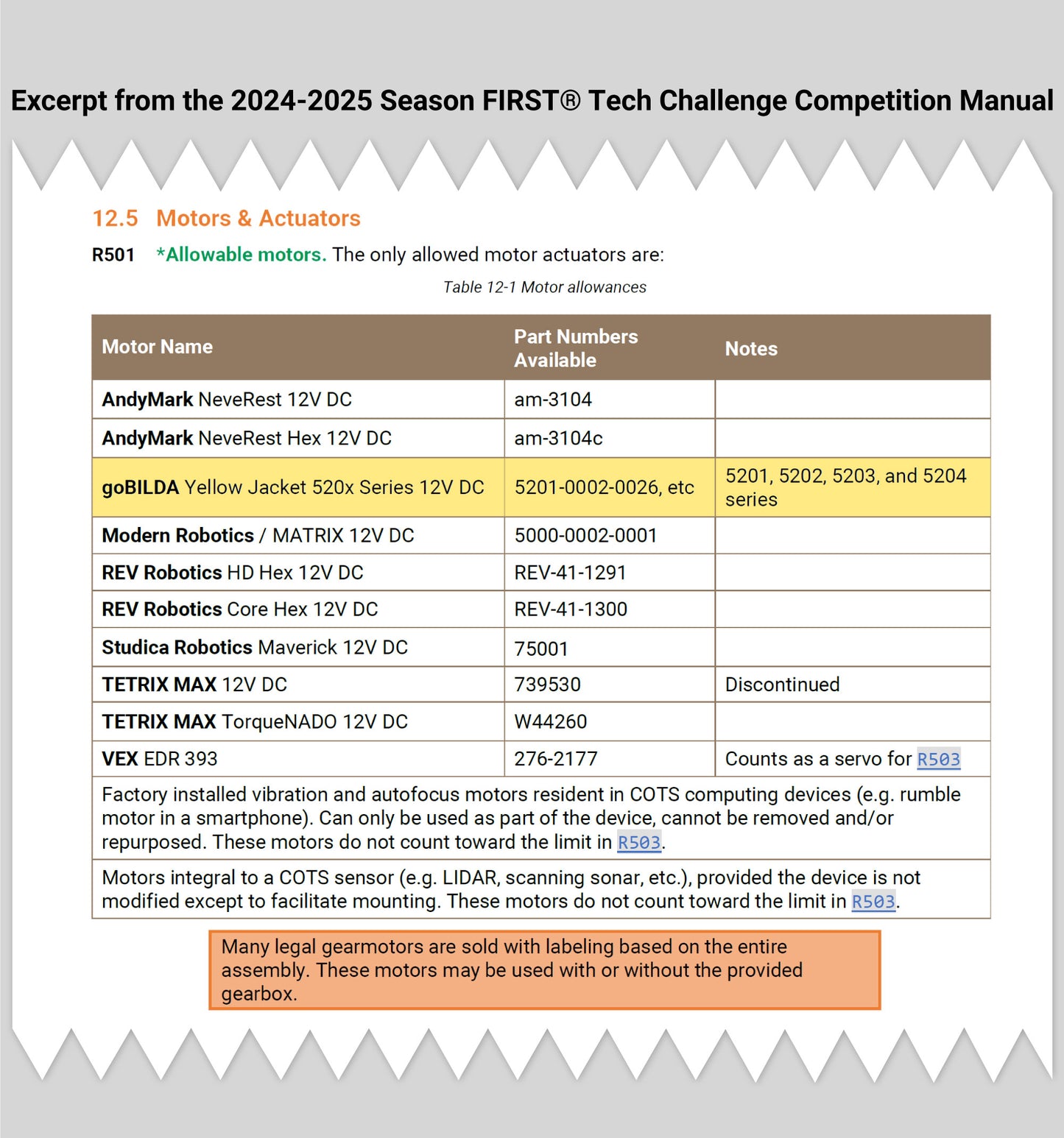

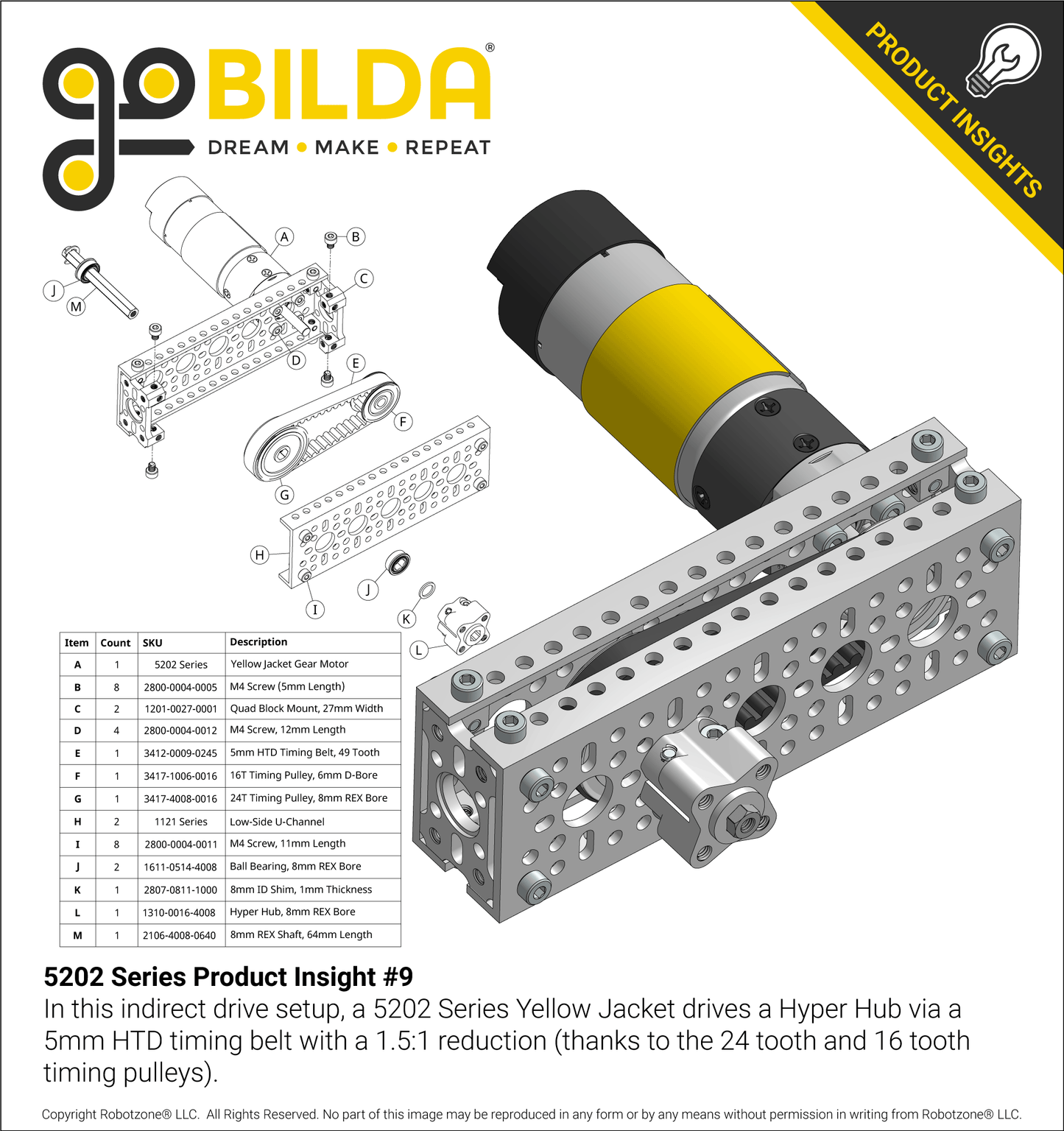

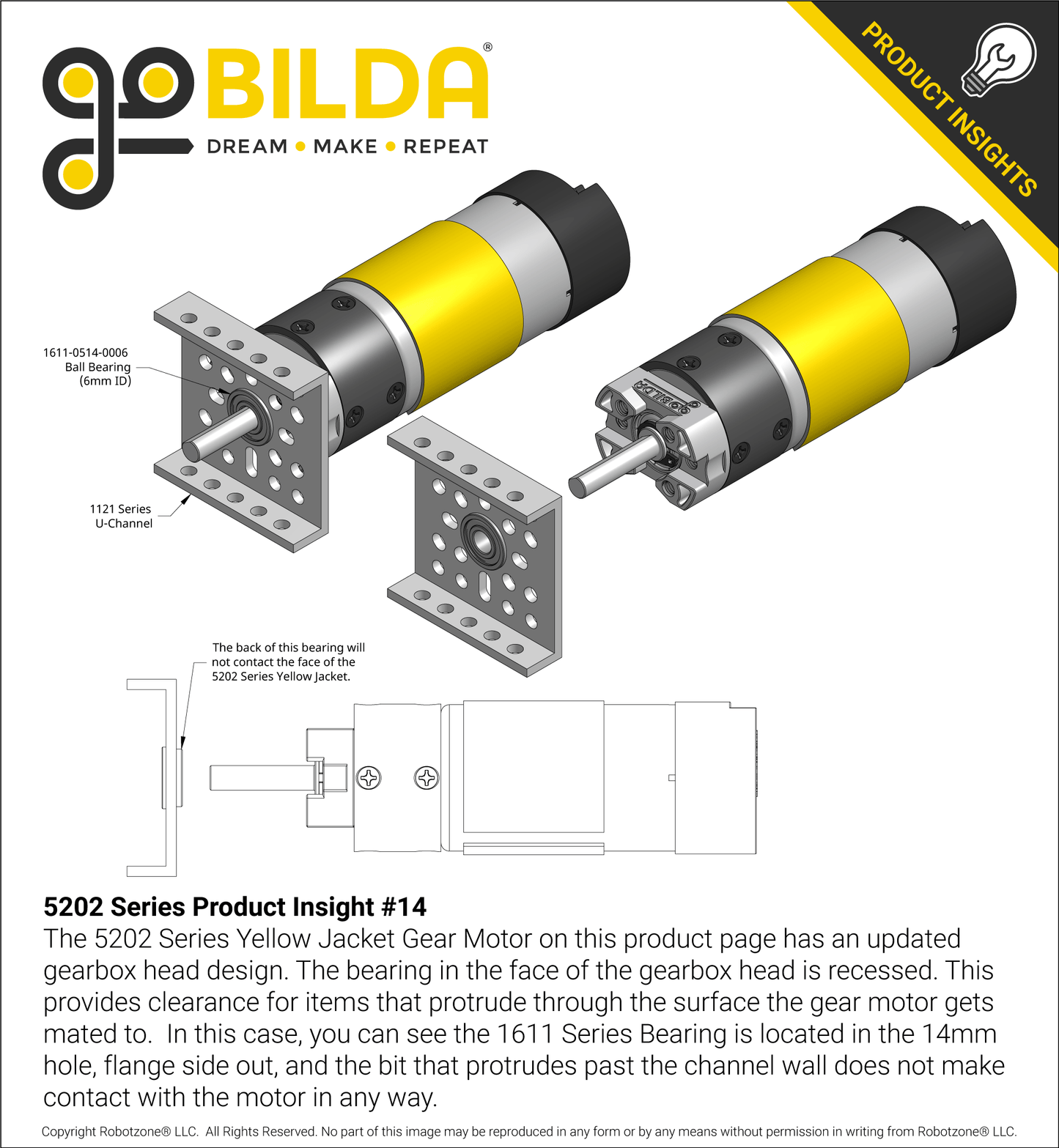

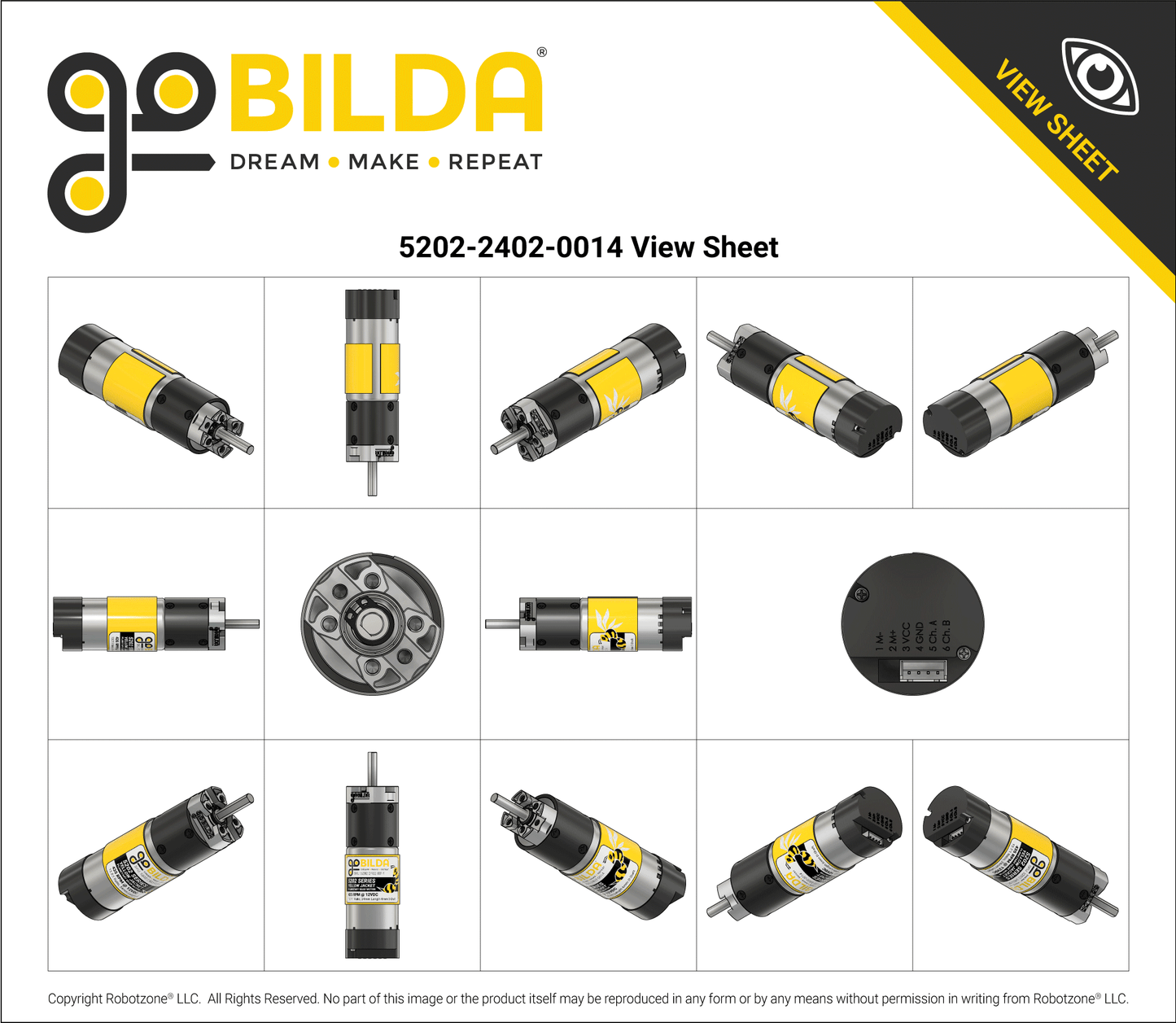

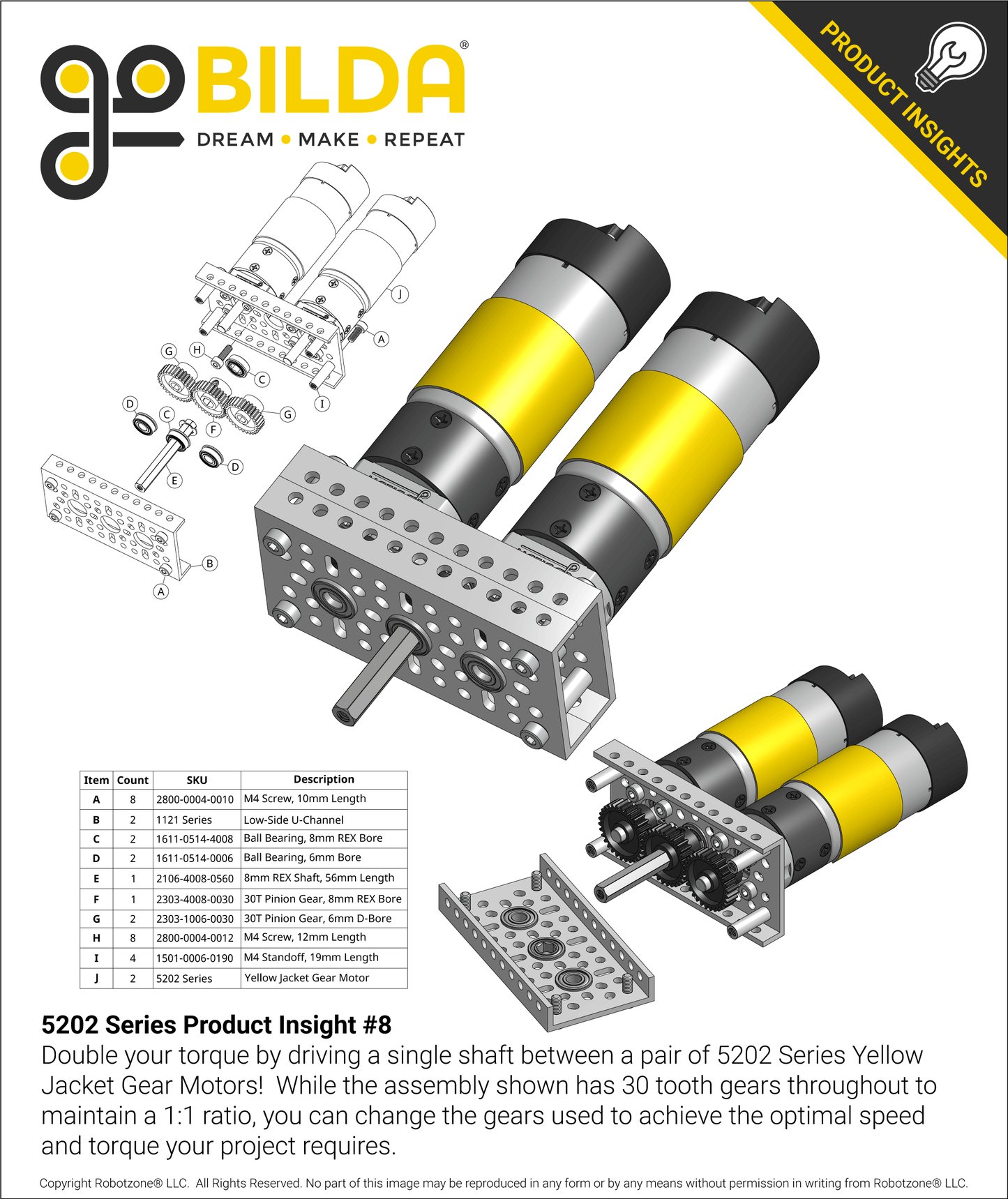

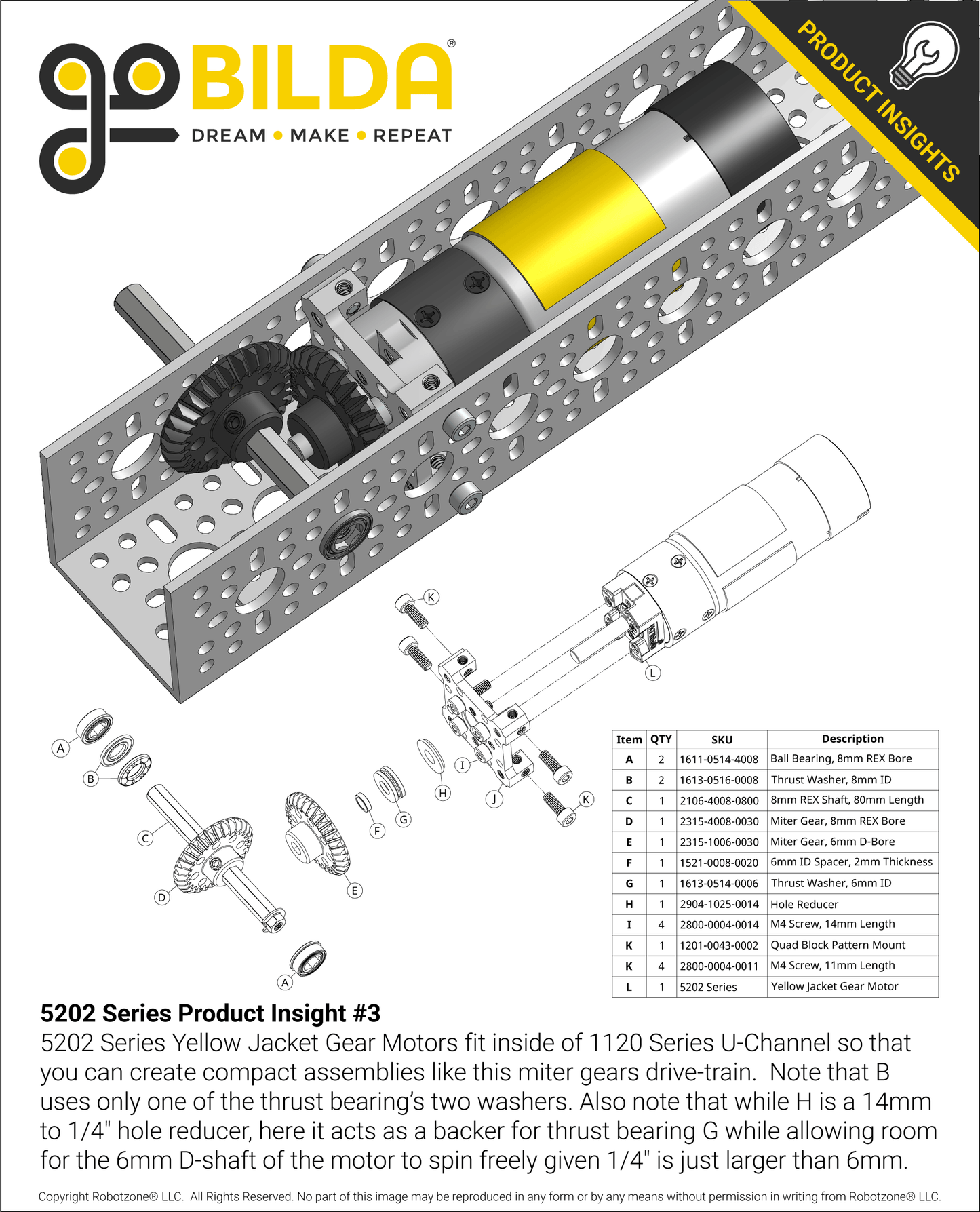

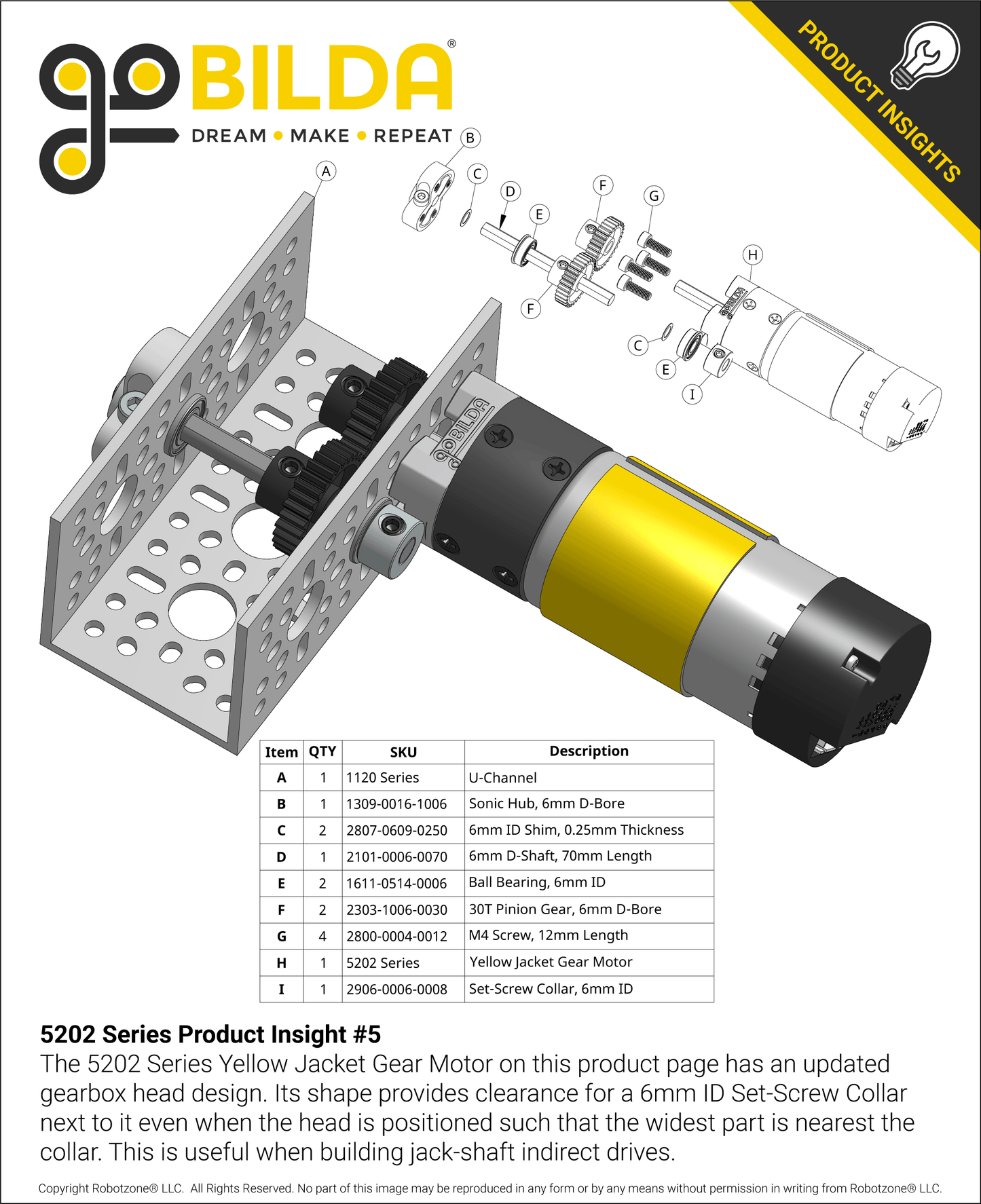

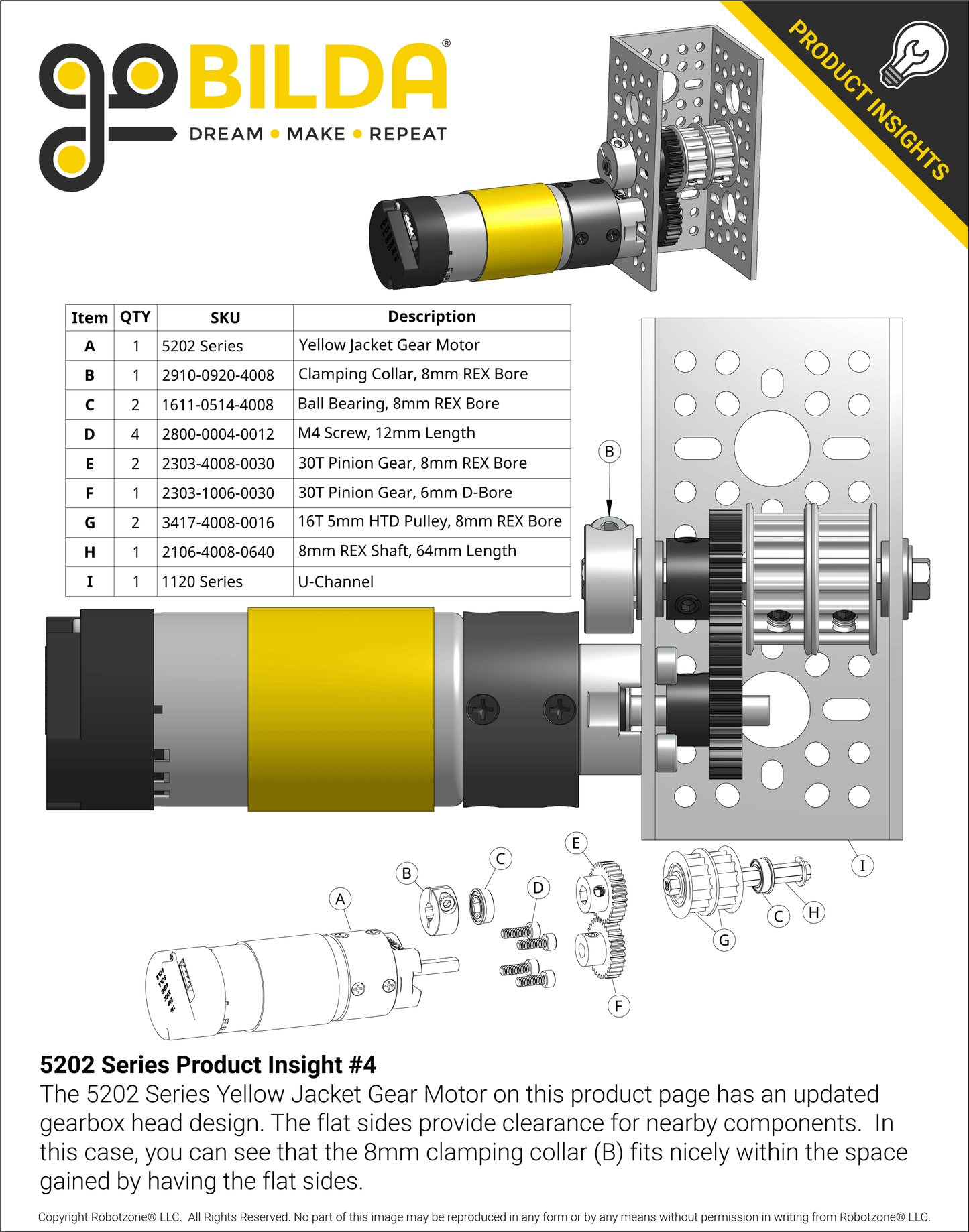

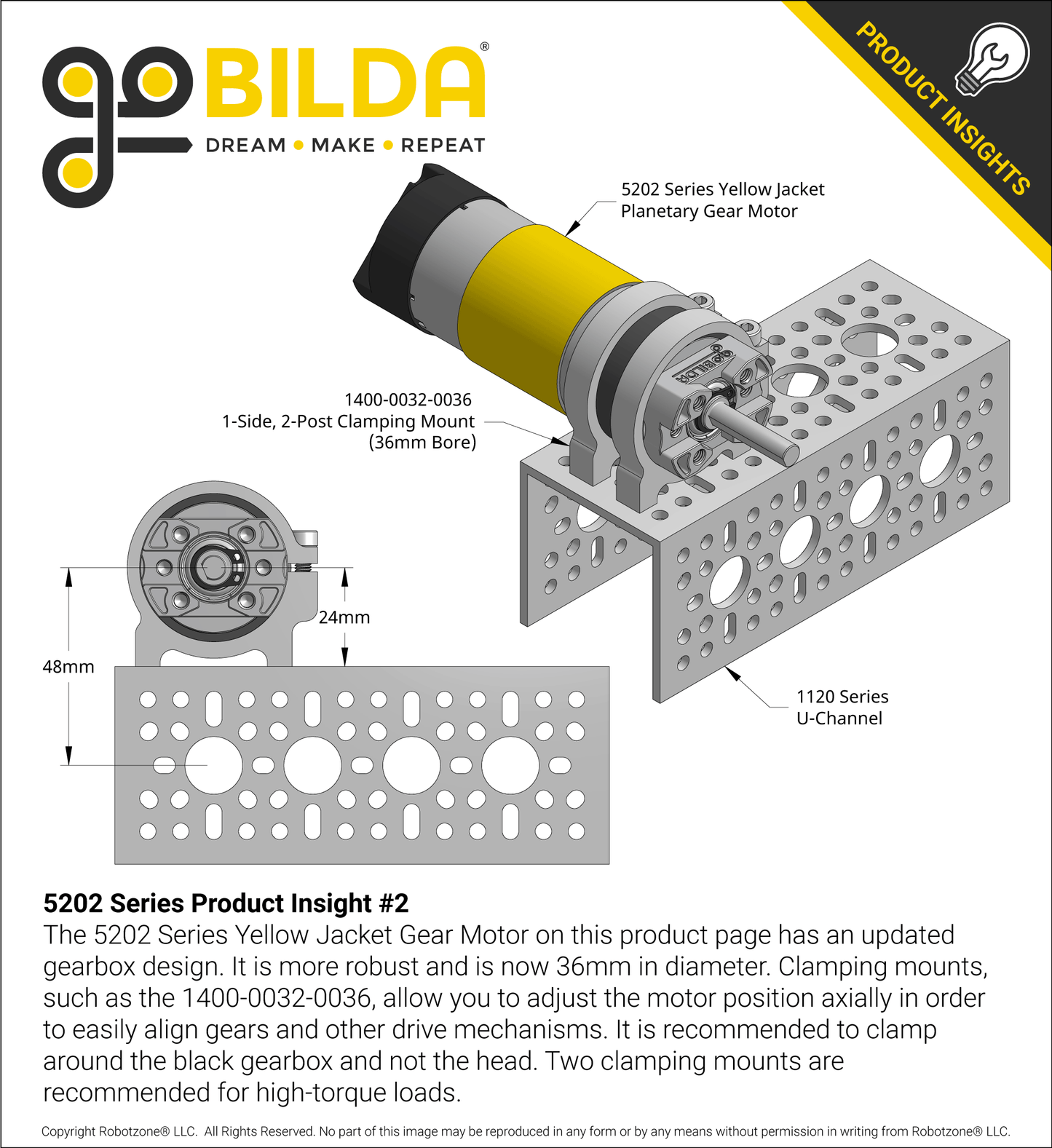

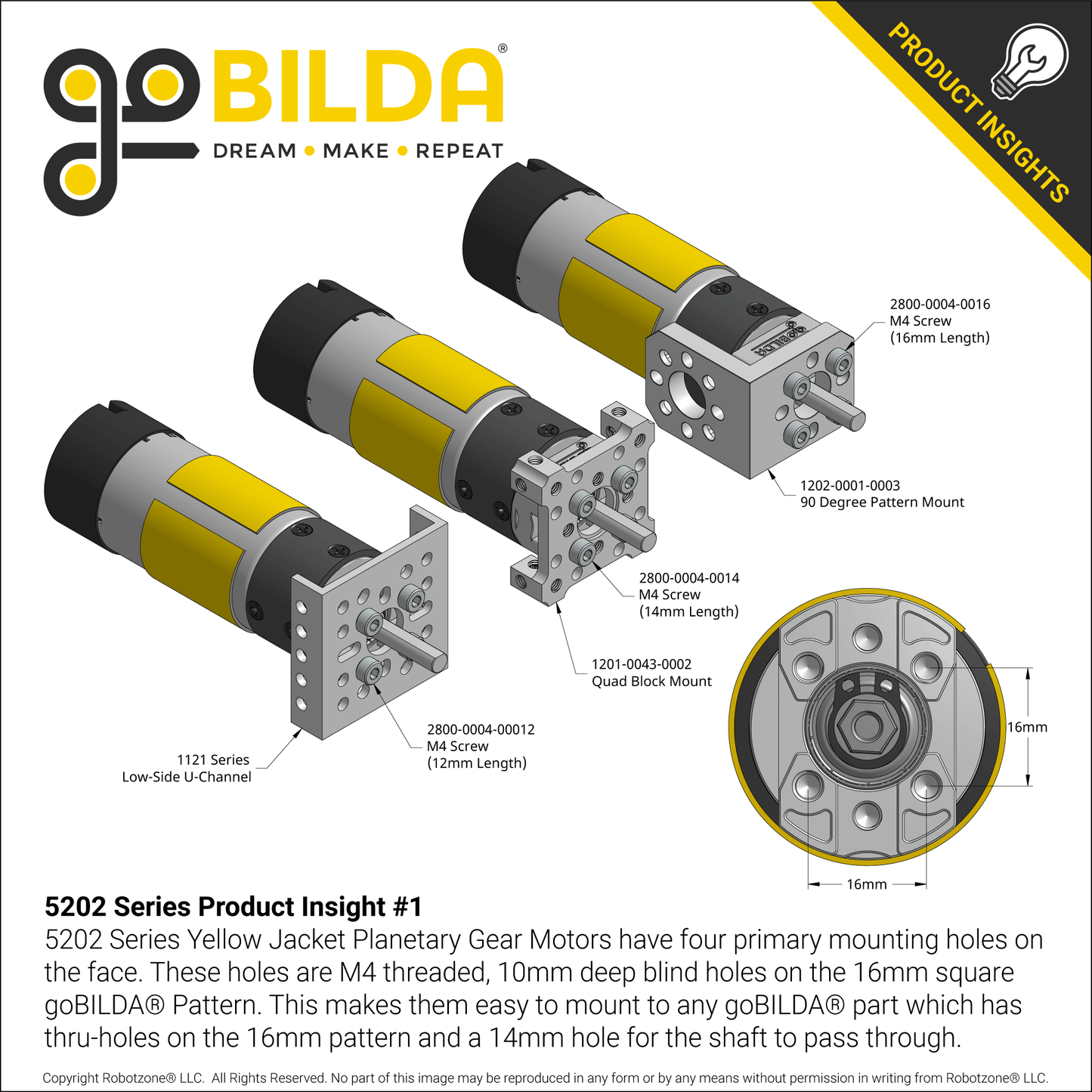

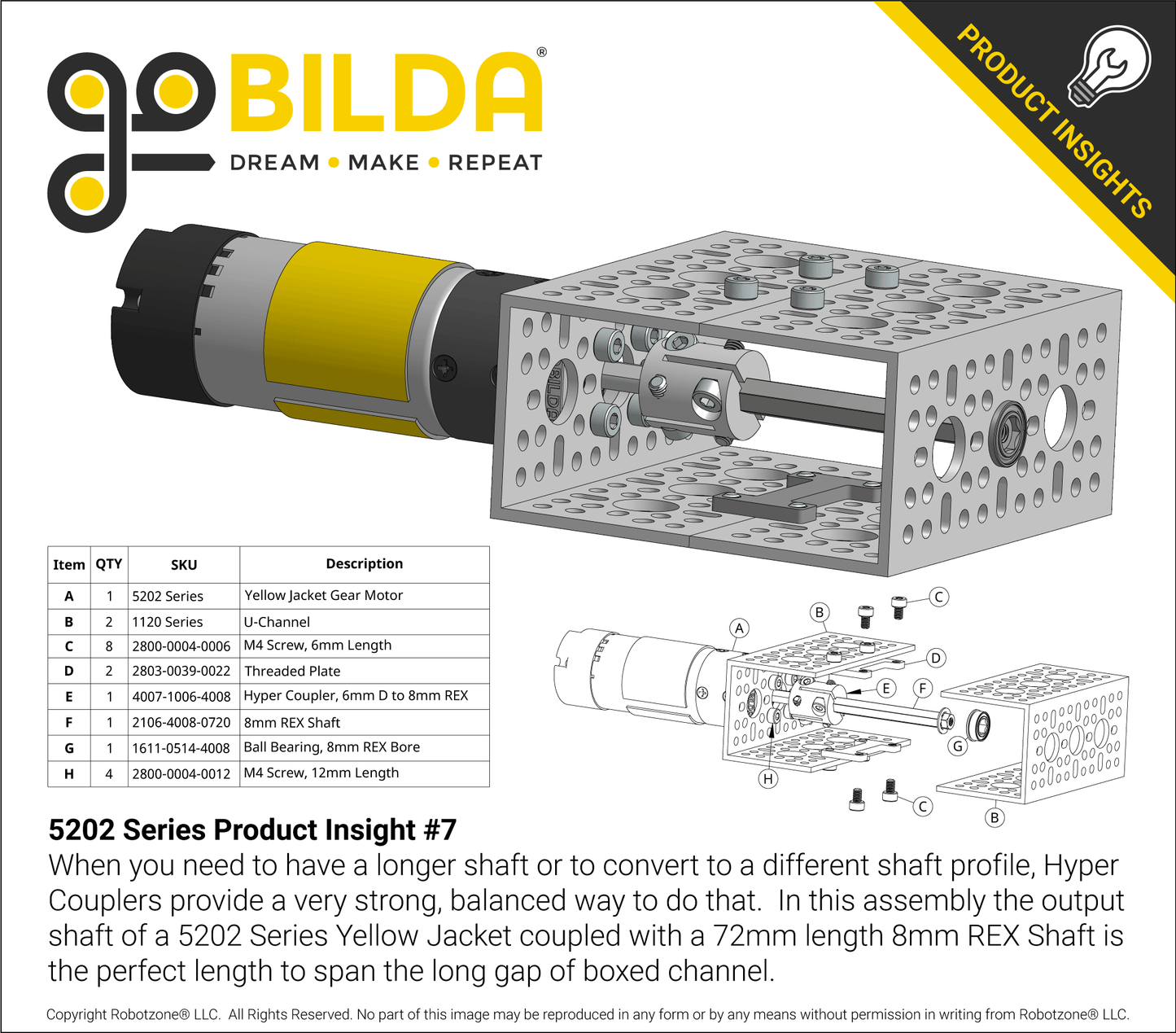

This 13.7:1 ratio gear motor runs at a no-load speed of 435RPM when 12VDC is applied. Mounted to the back of the Modern Robotics/MATRIX 12VDC Motor driving the gearbox is a quadrature encoder able to run on both 3.3V and 5V. Its bullet connectors are a reliable connection style that allows you to easily reverse polarity to the motor and pass its wires through 14mm holes in goBILDA® channel, even when grommets are installed.

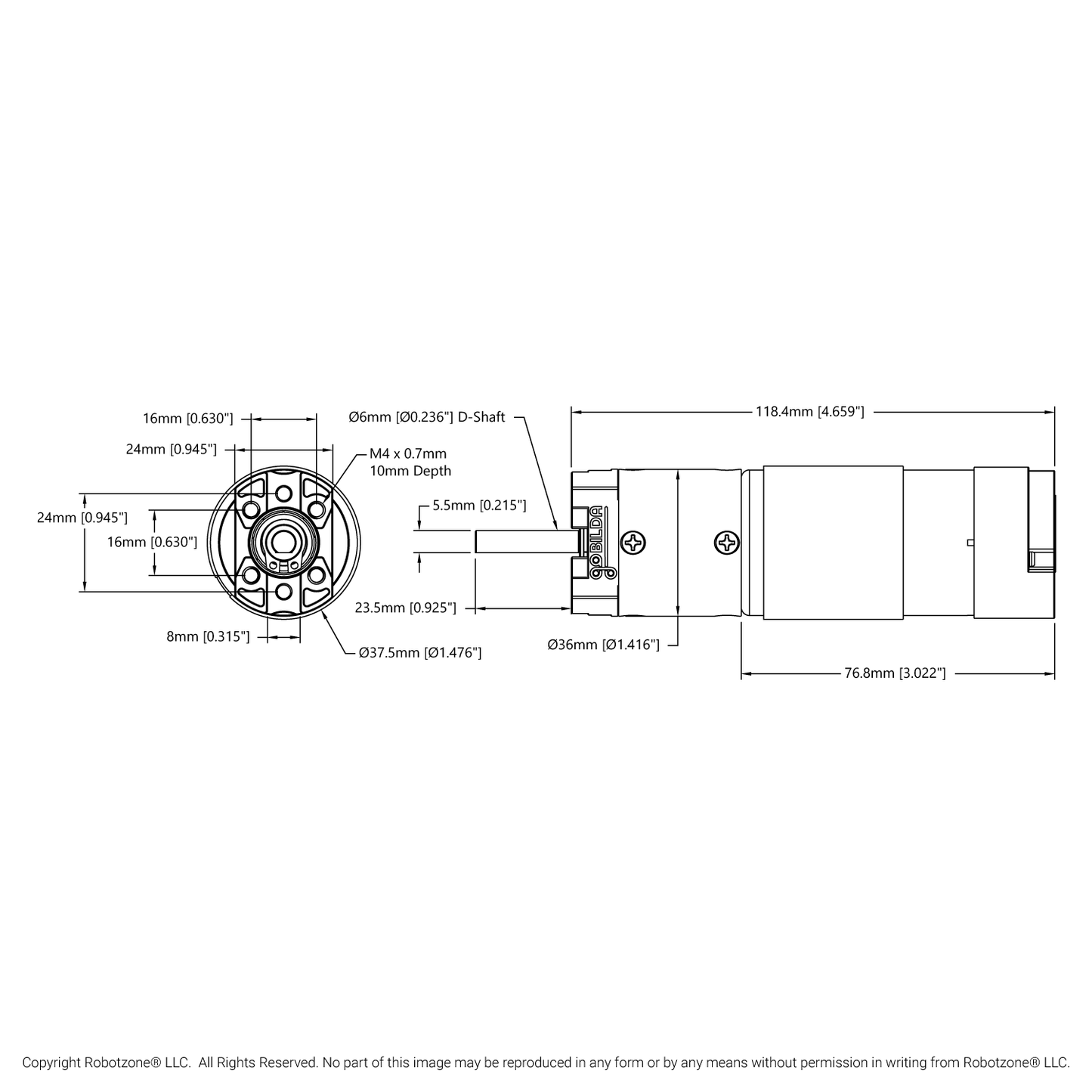

Specs

Motor Size RS-555
Motor Type Brushed DC
Nominal Voltage 12VDC
Output Shaft 6mm D
Gearbox Style Planetary
Gear Ratio 13.7:1
Gear Ratio Formula (((1+(46/17))) * (1+(46/17)))
Gear Material Steel
No-Load Speed @ 12VDC 435 RPM
No-Load Current @12VDC 0.25A
Stall Current @12VDC 9.2A
Stall Torque @12VDC 18.7 kg.cm (260 oz-in)
Wire Length 470mm (including connectors)
Wire Gauge 18AWG

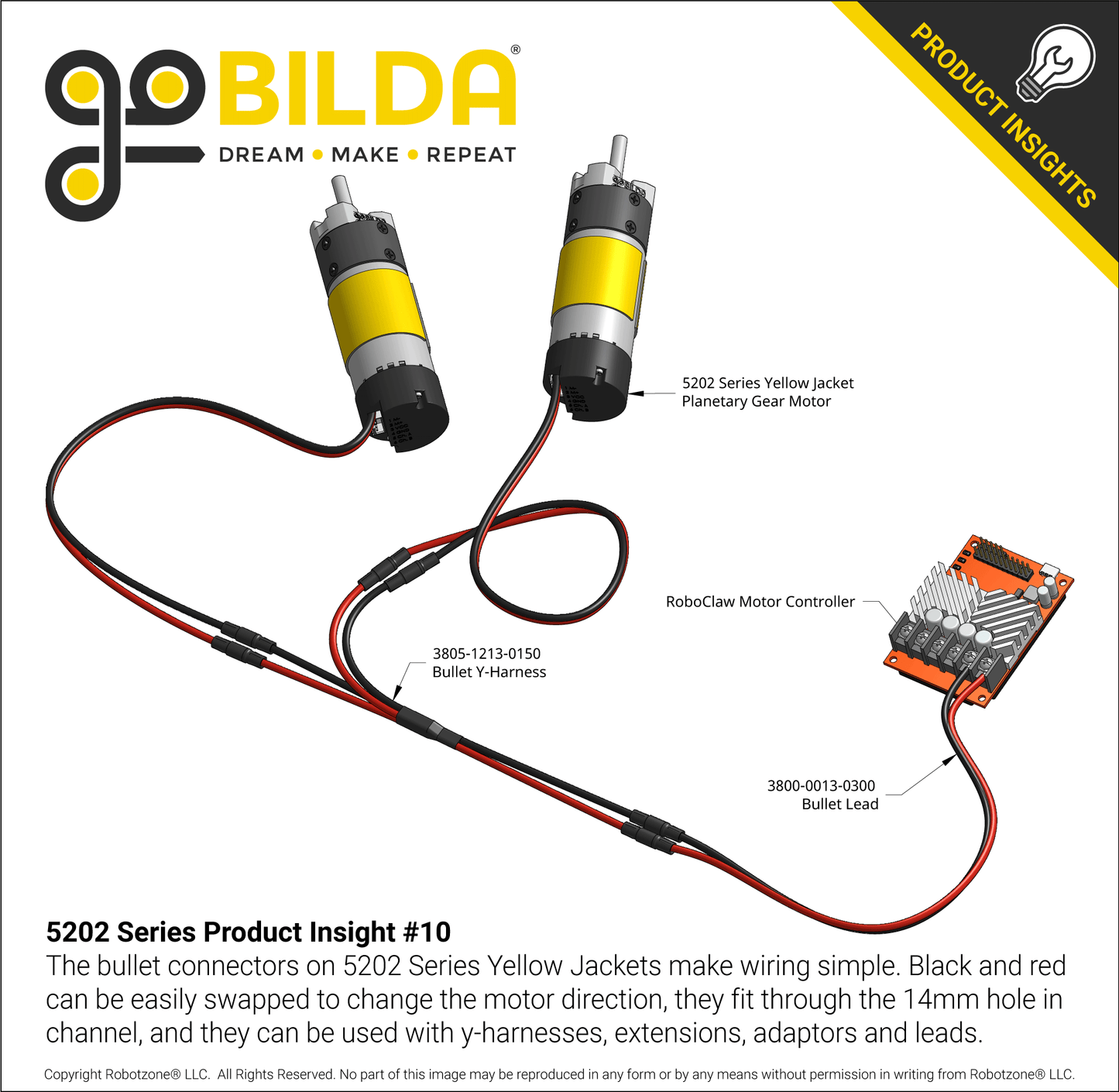

Motor Connector Type 3.5mm FH-MC Bullet Connectors

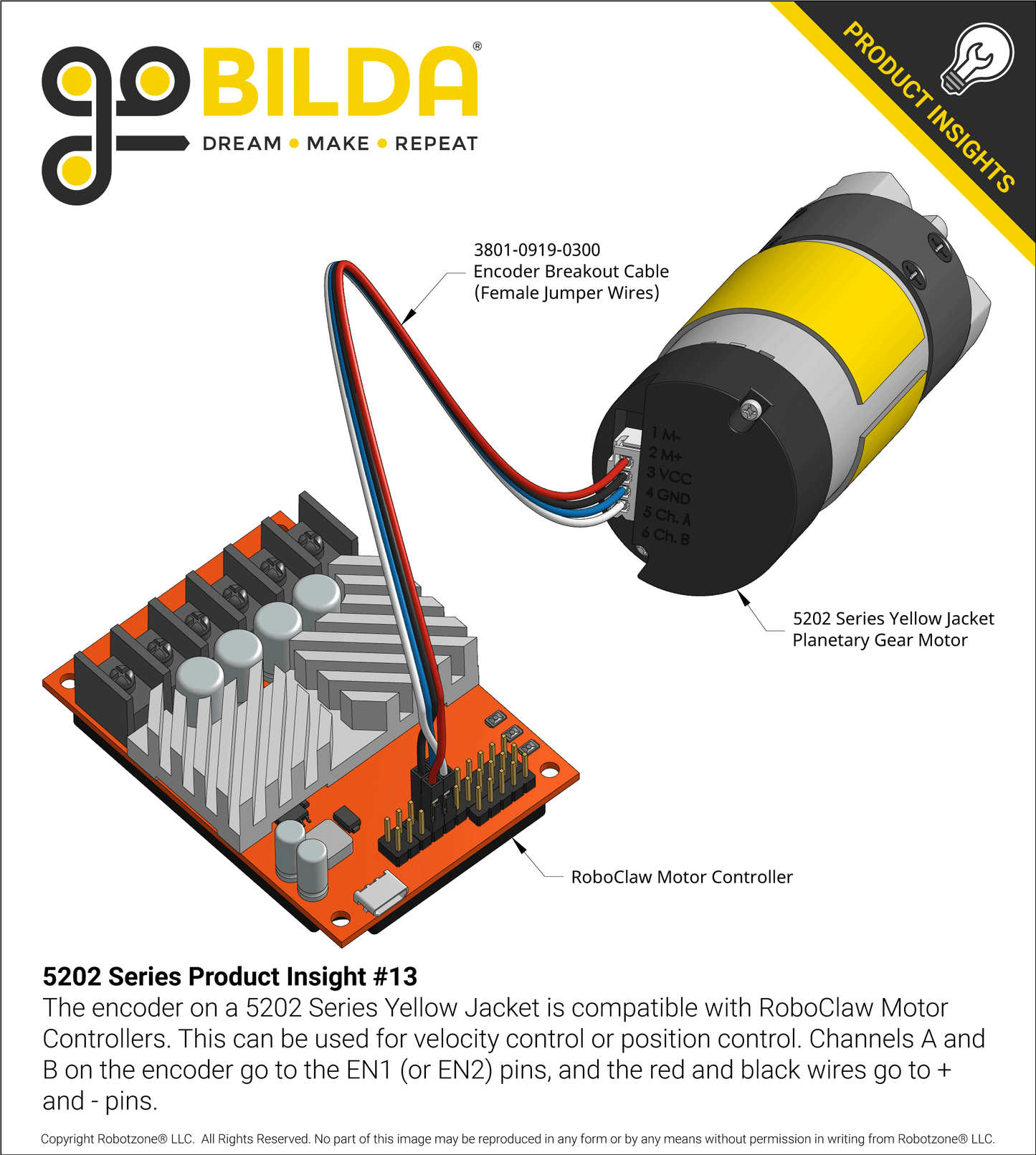

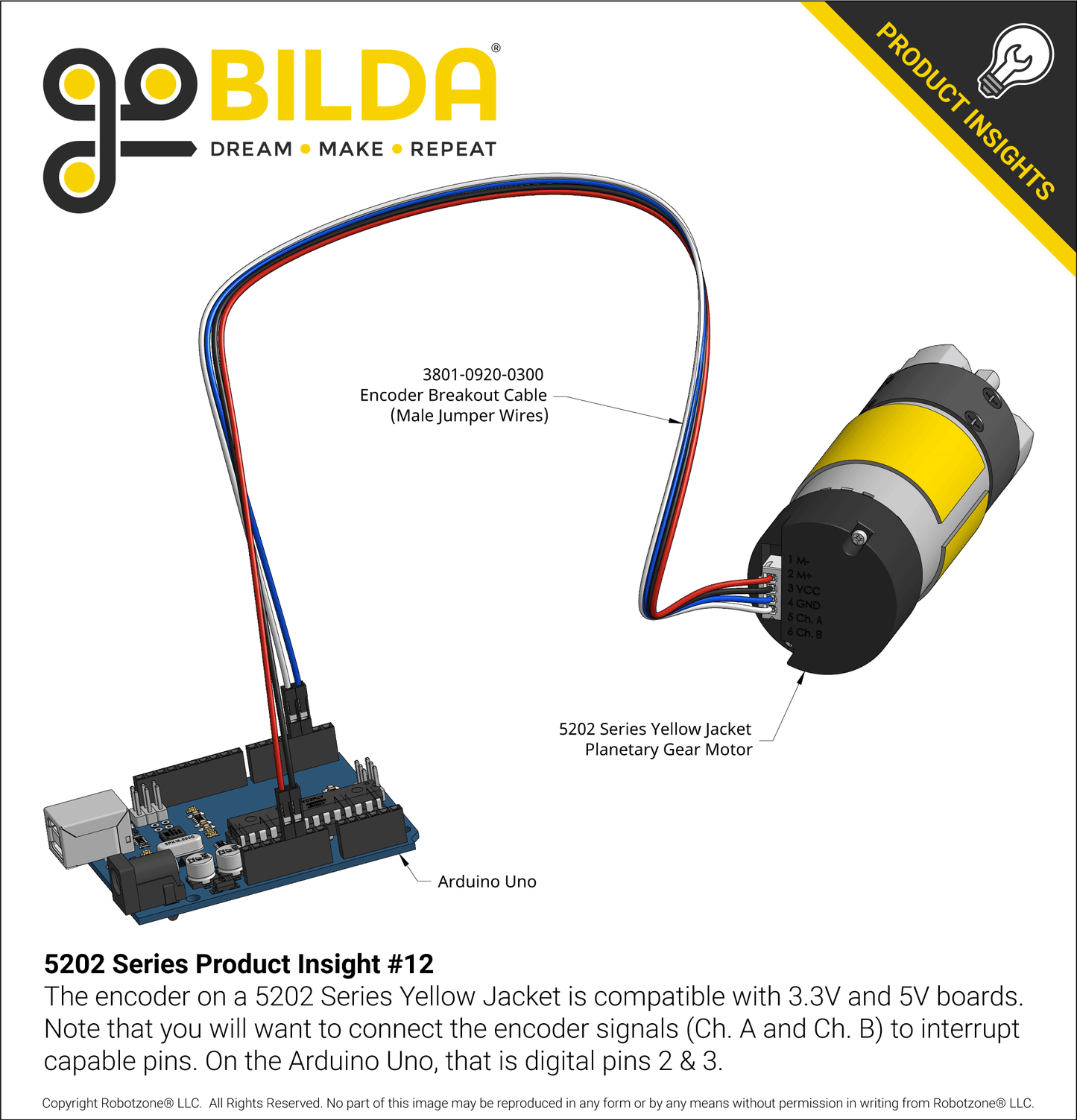

Encoder Connector Type 4-Pos JST XH [FH-MC]
Encoder Type Relative, Quadrature
Encoder Sensor Type Magnetic (Hall Effect)

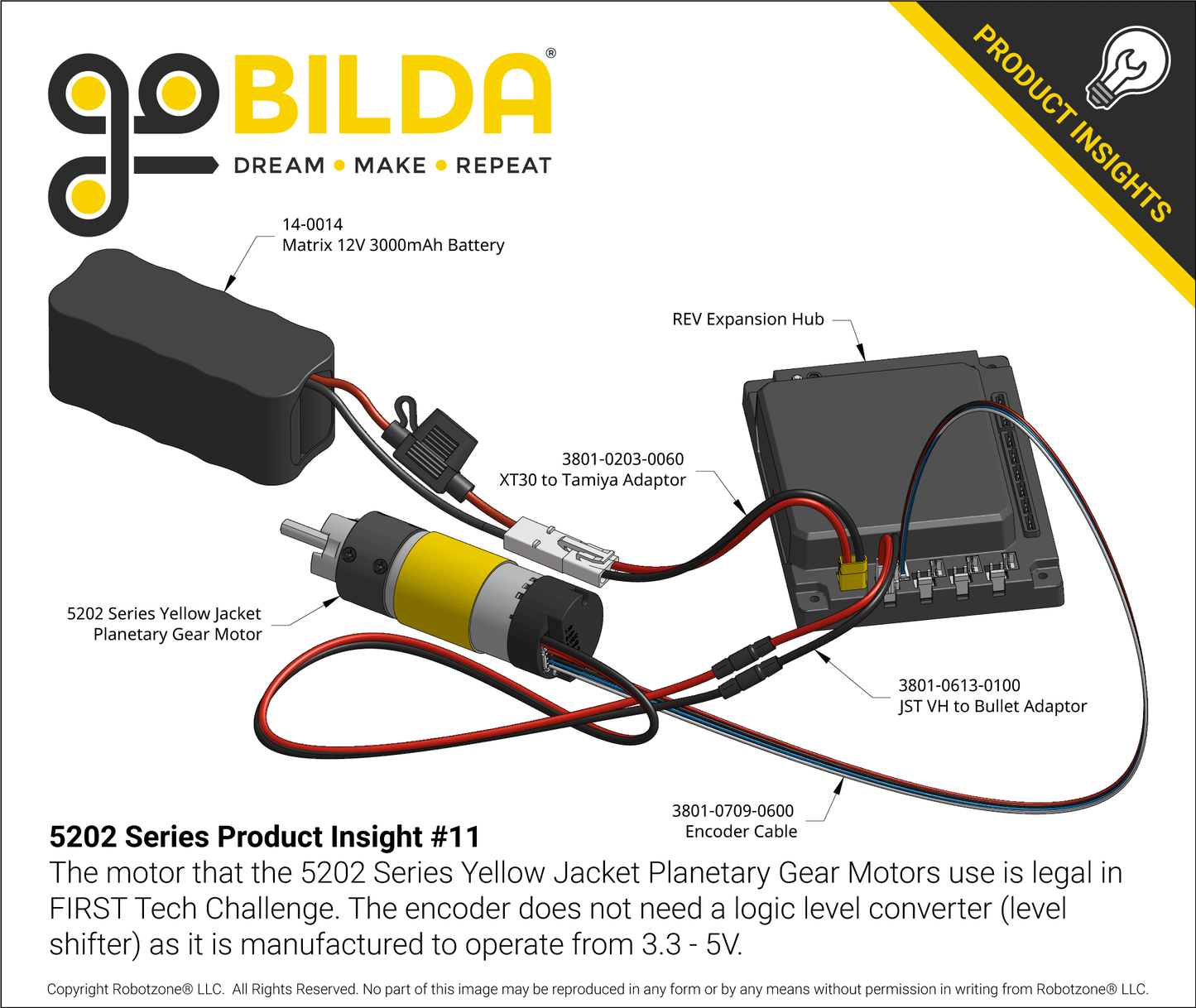

Encoder Voltage Range 3.3 - 5VDC
Encoder Resolution 384.5 PPR at the Output Shaft
Encoder Resolution Formula ((((1+(46/17))) * (1+(46/17))) * 28)
Weight 435g (15.34oz)
IP Patented
