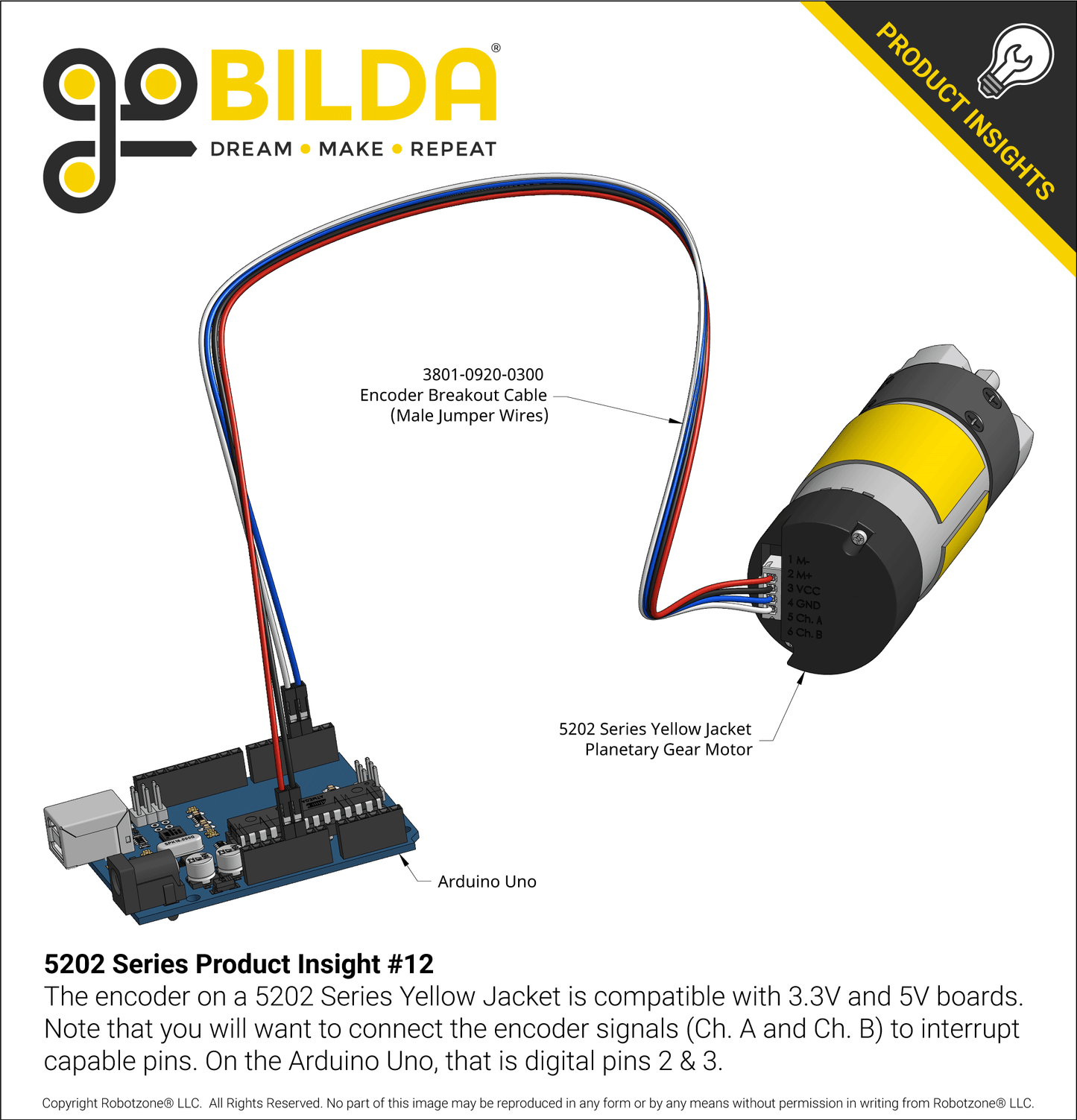

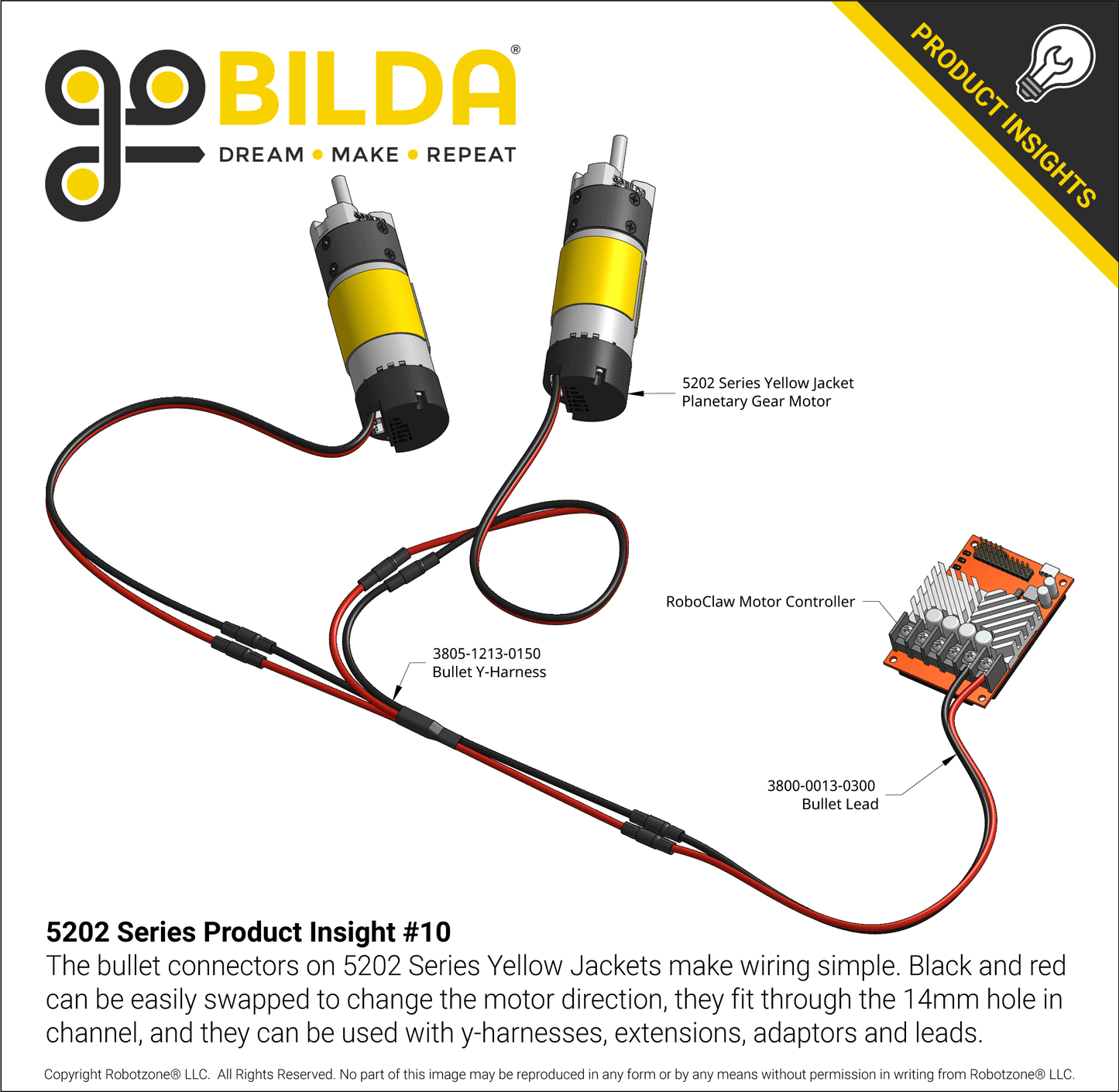

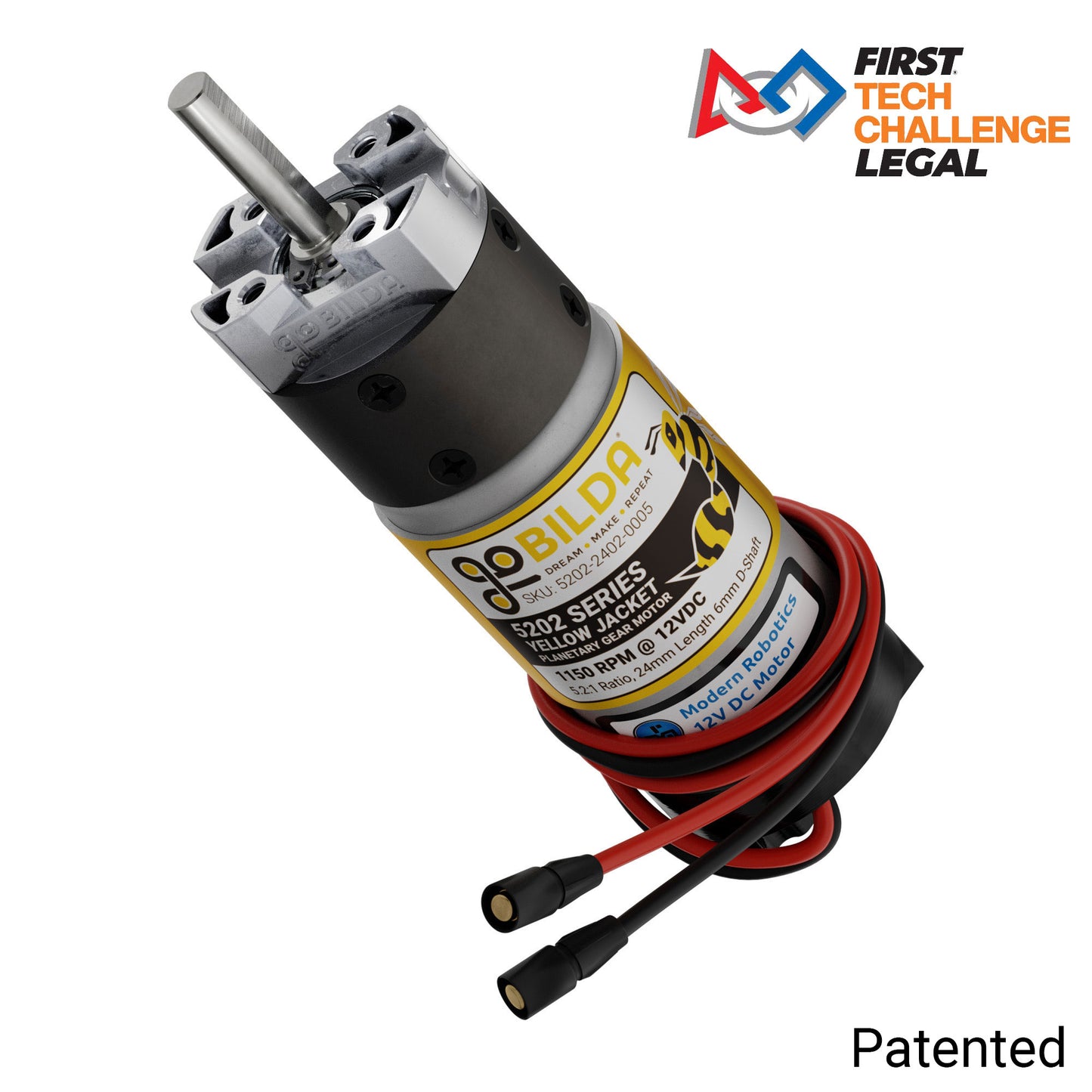

This 5.2:1 ratio gear motor runs at a no-load speed of 1150RPM when 12VDC is applied. Mounted to the back of the Modern Robotics/MATRIX 12VDC Motor driving the gearbox is a quadrature encoder able to run on both 3.3V and 5V. Its bullet connectors are a reliable connection style that allows you to easily reverse polarity to the motor and pass its wires through 14mm holes in goBILDA® channel, even when grommets are installed.
Specs
| Motor Size | RS-555 |
|---|---|
| Motor Type | Brushed DC |
| Nominal Voltage | 12VDC |

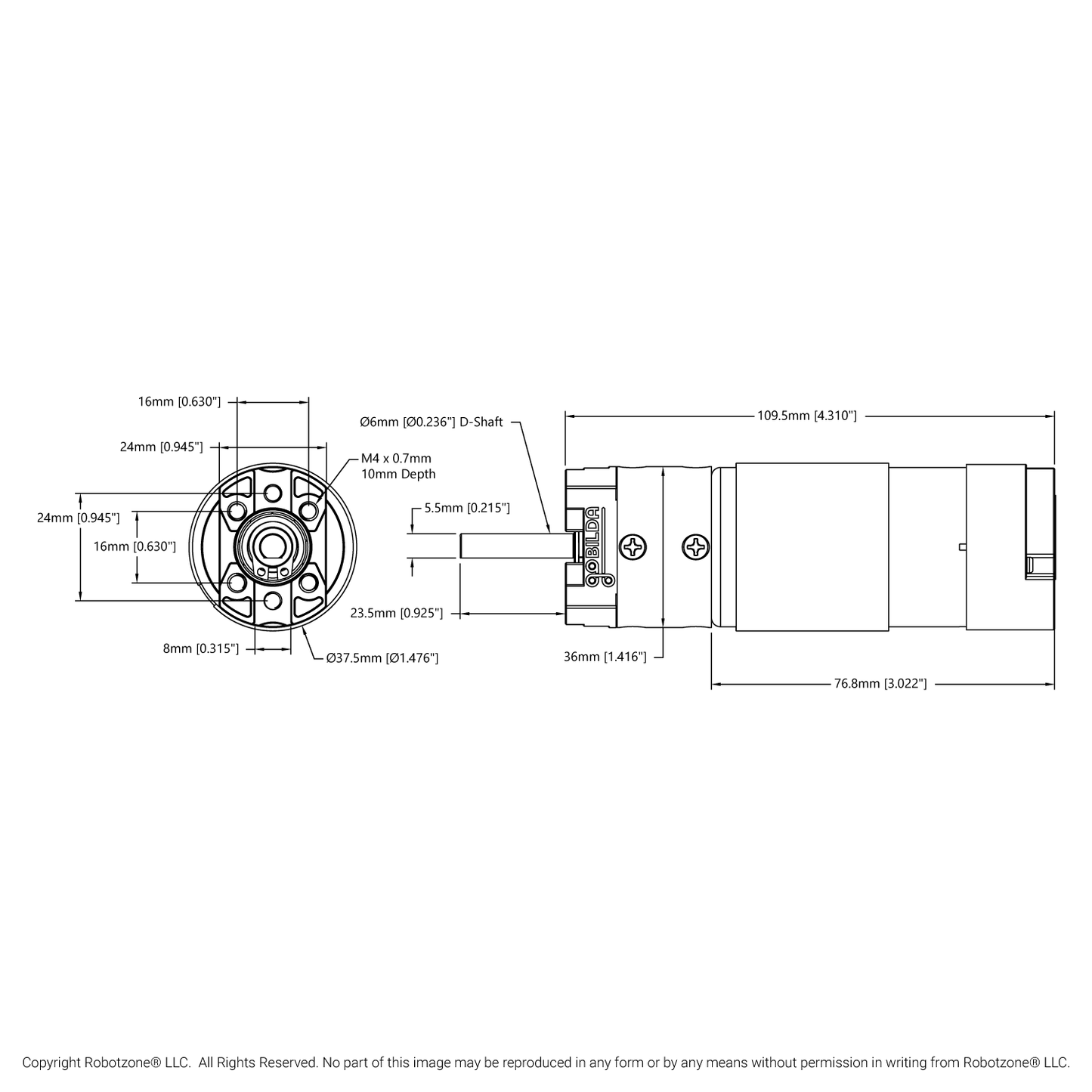

| Output Shaft | 6mm D |
| Gearbox Style | Planetary |
| Gear Ratio | 5.2:1 |
| Gear Ratio Formula | (1+(46/11)):1 |
| Gear Material | Steel |
| No-Load Speed @ 12VDC | 1,150 RPM |
| No-Load Current @12VDC | 0.25A |
| Stall Current @12VDC | 9.2A |
| Stall Torque @12VDC | 7.9 kg.cm (109 oz-in) |
| Wire Length | 470mm (including connectors) |
| Wire Gauge | 18AWG |
| Motor Connector Type | 3.5mm FH-MC Bullet Connectors |

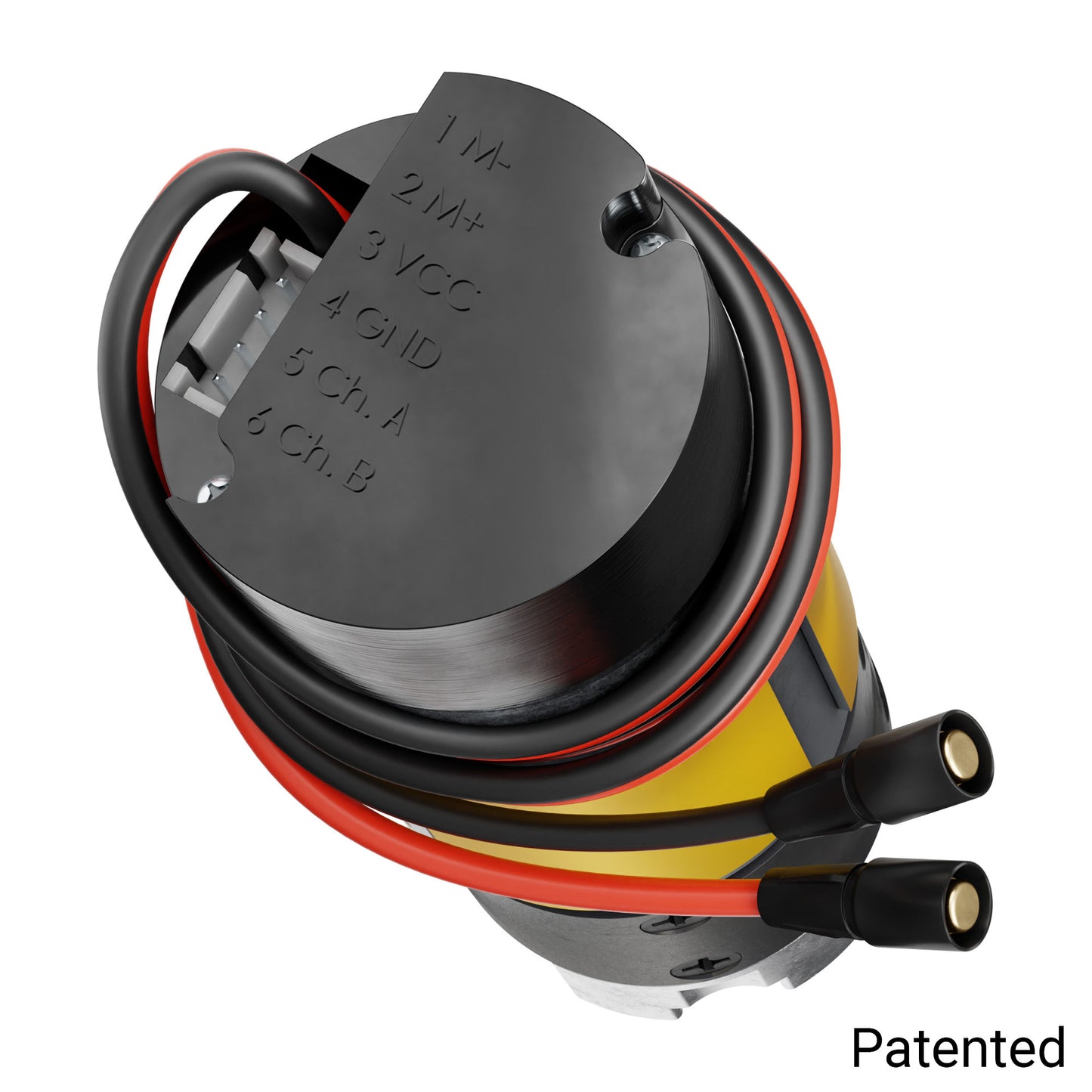

| Encoder Connector Type | 4-Pos JST XH [FH-MC] |

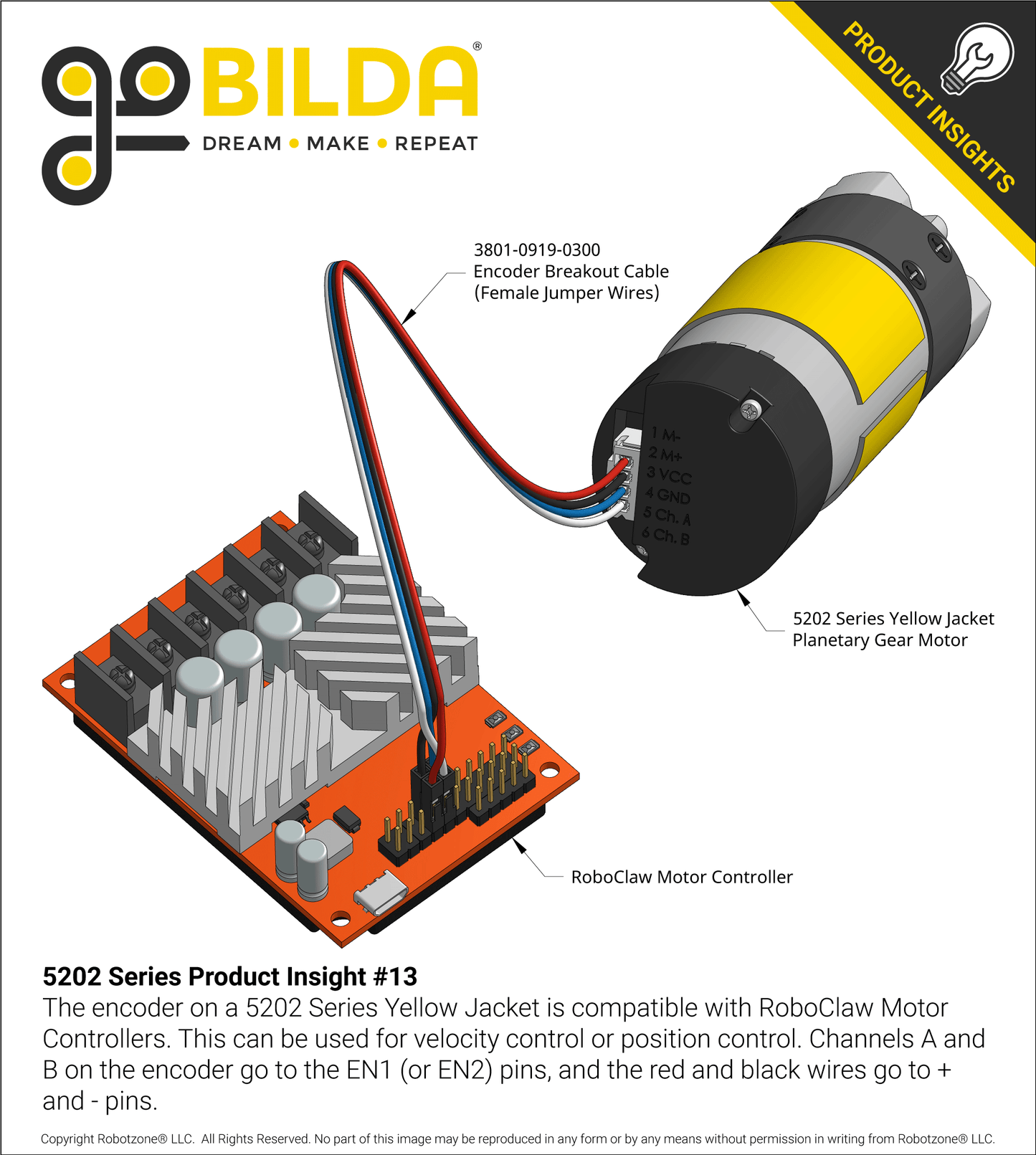

| Encoder Type | Relative, Quadrature |
| Encoder Sensor Type | Magnetic (Hall Effect) |

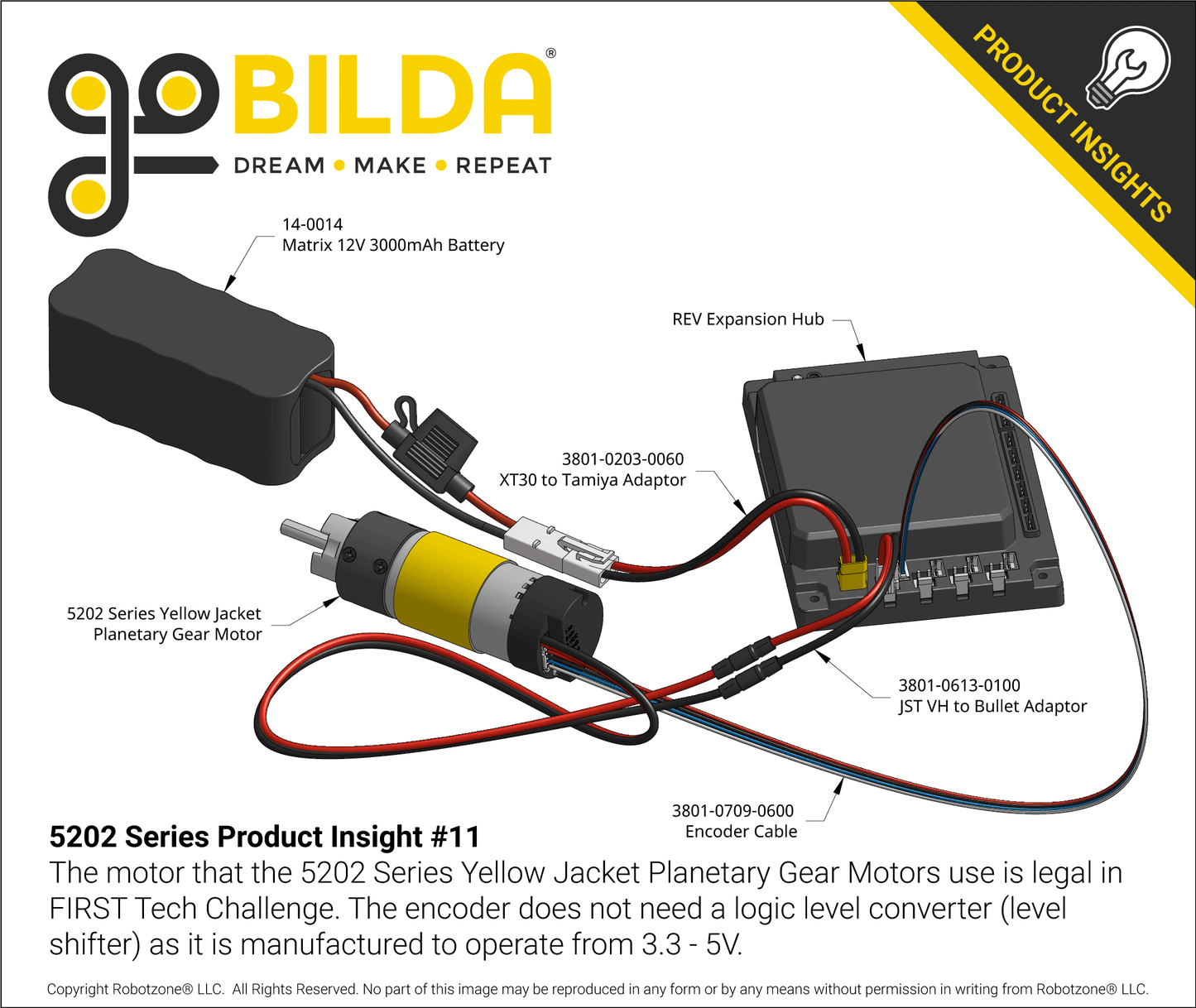

| Encoder Voltage Range | 3.3 - 5VDC |
| Encoder Resolution | 145.1 PPR at the Output Shaft |
| Encoder Resolution Formula | ((1+(46/11)) * 28) |
| Weight | 398g (14.03oz) |
| IP | Patented |
