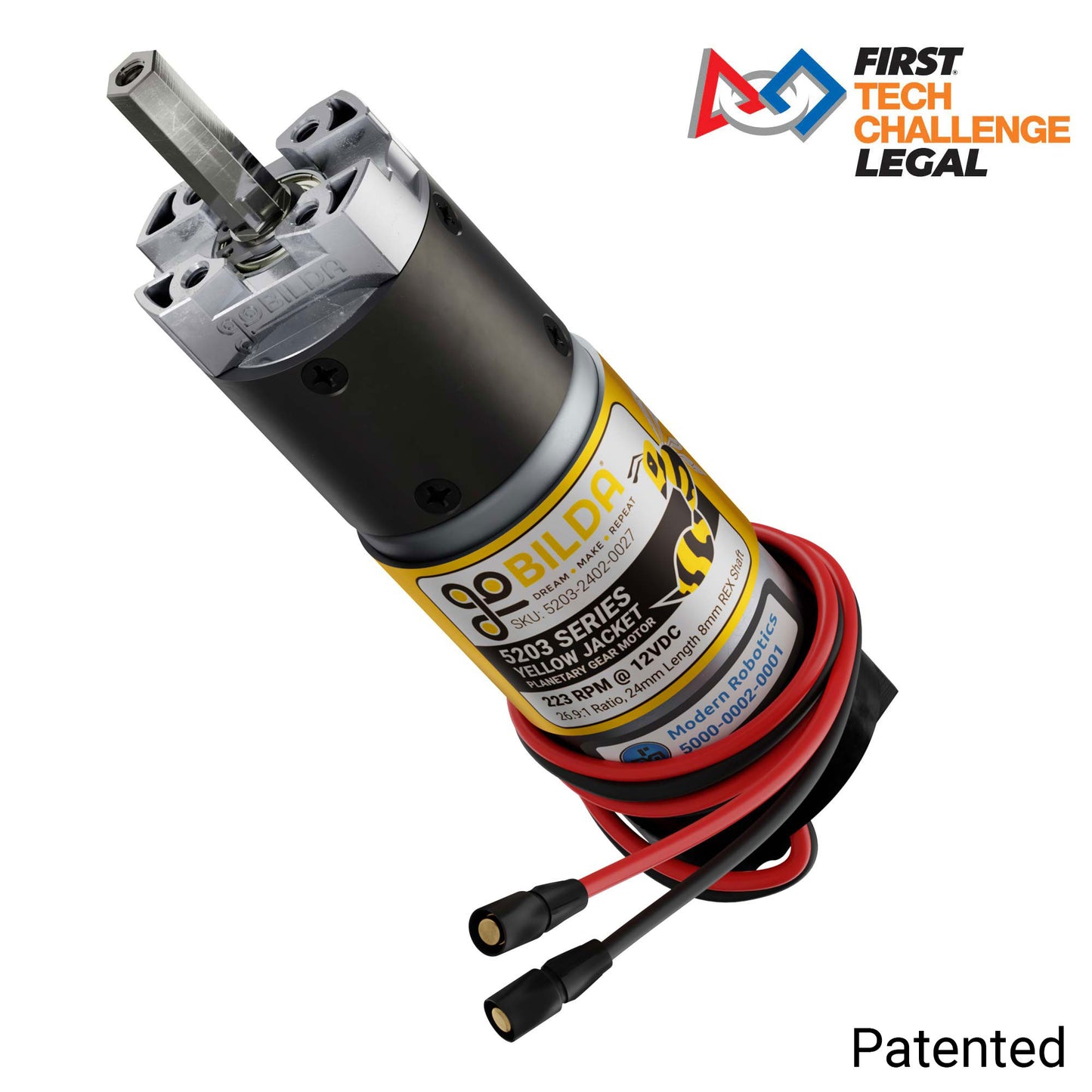

5203 Series Yellow Jacket Planetary Gear Motor (26.9:1 Ratio, 24mm Length 8mm REX™ Shaft, 223 RPM, 3.3 - 5V Encoder)

5203 Series Yellow Jacket Planetary Gear Motor (26.9:1 Ratio, 24mm Length 8mm REX™ Shaft, 223 RPM, 3.3 - 5V Encoder)

goBILDA parts we stock are ready to ship, otherwise with a 10-day lead time

SKU: GB-5203-2402-0027

Regular price $76.00 AUD
Regular price Sale price $76.00 AUD
Sale Sold out
View full details

Specs

Motor Size RS-555
Motor Type Brushed DC
Nominal Voltage 12VDC

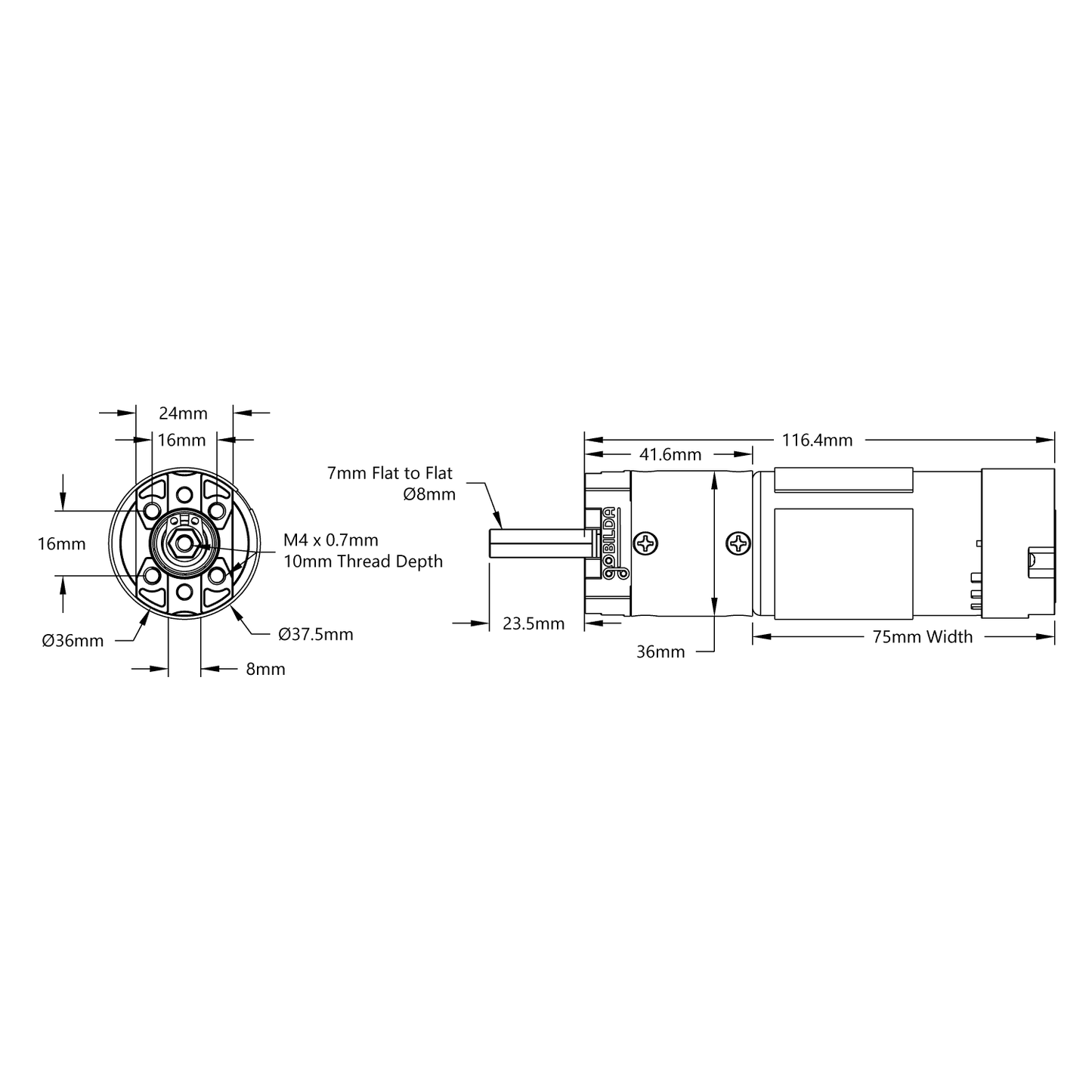

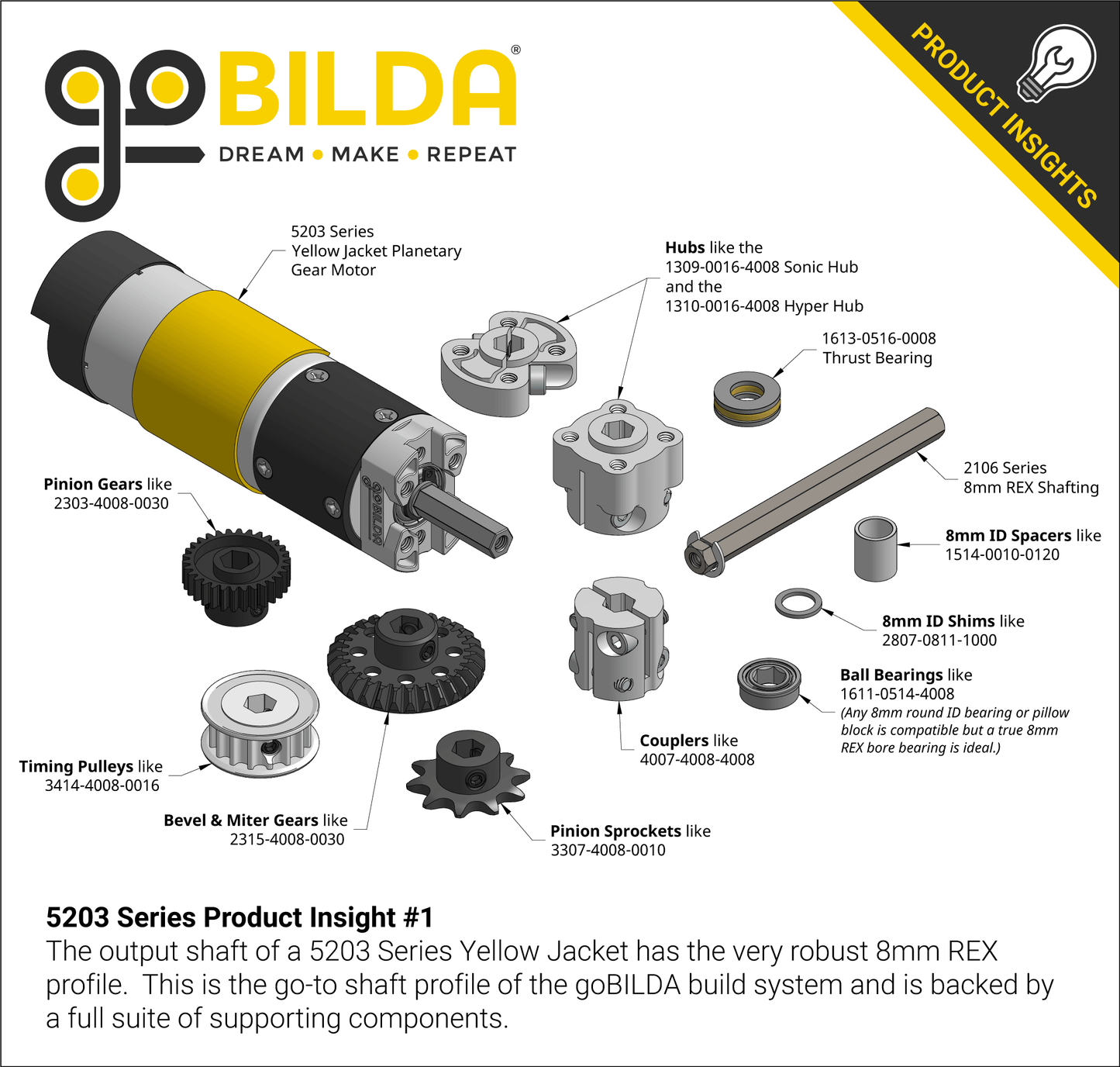

Output Shaft 8mm REX, 24mm Length
Gearbox Style Planetary
Gear Ratio 26.9:1
Gear Ratio Formula (((1+(46/11))) * (1+(46/11)))
Gear Material Steel
No-Load Speed @ 12VDC 223 RPM
No-Load Current @12VDC 0.25A
Stall Current @12VDC 9.2A
Stall Torque @12VDC 38.0 kg.cm (530 oz-in)
Wire Length 470mm (including connectors)
Wire Gauge 18AWG
Motor Connector Type 3.5mm FH-MC Bullet Connectors

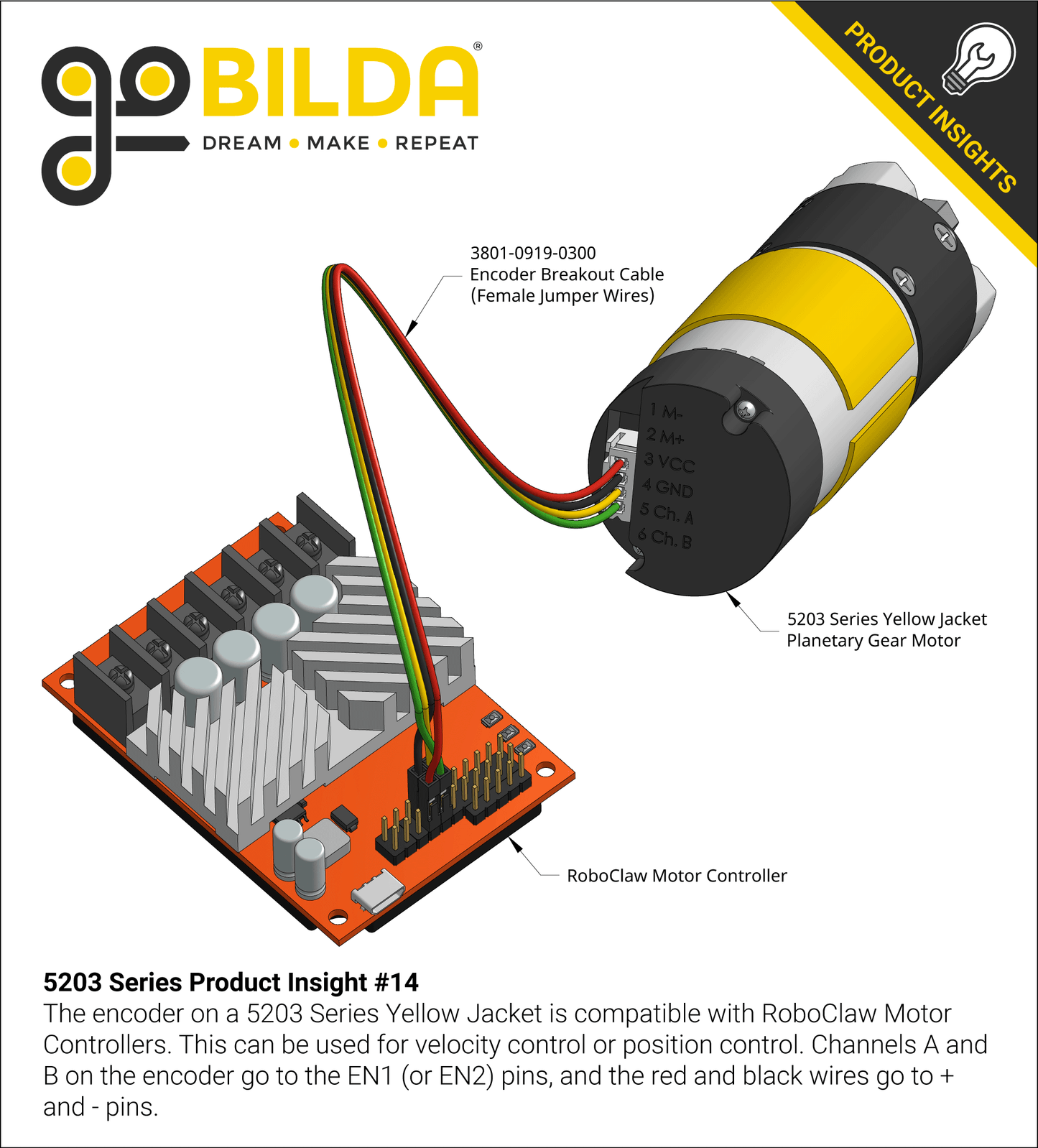

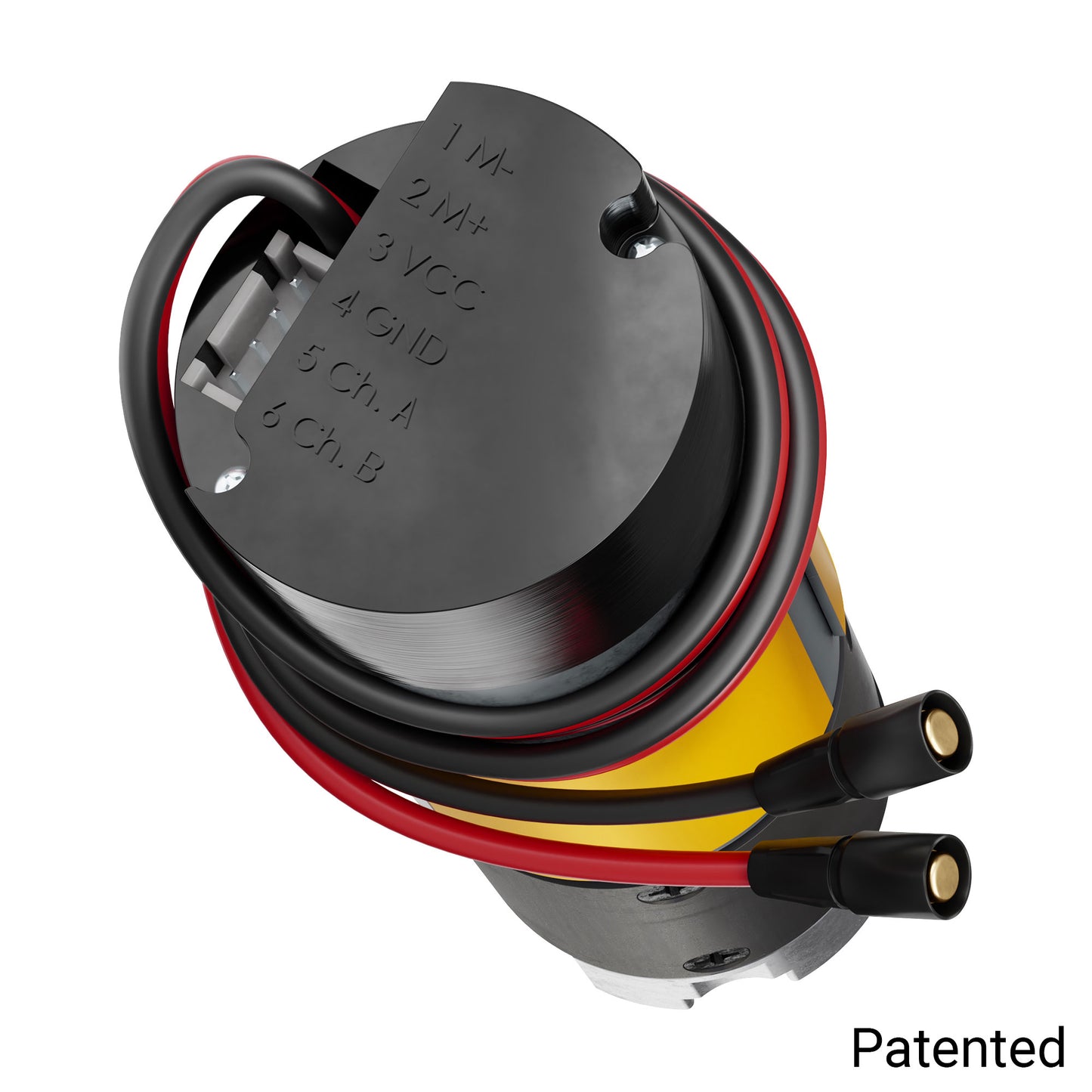

Encoder Connector Type 4-Pos JST XH [FH-MC]
Encoder Type Relative, Quadrature
Encoder Sensor Type Magnetic (Hall Effect)

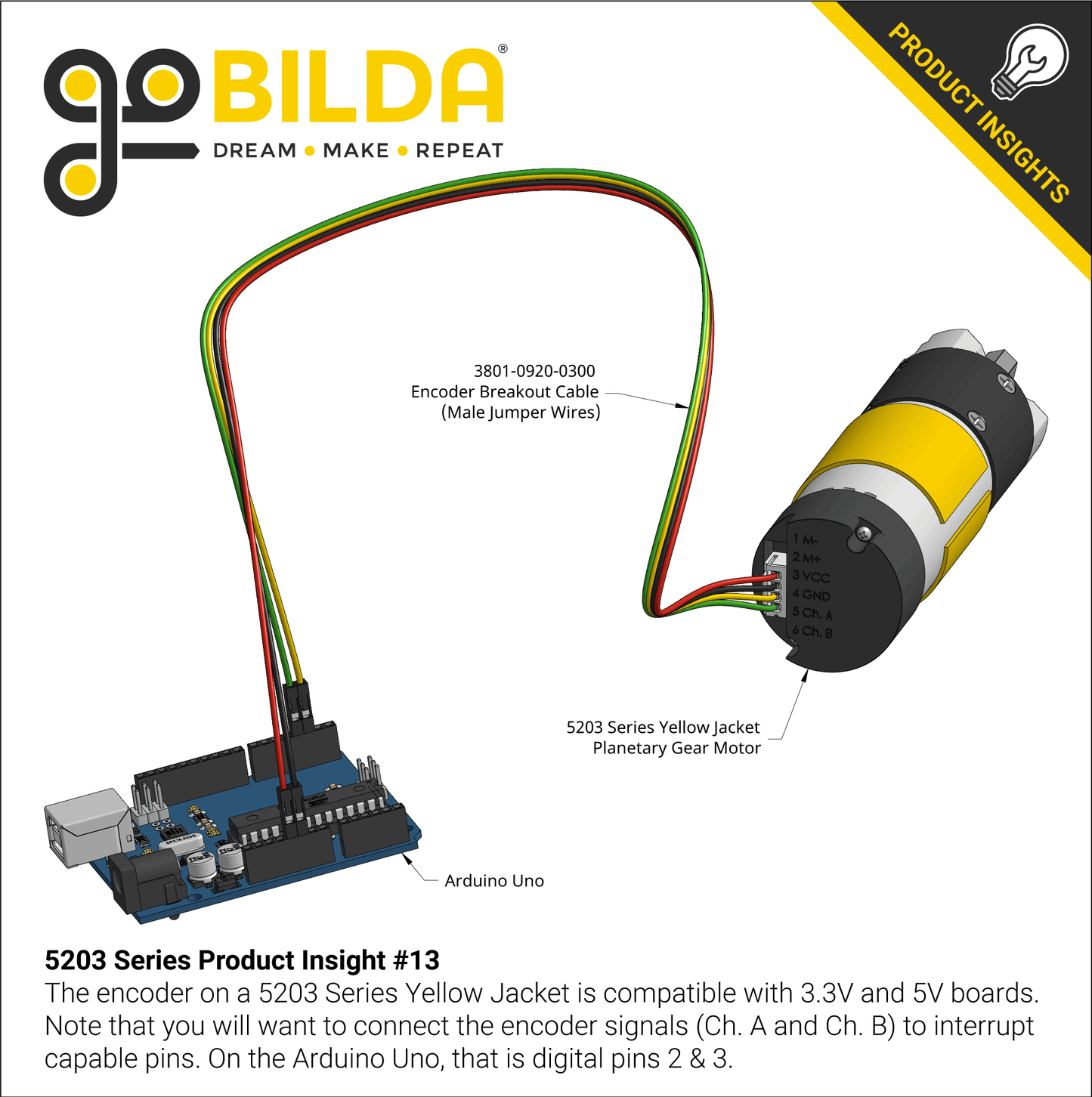

Encoder Voltage Range 3.3 - 5VDC
Encoder Resolution 751.8 PPR at the Output Shaft
Encoder Resolution Formula ((((1+(46/11))) * (1+(46/11))) * 28)
Weight 437g
IP Patented
