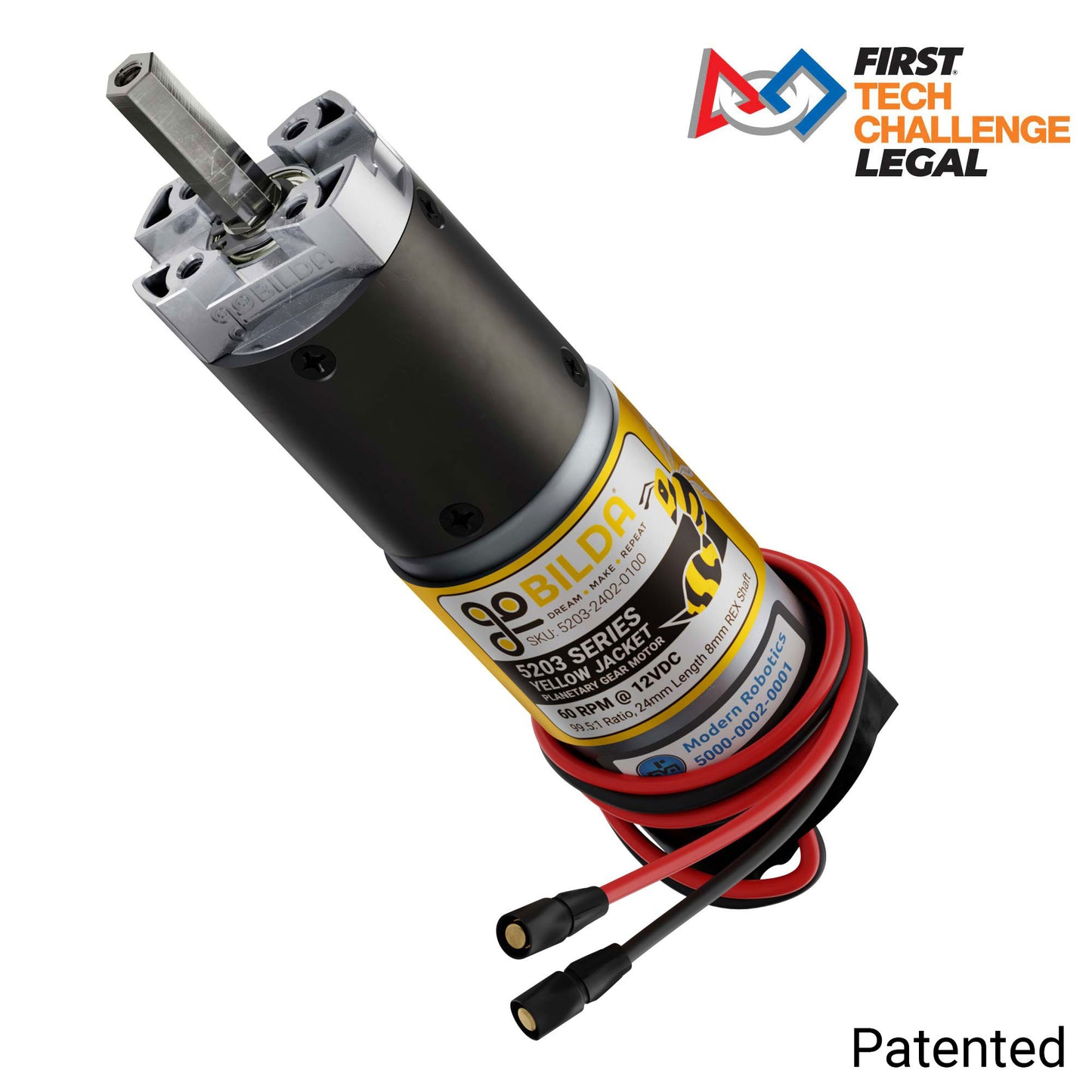

5203 Series Yellow Jacket Planetary Gear Motor (99.5:1 Ratio, 24mm Length 8mm REX™ Shaft, 60 RPM, 3.3 - 5V Encoder)

5203 Series Yellow Jacket Planetary Gear Motor (99.5:1 Ratio, 24mm Length 8mm REX™ Shaft, 60 RPM, 3.3 - 5V Encoder)

goBILDA parts we stock are ready to ship, otherwise with a 10-day lead time

SKU: GB-5203-2402-0100

Regular price $76.00 AUD
Regular price Sale price $76.00 AUD
Sale Sold out
View full details

Specs

Motor Size RS-555
Motor Type Brushed DC
Nominal Voltage 12VDC

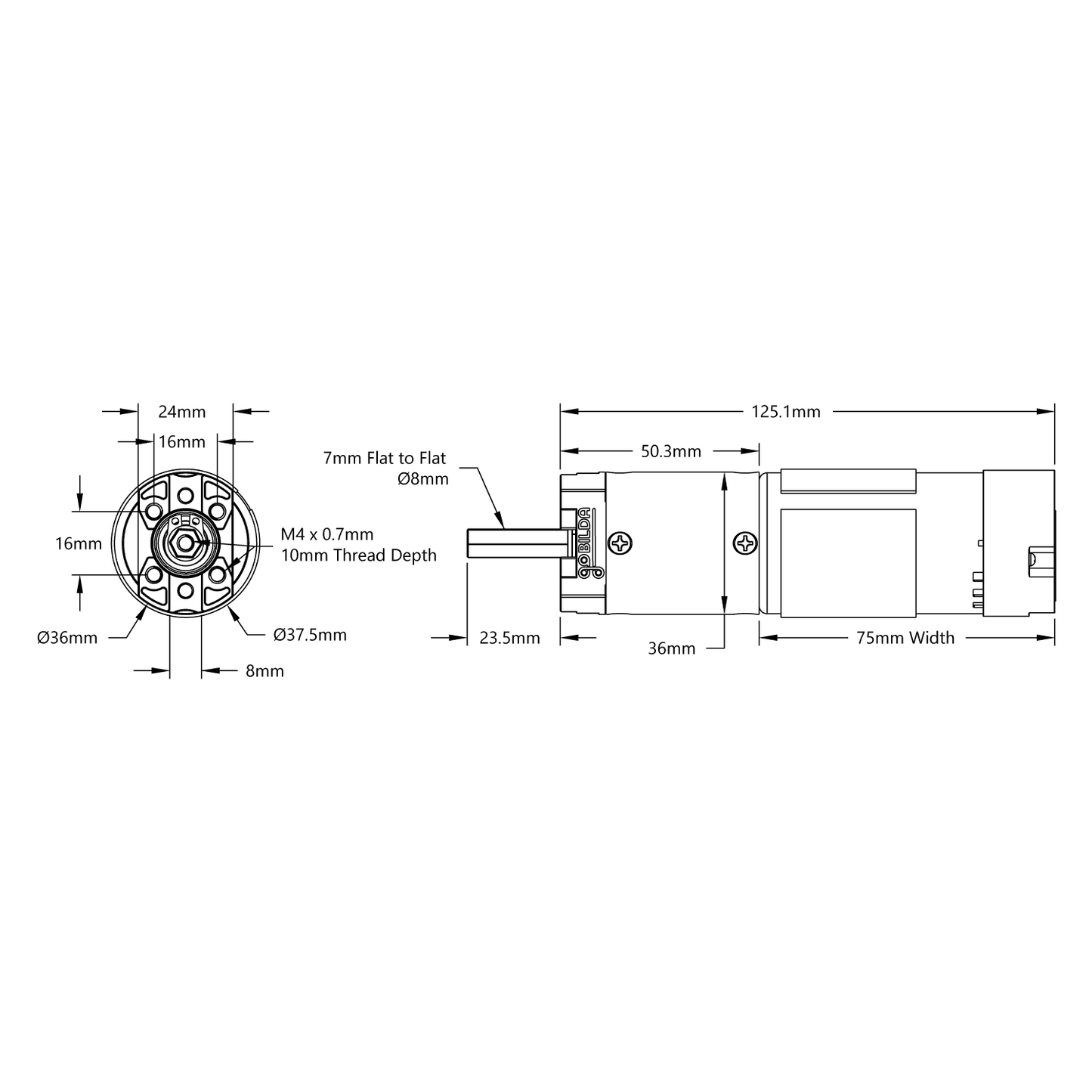

Output Shaft 8mm REX™, 24mm Length
Gearbox Style Planetary
Gear Ratio 99.5:1
Gear Ratio Formula (((1+(46/17))) * (1+(46/11))) * (1+(46/11))
Gear Material Steel
No-Load Speed @ 12VDC 60 RPM
No-Load Current @12VDC 0.25A
Stall Current @12VDC 9.2A
Stall Torque @12VDC 133.2 kg.cm (1,850 oz-in)
Wire Length 470mm (including connectors)
Wire Gauge 18AWG

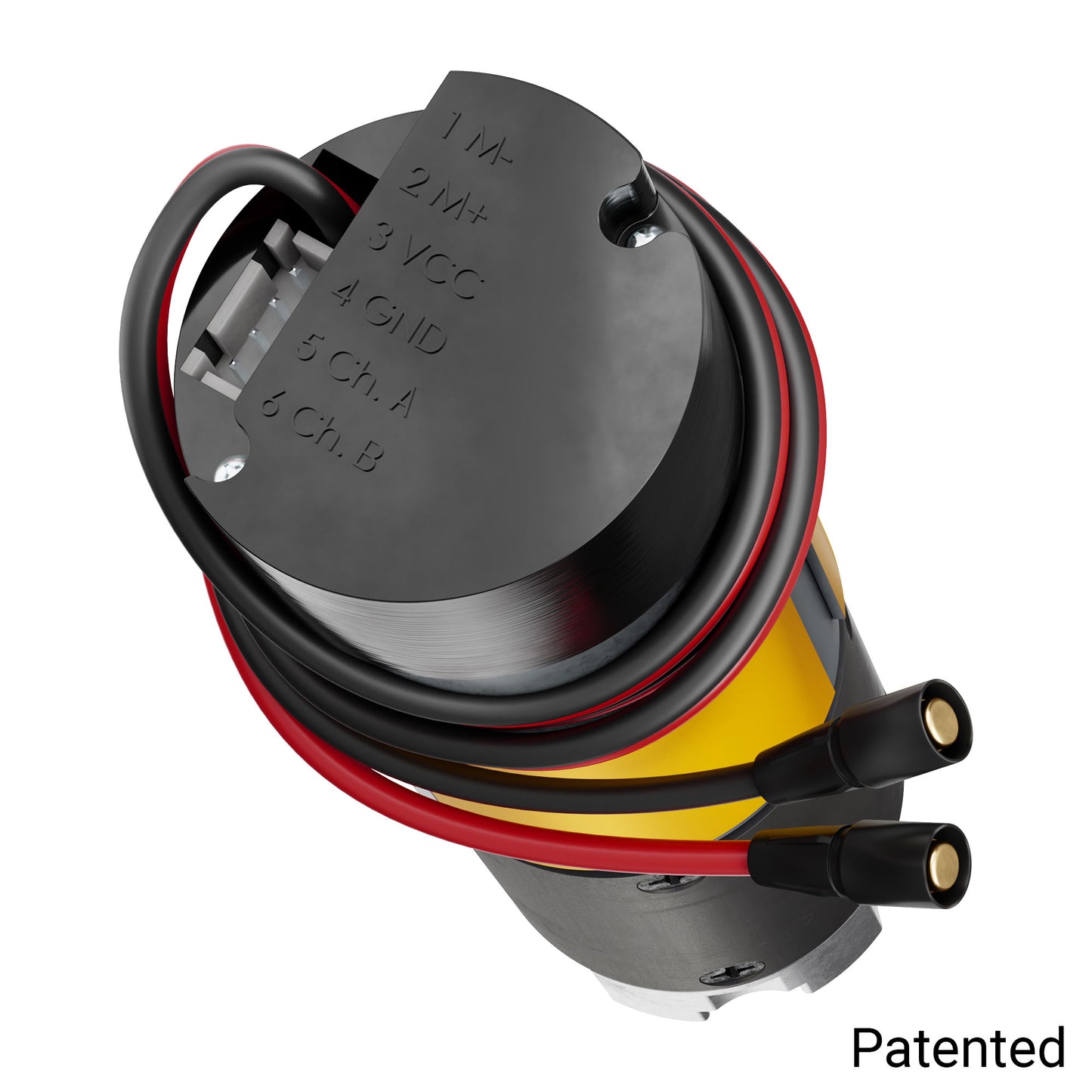

Motor Connector Type 3.5mm FH-MC Bullet Connectors

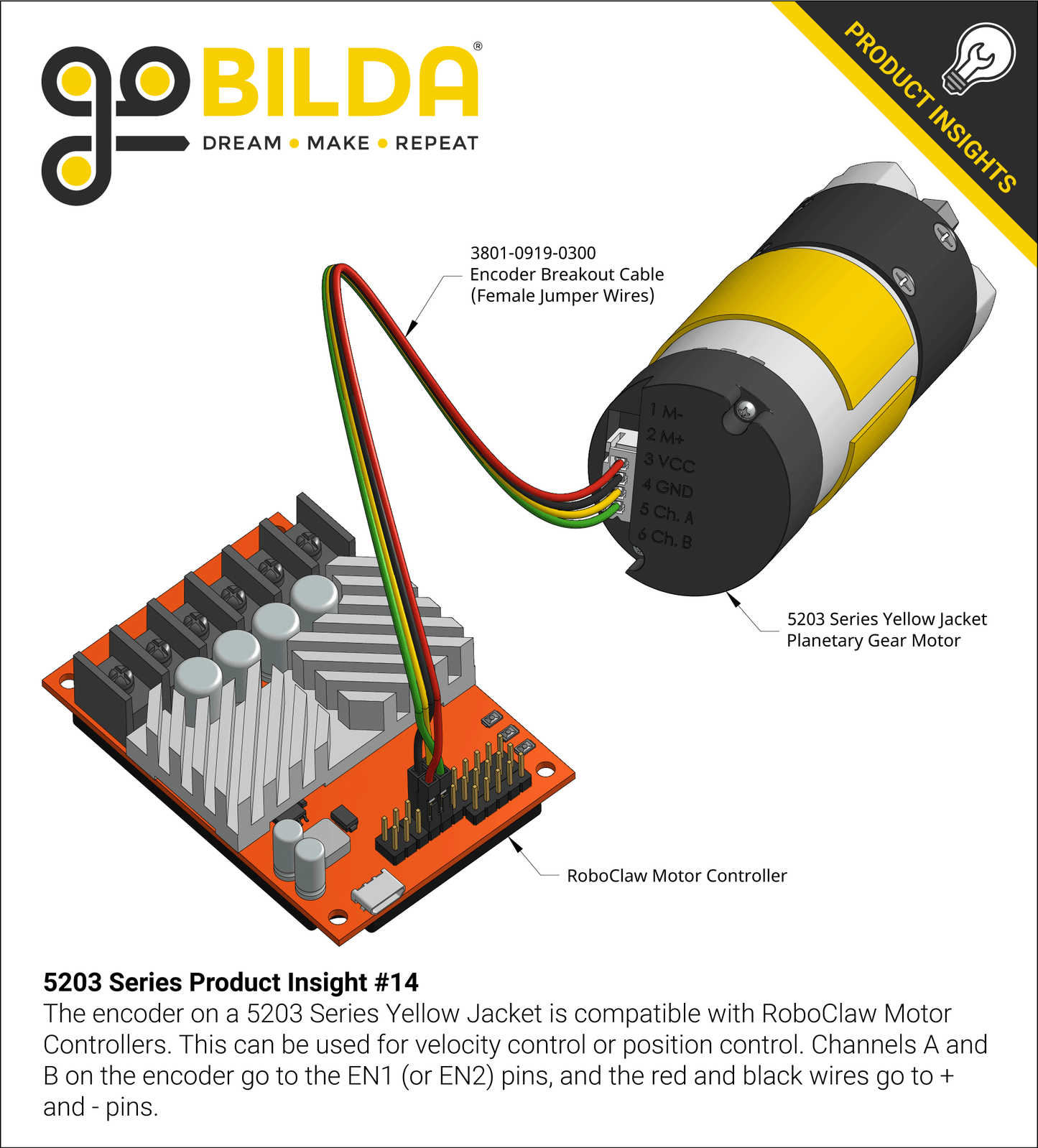

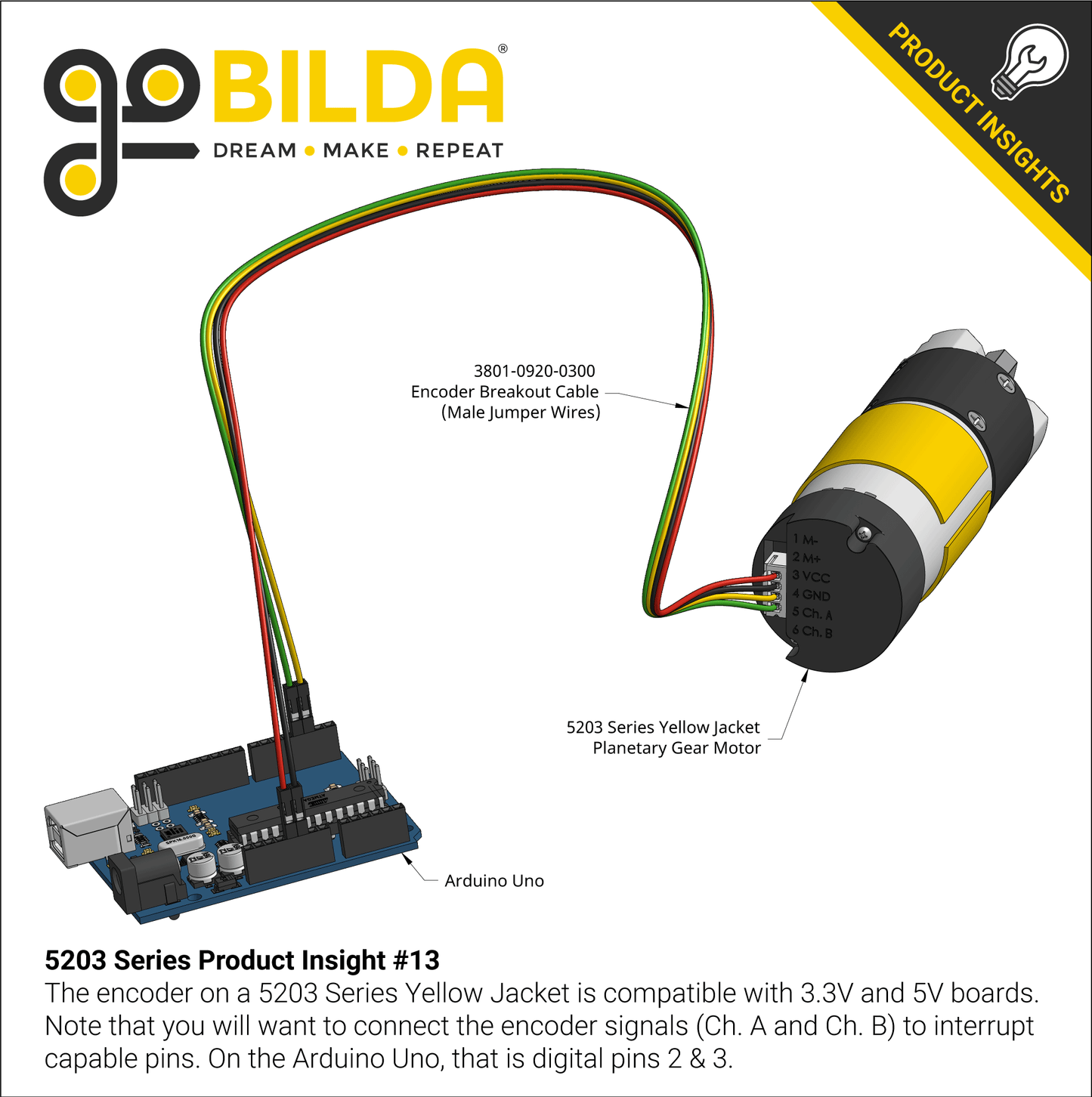

Encoder Connector Type 4-Pos JST XH [FH-MC]
Encoder Type Relative, Quadrature
Encoder Sensor Type Magnetic (Hall Effect)
Encoder Voltage Range 3.3 - 5VDC
Encoder Resolution 2,786.2 PPR at the Output Shaft
Encoder Resolution Formula ((((1+(46/17))) * (1+(46/11))) * (1+(46/11)) * 28)
Weight 486g
IP Patented
