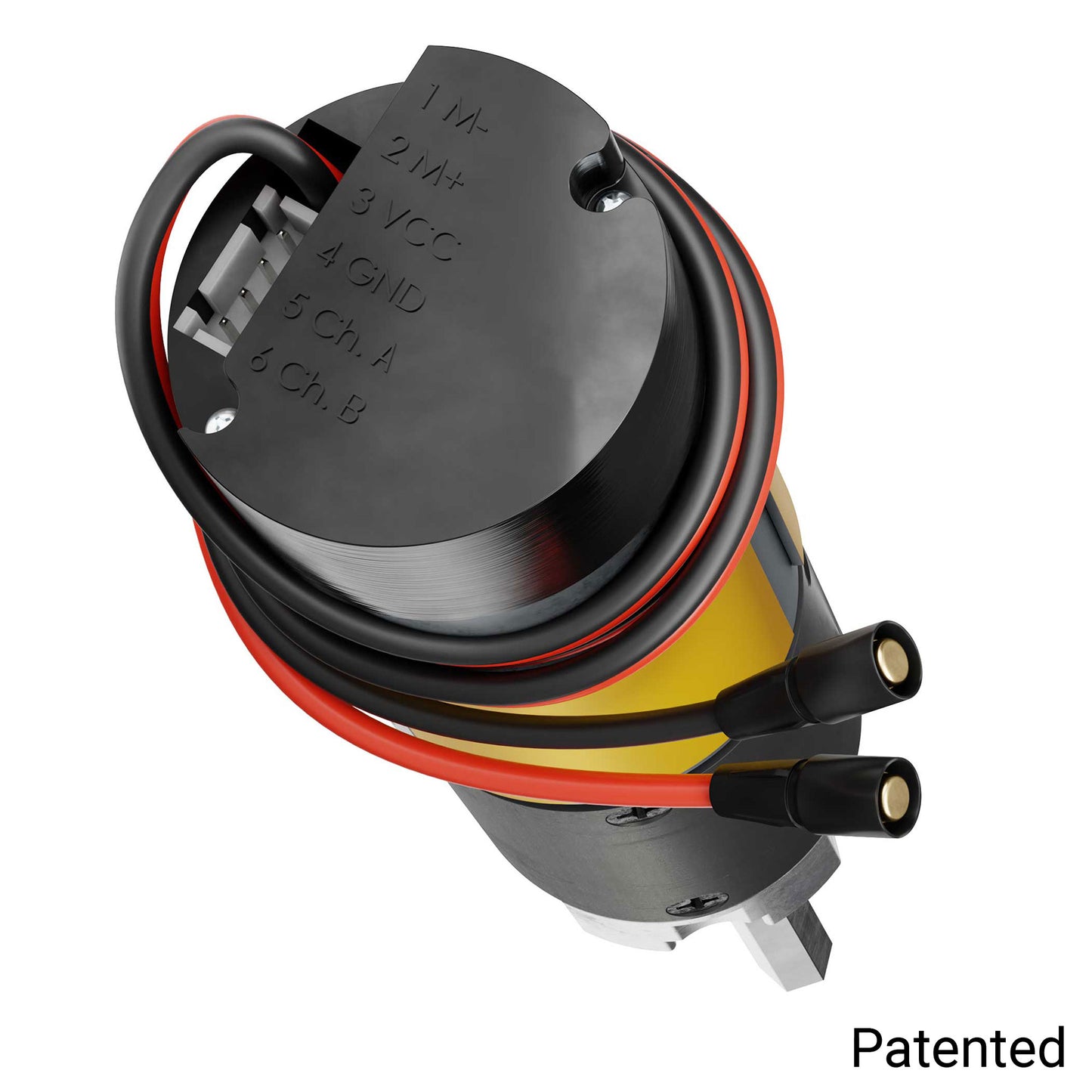

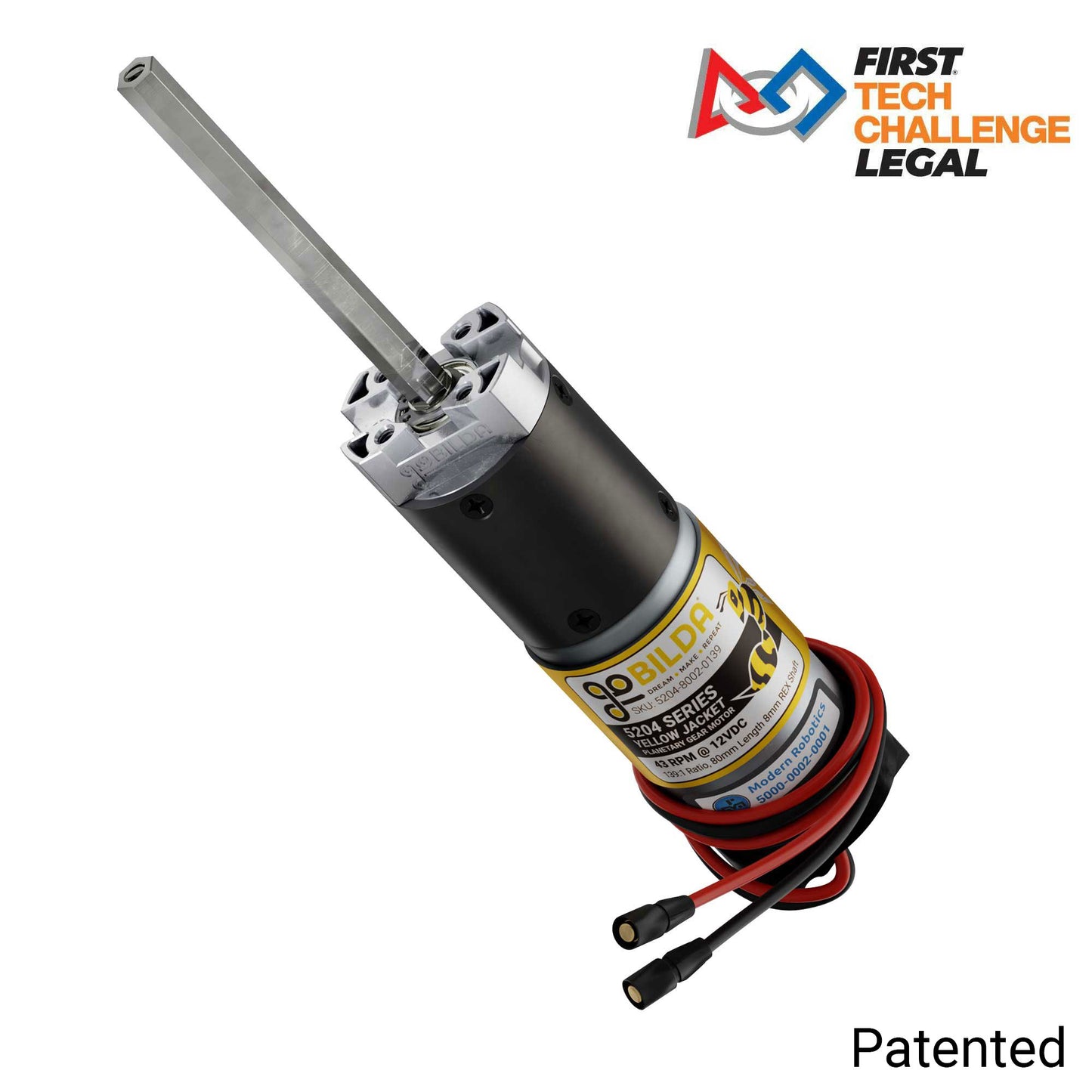

5204 Series Yellow Jacket Planetary Gear Motor (139:1 Ratio, 80mm Length 8mm REX™ Shaft, 43 RPM, 3.3 - 5V Encoder)

5204 Series Yellow Jacket Planetary Gear Motor (139:1 Ratio, 80mm Length 8mm REX™ Shaft, 43 RPM, 3.3 - 5V Encoder)

goBILDA parts we stock are ready to ship, otherwise with a 10-day lead time

SKU: GB-5204-8002-0139

Regular price $79.00 AUD
Regular price Sale price $79.00 AUD
Sale Sold out
View full details

Specs

Motor Size RS-555
Motor Type Brushed DC
Nominal Voltage 12VDC

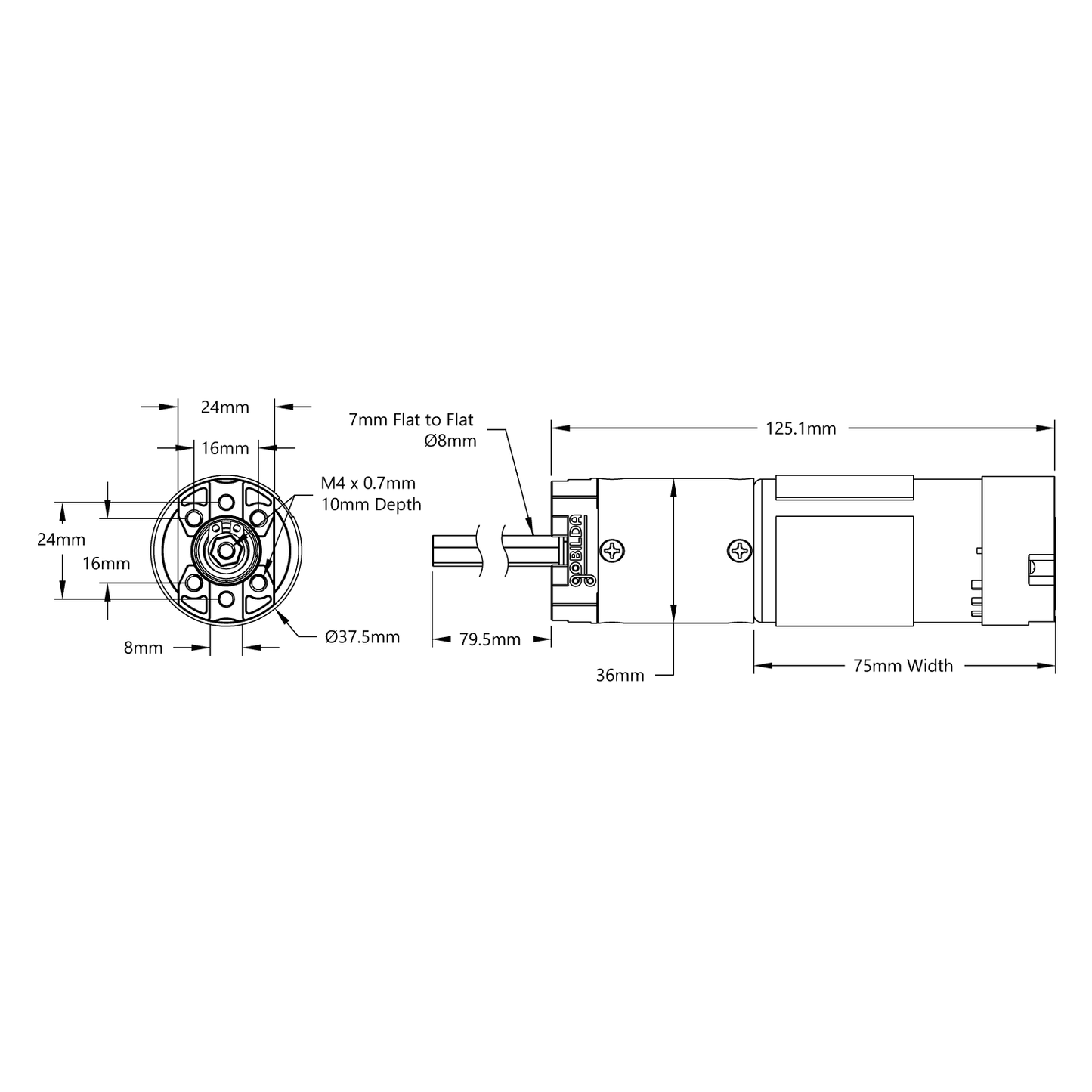

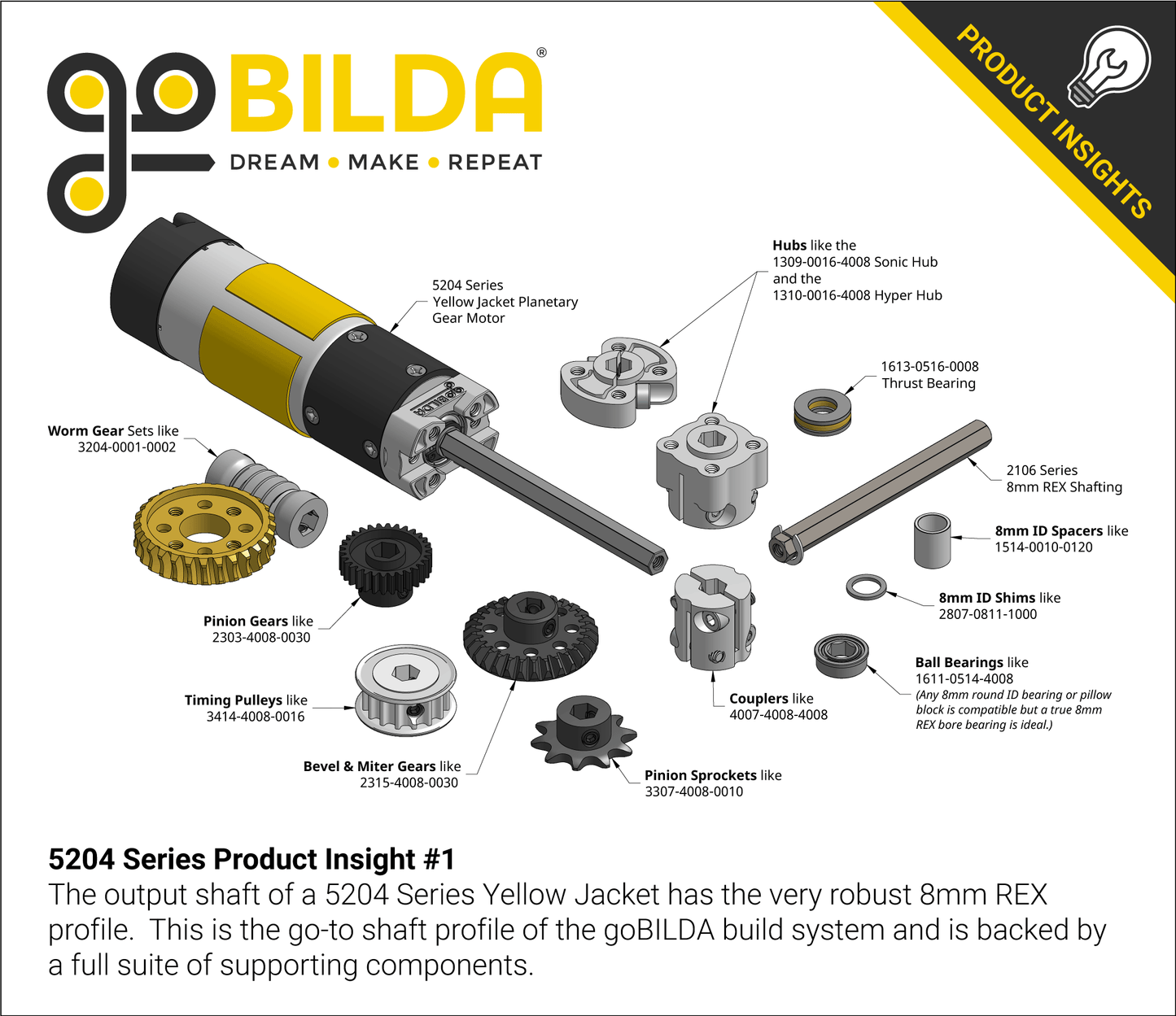

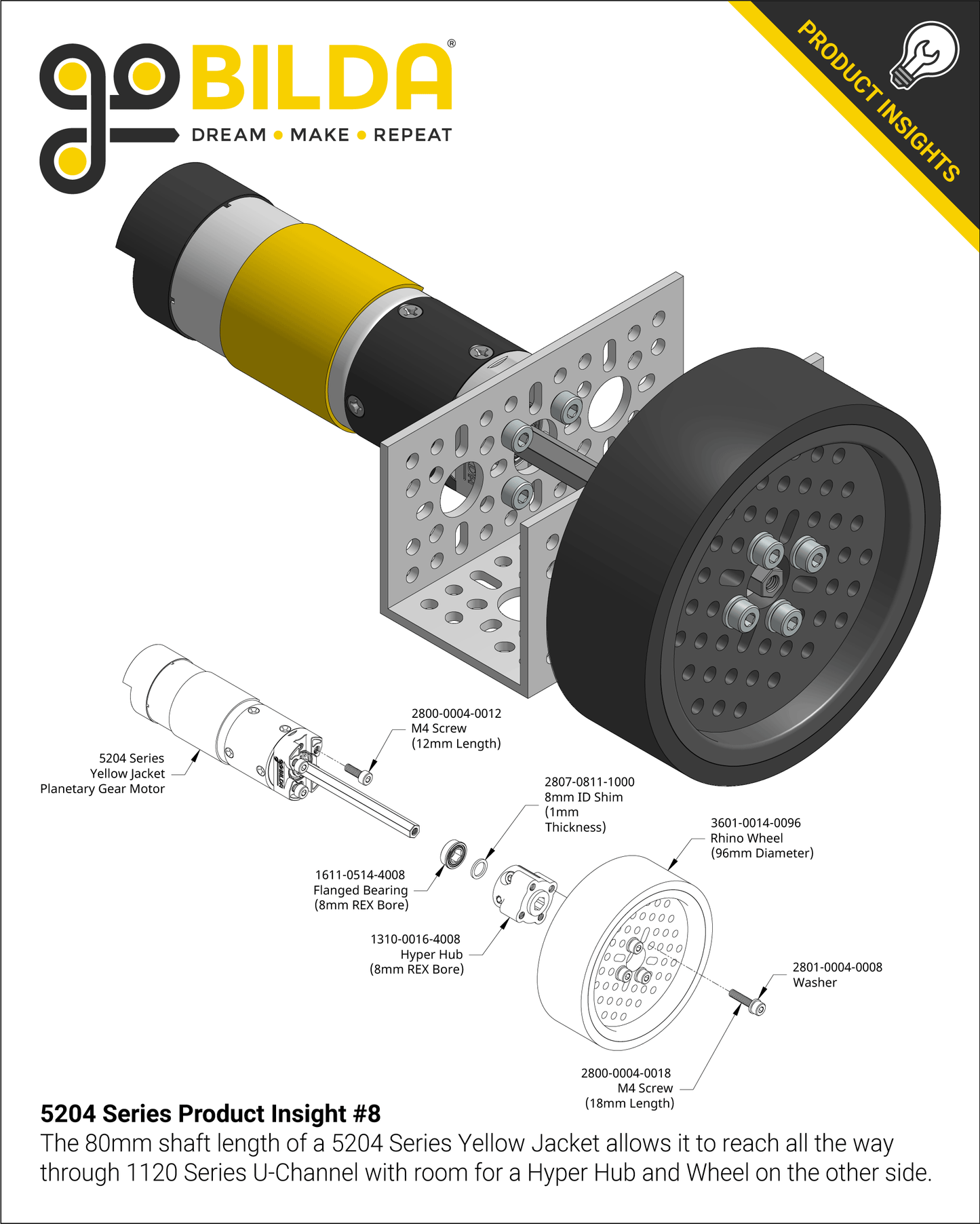

Output Shaft 8mm REX™, 80mm Length
Gearbox Style Planetary
Gear Ratio 139:1
Gear Ratio Formula (((1+(46/11))) * (1+(46/11))) * (1+(46/11))
Gear Material Steel
No-Load Speed @ 12VDC 43 RPM
No-Load Current @12VDC 0.25A
Stall Current @12VDC 9.2A
Stall Torque @12VDC 185 kg.cm (2,570 oz-in)
Wire Length 470mm (including connectors)
Wire Gauge 18AWG

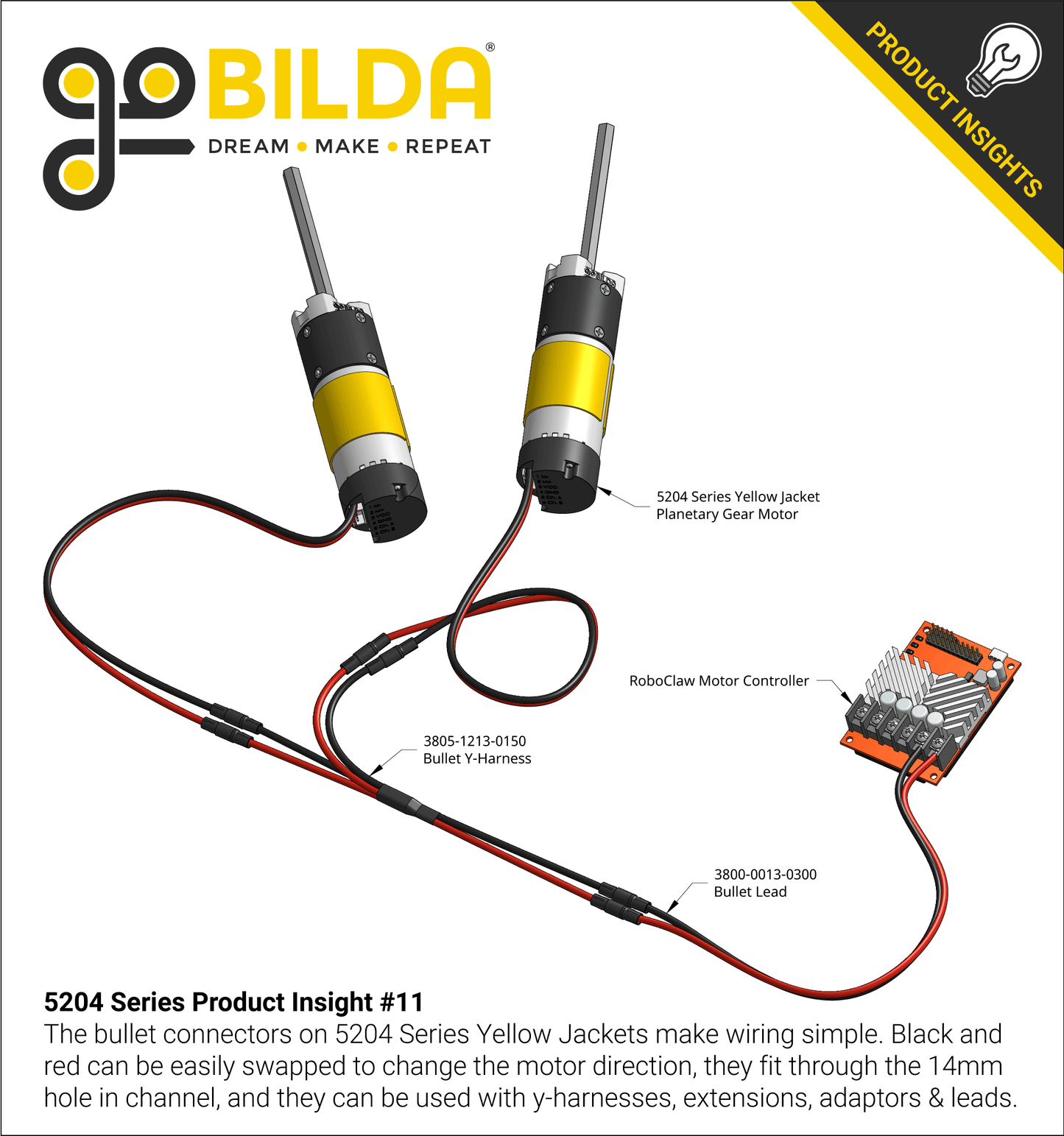

Motor Connector Type 3.5mm FH-MC Bullet Connectors
Encoder Connector Type 4-Pos JST XH [FH-MC]

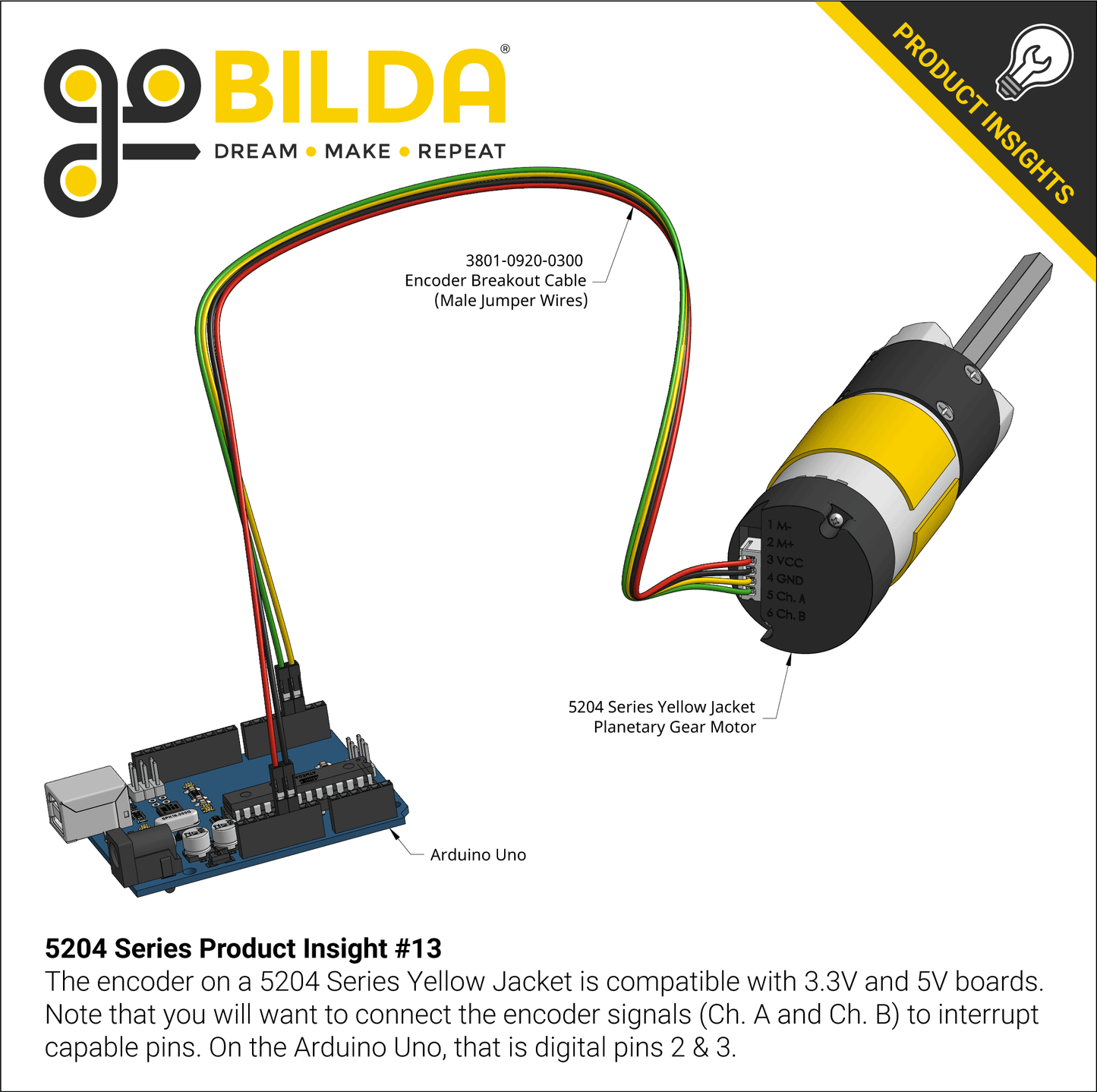

Encoder Type Relative, Quadrature
Encoder Sensor Type Magnetic (Hall Effect)
Encoder Voltage Range 3.3 - 5VDC
Encoder Resolution 3895.9 PPR at the Output Shaft
Encoder Resolution Formula ((((1+(46/11))) * (1+(46/11))) * (1+(46/11)) * 28)
Weight 501g
IP Patented
