5304 Series Saturn Planetary Gear Motor (139:1 Ratio, 80mm Length 8mm REX™ Shaft, 130 RPM, 3.3 - 5V Encoder)

5304 Series Saturn Planetary Gear Motor (139:1 Ratio, 80mm Length 8mm REX™ Shaft, 130 RPM, 3.3 - 5V Encoder)

goBILDA parts we stock are ready to ship, otherwise with a 10-day lead time

SKU: GB-5304-8002-0139

Regular price $101.00 AUD
Regular price Sale price $101.00 AUD
Sale Sold out
View full details

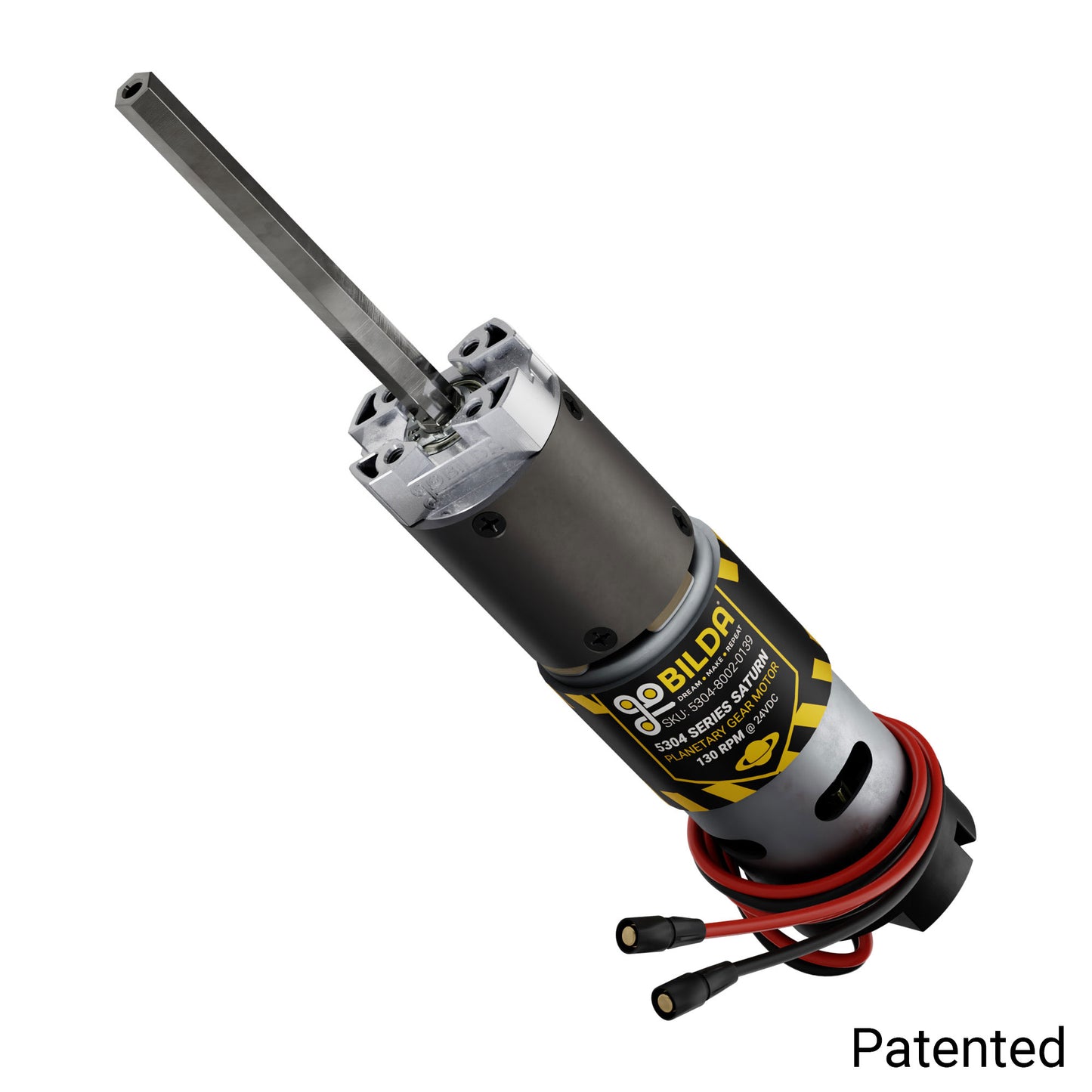

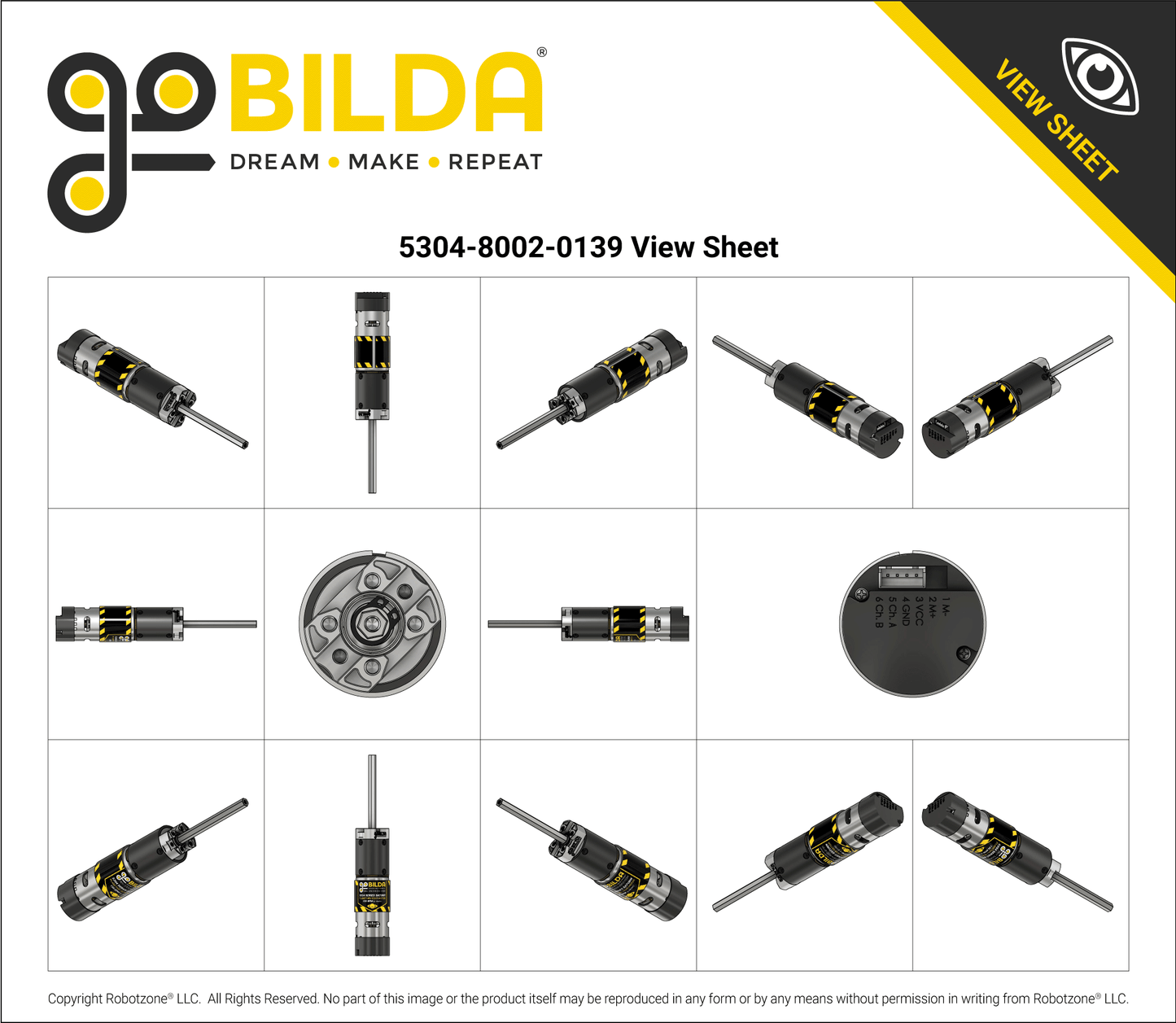

This 139:1 ratio 5304 Series Saturn Planetary Gear Motor consists of a 24V brushed DC motor driving a 36mm diameter planetary gearbox. It runs at a no-load speed of 130 RPM when 24VDC is applied. While this motor’s nominal voltage is 24V, you can give it plenty of punch with the ever-convenient 20V power tool battery system!

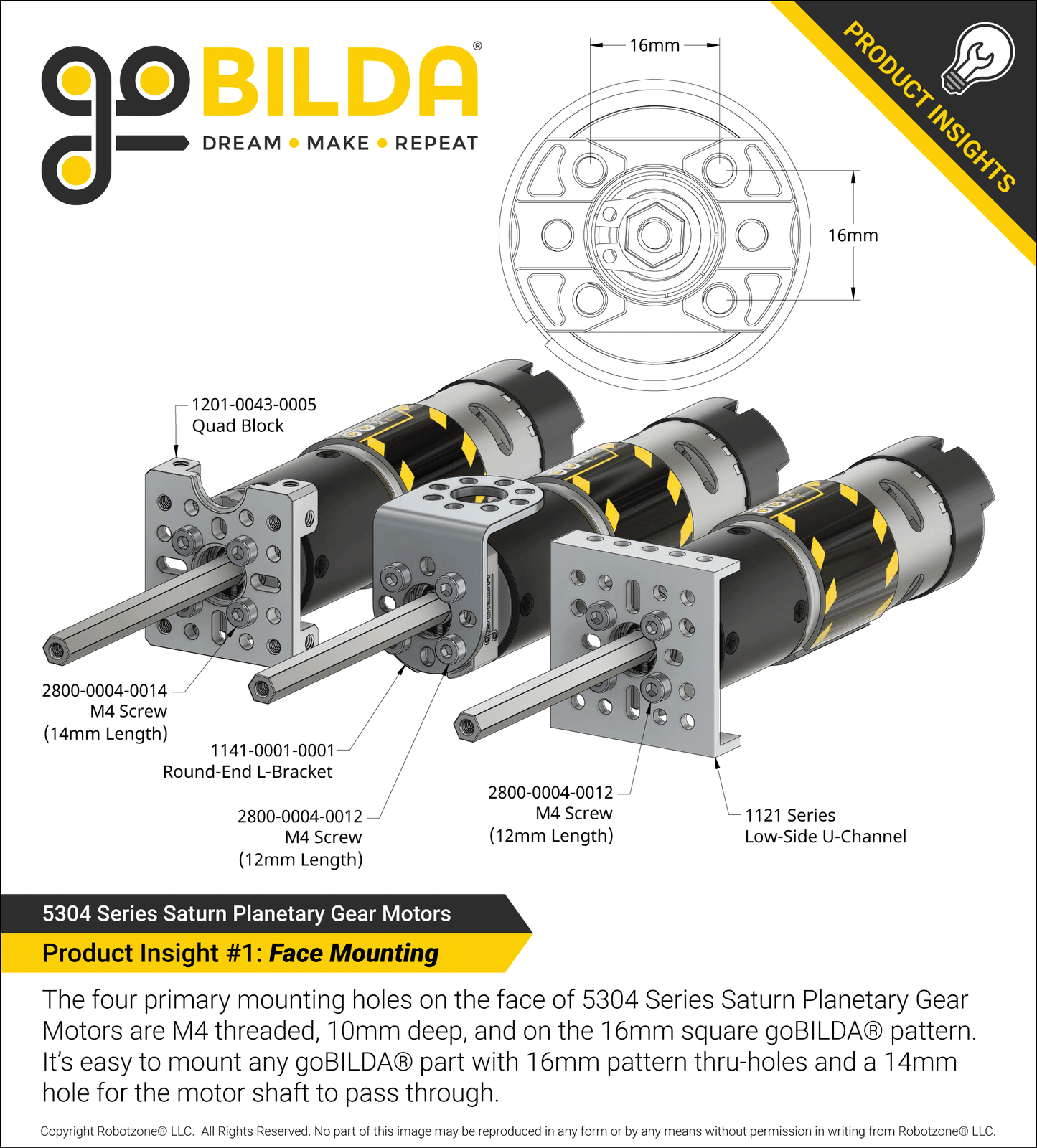

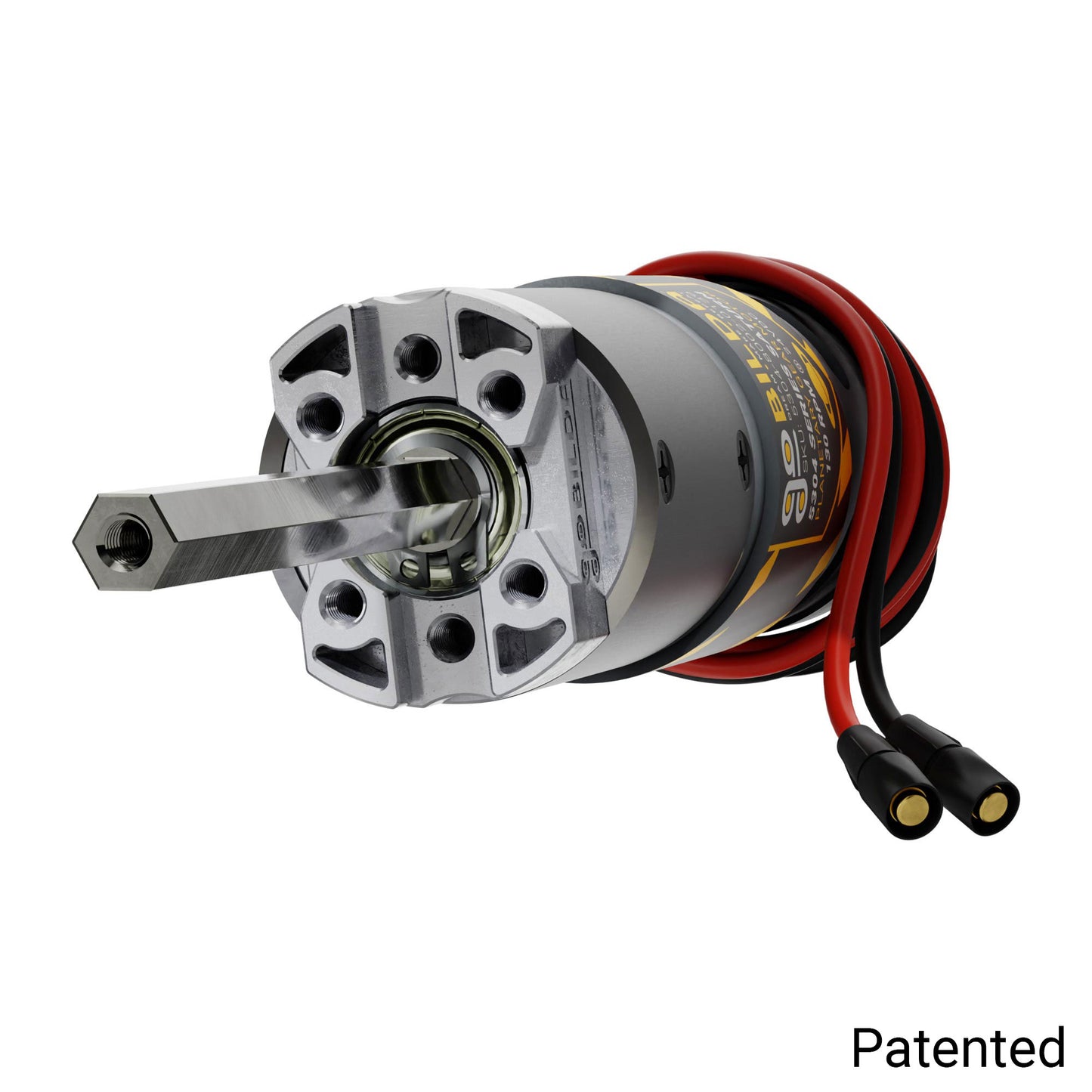

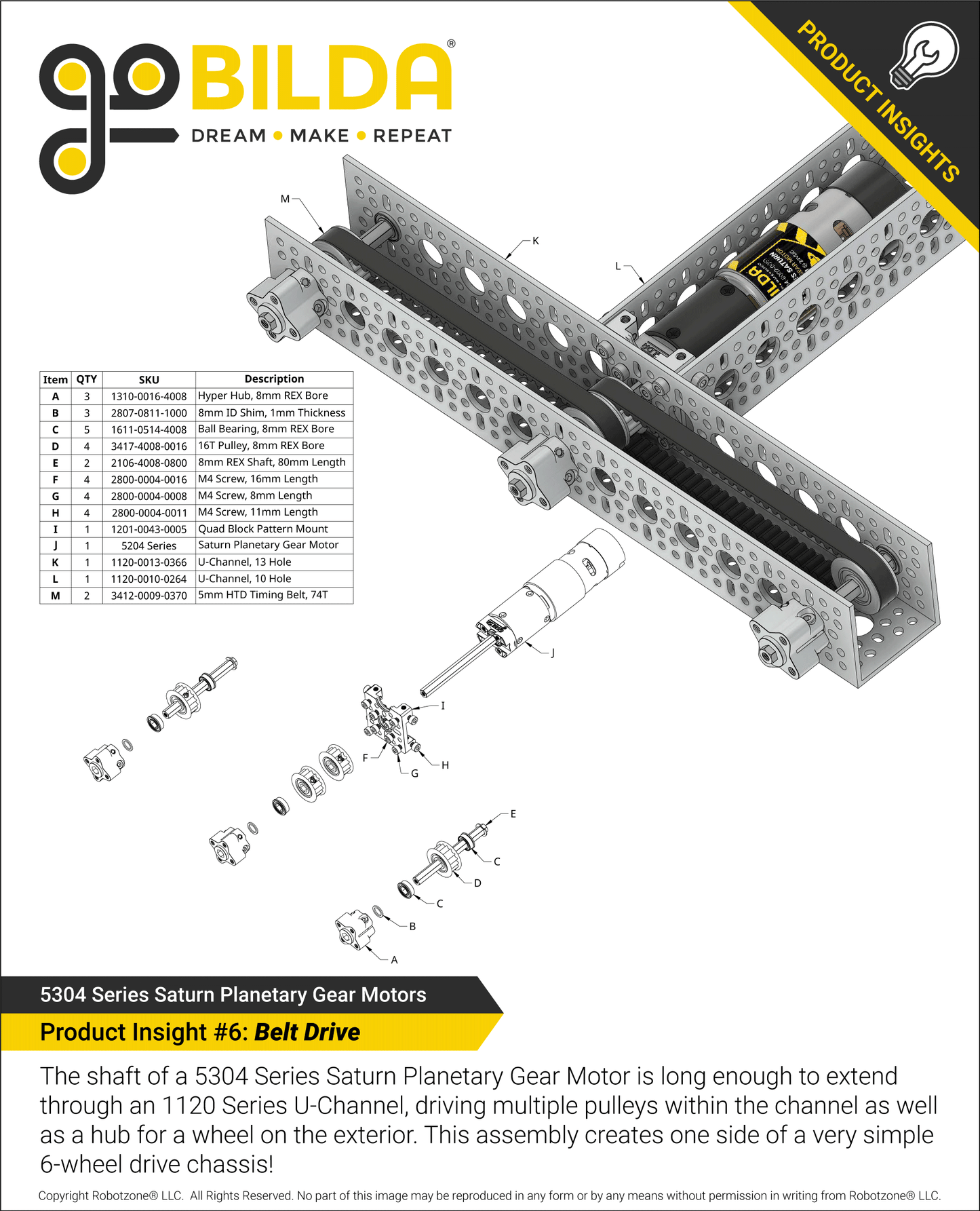

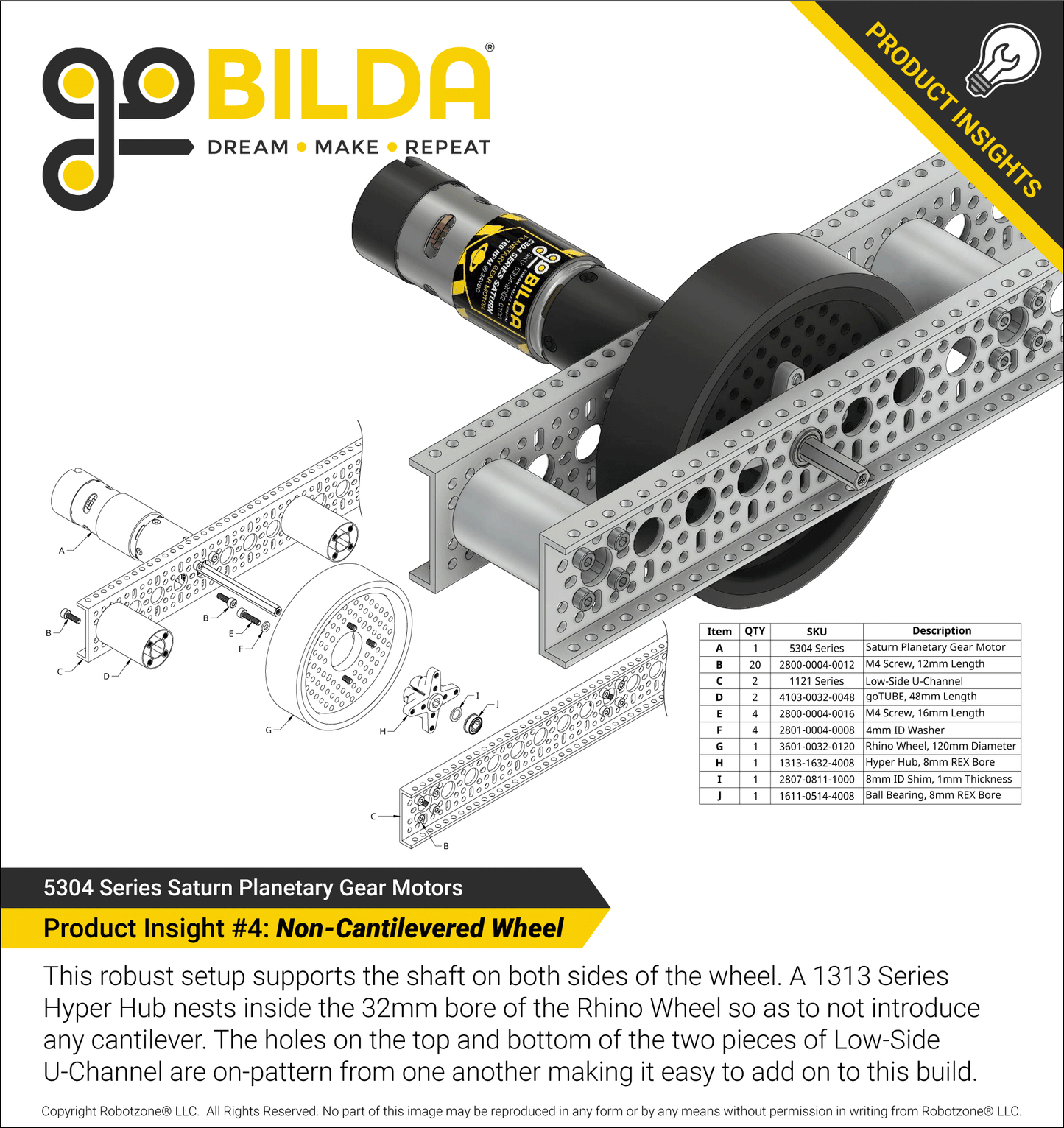

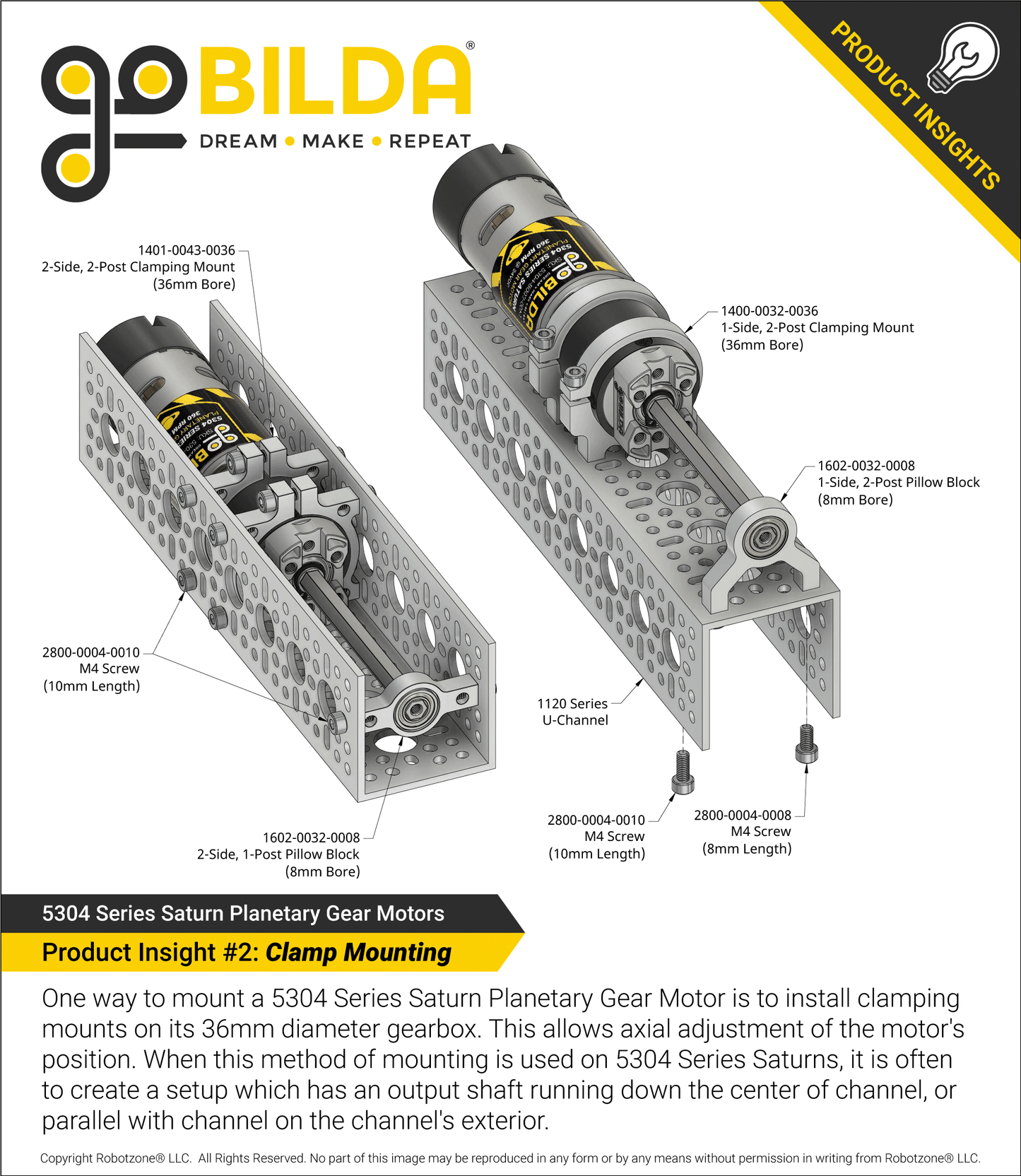

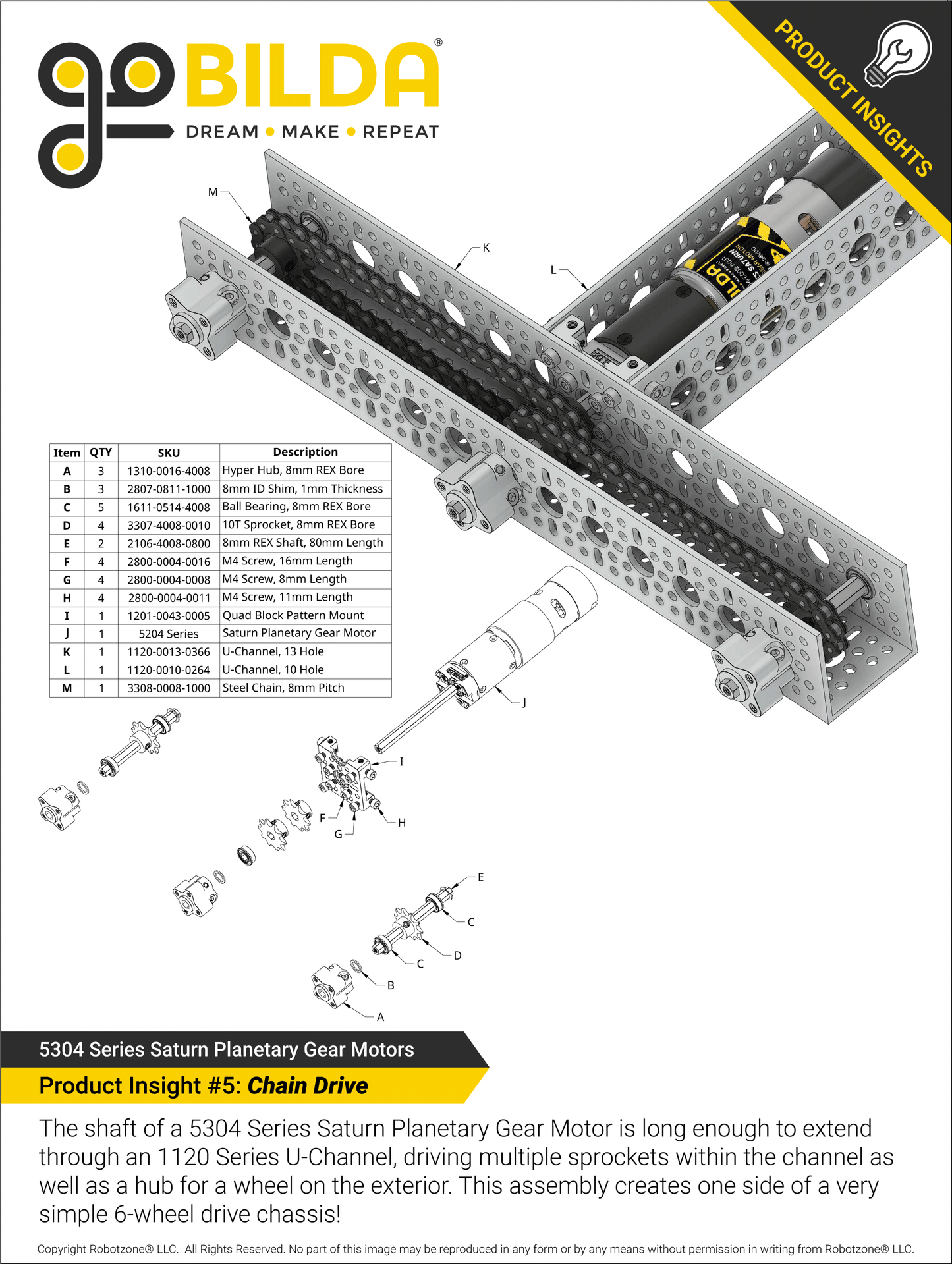

The positive drive 8mm REX shaft, which can be supported by an 8mm round bore bearing, has compatibility with a huge variety of goBILDA® motion components. Additionally, this motor’s specially-designed gearbox head allows for direct attachment to goBILDA® components in numerous use-cases made possible by its convenient shape.

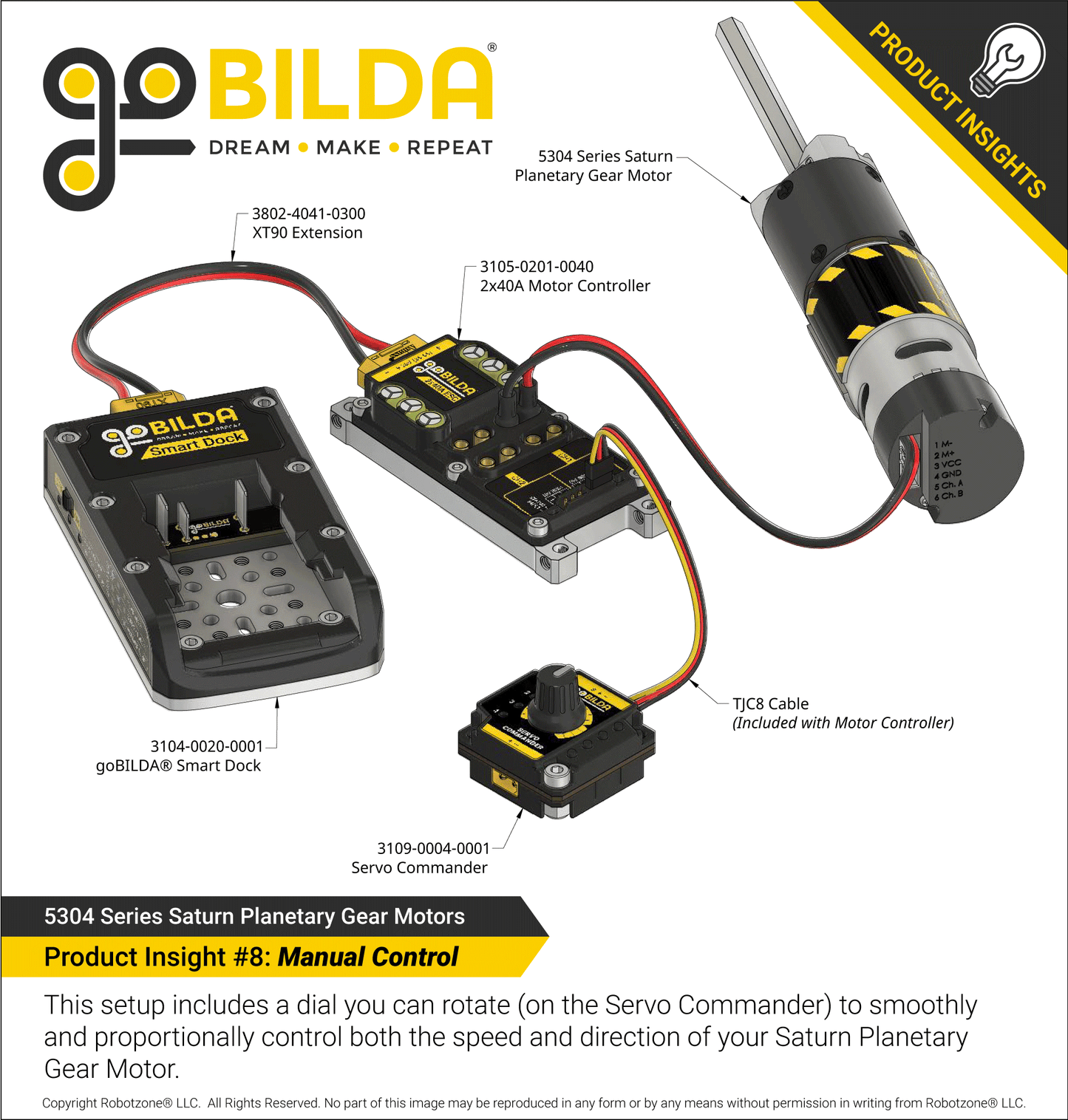

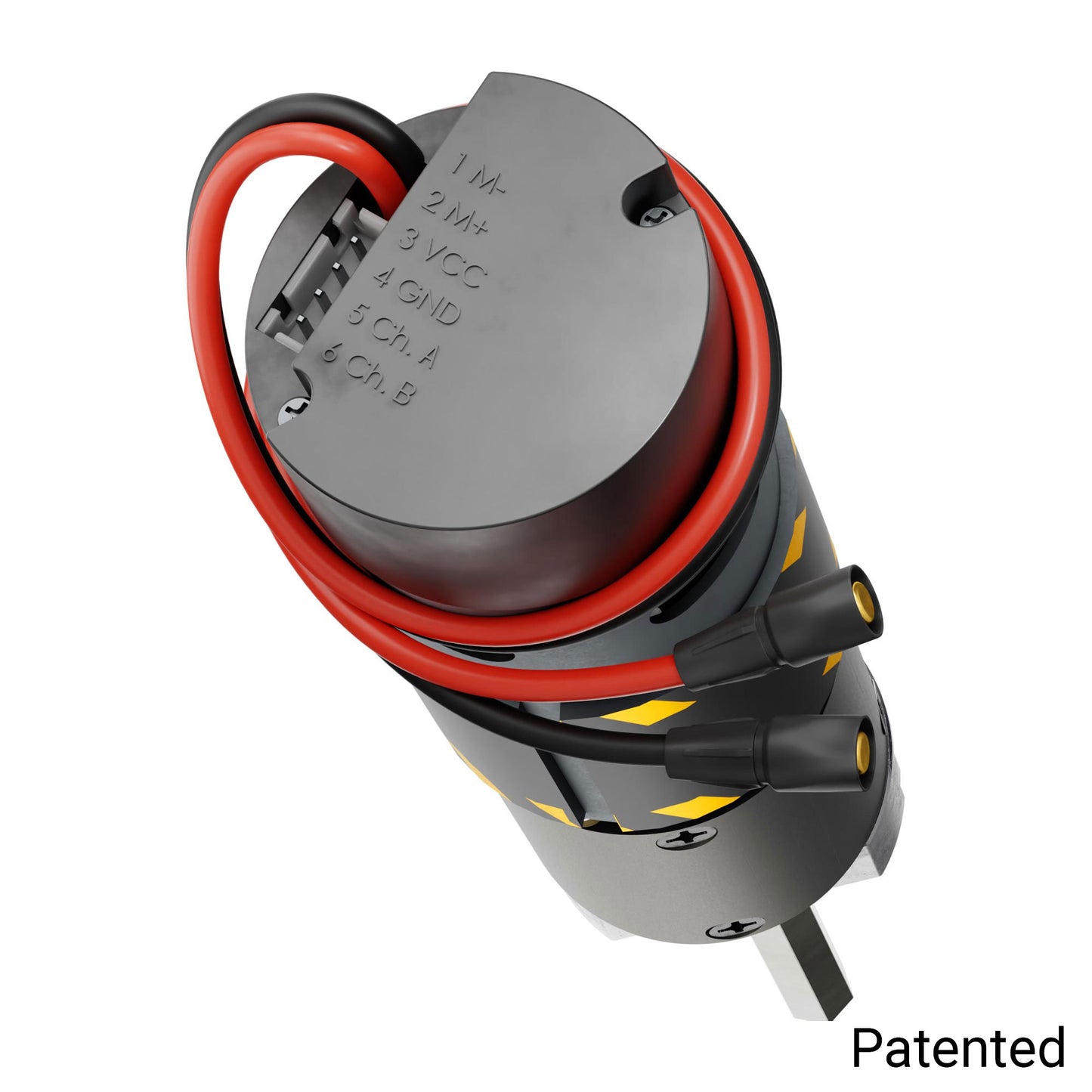

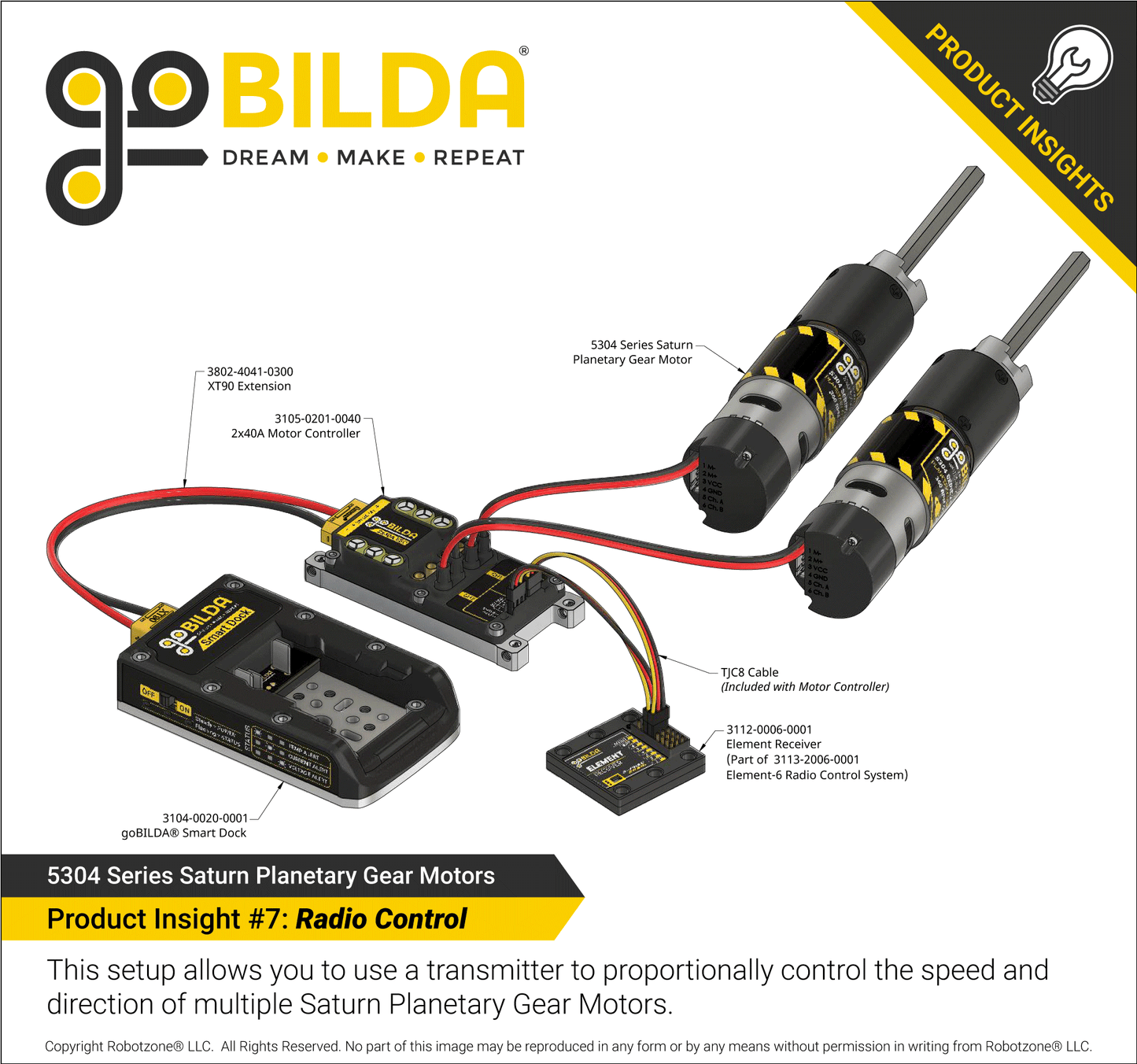

The two power wires provide plug-and-play compatibility with goBILDA® motor controllers via 3.5 bullet connectors. You don’t need to use the encoder during normal operation, but you can tap into it with a JST XH plug to bring position and velocity control to your project.

⚠️WARNING: Stalling this motor may cause irreparable damage!This motor is extremely high-power. Use extreme caution when using it in applications with hard limits, such as linear slides and rotating arms.

Specs

Motor Size RS-560
Motor Type Brushed DC
Nominal Voltage 24VDC

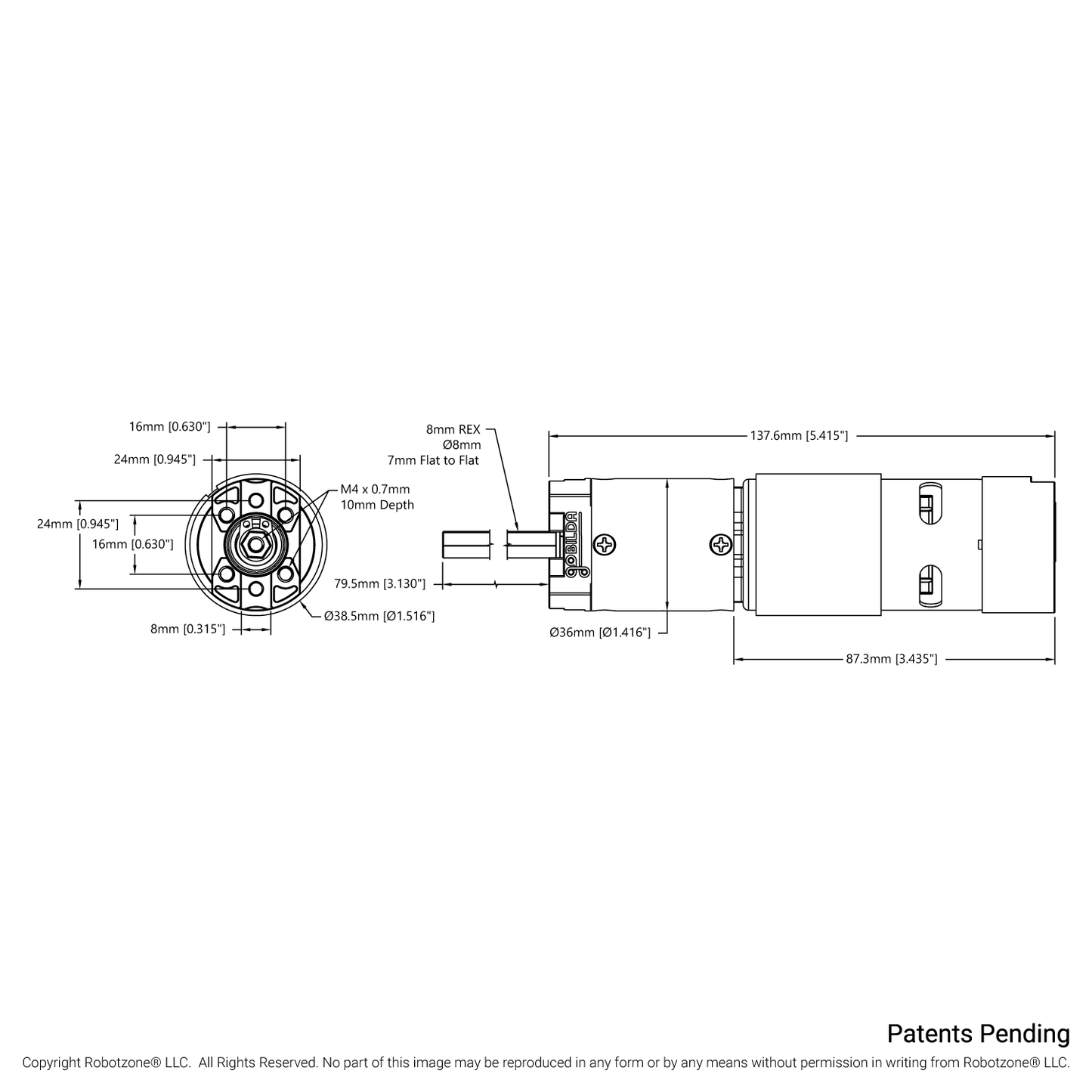

Output Shaft 8mm REX™, 23.5mm Length
Gearbox Style Planetary
Nominal Gear Ratio 139:1
Gear Ratio Formula (1+(46/11)) * (1+(46/11)) * (1+(46/11))
Gear Material Steel
Wire Length 470mm (including connectors)
Wire Gauge 18AWG
Motor Connector Type 3.5mm FH-MC Bullet Connectors
No-Load Speed

70 RPM @ 12VDC
120 RPM @ 20VDC
130 RPM @ 24VDC

No-Load Current

0.8A @ 12VDC
1A @ 20VDC
1.3A @ 24VDC

Stall Torque

3900 oz-in (281 kg.cm) @ 12VDC
5320 oz-in (383 kg.cm) @ 20VDC
6739 oz-in (485 kg.cm) @ 24VDC

Stall Current

30A @ 12VDC
45A @ 20VDC
60A @ 24VDC

Maximum Duty-Cycle at Rated Torque 25% on, 75% off (Maximum 15 minutes Continuous)
Rated Torque

701 oz-in (50.5 kg.cm) @ 12VDC
960 oz-in (68.8 kg.cm) @ 20VDC
1211 oz-in (87.2 kg.cm) @ 24VDC

Speed at Rated Torque

57 RPM @ 12VDC
98 RPM @ 20VDC
107 RPM @ 24VDC

Current Draw at Rated Torque

6A @ 12VDC
8A @ 20VDC
11A @ 24VDC

Encoder Type Relative, Quadrature
Encoder Sensor Type Magnetic (Hall Effect)
Encoder Voltage Range 3.3-5VDC
Encoder Resolution 3895.9 PPR at the Output Shaft
Encoder Resolution Formula (1+(46/11)) * (1+(46/11)) * (1+(46/11)) * 28
Encoder Connector Type 4-Pos JST XH [FH-MC]
Weight 558g
IP Patented
