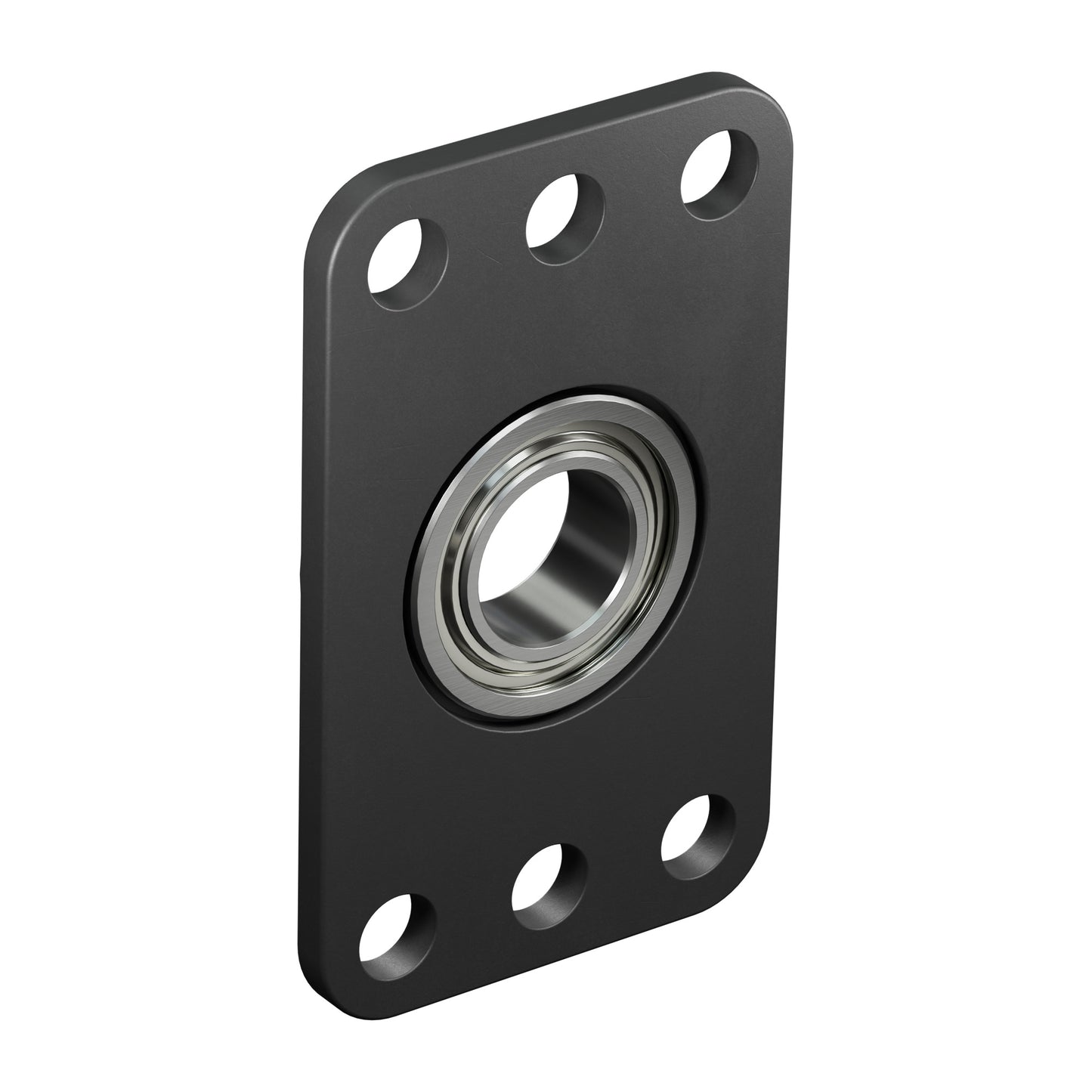

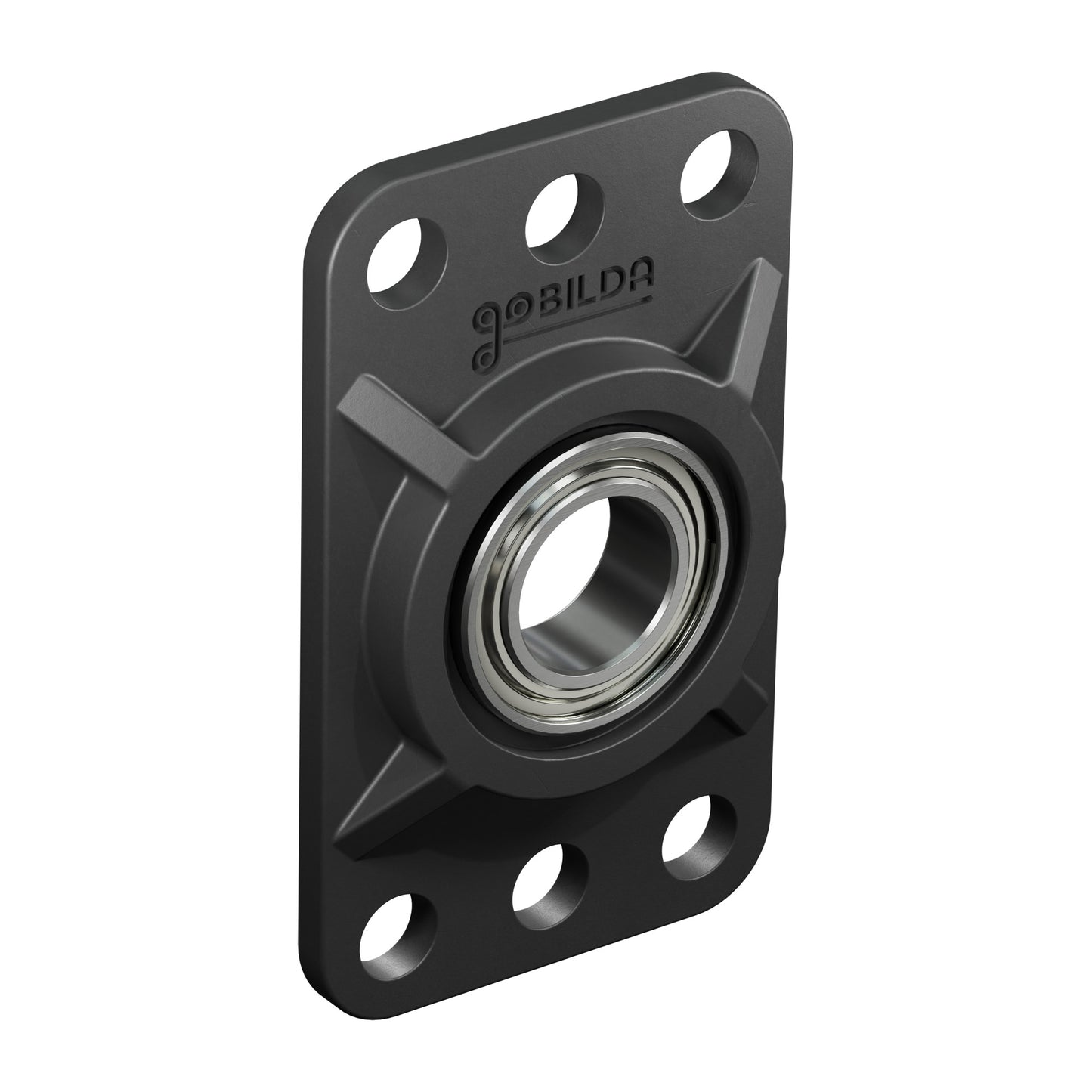

This 8mm Bore Flat Pillow Block consists of a bearing and the flat plastic casing it press-fits into. The flange of the bearing is flush with the back of the casing so that when the pillow block is bolted to a flat surface, the bearing is fully constrained.

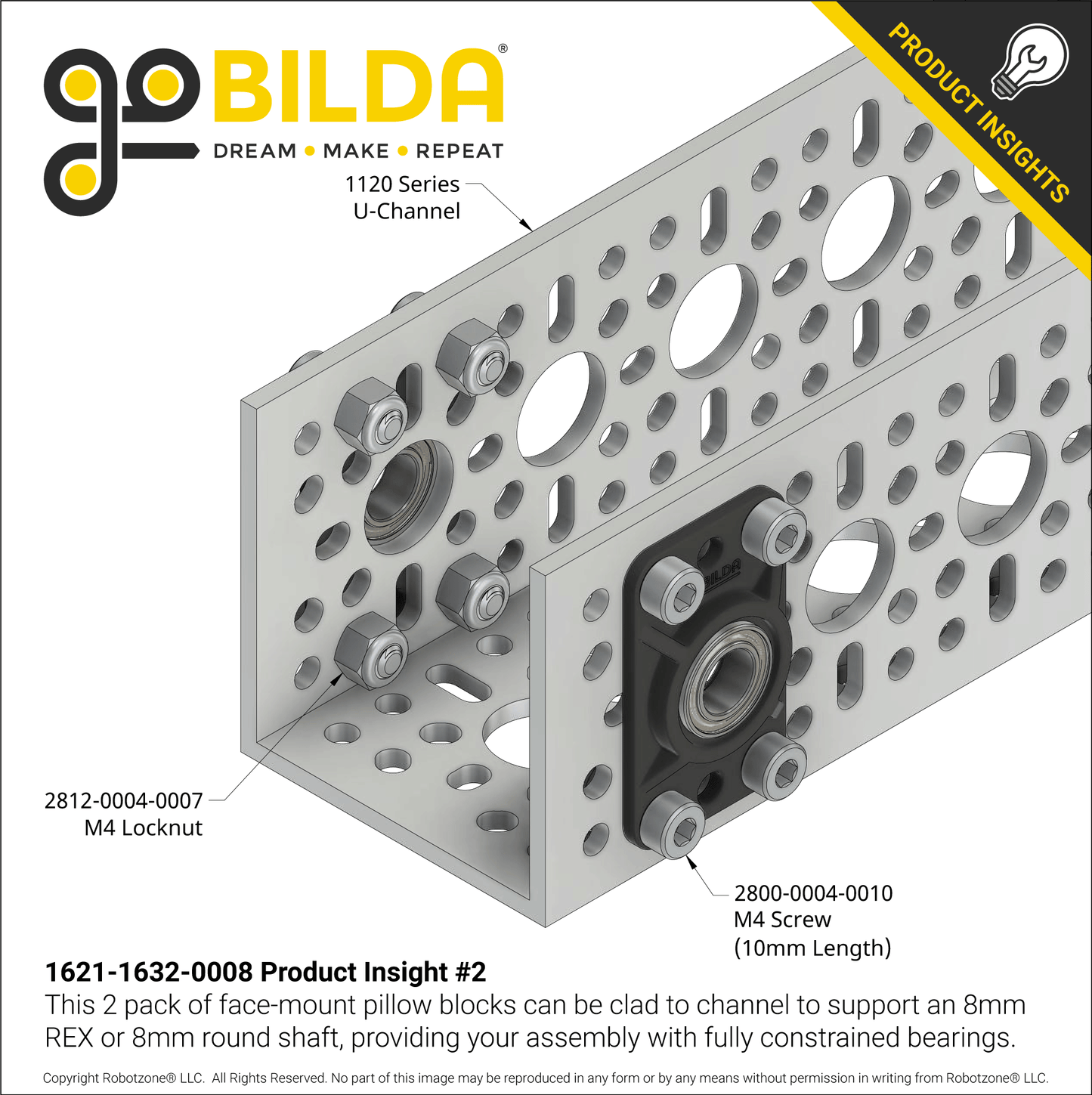

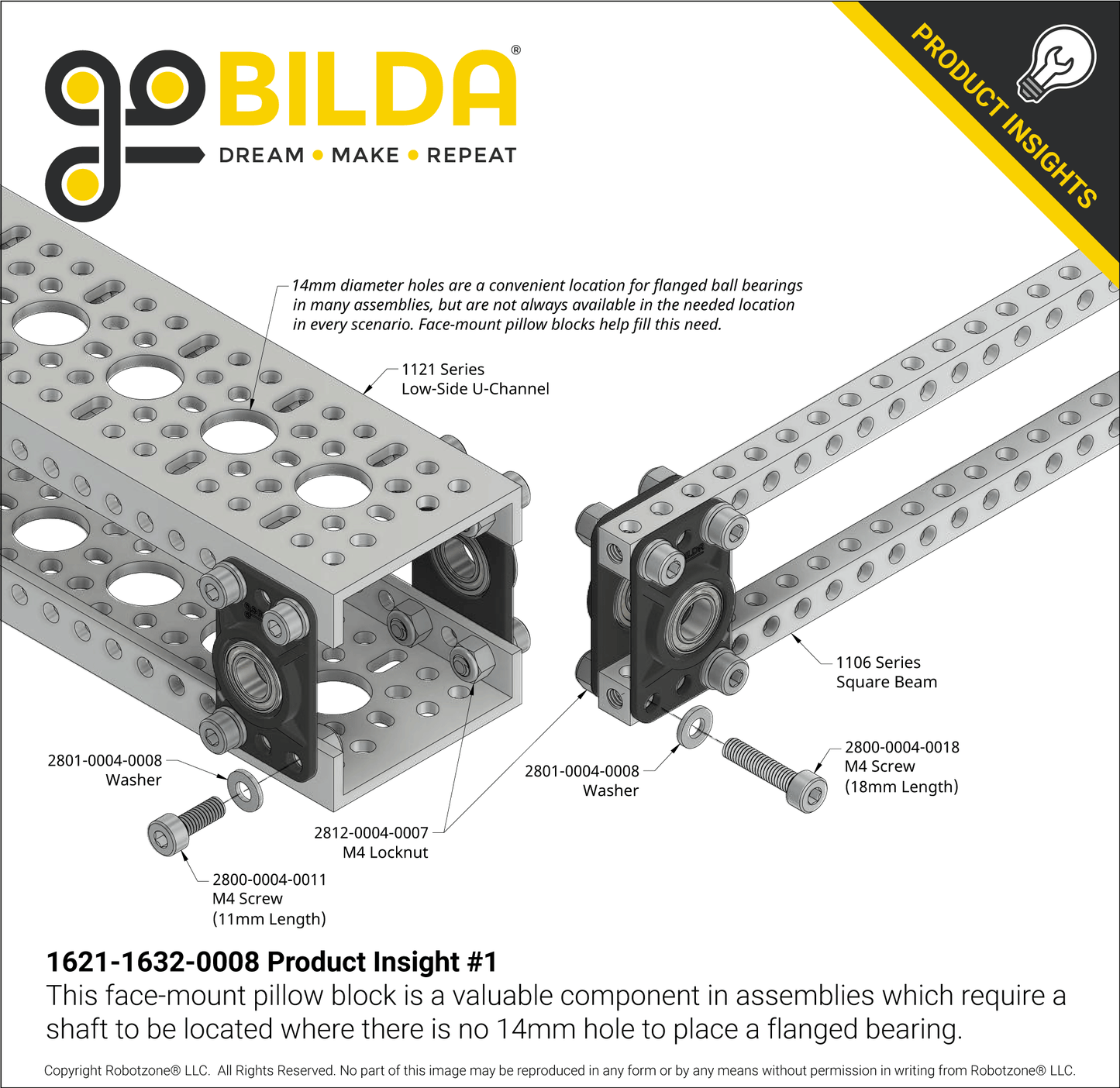

This pillow block’s compact dimensions and goBILDA® 16mm pattern holes (with two additional 8mm pattern center holes) allow for unique use-cases. You can fit it side-by-side with other Flat Pillow Blocks so that their shafts are held 24mm apart from one another!
Specs
| Weight | 5.4g Each |
|---|---|
| Material | Fiber-Reinforced Plastic Housing, High-Carbon Steel Bearing |
