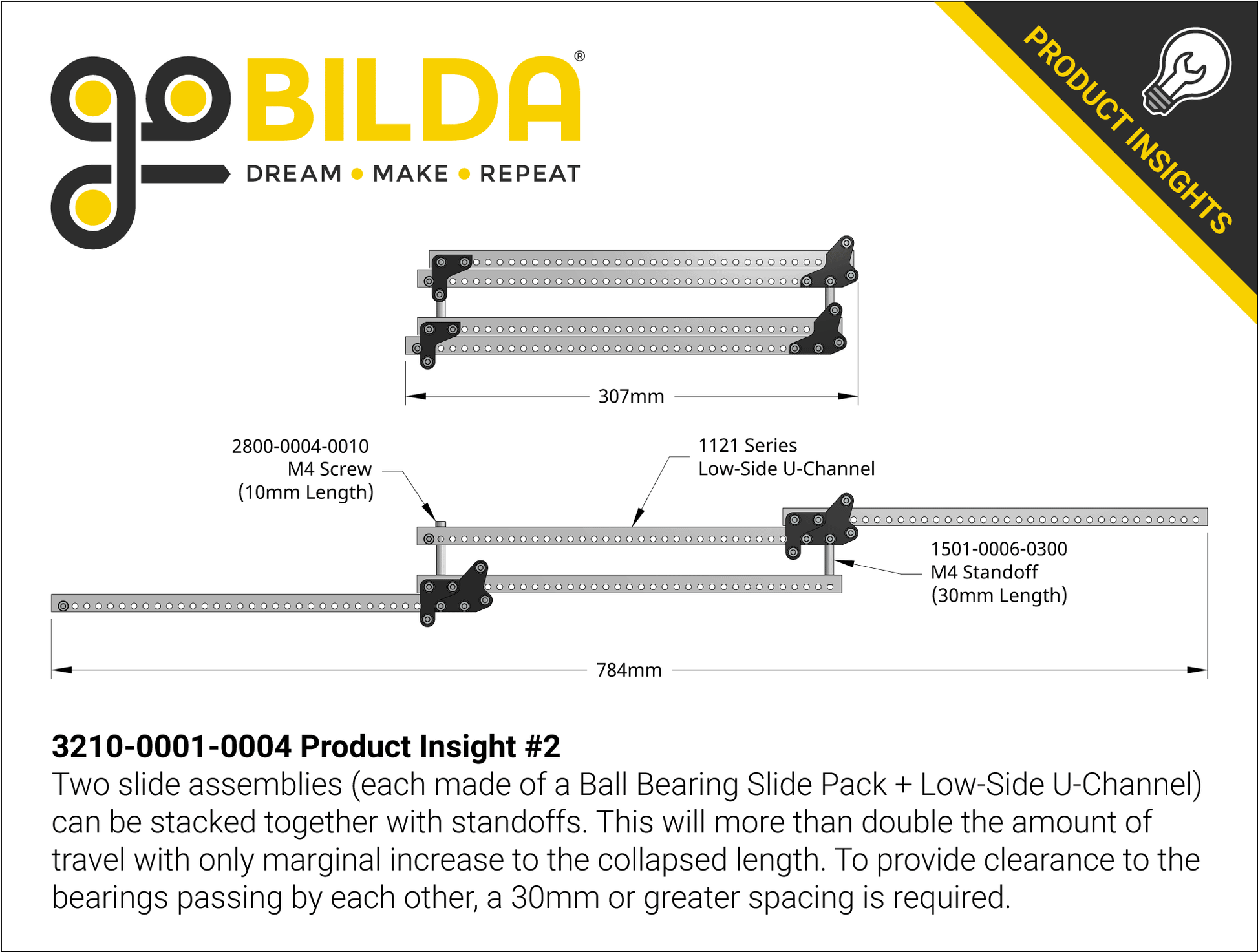

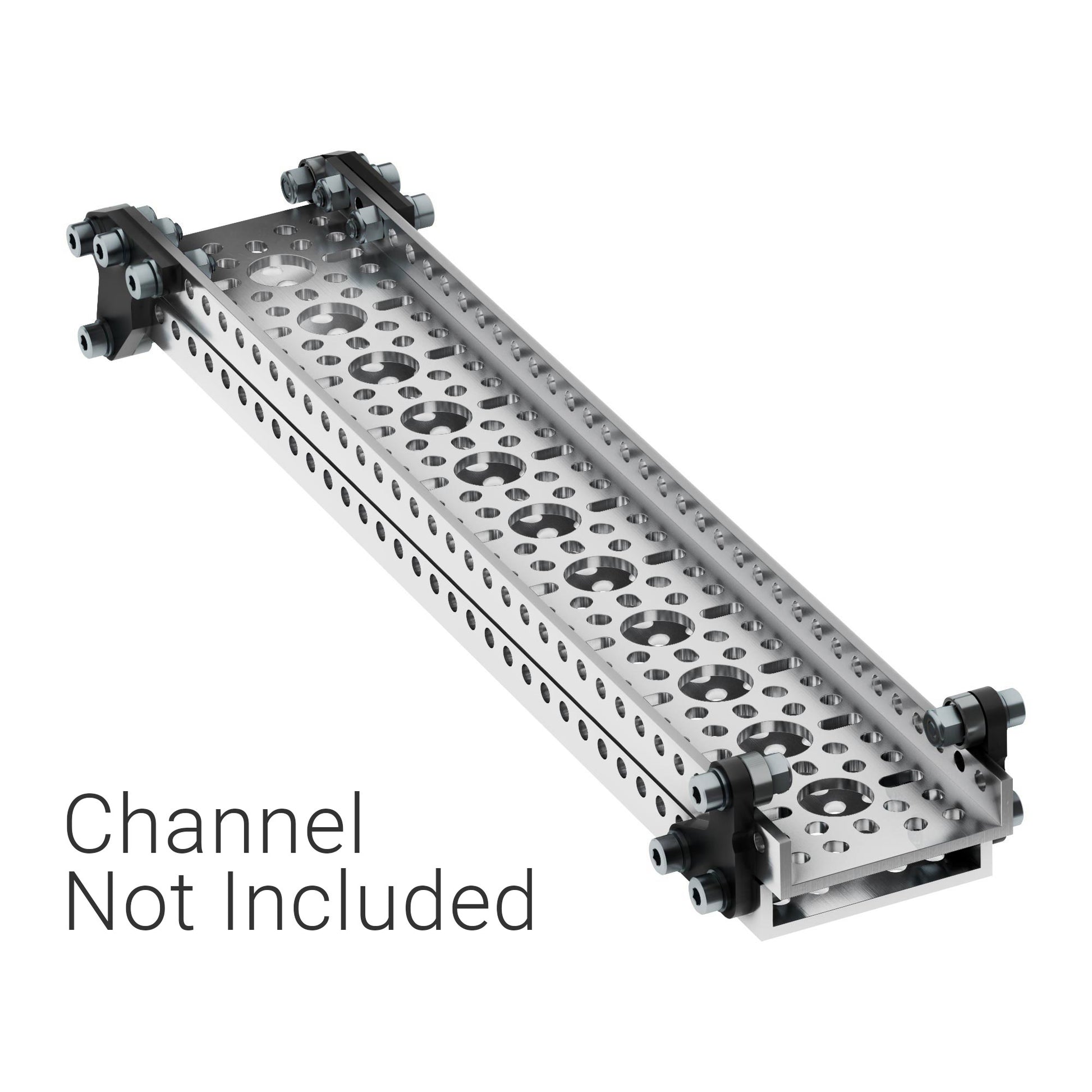

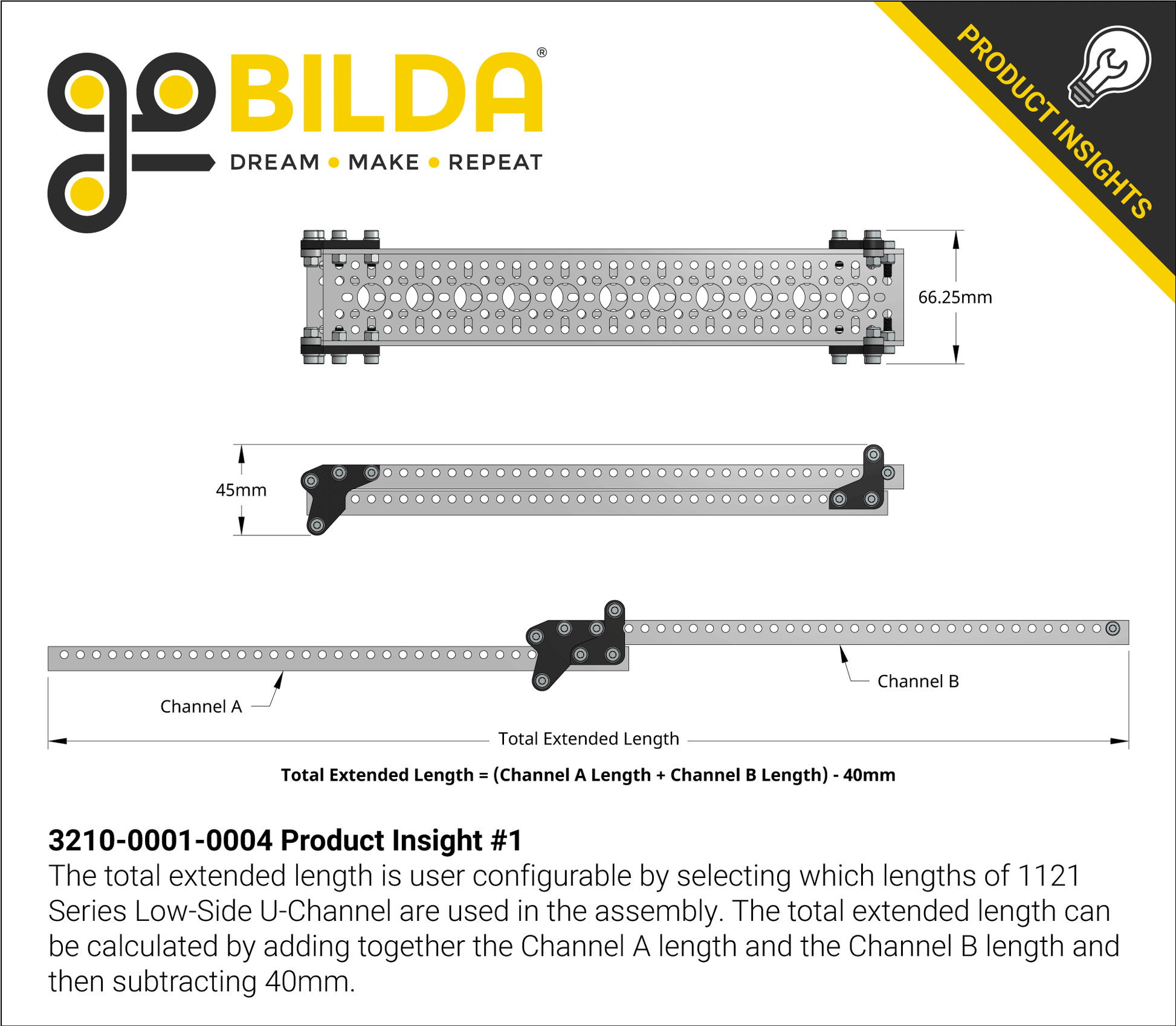

This little kit of parts yields some big build opportunities! The slide pack has all the necessary parts to make one 1121 Series Low-Side U-Channel cascade over another, much like an extension ladder does. Each end contains four bearings so that the two channels you choose to use are locked together and help support one-another. When collapsed, the setup adds a mere 8mm to the overall length of two equal length channels (example, the collapsed length when using 288mm channels is 296mm). The full extension length will be 40mm shy of the sum of the two channels (288mm channels will yield an extended length of 536mm)!

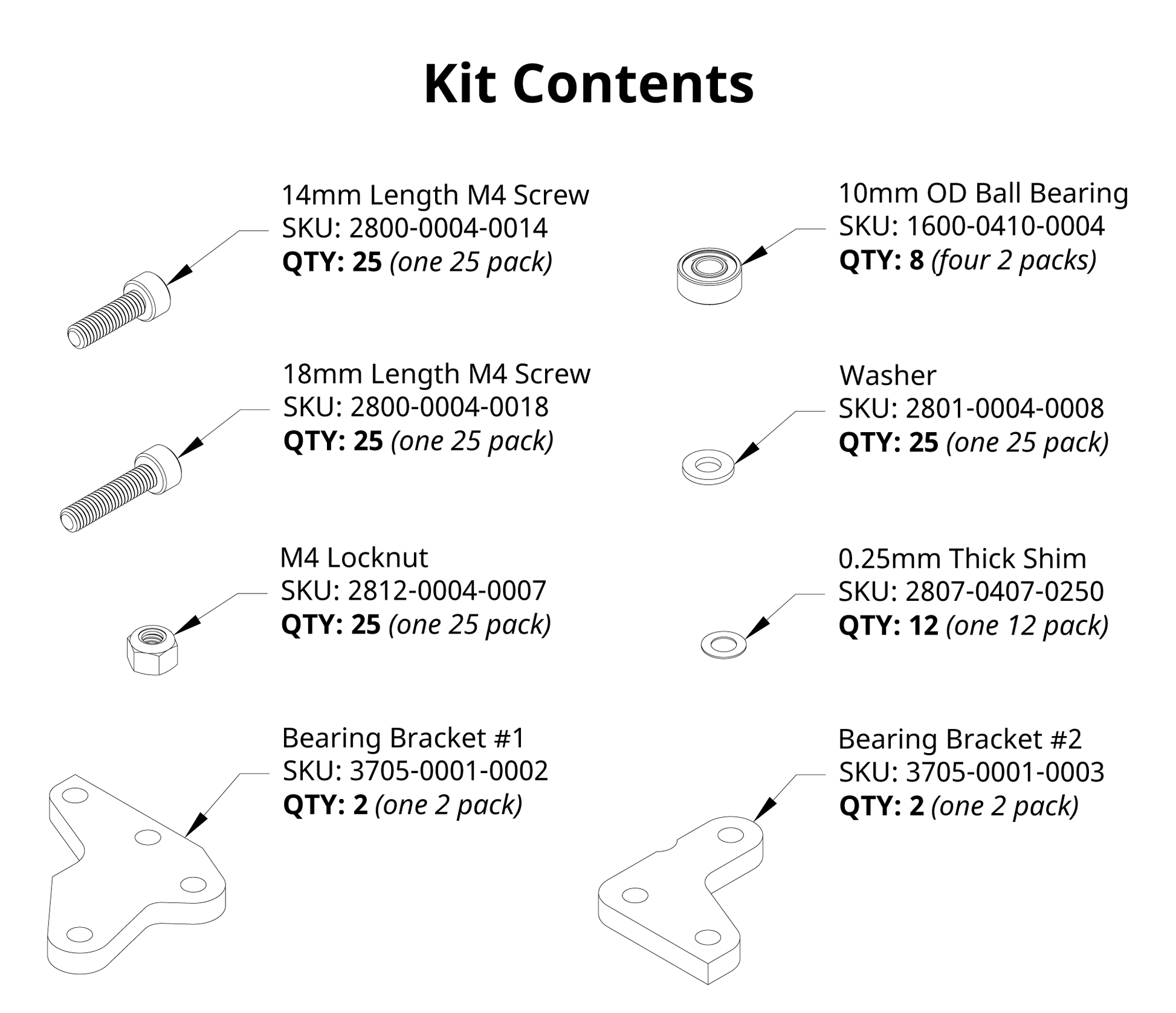

Kit Contents:
| SKU | Qty | Name |
|---|---|---|
| 1600-0410-0004 | 4 | 1600 Series Non-Flanged Ball Bearing (4mm ID x 10mm OD, 4mm Thickness) - 2 Pack |
| 2800-0004-0014 | 1 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 14mm Length) - 25 Pack |
| 2800-0004-0018 | 1 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 18mm Length) - 25 Pack |
| 2801-0004-0008 | 1 | 2801 Series Zinc Plated Steel Washer (4mm ID x 8mm OD) - 25 Pack |
| 2807-0407-0250 | 1 | 2807 Series Stainless Steel Shim (4mm ID x 7mm OD, 0.25mm Thickness) - 12 Pack |
| 2812-0004-0007 | 1 | 2812 Series Zinc-Plated Steel Nylon-Insert Locknut (M4 x 0.7mm, 7mm Hex) - 25 Pack |

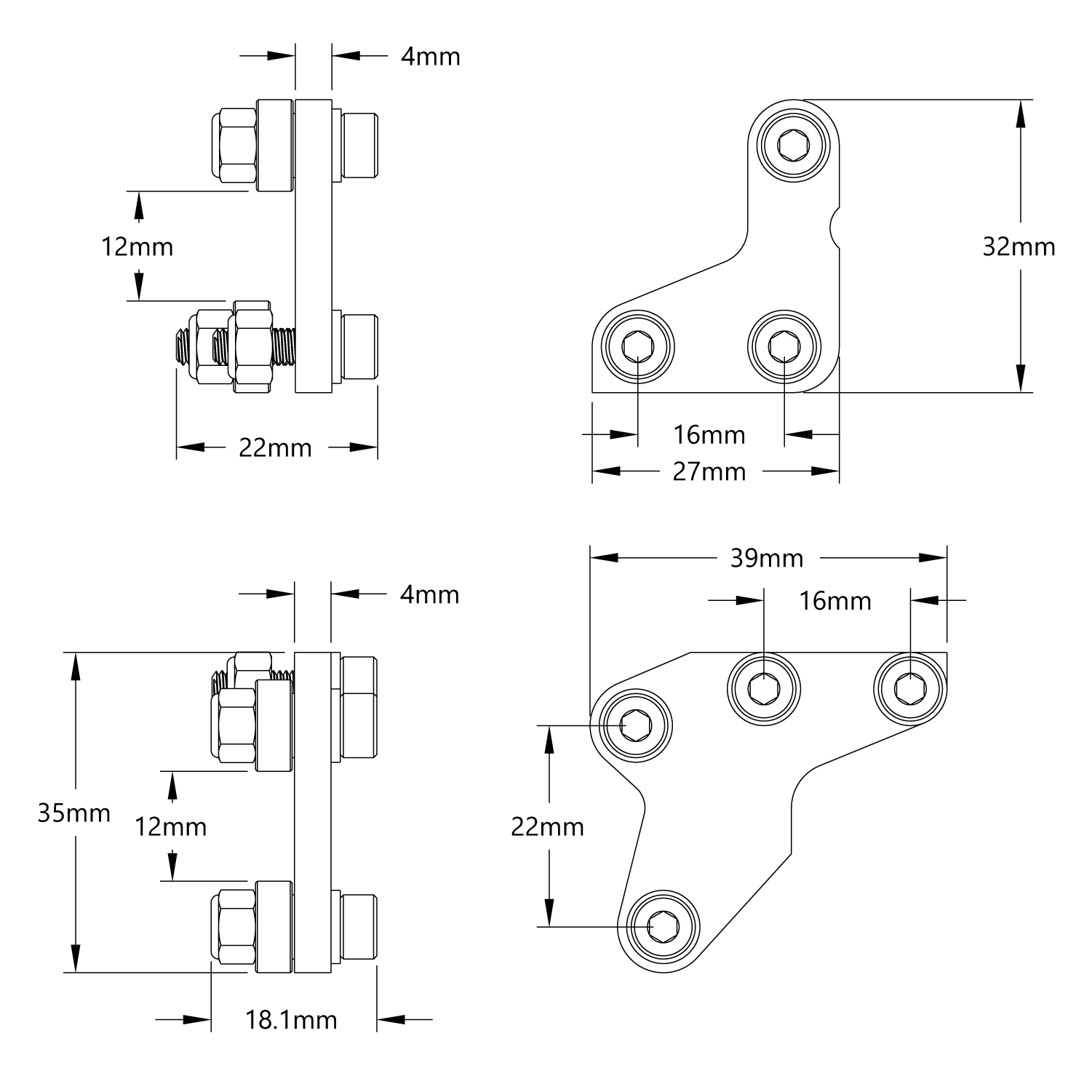

| 3705-0001-0002 | 1 | Bearing Bracket #1 for 3210-0001-0004 (1-2) - 2 Pack |
| 3705-0001-0003 | 1 | Bearing Bracket #2 for 3210-0001-0004 (1-3) - 2 Pack |
Specs
| Weight | 71g |
|---|
