The FTC Starter Kit is comprised of a massive amount of individual pieces with a retail value of over $1,445! But FTC Team budgets are real, and we at goBILDA® remember all too well when ideas came quicker than the funds to carry them out. For that reason, we've discounted the kit to $599.99 for FTC teams. Click here to apply for your discount today!
Why buy this FTC Starter Kit?
-
Ball-Bearing-Based
Because goBILDA® is ball-bearing-based, your robot will have less friction and more efficiency.
-
More Parts, Less Money
No need to sacrifice quality for quantity. Our steep team discount gets you in the game.
-
Better Gear Motors
Our Yellow Jacket Planetary Gear Motors produce tremendous torque.
-
Build it Your Way
Multiply your possibilities with a variety of channel—from classic U-Channel to Mini Low-Side.
-
Mighty REX™ Shafting
The steel shafts rock our tried-and-true REX™ profile to faciltate incredible positive drive.

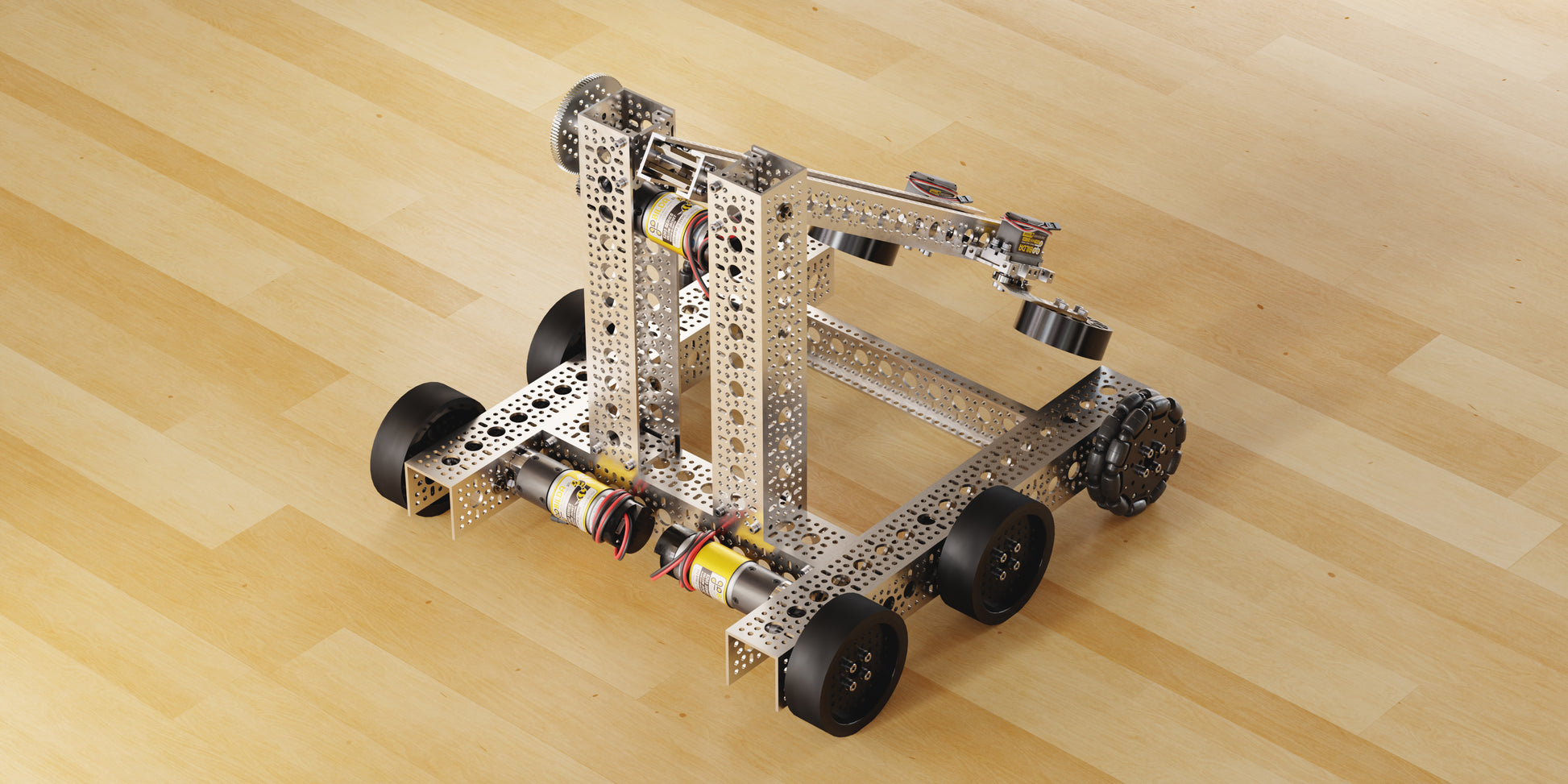

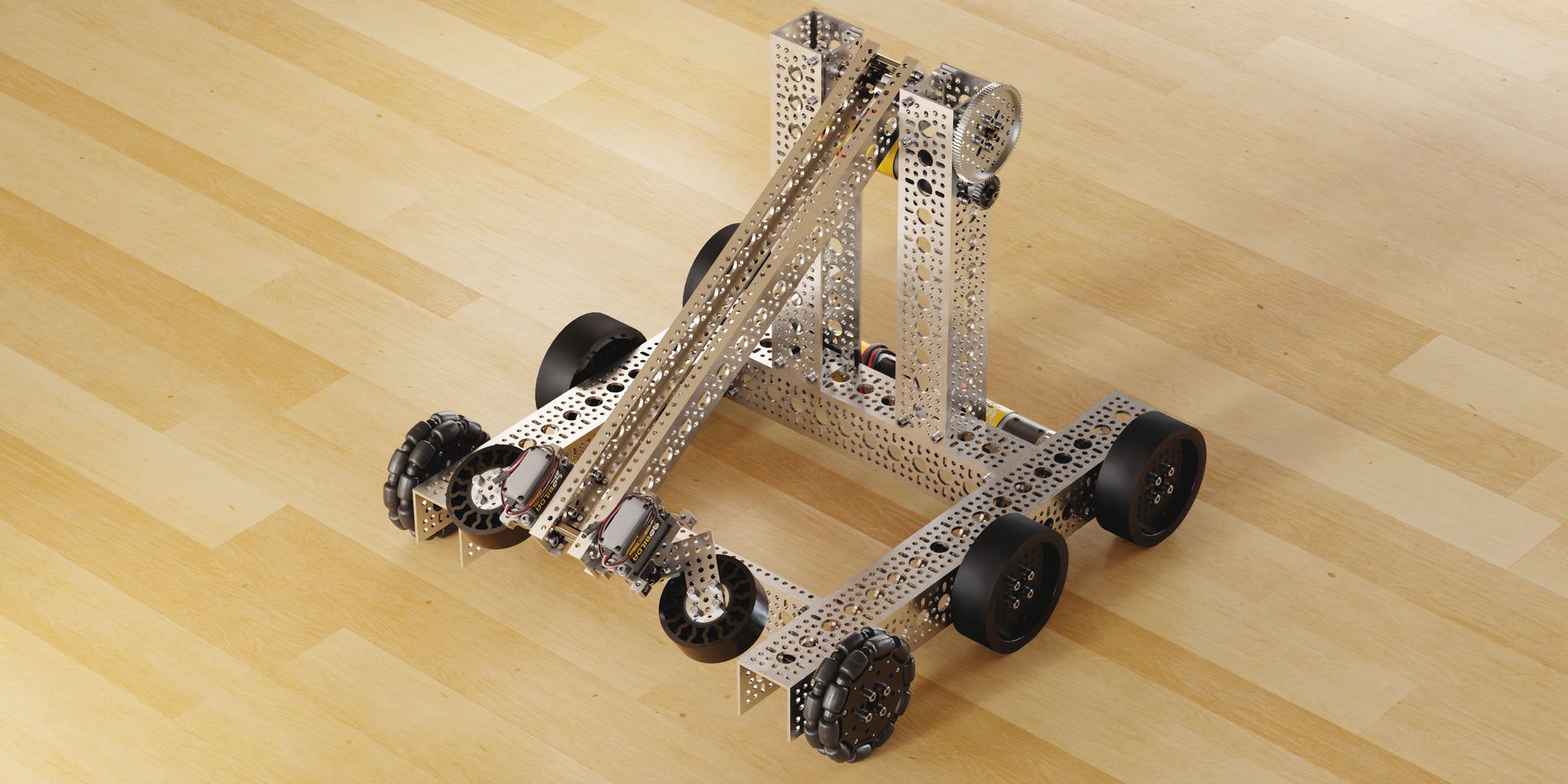

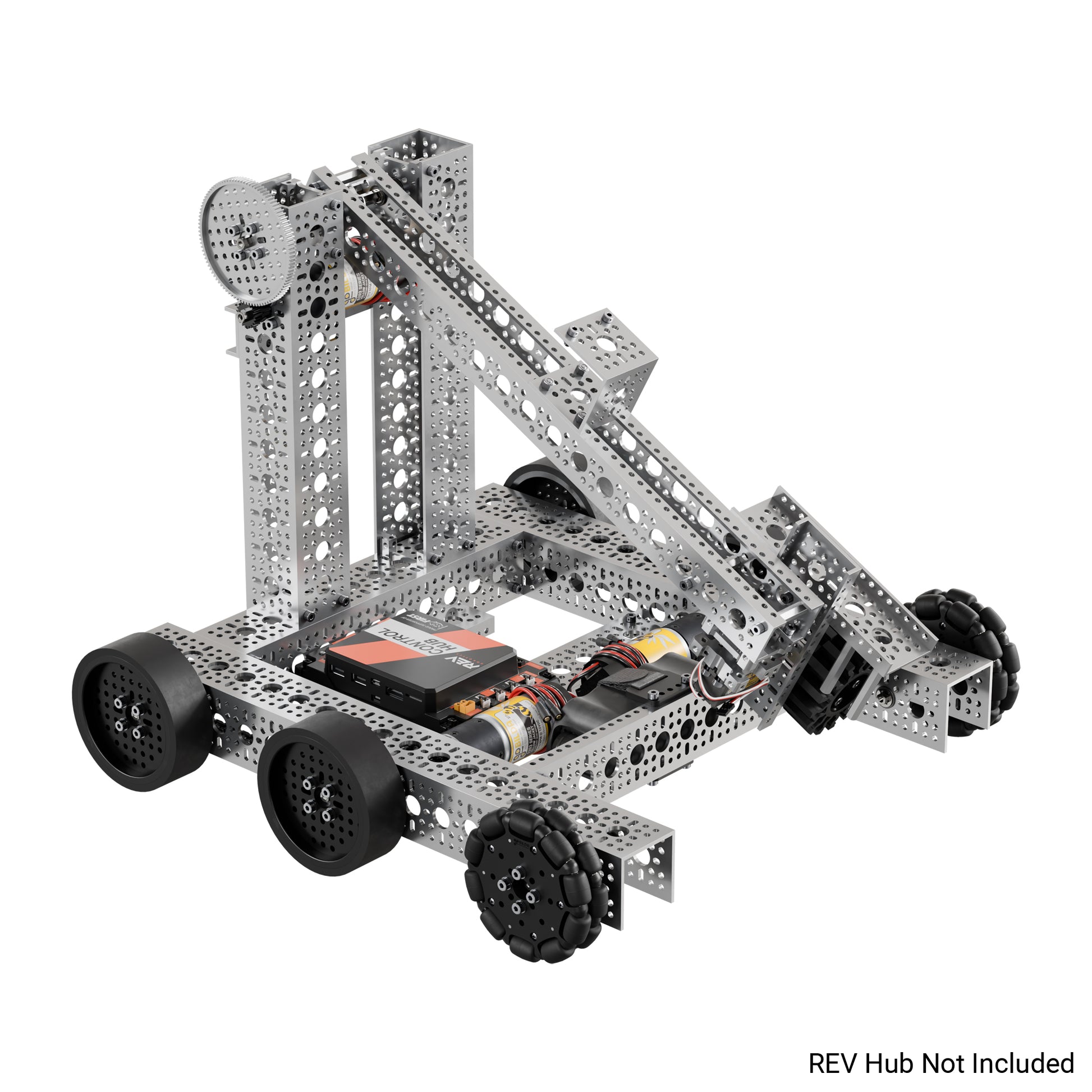

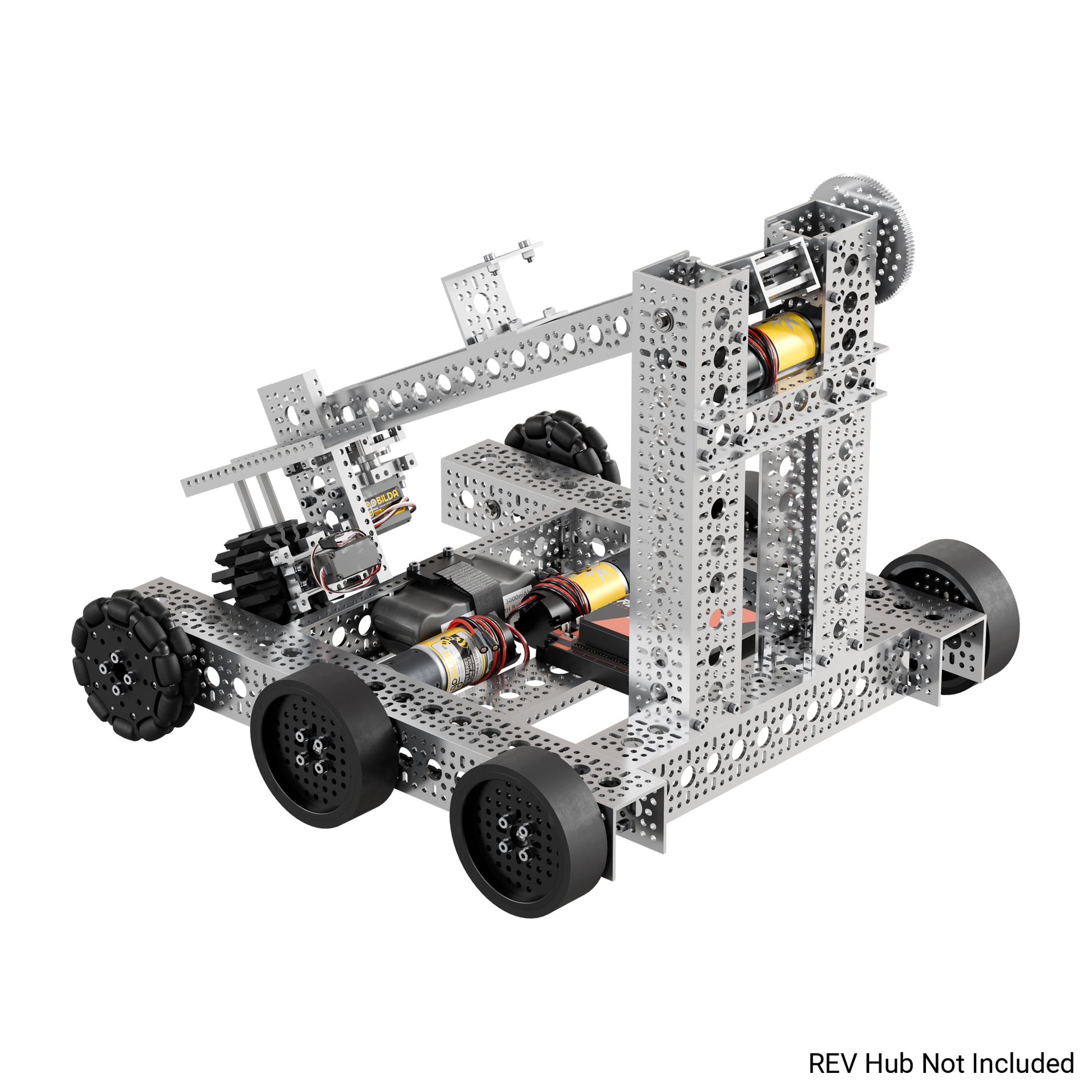

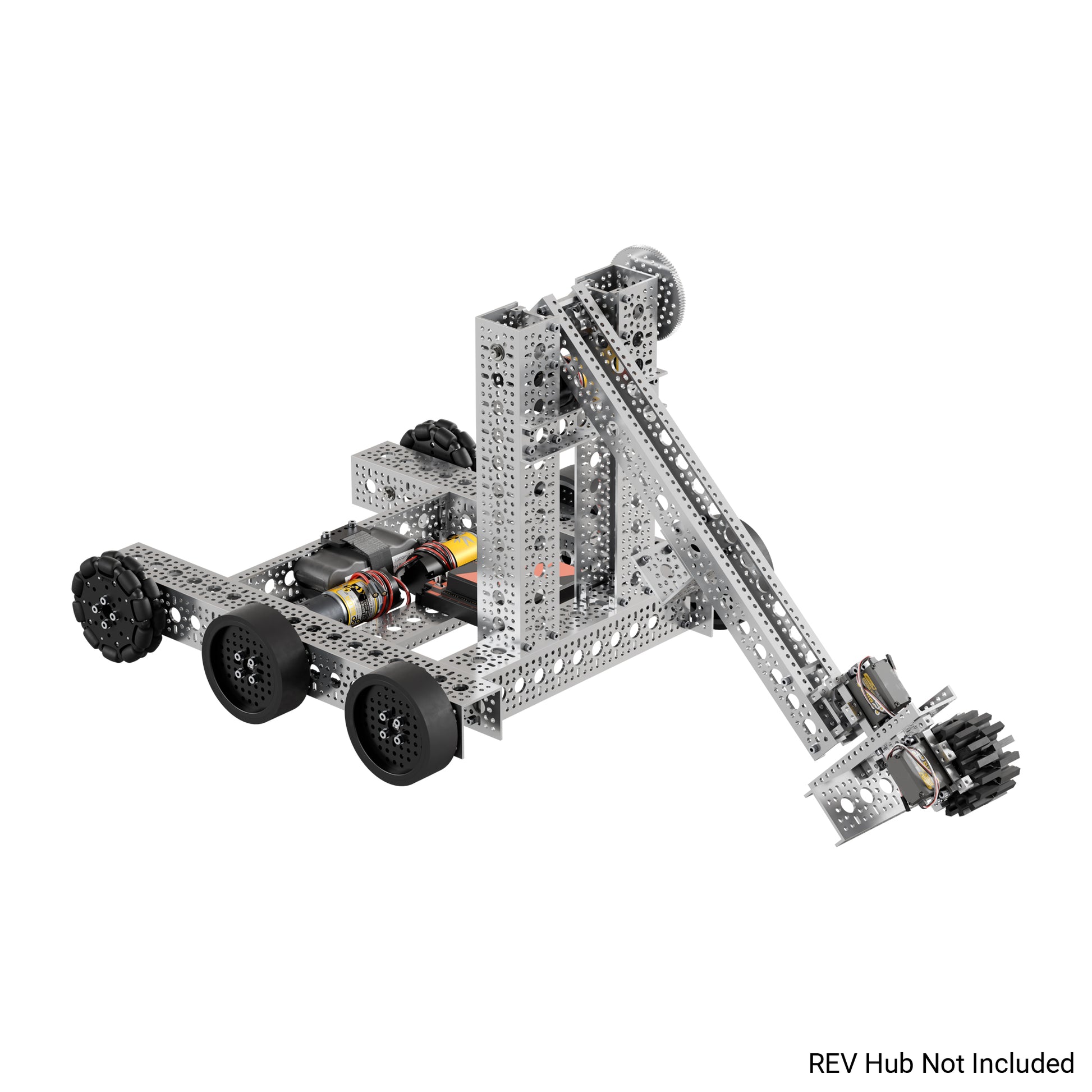

Getting your season started has never been easier! Using only the parts in this kit (plus a REV Hub), you can build a fully functioning robot designed to participate in this year's FIRST FTC challenge INTO THE DEEP℠!

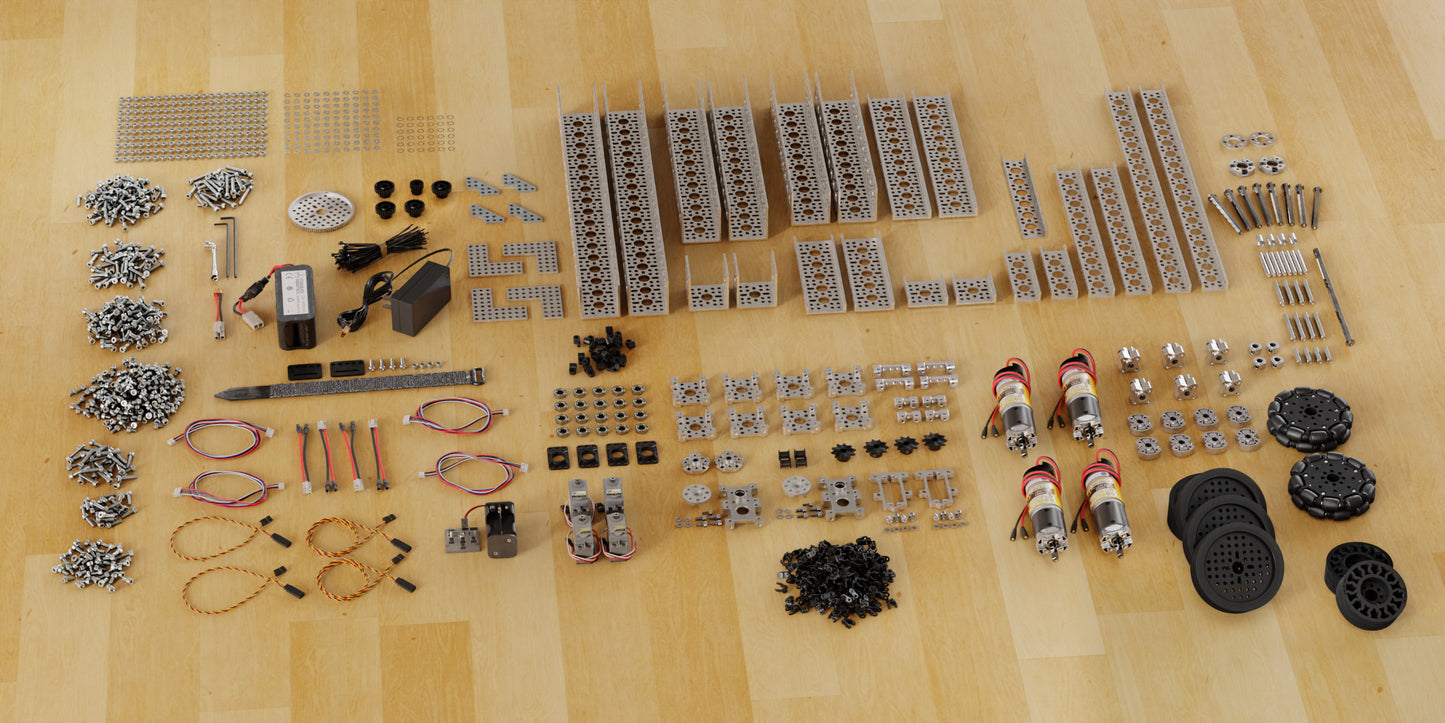

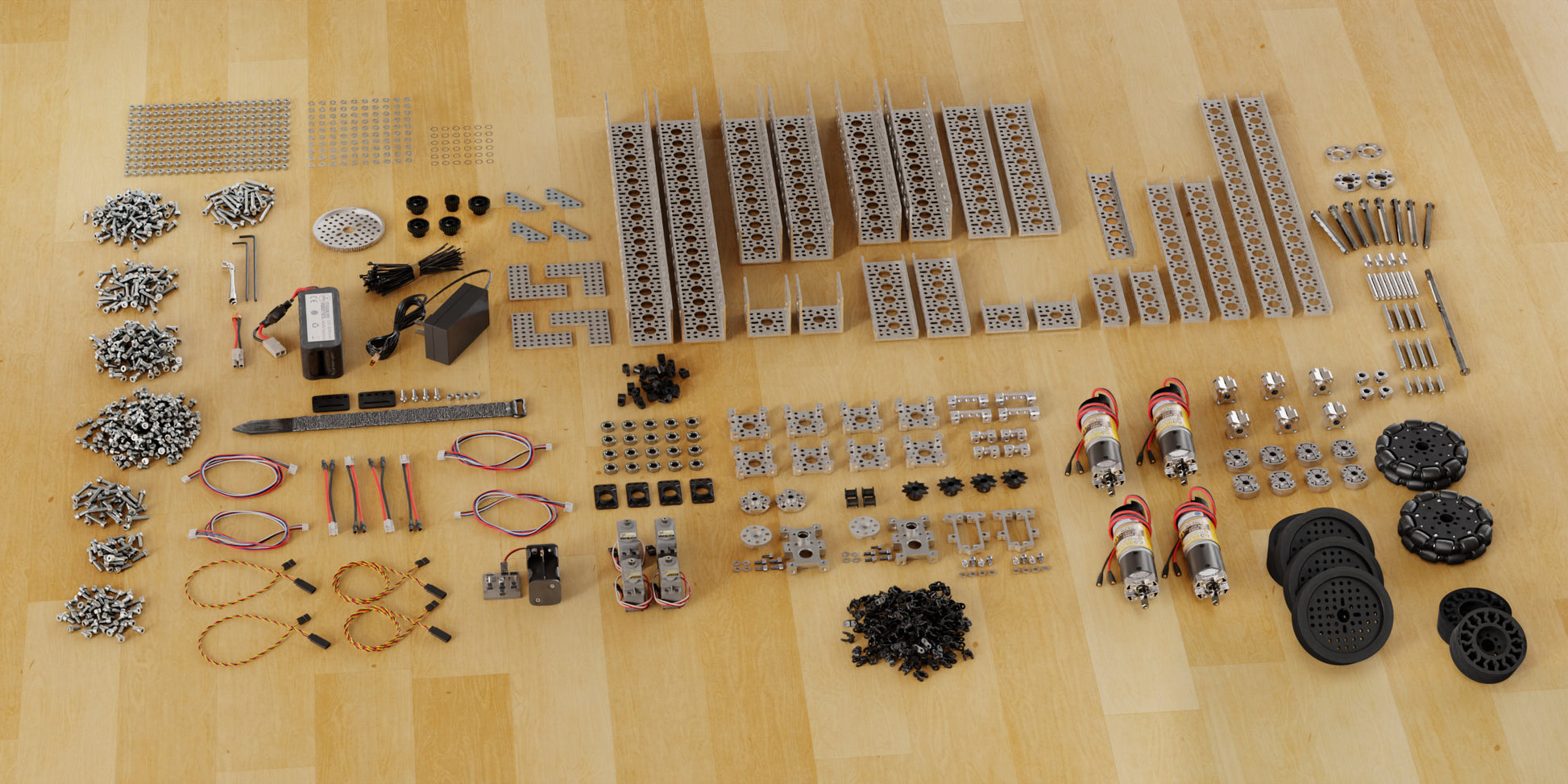

Check out the FTC Starter Bot Resource Guide to learn how!This Kit Includes:
Motors:
| Qty: 3 | 5203 Series Yellow Jacket Planetary Gear Motor (19.2:1 Ratio, 312 RPM, 3.3 - 5V Encoder) |
SKU: 5203-2402-0019 x 3 |
| Qty: 1 | 5203 Series Yellow Jacket Planetary Gear Motor (50.9:1 Ratio, 117 RPM, 3.3 - 5V Encoder) |
SKU: 5203-2402-0051 x 1 |
Motor Wiring:
| Qty: 4 | 2-Pos JST VH [MH-FC] to 3.5mm Bullet [MH-FC] Adaptor (100mm Length) | SKU: 3801-0613-0100 x 4 |
| Qty: 4 | Encoder Cable, 600mm Length (4-Pos JST PH [MH-FC] to 4-Pos JST XH [MH-FC]) | SKU: 3801-0709-0600 x 4 |
Servos:
| Qty: 2 | 2000 Series Dual Mode Servo (25-2, Torque) | SKU: 2000-0025-0002 x 2 |
| Qty: 2 | 2000 Series Dual Mode Servo (25-3, Speed) | SKU: 2000-0025-0003 x 2 |
| Qty: 1 | Servo Programmer for 2000 Series Dual Mode Servo | SKU: 3102-0001-0001 x 1 |
Servo Mounts:
| Qty: 2 | Compact ServoBlock™ (Standard Size, H25T Spline, Hub Shaft) | SKU: 3217-0001-2501 x 2 |
| Qty: 2 | 1802 Series Servo Frame (43mm Width, for Standard Size Servos) | SKU: 1802-0043-0001 x 2 |
| Qty: 2 | 1908 Series Servo Hub (25 Tooth Spline, 32mm Diameter) | SKU: 1908-0025-0032 x 2 |
Servo Wiring:
| Qty: 2 | 3-Pos TJC8 Servo Extension (MH-FC to FH-MC, 300mm Length) | SKU: 3802-1718-0300 x 2 |
| Qty: 2 | 3-Pos TJC8 Servo Extension (MH-FC to FH-MC, 600mm Length) | SKU: 3802-1718-0600 x 2 |
Battery and Accessories:
| Qty: 1 | Matrix 12V 3000mAh NiMH Battery (Includes XT30 to Tamiya Adaptor ) | SKU: 14-0014 x 1 |
| Qty: 1 | Battery Charger (NiCad/NiMH, 12-1) | SKU: 3101-0012-0001 x 1 |
| Qty: 1 | Battery Mount (32-1) | SKU: 1209-0032-0001 x 1 |
| Qty: 100 | Zip Tie (100mm Length, Black) - 100 Pack | SKU: 2909-0101-0100 x 1 |
Channel:
| Qty: 2 | 1120 Series U-Channel (1 Hole, 48mm Length) | SKU: 1120-0001-0048 x 2 |
| Qty: 2 | 1120 Series U-Channel (10 Hole, 264mm Length) | SKU: 1120-0010-0264 x 2 |
| Qty: 2 | 1120 Series U-Channel (11 Hole, 288mm Length) | SKU: 1120-0011-0288 x 2 |
| Qty: 2 | 1120 Series U-Channel (17 Hole, 432mm Length) | SKU: 1120-0017-0432 x 2 |
| Qty: 2 | 1121 Series Low-Side U-Channel (1 Hole, 48mm Length) | SKU: 1121-0001-0048 x 2 |
| Qty: 2 | 1121 Series Low-Side U-Channel (5 Hole, 144mm Length) | SKU: 1121-0005-0144 x 2 |
| Qty: 2 | 1121 Series Low-Side U-Channel (10 Hole, 264mm Length) | SKU: 1121-0010-0264 x 2 |
| Qty: 2 | 1143 Series Mini Low-Side U-Channel (3 Hole, 96mm Length) | SKU: 1143-0003-0096 x 2 |
| Qty: 1 | 1143 Series Mini Low-Side U-Channel (6 Hole, 168mm Length) | SKU: 1143-0006-0168 X 1 |
| Qty: 2 | 1143 Series Mini Low-Side U-Channel (10 Hole, 264mm Length) | SKU: 1143-0010-0264 x 2 |
| Qty: 2 | 1143 Series Mini Low-Side U-Channel (17 Hole, 432mm Length) | SKU: 1143-0017-0432 x 2 |
Brackets and Mounts:
| Qty: 4 | 1205 Series Dual Block Mount (1-5) - 2 Pack | SKU: 1205-0001-0005 x 2 |
| Qty: 4 | 1205 Series Dual Block Mount (2-1) - 2 Pack | SKU: 1205-0002-0001 x 2 |
| Qty: 4 | 1137 Series Steel Flat Grid Bracket (1-2) - 2 Pack | SKU: 1137-0001-0002 x 2 |
| Qty: 8 | 1201 Series Quad Block Pattern Mount (43-2) | SKU: 1201-0043-0002 x 8 |
| Qty: 4 | Steel Gusset-Plate (3 x 3 Hole) - 4 Pack | SKU: 1126-0090-0001 x 1 |
| Qty: 25 | 2902 Plastic Hinge Block (25 Pack) | SKU: 2902-0025-0001 x 1 |
Standoffs and Spacers:
| Qty: 8 | 1501 Series M4 x 0.7mm Standoff (6mm OD, 43mm Length) - 4 Pack | SKU: 1501-0006-0430 x 2 |
| Qty: 2 | 1504 Series 32mm OD Pattern Spacer (4mm Length) | SKU: 1504-0032-0040 x 2 |
| Qty: 2 | 1505 Series 32mm OD Counterbored Pattern Spacer (8mm Length) | SKU: 1505-0032-0080 x 2 |
| Qty: 4 | 1516 Series 8mm REX Standoff (24mm Length) - 4 Pack | SKU: 1516-4008-0240 x 1 |
| Qty: 4 | 1516 Series 8mm REX Standoff (43mm Length) - 4 Pack | SKU: 1516-4008-0430 x 1 |
| Qty: 4 | 1516 Series 8mm REX Standoff (48mm Length) - 4 Pack | SKU: 1516-4008-0480 x 1 |
| Qty: 4 | 1522 Series 8mm ID Spacer (10mm OD, 12mm Length) - 4 Pack | SKU: 1522-0010-0120 x 1 |
Gears:
| Qty: 1 | 2302 Series Aluminum, MOD 0.8, Hub Mount Gear (14mm Bore, 100 Tooth) | SKU: 2302-0014-0100 x 1 |
| Qty: 1 |
2303 Series Steel, MOD 0.8 Pinion Gear (8mm REX Bore, 20 Tooth) | SKU: 2303-4008-0020 x 1 |
| Qty: 4 | 2303 Series Steel, MOD 0.8 Pinion Gear (8mm REX Bore, 30 Tooth) | SKU: 2303-4008-0030 x 4 |
Sprockets and Chain:
| Qty: 150 | 3309 Series 8mm Pitch Plastic Chain Link (50 Links) | SKU: 3309-0108-0050 x 3 |
| Qty: 4 | 3307 Series 8mm Pitch Steel Set-Screw Sprocket (8mm REX Bore, 10 Tooth) | SKU: 3307-4008-0010 x 4 |
| Qty: 4 | Acetal Timing Belt Idler (6mm ID x 12mm OD, 12mm Width, 1-1) - 2 Pack | SKU: 3413-0001-0001 x 2 |
Wheels:
| Qty: 4 | 3601 Series Rhino Wheel (14mm Bore, 96mm Diameter) | SKU: 3601-0014-0096 x 4 |
| Qty: 4 | 3604 Series Omni Wheel (14mm Bore, 96mm Diameter) | SKU: 3604-0014-0096 x 4 |
| Qty: 2 | 3613 Series Gecko™ Wheel (14mm Bore, 72mm Diameter) | SKU: 3613-0014-0072 x 2 |
Bearings:
| Qty: 20 | 1611 Series Flanged Ball Bearing (8mm REX™ ID x 14mm OD, 5mm Thickness) - 2 Pack | SKU: 1611-0514-4008 x 10 |
| Qty: 4 | 1616 Series Drop-Center Bearing Plate (2mm Drop) - 4 Pack | SKU: 1616-0016-0002 x 1 |
Shafting:
| Qty: 8 | 2106 Series Stainless Steel REX Shaft (8mm Diameter, 80mm Length) | SKU: 2106-4008-0800 x 8 |
| Qty: 1 | 2106 Series Stainless Steel REX Shaft (8mm Diameter, 192mm Length) | SKU: 2106-4008-1920 x 1 |
Hubs, Couplers and Collars:
| Qty: 8 | 1309 Series Sonic Hub (8mm REX Bore) | SKU: 1309-0016-4008 x 8 |
| Qty: 6 | 1310 Series Hyper Hub (8mm REX Bore) | SKU: 1310-0016-4008 x 6 |
| Qty: 4 | 2920 Series Steel Set-Screw Collar (8mm REX Bore) - 2 Pack | SKU: 2920-0001-4008 x 2 |
Screws:
| Qty: 50 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 6mm Length) | SKU: 2800-0004-0006 x 2 |
| Qty: 200 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 8mm Length) | SKU: 2800-0004-0008 x 8 |
| Qty: 100 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 10mm Length) | SKU: 2800-0004-0010 x 4 |
| Qty: 100 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 12mm Length) | SKU: 2800-0004-0012 x 4 |
| Qty: 25 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 14mm Length) | SKU: 2800-0004-0014 x 1 |
| Qty: 50 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 18mm Length) | SKU: 2800-0004-0018 x 2 |
| Qty: 25 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 20mm Length) | SKU: 2800-0004-0020 x 1 |
| Qty: 25 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 30mm Length) | SKU: 2800-0004-0030 x 1 |
Nuts, Washers and Shims:
| Qty: 200 | 2812 Series Zinc-Plated Steel Nylon-Insert Locknut (M4 x 0.7mm, 7mm Hex) | SKU: 2812-0004-0007 x 8 |
| Qty: 100 | 2801 Series Zinc-Plated Steel Washer (4mm ID x 8mm OD) | SKU: 2801-0004-0008 x 4 |
| Qty: 36 | 2807 Series Stainless Steel Shim (8mm ID x 11mm OD, 0.50mm Thickness) - 12 Pack | SKU: 2807-0811-0500 x 3 |
Tools:
| Qty: 1 | Wera Tools 2.5mm Ball-End Hex-Plus L-Key | SKU: 5027103001 x 1 |
| Qty: 1 | Wera Tools 3mm Ball-End Hex-Plus L-Key | SKU: 5027104001 x 1 |
| Qty: 1 | 7mm Combination Nut Driver | SKU: 4206-0070-0001 x 1 |
