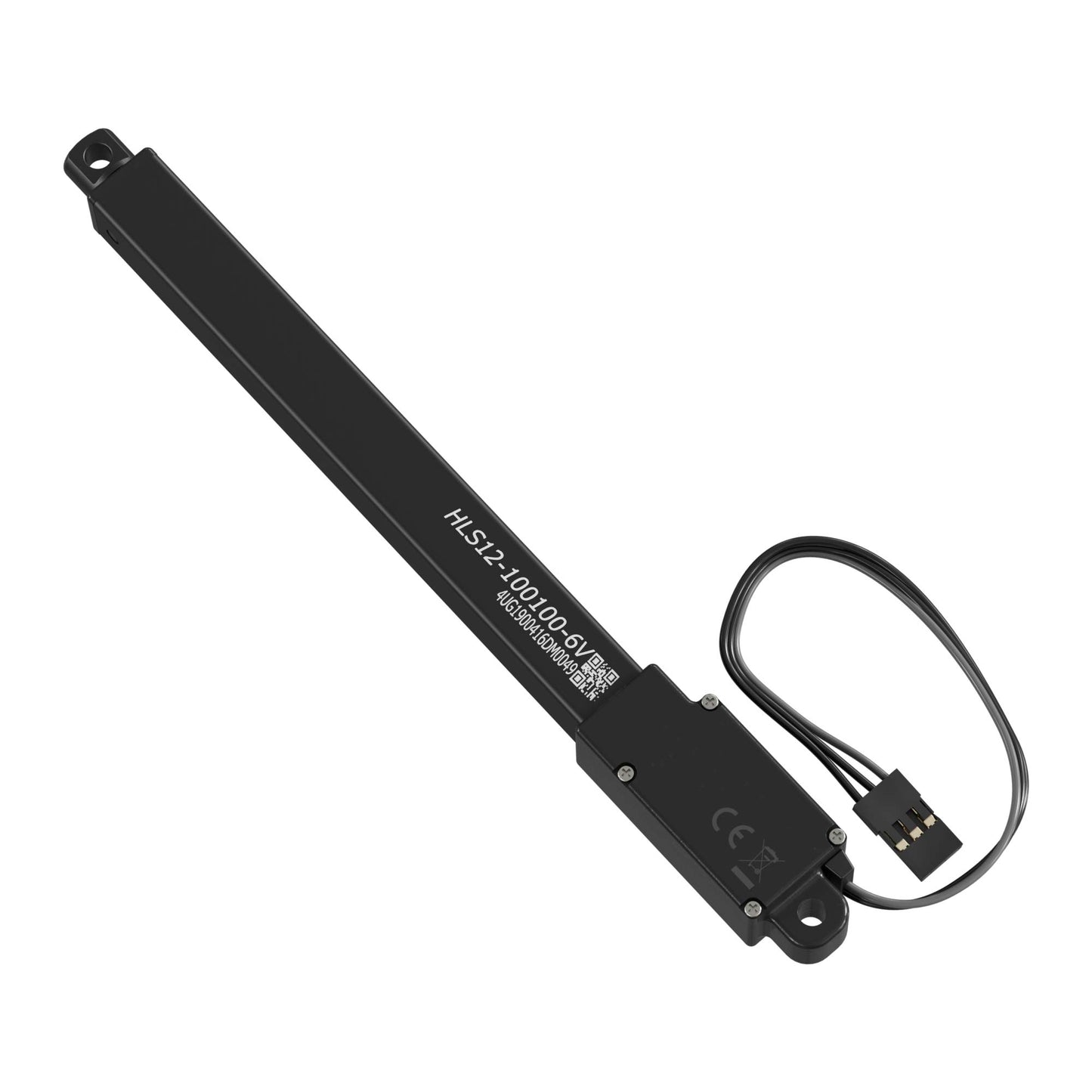

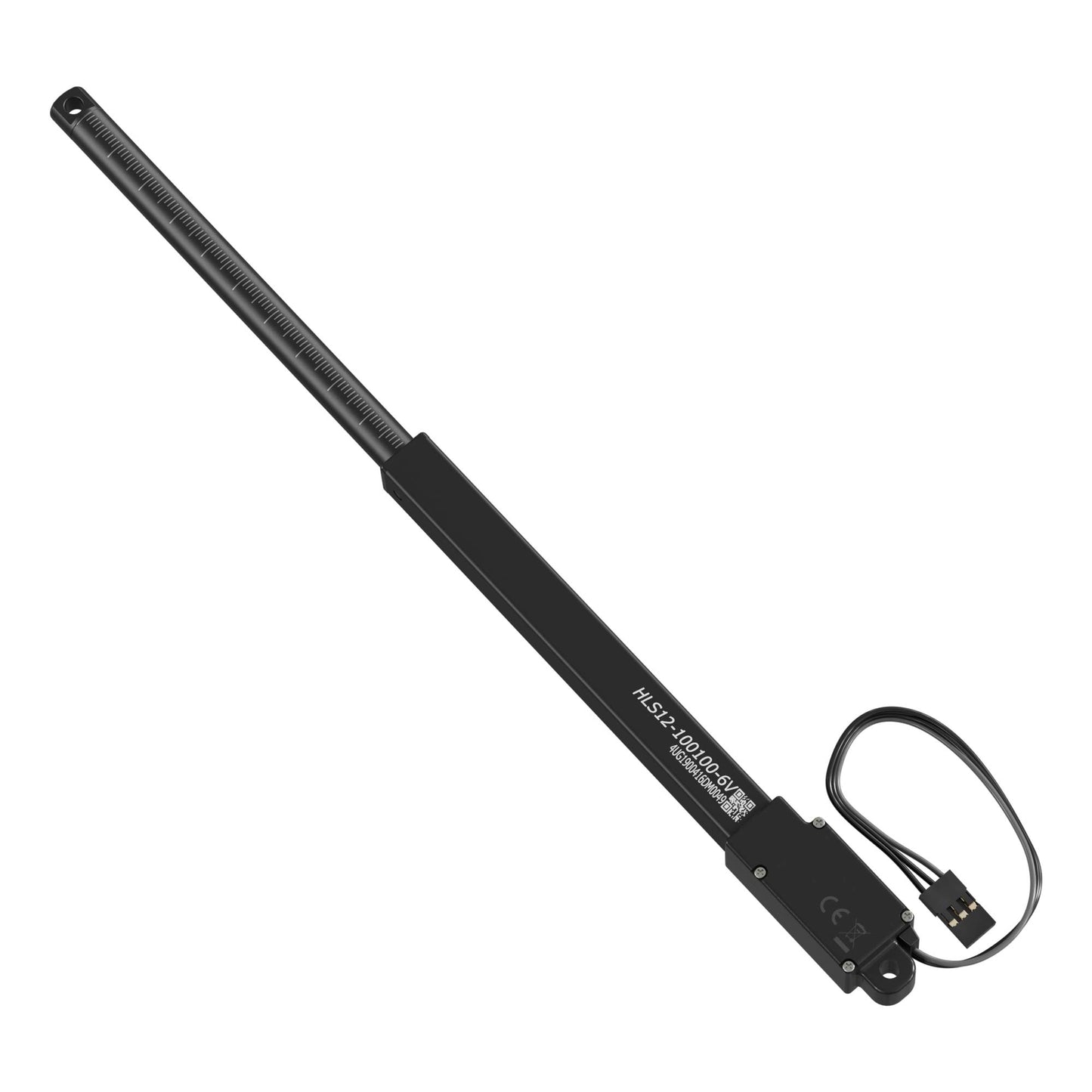

Hitec Linear Servo (100mm Stroke, 16.1mm/sec, 5.2kg Thrust)

Hitec Linear Servo (100mm Stroke, 16.1mm/sec, 5.2kg Thrust)

goBILDA parts we stock are ready to ship, otherwise with a 10-day lead time

SKU: GB-HLS12-100100-6V

Regular price $220.00 AUD
Regular price Sale price $220.00 AUD
Sale Sold out
View full details

Specs

Weight 54g

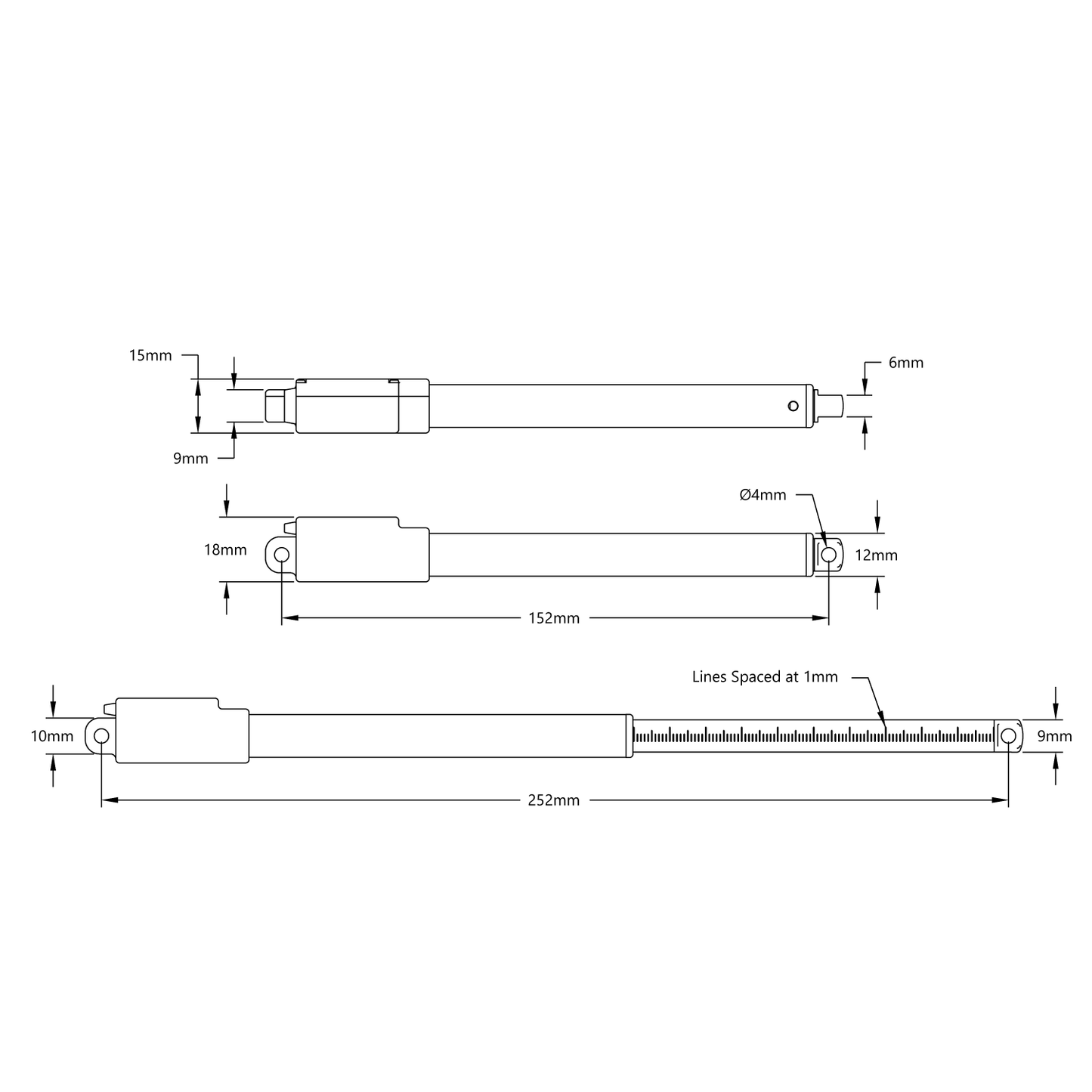

Stroke 100mm | 3.9"
Speed (No Load) @ 6.0VDC 13.0mm/sec | 0.5"/sec
Speed (No Load) @ 7.4VDC 16.1mm/sec | 0.6"/sec
Thrust (Stall) @ 6.0VDC 4.2kg | 9.3lb
Thrust (Stall) @ 7.4VDC 5.2kg | 11.5lb
Gear Ratio 100:1
Voltage Range 4.8 - 7.4VDC
Max PWM Range 900-2100μsec
Operating Temperature -10°c ~ +50°c
Motor Type Brushed DC
Feedback Style Digital
Wire Length 160mm
Connector Type 3-Pos TJC8 Servo Connector [MH-FC]
Current Drain (Stall) @ 6.0VDC 500 mA
Current Drain (Stall) @ 7.4VDC 620mA
Manufacturer Part Number 41004
