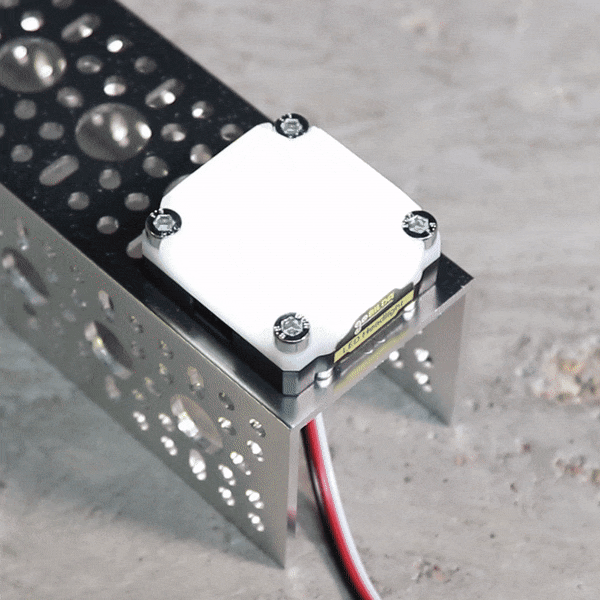

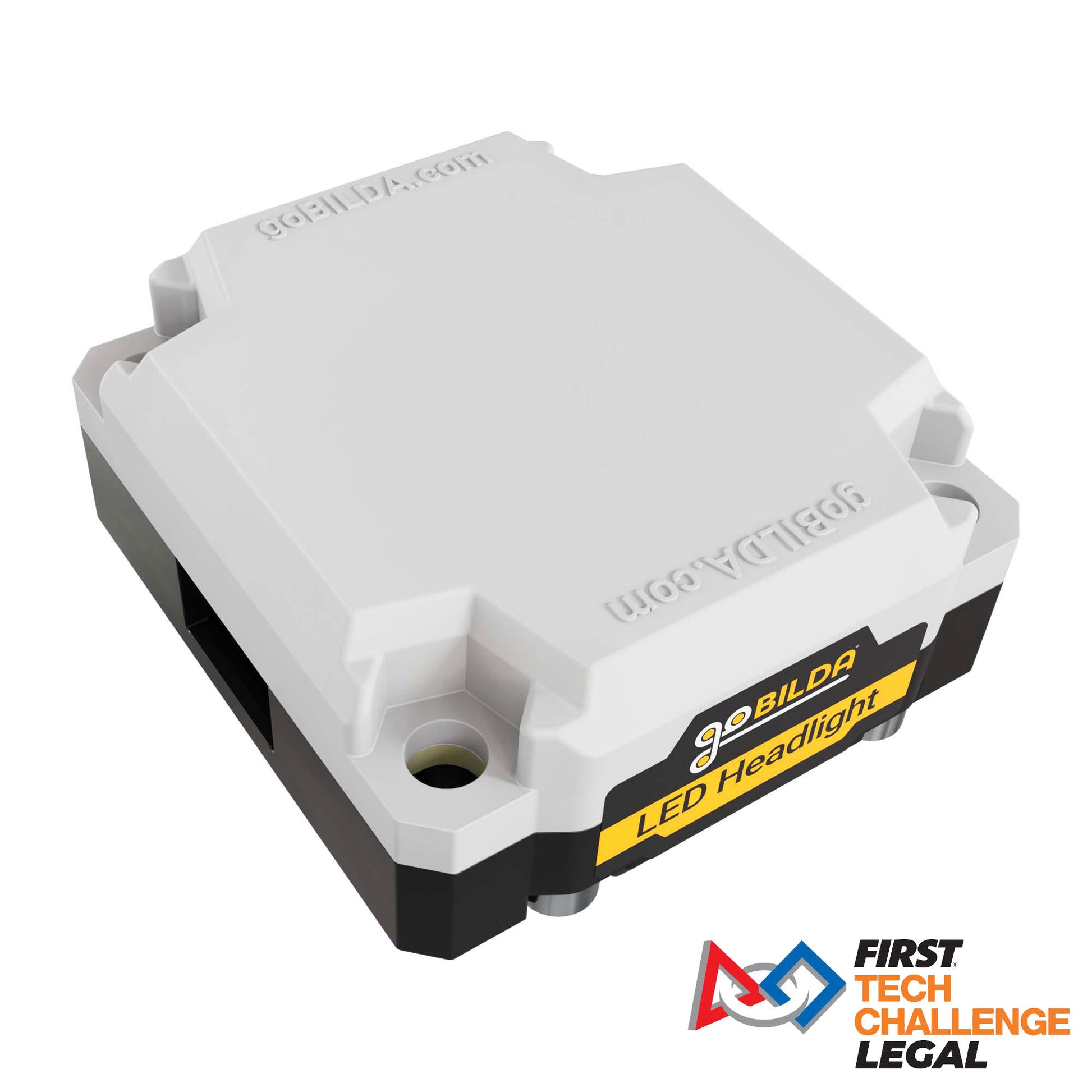

LED Headlight for FTC (275 Lumens, Dimmable, PWM Controlled)

LED Headlight for FTC (275 Lumens, Dimmable, PWM Controlled)

goBILDA parts we stock are ready to ship, otherwise with a 10-day lead time

SKU: GB-3118-0808-0003

Regular price $56.00 AUD
Regular price Sale price $56.00 AUD
Sale Sold out
View full details

Light your robot’s way across the game field with the LED Headlight for FTC! Designed with the FIRST Tech Challenge in mind, this dimmable LED Headlight helps to illuminate the scenes that a robot's optics systems gathers visual data from—whether that optics system is a basic webcam, or high-end AI camera (like the HuskyLens).

Intelligent Illumination

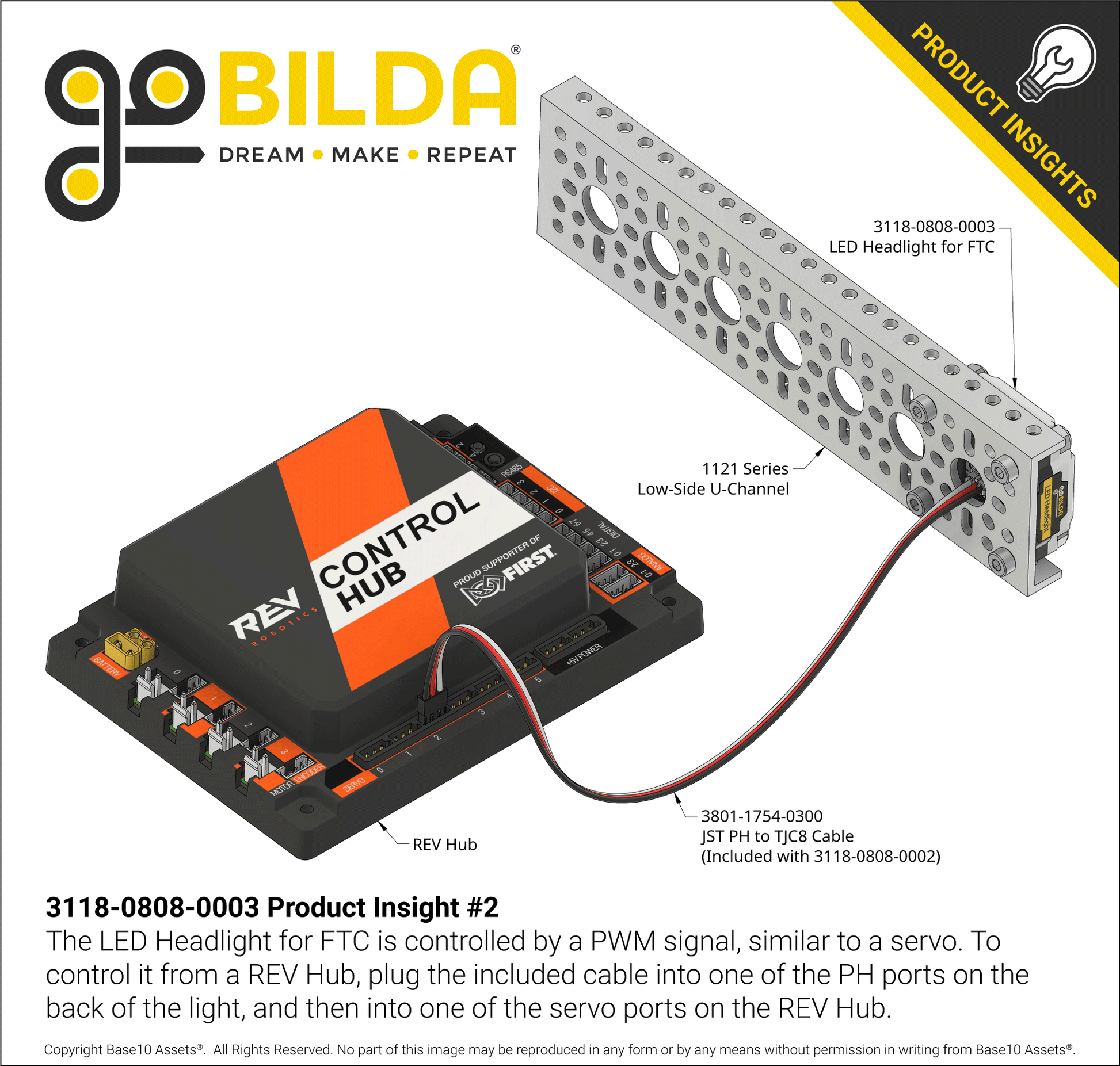

Controlling this LED Headlight is as easy as controlling a servo! Just plug it into a servo port, and you’ll get fine-grained PWM control of the LED brightness. This allows you to dial-in the light for your computer-vision in a snap.

Providing consistent lighting to your robot increases the repeatability of its optic-centric actions during autonomous operation. The LED Headlight’s level of illumination is perfect for being able to be seen across a game field without being so bright you can’t look directly at it.

Input/Output Ports

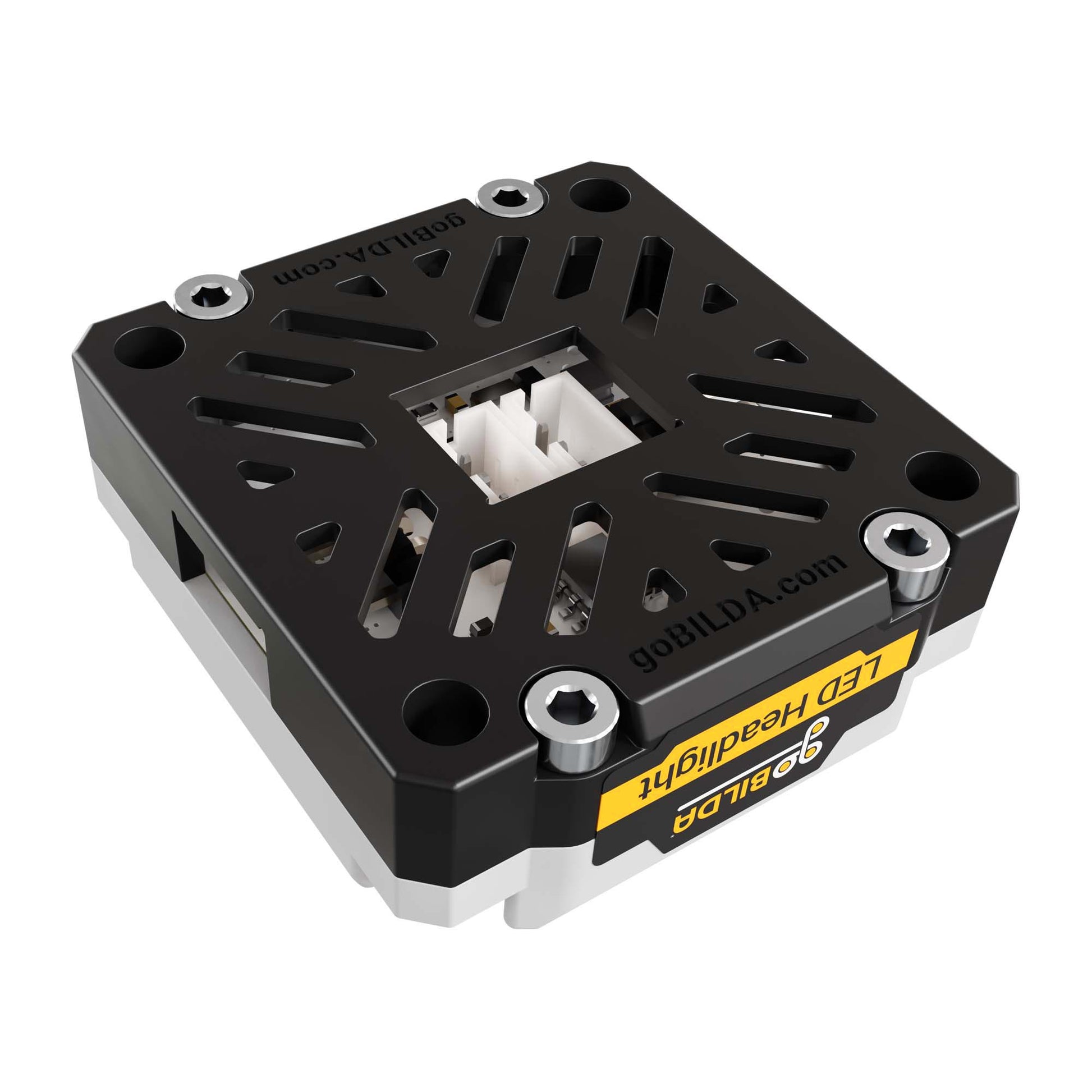

The Headlight possesses two each of TJC8 connector ports and JST-PH connector ports. While they are FH-MC, all ports can act as either input or output ports, and all ports use PWM as their communication protocol.

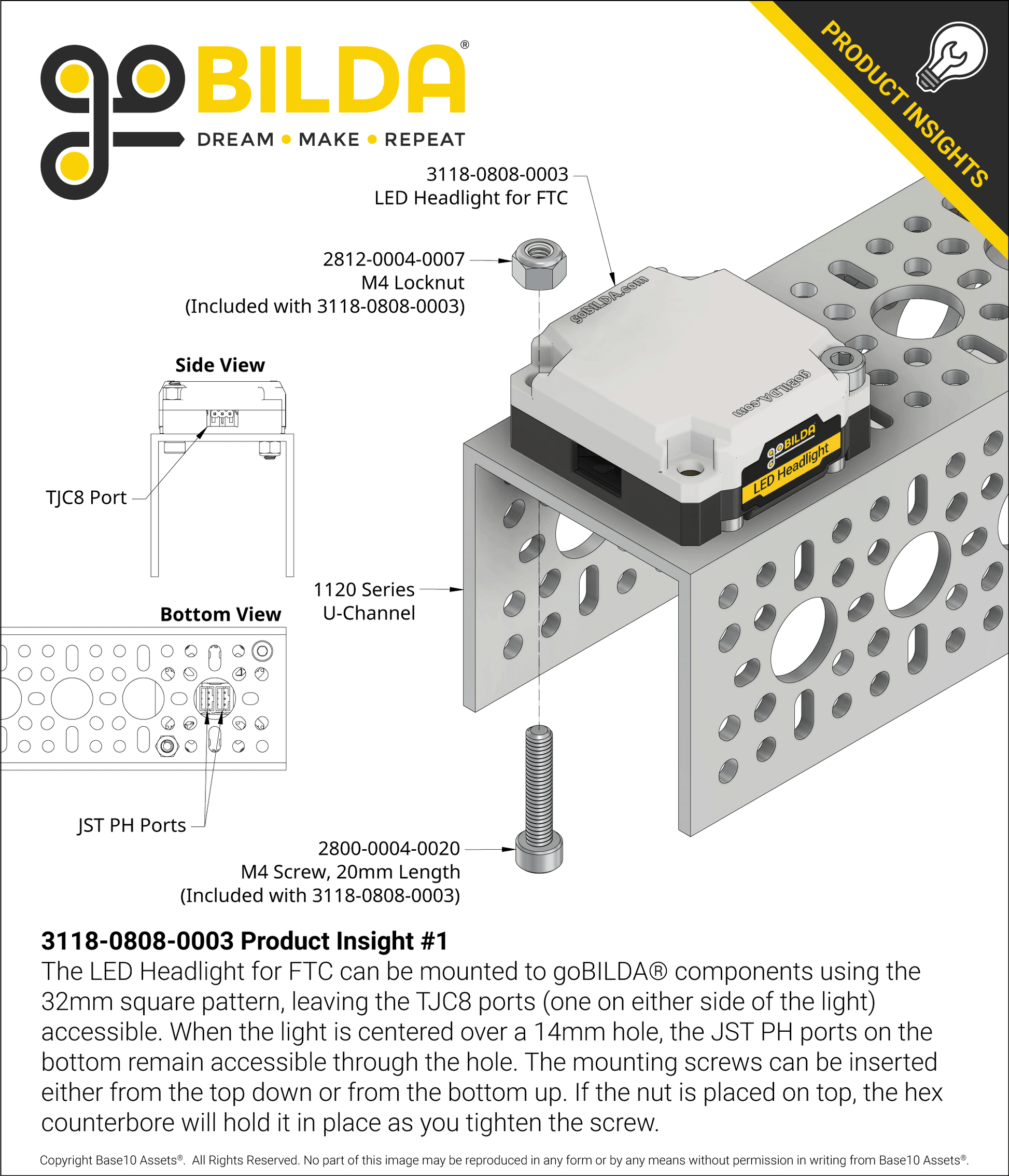

Two TJC8 ports across two opposite sides allow for signals and power to be delivered to the Headlight via your servo wiring setup. The Headlight also has JST PH ports for connecting to controllers like the REV Control Hub. These ports are located such that when the Headlight is placed over another component’s 14mm hole, the JST PH ports are accessible through the hole.

Easy Attachment

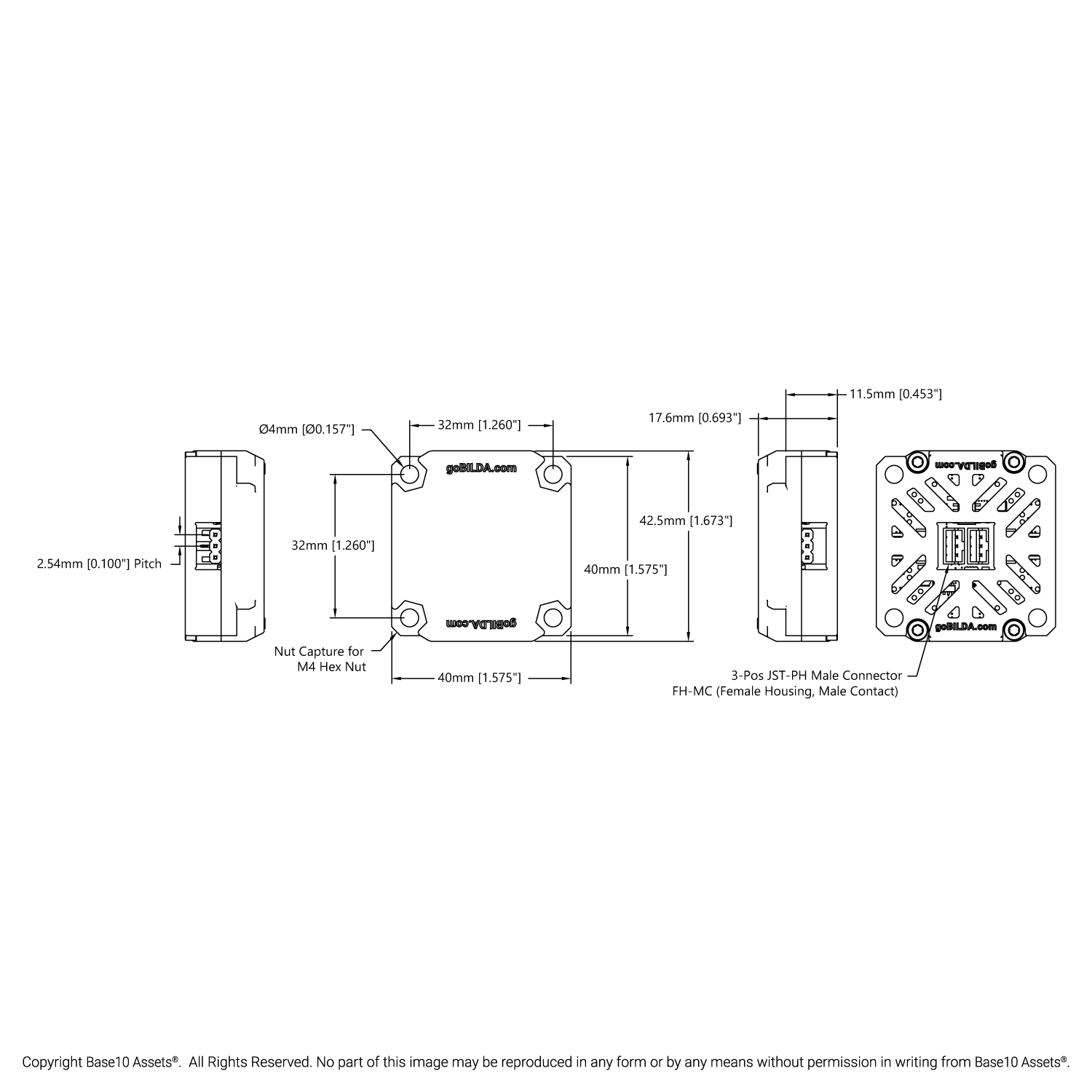

The Headlight possesses four M4 thru-holes on the goBILDA® 32mm square pattern. Each thru-hole has a hex counterbore for the easy capture of hex head screws and locknuts.

Specs

Weight 36g (Includes wire and mounting hardware)
Input Voltage Range (Recommended) 5-15V
PWM Signal Voltage 3.3-5V
PWM Range 500-2500µsec
Input Connectors TJC8 [FH-MC] x 2,3-Pos JST PH [FH-MC] x 2
Included Hardware 20mm Length M4 Socket Head Screw x 4, M4 Nylock Nut x 4
Included Cable 3-Pos TJC8 [MH-FC] to 3-Pos JST PH [MH-FC] Adaptor (300mm Length)
