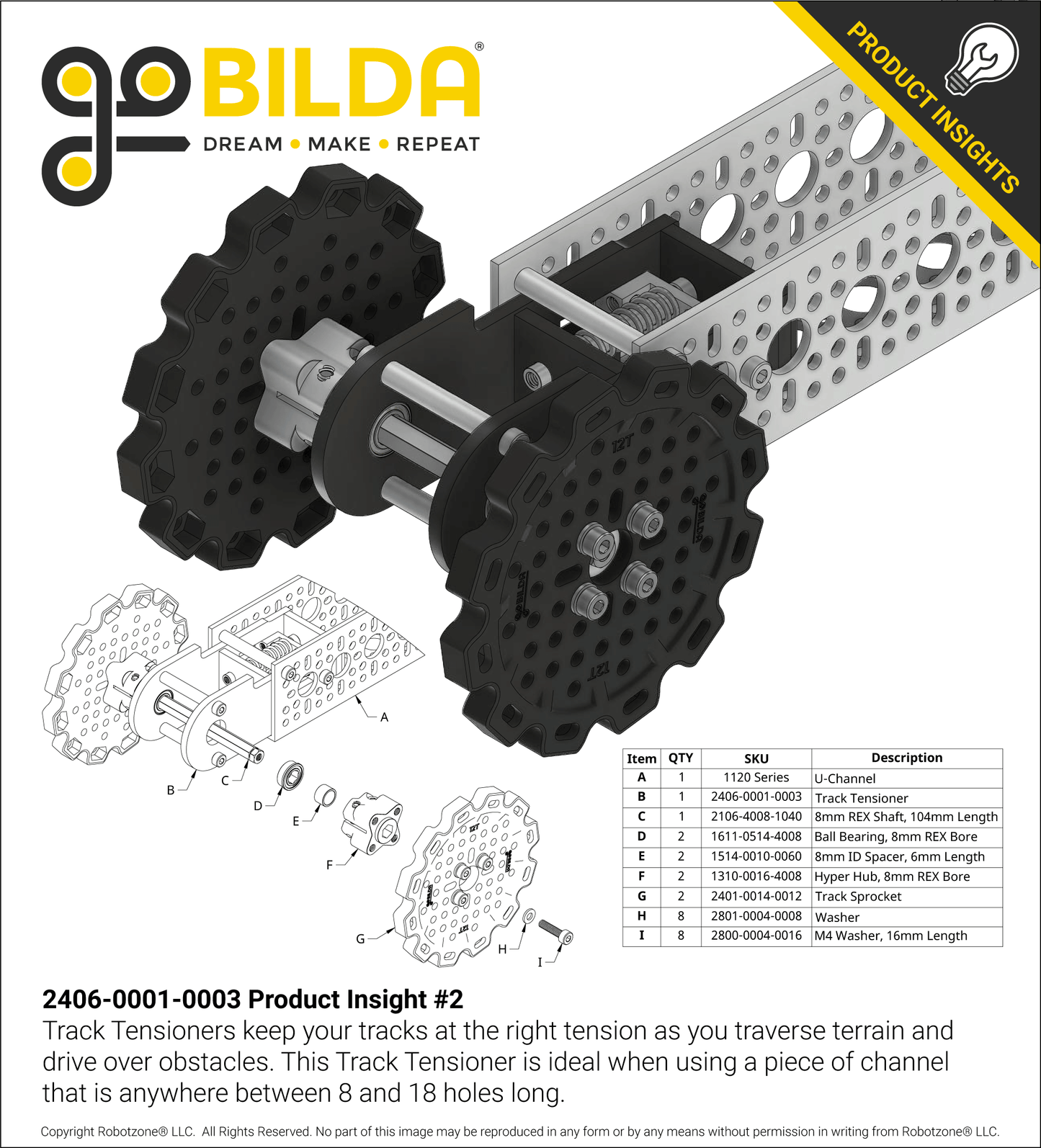

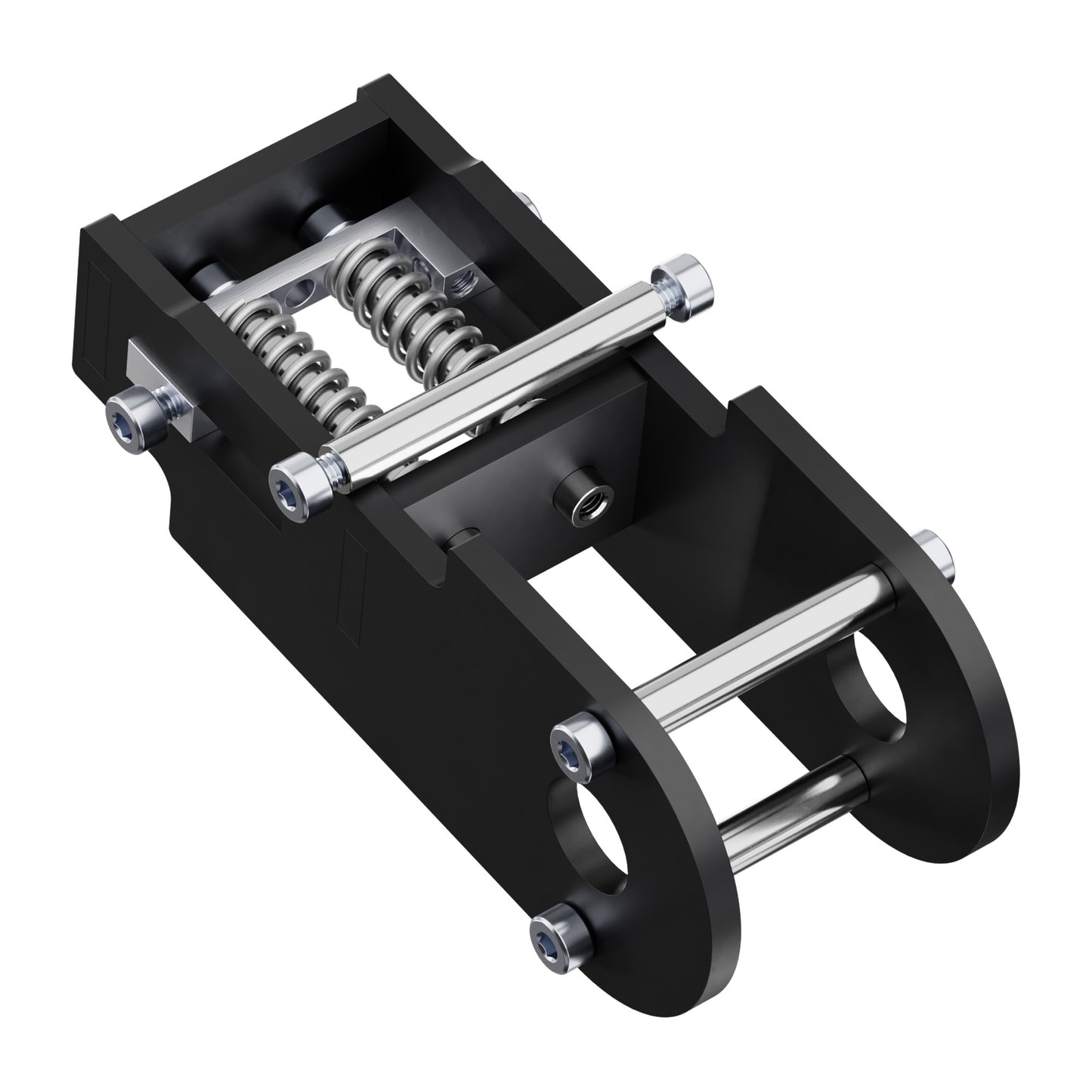

This track tensioner kit is designed to keep your 2400 Series Tracks taut during heavy-duty action on challenging terrain. Its acetal plate structure is low-friction and durable, and its steel springs provide reliable track-tension control both you and your build can count on!
This kit provides up to 16mm of travel and is recommended for use with 1120 Series U-Channel of 8 to 18 hole counts.

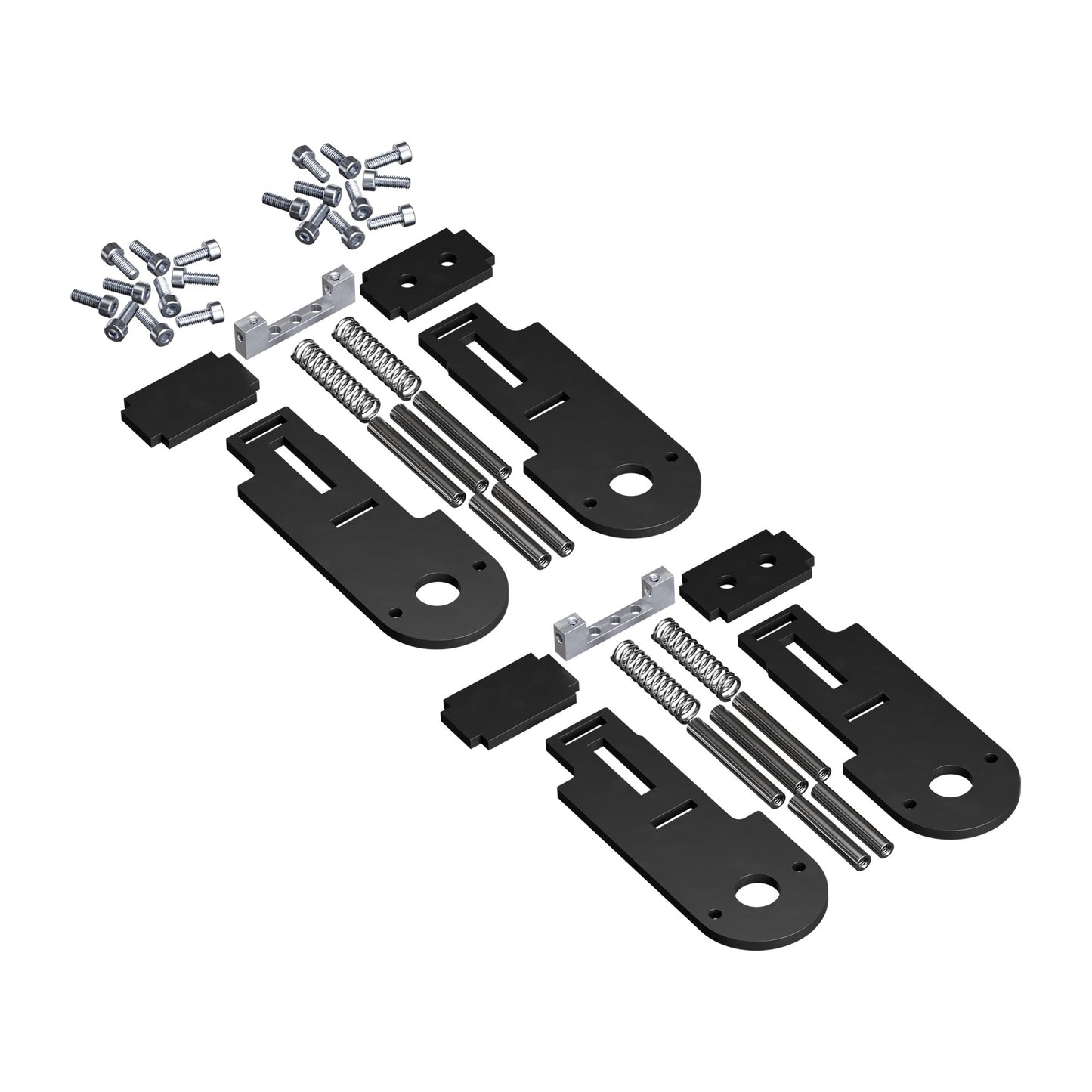

Kit Contents:
| QTY | SKU | Name |
|---|---|---|
| 4 | 1131-0004-0011 | Acetal Plastic Front Plate for 2406-0001-0003 |
| 2 | 1131-0004-0012 | Acetal Plastic Back Plate for 2406-0001-0003 |
| 2 | 1131-0004-0013 | Acetal Plastic Side Plate for 2406-0001-0003 |
| 1 | 1205-0001-0003 | 1205 Series Dual Block Mount (1-3) - 2 Pack |
| 1 | 1501-0006-0340 | 1501 Series M4 x 0.7mm Standoff (6mm OD, 34mm Length) - 4 Pack |
| 2 | 1501-0006-0430 | 1501 Series M4 x 0.7mm Standoff (6mm OD, 43mm Length) - 4 Pack |
| 1 | 2800-0004-0011 | 2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm, 11mm Length) - 25 Pack |
| 1 | 2916-0001-0003 | Compression Spring (6.6mm ID x 9.2mm OD, 11.8kg Max Load, 17-38mm Length) - 4 Pack |
