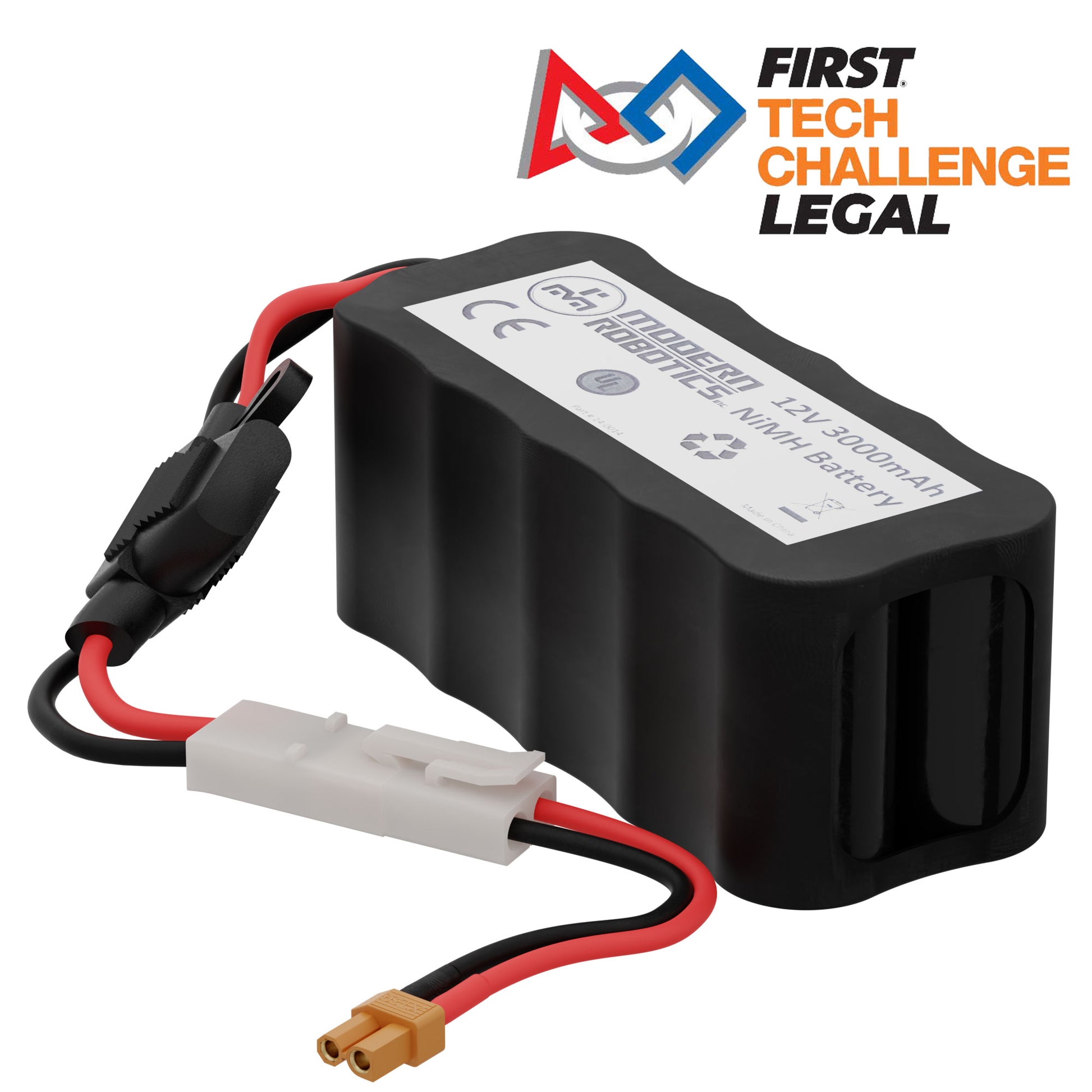

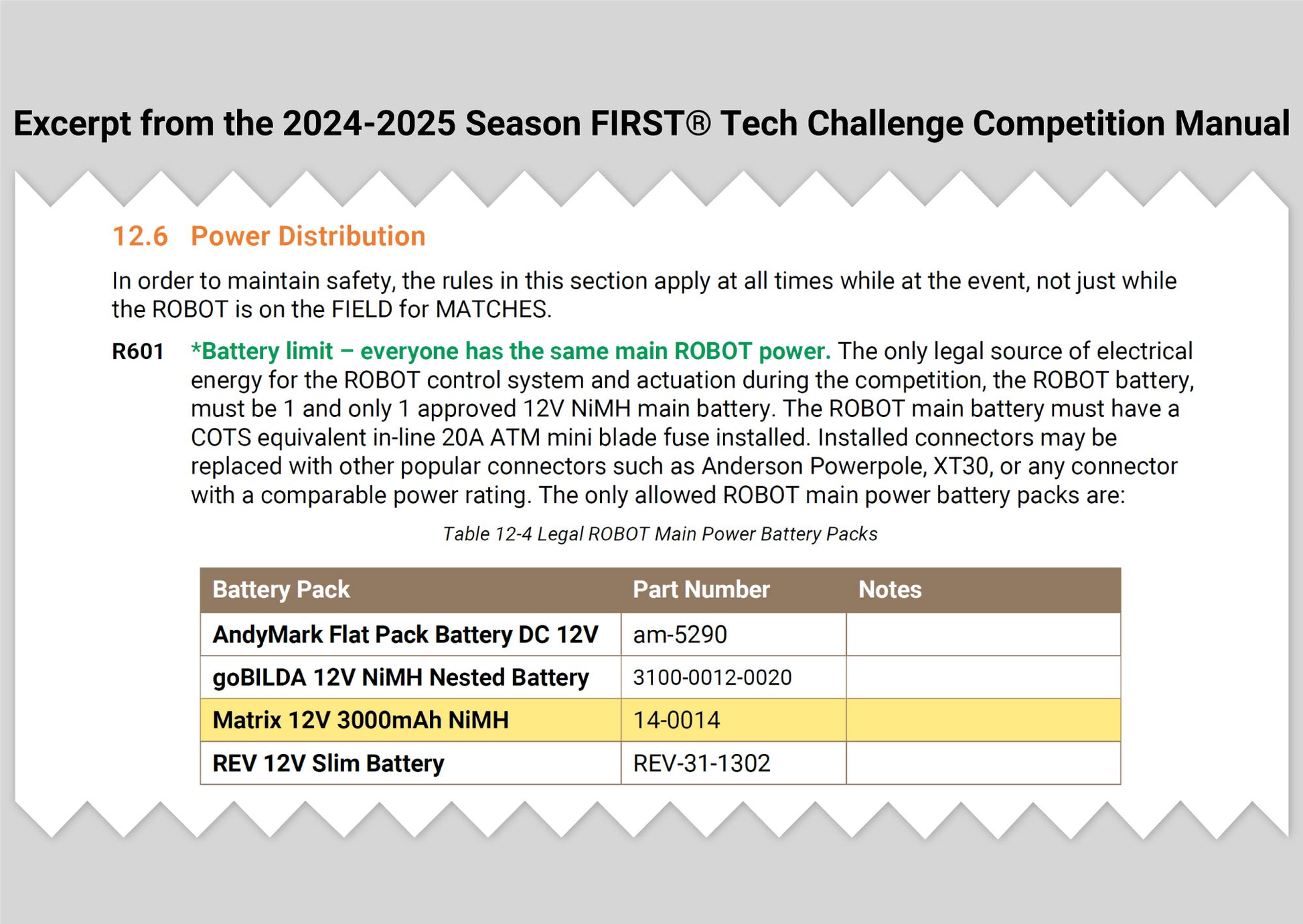

This Modern Robotics 12V, 3000mAh battery (14-0014) is legal for use in FTC competition. The Sub-C cell size means the pack is just a few hairs shy of matching the width of 1120 Series or 1121 Series Channel. When the battery mount is installed on the outside of the channel, it’s easy to secure the battery to your robot chassis. The Tamiya connector allows this battery to be used with the Modern Robotics Power Distribution Module. The included Tamiya to XT30 Adaptor allows it to be used with the REV Robotics Expansion Hub.
Specs
| Weight | 609g (without adaptor) |
|---|---|
| Wire Gauge | 16AWG |
| Voltage | 12V |
| Capacity | 3000mAh |
| Connector | Tamiya Connector [FH-MC] |
| Cell Size | Sub C |
| Chemistry | NiMH |
| Fuse | 20A mini blade |
