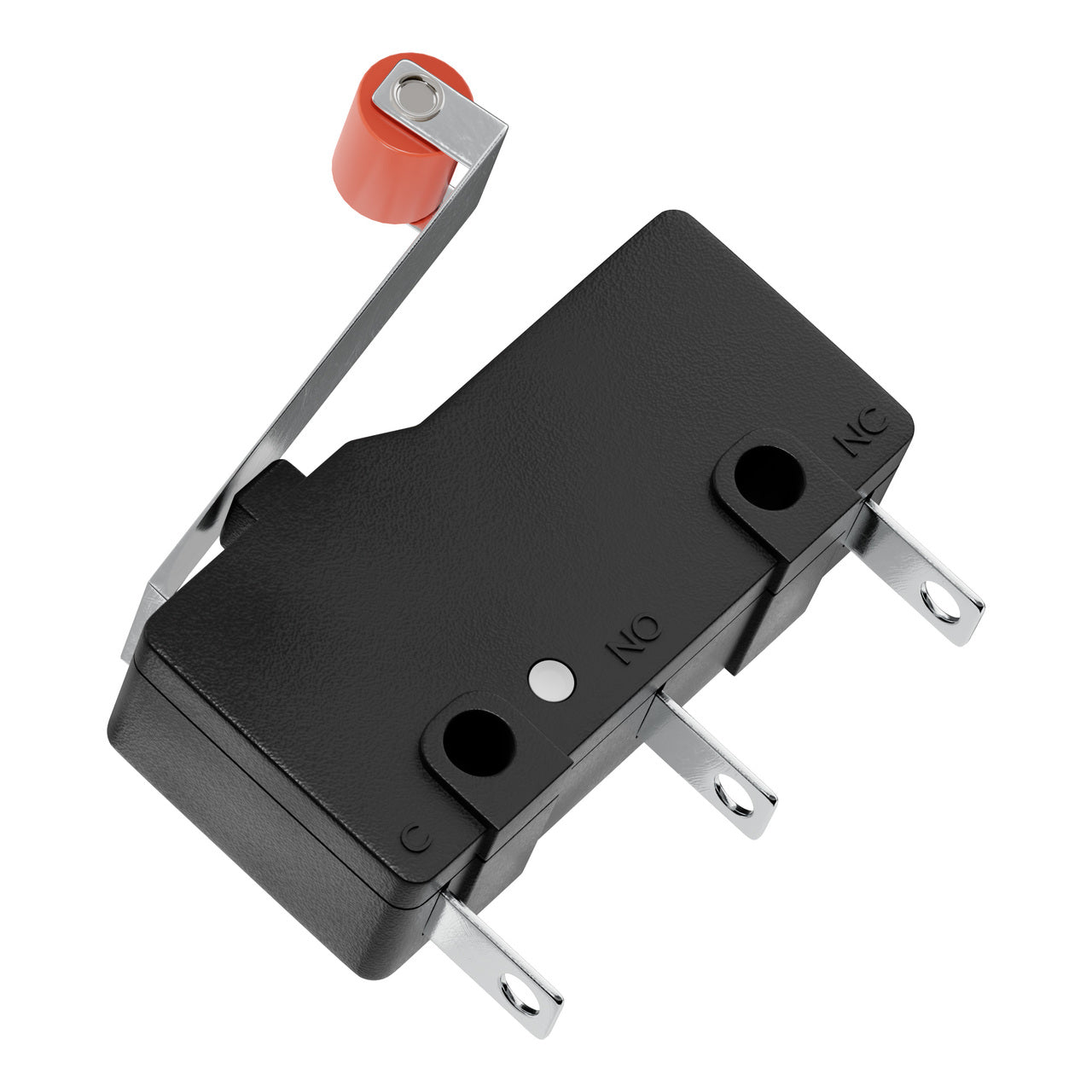

This switch has a roller on the lever which minimizes friction and creates a smooth actuation of the switch.
Specs
| Weight | 2.2g Each |
|---|---|
| Switch Style | SPDT Momentary Limit Switch |
| Max Current | 6A |
| Max Voltage | 250VAC |
| Connector Style | 3.2mm Width Spade Terminals |
| Continuous Current | 2A |
| Switching Life | 200,000 Cycles |
| Environmental Temperature | -25-85℃ |
| Contact Resistance | ≤0.02Ω |
| Insulation Resistance | ≥100MΩ |
