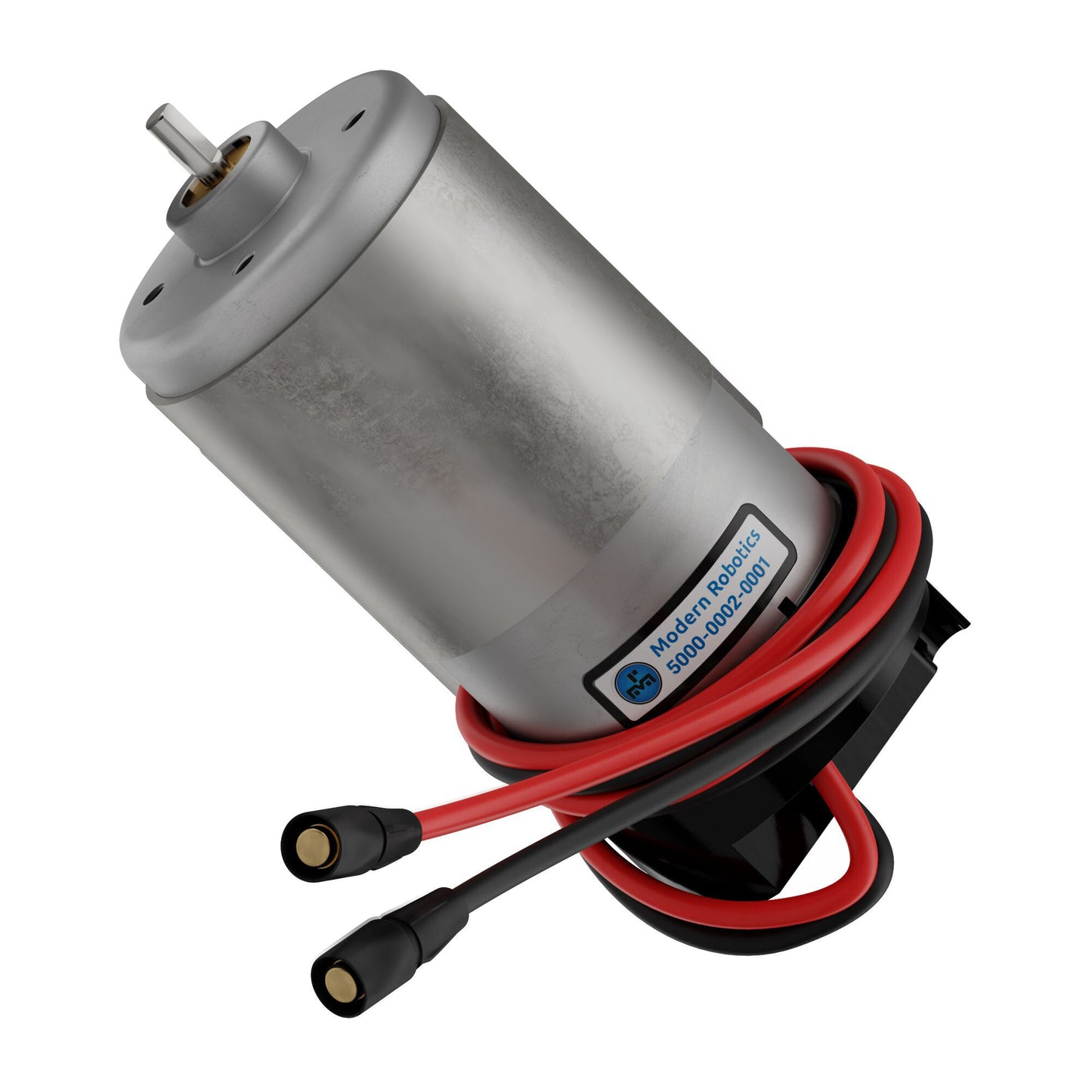

Modern Robotics 12VDC Motor

Modern Robotics 12VDC Motor

goBILDA parts we stock are ready to ship, otherwise with a 10-day lead time

SKU: GB-5000-0002-0001

Regular price $26.00 AUD
Regular price Sale price $26.00 AUD
Sale Sold out
View full details

This brushed DC motor from Modern Robotics® is legal in FTC (FIRST Tech Challenge). It is the powerhouse driving the gearboxes of our Yellow Jacket gear motors. Its encoder is designed to work at 3.3V or 5V. Whether you are using an Arduino or the REV Expansion Hub, you don't need to bother with a logic level converter.

Specs

Weight 247g
Motor Type Brushed DC
Nominal Voltage 12VDC
No-Load Speed @ 12VDC (Theoretical) 6000 RPM
No-Load Speed @ 12VDC (Tested) 5800 RPM
Stall Current @12VDC 9.2A
Stall Torque @12VDC 1.47 kg.cm (20.45 oz-in)
Motor Connector Type 3.5 FH-MC Bullet Connectors
Encoder Connector Type 4-Pos JST XH [FH-MC]
Encoder Type Relative, Quadrature
Encoder Sensor Type Magnetic (Hall Effect)
Encoder Voltage Range 3.3 - 5VDC
