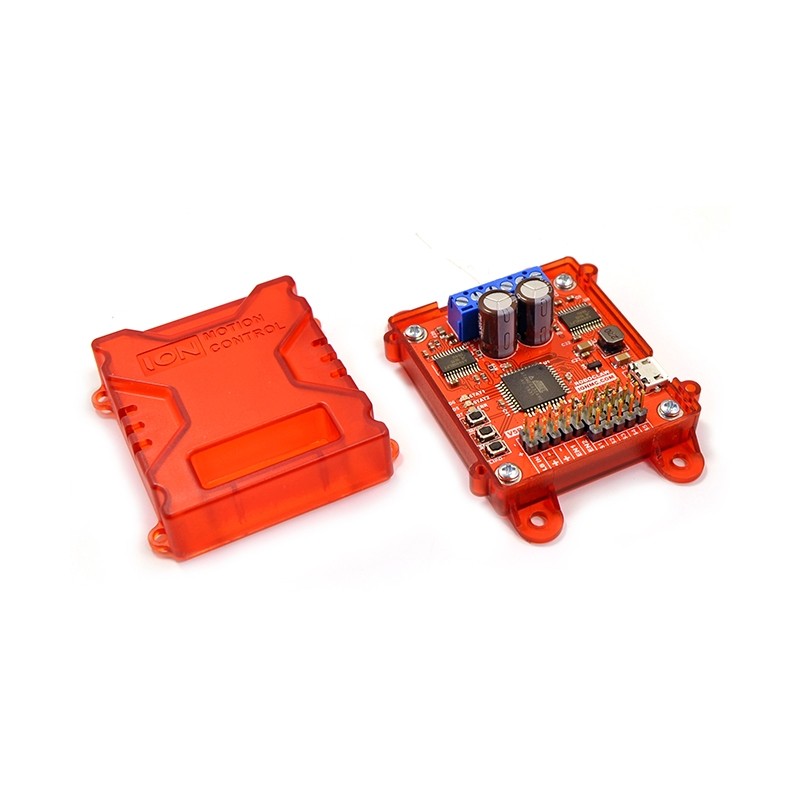

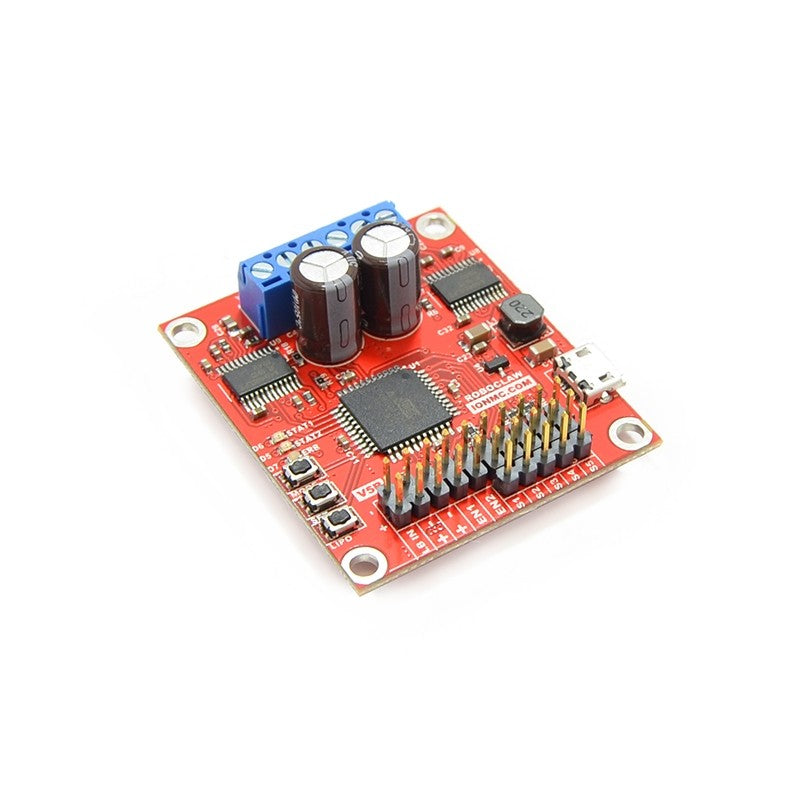

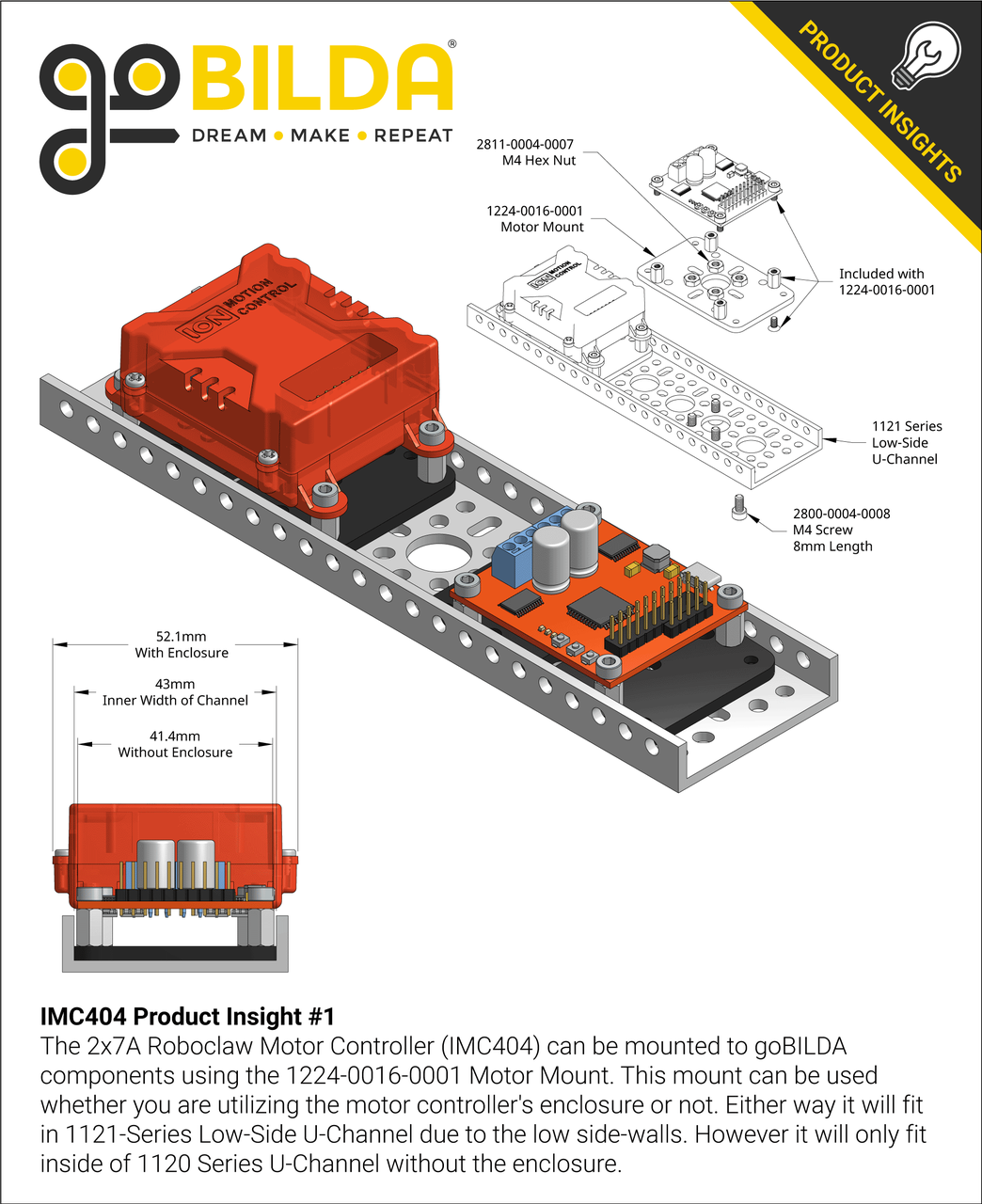

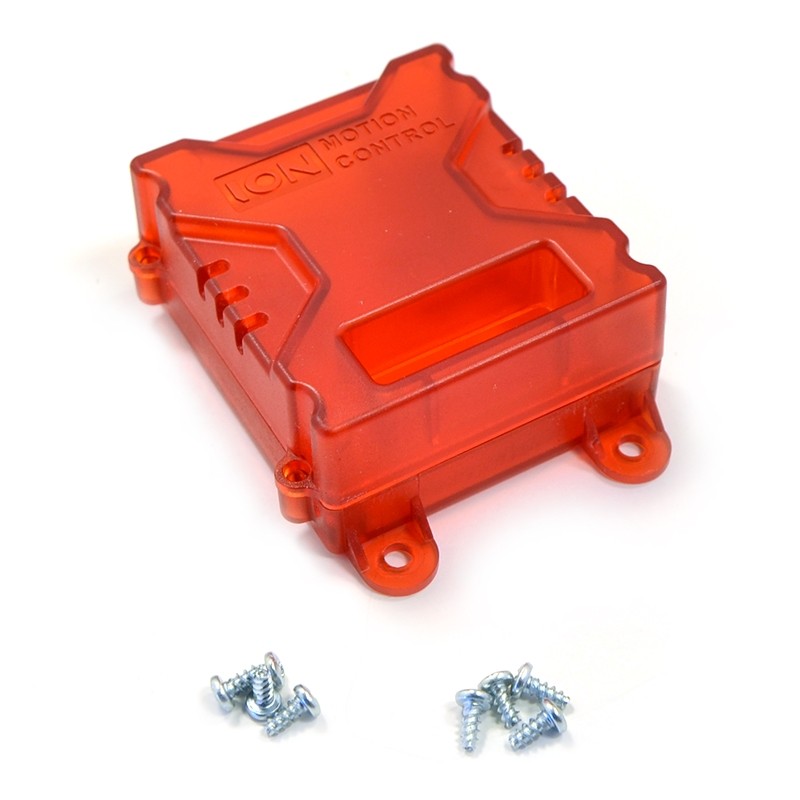

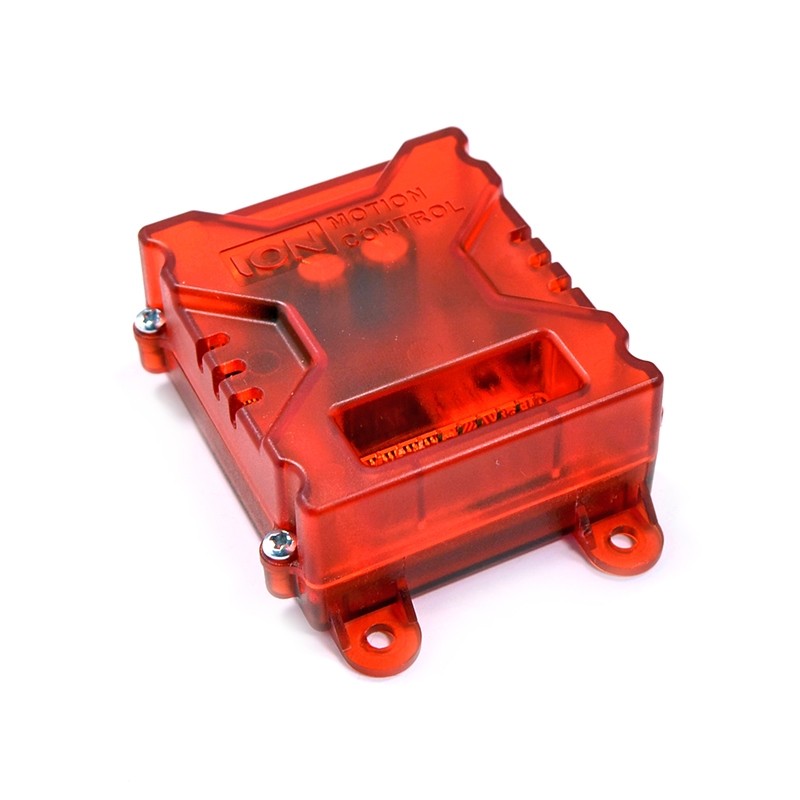

RoboClaw 2x7A Motor Controller

The RoboClaw 2x7A is an intelligent motor controller designed to control two brushed DC motors at 7.5 Amps continuous with up to 15 Amps peak per channel. It can be controlled from USB, RC radio, PWM, TTL serial, analog and microcontrollers such as an Arduino or Raspberry Pi.

RoboClaw automatically supports 3.3V or 5V logic levels, travel limit switches, home switches, emergency stop switches, power supplies, braking systems and contactors. Power supplies can be used by enabling the built in voltage clamping control feature. A built-in switching mode BEC supplies 5VDC at up to 1.2 Amps for powering user devices.

Brushed DC motors can be controlled in open or closed loop using position or velocity control modes. RoboClaw features several built-in commands for controlling acceleration, deceleration, distance, speed, current sense, voltage limits and more. RC and analog control modes also include several user defined settings such as acceleration and decelerate speeds.

Dual quadrature encoders with up to 19.6 million pulses per second are supported and can be auto tuned using Ion Studio which is a free downloadable application. In addition, a wide range of sensor inputs including potentiometers and absolute encoders are supported. RoboClaw's closed loop functionality creates absolute control over speed, velocity and direction regardless of load changes.

RoboClaw incorporates several protection features including temperature, current, over voltage and under voltage limits. The protection features are self monitoring and protect RoboClaw from damage in any operating condition. Several user definable settings such as maximum current limit, maximum and minimum battery voltages are provided for more refined control.

RoboClaw's regenerative capabilities will charge a supply battery during slow down or breaking. It's advanced circuitry can change direction during full throttle without damage! RoboClaw also incorporates a LiPo cutoff mode to prevent battery damage.

Tech Tips:

• Motion Studio Settings:
• General Settings
• PWM Settings
• Velocity Settings
• Position Settings


• Arduino:
• Using the RoboClaw Arduino Library
• Using Encoders with the Arduino Library
• Standard Serial Mode with Arduino
• Standard Serial Bus Operation with Arduino


• Raspberry Pi:
• Using Encoders with the Python Library
• Configuring the Raspberry Pi 3 Serial Port
• Packet Serial with the Raspberry Pi 3

• Standard Serial with the Raspberry Pi 3

• Standard Serial Bus with the Raspberry Pi 3
• Packet Serial Bus Operation with the Raspberry Pi 3
