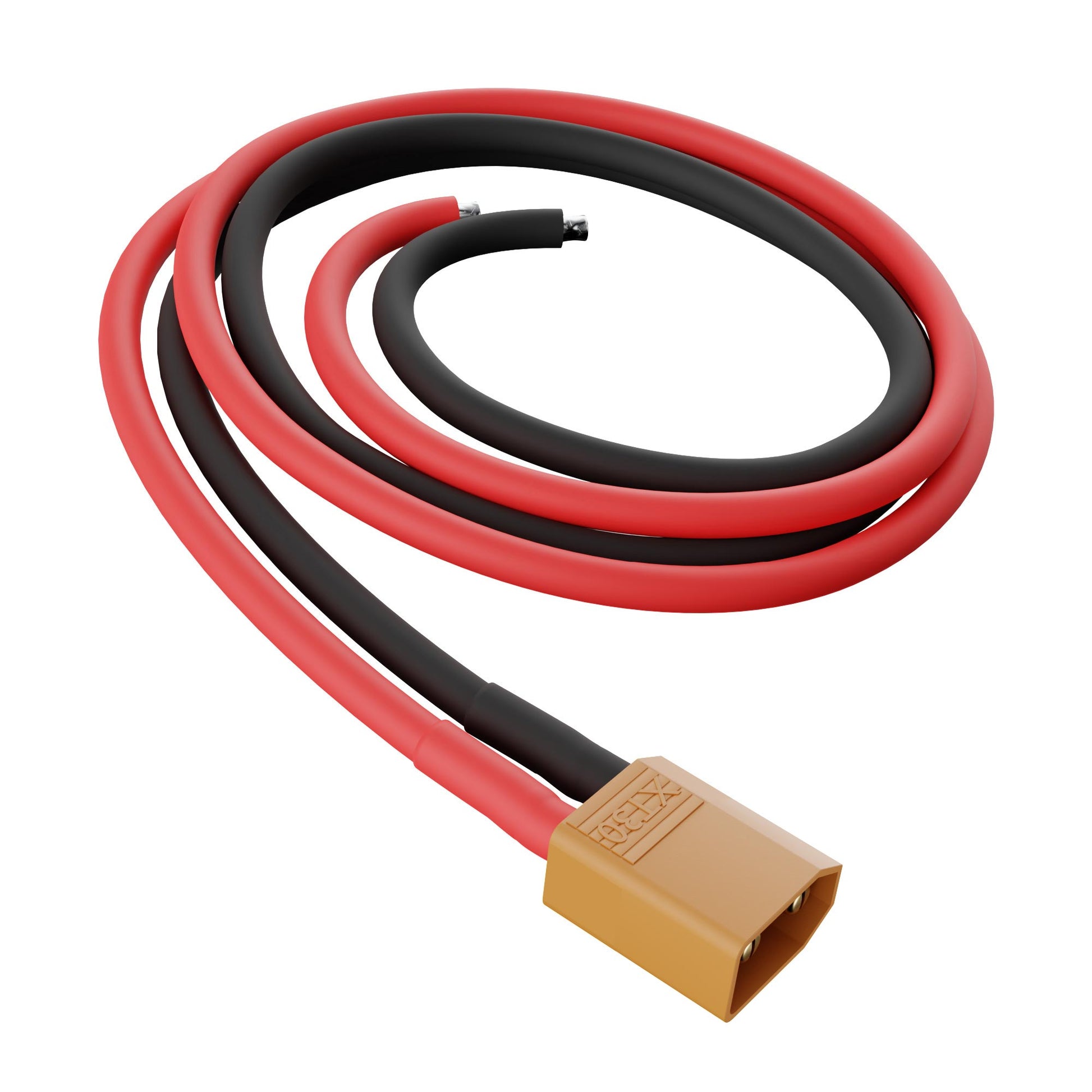

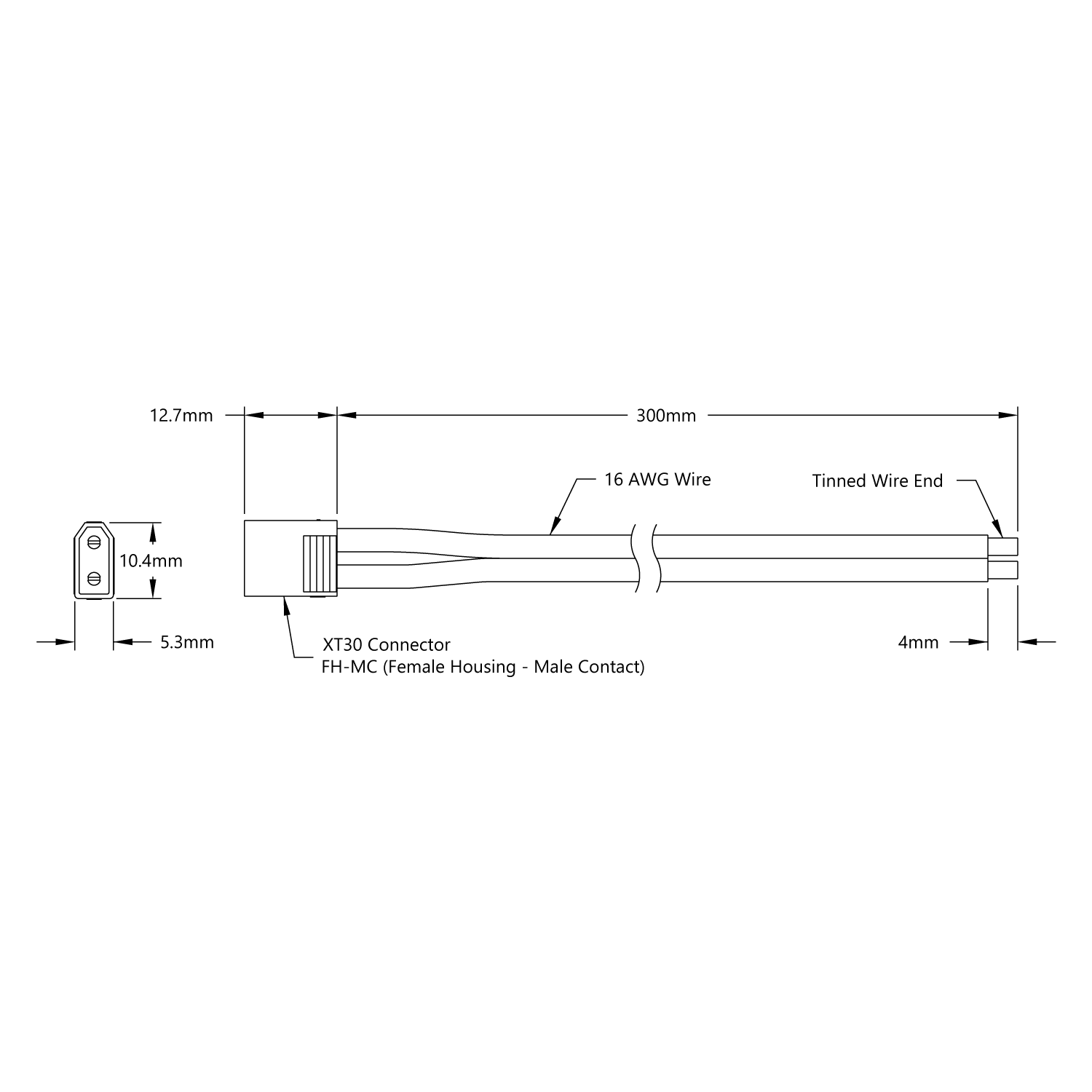

This XT30 lead consists of 300mm length, 16AWG, bonded wire that is terminated in an XT30 (FH-MC) connector on one end and bare wires on the other. The bare wires are great for going into screw terminals of a motor controller, soldering into thru-holes of a PCB or for soldering up a custom wiring harness. The connector on this lead is the mate to the connector found on many of our batteries.
Tech Tip
FH-MC = Female Housing, Male Contacts
Specs
| Weight | 13g |
|---|---|
| Wire Gauge | 16AWG |
| Jacket Material | PVC |
| Wire Material | Stranded Copper |
